WUF 150

EN – Installation instruction for actuator interface WUF 150 (translated text)
DE – Bedienungsanleitung für Antrieb-Interface WUF 150 (übersetzter Text)
DK – Installationsvejledning til motorinterface WUF 150 (original tekst)
FR – Notice d’installation pour unité d’interface moteur WUF 150 (texte traduit)

1 EN – Description ............................................................................................... 3

1.1 Technical data ..................................................................................................................................................... 4

1.2 Actuator combinations ....................................................................................................................................... 4

1.3 Mounting, installation and wiring....................................................................................................................... 5

1.4 Important information ........................................................................................................................................ 6

2 DE – Beschreibung ............................................................................................ 6

2.1 Technische Daten ................................................................................................................................................ 7

2.2 Antriebskombinationen ...................................................................................................................................... 8

2.3 Montage und Anschluss ...................................................................................................................................... 9

2.4 Wichtige informationen ...................................................................................................................................... 9

3 DK – Beskrivelse ............................................................................................. 10

3.1 Teknisk data ...................................................................................................................................................... 11

3.2 Motorkombinationer ........................................................................................................................................ 11

3.3 Montage, installation og tilslutning .................................................................................................................. 12

3.4 Vigtig information ............................................................................................................................................. 13

4 FR – Description ............................................................................................. 13

4.1 Données techniques ......................................................................................................................................... 14

4.2 Combinaisons possibles de moteurs ................................................................................................................ 15

4.3 Montage, installation et câblage ...................................................................................................................... 16

4.4 Informations importantes ................................................................................................................................. 16

3

1 EN – Description

WUF 150 is an actuator interface, which enables 230 VAC operation of WindowMaster 24 VDC actuators. One
phase for opening and one phase for closing of the window. WUF 150 must only be connected to genuine
WindowMaster window actuators with a max total current consumption of 5A.

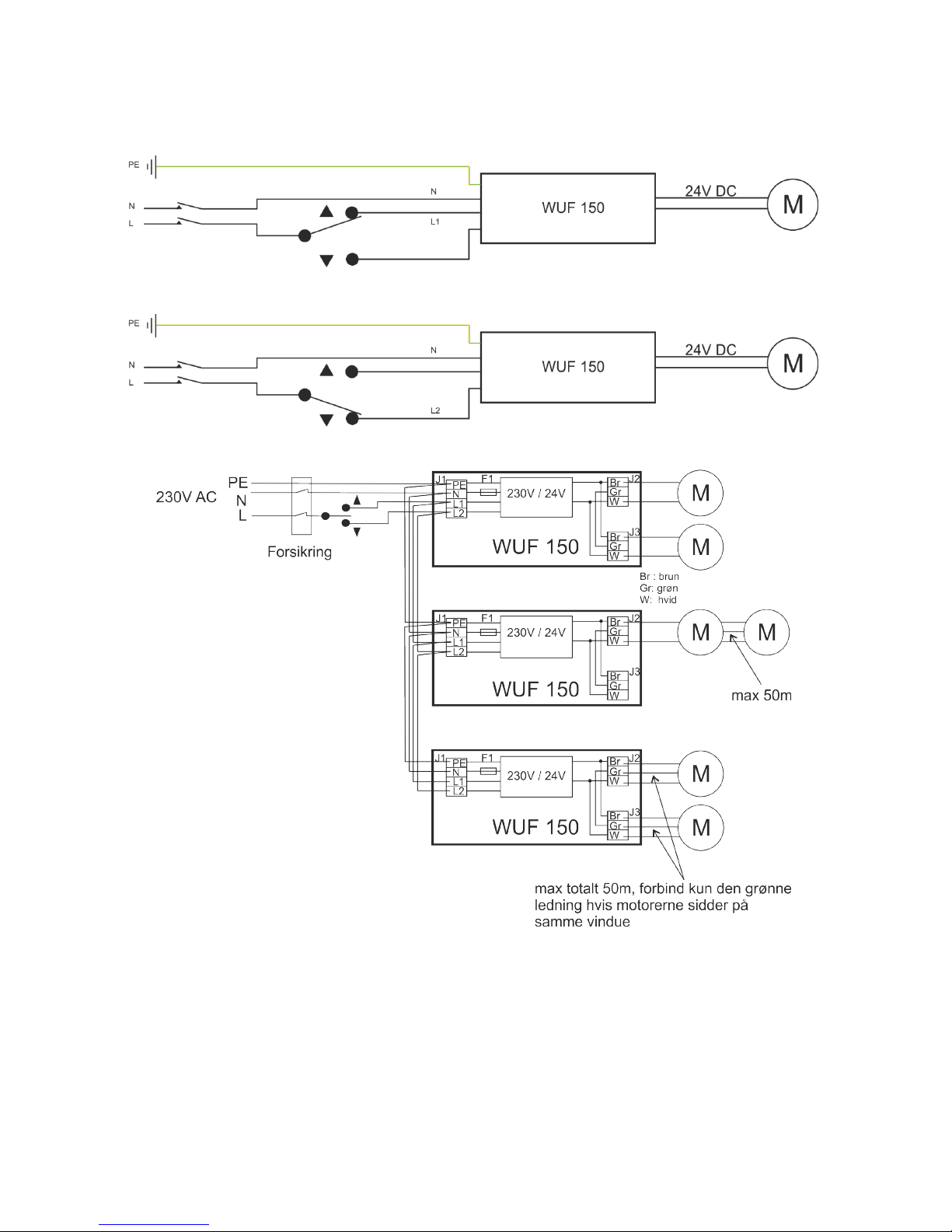

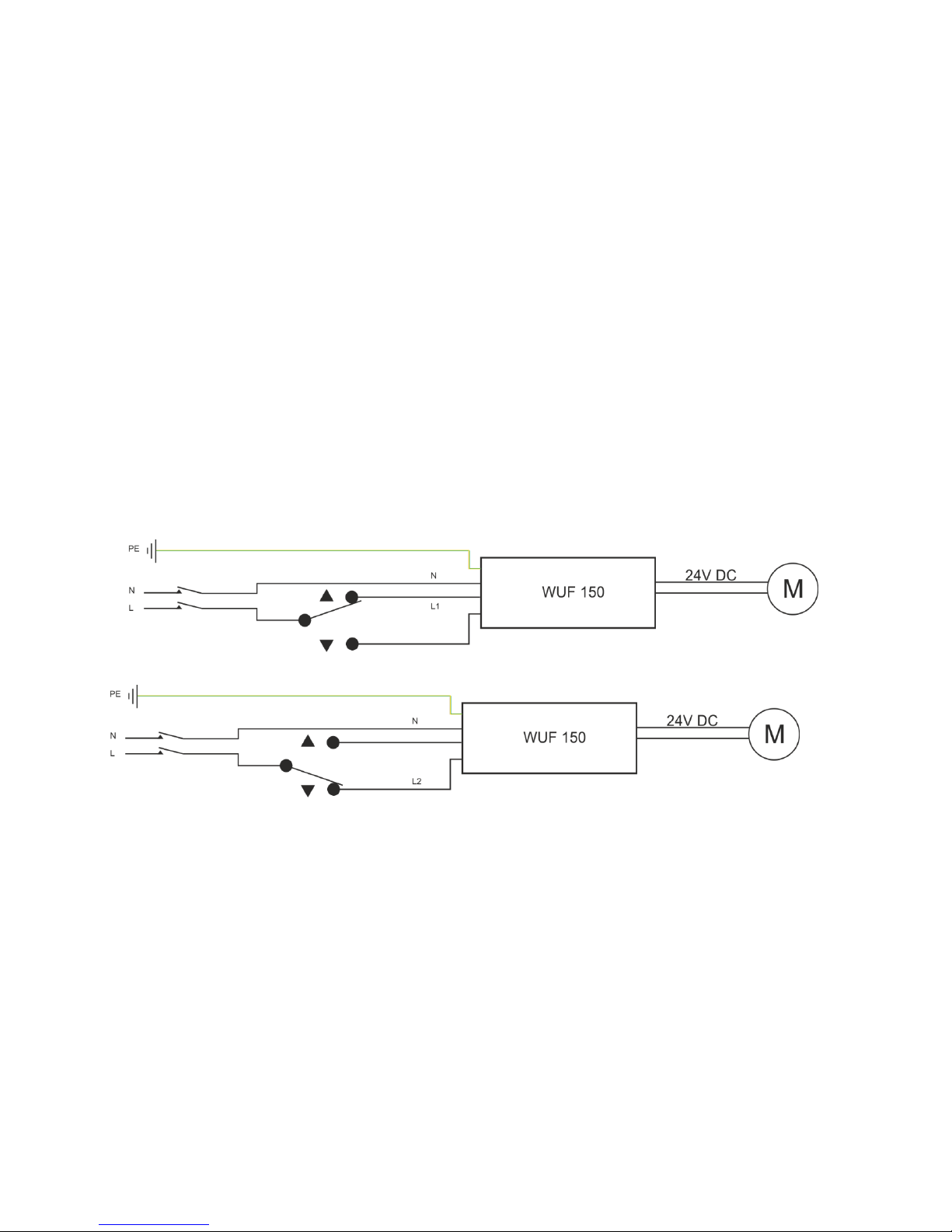

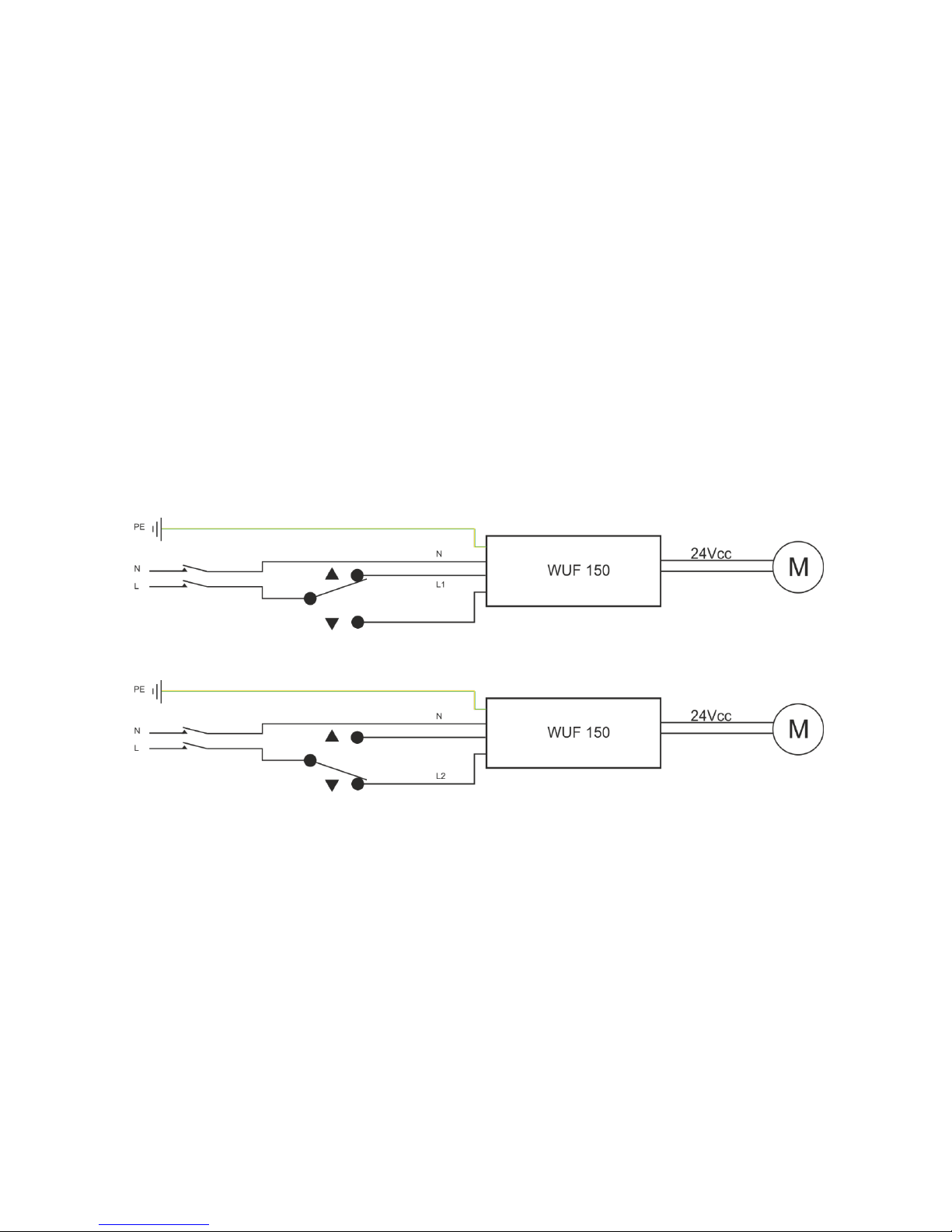

WUF 150 opening a window

WUF 150 closing a window

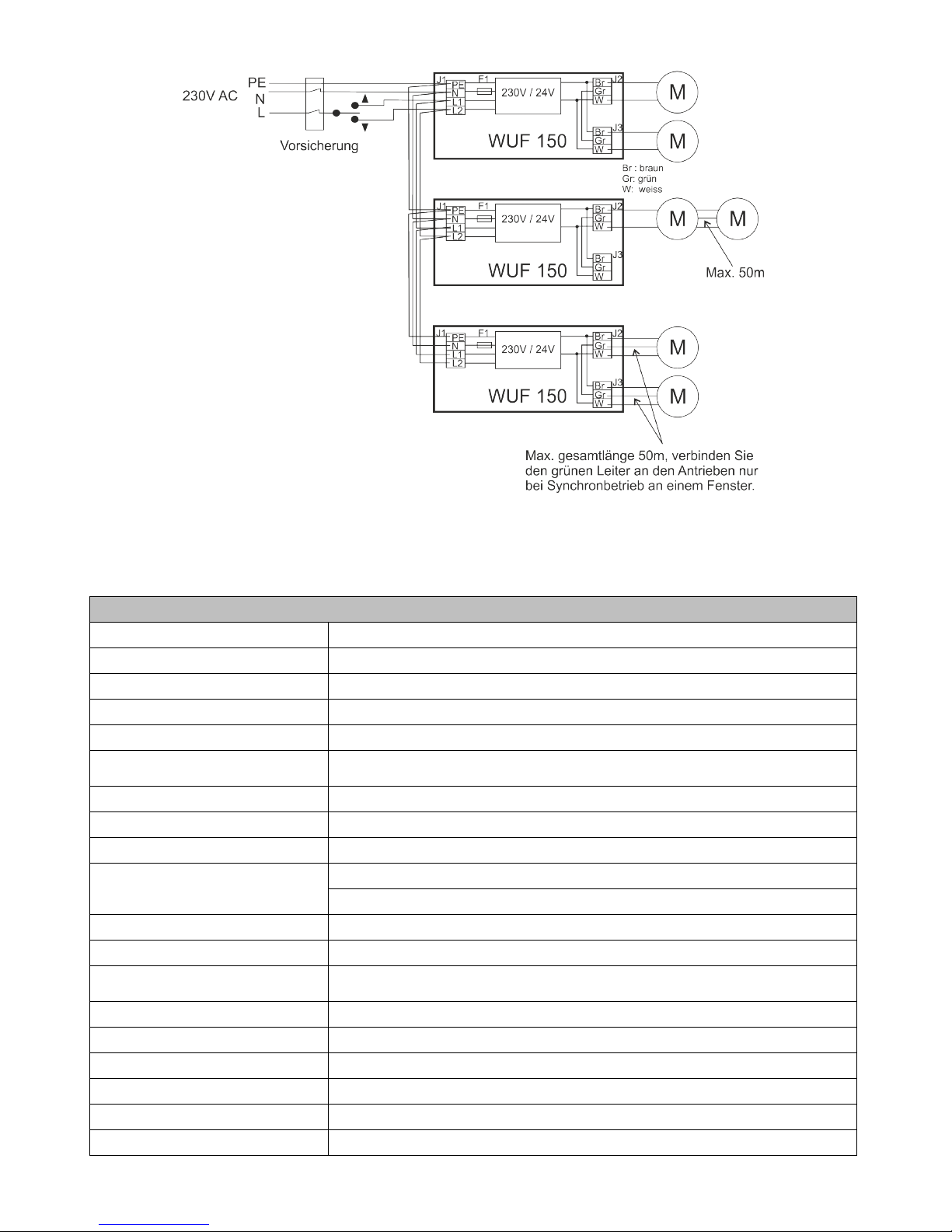

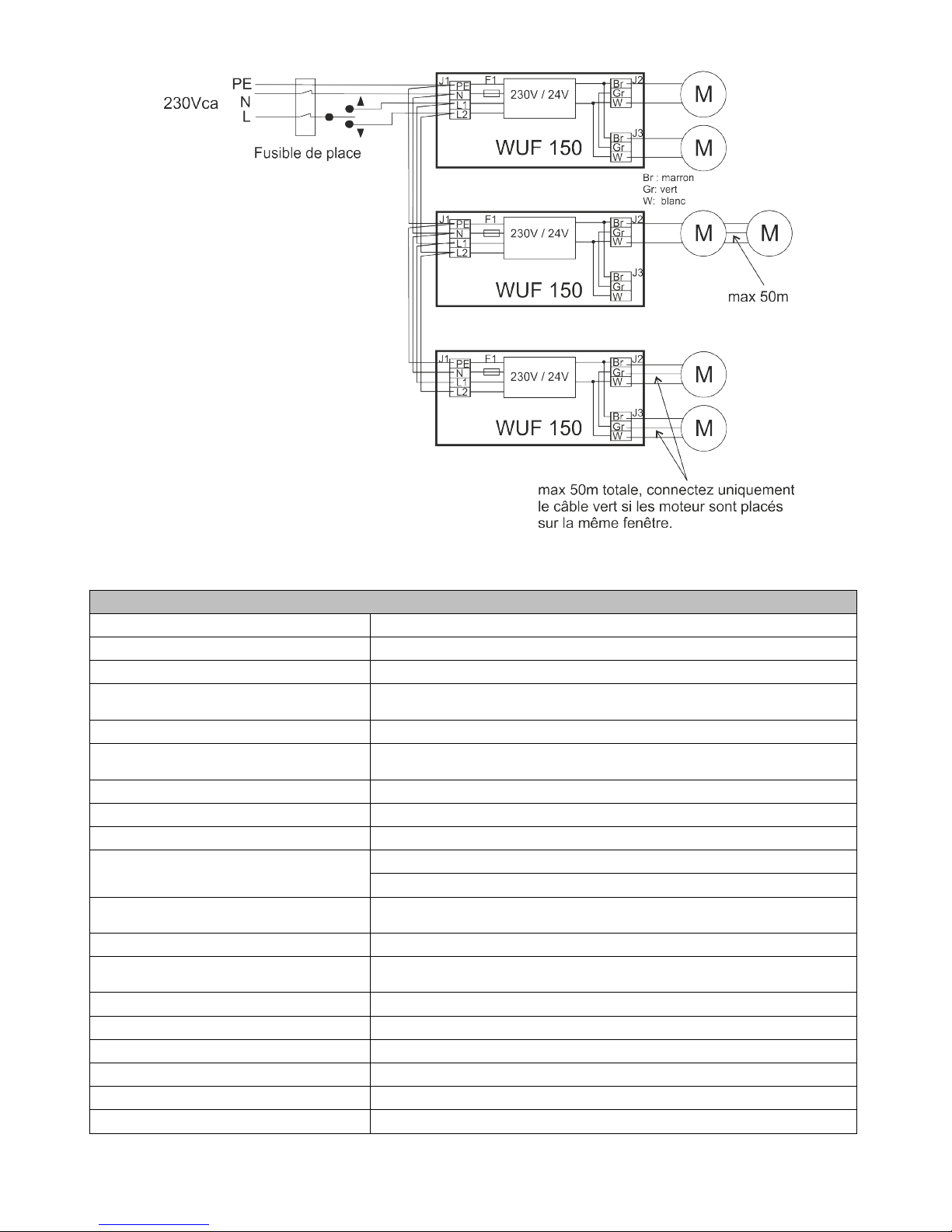

Up to eight interfaces can be connected in parallel to the same switch.
Notice the peak current and on-site fuse characteristic.

4

1.1 Technical data

Technical data

Primary voltage

230 VAC, ±10%, 50-60HZ, tolerates constant voltage on the input

Primary power consumption

120VA, tolerates constant voltage on the input

Secondary voltage

±24 VDC ±2%

Secondary output current

5A - see table below for possible actuator types and numbers

Inrush current on primary side

Max. 10A<10msec

Fuse on site

Up to eight WUF 150 in parallel under one 10A automatic fuse with C, D or
K characteristic

Standby consumption

3W by 230V (no actuators run)

Open circuit

24V by 253V

Ripple at full load

Max. 2%

Connection
Primary site: 2,5mm

2

Secondary site: 4mm

2

Insulation/Earthing

Class I product accordingly EN 60 850-1, why earth connection is required

Constant power

Yes

Operating condition

-5°C - +50°C max. 90% RH, for indoor installation, the interface may not be
covered or exposed directly to the sun

Switch on duration

ED max 40% (max. 4min. per 10min.)

Material

ABS

Colour

White (RAL 9010)

Size

208 x 170 x 81mm (W x H x D)

Weight

1.4kg

IP rating

IP30

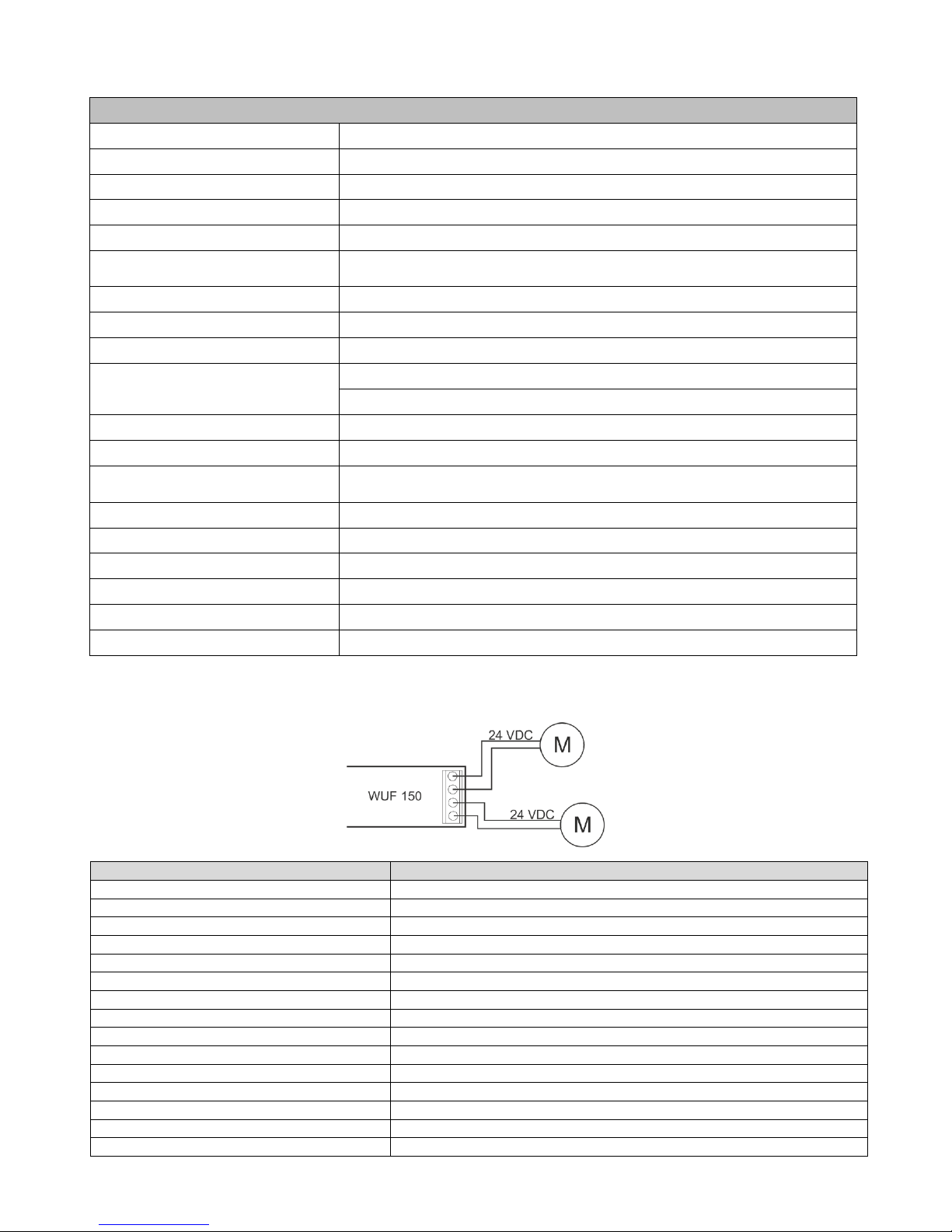

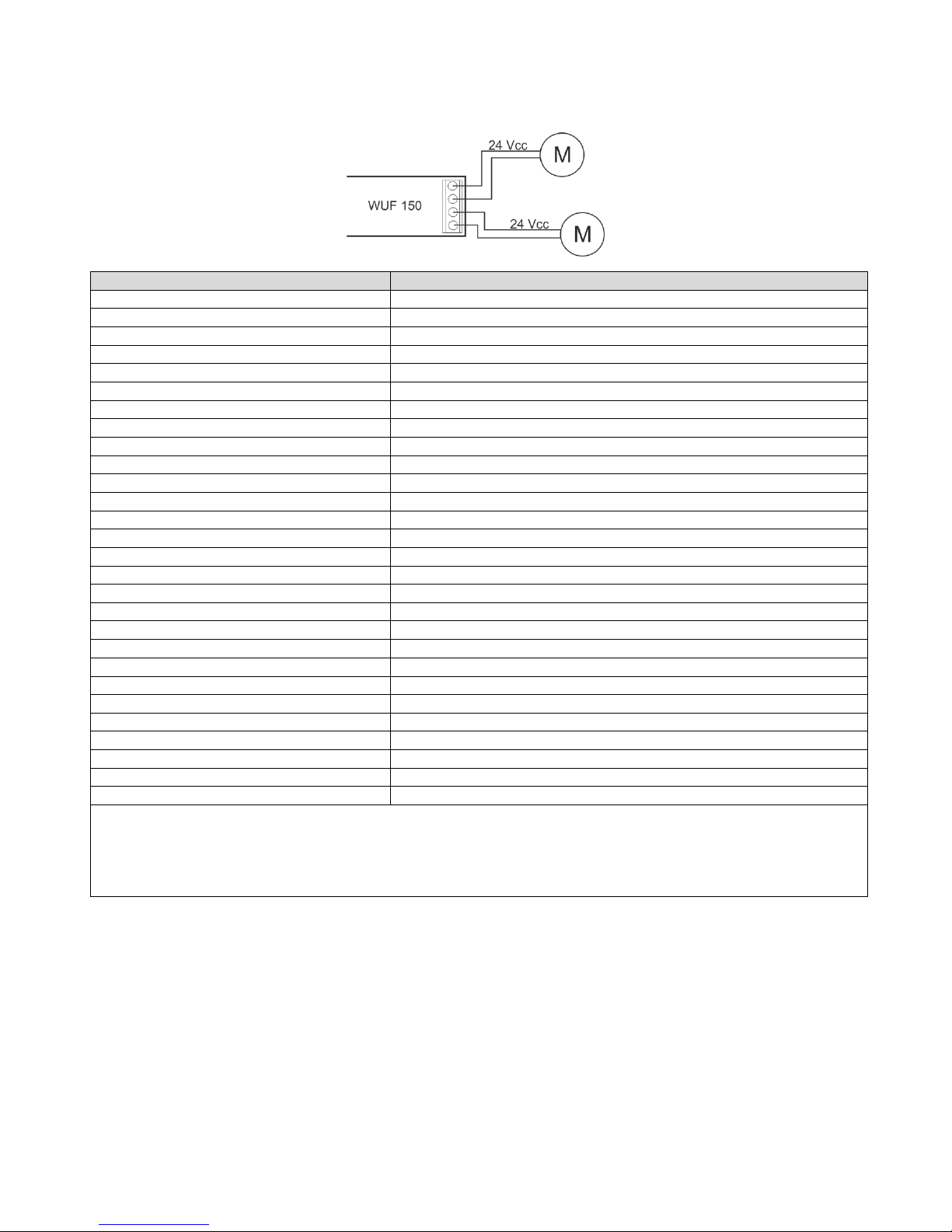

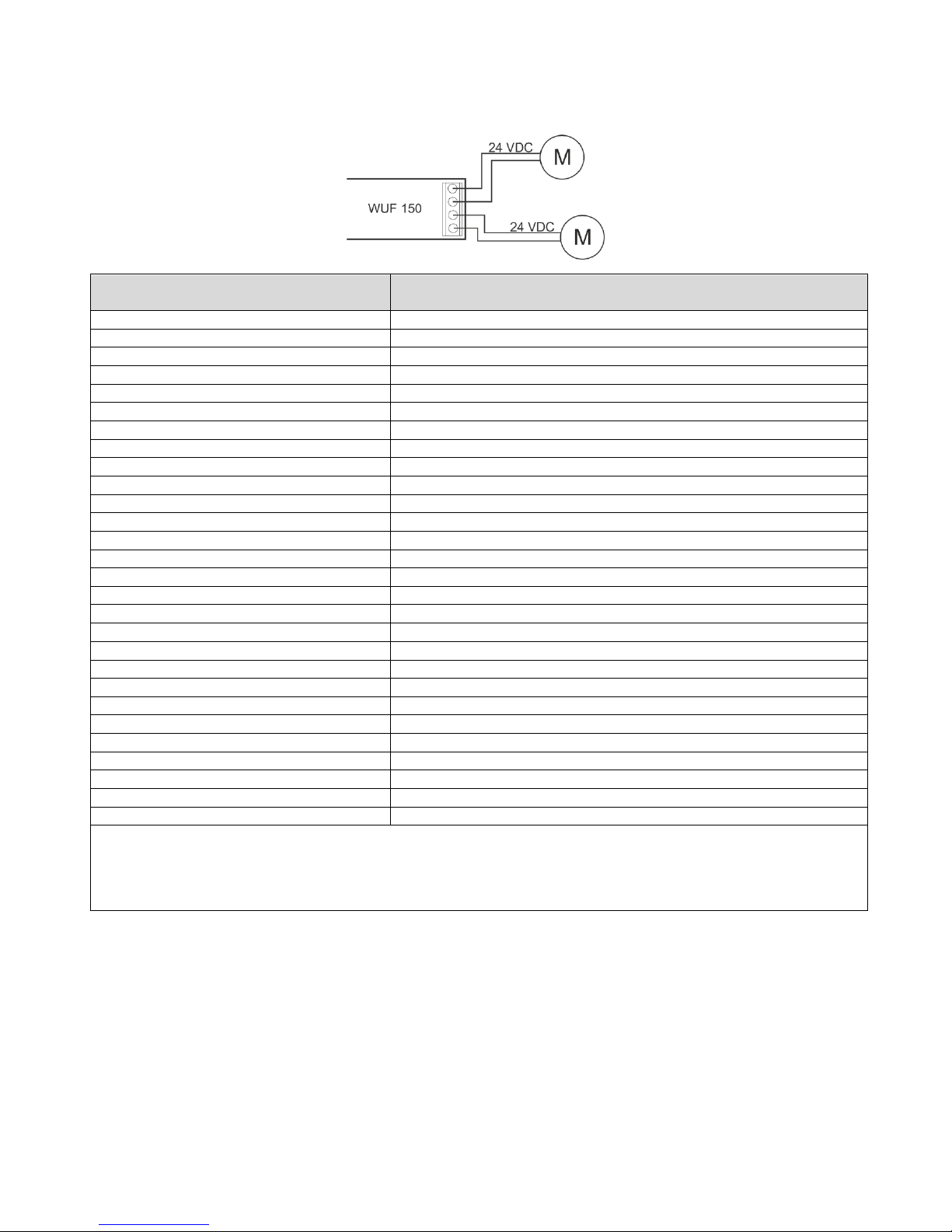

1.2 Actuator combinations

Depending on the actuator type, multiple actuators of the same type can be connected to one WUF 150, see the
table below for possible combinations.

Actuator type

Max number of actuators on one WUF 150

WMI 101 1)

5

WML 825 1)

5

WMS 306 1)

4

WMS 309 1)

4

WMS 409 1)

2

WMS 306 -1 / -2 2)

4

WMS 309 -1 / -2 2)

4

WMS 409 -1 / -2 2)

2

WMU 100 1)

5

WMU 120 1)

5

WMU 836 -1 / -2 2)

4

WMU 842 -1 / -2 2)

4

WMU 861 -1 2)

5

WMU 861 -2 2)

4

WMU 862 -1 2)

2

WMU 863 -1 2)

1

WMU 864 -1 3)

1

5

1.3 Mounting, installation and wiring

WUF 150 can be surface mounted on the wall or on the ceiling next to the WindowMaster actuators. 230 Volt and
actuators connections are done via screw terminals on the WUF 150.

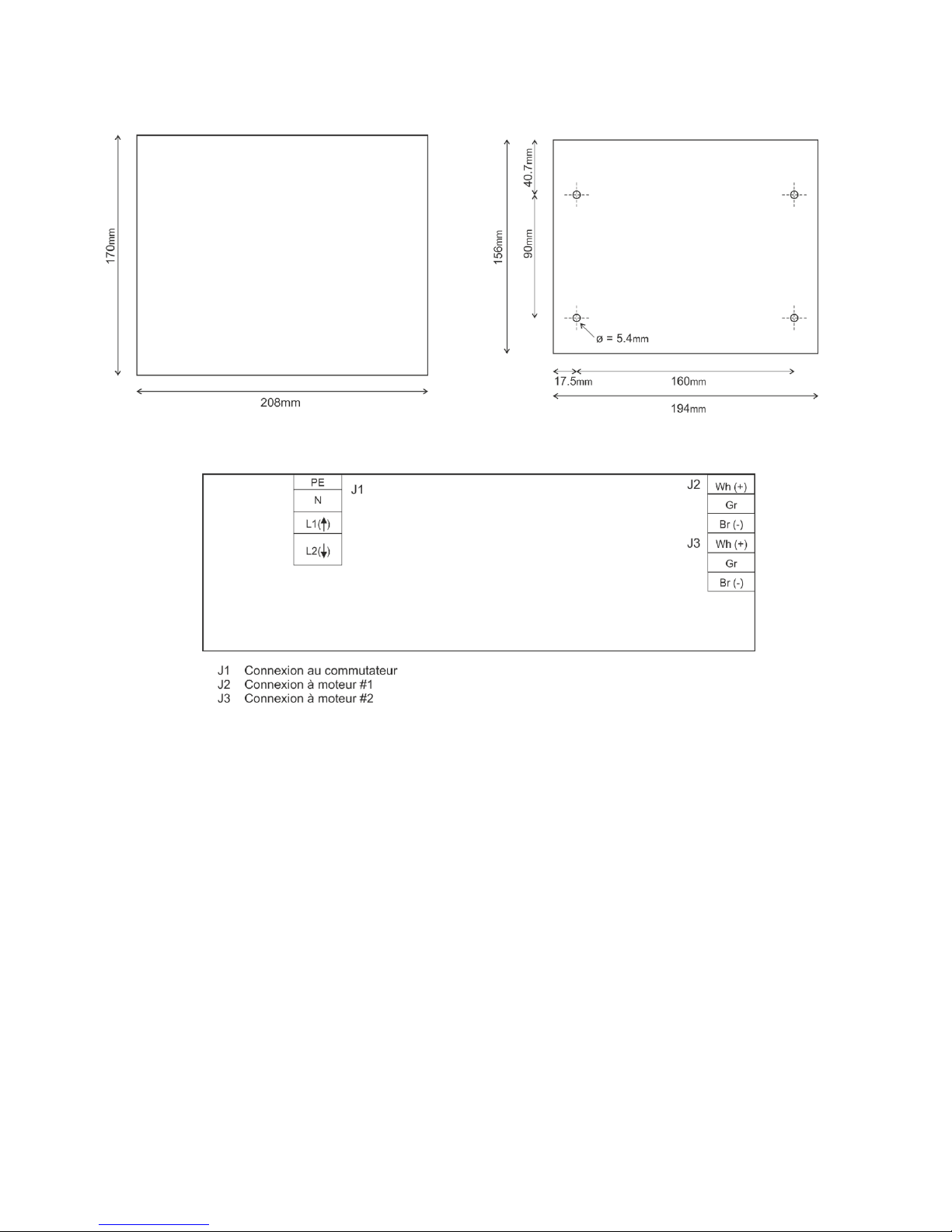

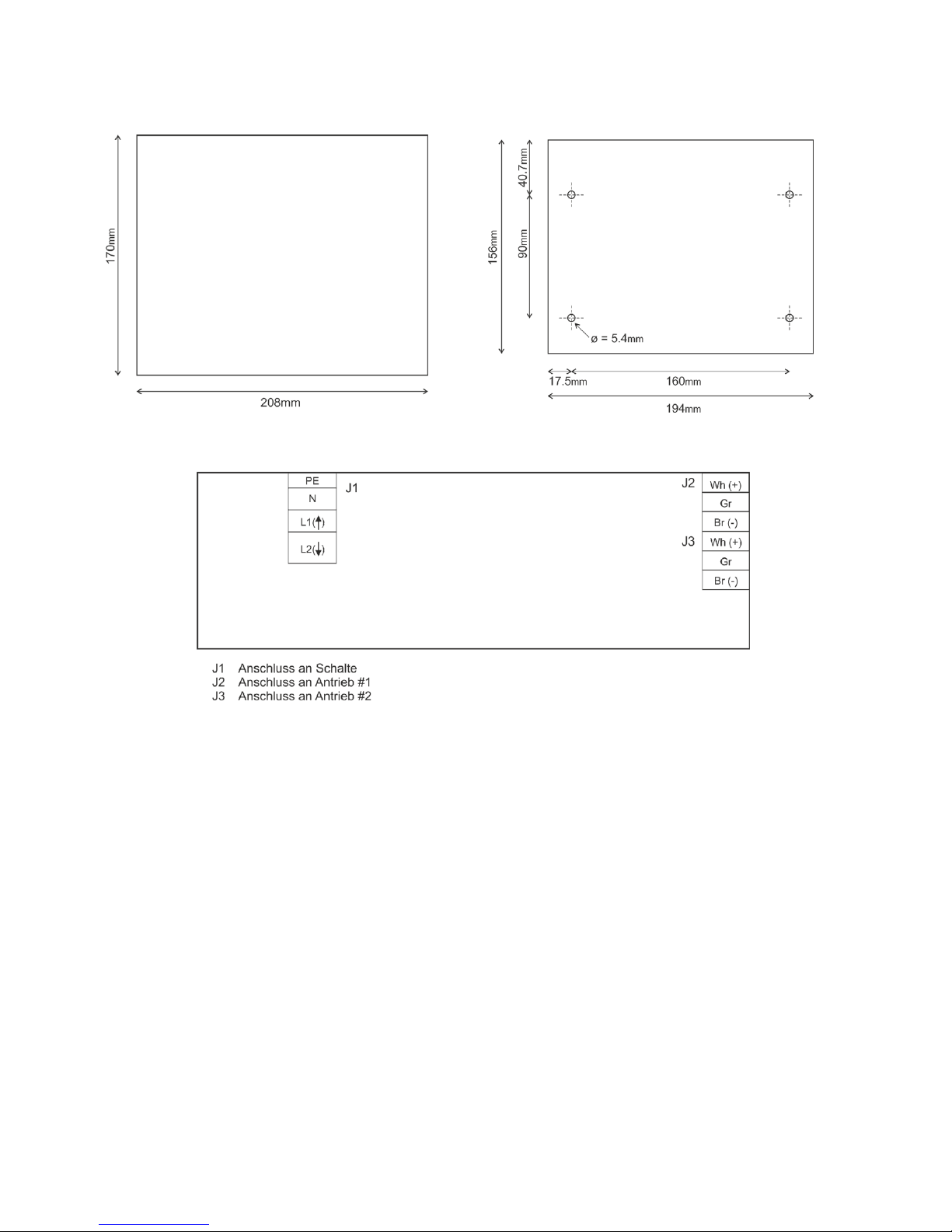

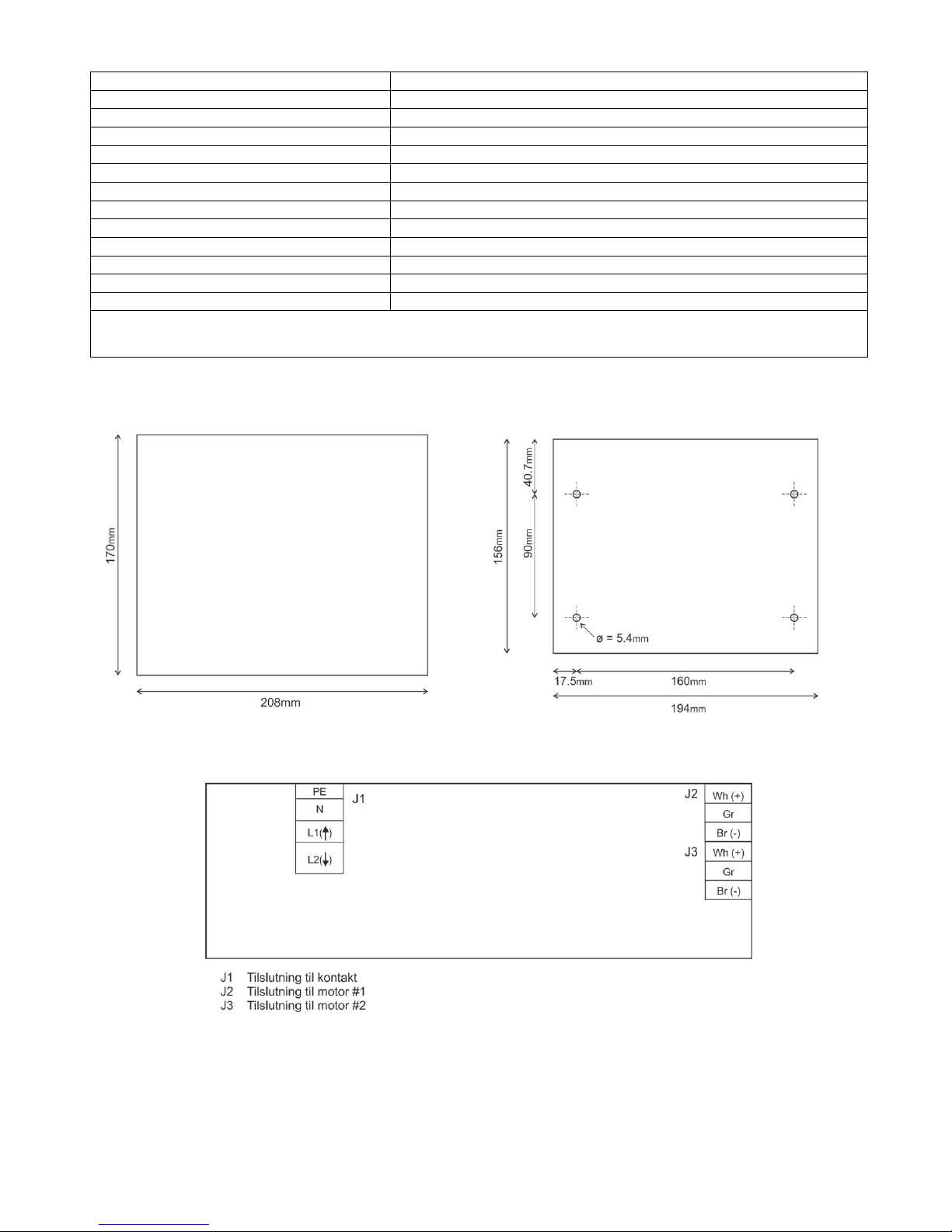

Outer dimensions

Dimension for mounting

PCB and wiring diagram of the WUF 150

WMU 882 -1 2)

2

WMU 883 -1 2)

1

WMU 884 -1 3)

1

WMU 885 -1 3)

1

WMU 895 -1 3)

1

WMX 503 / 504 / 523 / 526 -1 / -2 2)

10

WMX 503 / 504 / 523 / 526 -3 2)

9

WMX 503 / 504 / 523 / 526 -4 2)

8

WMX 803 / 804 / 823 / 826 -1 2)

5

WMX 803 / 804 / 823 / 826 -2 2)

4

WMX 803 / 804 / 823 / 826 -3 2)

3

1) Aside from a window actuator(s) it is also possible to connect a locking / espagnolette actuator(s) type WMB 801.

2) Aside from a window actuator(s) it is also possible to connect a locking / espagnolette actuator(s) type WMB 801 or WMB 811 /
WMB 812.

3) Aside from a window actuator it is also possible to connect a locking / espagnolette actuator(s) type WMB 811 / WMB 812.
