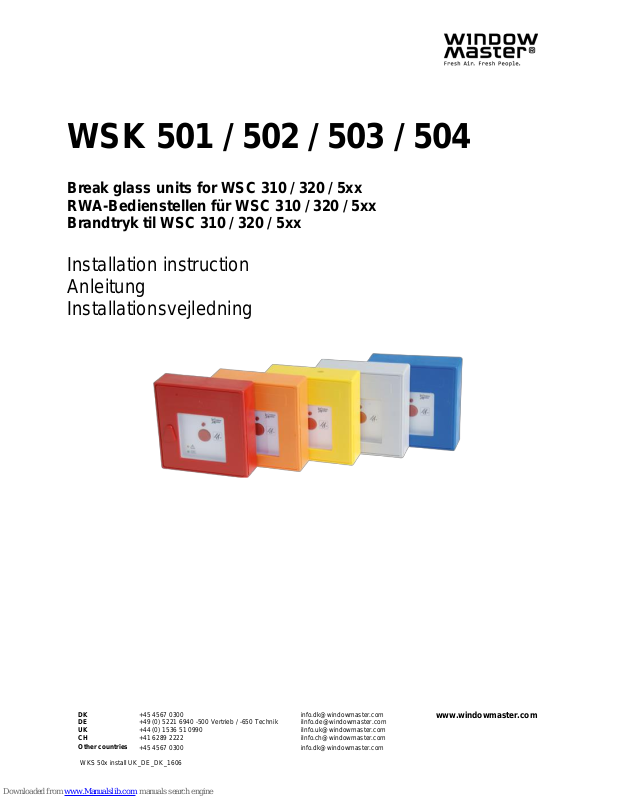

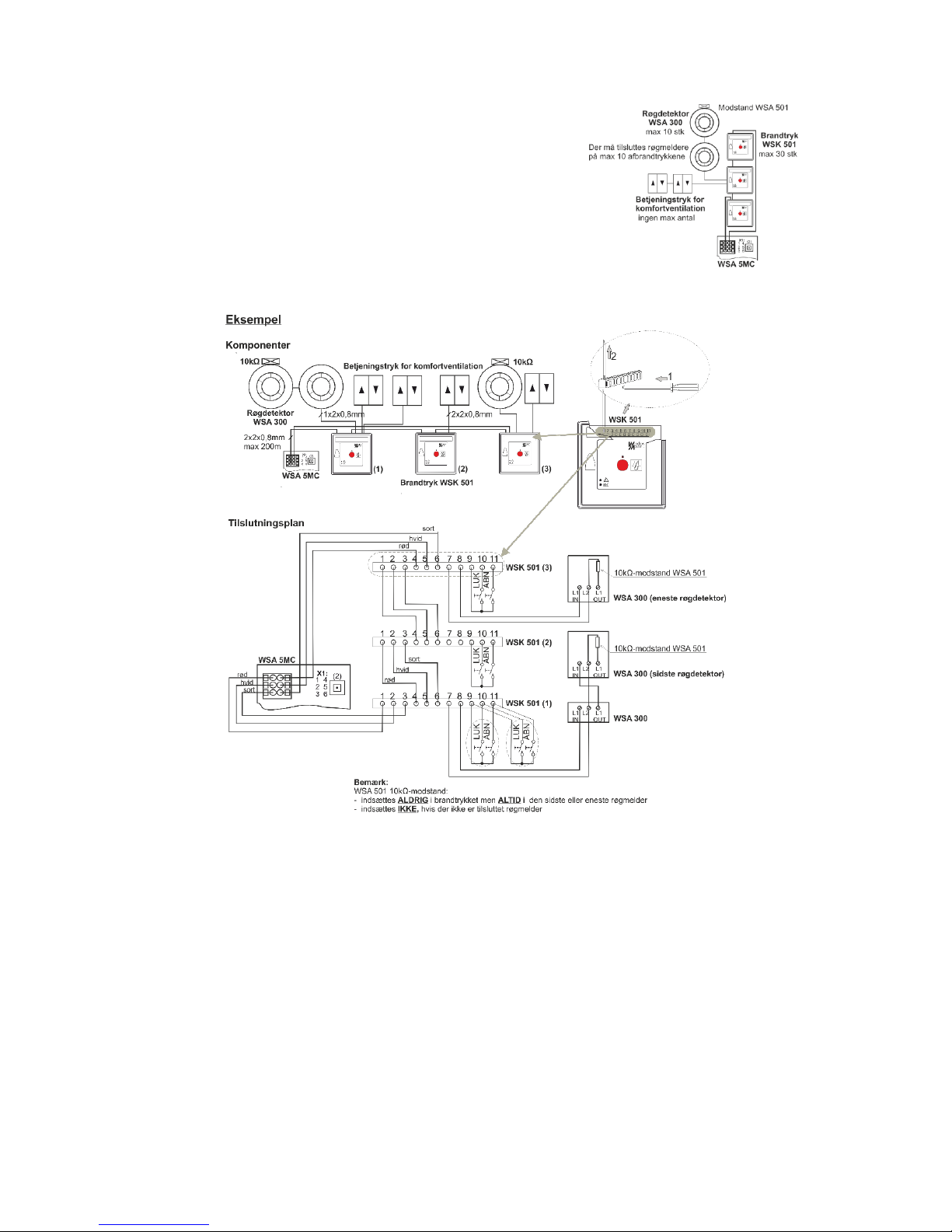

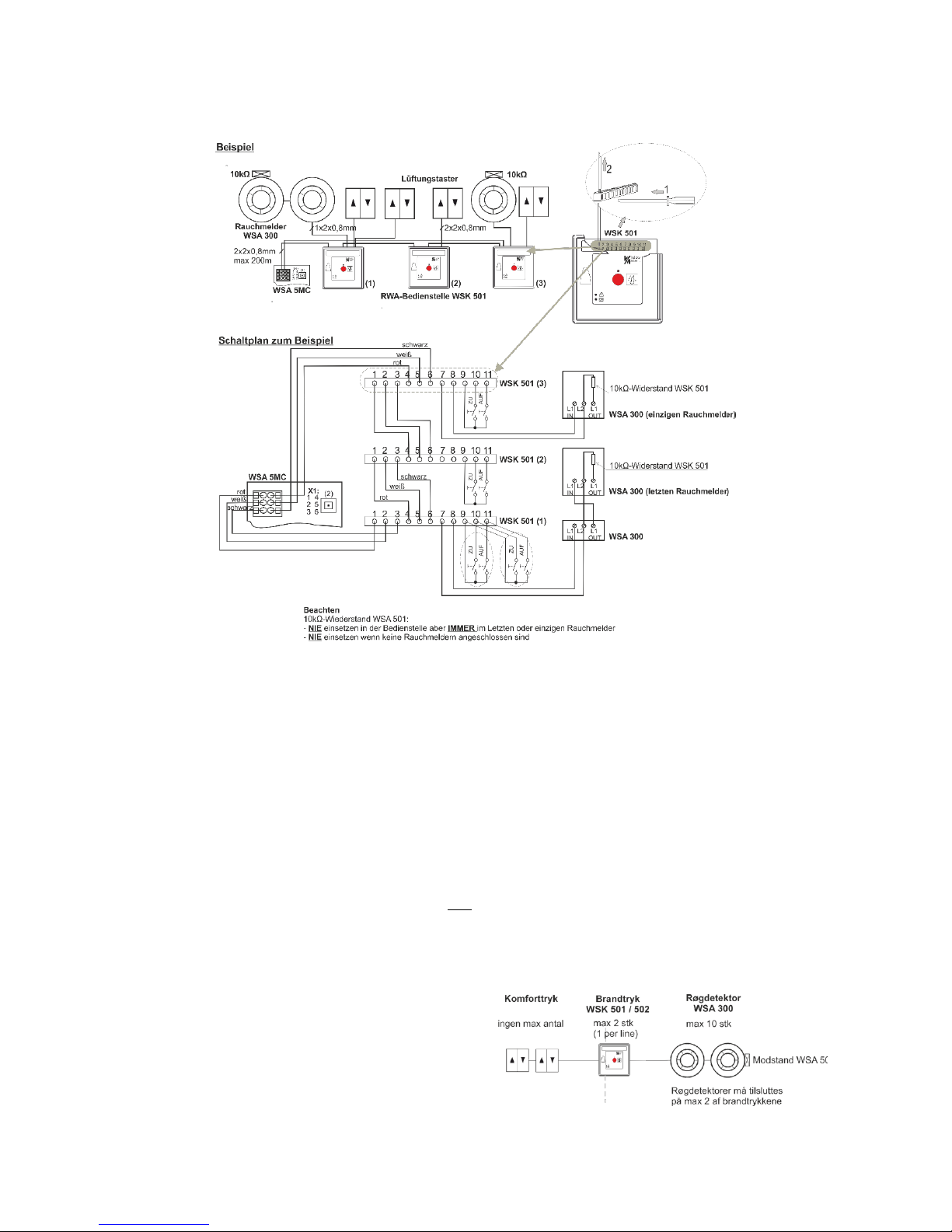

WSK 501 / 502 / 503 / 504

Break glass units for WSC 310 / 320 / 5xx
RWA-Bedienstellen für WSC 310 / 320 / 5xx
Brandtryk til WSC 310 / 320 / 5xx

Installation instruction
Anleitung
Installationsvejledning

2

Table of contents / Inhaltsverzeichnis / Indholdsfortegnelse

Table of contents / Inhaltsverzeichnis / Indholdsfortegnelse ....................................................................................... 2

1 UK – Installation instruction .................................................................................................................................... 2

1.1 Connection to WSC 310 / 320 STANDARD and PLUS .......................................................................................... 2

1.2 Connection to WSC 5xx ......................................................................................................................................... 4

1.3 Fault indication ....................................................................................................................................................... 4

2 DE – Anleitung .......................................................................................................................................................... 5

2.1 Anschluss an WSC 310 / 320 STANDARD und PLUS ........................................................................................... 5

2.2 Anschluss an WSC 5xx .......................................................................................................................................... 6

2.3 Fehleranzeichen..................................................................................................................................................... 7

3 DK – Installationsvejledning .................................................................................................................................... 7

3.1 Tilslutning til WSC 310 / 320 STANDARD og PLUS .............................................................................................. 7

3.2 Tilslutning til WSC 5xx ........................................................................................................................................... 9

3.3 Fejlindikering .......................................................................................................................................................... 9

1 UK – Installation instruction

Break glass unit Connection possibilities

WSK 501 & WSK 502 Smoke detector and comfort keypads can be connected to the break glass unit.
WSK 503 & WSK 504 Smoke detector and comfort keypads cannot be connected to the break glass unit.

1.1 Connection to WSC 310 / 320 STANDARD and PLUS

Up to 10 break glass units type WSK 50x can be connected to the WCA 3SS / 3PS, but only 1 WSK 501 / 502 per line,
meaning max 2 WSK 501 / 502 per panel. Up to 5 break glass units type WSK 503 or WSK 504 can be connected to each
line.

If keypad and smoke detector are to be connected to the
break glass unit, WSK 501 or WSK 502 are to be used. Max
one of these break glass unit on each motor line, the
remaining units (up to four) must be of type WSC 503 or
WSC 504
Up to 10 smoke detectors can be connected to each WSK
501 / 502. There is no limit on the number of ventilation
keypads connected to the WSK 501 / 502.

3

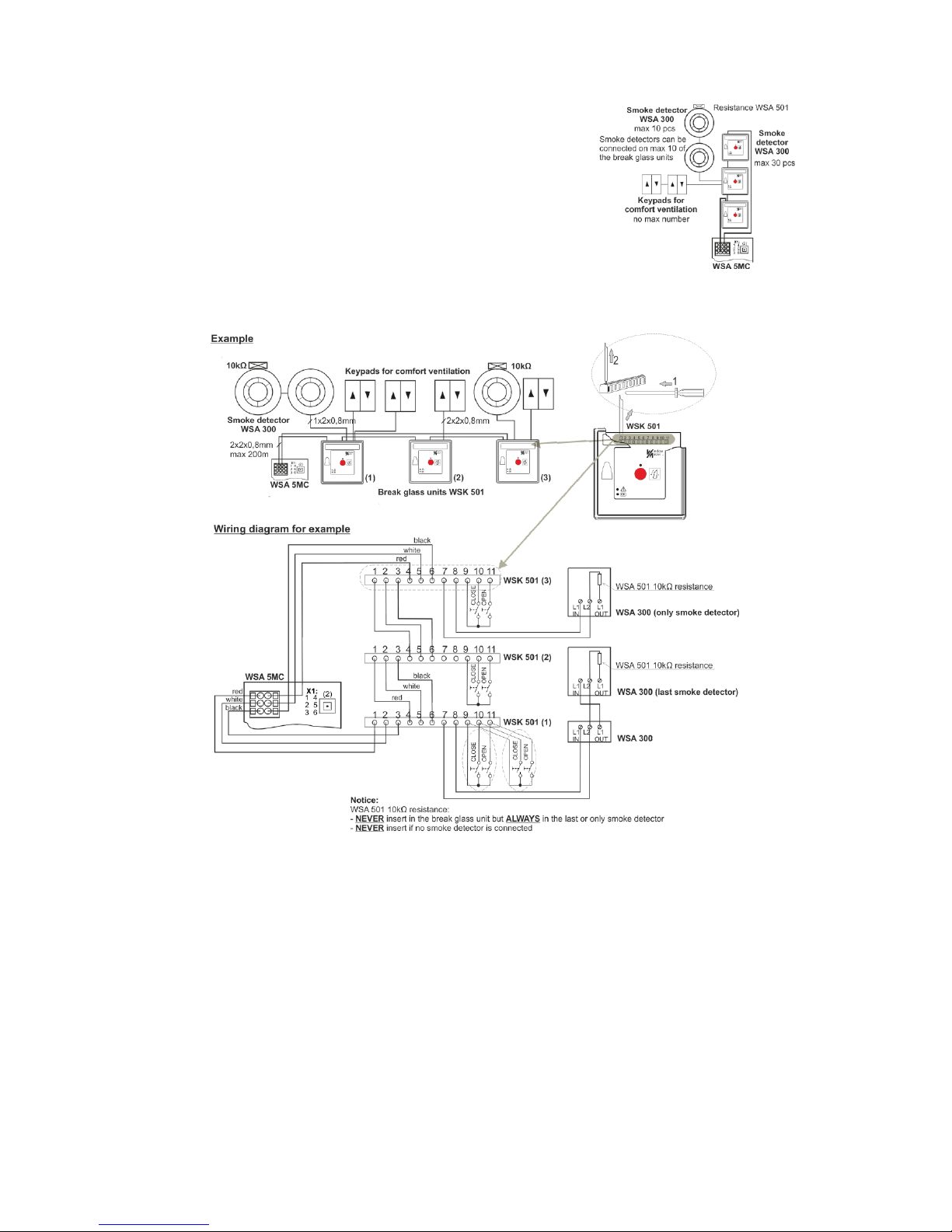

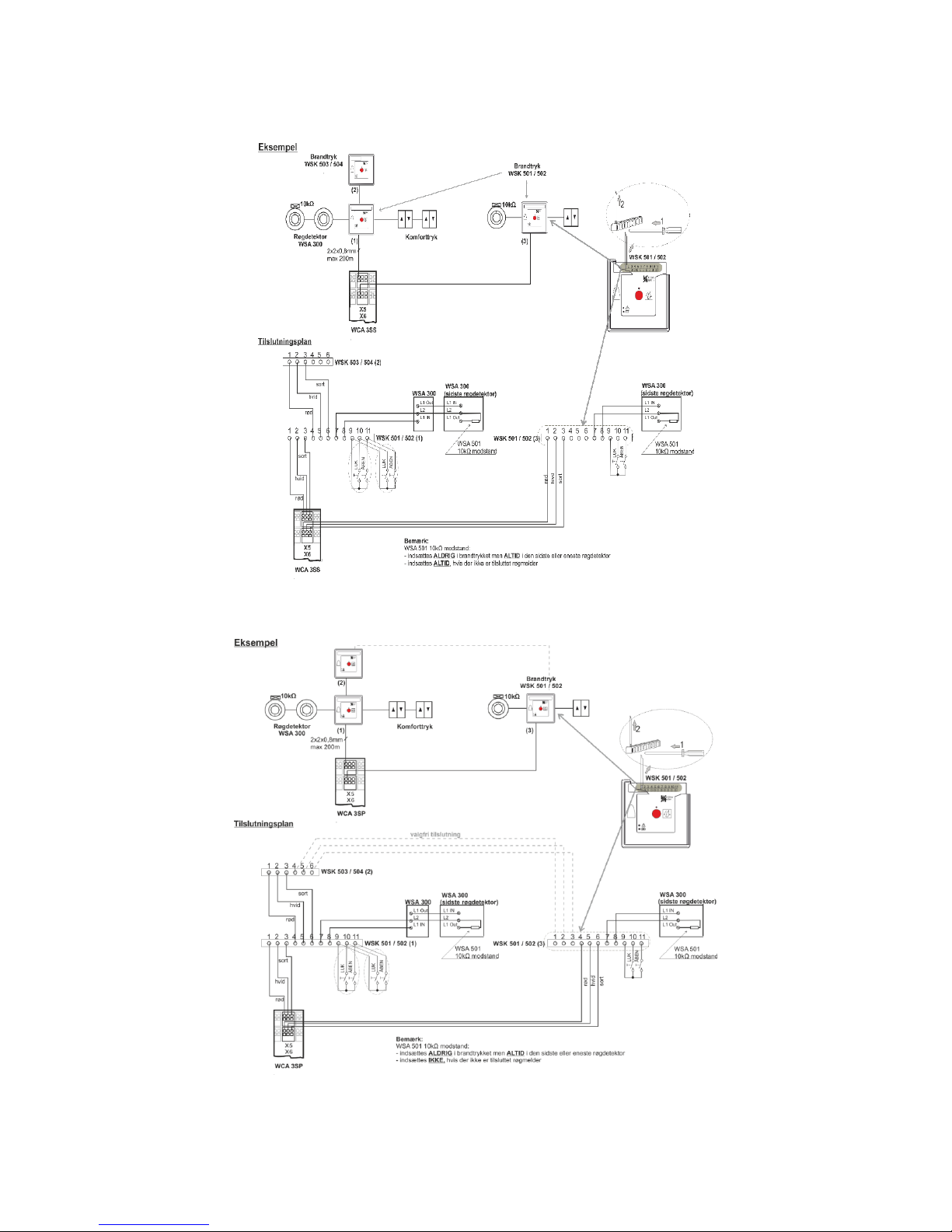

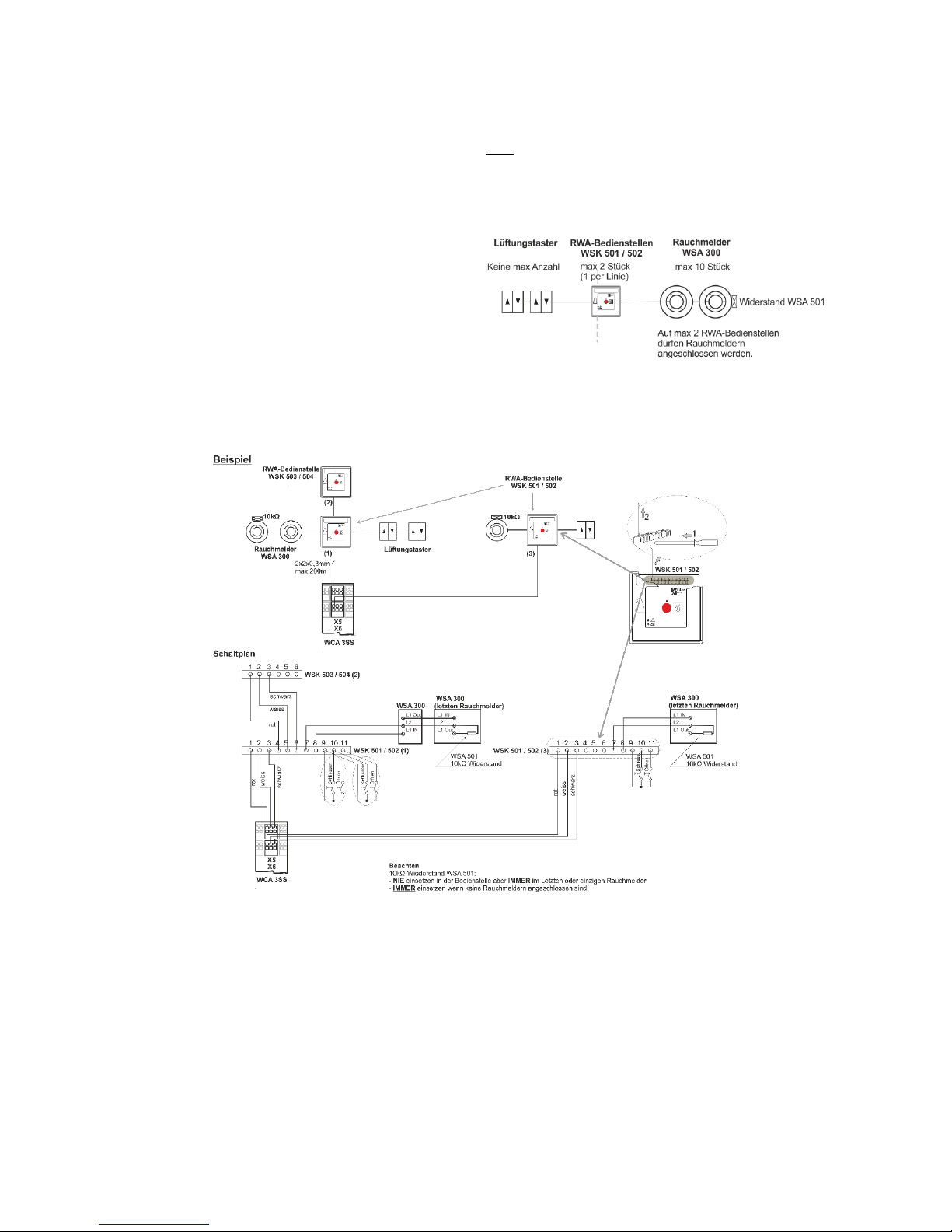

Example with WSC 310 /320 STANDARD:
2 smoke zones and connected components; 2 break glass units type WSK 501 / 502 and 1 break glass unit type WSK 503 /
504, 3 smoke detectors WSA 300, 2 resistances WSA 501 and 3 comfort keypads.

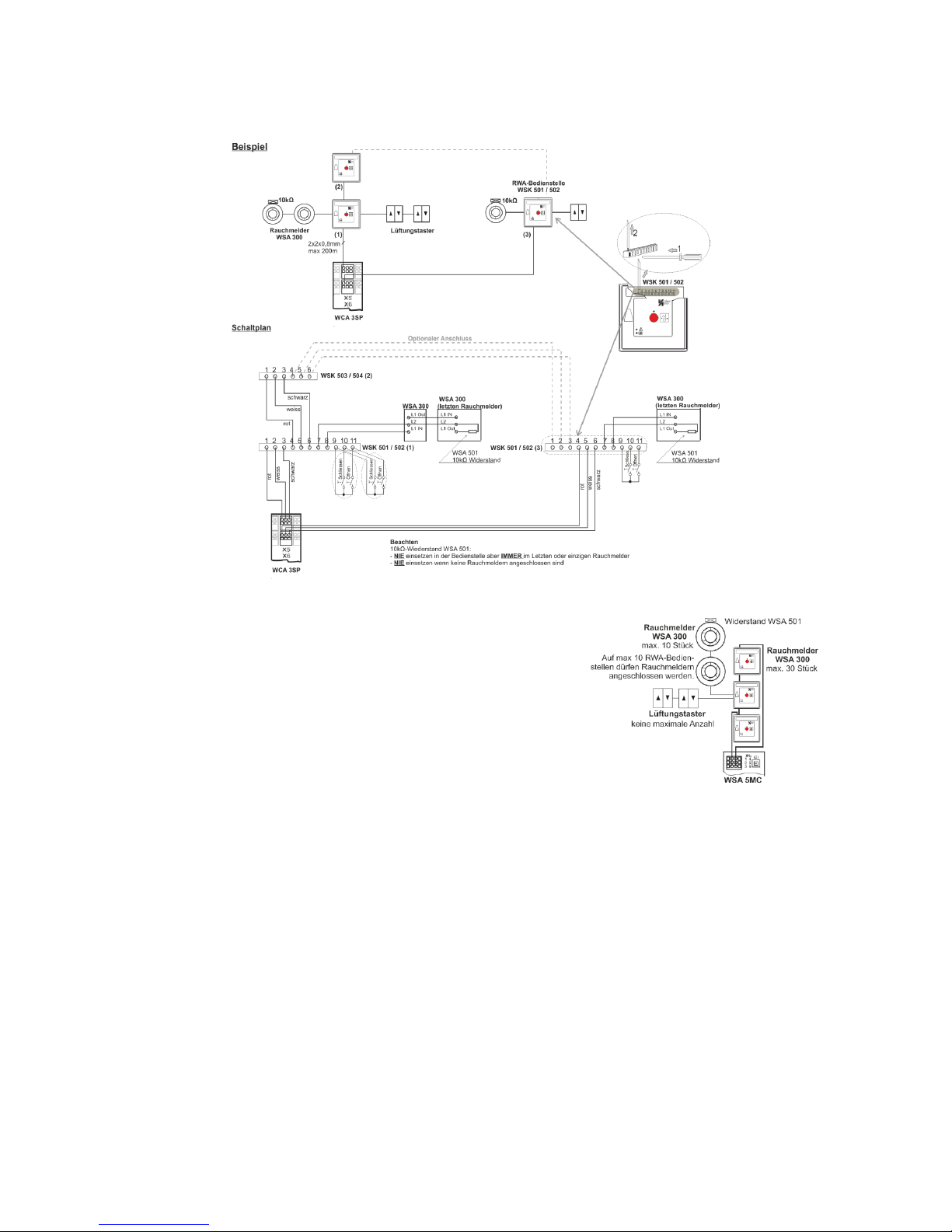

Example with WSC 310 / 320 PLUS:
2 smoke zones and connected components; 2 break glass units type WSK 501 / 502 and 1 break glass unit type WSK 503 /
504, 3 smoke detectors WSA 300, 2 resistances WSA 501 and 3 comfort keypads.
