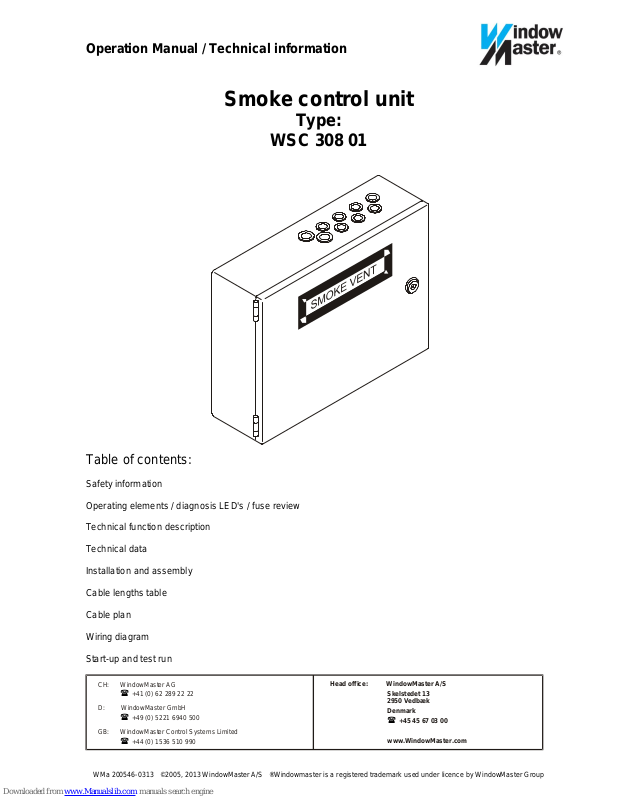

Window Master WSC 308 01 Operation Manual / Technical Information

WMa 200546-0313 ©2005, 2013 WindowMaster A/S ®Windowmaster is a registered trademark used under licence by WindowMaster Group

Operation Manual / Technical information

Smoke control unit

Type:

WSC 308 01

Table of contents:

Safety information
Operating elements / diagnosis LED's / fuse review
Technical function description
Technical data

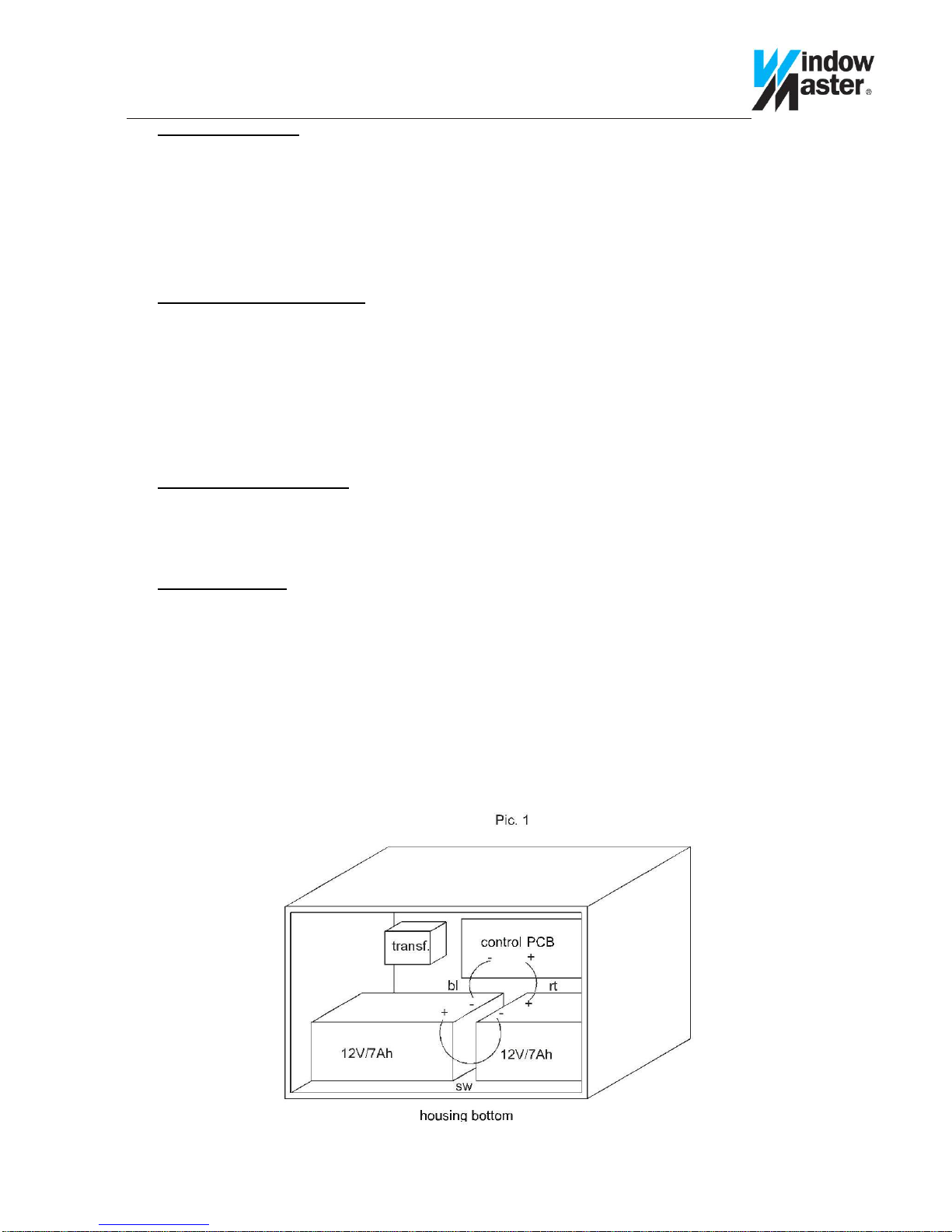

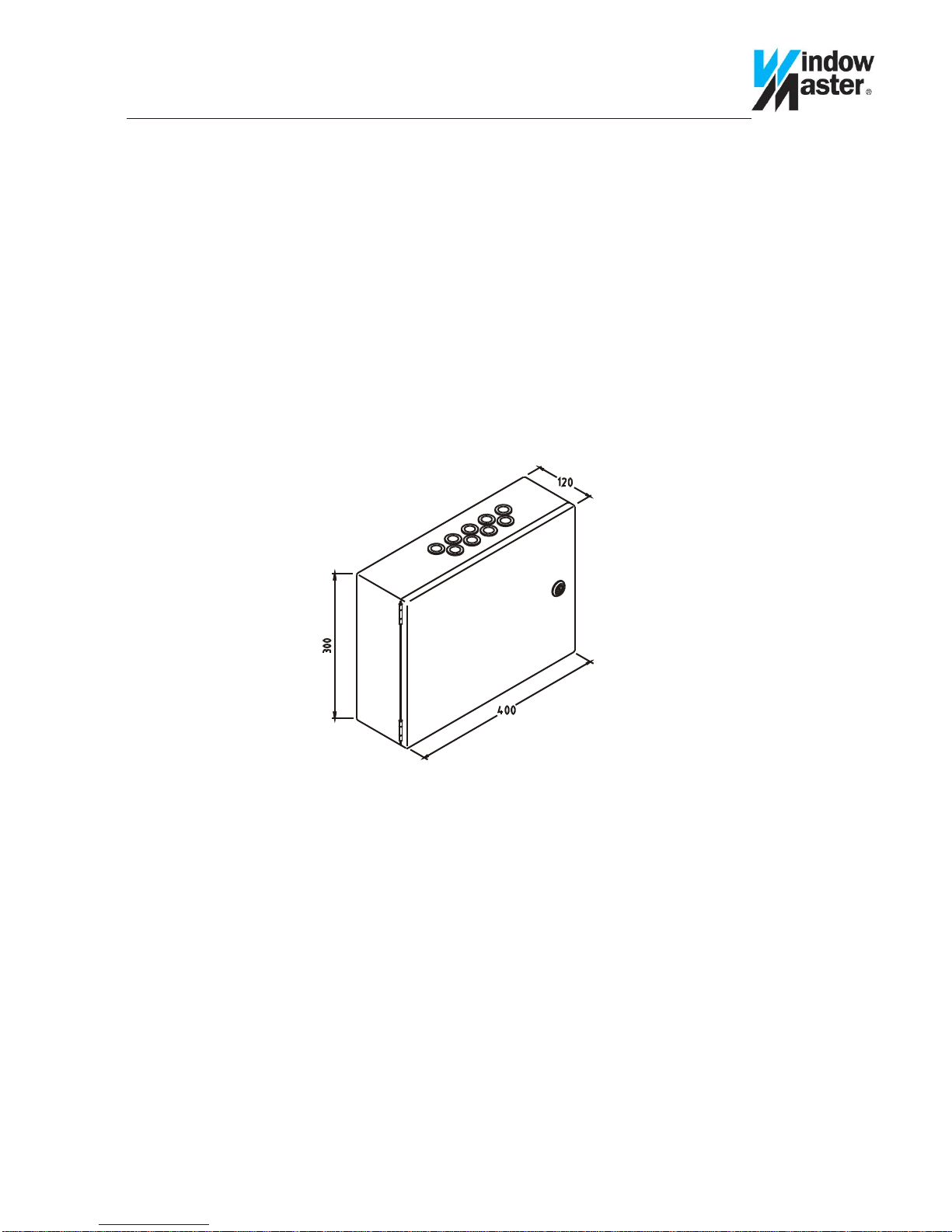

Installation and assembly
Cable lengths table

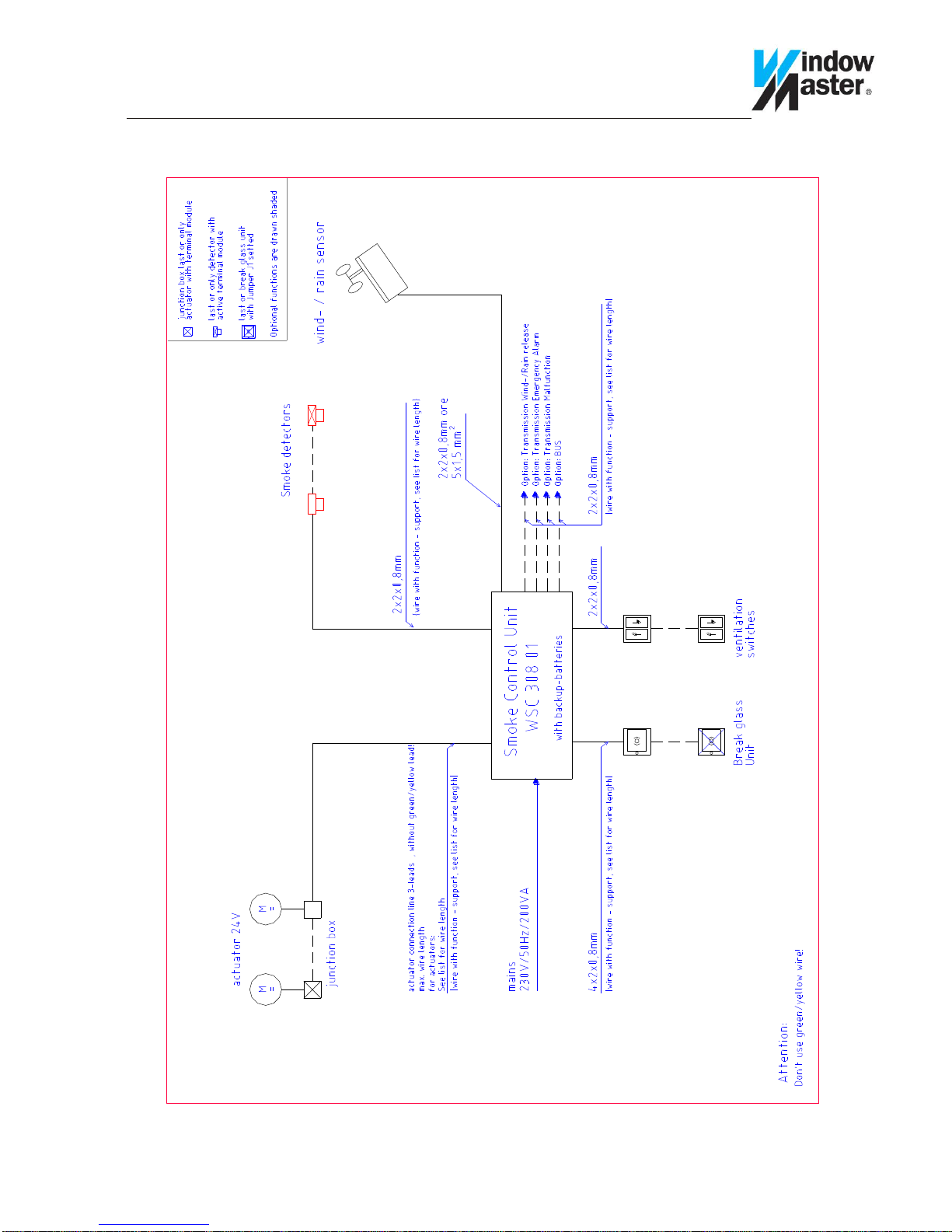

Cable plan

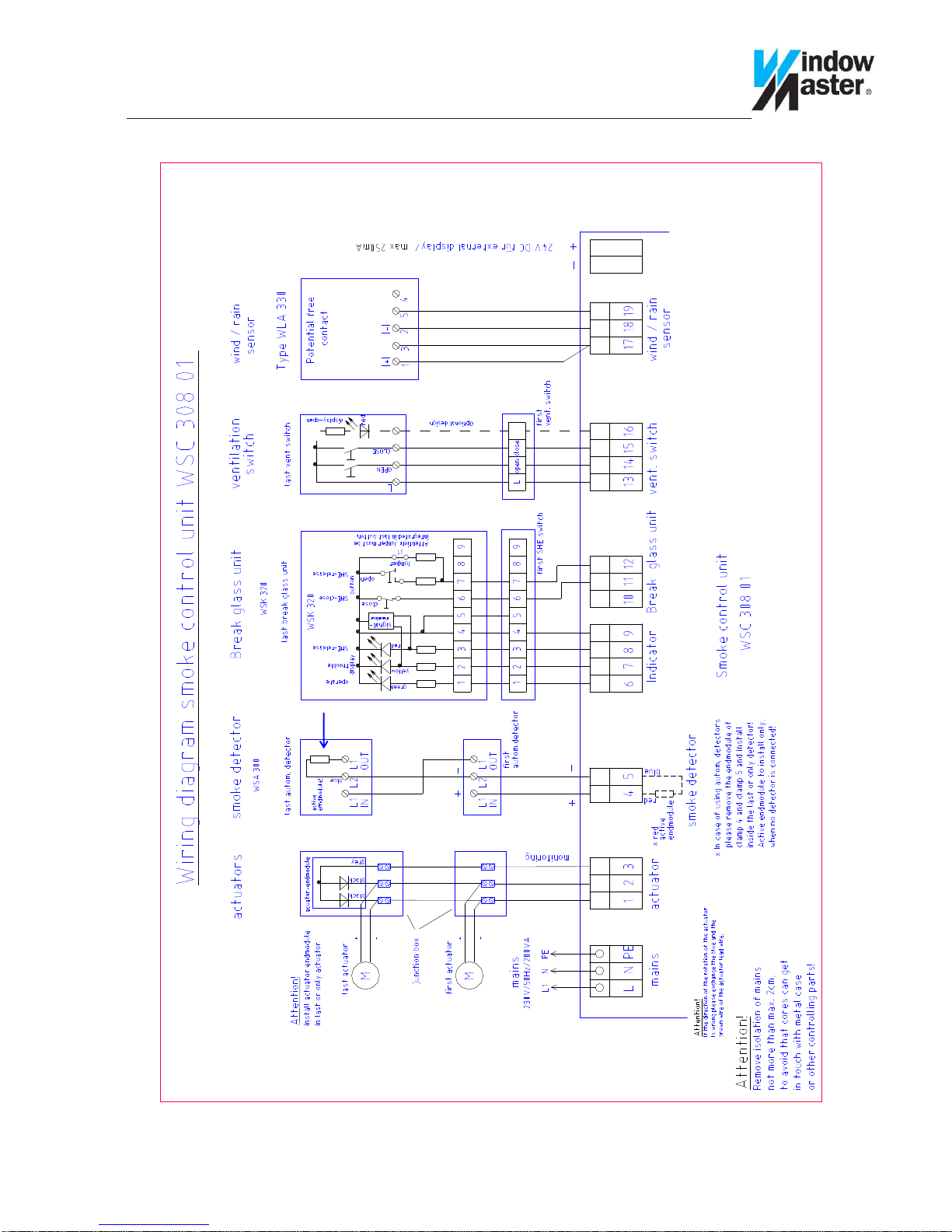

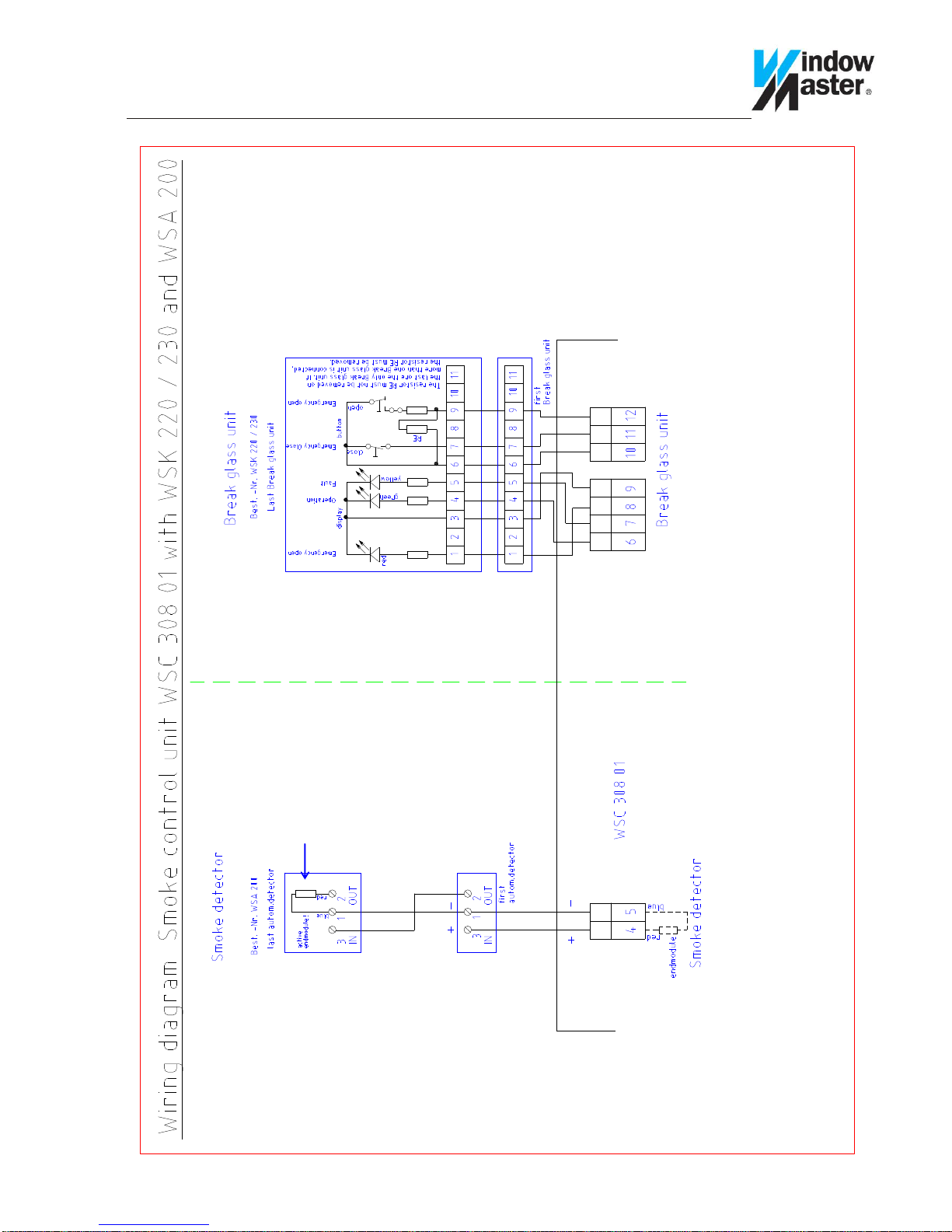

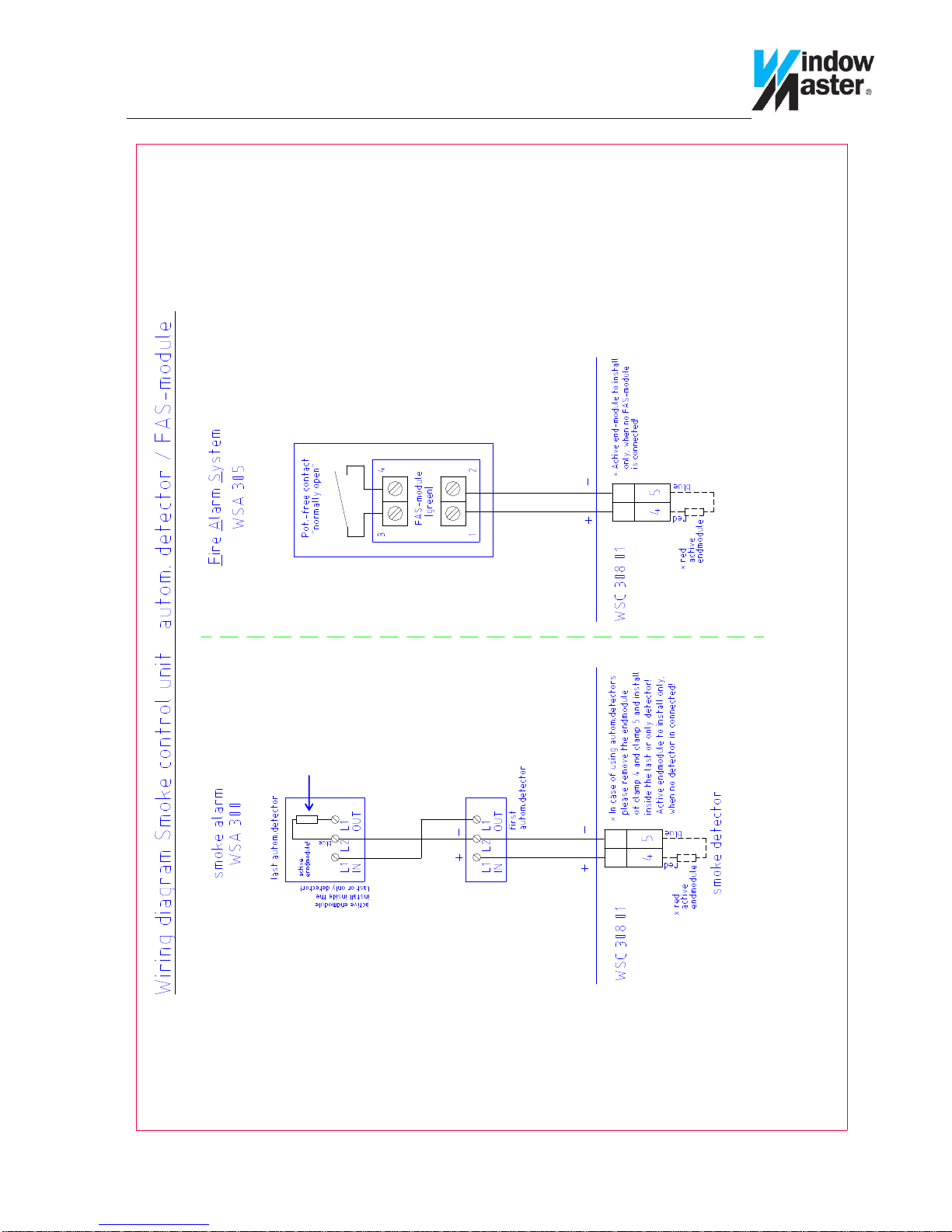

Wiring diagram
Start-up and test run

CH: WindowMaster AG



[phone]

D: WindowMaster GmbH



[phone]

GB: WindowMaster Control Systems Limited



[phone]

Head office: WindowMaster A/S



[phone]

Skelstedet 13

2950 Vedbæk

Denmark

www.WindowMaster.com

Smoke control unit – Type: WSC 308 01

2

Safety information WSC 308 01

Attention!
Adherence to the following information is mandatory:

Only allow correspondingly trained, qualified
and skilled personnel to carry out installation work.

Reliable operation and the avoidance of
damage and hazards is only guaranteed if
installation and settings are carried out carefully
in accordance with these instructions.

Check the technical data on the system plate.
Hazards to persons ensuing from flaps and

wings operated by electric motors.
The forces occurring in the automatic mode can

be such that parts of the body could get crushed.
When opened, actuators could protrude into the
room.
For this reason, measures have to be taken
prior to starting up the actuators which exclude
the danger of injury.

With wings tilting inwards or outwards, the wing
must be protected from hinging down once the
actuator is unhooked (e.g. for window cleaning).
For safety reasons we recommend the use of
catching shears.

In the event that wings or flaps are subjected to
high wind loads, we recommend to connect the
central control unit to a wind detector which will
automatically close the flaps.

The fastening methods are exclusively intended
for the intended use for which they are designed
The manufacturer does not assume any liability
for possible damage resulting from inappropriate
use.

230V AC dangerous voltage

Can cause death, severe injury or considerable
damage to assets.
The connection of the control system is reserved
for qualified personnel.
Disconnect all poles of the unit from the supply
voltage prior to opening, installation or
assembling. Adhere to the VDE regulations.

Field of application

The central control system is exclusively designed
for the automatic closing of smoke extraction
systems, windows, flaps or doors.
Always check that your system meets the valid
regulations.
Pay particular attention to the opening cross section,
the opening time and opening speed. The cable cross
sections depend on the cable length and current
consumption (amperage).

Maintenance work

Where devices are used in smoke and heat
extraction systems, ensure that they are checked,
maintained and, if necessary, repaired at least once
per year.
Remove all soiling from the devices,
check the fastening and clamping screws for firm
seating. Trial run the entire system.
Defective devices may only be repaired in our factory.
Only use original spare parts.
The supplied accumulators are subject to regular
checks and must be replaced every 4 years.

Cable routing and electrical connection

Fuse the 230V AC power supply cable separately on
site. Leave the insulation of the power supply

cable in place up to the mains terminal.

Adhere to the DIN and VDE regulations (Germany)
or equivalent in your country.
Establish the cable types, if necessary, with the local
approval bodies or the fire protection authority.
Do not conceal flexible cables. Junction box
must be accessible for maintenance purposes.
Disconnect all poles of the mains voltage and the
accumulators prior to starting maintenance work or
making changes to the system.
Secure the system to prevent unintentional switching
on again.
Design cable types, lengths and cross sections in
accordance with the technical information.
Route all low voltage cables (24V DC) separate from
the power current cables.

Manufacturer's declaration

The devices have been inspected and manufactured
in accordance with the European directives.
A corresponding manufacturer's declaration is
available.
You are only authorised to use the devices if a
conformity declaration is issued for the entire system.

Smoke control unit – Type: WSC 308 01

3

Operating elements, diagnosis LED's, fuse review and terminals
Smoke control unit WSC 308 01

U

Temperature fuse 72 °C

PTC

= overload protection, ist temperature

rises to >80° C following a short circuit

!

DIP switches

Activate maintenance

3 min. alarm relay timer

DIP switches

Dead man´s control

Diagnosis LEDs

Trip following a malfunction

N e t

z L E D Motor

Battery

R e s e t - +

(

S H E C L O S E

D

)

Vent. OPEN

display

120mA

Wind/rain

Manual

detector

Autom.

detector

External

voltage

PTC

PTC

PTC

PTC

PTC

250mA

250mA

120mA

250mA

T 8A

M800mA

Mains

T 1,6A

Primary transformer

Secondary transformer

O p e

r

a t i n g A c

c

u M o t o r S H E

s

w i t

c h S

m

o

k

e

d e t

. A l a r

m

S

H

E d i

s

p l a

y S m

o k e

d e t . S H E s w

i t c h V

e n t b u

t t o n W i n d /

R

a

i n M a i n s

Smoke control unit – Type: WSC 308 01

4

Technical function description WSC 308 01

Smoke and heat extraction system alarm trip:
Break glass unit::

Break the glass in the break glass unit! Press the red button. The smoke extraction opens.
An acoustic alarm signal sounds (continuous sound) in the break glass unit.
All ventilation functions are out of operation.

Display: The red alarm LED in the smoke control unit and the red LED in the break glass unit are lit.
Smoke detector:

If smoke develops, the smoke extraction system automatically opens.
An acoustic alarm signal sounds (continuous sound) in the break glass unit.
All ventilation functions are out of operation.
Display: The red alarm LED in the smoke control unit, the red LED in the break glass unit, and the red LED at
the tripped automatic detector are lit.

Resetting a tripped smoke control unit:

Press the „CLOSE button“ in the break glass unit or the „Reset button” in the smoke control unit.
The acoustic alarm signal in the break glass unit stops sounding.
The ventilation functions are operational again once the smoke extraction system has closed.
(Prior to resetting, blow out or replace the detector after it was tripped by an automatic detector).
Display: The red alarm LED in the smoke control unit, the red LED in the break glass unit, and the red LED at
the tripped automatic detector extinguish.

Tripping caused by high temperature:

The function is activated, SW 2/1 =ON.
The smoke control system automatically trips if the temperature inside the smoke control unit exceeds 70°C.
An acoustic alarm signal sounds (continuous sound) in the break glass unit.
Display: The red alarm LED in the smoke control unit and the red LED in the break glass unit are lit.
The yellow malfunction LED in the break glass unit flashes. The green operating LED's extinguish.

Resetting a trip caused by high temperature:

The smoke extraction system can be closed again by pressing the „Reset button“ in the smoke control unit or
the „CLOSE button“ in the break glass unit.

After operating the CLOSE function, an acoustic pulse tone sounds, and the flashing malfunction LED is only
displayed in the break glass unit.

Note:

The built-in thermal switch will then be irreversibly destroyed. The smoke control unit has to be returned for
checking.

Alarm trip caused by a malfunction signal:

When this function is activated (SW2/1 = ON), the smoke control unit will trip in the event of a motor, smoke
detector or break glass unit circuit malfunction. An acoustic alarm signal sounds (continuous sound) in the
break glass unit.
No trip occurs as a result of a malfunction in the mains or battery circuit.
Display: The red alarm LED in the smoke control unit and the red LED in the break glass unit are lit.
The yellow malfunction LED in the break glass unit and the corresponding yellow malfunction
LED in the smoke control unit flash.

Option: External signalling of the alarm or malfunction signal

It is possible to send an alarm or malfunction signal potential free, by plugging in the alarm/malfunction
signalling module.

Cascading smoke control units:

The smoke control units can be cascaded by a monitored 2 wire connection from the alarm module of the
master smoke control unit to the smoke detector input of the slave central panel.
A malfunction in the cascaded smoke control units is detected via the 2 wire BUS cable. The malfunction is
only displayed in the corresponding smoke control unit and in the break glass unit connected to the master
smoke control unit.

Smoke control unit – Type: WSC 308 01

5

Technical function description WSC 308 01

Ventilation functions:
Ventilation OPEN:

With the dead man's circuit activated (SW2/2 = ON), the actuators only move open for as long as the OPEN
button of the ventilation button is kept pressed.
If no dead man's function is activated (SW2/2 = OFF), the actuators open after pressing the OPEN button
(self hold).

Display: The ventilation open LED in the ventilation button is lit (only with LED integrated in the button).
Ventilation stop:

The actuators stop when both buttons are pressed.

Display: The ventilation open LED in the ventilation button remains lit (only with LED integrated in the button).
Ventilation closed:

The actuators close after pressing the CLOSED button.
Display: The ventilation open LED in the ventilation button has extinguished (only with LED integrated in the
button).

Option: Ventilation time module

Time setting between 1 and 30 min. Once this time has elapsed, the actuators close after ventilation „OPEN“
or ventilation „STOP“. This function is not operative if the setting potentiometer is on the right-hand stop.

Wind/rain CLOSE:

The actuators close when the wind/rain sensor has tripped (potential free contact in the sensor switches). The
ventilation functions are out of operation as long as a tripped situation is pending.

Option: Transmission of the wind/rain signal

The trip signal of the wind/rain sensor can be transmitted potential free to the next smoke control unit
by plugging in the wind/rain relaying module.

Note: All ventilation functions are locked in the event of a power failure or when an alarm is triggered!
General information:
CLOSE after a power failure:

Opened actuators will automatically close via the ventilation system 2 minutes after a power failure.
The motor voltage will be deactivated after another 2 minutes.
In the event the smoke control system trips, this function will be deactivated.

EMC protection:

All inputs and outputs are protected from coupled in interferences.

Short-circuit protection:

All outputs are protected against short-circuit and overload.

Maintenance:

Smoke control systems must be maintained by the builder at least once per year.
The maintenance and check of the system must be documented in a test placard in the smoke control unit as
well as in a logbook.

Smoke control unit – Type: WSC 308 01

6

Technical function description WSC 308 01

Optional sheet for CLOSE signal from ASV

The ASV-CLOSE function is an optional function that must be specially made in the production by using
special software.

ASV CLOSE:

When ASV CLOSE is tripped, all actuators automatically „CLOSE“.
An acoustic alarm signal sounds (continuous sound) in the break glass unit.
All ventilation functions are out of operation.
Display: The red alarm LED in the smoke control unit and the red LED in the break glass unit are lit.

An alarm in the break glass unit (actuators “OPEN“ ) has priority over an ASV CLOSE signal.
