Page 1
DK: +45 4567 0300 [email protected]
UK: +44 1536 614 070 [email protected]
DE: +49 40 87 409 – 560 Vertrieb / Technik – 484 [email protected]
CH: +41 (0) 62 289 22 22 [email protected]
NO: +47 33 99 71 00 [email protected]
www.windowmaster.com
WLA 340 install WMa 201804-EN ©WindowMaster 2013, 2018 ®WindowMaster is a registered trademark used under licence by WindowMaster International A/S
WindowMaster International A/S, Skelstedet 13, DK-2950 Vedbæk

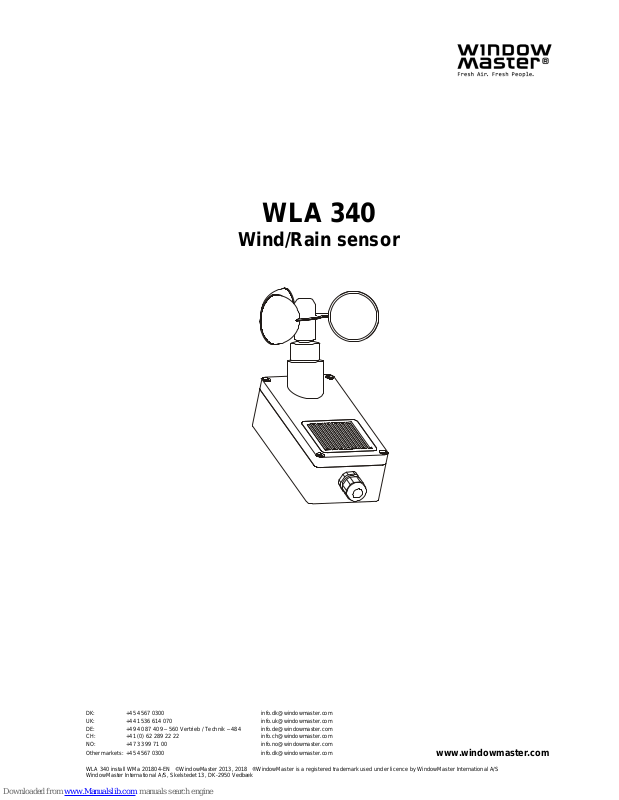

WLA 340
Wind/Rain sensor
Page 2
2
Important information
▪ Read instructions carefully before installation. Keep the instructions for future reference.
▪ Sensor WLA 340 should be installed in accordance with current national legislation.
▪ Disconnect from mains supply before installation or removal of the sensor and before carrying out any maintenance or service work
and ensure that it cannot be reconnected unintentionally during this time.
▪ If the sensor gets activated, the window operator automatically closes the window. For personal safety, never have your hand or body
out of the window without disconnecting from mains supply.
▪ Do not paint or lacquer the rain sensor.
▪ Dirt on the sensor may cause operating problems. Therefore, it is recommended to clean the rain sensor with a soft wet cloth once or
twice a year or when required.
▪ Electrical products must be disposed of in conformity with national regulations for electronic waste and not with usual household
waste.
▪ The packaging can be disposed of with usual household waste.
▪ WLA 340 is a low-voltage product that complies with the requirements of the EMC directive concerning use in household, trade and
light industry.
▪ This product has been designed for use with genuine WindowMaster products. Connection to other products may cause damage or
malfunction.
Description
The wind/rain sensor comprises a wind wheel and a rain sensor surface.
This sensor is used for the automatic control of Smoke Control Units and ventilation central units.
The wind/rain sensor is equipped with a potential free change-over contact having a contact rating of 60V/2A.
In the event of rain, the change-over contact switches over from the N/C contact to the N/O contact. In the event of wind the wind speed is
sent via a pulse signal.
Operation / Function
Triggering by rain
The potential free contact switches when the rain sensor trips.
The red LED in the sensor is lit.
Remark:
The trip is reset 10 min. after the last sensor actuation.
Page 3
3
Operating/control and display elements
Display: Red steady light in the sensor LED = Sensor tripped by wind or rain.

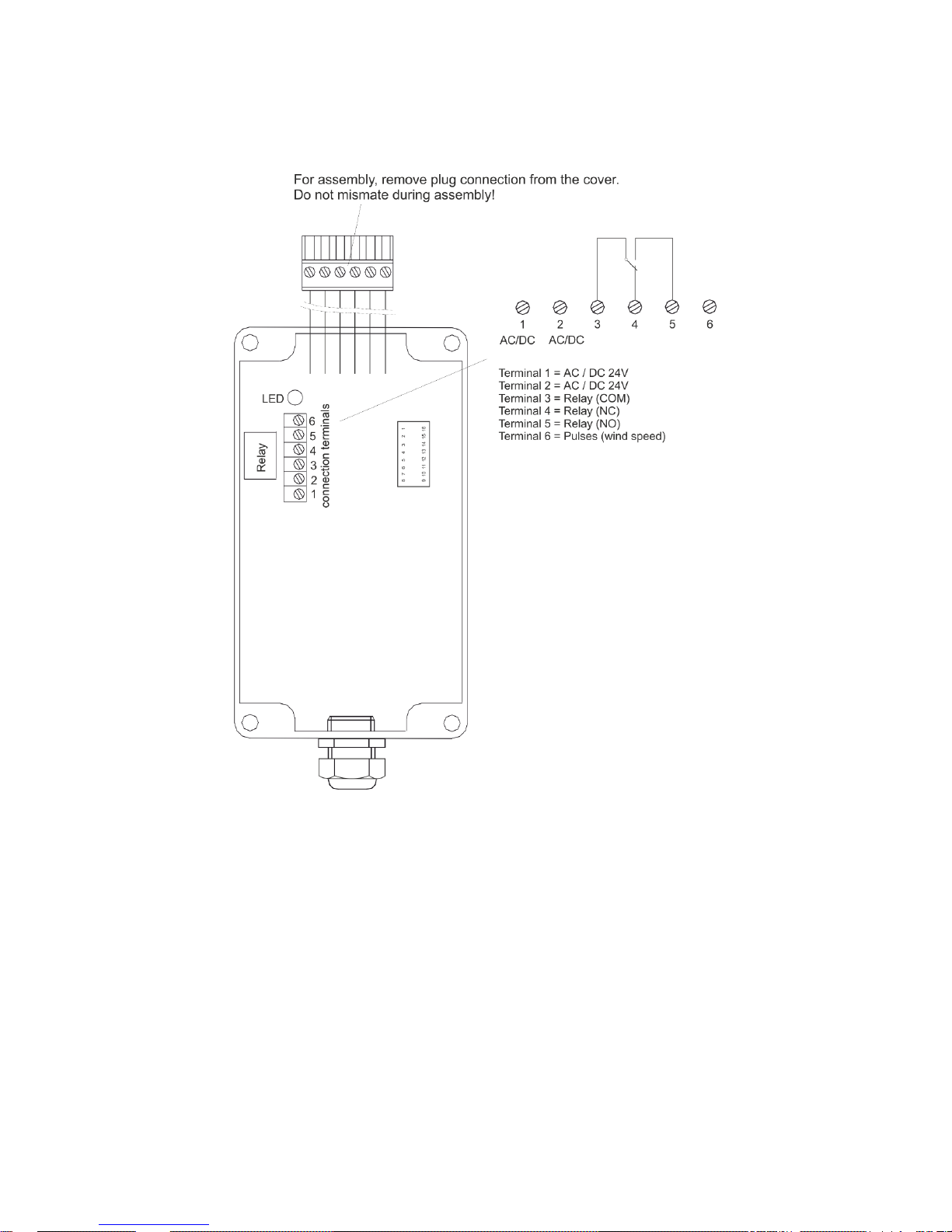

Connection
Terminal 1 = AC / DC 24V
Terminal 2 = AC / DC 24V
Terminal 3 = Relay (arm)
Terminal 4 = Relay (N/C contact) (close in the event of rain or voltage drop out)
Terminal 5 = Relay (N/O contact) (open in the event of rain)
Terminal 6 = Pulse (based on wind speed)
Page 4
4

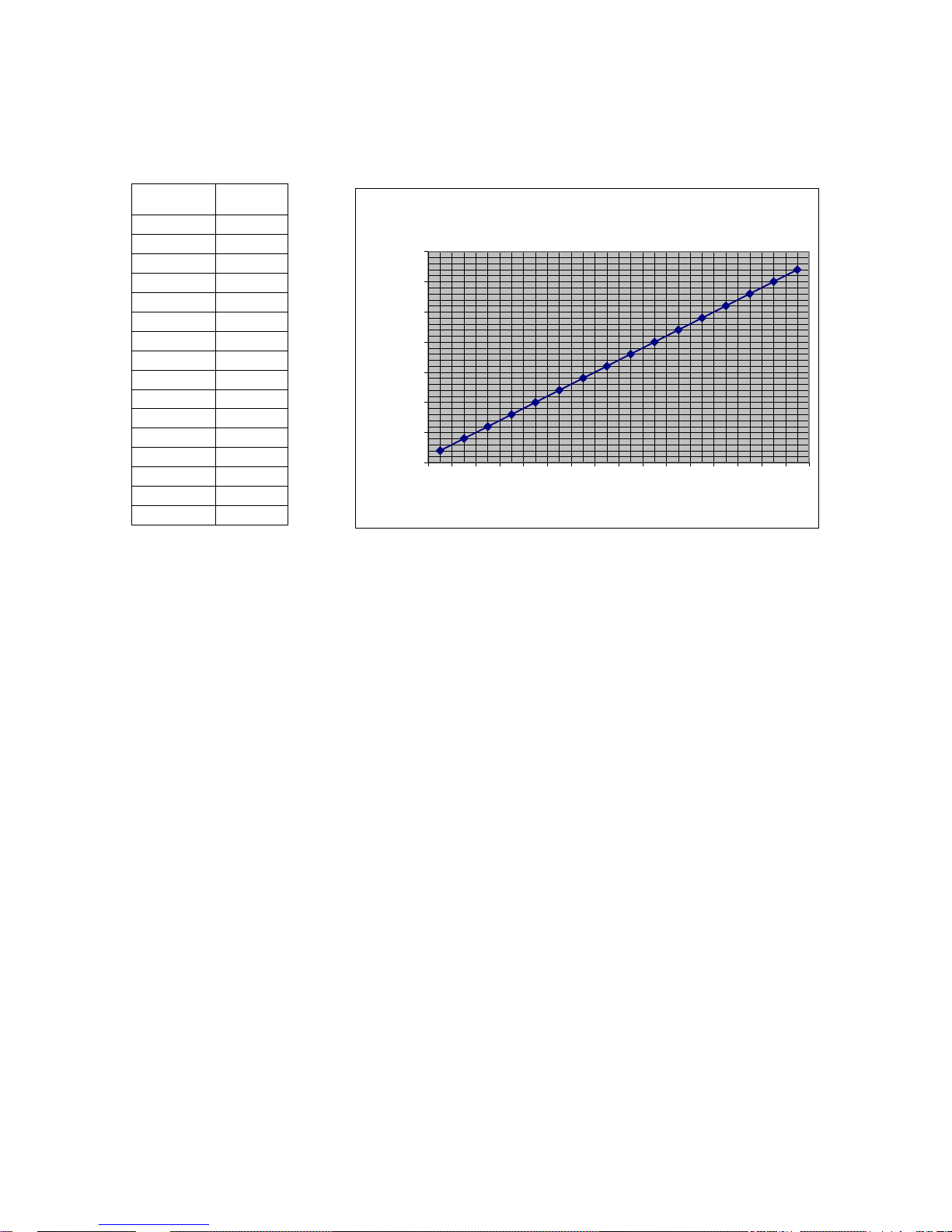

Pulse data
The pulse which the wind sensor transmits to the control unit - / panel e.g. NV Comfort™ or FlexiSmoke™, depends on the measured
wind speed, see below table for the wind depending pulse.
Wind speed
[m/s]
Pulse /sec.
1 2 2 4 3 6 4 8 5
10 6 12 7 14 8 16 9 18
10
20
11
22
12
24
13
26
14
28
15
30
16
32
Technical data
Supply voltage: 24V DC
Circuit output (rain): 1 x potential free change-over contact
Switching capacity: 60V / 2A
Pulse signal Load =1 x WEI 12M or 1 x WSA 5MC
Sensor dimensions: 80 x 160 x 55mm (WxHxD / without wind wheel)
Sensor weight: approx. 0.7kg
Sensor protection type: IP65
CE sign: in accordance with the EMC directive and the low voltage directive
Cleaning: clean the sensor regularly depending on the degree of soiling.
0,0
5,0
10,0
15,0
20,0
25,0
30,0
35,0
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Pulse
Wind speed in meter / second
Pulse explanation - WLA 340
