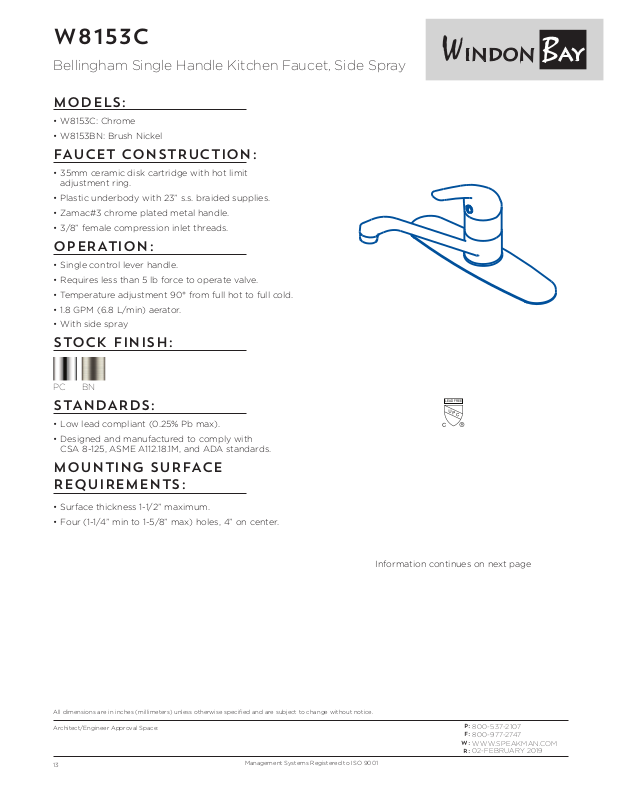

Page 1
W8153C
LEAD FREE
Bellingham Single Handle Kitchen Faucet, Side Spray
MODELS:
• W8153C: Chrome
• W8153BN: Brush Nickel
FAUCET CONSTRUCTION:
• 35mm ceramic disk cartridge with hot limit
adjustment ring.
• Plastic underbody with 23” s.s. braided supplies.
• Zamac#3 chrome plated metal handle.
• 3/8” female compression inlet threads.
OPERATION:
• Single control lever handle.
• Requires less than 5 lb force to operate valve.
• Temperature adjustment 90° from full hot to full cold.
• 1.8 GPM (6.8 L/min) aerator.
• With side spray
STOCK FINISH:
PC
BN
STANDARDS:
• Low lead compliant (0.25% Pb max).
• Designed and manufactured to comply with
CSA 8-125, ASME A112.18.1M, and ADA standards.
MOUNTING SURFACE
REQUIREMENTS:
• Surface thickness 1-1/2” maximum.
• Four (1-1/4” min to 1-5/8” max) holes, 4” on center.
Information continues on next page
All dimensions are in inches (millimeters) unless otherwise specified and are subject to change without notice.
Architect/Engineer Approval Space:
13
Management Systems Registered to ISO 9001
P:
800-537-2107
F:
80 0-97 7-2747
W:
WWW.SPEAKMAN.COM
R:
02-F EBRUARY 2019

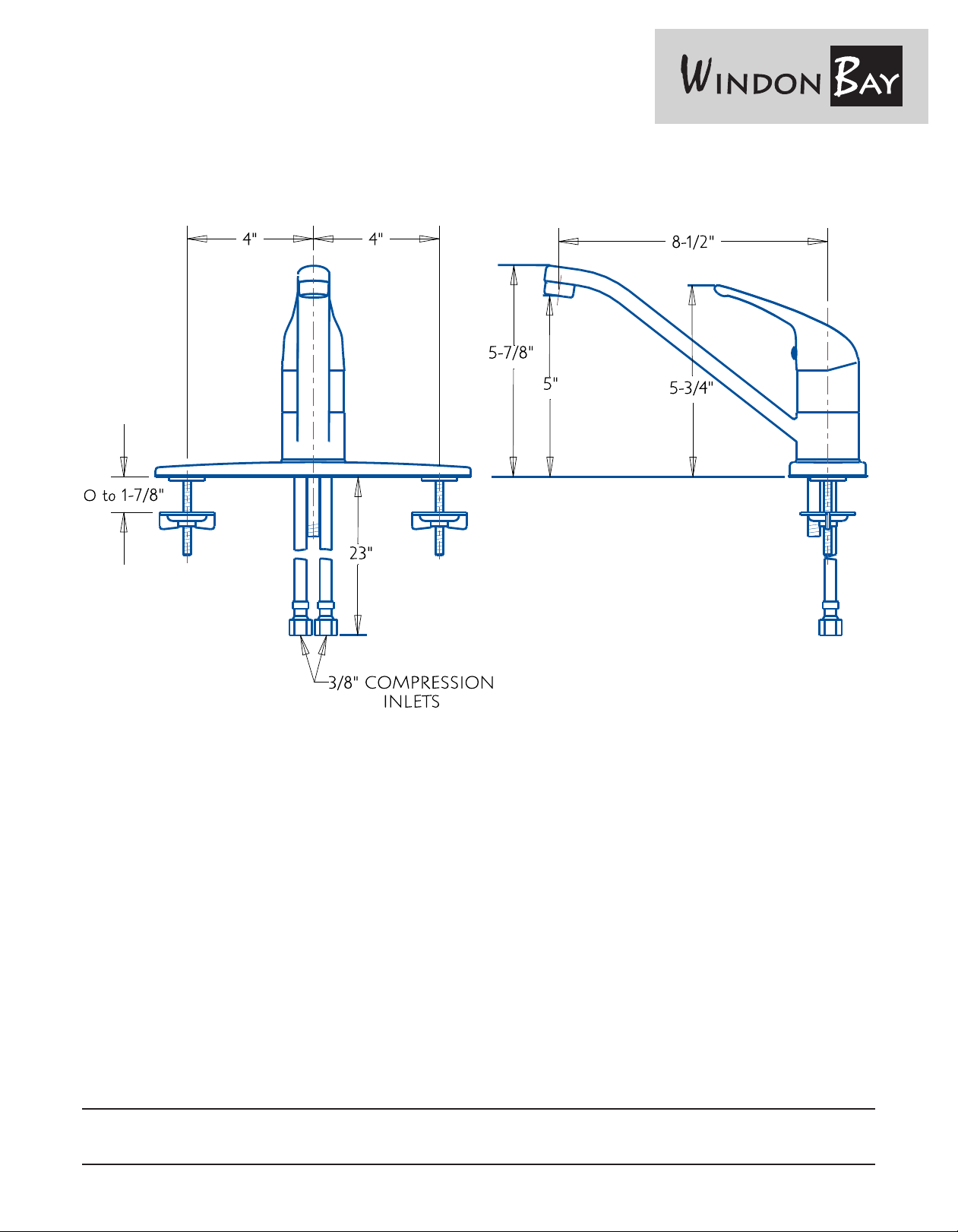

Page 2
W8153C
Bellingham Single Handle Kitchen Faucet, Side Spray
All dimensions are in inches (millimeters) unless otherwise specified and are subject to change without notice.
Architect/Engineer Approval Space:
14
Management Systems Registered to ISO 9001
P:
800-537-2107
F:
80 0-97 7-2747
W:
WWW.SPEAKMAN.COM
R:
01-FEBRUARY 2018
