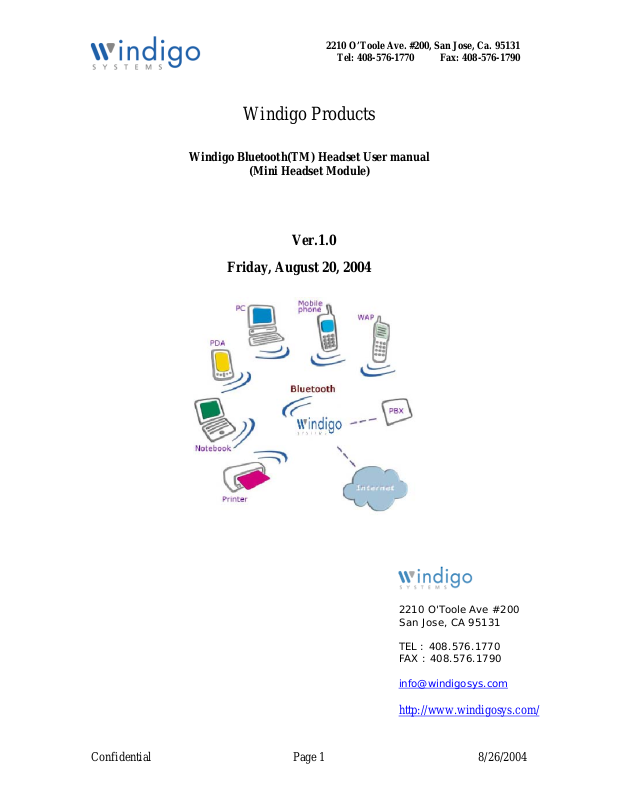

Windigo Systems PBTFABX2C2X Users Manual

2210 O’Toole Ave. #200, San Jose, Ca. 95131

Tel: [phone] Fax: [phone]

Windigo Bluetooth(TM) Headset User manual

Windigo Products

(Mini Headset Module)

Ver.1.0

Friday, August 20, 2004

2210 O'Toole Ave #200
San Jose, CA 95131

TEL : [phone]
FAX : [phone]

[e-mail]

http://www.windigosys.com/

Confidential Page 1 8/26/2004

2210 O’Toole Ave. #200, San Jose, Ca. 95131

FEDERAL COMMUNICATIONS COMMISSION

Tel: [phone] Fax: [phone]

This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:(1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.

NOTE
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection. This equipment generates, uses
and can radiated radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.
Shielded interface cables must be used in order to comply with emission

limits.
Changes or modifications not expressly approved by the party responsible for

compliance could void the user‘s authority to operate the equipment.

Confidential Page 2 8/26/2004

2210 O’Toole Ave. #200, San Jose, Ca. 95131

Tel: [phone] Fax: [phone]

1. Introduction

Bluetooth profile K-6 gives an implementation guideline for Bluetooth headset
application, which includes two functions: Bluetooth headset and Bluetooth
audio gateway. Generally headset profile will be implemented in headset, and
audio gateway will be implemented in cellular phone, PBX or other
communication devices. Windigo systems has developed a fully Bluetooth
V1.1 compliant headset module.
This manual will explain the basic headset operation instruction to our
customers.

2. A glimpse at the headset

Figure 1 illustrates the reference headset and cellular phone.

Figure 1. Windigo Bluetooth Headset Reference Design

The headset module includes an amber LED, a blue LED, three buttons, and
embedded audio connections and charging contact, these elements are
illustrated in figure 2.

Amber LED

Volume Up
Volume Down

Figure 2. Key elements on Windigo Bluetooth Headset

Talk Button

Ear Hook

Blue LED

Confidential Page 3 8/26/2004
