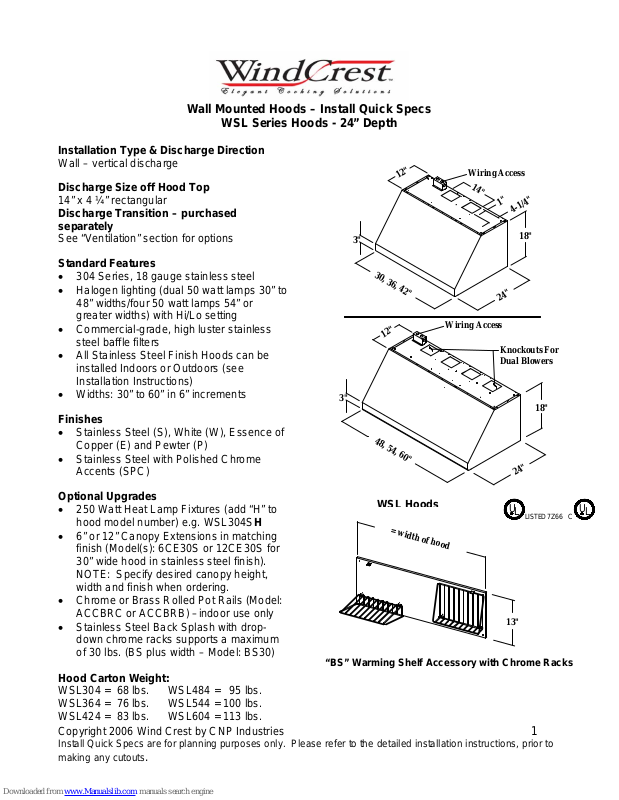

Wall Mounted Hoods – Install Quick Specs
WSL Series Hoods - 24” Depth
Installation Type & Discharge Direction
Wall – vertical discharge
Discharge Size off Hood Top
14” x 4 ¼” rectangular
Discharge Transition – purchased
separately
See “Ventilation” section for options
3"
Standard Features
• 304 Series, 18 gauge stainless steel
3
• Halogen lighting (dual 50 watt lamps 30” to
48” widths/four 50 watt lamps 54” or
greater widths) with Hi/Lo setting
• Commercial-grade, high luster stainless
steel baffle filters
• All Stainless Steel Finish Hoods can be
installed Indoors or Outdoors (see
Installation Instructions)
• Widths: 30” to 60” in 6” increments
3"
Finishes
• Stainless Steel (S), White (W), Essence of
Copper (E) and Pewter (P)
4
• Stainless Steel with Polished Chrome
Accents (SPC)
Optional Upgrades
• 250 Watt Heat Lamp Fixtures (add “H” to
hood model number) e.g. WSL304SH
• 6” or 12” Canopy Extensions in matching
finish (Model(s): 6CE30S or 12CE30S for
30” wide hood in stainless steel finish).
NOTE: Specify desired canopy height,
width and finish when ordering.
• Chrome or Brass Rolled Pot Rails (Model:
ACCBRC or ACCBRB) –indoor use only
• Stainless Steel Back Splash with dropdown chrome racks supports a maximum
of 30 lbs. (BS plus width – Model: BS30)
Hood Carton Weight:

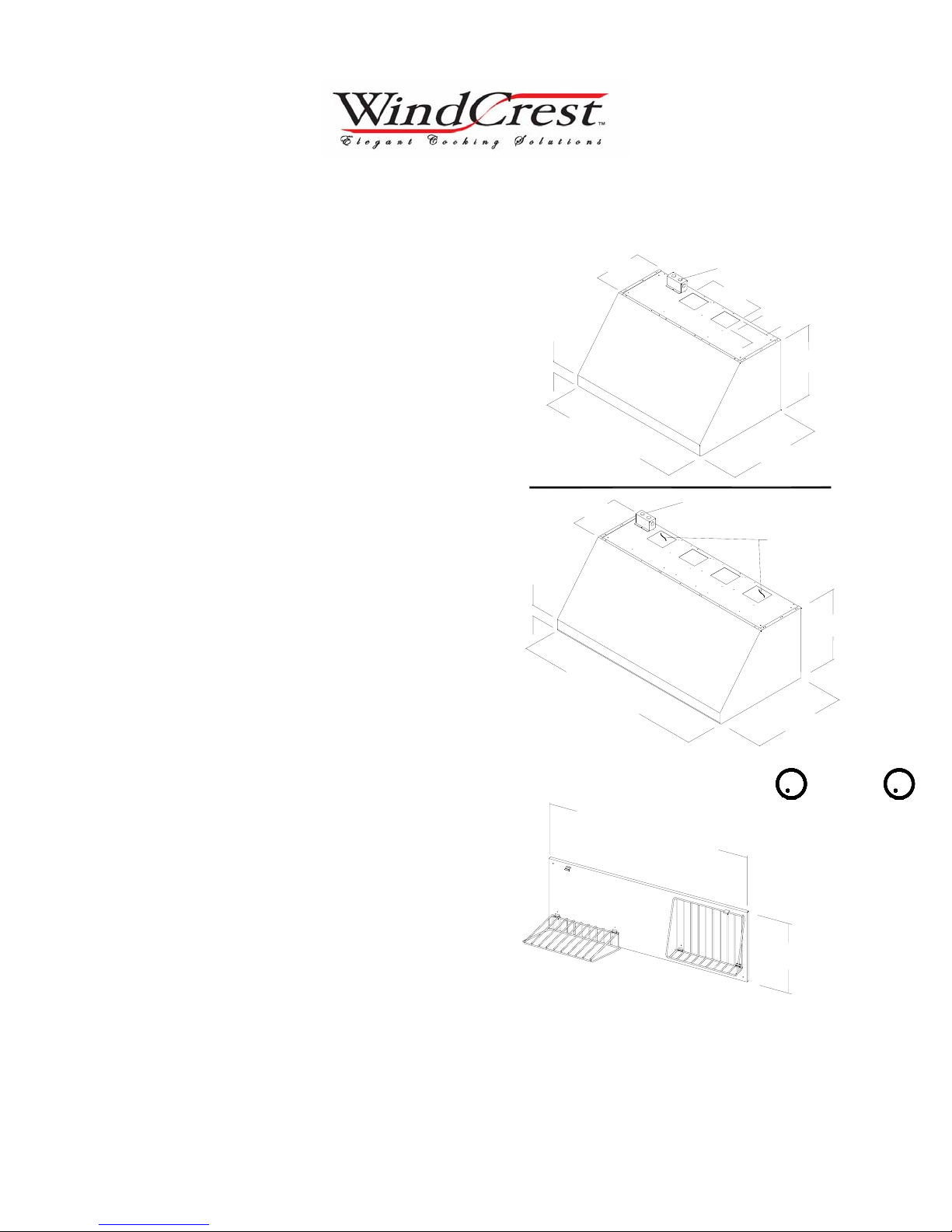

“BS” Warming Shelf Accessory with Chrome Racks
WSL304 = 68 lbs. WSL484 = 95 lbs.
WSL364 = 76 lbs. WSL544 = 100 lbs.
WSL424 = 83 lbs. WSL604 = 113 lbs.
Copyright 2006 Wind Crest by CNP Industries 1
Install Quick Specs are for planning purposes only. Please refer to the detailed installation instructions, prior to
making any cutouts
.
"
2
1
0
,
3
6
,
4
2
"
"
2
1
8
,
5
4
,
6
0
"
=
w
i
d
t
h
o
f
h
o
Wiring Access
1
4
"
Wiring Access
o
d
"
"
4
1
/
1
-
4
18"
"
4
2
Knockouts For
Dual Blowers
18"
"
4
2
U
L
LIST ED 7Z66 C
13"
U
L
Page 2
Wall Mounted Hoods – Install Quick Specs
WSL Series Hoods - 24” Depth (cont.)
Maximum Power Supply Required*
15 Amps @ 120 V AC, 60 Hz
20 Amps @ 120 V AC, 60 Hz (when used with
VEN150E remote ventilator)
*Electrical rating is maximum required for any
combination of ventilator, lighting and heat
lamps.
Outdoor Electrical Requirements
Damp outdoor installations require a fault
interrupter circuit connection.
Hood Lighting Rating
• 30” to 48” widths: 100 watts w/halogen
lights or 600 watts w/halogen + heat lamps
• 54” and 60” widths: 200 watts w/halogen
lights or 700 watts w/halogen + heat lamps
Ventilator Options
640 CFM, Internal Blower: VEN060I**
1000 CFM, Remote Blower: VEN100E
1500 CFM, Remote Blower: VEN150E
Ventilator Motor Ratings
VEN060I: 2.8 Amps @ 120 V AC, 60 Hz**
VEN100E: 8 Amps @ 120 V AC, 60 Hz
VEN150E: 12 Amps @ 120 V AC, 60 Hz
**Two VEN060I internal ventilators can be
installed in WSL hoods 48” or wider. This
installation requires part #10220 dual wire
harness. Refer to installation instructions for
full details.
Ventilator Dimensions & Accessory
Transitions (see Ventilator section)
CUSTOMER SPECIFICATION:
Hood Width Specified & finish:
(e.g.WSL304S)
Add Keep Hot Lamps: (e.g. WSL304SH)
Add Special Edge Finish to Stainless
Models: (i.e. WSL304SHSPC)
Accessories Selected: (e.g. Back splash with
racks, chrome or brass rails, canopy
extensions)
12"
=
w
i
d
t
h
o
f
h
o
o
d

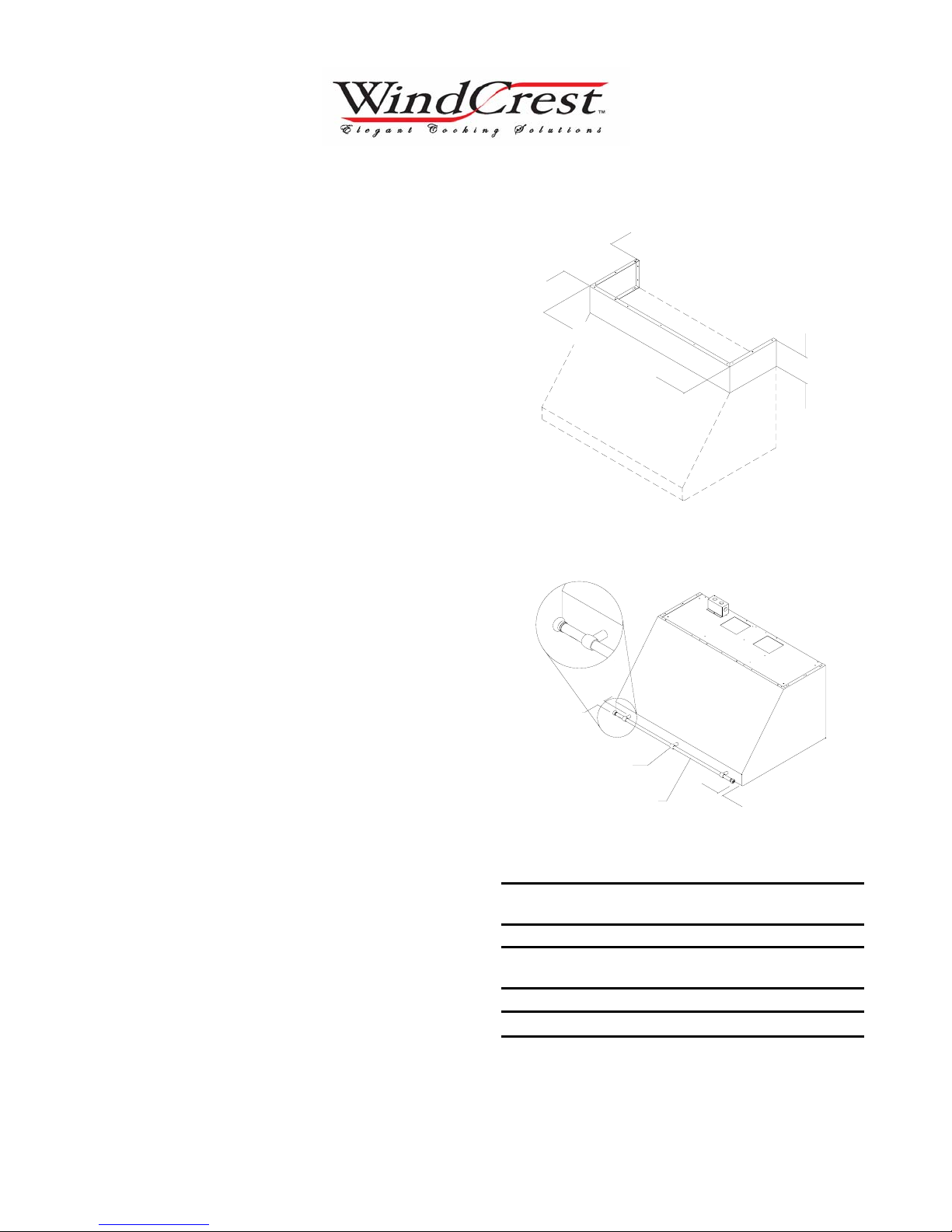

“CE” Canopy Extensions (6” or 12” height)
for WSL hoods
1-7/8"
Center Support
48, 54, 60" Models
Chrome/Brass
Rolled Pot Rail
Final Hood Model Selected:
Add Any Accessories:
Specify Ventilator Selected & Transitions:
3/4"
6", 12"
Copyright 2006 Wind Crest by CNP Industries
