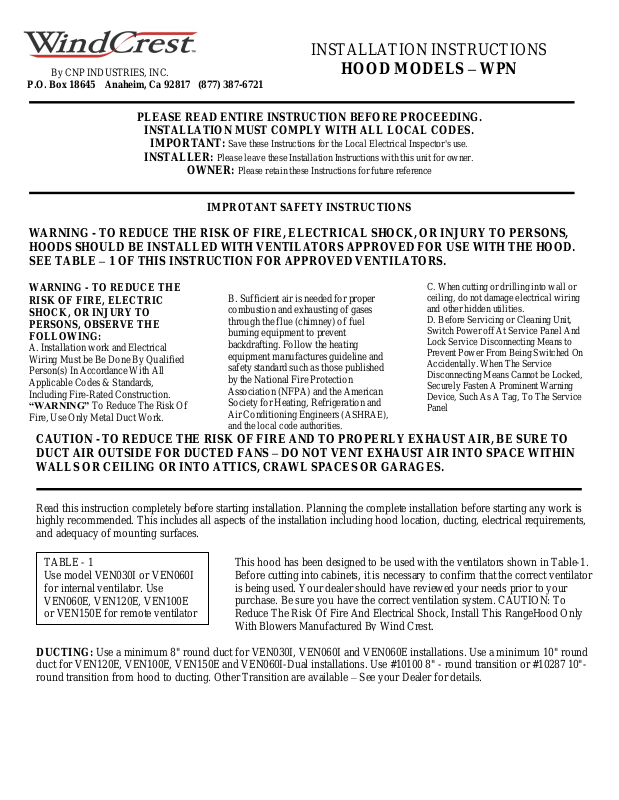

Wind Crest WPN User Manual
Before cutting into cabinets, it is necessary to confirm that the correct ventilator
With Blowers Manufactured By Wind Crest.
By CNP INDUSTRIES, INC.
P.O. Box 18645 Anaheim, Ca 92817 (877) 387-6721
INSTALLATION INSTRUCTIONS
HOOD MODELS – WPN
PLEASE READ ENTIRE INSTRUCTION BEFORE PROCEEDING.
INSTALLATION MUST COMPLY WITH ALL LOCAL CODES.
IMPORTANT:
INSTALLER:
Save these Instructions for the Local Electrical Inspector's use.
Please leave these Installation Instructions with this unit for owner.
OWNER: Please retain these Instructions for future reference
IMPROTANT SAFETY INSTRUCTIONS
WARNING - TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY TO PERSONS,
HOODS SHOULD BE INSTALLED WITH VENTILATORS APPROVED FOR USE WITH THE HOOD.
SEE TABLE – 1 OF THIS INSTRUCTION FOR APPROVED VENTILATORS.
WARNING - TO REDUCE THE
RISK OF FIRE, ELECTRIC
SHOCK, OR INJURY TO
PERSONS, OBSERVE THE
FOLLOWING:
A. Installation work and Electrical
Wiring Must be Be Done By Qualified
Person(s) In Accordance With All
Applicable Codes & Standards,
Including Fire-Rated Construction.
“WARNING” To Reduce The Risk Of
Fire, Use Only Metal Duct Work.
B. Sufficient air is needed for proper
combustion and exhausting of gases
through the flue (chimney) of fuel
burning equipment to prevent
backdrafting. Follow the heating
equipment manufactures guideline and
safety standard such as those published
by the National Fire Protection
Association (NFPA) and the American
Society for Heating, Refrigeration and
Air Conditioning Engineers
and the local code authorities.
(ASHRAE),
C. When cutting or drilling into wall or
ceiling, do not damage electrical wiring
and other hidden utilities.
D. Before Servicing or Cleaning Unit,
Switch Power off At Service Panel And
Lock Service Disconnecting Means to
Prevent Power From Being Switched On
Accidentally. When The Service
Disconnecting Means Cannot be Locked,
Securely Fasten A Prominent Warning
Device, Such As A Tag, To The Service
Panel
CAUTION - TO REDUCE THE RISK OF FIRE AND TO PROPERLY EXHAUST AIR, BE SURE TO
DUCT AIR OUTSIDE FOR DUCTED FANS – DO NOT VENT EXHAUST AIR INTO SPACE WITHIN
WALLS OR CEILING OR INTO ATTICS, CRAWL SPACES OR GARAGES.
Read this instruction completely before starting installation. Planning the complete installation before starting any work is
highly recommended. This includes all aspects of the installation including hood location, ducting, electrical requirements,
and adequacy of mounting surfaces.
TABLE - 1
Use model VEN030I or VEN060I
for internal ventilator. Use
VEN060E, VEN120E, VEN100E
or VEN150E for remote ventilator
DUCTING: Use a minimum 8" round duct for VEN030I, VEN060I and VEN060E installations. Use a minimum 10" round
duct for VEN120E, VEN100E, VEN150E and VEN060I-Dual installations. Use #10100 8" - round transition or #10287 10"round transition from hood to ducting. Other Transition are available – See your Dealer for details.
This hood has been designed to be used with the ventilators shown in Table-1.
is being used. Your dealer should have reviewed your needs prior to your
purchase. Be sure you have the correct ventilation system. CAUTION: To
Reduce The Risk Of Fire And Electrical Shock, Install This RangeHood Only
BAC
KDRAFT DAMPER
: It is recommended that a backdraft damper be used
SAFTY WARNING:
Turn off power circuit at
.
the service entrance and
lockout panel before
wiring the range hood.
in all installations. In cold weather installations it is necessary to use a backdraft
damper to minimize backflow of cold air into room. A non-metallic thermal
break should also be used to minimize conduction of outside temperatures
through the ductwork. The thermal break should be located as close as possible
to where the ducting enters the heated portion of the house.
NOTE: Unit must be vented
to outside of the building.
Decide on vertical or horizontal air discharge. For
vertical air discharge remove the top air discharge
knockout plates. To remove, break the metal web holding
plate by placing a screwdriver at one corner of plate and
hitting screwdriver sharply with hammer. After breaking a
second web the plate can be flexed to break remaining
webs. For horizontal air discharge remove the air
discharge knockout plates from the rear wall of the hood.
Always wear eye protection.

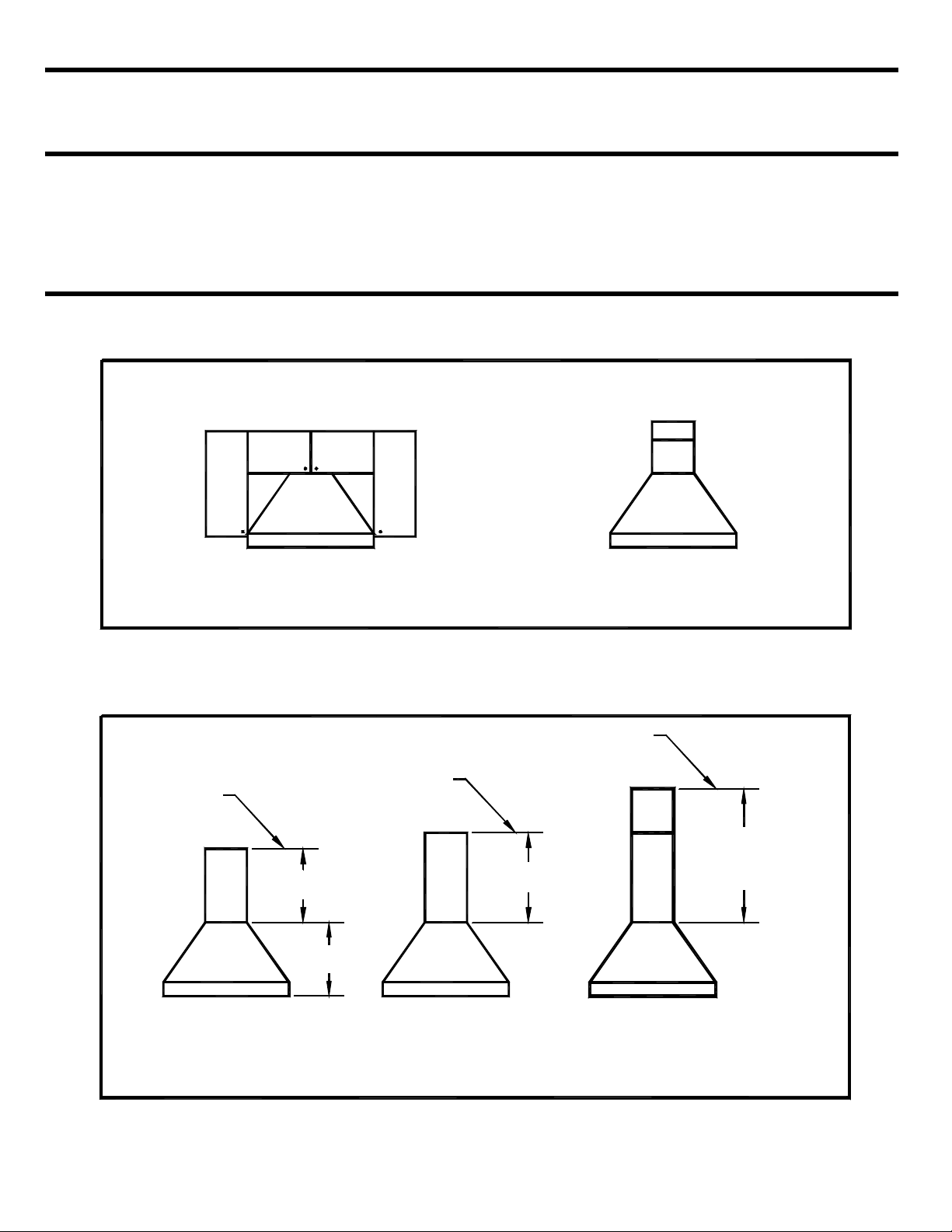

For a vertical air discharge, with the hood mounted
under a cabinet (without duct cover), prepare cabinet for
mounting the hood per FIG – 2. Use furring strips to level
cabinet mounting surfaces with any cabinet trims.
For a vertical air discharge and use of the duct cover
locate the prescribed ducting per FIG-3. Hood, ducting
and wiring should be completed before mounting duct
cover. See instructions included with duct cover for duct
cover mounting.

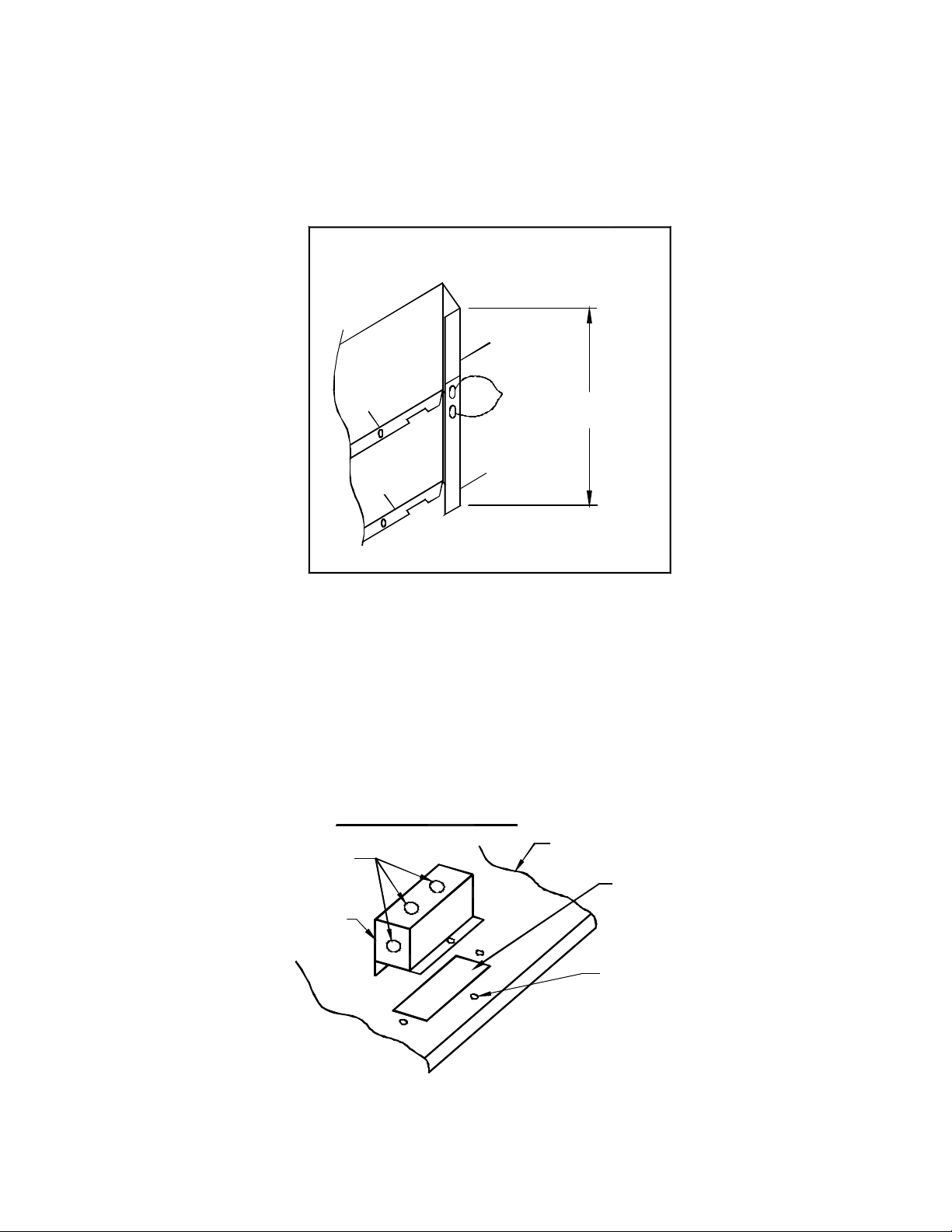

For a horizontal air discharge refer to FIG- 4. NOTE:
Wiring access is located on the top hood surface. See
FIG-2 for wiring access location.
Attach and secure the transition to the hood with #6 x 3/8”
sheet metal screws and tape all joints prior to installing the
hood. Attach hood to cabinet or wall using #10 wood
screws. Holes are located in the back panel and top panel
of the hood for mounting. Use minimum of four (4) #10 x
¾” wood screws to mount the hood. Longer screws are
required if wallboard or other nonstructural surfaces are
used between the hood and main mounting surface which
should be minimum of ¾” thick. When using rear holes for
mounting use proper anchors (#10) if not engaging the
wood structure. Prepare cabinet for mounting the hood per
FIG – 2. Use furring strips to level cabinet mounting
surface with any cabinet trims.
HINT: If you find vibration noise is present because of
Cabinet structure use additional screws, in holes available,
to rigidize mounting.

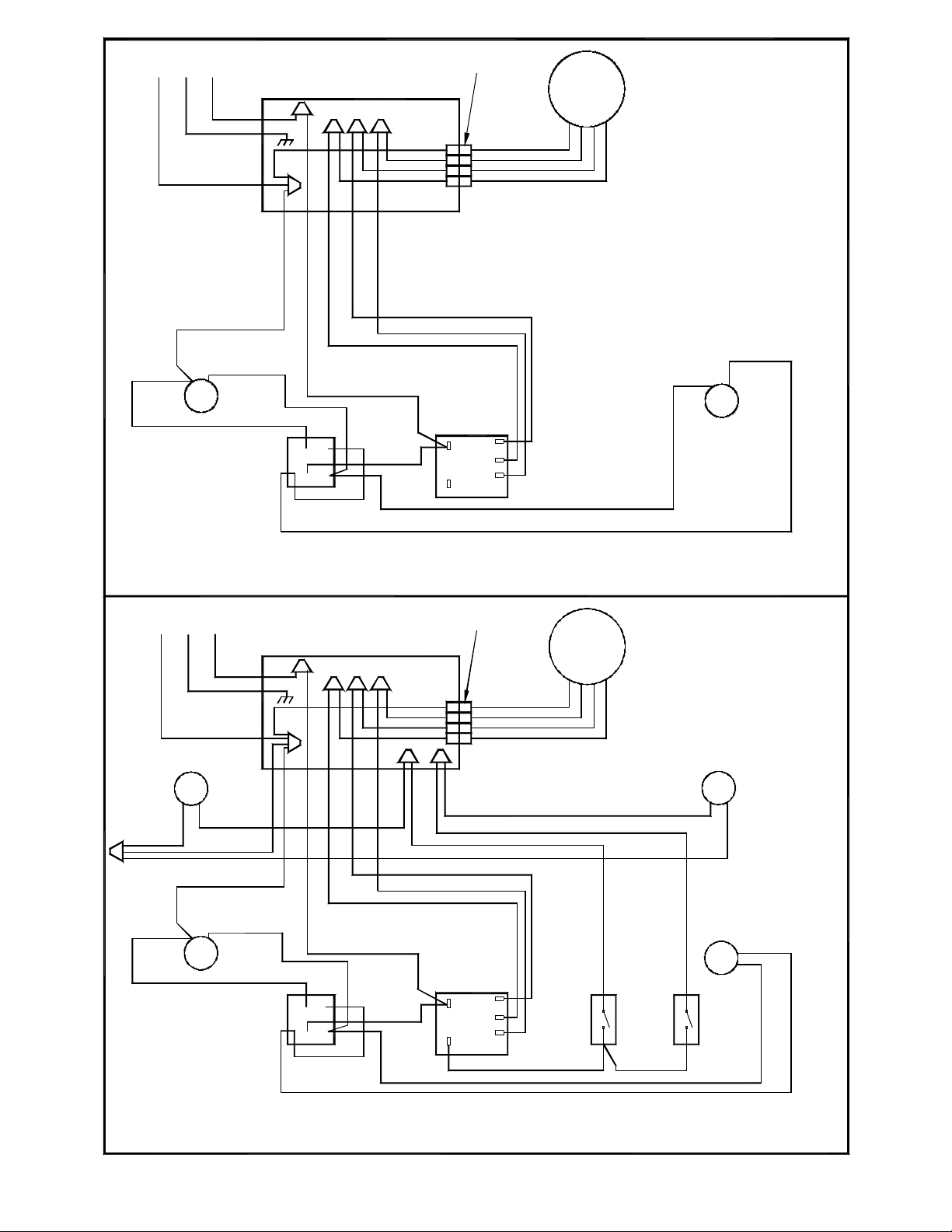

Connect 120 volts – 15 amp, 60 Hz power supply through
the conduit hole in the top of hood, connecting to pigtail in
hood junction box white to white, black to black and
connect green ground wire to power supply ground wire per
local codes. The VEN100E/150E ventilator will require
revision of some wiring in the hood receptacle box and
possible modification of air discharge opening – See
VEN100E/150E instructions.
NOTE: VEN150E requires a 20 AMP Power Supply
The recommended height from counter top or cooking
surface to the bottom edge of the hood is 30 to 36 inches.
Hood is recommended for use over domestic gas or electric
appliances. Not recommended for use over solid fuel fire
appliances

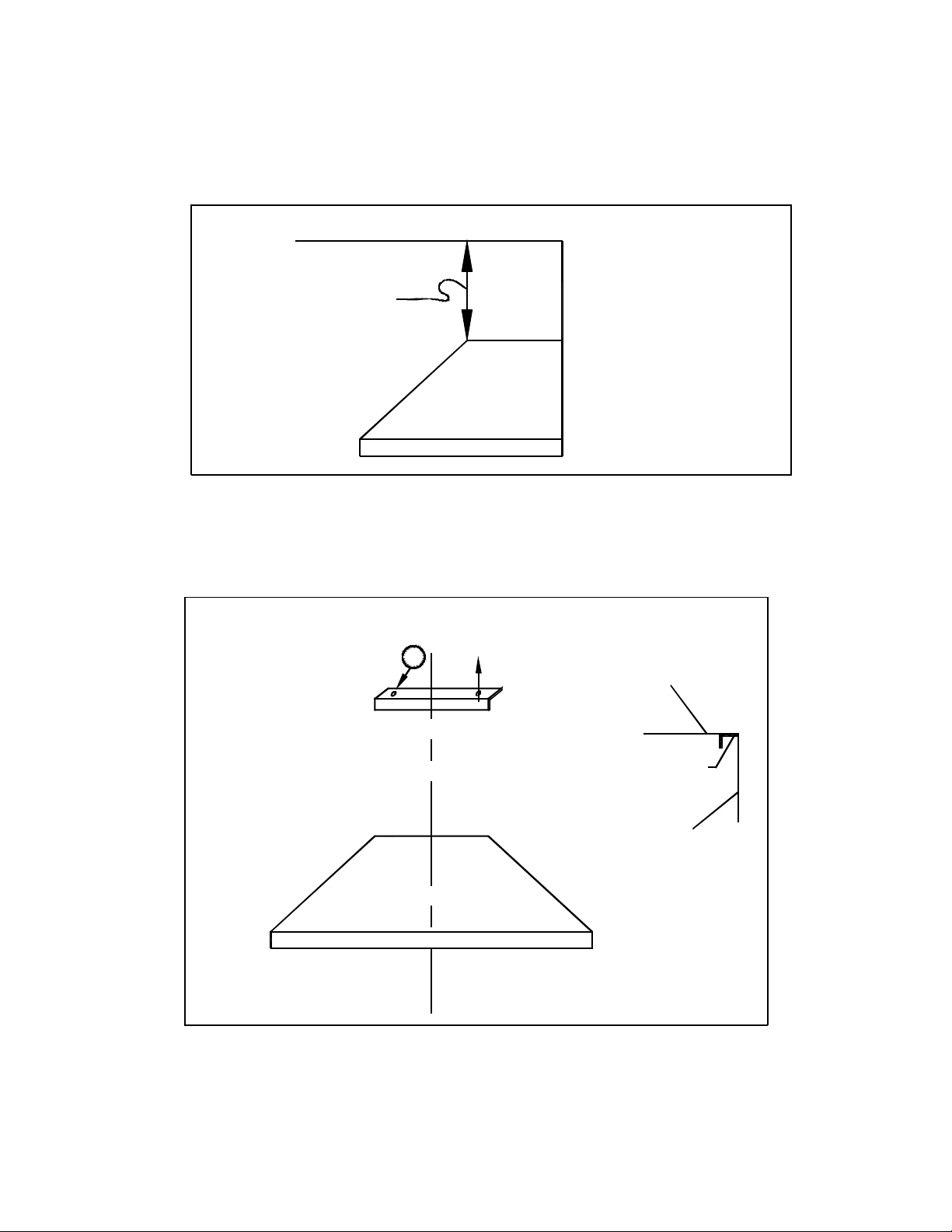

Vertical Air Discharge: After installing the hood, install
the internal blower (see FIG – 1) unit by positioning the
blower into bracket – A, notched blower bracket will center
blower. Rotate into position against hood top and secure
with #8 sheet metal screws via bracket – B. To ease
assembly you should Predrive and then remove the #8 screw
before installing the blower. Horizontal Air Discharge:
Position blower into bracket – C, rotate brackets – B against
top of hood and fasten per previous instructions. If the
remote ventilator is used see related instructions.
CAUTION: The hood is of sufficient weight that two
Installers are recommended to prevent injury or damage to
the hood in handling.
Turn the power on at the service entrance and check the
operation of the controls.
NOTE: Be sure that all dampers (Not Supplied) are
operating properly and are free to open.
VERTICAL DISCHARGE
POSITION
ROTATE
INTO
THE 8" DISCHARGE WITH THE TRANSITION # 10100
WILL BE ON THE CENTER LINE OF HOOD WIDTH
AND ON CENTER LINE OF 12" DIMENSION
ALL HOODS
24"
15"
2"
15"
VERTICAL DISCHARGE
B
12"
FIG - 3
8"
W/ROOF OF WALL CAP
TO DISCHARGE
TRANSITION #10100
HORIZONTAL DISCHARGE
POSITION
ROTATE
INTO
FIG - 1
A
B
C
BOTTOM SURFACE FOR THE HOOD MOUNTING
ADD FURRING STRIPS TO PROVIDE AN EVEN
10"
4
1
2
SEAMS.
USING TWO #6 X 3/8 SHEET METAL
SCREWS. TAPE ALL JOINTS AND
ROUTE TO OUTSIDE W/WALL CAP
SECURE TRANSITION TO HOOD
A
USING # 10100 TRANSITION
= CENTER OF ROUND DUCT
14
4
CUT HOLE IN DRYWALL
TO ACCEPT TRANSITION
# 10100
7
1
8
1
5"
10
2
1
HORIZONTAL DISCHARGE
7
8
1
FIG - 4
C
L
HOOD
3
A
4
BACK WALL
7
8
1
4
1
2
5"
10
4
1
12"
BOTTOM VIEW OF CABINET - FOR MODEL WPN
2
2
1
FIG-2
WIRING ACCESS
