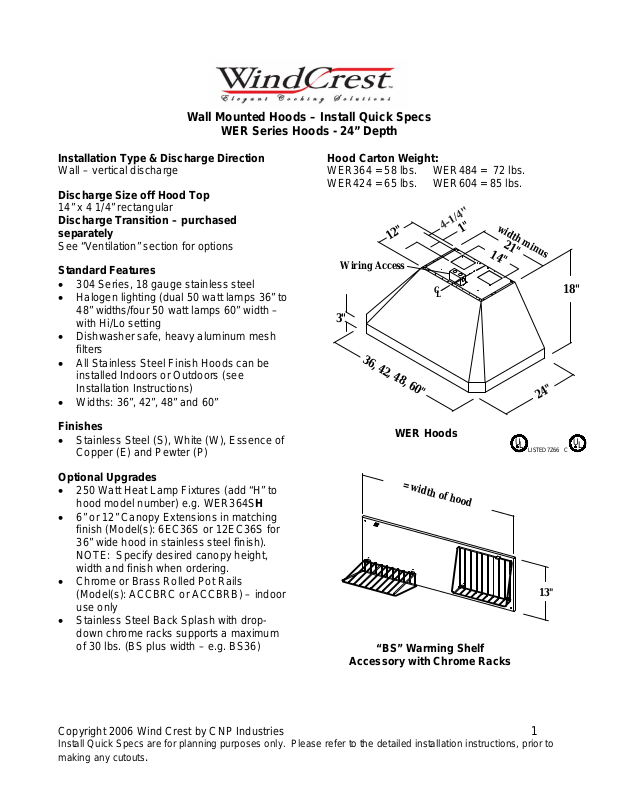

Wall Mounted Hoods – Install Quick Specs

A

WER Series Hoods - 24” Depth

Installation Type & Discharge Direction

Wall – vertical discharge

Discharge Size off Hood Top

14” x 4 1/4” rectangular

Discharge Transition – purchased
separately

See “Ventilation” section for options

Standard Features

• 304 Series, 18 gauge stainless steel

• Halogen lighting (dual 50 watt lamps 36” to

48” widths/four 50 watt lamps 60” width –
with Hi/Lo setting

• Dishwasher safe, heavy aluminum mesh
filters

• All Stainless Steel Finish Hoods can be
installed Indoors or Outdoors (see
Installation Instructions)

• Widths: 36”, 42”, 48” and 60”

Finishes

• Stainless Steel (S), White (W), Essence of
Copper (E) and Pewter (P)

Optional Upgrades

• 250 Watt Heat Lamp Fixtures (add “H” to
hood model number) e.g. WER364SH

• 6” or 12” Canopy Extensions in matching
finish (Model(s): 6EC36S or 12EC36S for
36” wide hood in stainless steel finish).
NOTE: Specify desired canopy height,
width and finish when ordering.

• Chrome or Brass Rolled Pot Rails
(Model(s): ACCBRC or ACCBRB) – indoor
use only

• Stainless Steel Back Splash with drop­down chrome racks supports a maximum
of 30 lbs. (BS plus width – e.g. BS36)

Hood Carton Weight:

WER364 = 58 lbs. WER484 = 72 lbs.
WER424 = 65 lbs. WER604 = 85 lbs.

"

2

1

Wiring Access

"

1

C

L

3"

3

6

,

4

2

,

4

8

,

6

0

"

=

w

i

d

t

h

o

f

h

o

o

d

“BS” Warming Shelf

ccessory with Chrome Racks

w

i

d

t

h

m

2

i

n

1

u

"

1

4

"

s

18"

"

4

2

U

L

LISTED 7Z66 C

13"

U

L

Copyright 2006 Wind Crest by CNP Industries 1

Install Quick Specs are for planning purposes only. Please refer to the detailed installation instructions, prior to
making any cutouts

.

Wall Mounted Hoods – Install Quick Specs

WER Series Hoods - 24” Depth (cont.)

Maximum Power Supply Required*

15 Amps @ 120 V AC, 60 Hz
20 Amps @ 120 V AC, 60 Hz (when used with
VEN150E remote ventilator)
*Electrical rating is maximum required for any

combination of ventilator, lighting and heat
lamps.

Outdoor Electrical Requirements

Damp outdoor installations require a fault
interrupter circuit connection.

Hood Lighting Rating

• 36” to 48” widths: 100 watts w/halogen
lights or 600 watts w/halogen + heat lamps

• 60” width: 200 watts w/halogen lights
or 700 watts w/halogen + heat lamps

Ventilator Options

640 CFM, Internal Blower: VEN060I**
1000 CFM, Remote Blower: VEN100E
1500 CFM, Remote Blower: VEN150E

Ventilator Motor Ratings

VEN060I: 2.8 Amps @ 120 V AC, 60 Hz**
VEN100E: 8 Amps @ 120 V AC, 60 Hz
VEN150E: 12 Amps @ 120 V AC, 60 Hz

**Two VEN060I internal ventilators can be installed
in WER 60” wide hood. This installation requires
part #10220 dual wire harness. Refer to installation
instructions for full details.

Ventilator Dimensions & Accessory
Transitions (see Ventilator section)

CUSTOMER SPECIFICATION:
Hood Width Specified & finish:
(e.g.WER364S)
Add Keep Hot Lamps: (e.g. WER364SH)
Accessories Selected: (e.g. Back splash with

racks, chrome or brass rails, canopy
extensions)

“EC” Canopy Extensions (6” or 12” height) for WER hoods

12"

=

w

i

d

h

t

o

h

o

o

d

f

t

o

p

1-7/8"

Center Support
48, 60" Models

Chrome/Brass
Rolled Pot Rail

Final Hood Model Selected:

Add Any Accessories:

Specify Ventilator Selected & Transitions:
_____________________________________

6", 12"

3/4"
