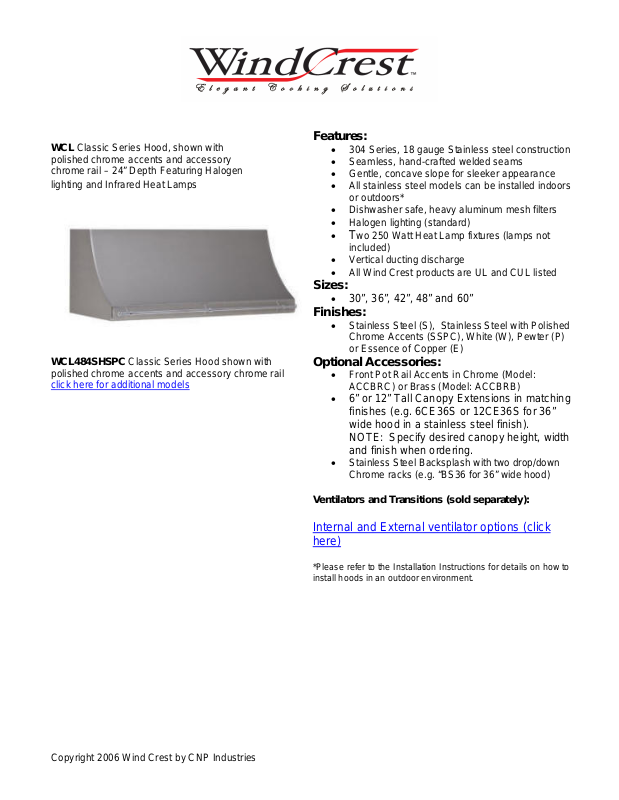

Wind Crest WCL484SHSPC User Manual

WCL Classic Series Hood, shown with

polished chrome
chrome rail – 24” Depth

lighting and Infrared Heat Lamps

accents and accessory

Featuring Halogen

WCL484SHSPC Classic Series Hood shown with
polished chrome

click here for additional models

accents and accessory chrome rail

Features:

• 304 Series, 18 gauge Stainless steel construction

• Seamless, hand-crafted welded seams

• Gentle, concave slope for sleeker appearance

• All stainless steel models can be installed indoors

or outdoors*

• Dishwasher safe, heavy aluminum mesh filters

• Halogen lighting (standard)

• Two 250 Watt Heat Lamp fixtures (lamps not

included)

• Vertical ducting discharge

• All Wind Crest products are UL and CUL listed

Sizes:

• 30”, 36”, 42”, 48” and 60”

Finishes:

• Stainless Steel (S), Stainless Steel with Polished
Chrome Accents (SSPC), White (W), Pewter (P)
or Essence of Copper (E)

Optional Accessories:

• Front Pot Rail Accents in Chrome (Model:
ACCBRC) or Brass (Model: ACCBRB)

• 6” or 12” Tall Canopy Extensions in matching

finishes (e.g. 6CE36S or 12CE36S for 36”
wide hood in a stainless steel finish).
NOTE: Specify desired canopy height, width
and finish when ordering.

• Stainless Steel Backsplash with two drop/down
Chrome racks (e.g. “BS36 for 36” wide hood)

Ventilators and Transitions (sold separately):

Internal and External ventilator options (click
here)

*Please refer to the Installation Instructions for details on how to
install hoods in an outdoor environment.

Copyright 2006 Wind Crest by CNP Industries

WCL Models Available - 24" Depth with Heat Lamps and

Halogen Lighting

WCL304SH
WCL304SHSPC
WCL304WH
WCL304PH
WCL304EH
WCL364SH
WCL364SHSPC
WCL364WH
WCL364PH
WCL364EH
WCL424SH
WCL424SHSPC
WCL424WH
WCL424PH
WCL424EH
WCL484SH
WCL484SHSPC
WCL484WH
WCL484PH
WCL484EH
WCL604SH
WCL604SHSPC
WCL604WH
WCL604PH
WCL604EH

WCL 30” Stainless Steel
WCL 30” Stainless with Polished Chrome Accents
WCL 30” White
WCL 30” Pewter
WCL 30” Essence of Copper
WCL 36” Stainless Steel
WCL 36” Stainless with Polished Chrome Accents
WCL 36” White
WCL 36” Pewter
WCL 36” Essence of Copper
WCL 42” Stainless Steel
WCL 42” Stainless with Polished Chrome Accents
WCL 42” White
WCL 42” Pewter
WCL 42” Essence of Copper
WCL 48” Stainless Steel
WCL 48” Stainless with Polished Chrome Accents
WCL 48” White
WCL 48” Pewter
WCL 48” Essence of Copper
WCL 60” Stainless Steel
WCL 60” Stainless with Polished Chrome Accents
WCL 60” White
WCL 60” Pewter
WCL 60” Essence of Copper
