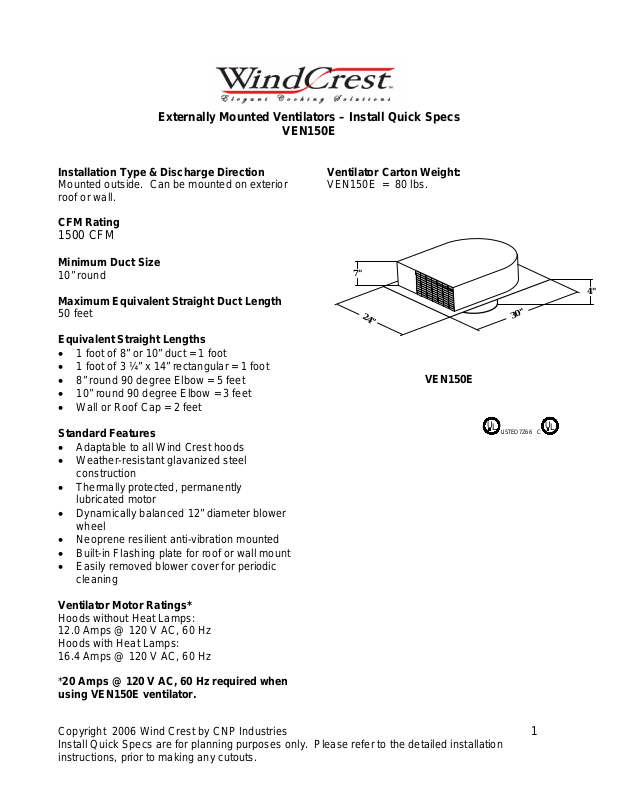

Wind Crest VEN150E User Manual
Externally Mounted Ventilators – Install Quick Specs
VEN150E
Installation Type & Discharge Direction
Mounted outside. Can be mounted on exterior
roof or wall.
CFM Rating
1500 CFM
Minimum Duct Size
10” round
Maximum Equivalent Straight Duct Length
50 feet
Equivalent Straight Lengths
• 1 foot of 8” or 10” duct = 1 foot
• 1 foot of 3 ¼” x 14” rectangular = 1 foot
• 8” round 90 degree Elbow = 5 feet
• 10” round 90 degree Elbow = 3 feet
• Wall or Roof Cap = 2 feet
Standard Features
• Adaptable to all Wind Crest hoods
• Weather-resistant glavanized steel
construction
• Thermally protected, permanently
lubricated motor
• Dynamically balanced 12” diameter blower
wheel
• Neoprene resilient anti-vibration mounted
• Built-in Flashing plate for roof or wall mount
• Easily removed blower cover for periodic
cleaning
Ventilator Motor Ratings*
Hoods without Heat Lamps:
12.0 Amps @ 120 V AC, 60 Hz
Hoods with Heat Lamps:
16.4 Amps @ 120 V AC, 60 Hz
*20 Amps @ 120 V AC, 60 Hz required when
using VEN150E ventilator.
Ventilator Carton Weight:
VEN150E = 80 lbs.
7"
24
"
VEN150E
U
L
LISTED 7Z66 C
4"
"
0
3
U
L
Copyright 2006 Wind Crest by CNP Industries 1
Install Quick Specs are for planning purposes only. Please refer to the detailed installation
instructions, prior to making any cutouts.
Internally Mounted Ventilators – Install Quick Specs
14
#10100 = 14” w X 4 ¼” d x 8 ½” h
Rectangular to 8” Round duct
#10287 = 14” w X 4 ¼” d x 8 ½” h
Rectangular to 10” Round duct
14
#10099 = 14” w x 4 ¼” d x 6 ½” h
Rectangular transition
10
1
4
#10172 = 10” round Starting Collar
8
10
#10173 = 10” to 8” Round Adapter
1
8
2
1
6
2
1
5
2
7
VEN150E
#10288 = 8” Round Backdraft Damper
#10289 = 10” Round Backdraft Damper
#10542 = Plenum Transition to 10” round (use
with dual Internal or Remote blower on 48” and
larger WSL, WCL, WER60 or PSL66 hoods)
#10377 = 10” Round Rear Discharge
#10566 = 10” Round Left Side Discharge
#10378 = 10” Round Right Side Discharge
11 ½” h x 32 ¾” w
11 ½” h x 14” w
11 ½” h x 16” w
11 ½” h x 16” w
Copyright 2006 Wind Crest by CNP Industries 2
Install Quick Specs are for planning purposes only. Please refer to the detailed installation
instructions, prior to making any cutouts.
