Wind Crest VEN100E User Manual

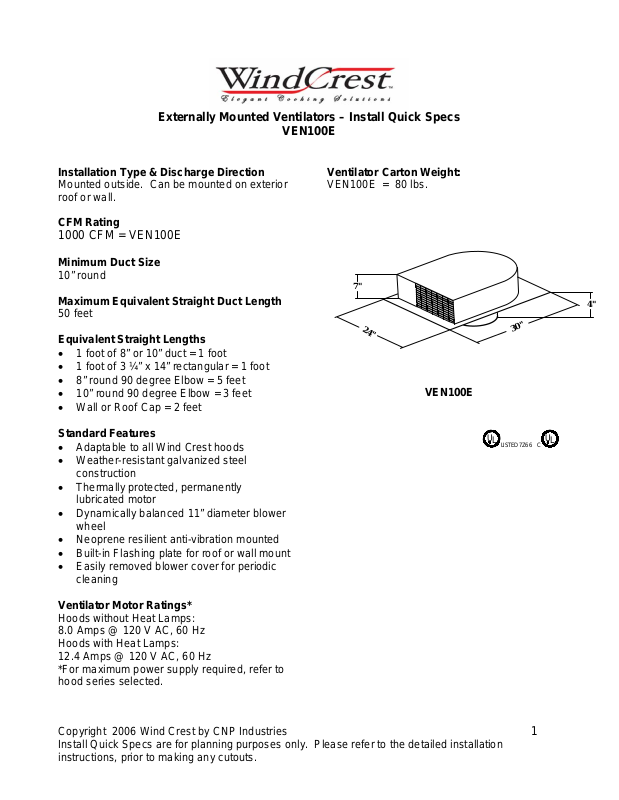

Externally Mounted Ventilators – Install Quick Specs
VEN100E
Installation Type & Discharge Direction
Mounted outside. Can be mounted on exterior
roof or wall.
CFM Rating
1000 CFM = VEN100E
Minimum Duct Size
10” round
Maximum Equivalent Straight Duct Length
50 feet
Equivalent Straight Lengths
• 1 foot of 8” or 10” duct = 1 foot
• 1 foot of 3 ¼” x 14” rectangular = 1 foot
• 8” round 90 degree Elbow = 5 feet
• 10” round 90 degree Elbow = 3 feet
• Wall or Roof Cap = 2 feet
Standard Features
• Adaptable to all Wind Crest hoods
• Weather-resistant galvanized steel
construction
• Thermally protected, permanently
lubricated motor
• Dynamically balanced 11” diameter blower
wheel
• Neoprene resilient anti-vibration mounted
• Built-in Flashing plate for roof or wall mount
• Easily removed blower cover for periodic
cleaning
Ventilator Motor Ratings*
Hoods without Heat Lamps:
8.0 Amps @ 120 V AC, 60 Hz
Hoods with Heat Lamps:
12.4 Amps @ 120 V AC, 60 Hz
*For maximum power supply required, refer to
hood series selected.
Ventilator Carton Weight:
VEN100E = 80 lbs.
7"
24
"
VEN100E
U
L
LISTED 7Z66 C
4"
"
0
3
U
L
Copyright 2006 Wind Crest by CNP Industries 1
Install Quick Specs are for planning purposes only. Please refer to the detailed installation
instructions, prior to making any cutouts.
Internally Mounted Ventilators – Install Quick Specs
14
#10100 = 14” w X 4 ¼” d x 8 ½” h
Rectangular to 8” Round duct
#10287 = 14” w X 4 ¼” d x 8 ½” h
Rectangular to 10” Round duct
14
#10099 = 14” w x 4 ¼” d x 6 ½” h
Rectangular transition
10
1
4
#10172 = 10” round Starting Collar
8
7
10
#10173 = 10” to 8” Round Adapter
1
8
2
1
6
2
1
5
2
VEN100E
#10288 = 8” Round Backdraft Damper
#10289 = 10” Round Backdraft Damper
#10542 = Plenum Transition to 10” round (use
with dual Internal or Remote blower on 48” and
larger WSL, WCL, WER60 or PSL66 hoods)
#10377 = 10” Round Rear Discharge
#10566 = 10” Round Left Side Discharge
#10378 = 10” Round Right Side Discharge
11 ½” h x 32 ¾” w
11 ½” h x 14” w
11 ½” h x 16” w
11 ½” h x 16” w
Copyright 2006 Wind Crest by CNP Industries 2
Install Quick Specs are for planning purposes only. Please refer to the detailed installation
instructions, prior to making any cutouts.
