Wind Crest VEN060I User Manual

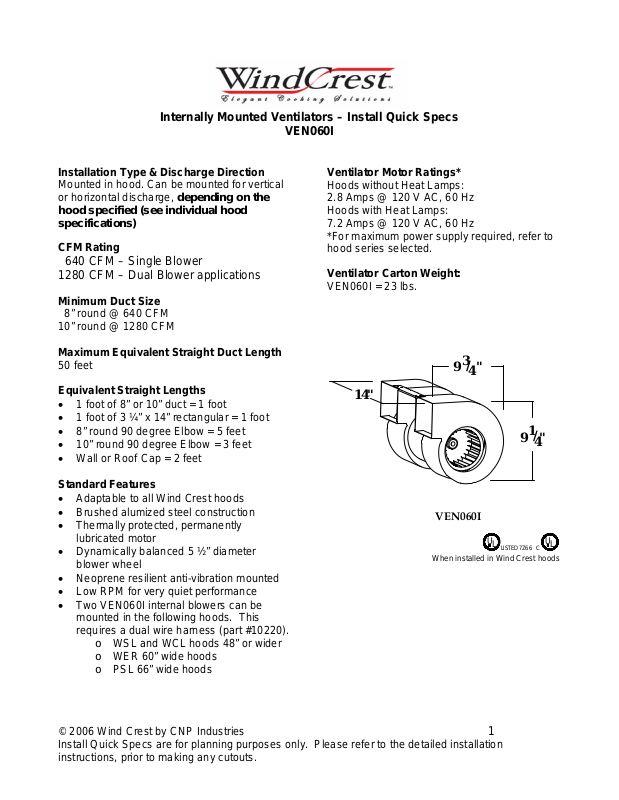

Internally Mounted Ventilators – Install Quick Specs
VEN060I
Installation Type & Discharge Direction
Mounted in hood. Can be mounted for vertical
or horizontal discharge, depending on the
hood specified (see individual hood
specifications)
CFM Rating
640 CFM – Single Blower
1280 CFM – Dual Blower applications
Minimum Duct Size
8” round @ 640 CFM
10” round @ 1280 CFM
Maximum Equivalent Straight Duct Length
50 feet
Equivalent Straight Lengths
• 1 foot of 8” or 10” duct = 1 foot
• 1 foot of 3 ¼” x 14” rectangular = 1 foot
• 8” round 90 degree Elbow = 5 feet
• 10” round 90 degree Elbow = 3 feet
• Wall or Roof Cap = 2 feet
Standard Features
• Adaptable to all Wind Crest hoods
• Brushed alumized steel construction
• Thermally protected, permanently
lubricated motor
• Dynamically balanced 5 ½” diameter
blower wheel
• Neoprene resilient anti-vibration mounted
• Low RPM for very quiet performance
• Two VEN060I internal blowers can be
mounted in the following hoods. This
requires a dual wire harness (part #10220).
o WSL and WCL hoods 48” or wider
o WER 60” wide hoods
o PSL 66” wide hoods
Ventilator Motor Ratings*
Hoods without Heat Lamps:
2.8 Amps @ 120 V AC, 60 Hz
Hoods with Heat Lamps:
7.2 Amps @ 120 V AC, 60 Hz
*For maximum power supply required, refer to
hood series selected.
Ventilator Carton Weight:
VEN060I = 23 lbs.
3
/
9 "
4
14"
VEN060I
U
L
LISTED 7Z66 C
When installed in Wind Crest hoods
1
/
9 "
4
U
L
© 2006 Wind Crest by CNP Industries 1
Install Quick Specs are for planning purposes only. Please refer to the detailed installation
instructions, prior to making any cutouts.
Internally Mounted Ventilators – Install Quick Specs
14
#10100 = 14” w X 4 ¼” d x 8 ½”h
Rectangular to 8” Round duct
#10287 = 14” w X 4 ¼” d x 8 ½”h
Rectangular to 10” Round duct
14
#10099 = 14 w x 4 ¼” d x 6 ½” h
Rectangular transition
1
10
4
#10172 = 10” round Starting Collar
8
10
#10173 = 10” to 8” Round Adapter
1
8
2
1
6
2
1
5
2
7
Transitions Available
#10288 = 8” Round Back draft Damper
#10289 = 10” Round Back draft Damper
#10542 = Plenum Transition to 10” round (use
with dual Internal or Remote blower on 48” and
larger WSL, WCL, WER60 or PSL66 hoods)
#10377 = 10” Round Rear Discharge
#10566 = 10” Round Left Side Discharge
#10378 = 10” Round Right Side Discharge
11 ½” h x 32 ¾” w
11 ½” h x 14” w
11 ½” h x 16” w
11 ½” h x 16” w
© 2006 Wind Crest by CNP Industries 2
Install Quick Specs are for planning purposes only. Please refer to the detailed installation
instructions, prior to making any cutouts.
