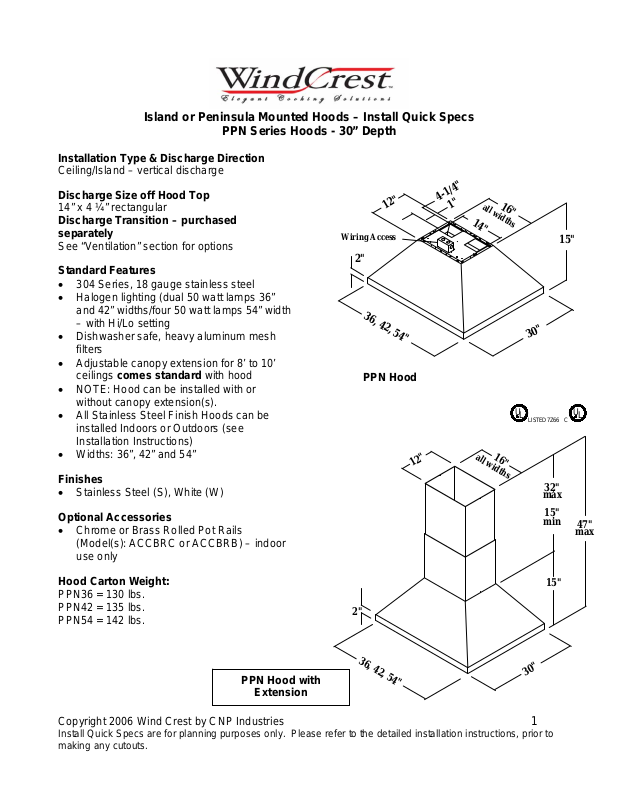

Wind Crest PPN User Manual
Island or Peninsula Mounted Hoods – Install Quick Specs
PPN Series Hoods - 30” Depth
Installation Type & Discharge Direction
Ceiling/Island – vertical discharge
Discharge Size off Hood Top
14” x 4 ¼” rectangular
Discharge Transition – purchased
separately
See “Ventilation” section for options
Standard Features
• 304 Series, 18 gauge stainless steel
• Halogen lighting (dual 50 watt lamps 36”
and 42” widths/four 50 watt lamps 54” width
– with Hi/Lo setting
• Dishwasher safe, heavy aluminum mesh
filters
• Adjustable canopy extension for 8’ to 10’
ceilings comes standard with hood
• NOTE: Hood can be installed with or
without canopy extension(s).
• All Stainless Steel Finish Hoods can be
installed Indoors or Outdoors (see
Installation Instructions)
• Widths: 36”, 42” and 54”
Finishes
• Stainless Steel (S), White (W)
Optional Accessories
• Chrome or Brass Rolled Pot Rails
(Model(s): ACCBRC or ACCBRB) – indoor
use only
Hood Carton Weight:
PPN36 = 130 lbs.
PPN42 = 135 lbs.
PPN54 = 142 lbs.
Wiring Access
2"
2"
"
2
1
3
6
,
4
2
,
5
4
"
PPN Hood
"
4
/
1
-
4
"
1
1
a
l
6
l
"
w
i
d
t
1
h
4
s
"
15"
"
0
3
U
L
LI STED 7Z66 C
a
"
2
1
1
l
6
l
"
w
i
d
t
h
s
max
min
32"
15"
15"
U
L
47"
max
3
6
,
PPN Hood with
4
2
,
5
4
"
"
0
3
Extension
Copyright 2006 Wind Crest by CNP Industries 1
Install Quick Specs are for planning purposes only. Please refer to the detailed installation instructions, prior to
making any cutouts.
Island or Peninsula Mounted Hoods – Install Quick Specs
PPN Series Hoods - 30” Depth (cont.)
Maximum Power Supply Required*
15 Amps @ 120 V AC, 60 Hz
20 Amps @ 120 V AC, 60 Hz (when used with
VEN150E remote ventilator)
*Electrical rating is maximum required for any
combination of ventilator and lighting.
Outdoor Electrical Requirements
Damp outdoor installations require a fault
interrupter circuit connection.
Hood Lighting Rating
• 36” and 42” widths: 100 watts w/halogen
lights.
• 54” width: 200 watts w/halogen lights
Ventilator Options
640 CFM, Internal Blower: VEN060I
1000 CFM, Remote Blower: VEN100E
1500 CFM, Remote Blower: VEN150E
Ventilator Motor Ratings
VEN060I: 2.8 Amps @ 120 V AC, 60 Hz
VEN100E: 8 Amps @ 120 V AC, 60 Hz
VEN150E: 12 Amps @ 120 V AC, 60 Hz
Ventilator Dimensions & Accessory
Transitions (see Ventilator section)
CUSTOMER SPECIFICATION:
Hood Width Specified & finish:
(e.g.PPN36S)
Accessories Selected: (e.g. Chrome or brass
rails)
1-7/8"
Center Support
54 Models
Chrome/Brass
Rolled Pot Rail
3/4"
Final Hood Model Selected:
Add Any Accessories:
Specify Ventilator Selected & Transitions:
_____________________________________
_____________________________________
_____________________________________
Copyright 2006 Wind Crest by CNP Industries 2
Install Quick Specs are for planning purposes only. Please refer to the detailed installation instructions, prior to
making any cutouts.
