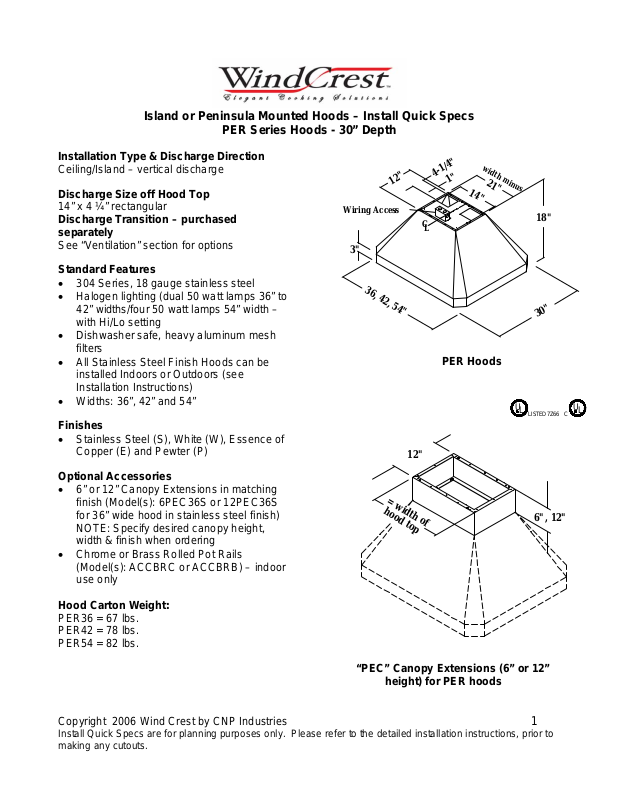

Wind Crest PER36 User Manual
Island or Peninsula Mounted Hoods – Install Quick Specs
PER Series Hoods - 30” Depth
Installation Type & Discharge Direction
Ceiling/Island – vertical discharge
Discharge Size off Hood Top
14” x 4 ¼” rectangular
Discharge Transition – purchased
separately
See “Ventilation” section for options
Standard Features
• 304 Series, 18 gauge stainless steel
• Halogen lighting (dual 50 watt lamps 36” to
42” widths/four 50 watt lamps 54” width –
with Hi/Lo setting
• Dishwasher safe, heavy aluminum mesh
filters
• All Stainless Steel Finish Hoods can be
installed Indoors or Outdoors (see
Installation Instructions)
• Widths: 36”, 42” and 54”
Finishes
• Stainless Steel (S), White (W), Essence of
Copper (E) and Pewter (P)
Optional Accessories
• 6” or 12” Canopy Extensions in matching
finish (Model(s): 6PEC36S or 12PEC36S
for 36” wide hood in stainless steel finish)
NOTE: Specify desired canopy height,
width & finish when ordering
• Chrome or Brass Rolled Pot Rails
(Model(s): ACCBRC or ACCBRB) – indoor
use only
Hood Carton Weight:
PER36 = 67 lbs.
PER42 = 78 lbs.
PER54 = 82 lbs.
"
4
/
1
-
4
1
C
L
PER Hoods
Wiring Access
3"
"
2
1
3
6
,
4
2
,
5
4
"
12"
=
w
i
h
d
t
o
h
o
d
o
f
t
o
p
“PEC” Canopy Extensions (6” or 12”
height) for PER hoods
w
"
i
2
1
4
"
d
t
h
m
i
n
1
u
"
s
18"
"
0
3
U
L
LISTED 7Z66 C
U
L
6", 12"
Copyright 2006 Wind Crest by CNP Industries 1
Install Quick Specs are for planning purposes only. Please refer to the detailed installation instructions, prior to
making any cutouts.
Island or Peninsula Mounted Hoods – Install Quick Specs
PER Series Hoods - 30” Depth (cont.)
Maximum Power Supply Required*
15 Amps @ 120 V AC, 60 Hz
20 Amps @ 120 V AC, 60 Hz (when used with
VEN150E remote ventilator)
*Electrical rating is maximum required for any
combination of ventilator and lighting.
Outdoor Electrical Requirements
Damp outdoor installations require a fault
interrupter circuit connection.
Hood Lighting Rating
• 36” and 42” widths: 100 watts w/halogen
lights
• 54” width: 200 watts w/halogen lights
Ventilator Options
640 CFM, Internal Blower: VEN060I
1000 CFM, Remote Blower: VEN100E
1500 CFM, Remote Blower: VEN150E
Ventilator Motor Ratings
VEN060I: 2.8 Amps @ 120 V AC, 60 Hz
VEN100E: 8 Amps @ 120 V AC, 60 Hz
VEN150E: 12 Amps @ 120 V AC, 60 Hz
Ventilator Dimensions & Accessory
Transitions (see Ventilator section)
CUSTOMER SPECIFICATION:
Hood Width Specified & finish:
(e.g.PER36S)
Accessories Selected: (e.g. Chrome or brass
rails and canopy extensions)
1-7/8
Center Support
54" models
Chrome/Brass
Rolled Pot Rail
3/4
Final Hood Model Selected:
Add Any Accessories:
Specify Ventilator Selected & Transitions:
Copyright 2006 Wind Crest by CNP Industries 2
Install Quick Specs are for planning purposes only. Please refer to the detailed installation instructions, prior to
making any cutouts.
