Wind Crest CTI365D, CTI304D User Manual

11069.00 Rev A

USE AND CARE MANUAL

FOR

INDUCTION COOKTOP

MODELS: CTI304D & CTI365D

THIS MANUAL SHOULD REMAIN WITH THE COOKTOP FOR
REFERENCE

Page# 1 of 16

11069.00 Rev A

IMPORTANT SAFETY INSTRUCTIONS

THE COOKTOP.

READ ALL INSTRUCTIONS BEFORE USING YOUR COOKTOP

WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO

PERSONS, OBSERVE THE FOLLOWING:

1. USE THIS UNIT ONLY IN THE MANNER INTENDED BY THE MANUFACTURER. IF YOU HAVE

ANY QUESTIONS, CONTACT THE MANUFACTURER.

2. BEFORE SERVICING UNIT, SWITCH POWER OFF AT SERVICE PANEL AND LOCK SERVICE

DISCONNECTING MEANS TO PREVENT POWER FROM BEING SWITCHED ON
ACCIDENTALLY. WHEN THE SERVICE DISCONNECTING MEANS CANNOT BE LOCKED,
SECURELY FASTEN A PROMINENT WARNING DEVICE, SUCH AS A TAG, TO THE SERVICE
PANEL. SERVICE MUST BE PERFORMED BY A QUALIFIED TECHNICIAN.

3. DO NOT COOK ON A COOKTOP HAVING BROKEN OR CRACKED GLASS. CLEANING

SOLUTIONS AND SPILLOVERS MAY PENETRATE THE BROKEN COOKTOP AND CREATE A
RISK OF ELECTRIC SHOCK. TURN OFF ELECTRIC POWER AT THE SERVICE PANEL AND
CALL AN AUTHORIZED SERVICE AGENCY.

WARNING – TO REDUCE THE RISK OF INJURY TO PERSONS, IN THE EVENT OF A

1. SMOTHER FLAMES with a close fitting lid, cookie sheet, or metal tray, then turn off power to the

electric element. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately,
EVACUATE AND CALL THE FIRE DEPARTMENT.

2. NEVER PICK UP A FLAMING PAN. You may be burned.

3. DO NOT USE WATER, including wet dishcloths or towels – a violent steam explosion will result.

4. USE AN EXTINGUISHER ONLY IF:

 You know you have a class ABC extinguisher, and you already know how to operate it.
 The fire is small and contained in the area where it started.
 The fire department is being called.
 You can fight the fire with your back to an exit.

WARNING – DO NOT STORE ITEMS OF INTEREST TO CHILDREN ABOVE THE

1. Do not leave children unattended in area where appliances are in use.

2. Do not allow children to sit or stand on any part of the cooktop.

COOKTOP GREASE FIRE, OBSERVE THE FOLLOWING:

COOKTOP OR AT THE BACK OF IT. IF CHILDREN CLIMB ONTO THE
COOKTOP TO REACH THESE ITEMS, THEY COULD BE SERIOUSLY
INJURED

WARNING – DO NOT STORE FLAMMABLE MATERIALS ON OR NEAR THE

COOKTOP AND OBSERVE GOOD SAFETY PRACTICES WHEN USING

Page# 2 of 16

11069.00 Rev A

IMPORTANT SAFETY INSTRUCTIONS

1. Wear proper apparel. Loose fitting garments or those with long sleeves should never be worn

while cooking.

2. DO NOT TOUCH HOT COOKING UTENSILES OR THE IMMEDIATE AREA THAT WAS

UNDER THE COOKING UTENSLE. These areas may be hot. The glass surface heats because it
is in contact with the hot cooking vessel.

3. Use dry potholders only. Moist or damp potholders on hot surfaces may cause burns from steam.

Do not use towels or cloths in place of potholders.

4. This appliance is equipped with one or more surface units of different size. Always use utensils

that have flat bottoms. Use utensils that best match the surface unit size (smaller utensils on
smaller surface units) - and are a minimum of 4-inches in diameter.

5. UTENSIL HANDLES SHOULD BE TURNED INWARD AND NOT EXTEND OVER

ADJACENT SURFACE UNITS OR COUNTERS. To reduce the risk of INJURY, and spillage
due to unintentional contact with the utensil, the handle of the utensil should be positioned so that
it is turned inward, and does not extend over adjacent surface units or counter edges.

6. Never leave the cooktop unattended when heating elements are turned on. Boil over causes

smoking and greasy spillovers that may cause injury.

7. Use high heat setting only when necessary, and never when not monitoring the utensil. Use low to

medium settings to heat oil slowly.

8. Hold the handle of the utensil to prevent movement when stirring or turning food.

9. Do not use utensils that do not attract and hold a magnet and never use a steel plate or griddle to

heat a nonmagnetic utensil, which can cause INJURY or DAMAGE to the cooktop elements and
controls.

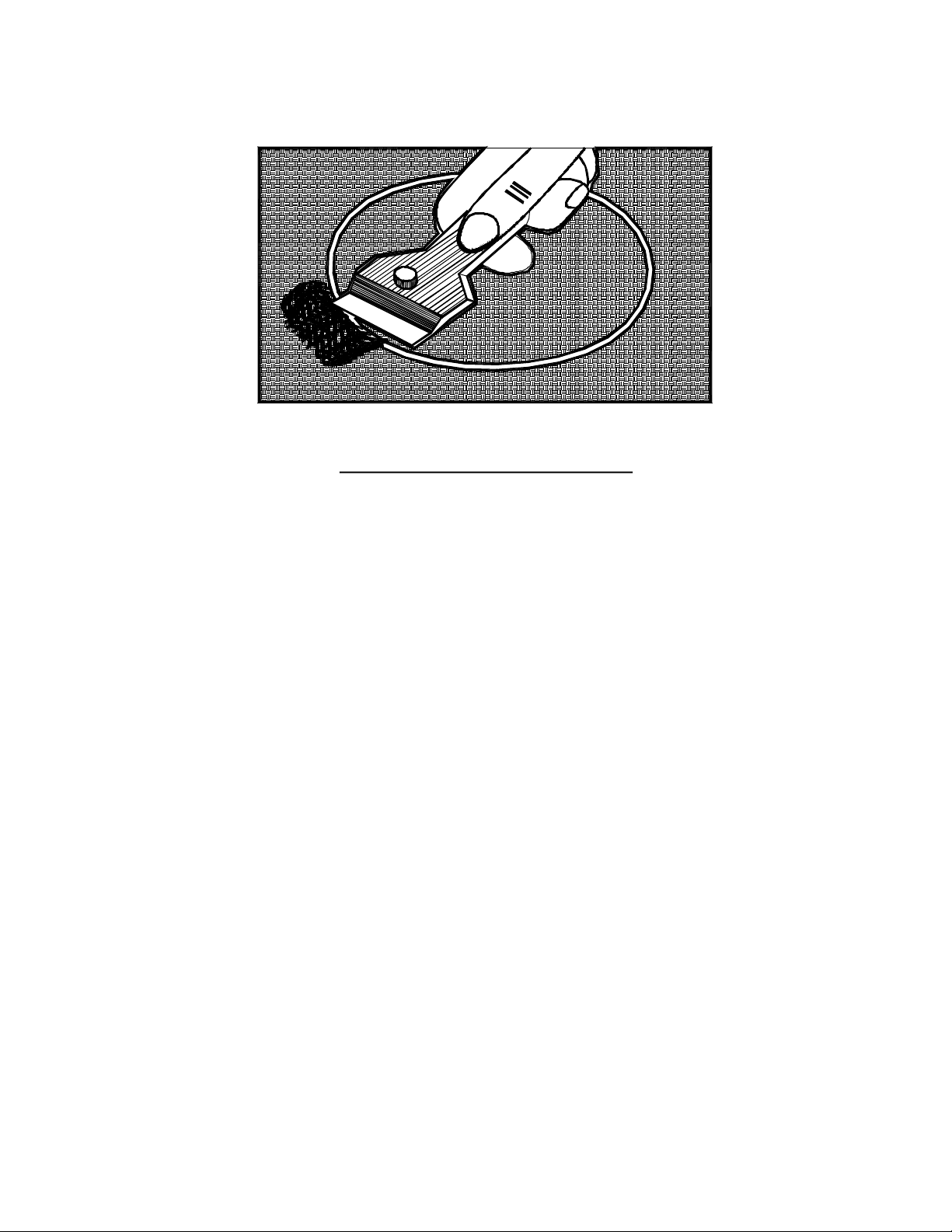

10. Clean the cooktop with caution. If soil must be removed while the cooktop is hot, clean the hot

top with a plastic spatula and then wipe with a dry cloth. DO NOT USE WET CLOTH OR
SPONGE WHILE THE COOKTOP IS HOT since steam can be generated if the cloth or sponge
is held in place on the hot spot. Some cleaners may produce noxious fumes if applied to hot
surfaces.

CAUTION – The cooktop is for cooking. Never use it to warm or heat a room.
Be sure your cooktop is properly installed and grounded by a qualified service installer in

accordance with local codes and the installation instructions provided with the cooktop.
Do not repair or replace any part of the appliance unless specifically recommended in the use

and care instructions. All servicing should be done by a qualified service technician.

Page# 3 of 16

11069.00 Rev A

OPERATING INSTRUCTIONS

BEFORE USING THE COOKTOP FOR THE FIRST TIME:

 Be sure all packing materials, labels or tape are removed from the cooktop surface.
 Wipe with a clean, damp sponge and dry.
 Apply a Glass Ceramic Cleaning Crème. Buff with a clean cloth. (See CARE AND

CLEANING INSTRUCTIONS for glass top.)

Precautions to observe to preserve the cooktop appearance.

 Regular use of the Cooktop Cleaning Crème on the glass surface will protect the surface

and make it easier to remove food soil and water spots.

 The glass surface is resistant to impact but not unbreakable if a pan or other object is

dropped on it with sufficient force.

 Do not use aluminum foil directly on the glass, it can melt and damage the glass.
 Do not allow plastic to come in contact with a hot glass surface. They can melt or burn

and damage the glass surface.

 Do not allow pans to boil dry. This can damage the pan, element and/or the cooktop.
 Do not use the glass surface as a cutting board.
 Do not slide utensils across cooking surface. This may cause scratching. Utensils with

rough surfaces should be avoided since they can scratch the glass surface.

 Do not use griddle plates that bridge two or more elements (cooking zones). This can

damage the cooktop elements.

Signal Lights

 POWER ON LIGHT (See Fig – 1)

The power on light will glow when one or more elements are turned on. The light is

located above each Turn-On touch pad.

 POWER SETTING WINDOW (See Fig -1)

The number “0” appears and blinks when power is turned on.
The power level setting appears when selected.
Power levels are: L,1,2,3,4,5,6,7,8,9,H
NOTE: The power level selected will blink if a pan is not in place on the burner, and the

unit will turn off after 30 seconds if a pan is not in place on the burner.

 SURFACE HOT LIGHT (See Fig – 1)

The light is located above the MED-Quick Select touch pad
The glass surface will be heated due to contact with the hot pan.
This light glows when the glass surface reaches a temperature that will feel warm or hot.

Page# 4 of 16

11069.00 Rev A

CTI365D

CTI304D

HOT

LITE

SETTING

TO TURN ON

POWER
ON/OFF

LIGHT

CONTROL

SURFACE

BURNER

POSITION

INDICATOR

PRESS HERE

DECREASE INCREASE LOW

FIG - 1

Fig - 1

Page# 5 of 16

MED

HI
