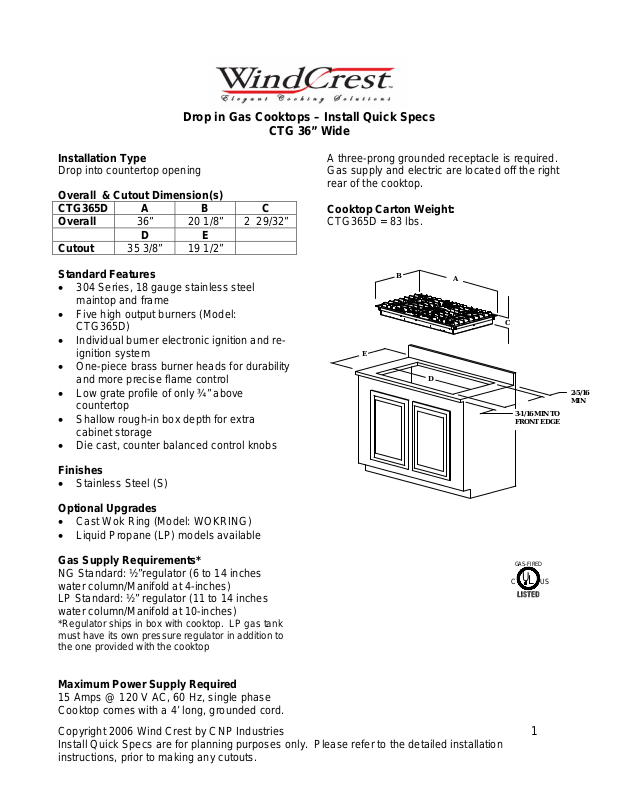

Wind Crest CTG365D User Manual

Drop in Gas Cooktops – Install Quick Specs

S

CTG 36” Wide

Installation Type

Drop into countertop opening

Overall & Cutout Dimension(s)
CTG365D A B C
Overall

36” 20 1/8” 2 29/32”

D E
Cutout

35 3/8” 19 1/2”

Standard Features

• 304 Series, 18 gauge stainless steel
maintop and frame

• Five high output burners (Model:
CTG365D)

• Individual burner electronic ignition and re­ignition system

• One-piece brass burner heads for durability
and more precise flame control

• Low grate profile of only ¾” above
countertop

• Shallow rough-in box depth for extra
cabinet storage

• Die cast, counter balanced control knobs

Finishes

• Stainless Steel (S)

Optional Upgrades

• Cast Wok Ring (Model: WOKRING)

• Liquid Propane (LP) models available

Gas Supply Requirements*

NG Standard: ½”regulator (6 to 14 inches
water column/Manifold at 4-inches)
LP Standard: ½” regulator (11 to 14 inches
water column/Manifold at 10-inches)

*Regulator ships in box with cooktop. LP gas tank
must have its own pressure regulator in addition to
the one provided with the cooktop

Maximum Power Supply Required

15 Amps @ 120 V AC, 60 Hz, single phase

Cooktop comes with a 4’ long, grounded cord.

A three-prong grounded receptacle is required.
Gas supply and electric are located off the right
rear of the cooktop.

Cooktop Carton Weight:

CTG365D = 83 lbs.

B

E

A

C

D

2-5/16
MIN

3-1/16 MIN TO
FRONT EDGE

GAS- FI RED

U

U

C

L

Copyright 2006 Wind Crest by CNP Industries 1

Install Quick Specs are for planning purposes only. Please refer to the detailed installation
instructions, prior to making any cutouts.
