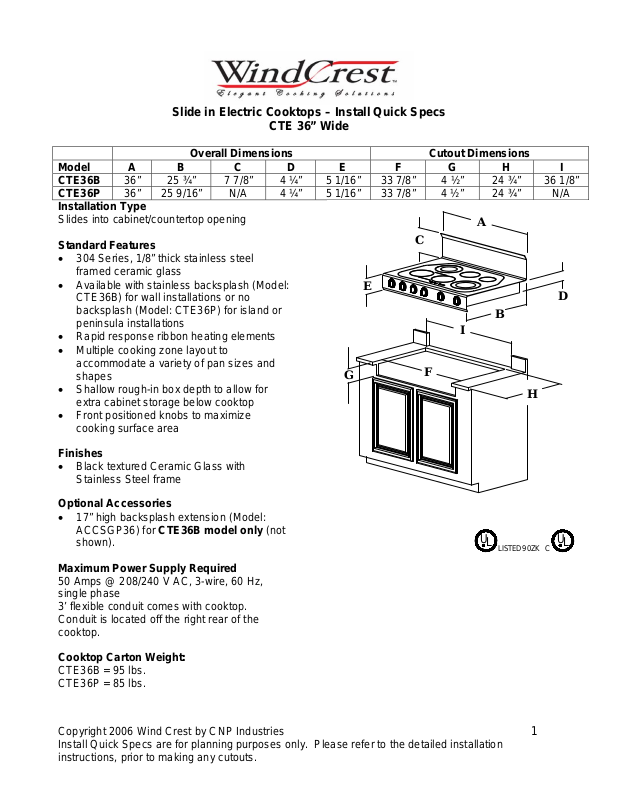

Slide in Electric Cooktops – Install Quick Specs
CTE 36” Wide
Overall Dimensions Cutout Dimensions
Model A B C D E F G H I
CTE36B
CTE36P
36” 25 ¾” 7 7/8” 4 ¼” 5 1/16” 33 7/8” 4 ½” 24 ¾” 36 1/8”
36” 25 9/16” N/A 4 ¼” 5 1/16” 33 7/8” 4 ½” 24 ¾” N/A
Installation Type
Slides into cabinet/countertop opening
A
Standard Features
C
• 304 Series, 1/8” thick stainless steel
framed ceramic glass
• Available with stainless backsplash (Model:
CTE36B) for wall installations or no
backsplash (Model: CTE36P) for island or
peninsula installations
• Rapid response ribbon heating elements
E
D
B
I
• Multiple cooking zone layout to
accommodate a variety of pan sizes and
shapes
• Shallow rough-in box depth to allow for
extra cabinet storage below cooktop
G
F
H
• Front positioned knobs to maximize
cooking surface area
Finishes
• Black textured Ceramic Glass with
Stainless Steel frame
Optional Accessories
• 17” high backsplash extension (Model:
ACCSGP36) for CTE36B model only (not
shown).
Maximum Power Supply Required
L
LISTED 90ZK
L
50 Amps @ 208/240 V AC, 3-wire, 60 Hz,
single phase
3’ flexible conduit comes with cooktop.
Conduit is located off the right rear of the
cooktop.
Cooktop Carton Weight:
CTE36B = 95 lbs.
CTE36P = 85 lbs.
Copyright 2006 Wind Crest by CNP Industries 1
Install Quick Specs are for planning purposes only. Please refer to the detailed installation
instructions, prior to making any cutouts.
