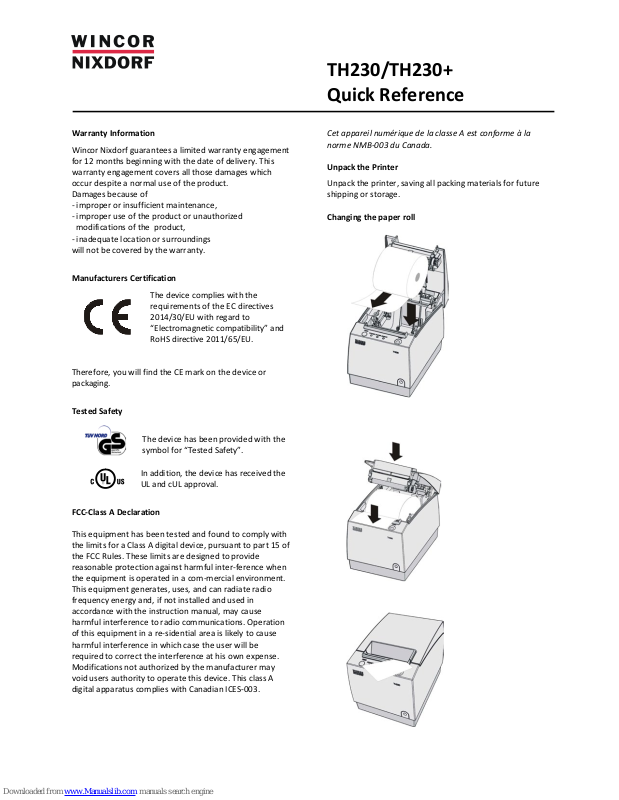

Wincor Nixdorf TH230 Quick Reference

TH230/TH230+
Quick Reference

Warranty Information

Wincor Nixdorf guarantees a limited warranty engagement
for 12 months beginning with the date of delivery. This
warranty engagement covers all those damages which
occur despite a normal use of the product.
Damages because of

- improper or insufficient maintenance,

- improper use of the product or unauthorized
modifications of the product,

- inadequate location or surroundings
will not be covered by the warranty.

Manufacturers Certification

The device complies with the
requirements of the EC directives
2014/30/EU with regard to
“Electromagnetic compatibility” and
RoHS directive 2011/65/EU.

Therefore, you will find the CE mark on the device or
packaging.

Tested Safety

The device has been provided with the
symbol for “Tested Safety”.

In addition, the device has received the
UL and cUL approval.

FCC-Class A Declaration

This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful inter-ference when
the equipment is operated in a com-mercial environment.
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instruction manual, may cause
harmful interference to radio communications. Operation
of this equipment in a re-sidential area is likely to cause
harmful interference in which case the user will be
required to correct the interference at his own expense.
Modifications not authorized by the manufacturer may
void users authority to operate this device. This class A
digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe A est conforme à la
norme NMB-003 du Canada.

Unpack the Printer

Unpack the printer, saving all packing materials for future
shipping or storage.

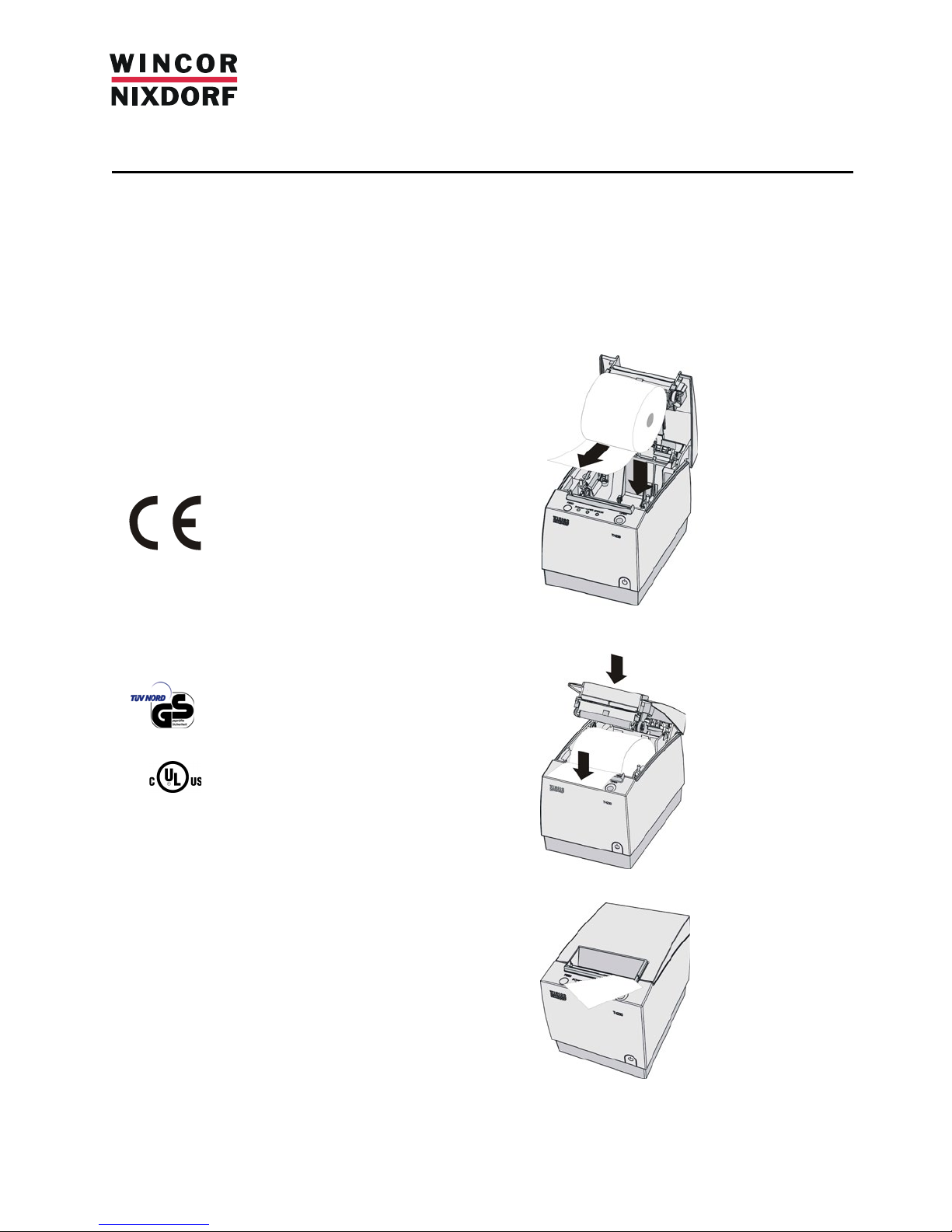

Changing the paper roll

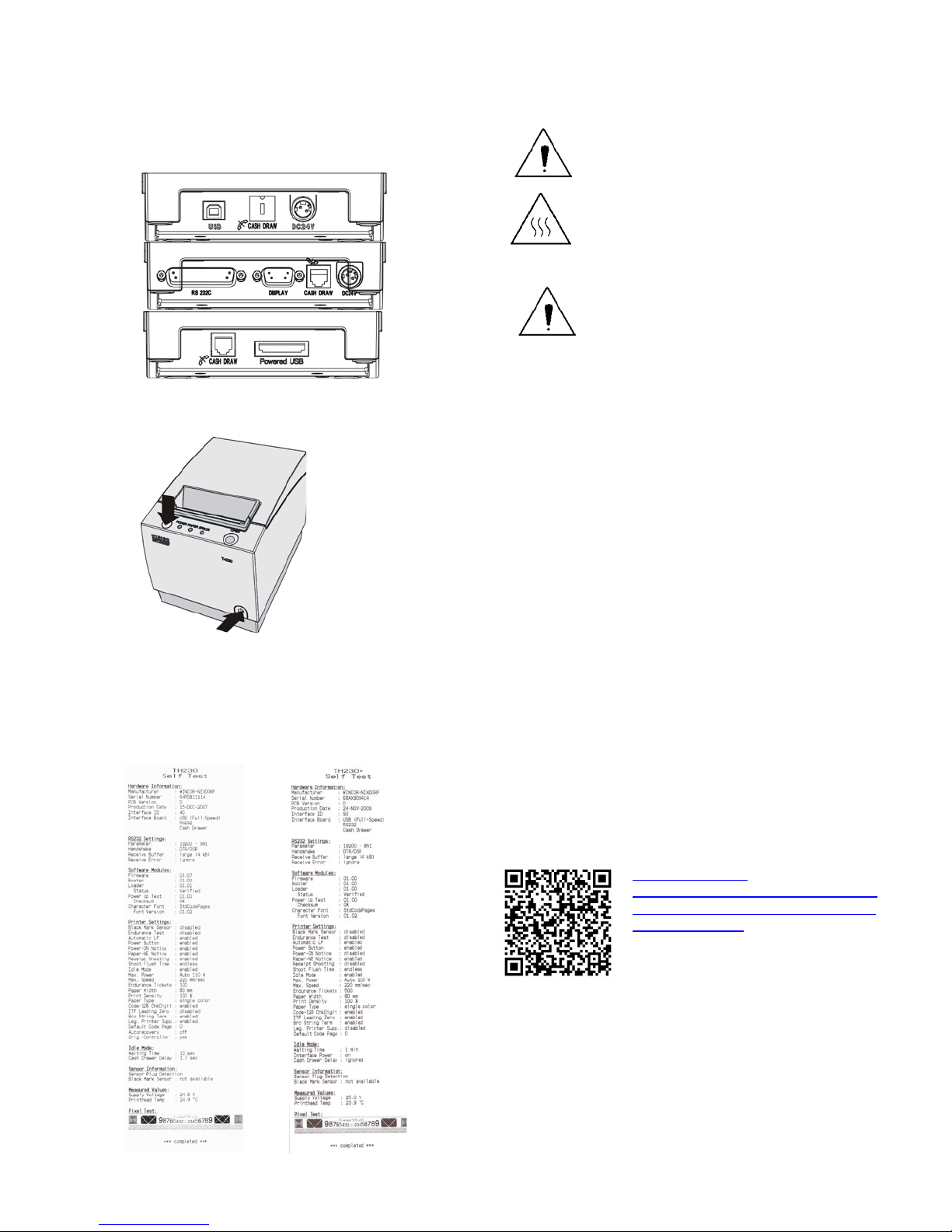

Connecting the cables

Depending on your printer configuration, the connector
panel may vary from the illustration.

Self test printout

1) Turn off the printer.

2) Push the Paper Feed Button while turning on the
printer.

3) Press the Paper Feed Button two times shortly to
select the self test. Press same button for more than
one second to start printout.

Safety instructions

Do not touch the printer’s cutter and tear
bar.

The print head is a thermal element and it
is at high temperature during printing or
just after operation. Therefore, do not
touch it and its peripherals for safety
reasons.

The thermal head is an ESD-sensitive
device. To prevent damage, do not touch
either its printing part or connecting parts.

Caution:

• Install the printer on a flat and stable place.

• Display Port: Only connect BA6x Customer

Displays. Cash Drawer Port: Only connect cash
drawers with a fire enclosure.

• Keep the printer away from water source.

• Do not use or store the printer in a place exposed

to heat or fire, moisture, serious pollution and
direct sunlight.

• Do not place the printer on a place exposed to
vibration or impact.

• No dew condensation is allowed to the printer. In
case of such condensation, do not turn on the
power until condensation completely
disappeared.

• Only use power supply units and cables released
by Wincor Nixdorf.

• Connect the printer to “UL Listed Computers”
only.

• Only connect cables to the 24V connector which
are marked with DP-1 or DP-2.

• The printer should only be disassembled or
repaired by a technician who is certified by the
manufacturer.

Further Information

Please find detailed information about the printer in the
Operator’s Guide. That document as PDF file and needed
drivers can be downloaded from this web site:

Copyright© Wincor Nixdorf International GmbH, 2016

The reproduction, transmission or use of this document or its
contents is not permitted without express authority.
Offenders will be liable for damages.
All rights, including rights created by patent grant or registration
of a utility model or design, are reserved.
Delivery subject to availability; technical modifications possible.

Order No. 01750113710D

http://www.wincor­nixdorf.com/internet/site_EN/EN/Support/
Downloads/POSLotterySystems/poslottery
systems_node.html
