Wincomm WTP-8866-15DPLUS, WTP-8866-19DPLUS User Manual

WTP-8866-15/19DPLUS

User’s Manual

PN: 205G00WTP88661 V1.1

II

Greeting & Setup

Thank you for purchasing the WTP-8866-15/19DPLUS Panel PC.

We wish that this unit will be durable and reliable in providing your

needs. Please follow the instructions below to ensure the unit

continues to have high performance

Unpacking

After opening the carton, there will be a unit with an accessory box.

Examine the contents to see if there are damages to the unit and

if all accessories are present.

Setting up

Please read this manual carefully and remember to keep this

manual for future reference.

Safety Instructions & Cleaning

The unit has undergone various tests in order to comply with

safety standards. Inappropriate use may be dangerous. Please

remember to follow the instructions below to insure your safety

during the installation and operating process.

Transporting & Placement of unit

1. When moving the unit on a cart; be very cautious. Quick stops,

excessive forces and uneven surfaces may cause the cart to

overturn thus risking the unit to fall to the ground.

2. If the Monitor display unit does fall to the ground, immediately

turn the power off and disconnect cords. Then contact a service

technician for repairs. Continual use of the unit may result

III

cause a fire or electric shock. Also, do not repair the unit on

your own.

3. Before suspending the unit, make sure the material used for

suspension is sturdy and stable. If not properly suspended, the

display unit may fall and cause serious injury to people standing

nearby as well as to the unit itself.

4. If you wish to mount the display unit, remember to use only the

mounting hardware recommended by the manufacturer.

Electrical and Power Source Related

1. This Monitor display unit must operate on a power source as

shown on the specification label. If you are not sure what type

of power supply used in the area, consult your dealer or local

power supplier.

2. The power cords must not be damaged. Applied pressure, added

heat, and tugging may damage the power cord.

3. The power cord must be routed properly when setup takes place.

We advise that this aspect measure is to prevent people from

stepping on the cords or while the unit is suspended to prevent

flying objects from getting tangled with the unit.

4. Do not overload the AC outlets or extension cords. Electrical

shocks or fires may occur from overloading.

5. Do not touch the power source during a thunderstorm.

6. If your hands are wet, do not touch the plug.

7. Use your thumb and index finger, grip firmly on the power cord

to disconnect from the electrical socket. By pulling the power

cord, may result in damaging it.

8. If the unit is not going to be in use for an extended period of

IV

time, remember to disconnect the unit.

9. Connect the unit to a power source with the same numerical

value as spec. label shown. Please use only the power cord

provided by the dealer to ensure safety and EMC compliance.

Various Factors of Environment

1. Having liquids seep in or inserting objects into the unit may

result in electric shocks from taking and/or short circuiting the

internal parts.

2. Do not place unit near heat generating sources.

3. Do not place the unit in a location where it will come in contact

with fumes or steam.

4. If water has flow in or seep in, immediately disconnect power.

Then contact a service technician for repairs.

Servicing, Repairing, Maintenance & Safety Checks

1. If the unit is not functioning properly, observe the performance

level of the display closely to determine what type of servicing

is needed.

2. Do not attempt to repair the unit on your own. Disassembling

the cover exposes users’ to high voltages and other dangerous

conditions. Notify and request a qualified service technician for

servicing the unit.

3. If any of the following situations occur turn the power source off

and unplug the unit. Then contact a qualified service technician

(a) The unit is soaked with liquids.

(b) The unit is dropped or damaged.

(c) If smoke or strange odor is flowing out of the unit.

V

(d) If the power cord or plug is damaged.

(e) When the functions of the unit are dysfunctional.

4. When part replacement is needed. Make sure service technician

uses replacement parts specified by the manufacturer, or those

with the same characteristics and performance as the original

parts. If unauthorized parts are used it may result in starting a

fire, electrical shock and/or other dangers.

Battery Installation

Follow below instructions and notice the caution for replacing and

disposing of the RTC Lithium battery CR2032 for safety

consideration.

CAUTION:

There is danger of explosion, if battery is incorrectly replaced.

Replace only with the same or equivalent type recommended

by the manufacturer. Dispose of used batteries according to the

manufacturer’s instruction.

The specification is subject to change without notice.

VI

Version Change History

Date

Version

Description

Remark

2013/10/21

V1.0

First release

2014/3/10

V1.1

Power spec. modify

VII

Table of Contents

System Overview(WTP-8866-15D PLUS) ...................................... 8

System View ................................................................................................... 12

System Overview (WTP-8866-19D PLUS) ................................... 13

System View ................................................................................................... 17

BIOS Setup Information ................................................................ 22

2.1 Main Menu .............................................................................................. 23

2.2 Advanced Menu ....................................................................................... 24

2.3 PCI Subsystem Setting ............................................................................ 26

2.4 Advanced BIOS Feature Setup ................................................................ 28

2.29 Password Description ................................................................ ............ 60

B. Wake UP on LAN Function ....................................................... 62

8

System Overview(WTP-8866-15D PLUS)

System

CPU

AMD Fusion processor T40N

Chipset

AMD A55E

Graphic

AMD Radeon HD6320

Audio

Realtek ALC662, HD CODEC

LAN

Realtek 8111E x 2

Memory

DDR3 1066 MHz (max 4G)

SATA

1 x SATA II (Max. Data Transfer Rate 300 MB/s)

BIOS

Brand: AMI

Flash ROM size: 16M

Display

Brand

Tianma

Model

TM150TDS50

Resolution (pixel)

1024x768 XGA

Active Area (mm)

304.128 (W) x 228.096 (V)

Outline Dimensions (mm)

326.5 (H) × 253.5 (V) × 11.8

Pixel Pitch (mm)

0.297

Mode

TN

Number of Colors

16.7M

View Angle (H/V)

160/160

Brightness (cd/m2)

400

Contrast Ratio

600:1

Response Time (ms) (at 25°C)

8

Backlight

LED

Weight (g)

1000

life time<Hrs>

50000

9

Touch Screen

AMT 28115 resistive touch screen

Characteristics

Resistive ( 5 wire)

Model name

AMT 28115

Touch Resolution

4096x4096

Stylus use possible beyond finger

No Limitation, can use any stylus

Glove use possible

Any type glove

Light transmittance

80+-3%

Hardness

3H

Response time

20 ms

Front Panel Protection –IP65

V

Touch screen Life

36 million activations

Warranty

5 wire: 3 years

Characteristics

Resistive ( 5 wire)

Characteristics

Resistive ( 5 wire)

Touch Controller

RES PENMOUNT 6300, USB TOUCH

Storage

HDD 2.5” SATA HDD drive bay x 1

CF 1 x bootable Compact Flash slot for CF type I/II storages

Expansion slots

Mini-PCIe 52 pin card-edge type x 1 support half/full size (for

WLAN module)

External water/dust resistant I/O (rear side)

10

USB

USB 2.0 x 3 (one is accessible behind front bezel, 2 at rear sides)

LAN

RJ-45 x 1 (Gigabit Ethernet) and PoE power input

Audio

Line-out x 1, with 3.5mm phone jack connector

Power

Power DC-In connector x 1

Power Input DC12V

Power Adapter AC 90 ~ 264V / 47 ~ 63 Hz / DC output 12V,

Power ON/Off and reset buttons at rear side

Mechanical & Environmental

Material construction SUS304 stainless steel enclosure

CPU cooling by Heat sink cooling

Gasket between enclosure and touch screen to minimize residual

material

Water and dust protection IP66 / NEMA4X

Operation Temperature 0~40℃ (IEC60068-2-2, no air flow

condition, fanless cooling)

Storage Temperature -20~60℃

Operation Relative Humidity 10%~90%, non-condensing

Storage Relative Humidity 10%~90%, non-condensing

Dimensions 395 x 345 x 65 (width, height, thickness)

Mounting VESA (100x100 mmxmm)

WTP-8866-15D PLUS Net weight 8.8 KG

WTP-8866-15D PLUS +Wall Mount net weight: 12 KG

WTP-8866-15D PLUS +Wall Mount gross weight: 13.5 KG

Packing list

11

1. WTP-8866-15D PLUS

2. CD-Title for driver and manual

3. Power adapter

4. Power cord

5. Options

Regulatory

FCC-A, CE (EMC)

12

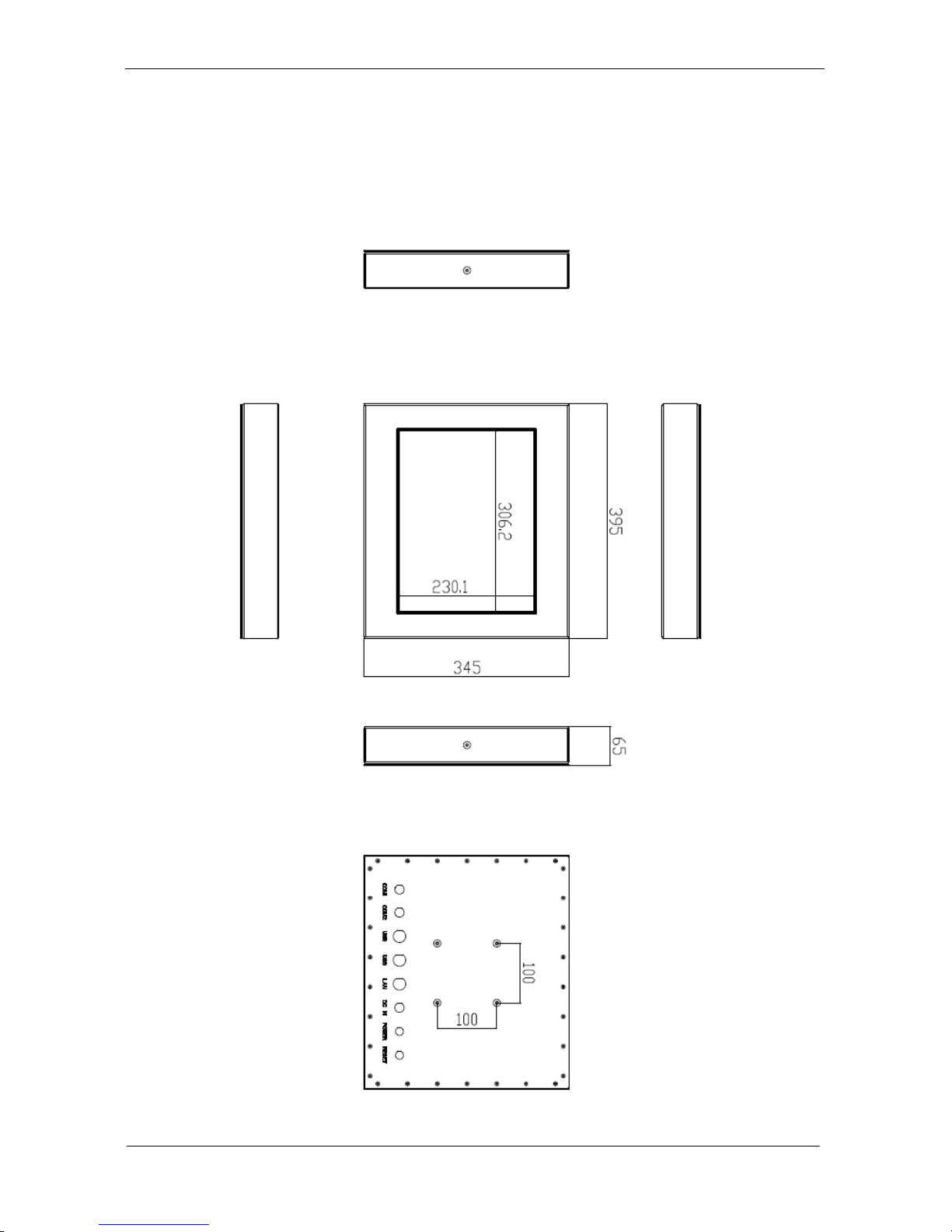

System View

13

System Overview (WTP-8866-19D PLUS)

System

CPU

AMD Fusion processor T40N

Chipset

AMD A55E

Graphic

AMD Radeon HD6320

Audio

Realtek ALC662, HD CODEC

LAN

Realtek 8111E x 2

Memory

DDR3 1066 MHz (max 4G)

SATA

1 x SATA II (Max. Data Transfer Rate 300 MB/s)

BIOS

Brand: AMI

Flash ROM size: 16M

Display

Panel AUO G190EG01 V0

Size

19"

Model

G190EG01 V0

Resolution (pixel)

SXGA (1280 x 1024)

Aspect Ratio

5:4

Active Area (mm)

376.32 (H) x 301.06(V)

Pixel Pitch (mm)

0.294

Mode

Normally White

Number of Colors

16.7M

Color Saturation (NTSC %)

72

View Angle (H/V)

170 / 160

Brightness (cd/m²)

450 (Typ. Center point)

Contrast Ratio

1000 : 1 (Typ)

Response Time (ms) (at 25°C)

5 (Typ)

14

Power Consumption (W)(typ)

26.71 W Interface

2ch LVDS

Supply Voltage (V)

5

Backlight

CCFL

Outline Dimensions (mm)

396.0 x 324.0 x 18.5

Weight (g)

2400 (Typ)

Touch Screen

AMT

Model name

AD-2511

Type

5 wire RES

Glove

Any type glove

Stylus

No Limitation, can use any stylus

Interface

USB

Light Transmission

80± 3%

Hardness

3H

Glass thickness

1.8mm

Linearity

X≦1.5%, Y≦1.5%

Active area

212x159.20

Resolution

4096x4096

Lifetime

36 million activations

Touch Controller

RES PENMOUNT 6300, USB TOUCH

Storage

HDD 2.5” SATA HDD drive bay x 1

CF 1 x bootable Compact Flash slot for CF type I/II storages

Expansion slots

15

Mini-PCIe 52 pin card-edge type x 1 support half/full size (for

WLAN module)

External water/dust resistant I/O (rear side)

USB

USB 2.0 x 3 (one is accessible behind front bezel, 2 at rear sides)

LAN

RJ-45 x 1 (Gigabit Ethernet) and PoE power input

Audio

Line-out x 1, with 3.5mm phone jack connector

Power

Power DC-In connector x 1

Power Input DC12V

Power Adapter AC 90 ~ 264V / 47 ~ 63 Hz / DC output 12V,

Power ON/Off and reset buttons at rear side

Mechanical & Environmental

Material construction SUS304 stainless steel enclosure

CPU cooling by Heat sink cooling

Gasket between enclosure and touch screen to minimize residual

material

Water and dust protection IP66 / NEMA4X

Operation Temperature 0~40℃ (IEC60068-2-2, no air flow

condition, fanless cooling)

Storage Temperature -20~60℃

Operation Relative Humidity 10%~90%, non-condensing

Storage Relative Humidity 10%~90%, non-condensing

Dimensions 395 x 345 x 65 (width, height, thickness)

Mounting VESA (100x100 mmxmm)

WTP-8866-19DPLUS Net weight 8.8 KG

16

WTP-8866-19DPLUS+Wall Mount net weight: 12 KG

WTP-8866-19DPLUS+Wall Mount gross weight: 13.5 KG

Packing list

6. WTP-8866-19DPLUS

7. CD-Title for driver and manual

8. Power adapter

9. Power cord

10. Options

Regulatory

FCC-A, CE (EMC)

17

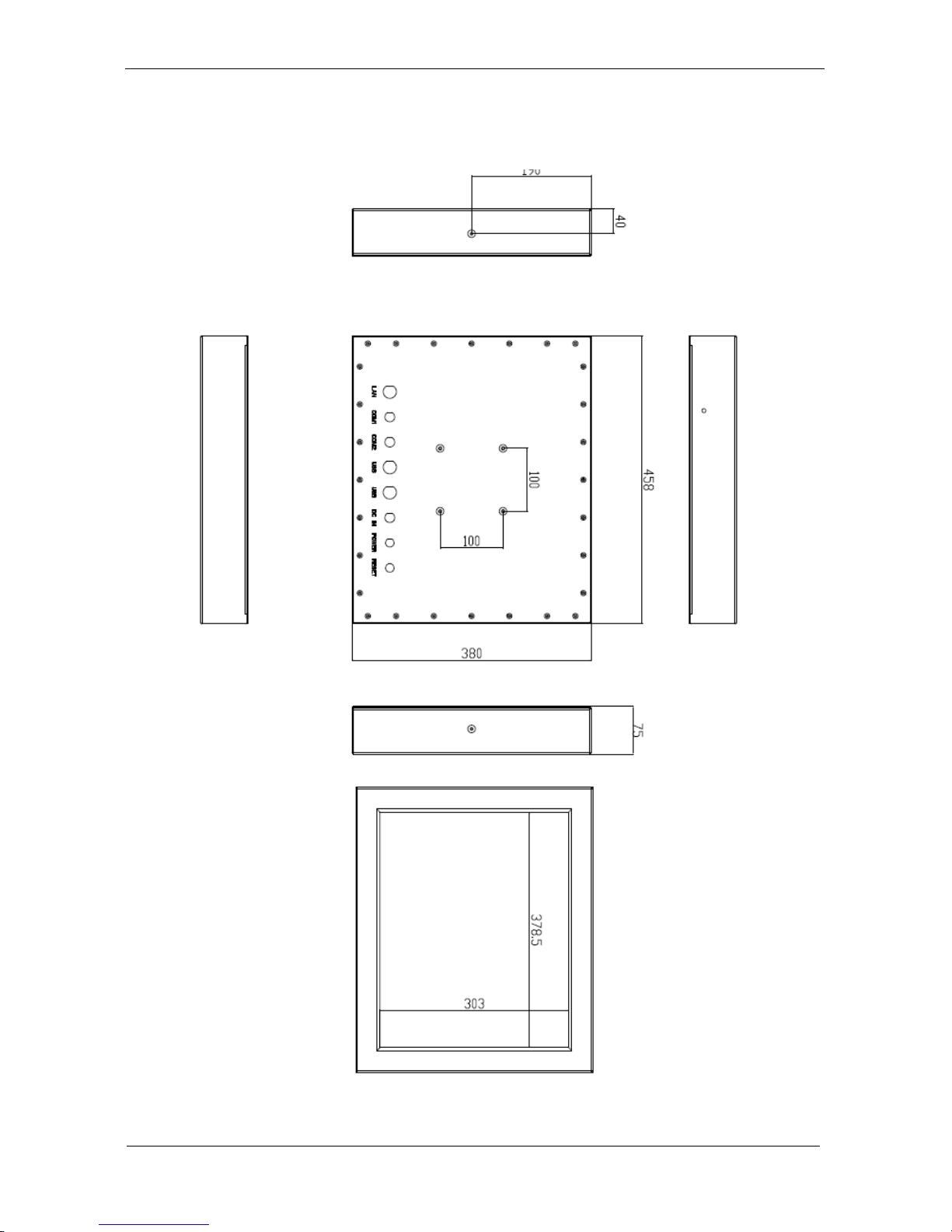

System View

18

Setting up the System

The following is a summary of the steps in setting up the

system for use.

CAUTION: Make sure that power to the system and each of the devices to be connected is switched OFF before plugging in the connectors.

1. Make any required external connections such as the

keyboard, and mouse.

2. Plug the appropriate end of the power cord into the power

connector of the system. Then plug the other end of the power cord to an electrical outlet.

3. Press the power switch of the system to turn on the system’s

power.

4. If necessary, run the BIOS SETUP program to configure the

system (see Chapter 3).

5. Install the software drivers if necessary.

19

Installing System Software

Recent releases of operating systems from major vendors include setup programs, which load automatically and guide you through hard disk preparation and operating system installation. The guidelines below will help you determine the steps necessary to install your operating system on the Panel PC hard drive.

NOTE: Some distributors and system integrators

may have already pre-installed system software prior to shipment of your Panel PC.

Installing software requires an installed HDD. Software can be loaded in the WTP-8866-15/19DPLUS Panel PC using any of below methods:

Method 1: Use the Ethernet

You can use the Ethernet port to download software from the net to the HDD that has been pre-installed in WTP-8866-15/19DPLUS Panel PC

Method 2: Use the COM Port

By connecting another PC to the WTP-8866-15/19DPLUS Panel PC with an appropriate cable, you can use transmission software to transmit Operation System Software to the HDD that has been pre-installed in the WTP-8866-15/19DPLUS Panel PC.

Method 3: Use a External CD-ROM

In order to boot up system from USB-CD/DVD drive, please

connect USB-CD/DVD drive, turn on computer power, keep on

pressing “F11” key, go into BIOS quick boot menu, select

“USB-CD ROM”, WAIT FOR 20 SECONDS, then press enter,

system OS will boot up from USB-CD/DVD drive directly

20

Then you can use the external CD-ROM to transmit the software to the HDD that has been pre-installed in the WTP-8866-15/19DPLUS Panel PC

21

Installing the Drivers

After installing your system software, you will be able to set up the LAN, VGA, Audio and USB functions. All drivers are stored in a CD disc, which can be found in your accessory pack.

The various drivers and utilities in the disc have their own text files that help users install the drivers and understand their functions.

22

BIOS Setup Information

This chapter introduces BIOS setup information.

Power on or reboot the system board, when screen appears message as “Press DEL to enter SETUP.” Press <DEL> to run BIOS SETUP Utility.

Note: The BIOS configuration for reference only, it may subject to change without prior notice.

23

2.1 Main Menu

Main Advanced Chipset Boot Security Save & Exit

BIOS Information BIOS Vendor American Megatrends Core Version 4.6.4.1 Compliancy UEFI 2.1 Project Version 0ABVQ 0.14 x64

Model Name WMIX-T56N

Revision R001 Build Date 20130204

Memory Information Total Memory 4080 MB (DDR3)

System Language [English]

System Date [Tue 02/05/2013] System Time [10:10:10]

Access Level Administrator

Choose the system default

language

Enter : Select +/- : Change Opt . F1: General Help F2: Previous Values F3: Optimized Defaults

F4: Save & Exit

ESC: Exit

Main

: Select Screen : Select Item

□ Date

Set system date.

□ Time

Set system time.

24

2.2 Advanced Menu

This section allows you to configure CPU and other system devices for basic operation through the following sub-menus.

Main Advanced Chipset Boot Security Save & Exit

Legacy OpROM Support

Launch PXE OpROM [Disabled]

Launch Storage OpROM [Enabled]

Enable or Disable Boot Option

for Legacy Network Devices

Enter : Select +/- : Change Opt . F1: General Help F2: Previous Values F3: Optimized Defaults

F4: Save & Exit

ESC: Exit

Advanced

: Select Screen : Select Item

PCI Subsystem Settings

ACPI Settings CPU Configuration IDE Configuration USB Configuration Super IO Configuration

H/W Monitor

Second Super IO Configuration Wake up Configuration

□ PCI Subsyatem Settings □ ACPI Settings □ CPU Configuration □ IDE Configuration □ USB Configuration □ Super IO Configuration □ H/W Monitor □ Second Super IO Configuration □ Wake up Configuration

25

26

2.3 PCI Subsystem Setting

PCI Bus Driver Version V 2.04.00

PCI Option ROM Handling

PCI ROM Priority [Legacy ROM]

PCI Common Settings

PCI Latency Timer [32 PCI Bus Clocks] VGA Palette Snoop [Disabled] PERR# Generation [Disabled] SERR# Generation [Disabled]

In case of multiple Option

ROMs (Legacy and EFI Compatible) , specifies what PCI Option ROM to launch .

Enter : Select +/- : Change Opt . F1: General Help F2: Previous Values F3: Optimized Defaults

F4: Save & Exit

ESC: Exit

Advanced

: Select Screen : Select Item

PCI Express Settings

□ PCI ROM Priority

In case of multiple optional ROMs (Legacy and EFI Compatible), specifies what PCI option ROM to launch.

□ PCI Latency Timer

Choices: 32 PCI, 64 PCI, 96 PCI, 128 PCI, 160 PCI, 192 PCI, 224 PCI, 24 8 PCI Bus Clocks.

□ VGA Palette Snoop

Enable or Disable VGA palette registers snooping. □ PERR# Generation

Choices: Disabled, Enabled. □ SERR# Generation

27

Choices: Disabled, Enabled.

28

2.4 Advanced BIOS Feature Setup

PCI Express Device Register Settings

Relaxed Ordering [Disabled]

Extended Tag [Disabled] No Snoop [Enabled] Maximum Payload [Auto] Maximum Read Request [Auto]

PCI Express Link Register Settings

ASPM Support [Disabled]

Advanced

Enables or Disables PCI Express Device Relaxed Ordering.

Enter : Select +/- : Change Opt . F1: General Help F2: Previous Values F3: Optimized Defaults

F4: Save & Exit

ESC: Exit

: Select Screen : Select Item

□ Relaxed Ordering

Choices: Disabled, Enabled.

□ Extended Tag

Choices: Disabled, Enabled.

□ No Snoop

Choices: Disabled, Enabled.

□ Maximum Payload

This item can be supported by the motherboard chipset PCI express controller.

□ Maximum Read Request

It is size for the device as a requester.

29

□ ASPM Support

Choices: Disabled, Enabled.

2.5 ACPI Settings

ACPI Settings

Enable ACPI Auto Configuration [Disabled]

ACPI Sleep State [S3 (Suspend to RAM)] Lock Legacy Resources [Disabled] S3 Video Repost [Disabled]

Enables or Disables BIOS ACPI Auto Configuration .

Enter : Select +/- : Change Opt . F1: General Help F2: Previous Values F3: Optimized Defaults

F4: Save & Exit

ESC: Exit

Advanced

: Select Screen : Select Item

□ ACPI Sleep Auto Configuration

Choices: Disabled, Enabled.

□ Lock Legacy Resources

Choices: Disabled, Enabled.

□ S3 Video Repost

Choices: Disabled, Enabled.

2.6 CPU Configuration

30

Disabled for Windows XP

Enter : Select +/- : Change Opt . F1: General Help F2: Previous Values F3: Optimized Defaults

F4: Save & Exit

ESC: Exit

Advanced

: Select Screen : Select Item

CPU Configuration

Limit CPUID Maximum [Disabled]

PSS Support [Enabled]

PSTATE Adjustment [PState 0] PPC Adjustment [PState 0] NX Mode [Enabled] SVM Mode [Enabled] C6 Mode [Auto]

Node 0 Information

□ Limit CPUID Maximum

Choices: Disabled, Enabled.

□ PSS Support

Choices: Disabled, Enabled.

□ PSTATE Adjustment

This item is used to adjust startup P-state level, the choice is PState 0-7.

□ PPC Adjustment

This item is provided to adjust startup P-state level.

□ NX Mode

Choices: Disabled, Enabled.

□ SVM Mode

Choices: Disabled, Enabled.

□ C6 Mode

31

It is the option to enable “C6 mode” is added to the BIOS setup.

2.7 AMD G-T56N Processor

Node0 : AMD G-T56N Processor

Dual Core Running @ 1670 MHz 1350mV Max Speed : 1650 MHZ Intended Speed : 1650MHZ Min Speed : 825 MHZ Microcode Patch Level : 5000101

-------------- Cache per Core -------------L1 Instruction Cache : 32 KB/8-way

L1 Data Cache : 32 KB/2-way

L2 Cache : 512 KB/16-way

No L3 Cache Present

Enter : Select +/- : Change Opt . F1: General Help F2: Previous Values F3: Optimized Defaults

F4: Save & Exit

ESC: Exit

Advanced

: Select Screen : Select Item

32

2.8 IDE Configuration

IDE Configuration

SATA Port0 Not Present SATA Port1 Not Present SATA Port2 Not Present SATA Port3 Not Present SATA Port4 Not Present SATA Port5 Not Present

Enter : Select +/- : Change Opt . F1: General Help F2: Previous Values F3: Optimized Defaults

F4: Save & Exit

ESC: Exit

Advanced

: Select Screen : Select Item

□ SATA Port0 □ SATA Port1 □ SATA Port2 □ SATA Port3 □ SATA Port4 □ SATA Port5

33

2.9 USB Configuration

USB Configuration

USB Devices:

1 Keyboard, 1 Mouse

Legacy USB Support [Enabled]

EHCI Hand-off [Disabled]

USB hardware delays and time-outs:

USB transfer time-out [20 sec] Device reset time-out [20 sec] Device power-up delay [Auto]

Enables Legacy USB support .

AUTO option disables legacy support if no USB devices are connected. DISABLE option will Keep USB devices available Only for EFI applications .

Enter : Select +/- : Change Opt . F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Advanced

: Select Screen : Select Item

□ Legacy USB Support

Set [Enabled] if you need to use any USB 1.1/2.0 devices in the operating system that does not support or have any USB 1.1/2.0 drivers installed. Such as DOS and SCO Unix.

□ EHCI Hand-off

This is a workaround for OSs without EHCI hand-off support. The EHCI ownership change should be claimed by EHCI driver.

□ USB transfer time-out

Choices: 1, 5, 10, 20 sec.

□ Device Reset time-out

USB mass storage device starts unit command timeout. Choices: 10, 20, 30, 40 sec.

34

□ Device power-up delay

This setting determines the maximum time for USB device will take before reporting to the controller.

2.10 Super IO Configuration

Super IO Configuration

Super IO Chip Winbond W83627EHG

Set Parameters of Serial Port 0 (COMA)

Enter : Select +/- : Change Opt . F1: General Help F2: Previous Values F3: Optimized Defaults

F4: Save & Exit

ESC: Exit

Advanced

: Select Screen : Select Item

Serial Port 0 Configuration

Serial Port 1 Configuration Parallel Port Configuration Watch Dog Timer [Time out Disable] CPU smart fan control [Disabled] System smart fan control [Disabled]

□ Watch Dog Timer

This option will determine watch dog timer.

□ CPU smart fan control

This option allows user to enable/disable the control of CPU fan speed by changing the fan voltage.

□ System smart fan control

This option allows user to enable/disable the control of smart fan speed by changing the fan voltage.

35

2.11 Serial Port 0 Configuration

Serial Port 0 Configuration

Serial Port [Enabled]

Device Settings IO=3F8h; IRQ=4;

Enable or Disable Serial Port (COM)

Enter : Select +/- : Change Opt . F1: General Help F2: Previous Values F3: Optimized Defaults

F4: Save & Exit

ESC: Exit

Advanced

: Select Screen : Select Item

□ Serial Port

Use this option to enable or disable the serial port.

□ Device Settings

Use this option to show the serial port IO port address and interrupt address.

36

2.12 Serial Port1 Configuration

Serial Port 1 Configuration

Serial Port [Enabled]

Device Settings IO=2F8h; IRQ=3;

Device Mode [Serial Port Functi…]

Enable or Disable Serial Port (COM)

Enter : Select +/- : Change Opt . F1: General Help F2: Previous Values F3: Optimized Defaults

F4: Save & Exit

ESC: Exit

Advanced

: Select Screen : Select Item

□ Serial Port

Use this option to enable or disable the serial port.

□ Device Settings

Use this option to change the device address and interrupt address.

□ Device Mode

Serial mode function.

37

2.13 Parallel Port Configuration

Parallel Port Configuration

Parallel Port [Enabled]

Device Settings IO=378h; IRQ=7 ;

Device Mode [Printer Mode]

Enable or Disable Parallel Port (LPT/LPTE)

Enter : Select +/- : Change Opt . F1: General Help F2: Previous Values F3: Optimized Defaults

F4: Save & Exit

ESC: Exit

Advanced

: Select Screen : Select Item

□ Parallel Port

Use this option to enable or disable the parallel port.

□ Device Settings

Use this option to change the device address and interrupt address.

□ Device Mode

It is printer mode.

38

2.14 Pc Health Status

Pc Health Status

CPU Temperature : +50 C SYSTEM Temperature : +39 C CPU FAN Speed : 8035 RPM System FAN Speed : N/A VCORE : +1.36 V +12 V : +11.51 V +1.1 V : +1.10 V +1.5 V : +1.52 V +5 V : +5.07 V +3.3 V : +3.32 V

VBAT (V) : +3.02 V

3.3VSB (V) : +3.32 V

Enter : Select +/- : Change Opt . F1: General Help F2: Previous Values F3: Optimized Defaults

F4: Save & Exit

ESC: Exit

Advanced

: Select Screen : Select Item

39

2.15 Serial Super IO Configuration

Serial Super IO Configuration

Super IO Chip Fintek F81216

Set Parameters of Serial Port 1 (COMC)

Enter : Select +/- : Change Opt . F1: General Help F2: Previous Values F3: Optimized Defaults

F4: Save & Exit

ESC: Exit

Advanced

: Select Screen : Select Item

Serial Port 1 Configuration

Serial Port 2 Configuration Serial Port 3 Configuration Serial Port 4 Configuration

□ Serial Port 1 Configuration □ Serial Port 2 Configuration □ Serial Port 3 Configuration

□ Serial Port 4 Configuration

40

□ Serial Port1 Configuration

Serial Port 1 Configuration

Serial Port [Enabled]

Device Settings IO=3E8h; IRQ=5;

Enable or Disable Serial Port (COM)

Enter : Select +/- : Change Opt . F1: General Help F2: Previous Values F3: Optimized Defaults

F4: Save & Exit

ESC: Exit

Advanced

: Select Screen : Select Item

□ Serial Port

Use this option to enable or disable the serial port.

□ Device Settings

Use this option to change the serial port IO port address and interrupt address.

41

□ Serial Port2 Configuration

Serial Port 2 Configuration

Serial Port [Enabled]

Device Settings IO=2E8h; IRQ=5;

Enable or Disable Serial Port (COM)

Enter : Select +/- : Change Opt . F1: General Help F2: Previous Values F3: Optimized Defaults

F4: Save & Exit

ESC: Exit

Advanced

: Select Screen : Select Item

□ Serial Port

Use this option to enable or disable the serial port.

□ Device Settings

Use this option to change the serial port IO port address and interrupt address.

42

□ Serial Port3 Configuration

Serial Port 3 Configuration

Serial Port [Enabled]

Device Settings IO=2A0h; IRQ=5;

Enable or Disable Serial Port (COM)

Enter : Select +/- : Change Opt . F1: General Help F2: Previous Values F3: Optimized Defaults

F4: Save & Exit

ESC: Exit

Advanced

: Select Screen : Select Item

□ Serial Port

Use this option to enable or disable the serial port.

□ Device Settings

Use this option to change the serial port IO port address and interrupt address.

43

□ Serial Port4 Configuration

Serial Port 4 Configuration

Serial Port [Enabled]

Device Settings IO=2E0h; IRQ=5;

Enable or Disable Serial Port (COM)

Enter : Select +/- : Change Opt . F1: General Help F2: Previous Values F3: Optimized Defaults

F4: Save & Exit

ESC: Exit

Advanced

: Select Screen : Select Item

□ Serial Port

Use this option to enable or disable the serial port.

□ Device Settings

Use this option to change the serial port IO port address and interrupt address.

44

2.16 Chipset

Wake On Ring help

Enter : Select +/- : Change Opt . F1: General Help F2: Previous Values F3: Optimized Defaults

F4: Save & Exit

ESC: Exit

: Select Screen : Select Item

Wake On Ring

Wake On Lan

Main Advanced Chipset Boot Security Save & Exit

Advanced

[Disabled]

[Enabled]

Advanced

□ Wake On Ring

Choices: Disabled, Enabled.

□ Wake On Lan

Choices: Disabled, Enabled.

45

2.17 North Bridge Configuration

North Bridge Parameters

Enter : Select +/- : Change Opt . F1: General Help F2: Previous Values F3: Optimized Defaults

F4: Save & Exit

ESC: Exit

: Select Screen : Select Item

North Bridge

North Bridge LVDS Config Select South Bridge

Main Advanced Chipset Boot Security Save & Exit

Chipset

□ North Bridge □ North Bridge LVDS Config Select □ South Bridge

46

2.18 North Bridge Configuration

Select Primary Video Device That BIOS will use for output.

Enter : Select +/- : Change Opt . F1: General Help F2: Previous Values F3: Optimized Defaults

F4: Save & Exit

ESC: Exit

Chipset

: Select Screen : Select Item

North Bridge Configuration

Primary Video Device [IGD Video]

NB GPP Core Config [GPP_CORE_x4x4]

Port 4 Control [Disabled]

Port 5 Control [Disabled]

Port 6 Control [Disabled] Port 7 Control [Disabled]

IOMMU Mode [Disabled] Memory Clock [Auto]

Memory Clear [Disabled]

Memory Information

Memory Clock : 533 MHZ Total Memory : 4080 MB (DDR3)

GFX Configuration

Memory Configuration Node 0 Information

□ Primary Video Device

The device is IGD video.

□ NB GPP Core Config

The item is for NB GPP Core configuration.

□ Port4 Control

Choices: Disabled, Enabled.

□ Port5 Control

Choices: Disabled, Enabled.

□ Port6 Control

Choices: Disabled, Enabled.

□ Port7 Control

47

Choices: Disabled, Enabled.

□ IOMMU Mode

Choices: Disabled, Enabled.

□ Memory Clock

It shows how fast this information gets distributed to the GPU

□ Memory Clear

Choices: Disabled, Enabled.

2.19 GFX Configuration

GFX Configuration

PSPP Policy [Balanced-Low]

PCIe speed power policy

Enter : Select +/- : Change Opt . F1: General Help F2: Previous Values F3: Optimized Defaults

F4: Save & Exit

ESC: Exit

Chipset

: Select Screen : Select Item

□ PSPP Policy

It is set to performance mode instead of power saving mode.

48

2.20 Memory Configuration

Memory Configuration

Integrated Graphics [Auto]

Bank Interleaving [Enabled]

Enabled Integrated Graphics controller

Enter : Select +/- : Change Opt . F1: General Help F2: Previous Values F3: Optimized Defaults

F4: Save & Exit

ESC: Exit

Chipset

: Select Screen : Select Item

□ Integrated Graphics

It shares memory with the CPU, and provides economical alternative to the stand-alone card.

□ Bank Interleaving

Choices: Disabled, Enabled.

49

2.21 Node 0 Information

Node 0 Information

Starting Address : 0 KB

Ending Address : 4177979 KB

Dimm0 : Not Present Dimm1 : size=4096 MB, speed=1333MHz

Enter : Select +/- : Change Opt . F1: General Help F2: Previous Values F3: Optimized Defaults

F4: Save & Exit

ESC: Exit

Chipset

: Select Screen : Select Item

50

2.22 SB Specify INT15 options for LVDS

Specify INT15 options for LVDS

DP0 Output Mode [DP-LVDS]

DP1 Output Mode [Single Link DVI-D]

NB PCIE Connect Type (Display device)

Enter : Select +/- : Change Opt . F1: General Help F2: Previous Values F3: Optimized Defaults

F4: Save & Exit

ESC: Exit

Chipset

: Select Screen : Select Item

□ DP0 Output Mode

Use this item to enable LVDS.

□ DP1 Output Mode

Use this item to choose DP1 output.

51

2.23 SB Configuration

SB CIM Version : 1.1.1.1

SB SATA Configuration

SB USB Configuration SB GPP Port Configuration SB HD Azalia Configuration

Options for SATA Configuration

Enter : Select +/- : Change Opt . F1: General Help F2: Previous Values F3: Optimized Defaults

F4: Save & Exit

ESC: Exit

Chipset

: Select Screen : Select Item

52

2.24 SATA Configuration

OnChip SATA Channel [Enabled]

OnChip SATA Type [Native IDE]

OnChip IDE mode [Legacy mode]

SATA IDE Combined Mode [Enabled]

Combined Mode Option [SATA as primary]

SATA ESP on PORT0 [Disabled]

SATA ESP on PORT1 [Disabled]

SATA ESP on PORT2 [Disabled]

SATA ESP on PORT3 [Disabled]

SATA ESP on PORT4 [Disabled]

SATA ESP on PORT5 [Disabled]

SATA Power on PORT0 [Enabled]

SATA Power on PORT1 [Enabled]

SATA Power on PORT2 [Enabled]

SATA Power on PORT3 [Enabled]

SATA Power on PORT4 [Enabled]

SATA Power on PORT5 [Enabled]

Enable or Disable Serial ATA

Enter : Select +/- : Change Opt . F1: General Help F2: Previous Values F3: Optimized Defaults

F4: Save & Exit

ESC: Exit

Chipset

: Select Screen : Select Item

□ OnChip SATA Channel

Choices: Disabled, Enabled.

□ OnChip SATA Type

The default is Native IDE.

□ OnChip IDE Mode

The option is Legacy mode or Native mode.

□ SATA IDE Combined Mode

Choices: Disabled, Enabled

□ Combined Mode Option

The option is set to be “SATA as primary.”

□ SATA ESP on PORT0

53

Choices: Disabled, Enabled

□ SATA ESP on PORT1

Choices: Disabled, Enabled

□ SATA ESP on PORT2

Choices: Disabled, Enabled

□ SATA ESP on PORT3

Choices: Disabled, Enabled

□ SATA ESP on PORT4

Choices: Disabled, Enabled

□ SATA ESP on PORT5

Choices: Disabled, Enabled □ SATA Power on PORT0

Choices: Disabled, Enabled

□ SATA Power on PORT1

Choices: Disabled, Enabled

□ SATA Power on PORT2

Choices: Disabled, Enabled

□ SATA Power on PORT3

Choices: Disabled, Enabled

□ SATA Power on PORT4

Choices: Disabled, Enabled

□ SATA Power on PORT5

Choices: Disabled, Enabled

54

2.25 USB Port

USB Port 0 [Enabled] USB Port 1 [Enabled] USB Port 2 [Enabled] USB Port 3 [Enabled] USB Port 4 [Enabled]

USB Port 5 [Enabled]

USB Port 6 [Enabled]

USB Port 7 [Enabled] USB Port 8 [Enabled] USB Port 9 [Enabled]

USB Port 10 [Enabled] USB Port 11 [Enabled]

USB Port 12 [Enabled]

USB Port 13 [Enabled] USB Port FL0 [Enabled] USB Port FL1 [Enabled]

Enable or Disable USB PORT 0

Enter : Select

+/- : Change Opt . F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit

ESC: Exit

Chipset

: Select Screen : Select Item

□ OHCI HC (Bus 0 Dev 18 Fn 0)

Choices: Disabled, Enabled □ OHCI HC (Bus 0 Dev 19 Fn 0)

Choices: Disabled, Enabled

□ OHCI HC (Bus 0 Dev 22 Fn 5)

Choices: Disabled, Enabled

□ USB Port 0

Choices: Disabled, Enabled □ USB Port 1

Choices: Disabled, Enabled □ USB Port 2

55

Choices: Disabled, Enabled □ USB Port 3

Choices: Disabled, Enabled □ USB Port 4

Choices: Disabled, Enabled

□ USB Port 5

Choices: Disabled, Enabled

□ USB Port 6

Choices: Disabled, Enabled

□ USB Port 7

Choices: Disabled, Enabled

□ USB Port 8

Choices: Disabled, Enabled

□ USB Port 9

Choices: Disabled, Enabled

□ USB Port 10

Choices: Disabled, Enabled

□ USB Port 11

Choices: Disabled, Enabled

□ USB Port 12

Choices: Disabled, Enabled

□ USB Port 13

Choices: Disabled, Enabled

□ USB Port FL0

Choices: Disabled, Enabled □ USB Port FL1

Choices: Disabled, Enabled

56

2.26 SB GPP Function Configuration

SB GPP Function [Enabled]

GPP Port Link Configuration [1:1:1:1 mode]

Enable or Disable SB GPP Function

Enter : Select +/- : Change Opt . F1: General Help F2: Previous Values F3: Optimized Defaults

F4: Save & Exit

ESC: Exit

Chipset

: Select Screen : Select Item

□ SB GPP Function

Choices: Disabled, Enabled

□ GPP Port Link Configuration

Choices: Disabled, Enabled

57

2.27 Azalia Device Configuration

HD Audio Azalia Device [Audio]

Enable or Disabled HD Audio Azalia Device

Enter : Select +/- : Change Opt . F1: General Help F2: Previous Values F3: Optimized Defaults

F4: Save & Exit

ESC: Exit

Chipset

: Select Screen : Select Item

□ HD Audio Azalia Device

58

2.28 Boot Configuration

Boot Configuration

Setup Prompt Timeout

Bootup NumLock State [On]

Quiet Boot [Disabled] Fast Boot [Disabled]

CSM16 Module Verison 07.64

GateA20 Active [Upon Request] Option ROM Messages [Force BIOS] Interrupt 19 Capture [Disabled]

Boot Option Priorities

Boot Option #1 [SATA: TOSHIBA MK25...] Boot Option #2 [UEFI: Built-in EFI…]

Hard Drive BBS Priorities

Number of seconds to wait for setup activation key. 65535(0xFFFF) means indefinite waiting.

Enter : Select +/- : Change Opt . F1: General Help F2: Previous Values F3: Optimized Defaults

F4: Save & Exit

ESC: Exit

: Select Screen : Select Item

Main Advanced Chipset Boot Security Save & Exit

Boot

1

□ Setup Prompt Timeout

This setting is to remind when the system is waiting for setup activation key.

□ Bootup NumLock State

This setting is to set Num Lock status when the system is powered on. Setting to [On] will turn on the Num Lock key when the system is powered on. Setting to [Off] will allow users to use the arrow keys on the numeric keypad. Choices: On, Off.

□ Quiet Boot

This item can help to select the screen display when the system boots.

□ GateA20 Active

Upon request GA20 can be disabled using BIOS services.

59

□ Option ROM Messages

Set display mode for option ROM.

□ Interrupt 19 Capture

Enable: Allow option ROMs to trap into 19. Choices: Disabled, Enabled.

60

2.29 Password Description

Password Description

If ONLY the Administrator’s password is set ,

then this only limits access to Setup and is

only asked for when entering Setup

If ONLY the User’s password is set, then this

is a power on password and must be entered to

boot or enter Setup. In Setup the User will

have Administrator rights.

The password must be 3 to 20 characters long.

Administrator Password

User Password

Set Administrator Password

Enter : Select +/- : Change Opt . F1: General Help F2: Previous Values F3: Optimized Defaults

F4: Save

ESC: Exit

: Select Screen : Select Item

Main Advanced Chipset Boot Security Save & Exit

Security

61

2.30 Save Changes and Exit

Save Changes and Exit

Discard Changes and Exit

Save Changes and Reset

Discard Changes and Reset

Save Options

Save Changes

Discard Changes

Restore Defaults

Save as User Defaults

Restore User Defaults

Boot Override

Launch EFI Shell from file system device

Restore/Load Default values For all the setup options.

Enter : Select +/- : Change Opt . F1: General Help F2: Previous Values F3: Optimized Defaults

F4: Save & Exit

ESC: Exit

: Select Screen : Select Item

Main Advanced Chipset Boot Security Save & Exit

Save & Exit

62

B. Wake UP on LAN Function

Please make sure the AC power is ON before use the

function.

1. Boot into OS (windows XP).

2. In start menu control panel System device manager Network

adapters double click Marvell Yukon 88E8071 Advance Wake

from Shutdown Item select Wake on Magic packet from power

off state.

63

Wincomm WTP-8866-15DPLUS, WTP-8866-19DPLUS User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
