Wincomm WPC-765, WPC-765E, WPC-766, WPC-766E User Manual

WPC-765/WPC-765E

Mini PC

USER’S MANUAL

P/N: 205G000WPC7650, V1.0

Copyright© ,2013. All rights reserved

All other brand names are registered trademarks of their respective owners.

The information contained in this document is subject to change without notice

WPC-765/WPC-765E User’s manual

ii

Version Change History

Date

Version

Description

Remark

2014/01/21

1.0

First release

Cosa Huang

WPC-765/WPC-765E User’s manual

iii

Acknowledgments

 Intel® 3rd generation Core i and Celeron are registered

trademarks of Intel® Corporation.

 IBM, PC/AT, PS/2 are trademarks of International Business

Machines Corporation.

 Microsoft

®

Windows is a registered trademark of Microsoft

®

Corporation.

 RTL is a trademark of Realtek Semi-Conductor Co., Ltd.
 C&T is a trademark of Chips and Technologies, Inc.
 UMC is a trademark of United Microelectronics Corporation.
 ITE is a trademark of Integrated Technology Express, Inc.
 VIA is a trademark of VIA Technology, Inc.
 Award is a registered trademark of Award Software

International, Inc.

 PS/2 is a trademark of International Business Machines

Corporation.

 Intel is a trademark or registered trademark of Intel

Corporation.

 Microsoft Windows is a registered trademark of Microsoft

Corporation.

 Winbond is a registered trademark of Winbond Electronics

Corporation.

All other product names or trademarks are properties of
their respective owners.

WPC-765/WPC-765E User’s manual

iv

FCC Class B

This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a residential environment.
This equipment generates, uses and can radiate radio frequency energy. If
not installed and used in accordance with this user manual, it may cause
harmful interference to radio communications.
Note that even when this equipment is installed and used in accordance
with this user manual, there is still no guarantee that interference will not
occur. If this equipment is believed to be causing harmful interference to
radio or television reception, this can be determined by turning the
equipment on and off. If interference is occurring, the user is encouraged
to try to correct the interference by one or more of the following measures:

 Reorient or relocate the receiving antenna
 Increase the separation between the equipment and the receiver
 Connect the equipment to a power outlet on a circuit different from

that to which the receiver is connected

 Consult the dealer or an experienced radio/TV technician for help

Warning:

Any changes or modifications made to the equipment which are
not expressly approved by the relevant standards authority could
void your authority to operate the equipment.

To avoid risk of electric shock, this equipment must only be
connected to a supply mains with protective earth.

Do not modify this equipment without authorization of the
manufacturer.

WPC-765/WPC-765E User’s manual

v

Safety Instructions

Intended use

The WPC-765/765E is intended to serve as a mini PC which is
designed for general purpose for hospital environment. It shall
not be used for life-supporting system.

Greeting & Setup

Thank you for purchasing the WPC-765/WPC-765E unit. We wish
that this unit will be durable and reliable in providing your
medical application needs. Please follow the instructions below to
ensure the unit continues to have high performance.

Unpacking

After opening the carton, there will be a mini PC unit with an
accessory box. Examine the contents to see if there are damages
to the unit and if all accessories are present.

Setting up

Please read this manual carefully and remember to keep this
manual for future reference.

Safety Instructions & Cleaning

The unit has undergone various tests in order to comply with
safety standards. Inappropriate use of the open frame unit may
be dangerous. Please remember to follow the instructions below
to insure your safety during the installation and operating
process.

Transporting & Placement of unit

1. When moving the unit on a cart; be very cautious. Quick

stops, excessive forces and uneven surfaces may cause
the cart to overturn thus risking the unit to fall to the
ground.

2. If the mini PC unit does fall to the ground, immediately

turn the power off and disconnect cords. Then contact a
service technician for repairs. Continual use of the unit
may result cause a fire or electric shock. Also, do not repair
the unit on your own.

WPC-765/WPC-765E User’s manual

vi

3. Having two or more people transporting the display unit is

recommended. In addition, when installing the unit by
suspending it also requires two or more people.

4. Before suspending the unit, make sure the material used

for suspension is sturdy and stable. If not properly
suspended, the display unit may fall and cause serious
injury to people standing nearby as well as to the unit
itself.

5. If you wish to mount the display unit, remember to use

only the mounting hardware recommended by the
manufacturer.

Electrical and Power Source Related

1. This mini PC unit must operate on a power source as

shown on the specification label. If you are not sure what
type of power supply used in the area, consult your dealer
or local power supplier.

2. The power cords must not be damaged. Applied pressure,

added heat, and tugging may damage the power cord.

3. The power cord must be routed properly when setup takes

place. We advise that this aspect measure is to prevent
people from stepping on the cords or while the unit is
suspended to prevent flying objects from getting tangled
with the unit.

4. Do not overload the AC outlets or extension cords.

Electrical shocks or fires may occur from overloading.

5. Do not touch the power source during a thunderstorm.

6. If your hands are wet, do not touch the plug.

7. Use your thumb and index finger, grip firmly on the power

cord to disconnect from the electrical socket. By pulling the
power cord, may result in damaging it.

8. If the unit is not going to be in use for an extended period

of time, remember to disconnect the unit.

9. Please use only the power cord provided by the dealer to

ensure safety and EMC compliance.

Various Factors of Environment

WPC-765/WPC-765E User’s manual

vii

1. Do not insert objects into the openings.

2. Do not have liquids seep into the internal areas of the mini

PC unit.

3. Having liquids seep in or inserting objects into the unit

may result in electric shocks from taking and/or short
circuiting the internal parts.

4. Do not place the mini PC unit in the presence of high

moisture areas.

5. Do not install the mini PC unit in a wet environment.

6. Do not place near unit near heat generating sources.

7. Do not place the unit in a location where it will come in

contact with fumes or steam.

8. Remember to keep the mini PC unit away from the

presence of dust.

9. If water has flow in or seep in, immediately disconnect the

open frame unit. Then contact a service technician for
repairs.

Ventilation Spacing

1. Do not cover or block the openings on the top and back

sides of the display unit. Inadequate ventilation may cause
overheating thus reducing the lifespan of the unit.

2. Unless proper ventilation is present, do not place unit in an

enclosed area; such as a built-in shelf. Keep a minimum
distance of 10 cm between the display unit and wall.

WPC-765/WPC-765E User’s manual

viii

Cleaning the unit

1. Remember to turn off the power source and to unplug the

cord from the outlet before cleaning the unit.

2. Carefully dismount the unit or bring the unit down from

suspension to clean.

3. Please use a dry soft cloth to clean the unit.

4. Take a dry cloth and wipe the unit dry. Remember to avoid

having liquids seep into the internal components and areas
of the mini PC unit.

Servicing, Repairing, Maintenance & Safety Checks

1. If the unit is not functioning properly, observe the

performance level of the display closely to determine what
type of servicing is needed.

2. Do not attempt to repair the mini PC unit on your own.

Disassembling the cover exposes users’ to high voltages

and other dangerous conditions. Notify and request a
qualified service technician for servicing the unit.

3. To avoid risk of electric shock, this equipment must only be

connected to a supply mains with protective earth.

4. If any of the following situations occur turn the power

source off and unplug the unit. Then contact a qualified
service technician.

(a) A liquid was spilled on the unit or objects have fallen

into the unit.

(b) The unit is soaked with liquids.
(c) The unit is dropped or damaged.
(d) If smoke or strange odor is flowing out of the operating

unit.

(e) If the power cord or plug is damaged.
(f) When the functions of the unit are dysfunctional.

5. When replacement parts are needed for the mini PC unit,

make sure service technicians use replacement parts
specified by the manufacturer, or those with the same
characteristics and performance as the original parts. If

WPC-765/WPC-765E User’s manual

ix

unauthorized parts are used it may result in starting a fire,
electrical shock and/or other dangers.

ISO 7000-0434: Caution, consult ACCOMPANYING
DOCUMENTS.

ISO 7000-1641: Follow operating instructions or
Consult instructions for use.

IEC 60417 -5009: STAND-BY.
IEC 60417-5031: Direct current.

EU-wide legislation, as implemented in each
Member State, requires that waste electrical and
electronic products carrying the mark (left) must be
disposed of separately from normal household
waste. This includes monitors and electrical
accessories, such as signal cables or power cords.
When you need to dispose of your display products,
please follow the guidance of your local authority, or
ask the shop where you purchased the product, or if
applicable, follow any agreements made between
yourself.

The mark on electrical and electronic products only
applies to the current European Union Member

States.

WPC-765/WPC-765E User’s manual

x

When networking with electrical devices, the operator is
responsible for ensuring that the resulting system meets the
requirements set forth by the following standards:

– EN 60601-1 (IEC 60601-1)

Medical electrical equipment
Part 1: General requirements for safety

– EN 60601-1-1 (IEC 60601-1-1)

Medical electrical equipment
Part 1-1: General requirements for safety
Collateral standard: Safety requirements for
Medical electrical systems

– EN 60601-1-2 (IEC 60601-1-2)

Medical electrical equipment
Part 1-2: General requirements for safety
Collateral standard: Electromagnetic compatibility;
Requirements and tests

Accessory equipment connected to
the analog and digital interfaces
must be in compliance with the
respective nationally harmonized
IEC standards (i.e. IEC 60950 for
data processing equipment, IEC
60065 for video equipment, IEC
61010-1 for laboratory equipment,
and IEC 60601-1 for medical
equipment.) Furthermore all configurations shall comply with the
system standard IEC 60601-1-1. Everybody who connects
additional equipment to the signal input part or signal output part
configures a medical system, and is therefore, responsible that
the system complies with the requirements of the system
standard IEC 60601-1-1. The unit is for exclusive interconnection
with IEC 60601-1 certified equipment in the patient environment
and IEC 60XXX certified equipment outside of the patient
environment. If in doubt, consult the technical services
department or your local representative.

WPC-765/WPC-765E User’s manual

xi

Caution:

DO NOT LEAVE THIS EQUIPMENT IN AN UNCONTROLLED
ENVIRONMENT WHERE THE STORAGE TEMPERATURE IS BELOW

-20° C (-4° F) OR ABOVE 60° C (140° F). THIS MAY DAMAGE THE
EQUIPMENT.

The user is not to touch SIP/SOPs and the patient at the same
time.

The sound pressure level at the operator’s position according to

IEC 704-1:1982 is no more than 70dB (A).

A) Grounding reliability can only be achieved when the equipment

is connected to an equivalent receptacle marked “Hospital

Only” or “Hospital Grade”.

B) Use a power cord that matches the voltage of the power outlet,

which has been approved and complies with the safety
standard of your particular country.

C) Caution: This adapter Sinpro MPU101-105 is a forming part of

the medical device

Contact information:

3F, No.14, Prosperity Road II, Science-Based Industrial Park,
Hsinchu, Taiwan 300, R.O.C
TEL: [phone]

E-Mail: [e-mail]

WPC-765/WPC-765E User’s manual

xii

Table of Contents

Acknowledgments ........................................................iii

FCC Class B .................................................................... iv

Safety Instructions ....................................................... v

Introduction ......................................................... 1

Product Description ...................................................... 1

Package list ..................................................................... 2

Features ........................................................................... 3

Specifications ................................................................. 4

Guidance and manufacturer’s declaration –

electromagnetic emissions ..................................... 6

Guidance and manufacturer’s declaration –

electromagnetic immunity ....................................... 7

Guidance and manufacturer’s declaration –

electromagnetic immunity ....................................... 9

Immunity ............................................................................. 9

Cleaning/Disinfecting................................................. 11

Getting Started .................................................. 12

System Set Up ............................................................. 12

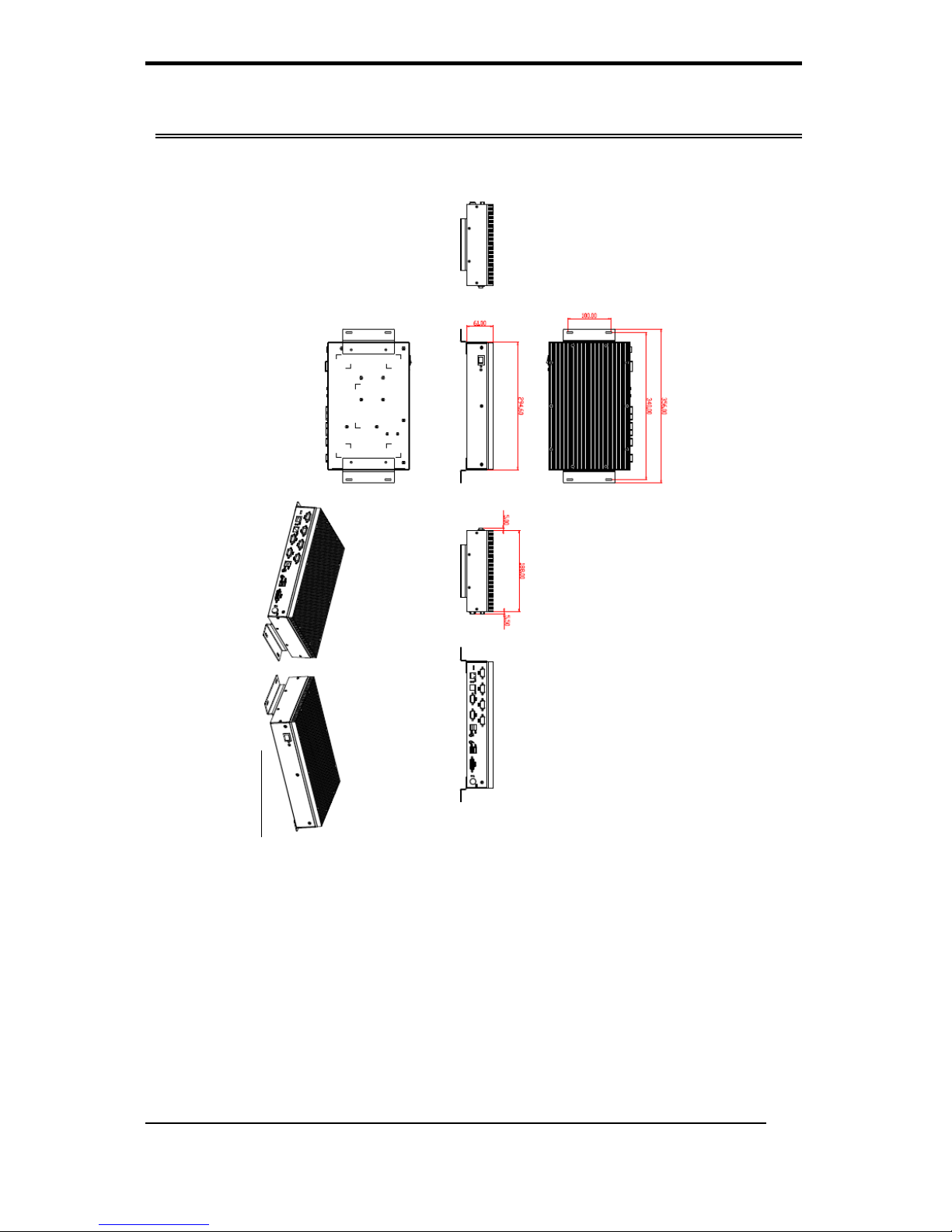

Dimension ...................................................................... 13

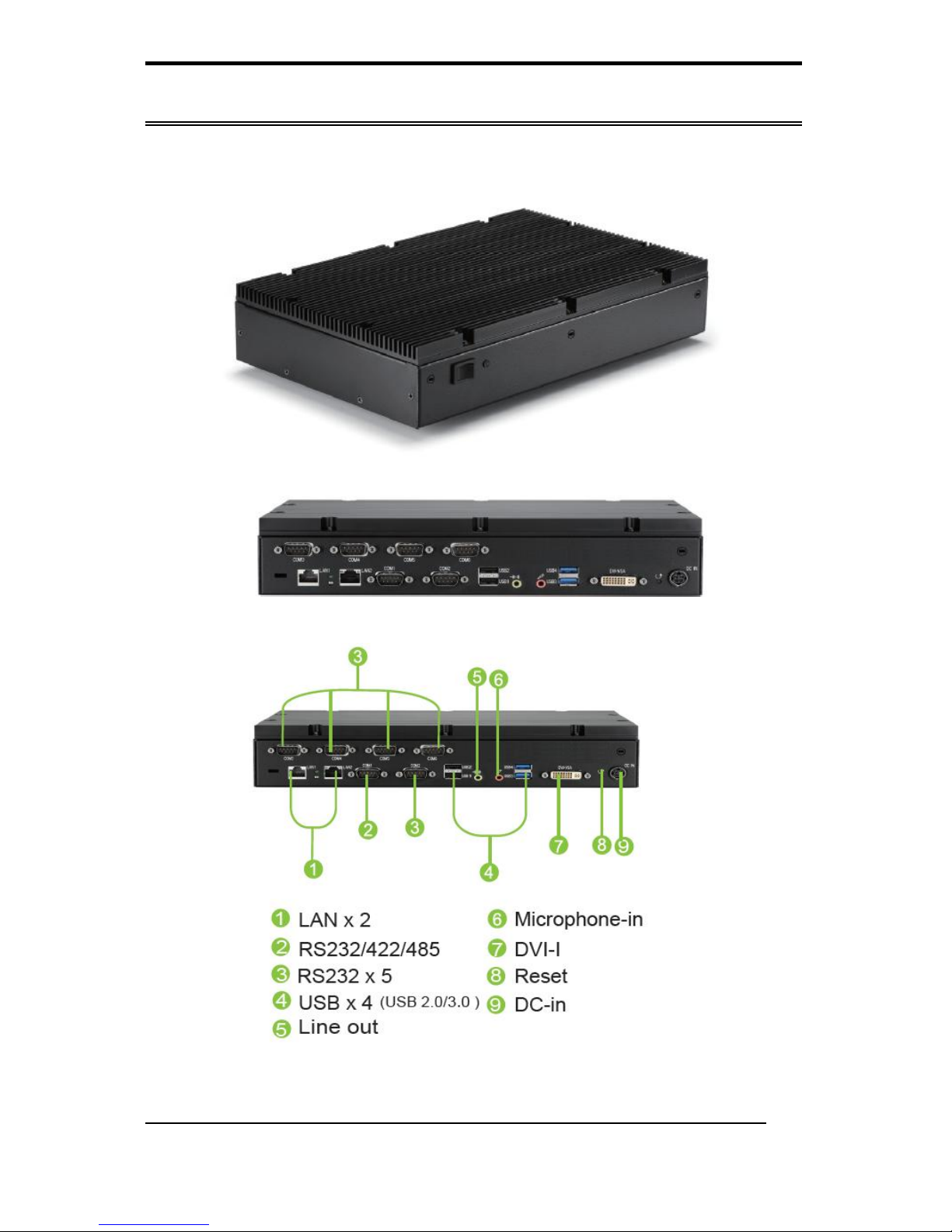

System View ................................................................. 15

Disconnect Device ...................................................... 17

B. Scrap Computer Recycling................................. 18

WPC-765/WPC-765E User’s manual

1

Introduction

Product Description

The WPC-765 / WPC-765E Mini PC are based on Intel 3rd
generation Core i processor which can deliver faster graphic with

higher CPU performance. It accommodates one 2.5” SATA III
hard disk drive and up to 8GB DDR3 SODIMM.

Fanless solution, integrated multimedia functions and extensive
expansion options make them the perfect platform upon which to
build comprehensive lifestyle computing applications.

The WPC-765/WPC-765E is compact, Giga LAN and selectable
WLAN network compatible PC with full safety and medical
approval and features to control a dedicated system with a wide
variety of applications. Combining the WPC-765/WPC-765E into
your system can achieve both cost-saving and efficient
improvements.

Common applications include Surgical, Radiology, PACS (Picture
Archiving Communication Systems), LIS (Lab Information
Systems) and Electronic Medical Record. The WPC-765 /
WPC-765E are definitely your perfect choices.

WPC-765/WPC-765E User’s manual

2

Package list

Before you begin installing your Medical Station, please make
sure that the following items have been shipped:

 The WPC-765 or WPC-765E Mini PC unit
 One DVD containing user manual, chipset drivers
 Power Adapter x 1 (Mf:Sinpro, type/model: MPU101-105)
 Power cord – Hospital grade used(US type), or other type in

UK, EU…etc.

WPC-765/WPC-765E User’s manual

3

Features



 Intel 3rd Generation (Iv y Bridge) Core i7/i5/i3 CPU
 True Fanless design for 0°C~40°C operating temp
 Medical 60601-1 3rd edition certification
 Rugged SECC/aluminum metal enclosure
 Rich COM ports for control applications
 Mini PCI-e sockets for WLAN & other add-on expansions
 16 GB maximum memory for dual channel DDR3 SODIMM
 Flexible customization for specific application requests

WPC-765/WPC-765E User’s manual

4

Specifications

[

Hardware Specifications

CPU
Support

Support Ivy bridge Intel® Core™ i7 i5/i3 rPGA
Socket Type Processor (35W max.)

- Core™ i7-3632QM (6M Cache, 2.20 GHz)

- Core™ i5-3210M (3M Cache, 2.50 GHz)

- Core™ i3-3110M (3M Cache, 2.40 GHz)

Chipset

Intel® HM76 PCH

BIOS

4Mb AMI Flash BIOS

VGA

Intel® integrated HD Graphics 4000 by Ivy bridge

CPU

Audio

Realtek ALC262 Audio Codec, 2+2 watts power

amplifier

LAN

Marvell 88E8071 Giga LAN x 2

Memory

Two 1066/1333/1600 MHz DDR3 SODIMM socket

support dual Channel, non-ECC, up to 16GB

IO

EC

Serial ATA

SATA3, 300 MB/s transfer rate x 1

WDT

Generates system reset; 256 segments, 0, 1,

2…255 sec/min.

Storage

HDD

2.5” SATA HDD drive bay x 1

Expansion slots

PCI-E

PCI-E x 16 expansion slot x 1 (Generation 3.0)

Mini-PCIe

52 pin card-edge type compatible to PCI
Express*Base specification 2.0 x 1
+3.3V loaded 0.75A+0.25A=1A
+1.5V loaded 0.375A

External I/O

USB

USB 2.0 x 2, USB 3.0 x 2

COM

RS232 x 5, RS232/RS422/RS485 x 1

LAN

RJ-45 x 2 (Gigabit Ethernet)

Audio

3.5mm phone jack connector * 2 (line-out, and
mic-in)

WPC-765/WPC-765E User’s manual

5

Video
output

DVI-D x 1 , or DVI-D x1 + CRT x1 (option, via Y
cable)

Power Adapter

Power

Close

MFR

Sinpro

Type

MPU101-105

Input Voltage

AC 100 ~240 V, 1.25 – 0.5A @47 ~63 Hz

Output Voltage

DC 12V @8.33A

MTBF

100,000 hrs operation at 25℃

Mechanical Specifications

Architecture

Aluminum heatsink and SECC with black

coating

Color

Black

Mounting / Holder

Bracket mounting mechanism

Dimension (WxHxD)

WPC-765 : 294.6 * 188 * 61 mm
WPC-765E : 294.6 * 188 * 96.2 mm

Net Weight

WPC-765: 3kg (w/o power adapter)
WPC-765E: 3.8kg (w/o power adapter)

Packing Filler

PE

Environmental Specifications

Temperature

Operating: 0°C to 40°C (32°F ~104°F)
Storage, Transportation: -20°C to 60°C (-4°F
~140°F)

Humidity

Operating:
10% to 90%@ 40°C, non-condensing
Storage, Transportation:
10% to 90%, non-condensing

Vibration

Operating: 15g/0.53 oz, 11 ms, half sine wave
Non-operating: 50g/1.76 oz, 11 ms, half sine
wave

Shock

Operating: 5 ~ 17 Hz ,
Amplitude：0.117 ~ 500Hz ,

Acceleration：1.0G
Non-operating:10~55Hz/0.15g, 55~500Hz/2.0g

Altitudes

Operational: up to 3000 m (9842 feet)
Shipping: up to 12192 m (40000 feet)

WPC-765/WPC-765E User’s manual

6

Pressure

700 – 1060 hPa (Operation)
186 – 1060 hPa (Storage)
186 – 1060 hPa (Transportation)

Guidance and manufacturer’s declaration – electromagnetic
emissions

The model WPC-765/WPC-765E is intended for use in the
electromagnetic environment specified below. The customer or the user
of the model WPC-765/WPC-765E should assure that it is used in such
an environment.

Emissions test

Compliance

Electromagnetic environment –

guidance

RF emissions
CISPR 11

The model WPC-765/WPC-765E
uses RF energy only for its internal
function. Therefore, its RF emissions
are very low and are not likely to
cause any interference in nearby
electronic equipment.

RF emissions
CISPR 11

The model WPC-765/WPC-765E is
suitable for use in all establishments,
including domestic establishments
and those directly connected to the
public low-voltage power supply
network that supplies buildings used
for domestic purposes.
Harmonic
emissions

IEC 61000-3-2

Voltage
fluctuations/

flicker emissions
IEC 61000-3-3

Recommended separation distances between

portable and mobile RF communications equipment and the model

WPC-765/WPC-765E

The model WPC-765/WPC-765E is intended for use in an
electromagnetic environment in which radiated RF disturbances are
controlled. The customer or the user of the model WPC-765/WPC-765E
can help prevent electromagnetic interference by maintaining a minimum
distance between portable and mobile RF communications equipment
(transmitters) and the model WPC-765/WPC-765E as recommended
below, according to the maximum output power of the communications
equipment.

WPC-765/WPC-765E User’s manual

7

Rated maximum

output power of

transmitter

W

Separation distance according to

frequency of transmitter

m

150 kHz to

80 MHz

d = 1,2

80 MHz to

800 MHz

d = 1,2

800 MHz to

2,5 GHz

d = 2,3

0,01

0,12

0,12

0,23

0,1

0,38

0,38

0,73

1

1,2

1,2

2,3

10

3,8

3,8

7,3

100

12

12

23

For transmitters rated at a maximum output power not listed above, the
recommended separation distanced in meters (m) can be estimated
using the equation applicable to the frequency of the transmitter, where P
is the maximum output power rating of the transmitter in watts (W)
according to the transmitter manufacturer.

NOTE 1 At 80 MHz and 800 MHz, the separation distance for the higher
frequency range applies.

NOTE 2 These guidelines may not apply in all situations. Electromagnetic
propagation is affected by absorption and reflection from structures,
objects and people.

Guidance and manufacturer’s declaration – electromagnetic immunity

The model WPC-765/WPC-765E is intended for use in the electromagnetic
environment specified below. The customer or the user of the model
WPC-765/WPC-765E should assure that it is used in such an environment.

Immunity

test

IEC 60601

test level

Compliance

level

Electromagnetic

environment –

guidance

Electrostatic
discharge
(ESD)

IEC
61000-4-2

6 kV
contact

8 kV air

6 kV

contact

8 kV air

Floors should be wood,
concrete or ceramic tile. If
floors are covered with
synthetic material, the relative
humidity should be at least 30
%.

WPC-765/WPC-765E User’s manual

8

Electrical fast
transient/burst

IEC
61000-4-4

2 kV for
power

supply lines

1 kV for
input/output

lines

2 kV for
power

supply lines

1 kV for
input/output

lines

Mains power quality should be
that of a typical commercial or
hospital environment.

Surge
IEC

61000-4-5

1 kV
line(s) to
line(s)

2 kV
line(s) to
earth

1 kV line(s)
to line(s)

2 kV line(s)
to earth

Mains power quality should be
that of a typical commercial or
hospital environment.

interruptions
and

voltage
variations

on power
supply

input lines

IEC
61000-4-11

<5 % UT
(>95 % dip

in UT)
for 0,5 cycle

40 % UT
(60 % dip in

UT)
for 5 cycles

70 % UT
(30 % dip in

UT)
for 25

cycles

<5 % UT
(>95 % dip

in UT)
for 5 sec

<5 % UT
(>95 % dip in

UT)
for 0,5 cycle

40 % UT
(60 % dip in

UT)
for 5 cycles

70 % UT
(30 % dip in

UT)
for 25 cycles

<5 % UT
(>95 % dip in

UT)
for 5 sec

Mains power quality should be
that of a typical commercial or
hospital environment. If the
user of the model

WPC-765/WPC-765Erequire

s continued operation during
power

mains interruptions, it is
recommended that the model

WPC-765/WPC-765E be

powered from an
uninterruptible power supply
or a battery.

WPC-765/WPC-765E User’s manual

9

Power
frequency

(50/60 Hz)
magnetic field

IEC
61000-4-8

3 A/m

3 A/m

Power frequency magnetic
fields should be at levels
characteristic of a typical
location in a typical
commercial or hospital
environment.

NOTE UT is the a.c. mains voltage prior to application of the test level.

Guidance and manufacturer’s declaration – electromagnetic immunity

The model WPC-765/WPC-765E is intended for use in the electromagnetic environment specified below. The
customer or the user of the model WPC-765/WPC-765E should assure that it is used in such an environment.

Immunity

IEC

60601

test

level

Compliance

level

Electromagnetic environment – guidance

Conducted RF
IEC 61000-4-6

Radiated RF
IEC 61000-4-3

3 Vrms
150

kHz to
80 MHz

3 V/m
80 MHz

to 2,5
GHz

Vrms

V/m

Portable and mobile RF communications equipment should
be used no closer to any part of the model

WPC-765/WPC-765E, including cables, than the

recommended separation distance calculated from the
equation applicable to the frequency of the transmitter.

Recommended separation distance

d = 1,2

d = 1,2 80 MHz to 800 MHz
d = 2,3 800 MHz to 2,5 GHz

where P is the maximum output power rating of the
transmitter in watts (W) according to the transmitter
manufacturer and d is the recommended separation
distance in meters (m).

Field strengths from fixed RF transmitters, as determined
by an electromagnetic site survey, a should be less than the
compliance level in each frequency range. b

Interference may occur in the vicinity of equipment marked
with the following symbol:

NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption
and reflection from structures, objects and people.

WPC-765/WPC-765E User’s manual

10

a

Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land

mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted
theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an
electromagnetic site survey should be considered. If the measured field strength in the location in which the
model WPC-765/WPC-765E is used exceeds the applicable RF compliance level above, the model

WPC-765/WPC-765E should be observed to verify normal operation. If abnormal performance is observed,

additional measures may be necessary, such as reorienting or relocating the model WPC-765/WPC-765E.

b

Over the frequency range 150 kHz to 80 MHz, field strengths should be less than V/m.

WPC-765/WPC-765E User’s manual

11

Cleaning/Disinfecting



Steps:

1. Wipe the WPC-765/WPC-765E with a dry clean cloth.

2. Prepare agent per manufacturer’s instructions or hospital
protocol.



Cautions:

 Do not immerse or rinse the WPC-765/WPC-765E and its

peripherals. If you accidentally spill liquid on the device,
disconnect the unit from the power source. Contact your
Biomed regarding the continued safety of the unit before
placing it back in operation.

 Do not spray cleaning agent on the chassis.
 Do not use disinfectants that contain phenol.
 Do not autoclave or clean the WPC-765/WPC-765E or its

peripherals with strong aromatic, chlorinated, ketone, ether,
or Esther solvents, sharp tools or abrasives. Never immerse
electrical connectors in water or other liquids.

WPC-765/WPC-765E User’s manual

12

Getting Started

System Set Up

The following is a summary of the steps in setting up the system
for use.
(1). You can fix the system to a mounting fixture using the screw

holes on the sides of the system.

(2). Make any required external connections such as the display,

keyboard, and LAN.

(3). Plug the appropriate end of the power cord into the power

connector on the rear of the system and the plug to an
electrical outlet.

(4). Waiting for 3 seconds then press the power switch on the

system once to turn on the system power.

(5). If necessary, run the BIOS SETUP programs to configure the

system.

Caution:

In order to boot up system from USB-CD/DVD drive,
please connect USB-CD/DVD drive, turn on computer

power, keep on pressing “F11” key, go into BIOS quick
boot menu, select “USB-CD ROM”, WAIT FOR 20

SECONDS, then press enter, system OS will boot up
from USB-CD/DVD drive directly.

WPC-765/WPC-765E User’s manual

13

Dimension

WPC-765

(Mount Screw type: M4)

WPC-765/WPC-765E User’s manual

14

WPC-765E

(Mount Screw type: M4)

WPC-765/WPC-765E User’s manual

15

System View



Front View & I/O parts (WPC-765)

WPC-765/WPC-765E User’s manual

16

Front View & I/O parts (WPC-765E)

WPC-765/WPC-765E User’s manual

17

Disconnect Device 

Unplug the power cord from the power
adapter jack to disconnect the device.

APPENDIX

WPC-765/WPC-765E User’s manual

18

B. Scrap Computer Recycling

If the computer equipments need the maintenance or are beyond
repair, we strongly recommended that you should inform us as
soon as possible for the suitable solution. For the computers that
are no longer useful or work well, please contact with worldwide
distributors for recycling.

The worldwide distributors show on the following website:

http://www.wincomm.com.tw/contact.aspx

Note:
Follow the national requirement to dispose unit
