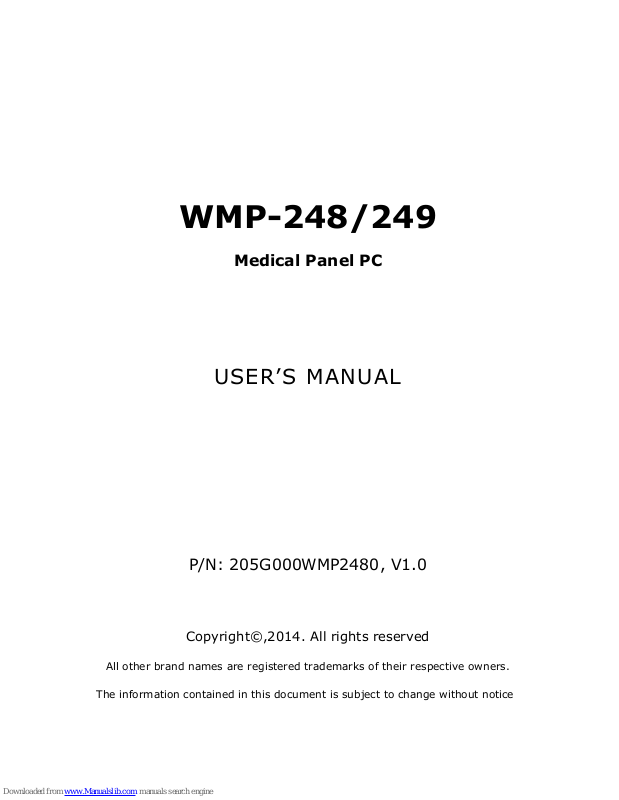

WMP-248/249
Medical Panel PC
USER’S MANUAL
P/N: 205G000WMP2480, V1.0
Copyright© ,2014. All rights reserved
All other brand names are registered trademarks of their respective owners.
The information contained in this document is subject to change without notice
WMP-248/249 User’s manual
ii
Version Change History
Date
Version
Description
Remark
2014/4/17
1.0
First release
James.Chiu
WMP-248/249 User’s manual
iii
Acknowledgments
Intel® 4th generation Core i and Celeron are registered
trademarks of Intel® Corporation.
IBM, PC/AT, PS/2 are trademarks of International Business
Machines Corporation.
Microsoft
®
Windows is a registered trademark of Microsoft
®
Corporation.
RTL is a trademark of Realtek Semi-Conductor Co., Ltd.
C&T is a trademark of Chips and Technologies, Inc.
UMC is a trademark of United Microelectronics Corporation.
ITE is a trademark of Integrated Technology Express, Inc.
PS/2 is a trademark of International Business Machines
Corporation.
Intel is a trademark or registered trademark of Intel
Corporation.
Microsoft Windows is a registered trademark of Microsoft
Corporation.
Winbond is a registered trademark of Winbond Electronics
Corporation.
All other product names or trademarks are properties of
their respective owners.
WMP-248/249 User’s manual
iv
FCC Class B
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a residential environment.
This equipment generates, uses and can radiate radio frequency energy. If
not installed and used in accordance with this user manual, it may cause
harmful interference to radio communications.
Note that even when this equipment is installed and used in accordance
with this user manual, there is still no guarantee that interference will not
occur. If this equipment is believed to be causing harmful interference to
radio or television reception, this can be determined by turning the
equipment on and off. If interference is occurring, the user is encouraged
to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and the receiver
Connect the equipment to a power outlet on a circuit different from
that to which the receiver is connected
Consult the dealer or an experienced radio/TV technician for help
Warning:
Any changes or modifications made to the equipment which are
not expressly approved by the relevant standards authority could
void your authority to operate the equipment.
To avoid risk of electric shock, this equipment must only be
connected to a supply mains with protective earth.
Do not modify this equipment without authorization of the
manufacturer.
WMP-248/249 User’s manual
v
Safety Instructions
Intended use
The WMP-248/249 is intended to serve as a medical monitor
which is designed for general purpose for hospital environment
and for diagnosis. It could be used for Surgical, Radiology, PACS
(Picture Archiving Communication Systems), LIS (Lab
Information Systems) and Electronic Medical Record purpose. It
shall not be used for life-supporting system.
WARNING: Critical diagnostic decision must not be based solely
on images displayed by this device
Greeting & Setup
Thank you for purchasing the WMP-248/249 unit. We wish that
this unit will be durable and reliable in providing your medical
application needs. Please follow the instructions below to ensure
the unit continues to have high performance.
Unpacking
After opening the carton, there will be a medical panel PC unit
with an accessory box. Examine the contents to see if there are
damages to the unit and if all accessories are present.
Setting up
Please read this manual carefully and remember to keep this
manual for future reference.
Safety Instructions & Cleaning
The unit has undergone various tests in order to comply with
safety standards. Inappropriate use of the open frame unit may
be dangerous. Please remember to follow the instructions below
to insure your safety during the installation and operating
process.
Transporting & Placement of unit
1. When moving the unit on a cart; be very cautious. Quick
stops, excessive forces and uneven surfaces may cause
the cart to overturn thus risking the unit to fall to the
ground.
WMP-248/249 User’s manual
vi
2. If the medical panel PC unit does fall to the ground,
immediately turn the power off and disconnect cords. Then
contact a service technician for repairs. Continual use of
the unit may result cause a fire or electric shock. Also, do
not repair the unit on your own.
3. Having two or more people transporting the display unit is
recommended. In addition, when installing the unit by
suspending it also requires two or more people.
4. Before suspending the unit, make sure the material used
for suspension is sturdy and stable. If not properly
suspended, the display unit may fall and cause serious
injury to people standing nearby as well as to the unit
itself.
5. If you wish to mount the display unit, remember to use
only the mounting hardware recommended by the
manufacturer.
Electrical and Power Source Related
1. This medical panel PC unit must operate on a power source
as shown on the specification label. If you are not sure
what type of power supply used in the area, consult your
dealer or local power supplier.
2. The power cords must not be damaged. Applied pressure,
added heat, and tugging may damage the power cord.
3. The power cord must be routed properly when setup takes
place. We advise that this aspect measure is to prevent
people from stepping on the cords or while the unit is
suspended to prevent flying objects from getting tangled
with the unit.
4. Do not overload the AC outlets or extension cords.
Electrical shocks or fires may occur from overloading.
5. Do not touch the power source during a thunderstorm.
6. If your hands are wet, do not touch the plug.
7. Use your thumb and index finger, grip firmly on the power
cord to disconnect from the electrical socket. By pulling the
power cord, may result in damaging it.
WMP-248/249 User’s manual
vii
8. If the unit is not going to be in use for an extended period
of time, remember to disconnect the unit.
9. The medical panel PC unit uses voltage between
100-240VAC. Connect the unit to a power source with the
same numerical value as shown. Please use only the power
cord provided by the dealer to ensure safety and EMC
compliance.
Various Factors of Environment
1. Do not insert objects into the openings.
2. Do not have liquids seep into the internal areas of the
medical panel PC unit.
3. Having liquids seep in or inserting objects into the unit
may result in electric shocks from taking and/or short
circuiting the internal parts.
4. Do not place the medical panel PC unit in the presence of
high moisture areas.
5. Do not install the medical panel PC unit in a wet
environment.
6. Do not place near unit near heat generating sources.
7. Do not place the unit in a location where it will come in
contact with fumes or steam.
8. Remember to keep the medical panel PC unit away from
the presence of dust.
9. If water has flow in or seep in, immediately disconnect the
open frame unit. Then contact a service technician for
repairs.
Ventilation Spacing
1. Do not cover or block the openings on the top and back
sides of the display unit. Inadequate ventilation may cause
overheating thus reducing the lifespan of the unit.
2. Unless proper ventilation is present, do not place unit in an
enclosed area; such as a built-in shelf. Keep a minimum
distance of 10 cm between the display unit and wall.
WMP-248/249 User’s manual
viii
Cleaning the unit
1. Remember to turn off the power source and to unplug the
cord from the outlet before cleaning the unit.
2. Carefully dismount the unit or bring the unit down from
suspension to clean.
3. Please use a dry soft cloth to clean the unit.
4. Take a dry cloth and wipe the unit dry. Remember to avoid
having liquids seep into the internal components and areas
of the medical panel PC unit.
Servicing, Repairing, Maintenance & Safety Checks
1. If the unit is not functioning properly, observe the
performance level of the display closely to determine what
type of servicing is needed.
2. Do not attempt to repair the medical panel PC unit on your
own. Disassembling the cover exposes users’ to high
voltages and other dangerous conditions. Notify and
request a qualified service technician for servicing the unit.
3. To avoid risk of electric shock, this equipment must only be
connected to a supply mains with protective earth.
4. If any of the following situations occur turn the power
source off and unplug the unit. Then contact a qualified
service technician.
(a) A liquid was spilled on the unit or objects have fallen
into the unit.
(b) The unit is soaked with liquids.
(c) The unit is dropped or damaged.
(d) If smoke or strange odor is flowing out of the operating
unit.
(e) If the power cord or plug is damaged.
(f) When the functions of the unit are dysfunctional.
5. When replacement parts are needed for the medical panel
PC unit, make sure service technicians use replacement
parts specified by the manufacturer, or those with the
same characteristics and performance as the original
WMP-248/249 User’s manual
ix
parts. If unauthorized parts are used it may result in
starting a fire, electrical shock and/or other dangers.
ISO 7000-0434 : Caution, consult ACCOMPANYING
DOCUMENTS.
ISO 7000-1641 : Follow operating instructions or
Consult instructions for use.
IEC 60417 -5009 : STAND-BY.
IEC 60417-5031 : Direct current.
EU-wide legislation, as implemented in each
Member State, requires that waste electrical and
electronic products carrying the mark (left) must be
disposed of separately from normal household
waste. This includes monitors and electrical
accessories, such as signal cables or power cords.
When you need to dispose of your display products,
please follow the guidance of your local authority, or
ask the shop where you purchased the product, or if
applicable, follow any agreements made between
yourself.
The mark on electrical and electronic products only
applies to the current European Union Member
States.
WMP-248/249 User’s manual
x
When networking with electrical devices, the operator is
responsible for ensuring that the resulting system meets the
requirements set forth by the following standards:
– EN 60601-1 (IEC 60601-1)
Medical electrical equipment
Part 1: General requirements for safety
– EN 60601-1-1 (IEC 60601-1-1)
Medical electrical equipment
Part 1-1: General requirements for safety
Collateral standard: Safety requirements for
Medical electrical systems
– EN 60601-1-2 (IEC 60601-1-2)
Medical electrical equipment
Part 1-2: General requirements for safety
Collateral standard: Electromagnetic compatibility;
Requirements and tests
Accessory equipment
connected to the
analog and digital
interfaces must be in
compliance with the
respective nationally
harmonized IEC
standards (i.e. IEC 60950 for data processing equipment, IEC
60065 for video equipment, IEC 61010-1 for laboratory
equipment, and IEC 60601-1 for medical equipment.)
Furthermore all configurations shall comply with the system
standard IEC 60601-1-1. Everybody who connects additional
equipment to the signal input part or signal output part
configures a medical system, and is therefore, responsible that
the system complies with the requirements of the system
standard IEC 60601-1-1. The unit is for exclusive interconnection
with IEC 60601-1 certified equipment in the patient environment
and IEC 60XXX certified equipment outside of the patient
environment. If in doubt, consult the technical services
department or your local representative.
WMP-248/249 User’s manual
xi
Caution:
DO NOT LEAVE THIS EQUIPMENT IN AN UNCONTROLLED
ENVIRONMENT WHERE THE STORAGE TEMPERATURE IS BELOW
-20° C (-4° F) OR ABOVE 60° C (140° F). THIS MAY DAMAGE THE
EQUIPMENT.
This equipment shall not be used in life support systems.
The user is not to touch SIP/SOPs and the patient at the same
time.
Caution – Use suitable mounting apparatus to avoid risk of injury.
The sound pressure level at the operator’s position according to
IEC 704-1:1982 is no more than 70dB (A).
A) Grounding reliability can only be achieved when the equipment
is connected to an equivalent receptacle marked “Hospital
Only” or “Hospital Grade”.
B) Use a power cord that matches the voltage of the power outlet,
which has been approved and complies with the safety
standard of your particular country.
C) Caution: This adapter SPI FSP180-AHAM1 is a forming part of
the medical device
Contact information:
3F, No.14, Prosperity Road II, Science-Based Industrial Park,
Hsinchu, Taiwan 300, R.O.C
TEL: (886) 3 5780000
E-Mail: Sales@wincomm.com.tw
WMP-248/249 User’s manual
xii
Table of Contents
Acknowledgments ........................................................iii
FCC Class B .................................................................... iv
Safety Instructions ....................................................... v
Introduction ......................................................... 1
Product Description ...................................................... 1
Package list ..................................................................... 2
Features ........................................................................... 3
Specifications ................................................................. 4
Guidance and manufacturer’s declaration –
electromagnetic emissions ..................................... 6
Guidance and manufacturer’s declaration –
electromagnetic immunity ....................................... 8
Guidance and manufacturer’s declaration –
electromagnetic immunity ....................................... 9
Immunity ................................................... 9
Cleaning/Disinfecting................................................. 11
Getting Started .................................................. 12
System Set Up ............................................................. 12
Dimension ...................................................................... 13
System View ................................................................. 15
Disconnect Device ...................................................... 19
BIOS Setup .......................................................... 20
Appendix .............................................................. 30
A. Jumper settings and Connectors ..................... 30
B. L type Stand (optional kit) ................................ 53
C. Battery Pack Specifications (optional kit) .... 54
D. Scrap Computer Recycling ................................ 55
WMP-248/249 User’s manual
1
Introduction
Product Description
The WMP-248/249 Medical Panel PC are based on Intel 4th
generation Core i processor which can deliver faster graphic with
higher CPU performance. It accommodates two SATA III devices
and up to 16GB DDR3 SODIMM.
The high brightness LCD, Low noise (WMP-248) / Fanless
(WMP-249) solution, integrated multimedia functions and
extensive expansion options make them the perfect platform
upon which to build comprehensive lifestyle computing
applications.
The WMP-248/249 includes all the features of a powerful
computer into a slim and attractive chassis. The WMP-248/249
has a 24” high brightness TFT display with 1920 x 1080
resolutions.
The WMP-248/249 is compact, Giga LAN and selectable WLAN
network compatible PC with full safety and medical approval and
features to control a dedicated system with a wide variety of
applications. Combining the WMP-248/249 into your system can
achieve both cost-saving and efficient improvements.
Common applications include Surgical, Radiology, PACS (Picture
Archiving Communication Systems), LIS (Lab Information
Systems) and Electronic Medical Record. The WMP-248/249 are
definitely your perfect choices.
WMP-248/249 User’s manual
2
Package list
Before you begin installing your Medical Station, please make
sure that the following items have been shipped:
The WMP-248 or WMP-249 Medical Panel PC unit
One DVD containing user manual, chipset drivers
Power Adapter x 1 (Mf:SPI, type/model: FSP180-AHAM1)
Power cord – Hospital grade used(US type), or other type in
UK, EU…etc.
Screw x 8 (VESA 75/100 use)
WMP-248/249 User’s manual
3
Features
On board 4th generation Intel® Core i7/i5/i3 processors
Projective Capacitive Multi-touch screen (10 fingers)
Seamless on the front side
Easy wipe surfaces with no internal corners
IP65 at front side, IPx1 for whole system
24" (1920X1080) Diagnostic Panel
2x DDR3/DDR3L SO-DIMM, Max. 16GB
Two mini-PCIe expansion, one support mSATA via mini-PCIe
(Thru SATA III)
High speed USB3.0 ports
Support CFast socket
HDD Anti-vibration mechanism
Low noise Smart fan solution
Anti-bacteria (MRSA) plastic housing
Built-in Battery backup function (option)
Supports PCI-E x 16 or PCI expansion slot (option)
Support isolated module by different configuration (optional
order configuration)
WMP-248/249 User’s manual
4
Specifications
[
Hardware Specifications
Display
24” 250 nits Full HD TFT LCD
CPU Support
WMP-248
BGA1364 for 4th generation Intel® mobile Core
i7/i5/i3 processor (37W max.)
WMP-249
BGA1364 for 4th generation Intel® mobile Core
i5/i3 processor (25W max.)
Disk Drive Space
2.5” Hard Disk Drive (SATA III)
Expansion
Two Mini PCIe slot;
One PCI-E expansion slot or PCI expansion slot
(option)
Button
Power // Audio adjustment (+)(-) // brightness (+)(-)
// Reading Light // Video input selection // LCD
on/off // Clean me(auto release after 1 minute) // Fn
I/O
Standard version
USB 3.0 x 4 , USB 2.0 x 2
RS232 x 1, RS232/RS422/RS485 x 1 (RS-485
auto flow support)
RJ-45 Gigabit Ethernet x 2
3.5mm phone jack connector * 2 ( Line-out, and
Mic-in)
DP video output x 2
DVI-D Video input x 1
Reset x 1
DC-in Jack x 1(with lock function)
Two 5W speaker on back side
Isolated version
USB 3.0 x 4
RJ-45 Gigabit Ethernet x 1
3.5mm phone jack connector * 2 ( Line-out, and
Mic-in)
DP video output x 2
DVI-D Video input x 1
Reset x 1
DC-in Jack x 1(with lock function)
Two 5W speaker on back side
Isolation:
4KV isolated RS-232 x 1, RS-232/422/485 x 1
4KV isolated USB 2.0 x 1 (Full speed)
4KV isolated Lan x 1 (Gigabit)
WMP-248/249 User’s manual
5
LCD Specifications
Model Name
AUO M240HVN02.1
Display Type
24” LED backlight LCD
Max. Resolution
1920 x 1080 (Full HD)
Contrast Ratio
3000 : 1 (Typ)
Pixel Pitch (um)
276.75 (per one triad) × 276.75
Luminance (cd/m2)
250 (TYP)
Viewing Angle
178°(H)
178°(V)
Operating
Temperature
0°C~ 40°C (32°F~104°F)
Brightness Control
Yes
Power Adapter Specifications
Power
Close-frame
MFR
SPI
Type
FSP180-AHAM1
Input Voltage
100-240Vac, 50-60Hz, 2.3-0.8A
Output Voltage
DC 12V @ 15 A
MTBF
611,222 hrs operation at 25°C
Mechanical Specifications
Architecture
Close-frame
Front Bezel
PCT touch
Color
Medical-white
Mounting / Holder
VESA 75/100mm
Construction
3mm ABS + PC TYPE Plastic housing
Dimension (WxHxD)
606 x 398 x 65.6 mm
Net Weight
WMP-248: 8.5kg (w/o power adapter)
WMP-249: 9.0kg (w/o power adapter)
Packing Filler
PE
Environmental Specifications
Temperature
Operating: 0°C to 40°C (32°F ~104°F)
Storage, Transportation: -20°C to 60°C (-4°F
~140°F)
WMP-248/249 User’s manual
6
Humidity
Operating:
10% to 90%@ 40°C, non-condensing
Storage, Transportation:
10% to 90%, non-condensing
Vibration
Operating: 15g/0.53 oz, 11 ms, half sine wave
Non-operating: 50g/1.76 oz, 11 ms, half sine
wave
Shock
Operating: 5 ~ 17 Hz ,
Amplitude：0.117 ~ 500Hz ,
Acceleration：1.0G
Non-operating:10~55Hz/0.15g, 55~500Hz/2.0g
Altitudes
Operational: up to 3000 m (9842 feet)
Shipping: up to 12192 m (40000 feet)
Pressure
700 – 1060 hPa (Operation)
186 – 1060 hPa (Storage)
186 – 1060 hPa (Transportation)
Input Power Rating
For Adaptor:
AC100~240 V, 1.25 – 0.5A, @47 ~ 63 Hz.
For Unit:
DC 12V, 15A
Power Consumption
WMP-248: 134W(Typ.)
WMP-249: 106W(Typ.)
Touch Screen
Configuration 1 - P.cap touch (10 fingers)
Type
Full flat projective capacitive touch panel
Interface
Controller with USB interface, 5V
Resolution
100ppi to 25ppi Based WIN7 definition ppi
(Pixel per inch)
Light Transmission
90% ± 3%
Life Time
100M times
Guidance and manufacturer’s declaration – electromagnetic
emissions
The model WMP-248/249 is intended for use in the electromagnetic
environment specified below. The customer or the user of the model
WMP-248/249 should assure that it is used in such an environment.
Emissions test
Compliance
Electromagnetic environment –
guidance
WMP-248/249 User’s manual
7
RF emissions
CISPR 11
The model WMP-248/249 uses RF
energy only for its internal function.
Therefore, its RF emissions are very
low and are not likely to cause any
interference in nearby electronic
equipment.
RF emissions
CISPR 11
The model WMP-248/249 is suitable
for use in all establishments,
including domestic establishments
and those directly connected to the
public low-voltage power supply
network that supplies buildings used
for domestic purposes.
Harmonic
emissions
IEC 61000-3-2
Voltage
fluctuations/
flicker emissions
IEC 61000-3-3
Recommended separation distances between
portable and mobile RF communications equipment and the model
WMP-248/249
The model WMP-248/249 is intended for use in an electromagnetic
environment in which radiated RF disturbances are controlled. The
customer or the user of the model WMP-248/249 can help prevent
electromagnetic interference by maintaining a minimum distance
between portable and mobile RF communications equipment
(transmitters) and the model WMP-248/249 as recommended below,
according to the maximum output power of the communications
equipment.
Rated maximum
output power of
transmitter
W
Separation distance according to
frequency of transmitter
m
150 kHz to
80 MHz
d = 1,2
80 MHz to
800 MHz
d = 1,2
800 MHz to
2,5 GHz
d = 2,3
0,01
0,12
0,12
0,23
0,1
0,38
0,38
0,73
1
1,2
1,2
2,3
10
3,8
3,8
7,3
100
12
12
23
WMP-248/249 User’s manual
8
For transmitters rated at a maximum output power not listed above, the
recommended separation distanced in meters (m) can be estimated
using the equation applicable to the frequency of the transmitter, where P
is the maximum output power rating of the transmitter in watts (W)
according to the transmitter manufacturer.
NOTE 1 At 80 MHz and 800 MHz, the separation distance for the higher
frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic
propagation is affected by absorption and reflection from structures,
objects and people.
Guidance and manufacturer’s declaration – electromagnetic
immunity
The model WMP-248/249 is intended for use in the electromagnetic
environment specified below. The customer or the user of the model
WMP-248/249 should assure that it is used in such an environment.
Immunity test
IEC 60601
test level
Compliance
level
Electromagnetic
environment –
guidance
Electrostatic
discharge
(ESD)
IEC 61000-4-2
6 kV contact
8 kV air
6 kV contact
8 kV air
Floors should be
wood, concrete or
ceramic tile. If floors
are covered with
synthetic material, the
relative humidity
should be at least 30
%.
Electrical fast
transient/burst
IEC 61000-4-4
2 kV for
power
supply lines
1 kV for
input/output
lines
2 kV for
power
supply lines
1 kV for
input/output
lines
Mains power quality
should be that of a
typical commercial or
hospital environment.
Surge
IEC 61000-4-5
1 kV line(s)
to line(s)
2 kV line(s)
to earth
1 kV line(s)
to line(s)
2 kV line(s)
to earth
Mains power quality
should be that of a
typical commercial or
hospital environment.
WMP-248/249 User’s manual
9
interruptions
and
voltage
variations
on power
supply
input lines
IEC
61000-4-11
<5 % UT
(>95 % dip in
UT)
for 0,5 cycle
40 % UT
(60 % dip in
UT)
for 5 cycles
70 % UT
(30 % dip in
UT)
for 25 cycles
<5 % UT
(>95 % dip in
UT)
for 5 sec
<5 % UT
(>95 % dip in
UT)
for 0,5 cycle
40 % UT
(60 % dip in
UT)
for 5 cycles
70 % UT
(30 % dip in
UT)
for 25 cycles
<5 % UT
(>95 % dip in
UT)
for 5 sec
Mains power quality
should be that of a
typical commercial or
hospital environment.
If the user of the
model WMP-248/249
requires continued
operation during
power
mains interruptions, it
is recommended that
the model
WMP-248/249 be
powered from an
uninterruptible power
supply or a battery.
Power
frequency
(50/60 Hz)
magnetic field
IEC 61000-4-8
3 A/m
3 A/m
Power frequency
magnetic fields
should be at levels
characteristic of a
typical location in a
typical commercial or
hospital environment.
NOTE UT is the a.c. mains voltage prior to application of the test level.
Guidance and manufacturer’s declaration – electromagnetic immunity
The model WMP-248/249 is intended for use in the electromagnetic environment specified below. The
customer or the user of the model WMP-248/249 should assure that it is used in such an environment.
Immunity
IEC
60601
test level
Compliance
level
Electromagnetic environment – guidance
WMP-248/249 User’s manual
10
Conducted RF
IEC 61000-4-6
Radiated RF
IEC 61000-4-3
3 Vrms
150 kHz
to 80
MHz
3 V/m
80 MHz
to 2,5
GHz
Vrms
V/m
Portable and mobile RF communications
equipment should be used no closer to any part
of the model WMP-248/249, including cables,
than the recommended separation distance
calculated from the equation applicable to the
frequency of the transmitter.
Recommended separation distance
d = 1,2
d = 1,2 80 MHz to 800 MHz
d = 2,3 800 MHz to 2,5 GHz
where P is the maximum output power rating of
the transmitter in watts (W) according to the
transmitter manufacturer and d is the
recommended separation distance in meters
(m).
Field strengths from fixed RF transmitters, as
determined by an electromagnetic site survey, a
should be less than the compliance level in
each frequency range. b
Interference may occur in the vicinity of
equipment marked with the following symbol:
NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by
absorption
and reflection from structures, objects and people.
a
Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones
and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be
predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF
transmitters, an electromagnetic site survey should be considered. If the measured field strength in
the location in which the model WMP-248/249 is used exceeds the applicable RF compliance level
above, the model WMP-248/249 should be observed to verify normal operation. If abnormal
performance is observed, additional measures may be necessary, such as reorienting or relocating
the model WMP-248/249.
b
Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m.
WMP-248/249 User’s manual
11
Cleaning/Disinfecting
Steps:
1. Wipe the WMP-248/249 with a dry clean cloth.
2. Prepare agent per manufacturer’s instructions or hospital
protocol.
Cautions:
Do not immerse or rinse the WMP-248/249 and its
peripherals. If you accidentally spill liquid on the device,
disconnect the unit from the power source. Contact your
Biomed regarding the continued safety of the unit before
placing it back in operation.
Do not spray cleaning agent on the chassis.
Do not use disinfectants that contain phenol.
Do not autoclave or clean the WMP-248/249 or its
peripherals with strong aromatic, chlorinated, ketone, ether,
or Esther solvents, sharp tools or abrasives. Never immerse
electrical connectors in water or other liquids.
WMP-248/249 User’s manual
12
Getting Started
System Set Up
The following is a summary of the steps in setting up the system
for use.
(1). You can fix the system to a mounting fixture using the screw
holes on the sides of the system.
(2). Make any required external connections such as the display,
keyboard, and LAN.
(3). Plug the appropriate end of the power cord into the power
connector on the rear of the system and the plug to an
electrical outlet.
(4). Waiting for 3 seconds then press the power switch on the
front panel of the system once to turn on the system power.
(5). If necessary, run the BIOS SETUP programs to configure the
system.
Caution:
In order to boot up system from USB-CD/DVD drive,
please connect USB-CD/DVD drive, turn on computer
power, keep on pressing “F11” key, go into BIOS quick
boot menu, select “USB-CD ROM”, WAIT FOR 20
SECONDS, then press enter, system OS will boot up
from USB-CD/DVD drive directly.
WMP-248/249 User’s manual
13
Dimension
WMP-248
(VESA Mount Screw type: M4)
WMP-248/249 User’s manual
14
WMP-249
(VESA Mount Screw type: M4)
WMP-248/249 User’s manual
15
System View
Front View
Hotkey and LED definition at front panel
Located on Touch screen bottom side, from left to right, front view
1-1. Up. HDD: Yellow
1-2 Down. Battery1(Green) & Battery2(Yellow):
LED 1
LED 2
(Charge/Discharge/Low)
(Batt present/ not present)
In charge
blinking
ON
Discharge
OFF
ON
Full charge
ON
ON
Low battery
blinking
blinking
No battery
OFF
OFF
2. Power Button (with LED status indicator: ON: Green, OFF:
dark)
Operation: always on.
Webcam (optional)
RFID(optional)
WMP-248/249 User’s manual
16
Suspend: Flash 2(light)/2(dark) sec.
3. Volume adjustment (-)
4. Volume adjustment (+)
5. Brightness (-)
6. Brightness (+)
7. Reading light
8. Video input selection (with LED status indicator: ON:
Green->DVI input, OFF: dark->PC mode)
PC mode
DVI input
Remark
Sys power
off
No any
message
1. No connect - 60S
message off (no
connection)
2. No signal -60S
message off (cable
connected, but no
signal input)
3. DVI input - message
for 3 sec.
Sys power
on
PC mode
forcibly
Switch to PC mode
when sys power on
In Windows
Message
for 3 sec
Same as power off
9. LCD on/off (with LED status indicator: LCD ON: dark, LCD OFF:
Green)
10. Clean me (with LED status indicator: ON: Yellow, OFF: dark)
a. Keep on contacting 5 seconds to active
b. keep contacting 5 seconds to release
c. auto release after 60 seconds
11. Fn: Function key (with LED status indicator: ON: Green, OFF:
dark)
WMP-248/249 User’s manual
17
Side View
Standard model without
door
Customized model with
DVD (or Smart card reader)
Rear View
WMP-248 (Fan)
WMP-249 (Fanless)
WMP-248/249 User’s manual
18
I/O parts (Standard version)
I/O parts (Isolated version)
isolation
isolated COM 4KV isolated RS-232 x 1, RS-232/422/485 x 1
isolated USB 4KV isolated USB 2.0 x 1 (Full speed)
isolated LAN 4KV isolated Lan x 1 (Gigabit)
WMP-248/249 User’s manual
19
Disconnect Device
Unplug the power cord from the power
adapter jack to disconnect the device.
WMP-248/249 User’s manual
20
BIOS Setup
BIOS Introduction
The AMI BIOS (Basic Input / Output System) installed in your
computer system’s ROM supports Intel processors. The BIOS
provides critical low-level support for a standard device such as
disk drives, serial ports and parallel ports. It also adds virus and
password protection as well as special support for detailed
fine-tuning of the chipset controlling the entire system.
BIOS Setup
The AMI BIOS provides a Setup utility program for specifying the
system configurations and settings. The BIOS ROM of the system
stores the Setup utility. When you turn on the computer, the AMI
BIOS is immediately activated. Pressing the <Del> key
immediately allows you to enter the Setup utility. If you are a
little bit late pressing the <Del> key, POST (Power On Self Test)
will continue with its test routines, thus preventing you from
invoking the Setup. If you still wish to enter Setup, restart the
system by pressing the ”Reset” button or simultaneously pressing
the <Ctrl>, <Alt> and <Delete> keys. You can also restart by
turning the system Off and back On again. The following message
will appear on the screen:
Press <DEL> to Enter Setup
In general, you press the arrow keys to highlight items, <Enter>
to select, the <PgUp> and <PgDn> keys to change entries, <F1>
for help and <Esc> to quit.
When you enter the Setup utility, the Main Menu screen will
appear on the screen. The Main Menu allows you to select from
various setup functions and exit choices.
WMP-248/249 User’s manual
21
Main
This section provides information on the BIOS information, and Battery information
System Date
Set the system date. Use the <Tab> key to switch between data
elements.
System Time
Set the system time. Use the <Tab> key to switch between time
elements.
WMP-248/249 User’s manual
22
Advanced
ACPI Settings
Enable ACPI Auto Configuration
Enables or Disables BIOS ACPI Auto Configuration.
Enable Hibernation
Enables or Disables System ability to Hibernate (OS/S4
Sleep State). This option may be not effective with some OS.
ACPI Sleep State
Select the highest ACPI sleep state the system will enter,
Lock Legacy Resources
Enables or Disables Lock of Legacy Resources.
S3 Video Repost
Enables or Disables S3 Video Repost.
S5 RTC Wake Settings
Wake System with Fixed Time
Enables or disables system wake on alarm event. When
enabled, the system will wake on the time specified.
Wake system with Dynamic Time
Enables or disables system wake on alarm event. When
enabled, the system will wake on the current time+Increase
minute(s).
Trusted Computing
Security Device support
Enables or disables BIOS support for security device.
WMP-248/249 User’s manual
23
CPU Configuration
Hyper-Threading
Enabled for Windows XP and Linux (OS optimized for
Hyper-Threading Technology) and Disabled for other OS (OS
optimized for Hyper-Threading Technology)
Active Processor Cores
Number of cores to enable in each processor package.
Execute Disable Bit
XD can prevent certain classes of malicious buffer overflow
attacks when combined with a supporting OS (Windows
Server 2003 SP1, Windows XP SP2, SuSE Linux 9.2, RedHat
Enterprise 3 Update 3.)
Intel Virtualization Technology
When enabled, a VMM can utilize the additional hardware
capabilities provided by Vanderpool Technology
EIST
Enable/Disable Intel speedstep
Turbo Mode
When enabled, the processor will run above its base
operating frequency via dynamic control of the CPU's clock
rate. The increased clock rate is limited by the processor's
power, current and thermal limits
SATA Configuration
SATA Controller(s)
Enable or disable SATA device.
SATA Mode Selection
Select a configuration for SATA controller.
Aggressive LPM Support
Enable PCH to aggressively enter link power state.
SATA Controller Speed
Indicates the maximum speed the SATA controller can
support.
Software Feature Mask Configuration
RAID OROM/RST driver will refer to the SWFM configuration
to enable or disable the storage features.
Info Report Configuration
System configuration information report. It includes Post
report/Error message report/Summary report
USB Configuration
WMP-248/249 User’s manual
24
Legacy USB Support
Enables Legacy USB support. AUTO option disables legacy
support if no USB devices are connected. DISABLE option will
keep USB devices available only for EFI applications
USB3.0 Support
Enable/Disable USB3.0(XHCI) controller support.
XHCI Hand-off
This is a workaround for 0Ses without XHCI hand-off
support. The XHCI ownership change should be claimed by
XHCI driver.
EHCI Hand-off
This is a workaround for 0Ses without EHCI hand-off
support. The EHCI ownership change should be claimed by
EHCI driver.
USB Mass Storage Driver Support
Enable/Disable USB Mass Storage Driver Support.
SMART Settings
SMART Self Test
Run SMART Self Test on all HDDs during POST.
Serial Port 1~4 Configuration
Serial Port 1 Configuration
Set Parameters of Serial Port 1.
Serial Port 2 Configuration
Set Parameters of Serial Port 2.
Serial Port 3 Configuration
Set Parameters of Serial Port 3.
Serial Port 4 Configuration
Set Parameters of Serial Port 4.
Serial Port 5~6 Configuration(Optional)
Serial Port 5 Configuration
Set Parameters of Serial Port 5.
Serial Port 6 Configuration
Set Parameters of Serial Port 6.
Intel(R) Smart Connect Technology
ISCT Support
Enable/Disable Intel Smart Connect
ISCT Notification Control
Enable/Disable ISCT notification control
ISCT WLAN Power Control
Enable/Disable ISCT power control
WMP-248/249 User’s manual
25
ISCT WWAN Power Control
Enable/Disable ISCT wireless wide area network power
control
Platform Misc Configuration
Native PCIE Enable
PCI Express native support. This feature is only available in
Vista.
Native ASPM
If enabled, Vista will control the ASPM support for the device.
If disabled, BIOS will.
ACPI 5.0 CPPC Support
Enable ACPI 5.0 collaborative control (CPPC) support. When
Enabled, platform exposes CPPC interfaces to operating
system. When Disabled, Platform exposes legacy
(non-CPPC) processor interfaces to Operating System.
Lock key click time
Number of seconds to press lock key to (un)active.
1~10 seconds mean press hold time.
Locked Status Hold Time
Number of minutes to keep lock status. 0 means lock
always.1~100 minutes mean lock hold time.
Power key
Vol+/- key
Backlight+/- key
Reading light key
Display switch key
LCD backlight key
Lock key
Fn key
Enable/Disable relative key function
WMP-248/249 User’s manual
26
Chipset
System Agent (SA)/PCH-IO Configuration
This screen provides information on System Agent and PCH
parameters.
PCH-IO Configuration
PCH parameters
WMP-248/249 User’s manual
27
Boot
Setup Prompt Timeout
Number of seconds to wait for setup activation key.
65535(0xFFFF) means indefinite waiting.
Bootup Numlock State
Selects the keyboard NumLock state.
Quiet Boot
Allows you to determine whether to display the Logo at system
startup. Disabled displays normal POST message.
Hard Drive BBS Priorities
Set the order of the legacy devices in this group
CSM16 Parameters
Enable/Disable option ROM execution settings, etc.
CSM parameters
Option ROM execution, boot options filter, etc.
WMP-248/249 User’s manual
28
Security
Enables or disables the security chip. It is recommended that you
use this function with the Administrator/User password.
WMP-248/249 User’s manual
29
Save & Exit
Save Changes and Exit
Exit system setup after saving the changes.
Discard Changes and Exit
Exit system setup without saving any changes.
Save Changes and Reset
Reset the system after saving the changes.
Discard Changes and Reset
Reset system setup without saving the changes.
Save Changes
Save the changes done so far to any of setup options.
Discard Changes
Discard the changes done so far to any of setup options.
Restore Defaults
Restore/load default values for all the setup options.
Save as User Defaults
Save the changes done so far as User Defaults.
Restore User Defaults
Restore the User Defaults to all the setup options.
Launch EFI Shell From filesystem device
Attempts to Launch EFI Shell application (Shellx64.efi) from one
of the available filesystem devices.
APPENDIX
WMP-248/249 User’s manual
30
Appendix
A. Jumper settings and Connectors
This appendix gives the definitions and shows the positions of
jumpers, headers and connectors. All of the configuration
jumpers on WMP-248/249 are in the proper position.
Note: Some of jumpers or connectors will be removed
base on system configuration.
Jumper and Connector Definition Block
APPENDIX
WMP-248/249 User’s manual
31
JP5 –Backlight Adjust
Description
Jumper Setting
analog Inverter
1-2 (default)
PWM Inverter
2-3
JP6 –CMOS Clear
Description
Jumper Setting
Normal Open
1-2 (default)
CMOS Clear
2-3
JP7 –TPM Settings
Description
Jumper Setting
Clear ME RTC registers
1-2
Keep ME RTC registers
OPEN (default)
JP8– DRAM Voltage
Description
Jumper Setting
+1.35VS
OPEN (default)
+1.5VS
1-2
JP9 –Touch Panel Type Selection
Description
Jumper Setting
3M type
1-2, 3-4 (default)
ELO type
5-6,7-8
JP10 –SATA or SATA DOM Selection
Description
Jumper Setting
SATA DOM
1-2 ---power +5V
SATA
2-3(default)--- GND
APPENDIX
WMP-248/249 User’s manual
32
JP11 – RS-232 TTL Voltage
Description
Jumper Setting
+5VS
2-3(default)
+12VS
1-2
APPENDIX
WMP-248/249 User’s manual
33
Connector Definition
PJ5 – HDD Power Connector
Pin #
Signal Description
1
BATT+
2
BATT+
3
BATT+
4
BATT_T
5
BATT_CLK
6
BATT_DAT
7
BATT_EN#
8
Ground
9
Ground
10
Ground
PJ6 /PJ7 – HDD Power Connector
Pin #
Signal Description
1
+12VS
2
Ground
3
Ground
4
+5VS
JP8 – Power Jack Connector
APPENDIX
WMP-248/249 User’s manual
34
Pin #
Signal Description
1
DC In
2
DC In
3
Ground
4
Ground
5
Ground
APPENDIX
WMP-248/249 User’s manual
35
J5 – CFast Interface
Pin #
Signal Description
S1
GND
S2
A+
S3
A-
S4
GND
S5
B-
S6
B+
S7
GND
P1
CDI
P2
GND
P3
KEEP
P4
KEEP
P5
KEEP
P6
KEEP
P7
GND
P8
KEEP
P9
KEEP
P10
KEEP
P11
TBD
P12
IFDET
P13
PWR
P14
PWR
P15
GND
P16
GND
P17
CDO
APPENDIX
WMP-248/249 User’s manual
36
J6 – LCD Inverter Interface
6 1
Pin #
Signal Description
1
+12VSB
2
+12VSB
3
Backlight Adjust
4
Backlight Enable
5
Ground
6
Ground
J7 – SDP (EC Simple Debug Port)
Pin #
Signal Description
1
+5V
2
P80_DAT
3
P80_CLK
4
Ground
J8 – PCI POWER
Pin #
Signal Description
1
+5V
2
Ground
3
+5V
APPENDIX
WMP-248/249 User’s manual
37
J9,J18 – PWM CPU FAN, SYSTEM FAN
Pin #
Signal Description
J9(CPU)
J18(SYSTEM)
1
CPU PWM
SYS PWM
2
CPU RPM
SYS RPM
3
VCPUFAN
VSYSFAN
4
GND
GND
J10 – PWM CPU FAN
Pin #
Signal Description
J10(CPU) 2.54mm
1
GND
2
VCPUFAN
3
CPU RPM
4
CPU PWM
J11 – EC Reset
APPENDIX
WMP-248/249 User’s manual
38
Pin #
Signal Description
1
VCC_POR#
2
GND
J12 / J15 –DDR3 SO-DIMM Interface
J15 H9.2 Near CPU
J12 H5.2 Near External
Pin
Symbol
Pin
Symbo
l
Pin
Symbol
1
VREFDQ
69
DQ27
137
DQS4
3
VSS
71
VSS
139
VSS
5
DQ0
73
CKE0
141
DQ34
7
DQ1
75
VDD
143
DQ35
9
VSS
77
NC
145
VSS
11
DM0
79
BA2
147
DQ40
13
VSS
81
VDD
149
DQ41
15
DQ2
83
A12
151
VSS
17
DQ3
85
A9
153
DM5
19
VSS
87
VDD
155
VSS
21
DQ8
89
A8
157
DQ42
23
DQ9
91
A5
159
DQ43
25
VSS
93
VDD
161
VSS
27
DQS1#
95
A3
163
DQ48
29
DQS1
97
A1
165
DQ49
31
VSS
99
VDD
167
VSS
33
DQ10
101
CK0
169
DQS6#
35
DQ11
103
CK0#
171
DQS6
37
VSS
105
VDD
173
VSS
39
DQ16
107
A10
175
DQ50
41
DQ17
109
BA0
177
DQ51
43
VSS
111
VDD
179
VSS
45
DQS2#
113
WE#
181
DQ56
47
DQS2
115
CAS#
183
DQ57
49
VSS
117
VDD
185
VSS
51
DQ18
119
A13
187
DM7
53
DQ19
121
NC
189
VSS
55
VSS
123
VDD
191
DQ58
57
DQ24
125
NC
193
DQ59
APPENDIX
WMP-248/249 User’s manual
39
59
DQ25
127
VSS
195
VSS
61
VSS
129
DQ32
197
SA0
63
DM3
131
DQ33
199
VDDSPD
65
VSS
133
VSS
201
SA1
67
DQ26
135
DQS4#
203
VTT
Pin
Symbol
Pin
Symbol
Pin
Symbol
2
VSS
70
DQ31
138
VSS
4
DQ4
72
VSS
140
DQ38
6
DQ5
74
NC
142
DQ39
8
VSS
76
VDD
144
VSS
10
DQS0#
78
NC
146
DQ44
12
DQS0
80
NF/A1
4
148
DQ45
14
VSS
82
VDD
150
VSS
16
DQ6
84
A11
152
DQS5#
18
DQ7
86
A7
154
DQS5
20
VSS
88
VDD
156
VSS
22
DQ12
90
A6
158
DQ46
24
DQ13
92
A4
160
DQ47
26
VSS
94
VDD
162
VSS
28
DM1
96
A2
164
DQ52
30
RESET#
98
A0
166
DQ53
32
VSS
100
VDD
168
VSS
34
DQ14
102
CK1
170
DM6
36
DQ15
104
CK1#
172
VSS
38
VSS
106
VDD
174
DQ54
40
DQ20
108
BA1
176
DQ55
42
DQ21
110
RAS#
178
VSS
44
VSS
112
VDD
180
DQ60
46
DM2
114
S0#
182
DQ61
48
VSS
116
ODT0
184
VSS
50
DQ22
118
VDD
186
DQS7#
52
DQ23
120
NC
188
DQS7
54
VSS
122
NC
190
VSS
56
DQ28
124
VDD
192
DQ62
58
DQ29
126
VREF
CA
194
DQ63
60
VSS
128
VSS
196
VSS
62
DQ3#
130
DQ36
198
EVENT#
64
DQ3
132
DQ37
200
SDA
66
VSS
134
VSS
202
SCL
68
DQ30
136
DM4
204
VTT
J13 – mini PCI Express Socket(HALF)
APPENDIX
WMP-248/249 User’s manual
40
Pin #
Signal Description
Pin #
Signal Description
1
WAKE#
2
+3.3VSB
3
Reserved
4
GND
5
Reserved
6
+1.5VS
7
CLKREQ#
8
Reserved
9
GND
10
Reserved
11
REFCLK-
12
Reserved
13
REFCLK+
14
Reserved
15
GND
16
Reserved
17
Reserved
18
GND
19
Reserved
20
Reserved
21
GND
22
PERST#
23
PERn0
24
+3.3VSB
25
PERp0
26
GND
27
GND
28
+1.5VS
29
GND
30
SMB_CLK
31
PETn0
32
SMB_DATA
33
PETp0
34
GND
35
GND
36
USB_D-
37
GND
38
USB_D+
39
+3.3VSB
40
GND
41
+3.3VSB
42
Reserved
43
GND
44
Reserved
45
CL_CLK
46
Reserved
47
CL_ DATA
48
+1.5VS
49
Controller Link RST#
50
GND
51
Reserved
52
+3.3VSB
APPENDIX
WMP-248/249 User’s manual
41
J14 – Resistor Touch Panel Interface
1
9
Pin #
Signal Description
8-wire
4-wire
5-wire
1
UL(X+)
UL(X+)
UL(X+)
2
UR(Y+)
UR(Y+)
UR(Y+)
3
N/A
N/A
PROBE
4
LR(X-)
LR(X-)
LR(X-)
5
LL(Y-)
LL(Y-)
LL(Y-)
6
X+_DRIVE
N/A
N/A
7
Y+_DRIVE
N/A
N/A
8
X-_DRIVE
N/A
N/A
9
Y-_DRIVE
N/A
N/A
J16 – Battery Socket
Pin #
Signal Description
1
RTC +3.3V
2
GND
J17 – EC JTAG
Pin #
Signal Description
Pin #
Signal Description
1
EC_TRST#
2
+3.3VSB
3
EC_TMS
4
EC_RDY#
5
EC_TDI
6
GND
7
EC_TCK
8
GND
9
EC_TDO
10
GND
APPENDIX
WMP-248/249 User’s manual
42
J19/J20/J26/J27 – Internal USB 5V Interface
Pin #
Signal Description
1
+5VSB
2
+5VSB
3
Data -
4
Data +
5
Ground
6
Ground
J25–Internal USB 5V Interface. Support EC control
Disable/Enable USB Function
Pin #
Signal Description
1
+5VSB
2
+5VSB
3
Data -
4
Data +
5
Ground
6
Ground
J21 – mini PCI Express / mSATA Socket
APPENDIX
WMP-248/249 User’s manual
43
Pin #
Signal Description
Pin #
Signal Description
1
WAKE#
2
+3.3VSB
3
Reserved
4
GND
5
Reserved
6
+1.5VS
7
CLKREQ#
8
Reserved
9
GND
10
Reserved
11
REFCLK-
12
Reserved
13
REFCLK+
14
Reserved
15
GND
16
Reserved
17
Reserved
18
GND
19
Reserved
20
Reserved
21
GND
22
PERST#
23
PERp0
24
+3.3VSB
25
PERn0
26
GND
27
GND
28
+1.5VS
29
GND
30
SMB_CLK
31
PETn0
32
SMB_DATA
33
PETp0
34
GND
35
GND
36
USB_D-
37
GND
38
USB_D+
39
+3.3VSB
40
GND
41
+3.3VSB
42
Reserved
43
SEL_PCIE_SATA
44
Reserved
45
CL_CLK
46
Reserved
47
CL_ DATA
48
+1.5VS
49
Controller Link RST#
50
GND
51
Reserved
52
+3.3VSB
APPENDIX
WMP-248/249 User’s manual
44
J22 – LVDS Interface
Pin #
Signal Description
Pin #
Signal Description
1
+LCD (+5V/ +3.3V)
2
+LCD (+5V/ +3.3V)
3
+LCD (+5V/ +3.3V)
4
+LCD (+5V/ +3.3V)
5
Ground
6
Ground
7
Ground
8
Ground
9
A_RxIn0-
10
B_RxIn0-
11
A_RxIn0+
12
B_RxIn0+
13
Ground
14
Ground
15
A_RxIn1-
16
B_RxIn1-
17
A_RxIn1+
18
B_RxIn1+
19
Ground
20
Ground
21
A_RxIn2-
22
B_RxIn2-
23
A_RxIn2+
24
B_RxIn2+
25
Ground
26
Ground
27
A_CKIN-
28
B_CKIN-
29
A_CKIN+
30
B_CKIN+
31
Ground
32
Ground
33
A_RxIn3-
34
B_RxIn3-
35
A_RxIn3+
36
B_RxIn3+
37
Ground
38
Ground
39
Ground
40
Ground
J23 –TPM / ID-394
APPENDIX
WMP-248/249 User’s manual
45
Pin #
Signal Description
Pin #
Signal Description
1
LPC AD0
2
PCI reset#
3
LPC AD1
4
SERIRQ
5
LPC AD2
6
+3.3V
7
LPC AD3
8
+5VSB
9
LPC Frame#
10
PCI CLKRUN#
11
Debug CLK
12
SMB CLK
13
GND
14
SMB DATA
15
SUS_STAT#
16
+3.3VSB
J24 – POWER & HDD LED
Pin #
Signal Description
1
SATA LED#
2
+3.3VSB
3
+3.3VSB
4
Power LED#
J28 – CAP Front Bezel Button Connector
Pin #
Signal Description
1
+5VSB
2
+3.3VSB
3
KP_SCL
4
KP_SDA
5
PWR_LED#
6
Programmable_LED
7
SATA_LED#
8
Ground
9
Ground
1
9
APPENDIX
WMP-248/249 User’s manual
46
J29 – Standard SATA Interface
Pin #
Signal Description
1
Ground
2
Tx+
3
Tx-
4
Ground
5
Rx-
6
Rx+
7
Ground
J30 – Standard SATA / SATA DOM Interface
Pin #
Signal Description
1
Ground
2
Tx+
3
Tx-
4
Ground
5
Rx-
6
Rx+
7
Ground / +5V
J31 –BIOS SOCKET
Pin #
Signal Description
Pin #
Signal Description
1
CS#
5
SI 2 SO 6 SCK
3
WP#
7
HOLD#
4
VSS
8
VDD
APPENDIX
WMP-248/249 User’s manual
47
J32–PCIE X4 Slot Interface
Pin # Side B
Side A
Pin # Side B
Side A
1
+5VSB
+3.3VSB
17
Ground
USBPN6
2
+5VSB
+3.3VSB
18
UARTCLK2_33M
Ground
3
+5VSB
+3.3VSB
19
Ground
Ground
4
+5VSB
+3.3VSB
20
232_RI#
Ground
5
+5VSB
+3.3VSB
21
Ground
USBPP7
6
+5VSB
+3.3VSB
22
Ground
USBPN7
7
Ground
Ground
23
PCIE_RXN6
Ground
8
LPC_AD0
+5VS
24
PCIE_RXP6
COM_CONF2
9
LPC_AD1
+5VS
25
Ground
COM_CONF3
10
LPC_AD2
+3.3VS
26
Ground
CLKRQ#_LAN2
11
LPC_AD3
COM_CONF
1
27
PCIE_TXN6
Ground
12
LPC_FRAME#
USB_PWRE
N
28
PCIE_TXP6
Ground
13
PLT_RST#
Ground
29
Ground
LANCLK2_100MN
14
SERIRQ
USB_OC#67
30
PCIE_WAKE#
LANCLK2_100MP
15
Ground
Ground
31
Ground
Ground
16
UARTCLK2_48M
USBPP6
32
Ground
Ground
J33,J37,J38,J39 – COM4, COM3, COM2, COM1 Serial
Port
Pin #
Signal Description
Pin #
Signal Description
1
232_DCD#
2
232_DSR#
3
232_SIN
4
232_RTS#
5
232_SOUT
6
232_CTS#
7
232_DTR#
8
232_RI#
9
GND
10
+5VS
APPENDIX
WMP-248/249 User’s manual
48
J34 – RS-232 TTL Connector
Pin #
Signal Description
Pin #
Signal Description
1
DCD#
2
DSR#
3
SIN
4
RTS#
5
SOUT
6
CTS#
7
DTR#
8
RI#
9
GND
10
+5VS/+12VS
J35 – Power Switch connect
Pin #
Signal Description
1
Power ON
2
GND
J36,J43 – Reading Light
Pin #
Signal Description
1
+12VSB
2
READING LIGHT
J40,J41 – Speaker Connect
APPENDIX
WMP-248/249 User’s manual
49
Pin #
Signal Description
1
AMP. Out +
2
AMP. Out -
J42 – Internal MIC
Pin #
Signal Description
1
Signal
2
AGND
J44,J45 – DisplayPort Interface
Pin #
Signal Description
Pin #
Signal Description
1
ML_LANE0+
11
GND
2
GND
12
ML_LANE3-
3
ML_LANE0-
13
CONFI G1
4
ML_LAN1+
14
CONGI G2
5
GND
15
AUX_CH+
6
ML_LAN1-
16
GND
7
ML_LANE2+
17
AUX_CH-
8
GND
18
HOT PLUG
9
ML_LANE2-
19
RETURN
10
ML_LANE3+
20
+3.3VS
APPENDIX
WMP-248/249 User’s manual
50
J46 – Ethernet Port
Pin #
Signal Description
1
Data0+
2
Data0-
3
Data1+
4
Data2+
5
Data2-
6
Data1-
7
Data3+
8
Data3-
J47,J48 – USB3.0 Port
Pin #
Signal Description
Pin #
Signal Description
1
+5V
10
+5V
2
Data1-
11
Data2-
3
Data1+
12
Data2+
4
GND
13
GND
5
SSRX1-
14
SSRX2-
6
SSRX1+
15
SSRX2+
7
GND
16
GND
8
SSTX1-
17
SSTX2-
9
SSTX1+
18
SSTX2+
APPENDIX
WMP-248/249 User’s manual
51
J49 – Power Switch connect
Signal Description
UP
Microphone (stereo) Pink
DOWN
Line Out (stereo) Green
J50 – VEDIO-IN Interface
Pin #
Signal Description
Pin #
Signal Description
1
TMDS Data2-
2
TMDS Data2+
3
GND
4
NC
5
NC
6
SCL
7
SDA
8
NC
9
TMDS Data1-
10
TMDS Data1+
11
GND
12
NC
13
NC
14
+5V
15
DVI_DET
16
Hot Plug Detect
17
TMDS Data0-
18
TMDS Data0+
19
GND
20
NC
21
NC
22
GND
23
TMDS Clock+
24
TMDS Clock-
C1
NC
C2
NC
C3
NC
C4
NC
C5
GND
C6
GND
J51 – Reset connector
APPENDIX
WMP-248/249 User’s manual
52
Pin #
Signal Description
1
SYS_RESET#
2
GND
J52 – Reset Button
Pin #
Signal Description
1
SYS_RESET#
2
GND
3
GND
4
GND
APPENDIX
WMP-248/249 User’s manual
53
B. L type Stand (optional kit)
Key Features and Benefits
Similar color as WMP series
10 degree tilt down and 30 degree tilt up solution
5,000 times hinge life cycle
Specifications:
Weight Capacity:
Max 10kgs
Monitor Mounting Holes
VESA 75*75mm or 100*100mm
Application using
Desktop stand
APPENDIX
WMP-248/249 User’s manual
54
C. Battery Pack Specifications (optional kit)
Battery Model
BP-WMP226 22/3900 SA
Battery Type
Li-ion 2S2P
Minimum Capacity
3900 mAh
Nominal Voltage
7.2 V
Max. Charge Voltage
8.4V
Cut Off Voltage
6.0v
Suggested Charge
Current (Max.)
2A
System Continuous
Discharging Current
(Max.)
16.6 A
The End of Charge
Condition
150 mA/min
Discharge Protection
UVP/OCP
Charge Protection
OVP/OTP
Self-discharge Rate
10uA ~800 uA
Dimensions
133 x 47 x 21mm
Weight
220g+/-20g
Ambient Temperature
0°C ~ +45°C
Storage Temperature
-20°C ~ +60°C
Energy
28.08Wh
Backup
100 W/ 10 min
APPENDIX
WMP-248/249 User’s manual
55
D. Scrap Computer Recycling
If the computer equipments need the maintenance or are beyond
repair, we strongly recommended that you should inform us as
soon as possible for the suitable solution. For the computers that
are no longer useful or work well, please contact with worldwide
distributors for recycling.
The worldwide distributors show on the following website:
http://www.wincomm.com.tw/contact.aspx
Note:
Follow the national requirement to dispose unit
Loading...
