Page 1
V30DMBT-U21/M21 2004/12/22 上午 09:50
1

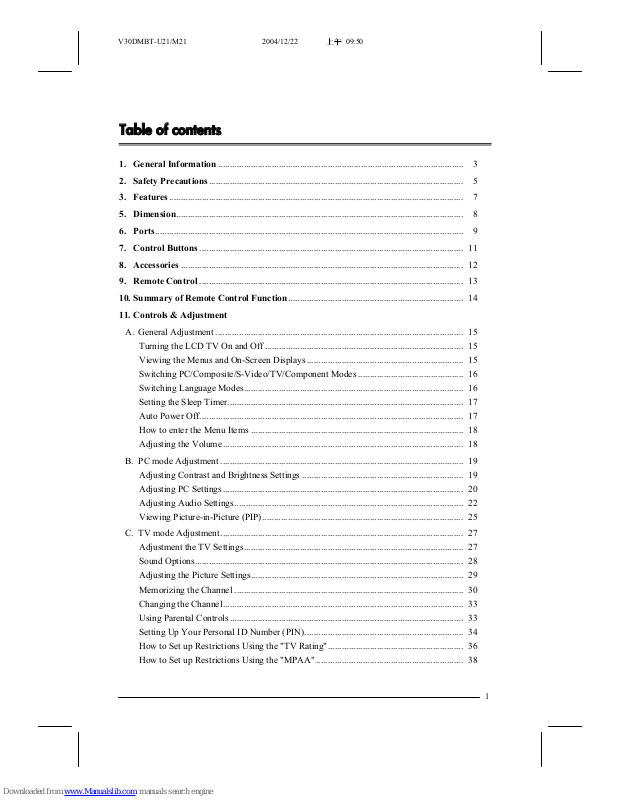

Table of contents
1. General Information ......................................................................................................... 3
2. Safety Precautions............................................................................................................. 5
3. Features .............................................................................................................................. 7
5. Dimension........................................................................................................................... 8
6. Ports.................................................................................................................................... 9
7. Control Buttons ................................................................................................................. 11
8. Accessories ......................................................................................................................... 12
9. Remote Control ................................................................................................................. 13
10. Summary of Remote Control Function........................................................................... 14
11. Controls & Adjustment
A. General Adjustment .......................................................................................................... 15
Turning the LCD TV On and Off ..................................................................................... 15
Viewing the Menus and On-Screen Displays ................................................................... 15
Switching PC/Composite/S-Video/TV/Component Modes ............................................. 16
Switching Language Modes.............................................................................................. 16
Setting the Sleep Timer..................................................................................................... 17
Auto Power Off................................................................................................................. 17

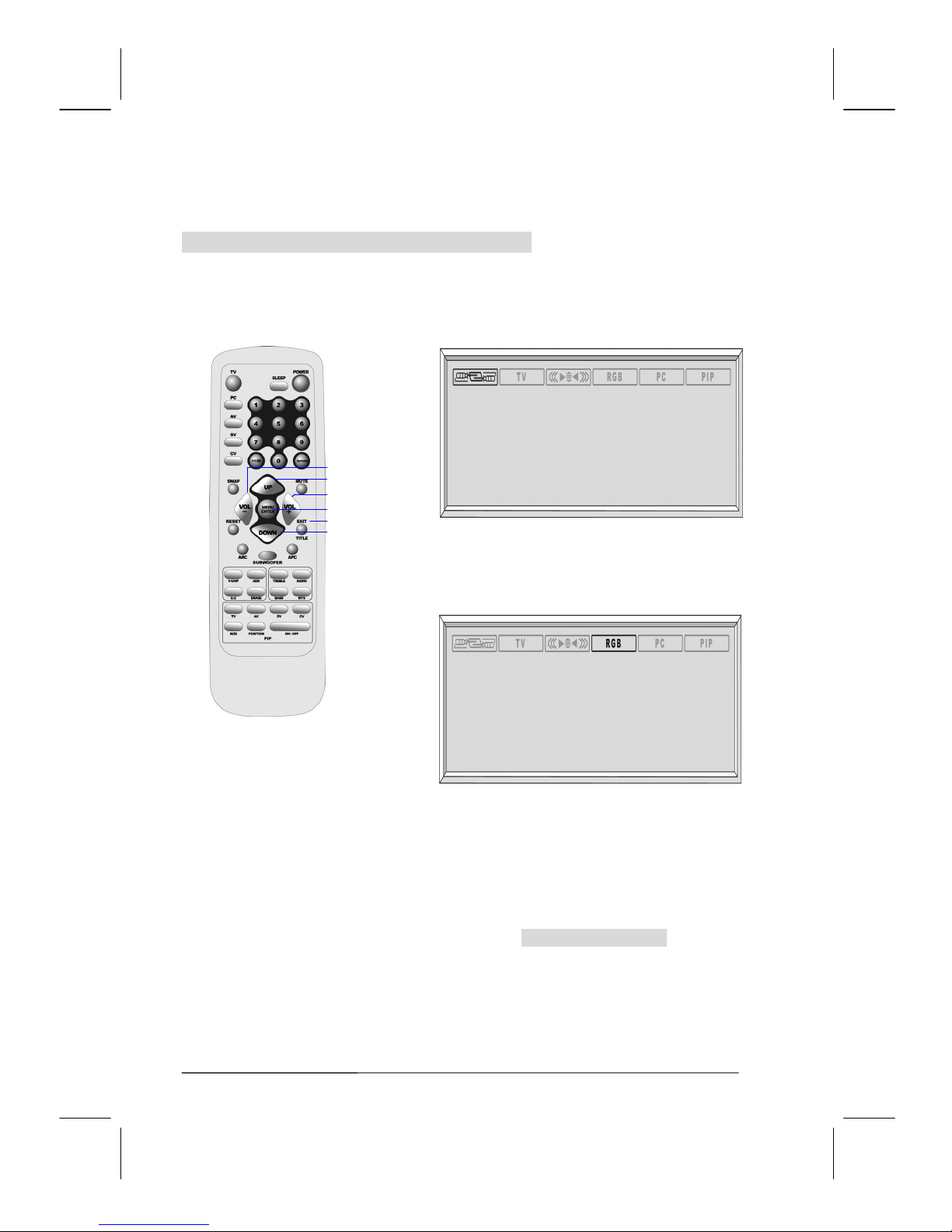

How to enter the Menu Items ........................................................................................... 18
Adjusting the Volume....................................................................................................... 18
B. PC mode Adjustment ........................................................................................................ 19
Adjusting Contrast and Brightness Settings ..................................................................... 19
Adjusting PC Settings....................................................................................................... 20

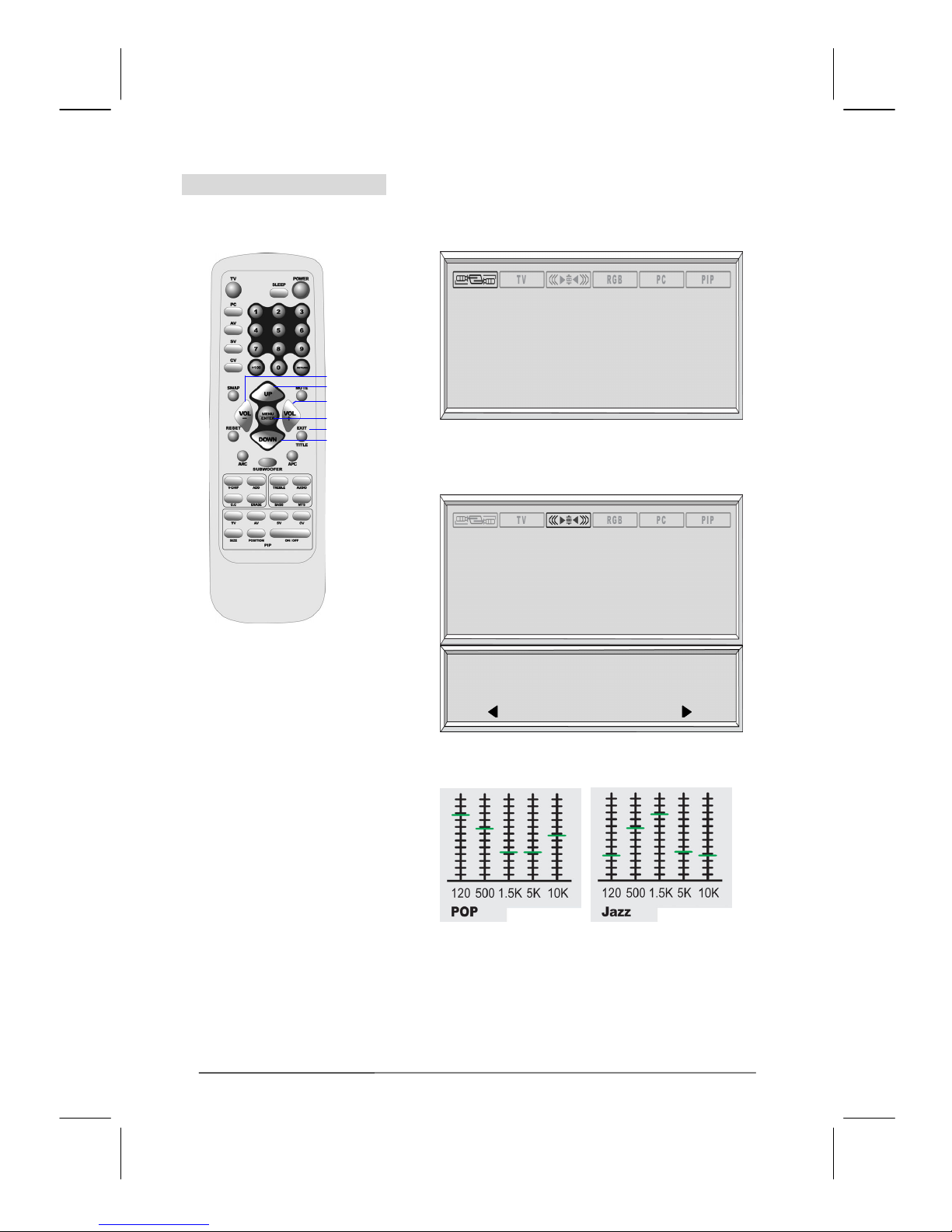

Adjusting Audio Settings.................................................................................................. 22
Viewing Picture-in-Picture (PIP)...................................................................................... 25
C. TV mode Adjustment........................................................................................................ 27

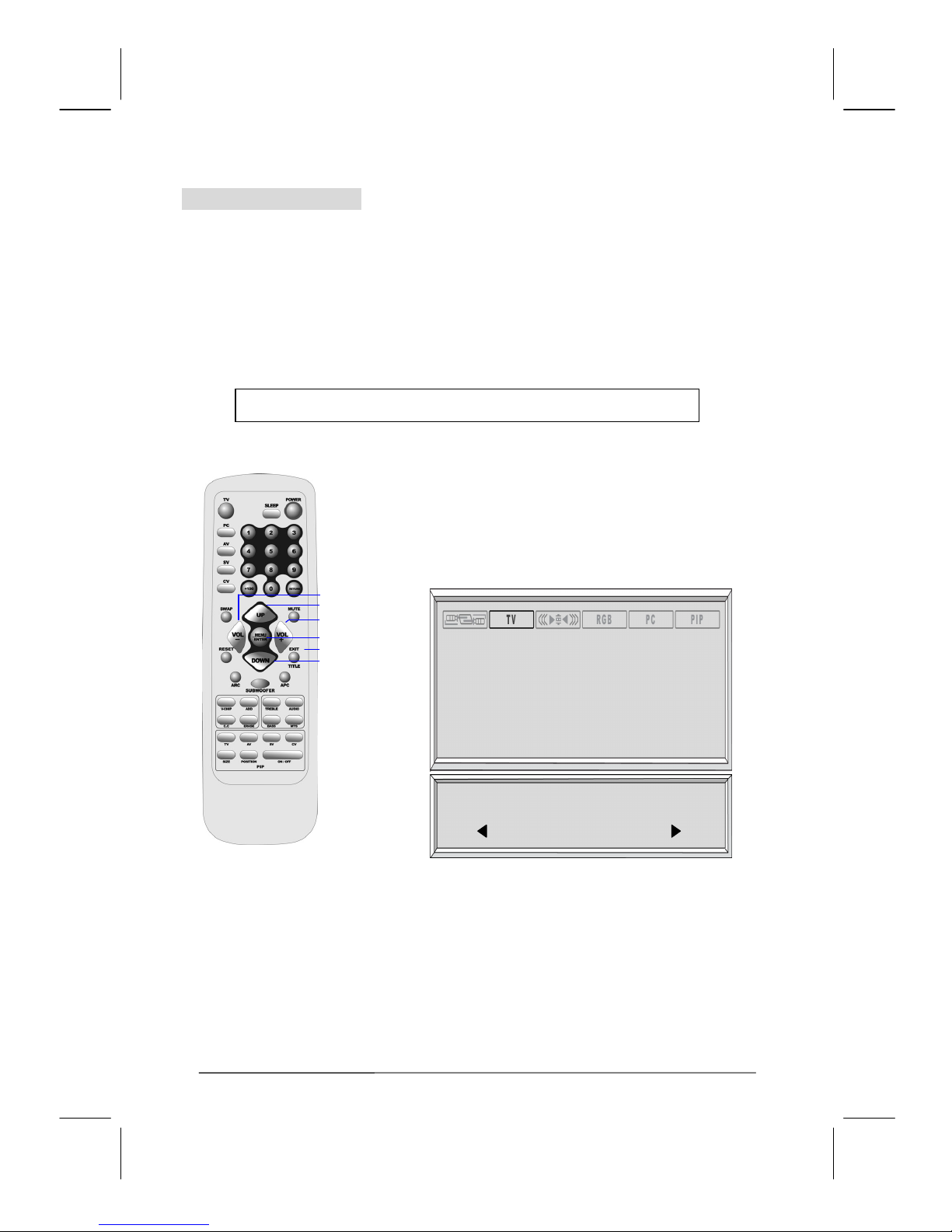

Adjustment the TV Settings.............................................................................................. 27
Sound Options................................................................................................................... 28
Adjusting the Picture Settings........................................................................................... 29
Memorizing the Channel .................................................................................................. 30
Changing the Channel....................................................................................................... 33
Using Parental Controls .................................................................................................... 33
Setting Up Your Personal ID Number (PIN).................................................................... 34
How to Set up Restrictions Using the "TV Rating".......................................................... 36
How to Set up Restrictions Using the "MPAA" ............................................................... 38
Page 2
V30DMBT-U21/M21 2004/12/22 上午 09:50
2
Viewing Closed Captions ................................................................................................. 40
D. Other functions ................................................................................................................ 41
12. Troubleshooting................................................................................................................. 42
13. PC Input Preset Timing Table ........................................................................................ 46
14. Specifications ..................................................................................................................... 47
Page 3
V30DMBT-U21/M21 2004/12/22 上午 09:50
3
General Information
This 30” wide active matrix TFT (thin film transistor) liquid crystal monitor is designed for use as
a stand alone TV as well as a display device for video electronics appliances and personal
computers.
Important Information
Warning: To reduce the risk of fire or electric shock, do not expose this product to rain or
moisture.
Caution: To reduce the risk of electric shock, do not attempt to disassemble or modify this
device. There are no user-serviceable parts inside. Refer any service issues to
qualified service personnel.
Caution: FCC/ CSA regulations state that any unauthorized changes or modifications to this
equipment may void the user's authority to operate it.
Important: One Federal Court has held that unauthorized recording of copyrighted TV programs is
an infringement of U.S. copyright laws. Certain Canadian programs may also be copyrighted and
any unauthorized recording in whole or in part may be in violation of these rights.
WARNING:
Do not leave stationary images, patterns, PIP windows, or letterbox images on the screen for
prolonged periods of time as this may result in permanent damage to the LCD panel. This type of
damage is not covered under warranty. The following are examples of, but not limited to,
potentially hazardous display output: side bar images, video game patterns, closed captioning,
channel logos and letterbox black bars. To prevent this type of damage, it is recommended to
display constantly moving images that fill the screen as often as possible.
According to industrial standards for LCD display technology, there are a certain number of
allowable defective pixels. Although we produce panels with more than 99.9% active cells, there
still may be some cells that do not produce light or remain constantly lit. For further information,
please contact sales or technical support.
CAUTION
Risk of electric
shock. Do not open.
Page 4
V30DMBT-U21/M21 2004/12/22 上午 09:50
4
Thank You for Choosing This Product
Your new LCD TV was built utilizing the latest advancements in television technology. We are
proud to offer you a product that will provide convenient, dependable service and enjoyment for
years to come.
Page 5
V30DMBT-U21/M21 2004/12/22 上午 09:50
5
Safety Precautions
1. Cleaning: Unplug the power cord from the AC outlet before cleaning the product. Use a damp
cloth to clean the product. Do not use liquid cleaners or aerosol cleaners.
2. Water and moisture: Do not use the product near water or areas of high moisture content such
as swimming pools, bathtubs or wet basements.
3. Heat sources: Keep the product away from heat sources such as radiators, heaters, stoves and
other heat-generating products (including amplifiers).
4. For added protection during a lightning storm or for extended periods of non-use, unplug the
power cord from the wall outlet and disconnect the antenna (if used). This will prevent damage
to the product due to power line surges.
5. If an outside antenna is connected to the product, make sure the antenna is properly grounded
so as to provide some protection against voltage surges.

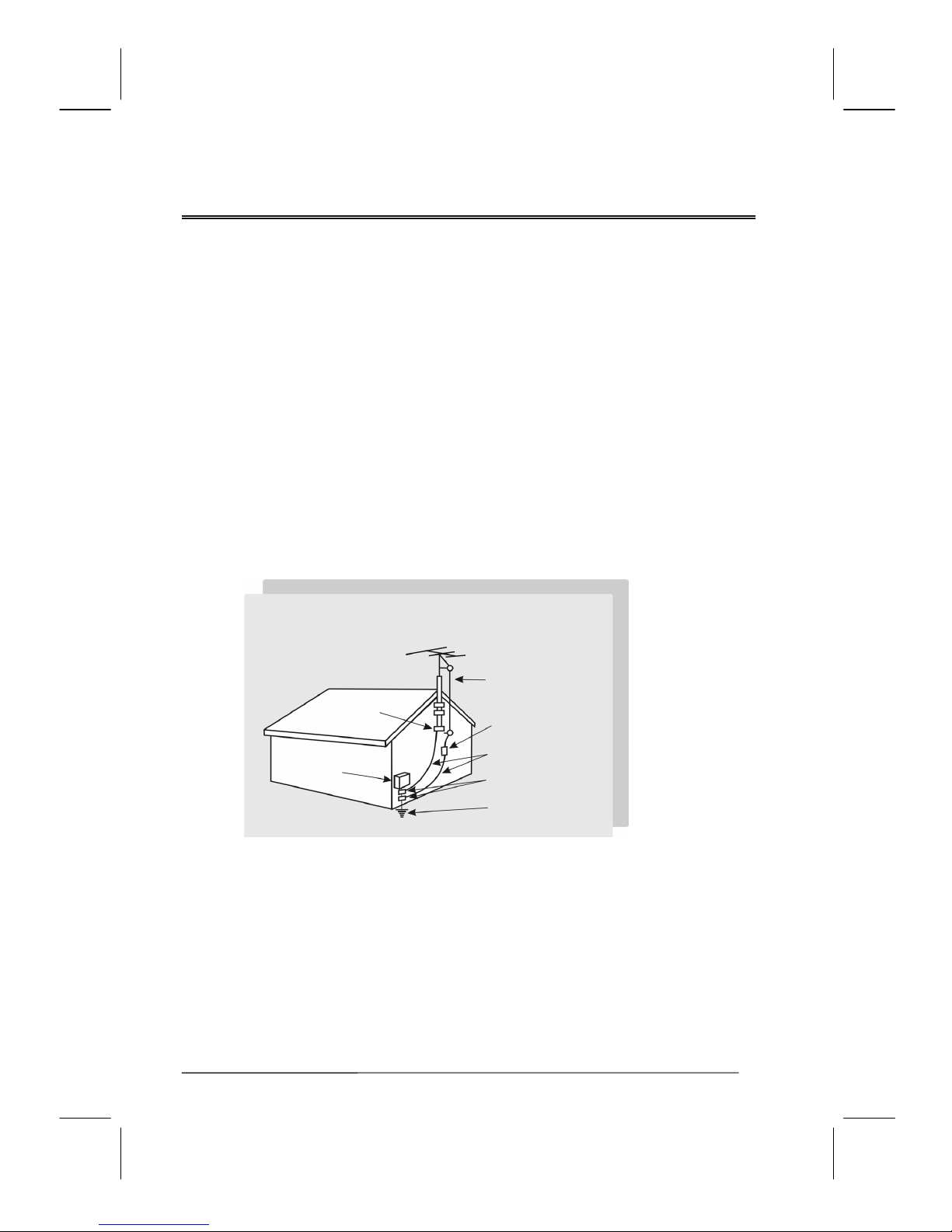

Example of antenna grounding
As per national electrical code
Antenna lead in wire
Antenna discharge
unit
Grounding conductors
Ground clamps
Power service
grounding
Electrode system
Ground clamp
Electric service
equipment
Page 6
V30DMBT-U21/M21 2004/12/22 上午 09:50
6
6. Stand: Do not place the product on an unstable
cart, stand, tripod or table. Placing the product
on an unstable base can cause the product to
fall, resulting in serious personal injuries as
well as damage to the product. Use only a cart,
stand, tripod, bracket or table recommended by
the manufacturer or sold with the product.
Only use mounting hardware recommended by
the manufacturer.

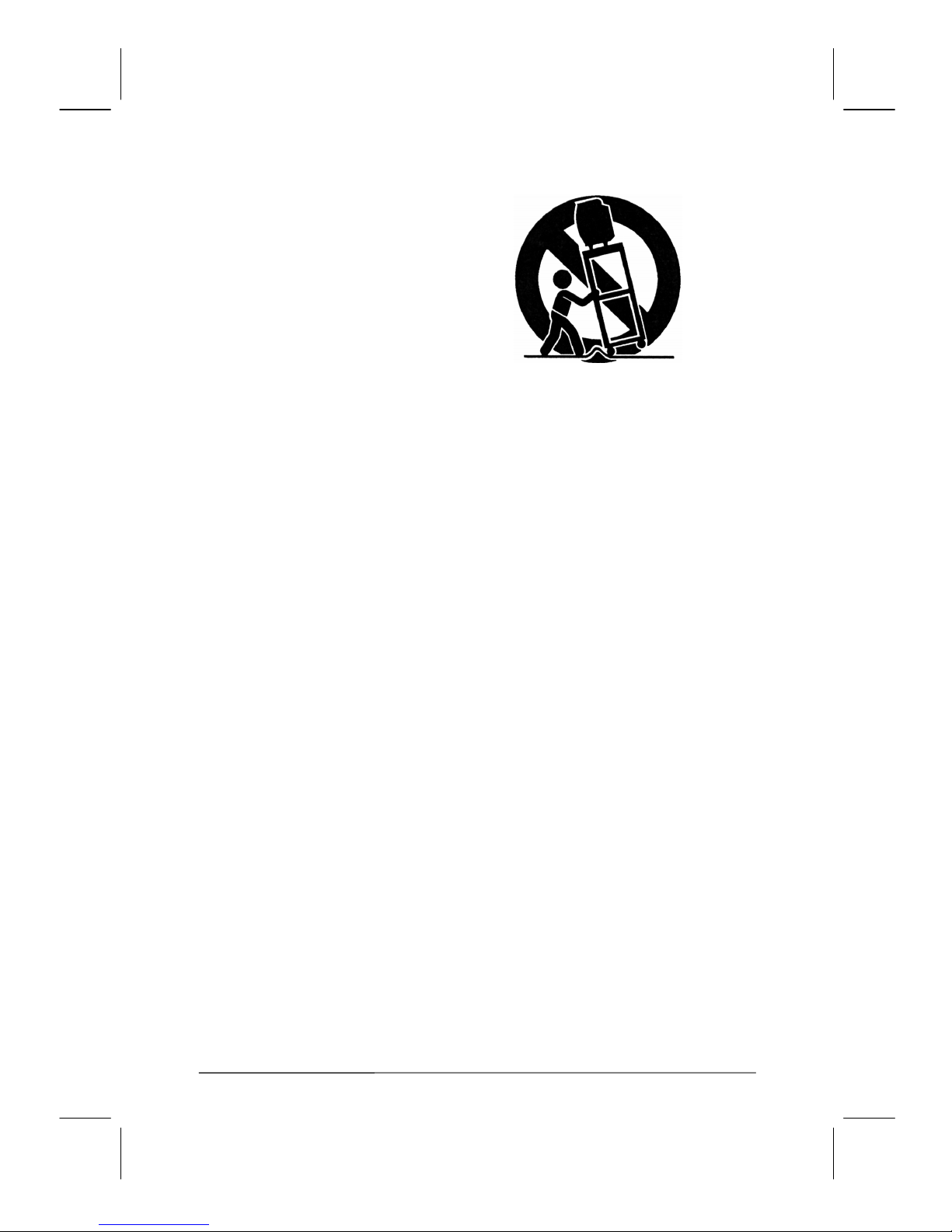

7. Use care when moving the product on a rolling cart. Sudden stops, excessive force and uneven
floor surface can cause the product to fall from the cart.
8. Ventilation: The vents and other openings in the cabinet are designed for ventilation. Do not
cover or block these vents and openings as insufficient ventilation can cause overheating
and/or shorten the life of the product. Do not place the product on a bed, sofa, rug or other
similar surfaces since they can block ventilation openings. This product was not designed to
operate in an enclosed environment. Don't place the product in an enclosed space such as a
bookcase or rack, unless proper ventilation is provided or the manufacturer's instructions are
followed.
9. The LCD panel used in this product is made of glass. Therefore, it can break if the product is
dropped or struck.
10. During the LCD panel lifespan it is normal for a few pixels to become defective. Non-active
pixels may appear on the screen as fixed points of red, blue or green. Refer pixel policy
questions to the reseller for further clarification on acceptable loss.
11. An outside antenna system should not be located in the vicinity of overhead power lines or
other electrical conduits. When installing an outside antenna, use extreme caution to prevent
the antenna from coming into contact with said items, as contact with them may be fatal.
Page 7
V30DMBT-U21/M21 2004/12/22 上午 09:50
7
Features
List of Features
Your TV is designed with the latest technology and is a high-performance unit that includes the
following special features:
¾ Multiple input sources including antenna terminal, DVI-I connector, composite, S-Video, and
component ports.
¾ Easy-to-use remote control and on-screen-display (OSD) menu system.
¾ PIP (picture in picture) mode for displaying multiple sources at the same time on the same
screen.
¾ Built-in 10W dual channel speakers plus a headphone out jack for private listening.
¾ Fine-tuning control for the sharpest picture possible. (OTA TV viewing only)
¾ Build-in multi-channel sound decoder for stereo and bilingual broadcasts.
¾ Automatic channel program for up to 125 channels.
¾ Automatic sleep timer control from 30 to 90 minutes in 30 minute increments..
¾ Automatic power off feature after 10 minutes without a signal.
¾ Adjustable picture and sound settings that are stored in the TV's memory.
¾ Component video input for high definition TV programming (HDTV ready), resolution up to
720p, 1080i.
¾ 5 preset stereo equalizer modes; 1 mode for end user settings.
¾ Automatic Picture Control (APC) and Aspect Ratio Control (ARC) functions for end user
customization of viewing preferences.
¾ Built-in 3D comb filter and 3D de-interlacing for best possible picture quality.
Page 8
V30DMBT-U21/M21 2004/12/22 上午 09:50
8

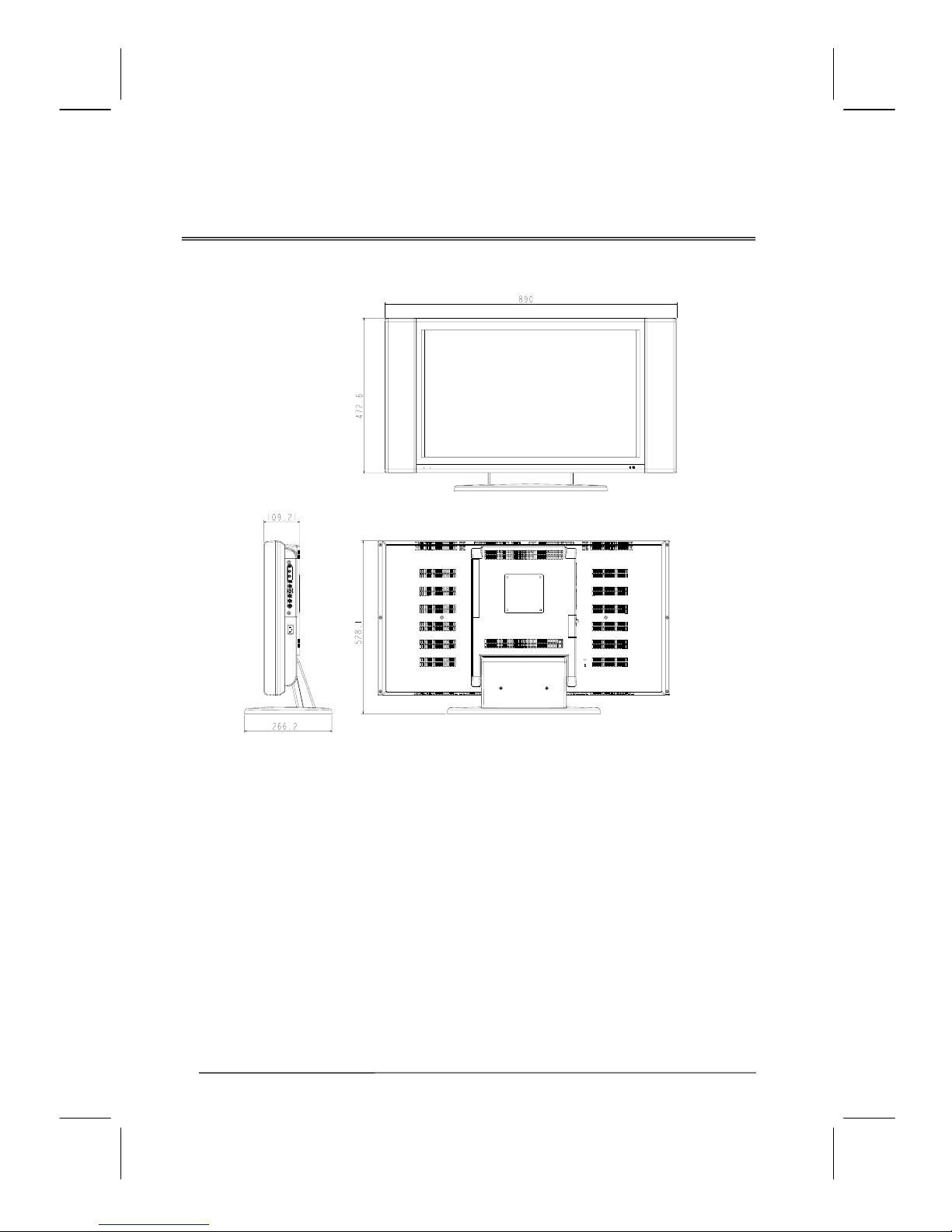

Dimension
Unit: mm
Page 9
V30DMBT-U21/M21 2004/12/22 上午 09:50
9
Video Input device
˙DVD player
˙Satellite receiver
˙Set top box
˙VIDEO Input device
˙Digital Camera
˙Satellite receive
˙Set top box

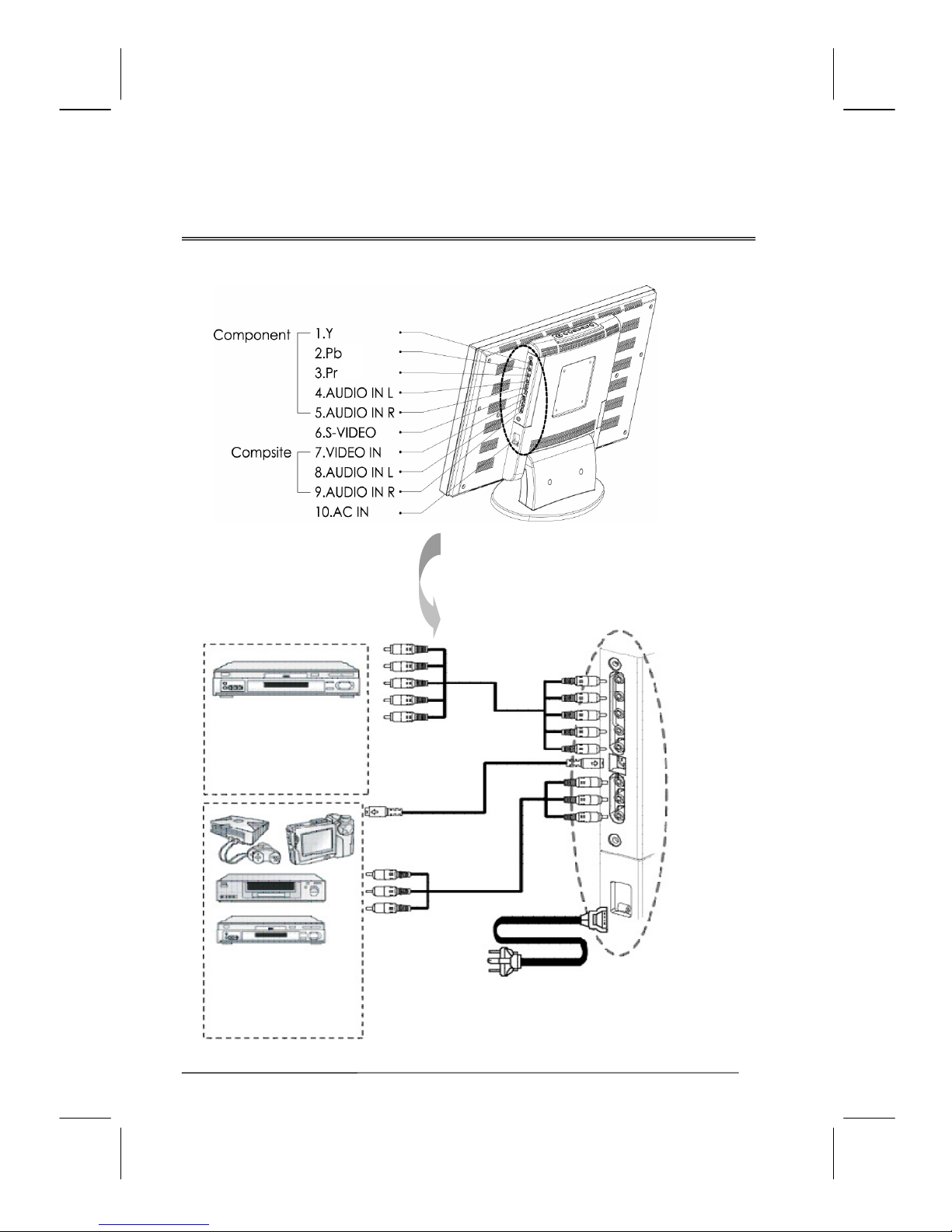

Ports
/Cr
/
Cb
Page 10
V30DMBT-U21/M21 2004/12/22 上午 09:50
10

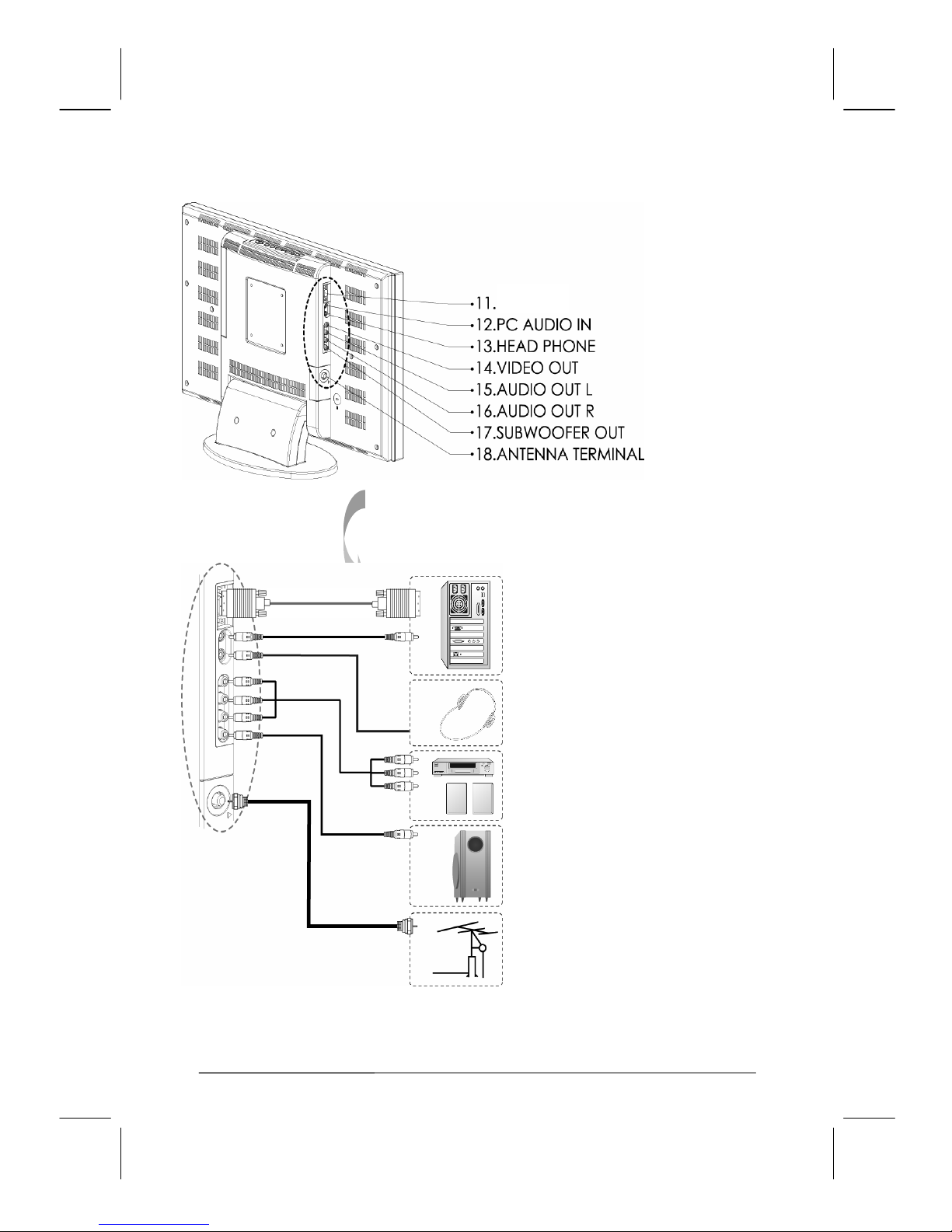

Head Phone
Subwoofer Amplifier
Antenna
PC
VCR
(TV only)
DVI-I
Head Phone
Subwoofer Amplifier
Antenna
PC
VCR
Page 11
V30DMBT-U21/M21 2004/12/22 上午 09:50
11

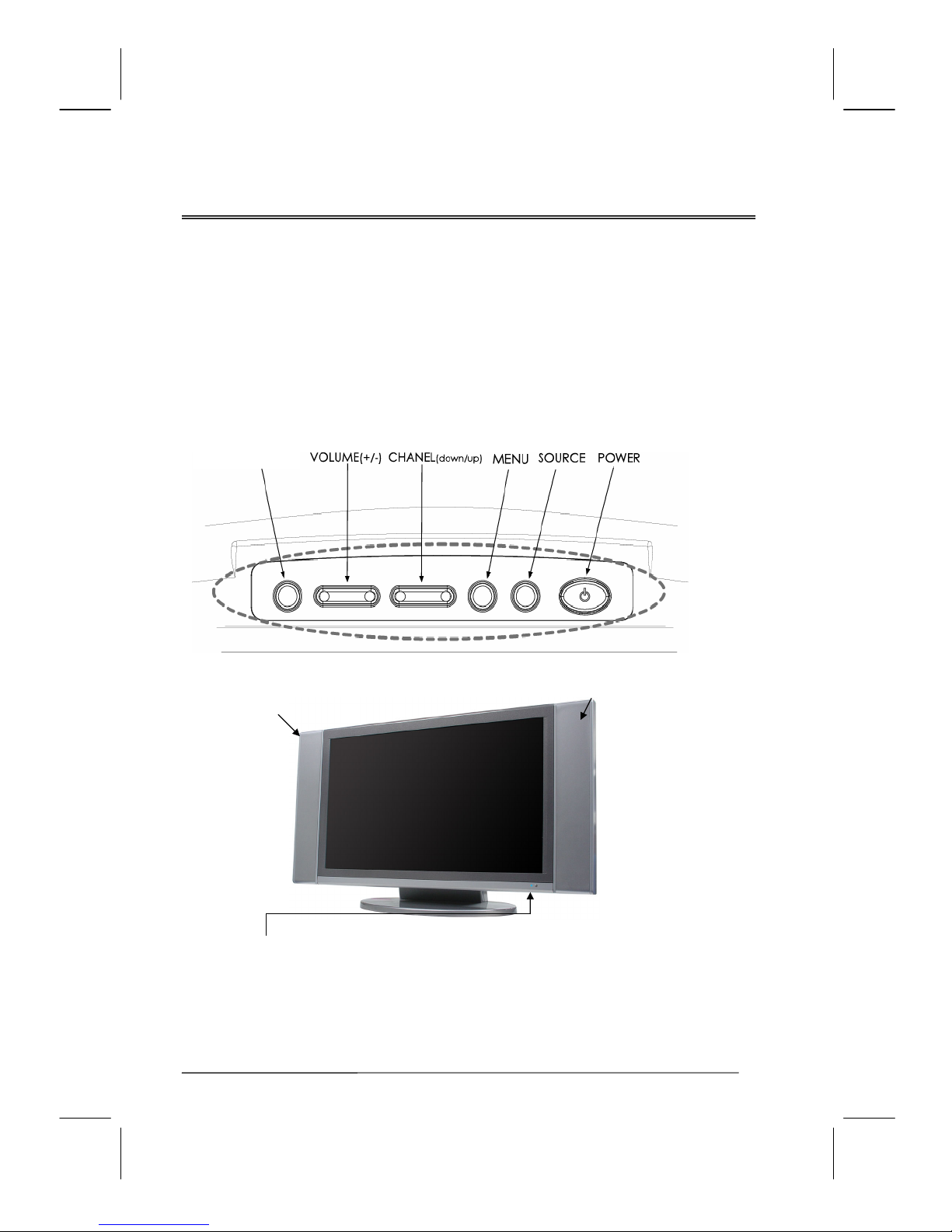

Control Buttons
These buttons control your TV’s basic features, including the on-screen menu. To use advanced
features you must use the remote control.
POWER: turn the LCD-TV on or off.
SOURCE: set up the input source (PC, AV, SV, TV, CV).
MENU: display the main menu.
CHANNEL (
down or up): change the channel.
VOLUME (+/-): increase or decrease the volume.
ASPECT RATIO:
set up the display output mode (Normal, Periscope, Zoom or Full)
Remote sensor window
Aim the remote control towards this region on the TV.
Speaker
Speaker
ASPECT RATIO
Page 12
V30DMBT-U21/M21 2004/12/22 上午 09:50
12

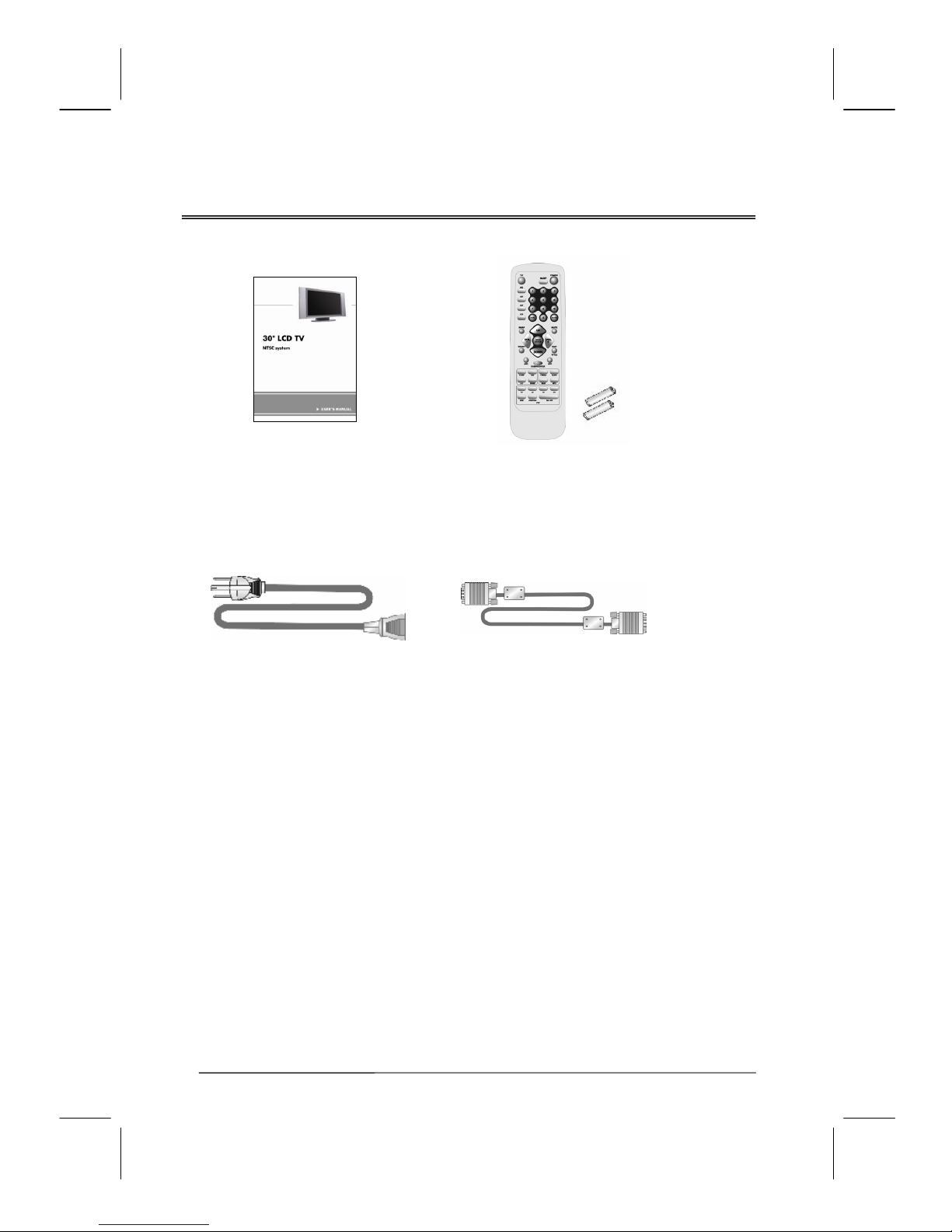

Accessories
User’s manual
Remote control & Batteries (3A x2)
Power Cord
DVI Cable
Page 13
V30DMBT-U21/M21 2004/12/22 上午 09:50
13

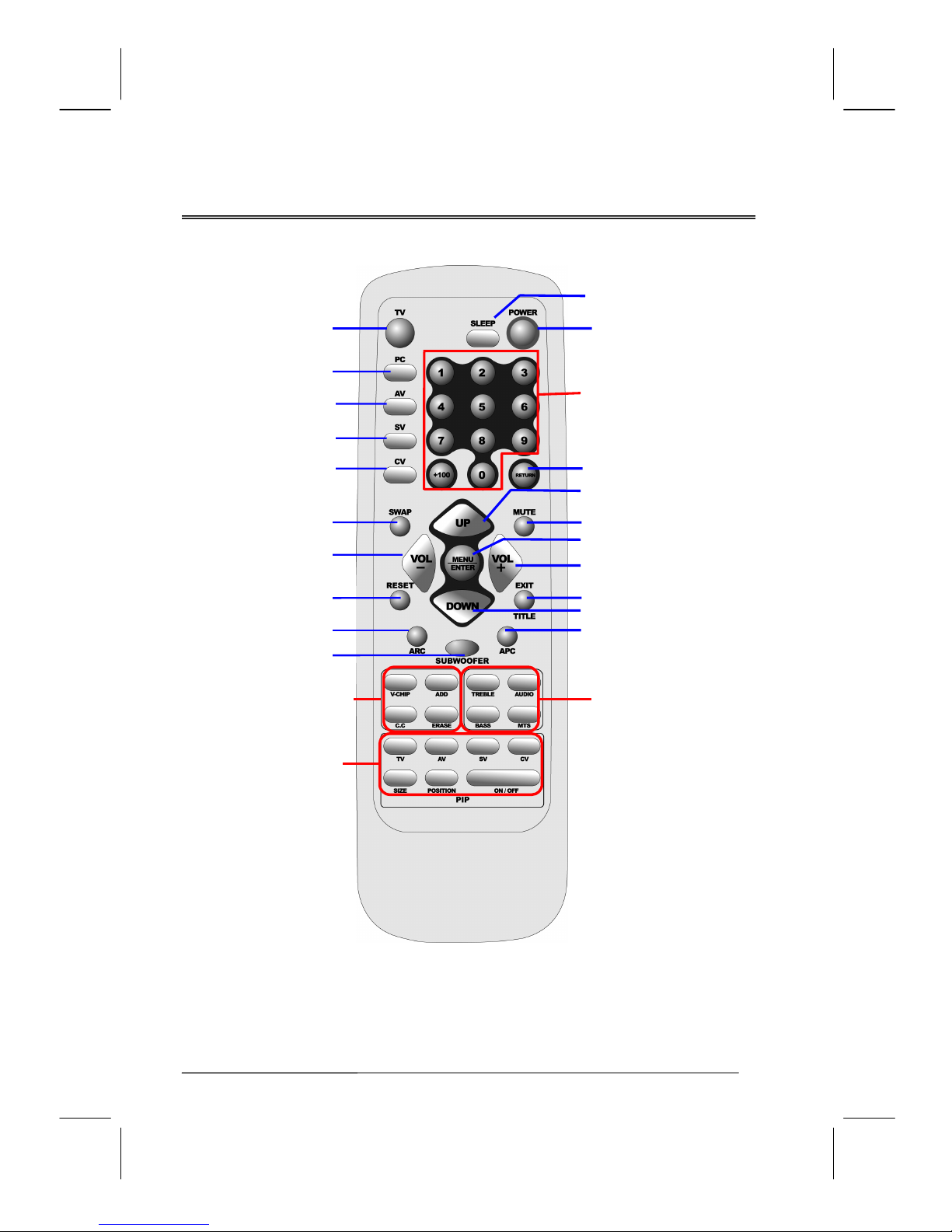

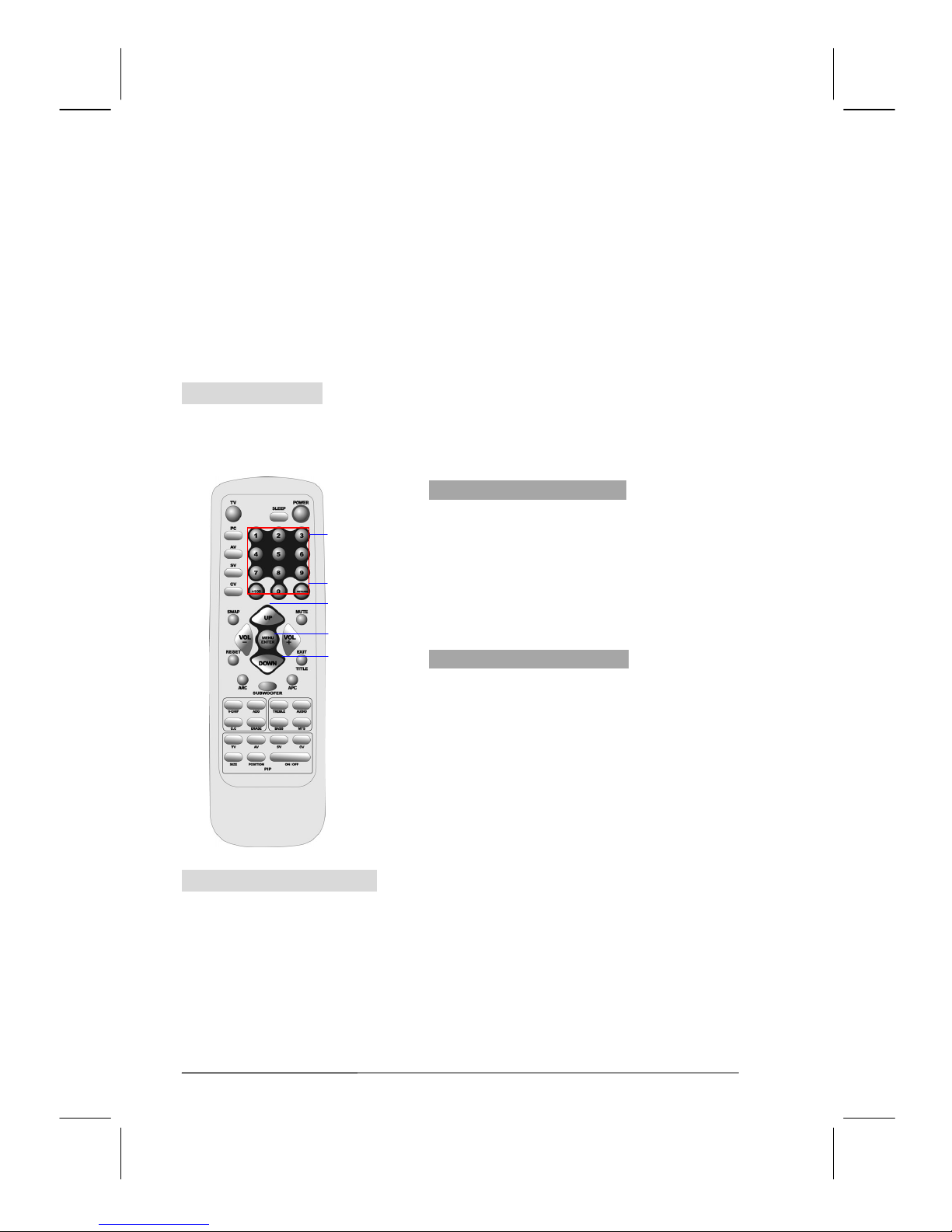

Remote Control
Sleep
Power
Number Buttons
Return
Channel UP
Mute
MENU/Enter
VOL+
TITLE / EXIT
Channel DOWN
APC
Audio Function
TV
PC
AV
SV
CV
SWAP
VOL－
Reset
ARC
Subwoofer
Other Function
PIP Function
Page 14
V30DMBT-U21/M21 2004/12/22 上午 09:50
14
Summary of Control Button
PPoowweerr ccoonnttrrooll
POWER button Turn the TV on or off
Selecting the primary signal source
TV button Switch to TV mode.
AV button Switch to AV (composite) mode.
SV button Switch to S-Video mode.
CV button Switch to CV (component) mode (Y/Pb/Cb, Y/Pr/Cr).
PC button Switch to the PC mode.
Menu Settings
MENU/ENTER button Display the on-screen menu or enter a sub-menu.
TITLE/EXIT button
Display the current channel; Display the current primary
signal source; Exit a menu or sub-menu.
Changing Channels
UP button Press Up to change the channel.
DOWN button Press Down to change the channel.
0~9 ; +100 button To manually select channels.
RETURN button Return to the previous viewed channel.
Sound Control
VOL+ button Increase volume level.
VOL- button Decrease volume level.
MUTE button Temporarily turn off audio.
MTS button
Cycle through stereo, mono or separate audio program
(SAP) multi-channel sound services.
AUDIO button Toggle audio source between main display and PIP.
TREBLE button Adjust treble level.
BASS button
SUBWOOFER button
Adjust bass level.
Enable/Disable the subwoofer.
PIP Control
ON/OFF button
Enable/Disable PDP viewing window.
Press again to make the sub display disappear.
TV、AV 、SV、CV button Select PIP input source. PIP must be enabled.
SIZE button Toggle PIP window size.
POSITION button
Move the PIP window to: Top Left→Top Right→Bottom
Right→Bottom Left→Repeat
Other Functions
SWAP button Make the PDP display the main display and vice versa.
RESET button Return to the original factory settings.
ARC button (Aspect Ratio Control)
In PC mode：Set the picture mode to full screen or normal
screen.
In Video mode：Toggle the picture mode between normal
→full→periscope→zoom.
APC button (Automatic Picture Control)
Toggle screen luminosity between Normal, Clear, Dark,
and Theater modes.
SLEEP button Select a present time for automatic power down.
V-CHIP button Enter the parental control menu.
C.C button Enable/Disabled closed captioning.
ADD button Add a channel to the memorized channel list.
ERASE button Delete a channel from the memorized channel list.
Page 15
V30DMBT-U21/M21 2004/12/22 上午 09:50
15

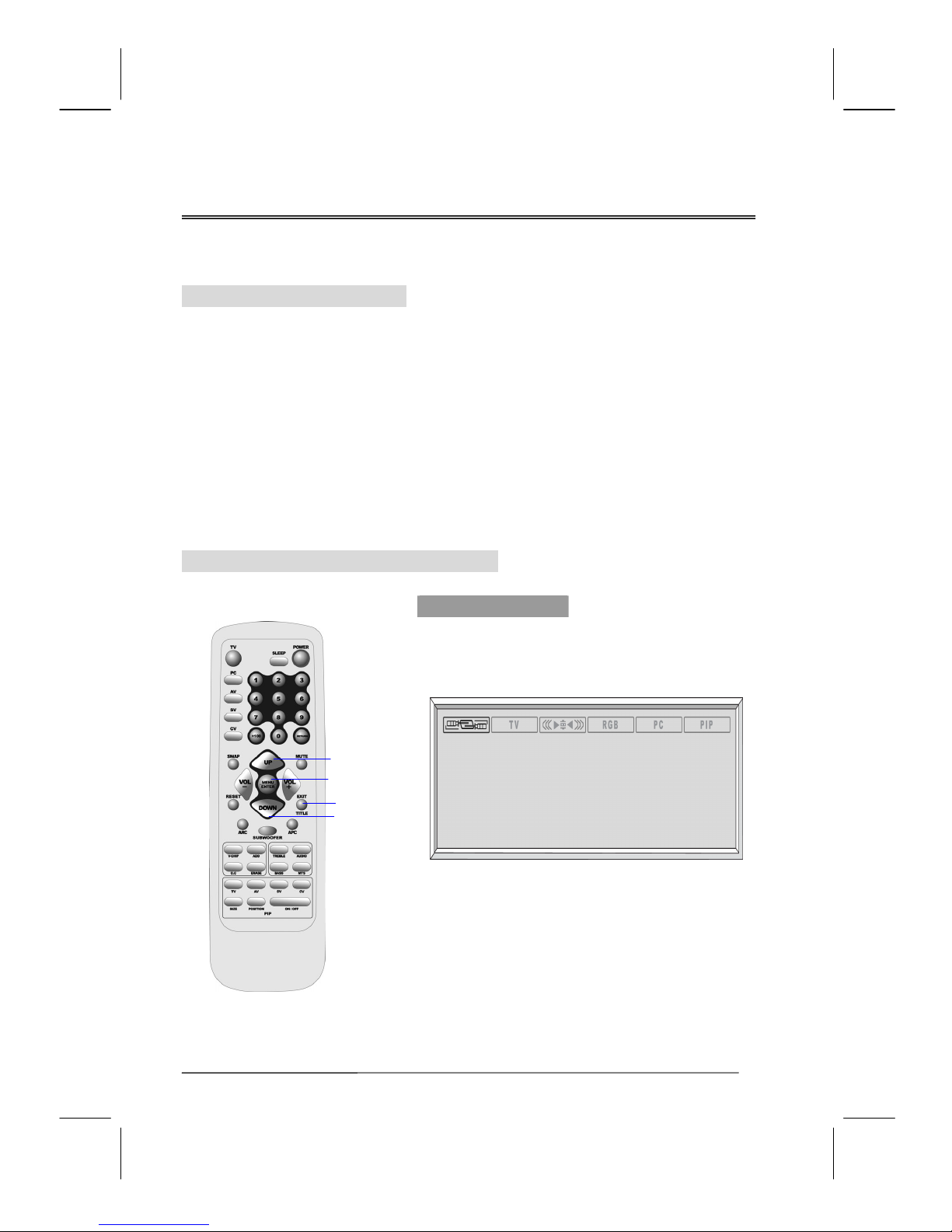

Controls & Adjustment
A. General Adjustment
Turning the LCD TV On and Off
Plug the power cable into the socket located on the right rear of the LCD TV.
Press the
POWER button on the Remote Control or use the Power button located within the control
buttons panel found on top of the TV.
An indicator light shows as follows:
Power On (TV, Video mode) --- No light
Power off --- Red light
PC mode --- Green light
Power Saving (PC mode) --- Amber light
Note: The TV will automatically power off if no signal is detected for 10 minutes.
Viewing the Menus and On-Screen Displays
Viewing the Menus
1. With the power on, press the MENU Button.
The main menu appears on the screen.
2. Press the
VOL (+) or VOL (-) button to scroll through
menu options. Then press the
ENTER button to
access sub-menu items. Press the
EXIT button to exit
from any Menu.
UP
DOWN
TITLE/EXIT
MENU/ENTER
Management
Main Display ( AV )
PIP Display ( Off )
Language
Reset ( No )
PWR off Timer ( 10 Min )
Page 16
V30DMBT-U21/M21 2004/12/22 上午 09:50
16

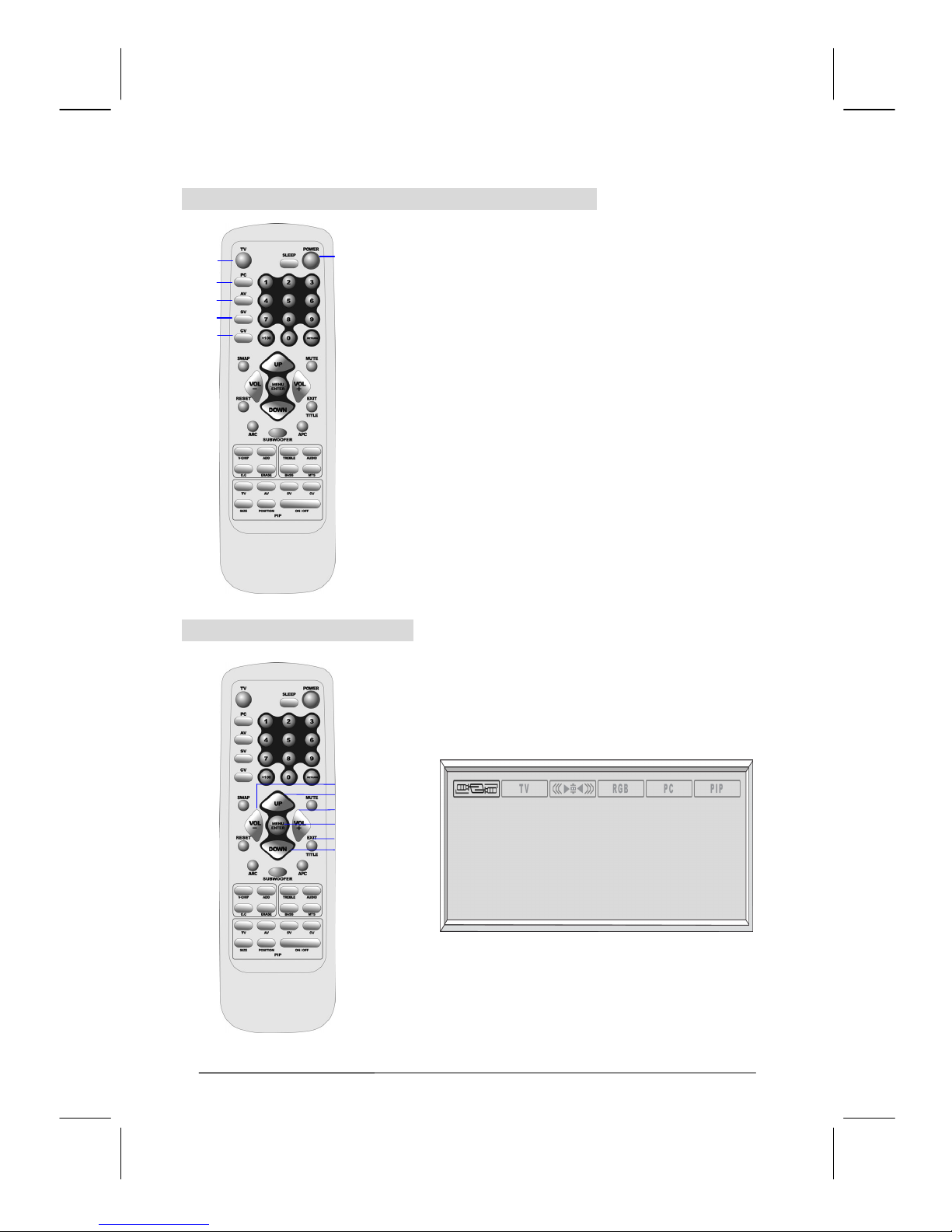

Switching PC/Composite/S-Video/TV/Component Modes
1. Turn on the power.
2. Select and input source as described below:
TV button to switch to TV mode.
PC button to switch to PC mode (DVI).
AV button to switch to Composite mode.
SV button to switch to S-Video mode.
CV button to switch to Component mode (Y, Pb/Cb,
Pr/Cr).
Switching Language Modes
1. Press the MENU button to display the main menu.
2. Press the
ENTER button to enter Management.
Press the
UP or DOWN button to select the
Language sub-menu, then press the
ENTER button.
3. Press the
UP or DOWN button to select the desired
language mode then press the
ENTER button to
confirm the language selection.
POWER
TV
PC
AV
SV
CV
VOL(-)
UP
VOL(+)
MENU/ENTER
TITLE/EXIT
DOWN
Management
Main Display ( AV )
PIP Display ( Off )
z Language
Reset ( No )
PWR off Timer ( 10 Min )

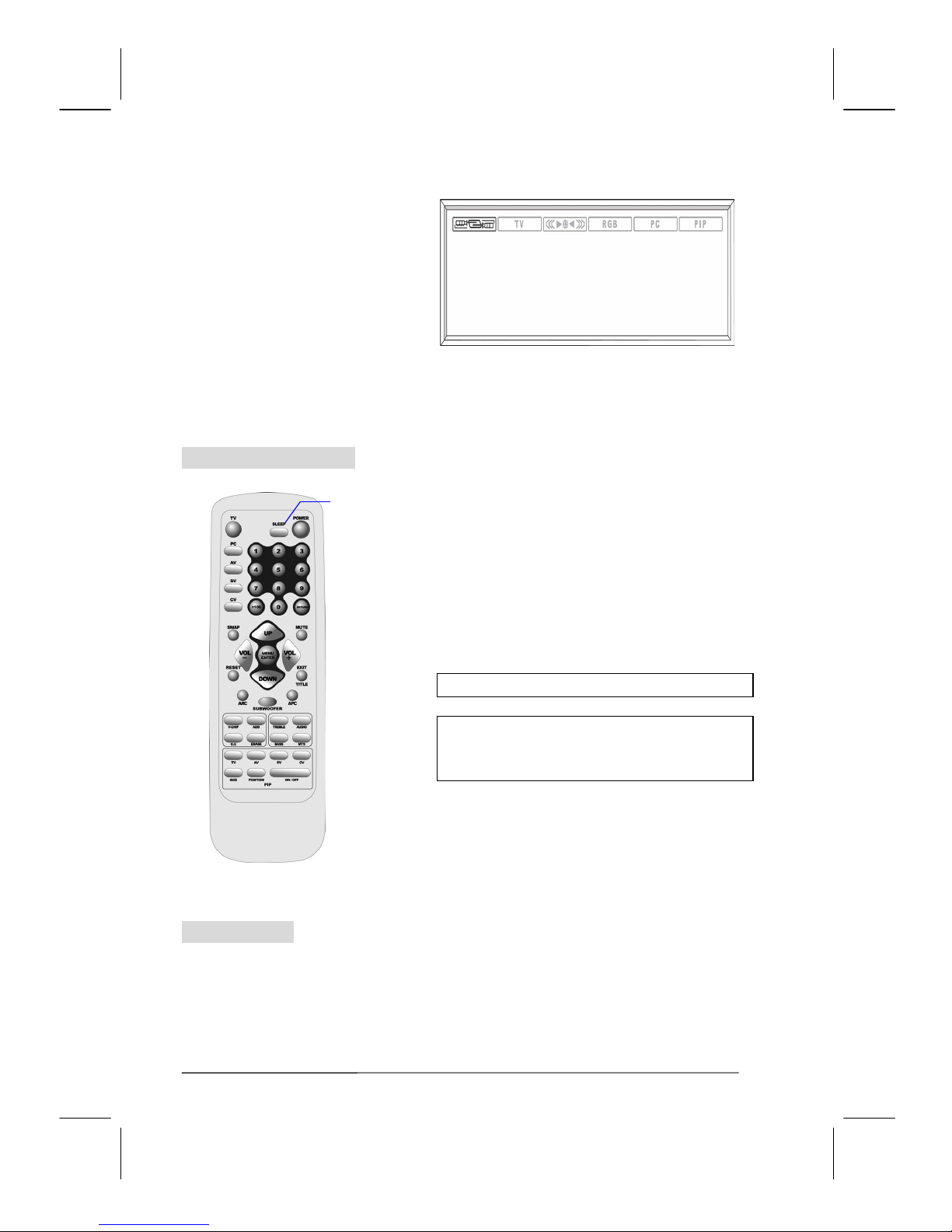

Page 17
V30DMBT-U21/M21 2004/12/22 上午 09:50
17
4. Press the
EXIT button to exit from the OSD.
Setting the Sleep Timer
You can set the Sleep Timer to automatically turn off
the LCD TV.
1. Press the
SLEEP button to display the Sleep Timer
screen.
2. Toggle the
SLEEP button to set the sleep timer (in 30
minute intervals).
Auto Power Off
The TV will automatically power off if no signal is detected for 10 minutes.
OFF→30 min →60 min→90 min →OFF
Note:
The Sleep Timer screen automatically disappears in
3 seconds.
SLEEP
Language
English
Frangais
Deutsch
Espanol
繁體中文
Page 18
V30DMBT-U21/M21 2004/12/22 上午 09:50
18

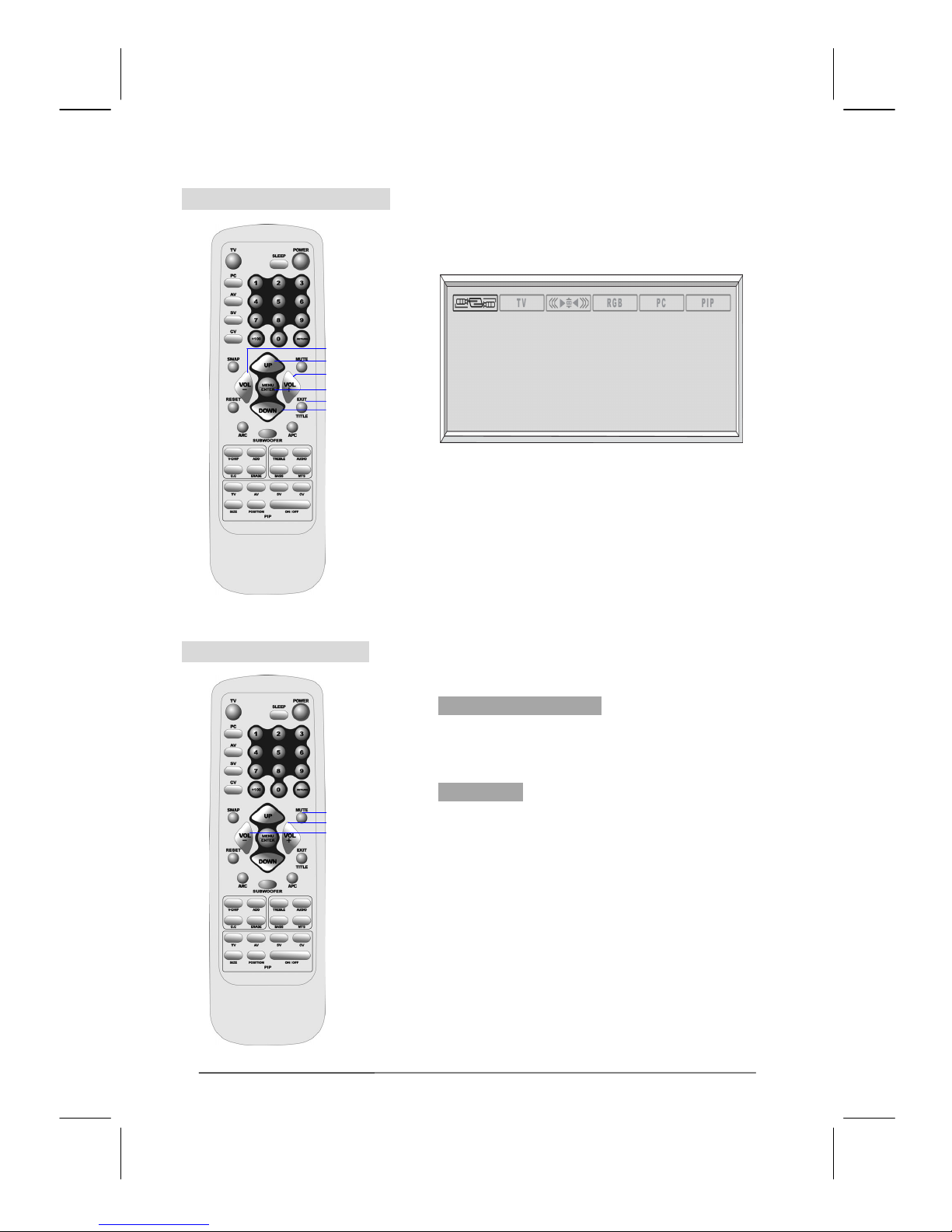

How to enter the Menu Items
1. Press the MENU button to display the main menu
screen.
2. Press the
VOL (+) or VOL (-) button to toggle through
the menu options. Then press the
ENTER button
to access sub-menu items.
3. Press the
VOL (+) or VOL (-) button to make
adjustments.
4. Press the
EXIT button to return to the previous
screen or exit from the Menu.
Adjusting the Volume
Using Volume Control
Press the VOL (+) or VOL (-) button to increase or
decrease the volume level.
Using Mute
At any time, you can temporarily turn off the sound
using the Mute button.
1. Press the MUTE button and the sound turns off.
2. Press the
MUTE button or VOL (+) or VOL (-) button
to turn the sound back to the previous level.
VOL(-)
UP
VOL(+)
MENU/ENTER
TITLE/EXIT
DOWN
MUTE
VOL(+)
VOL(-)
Management
Main Display ( AV )
PIP Display ( Off )
Language
Reset ( No )
PWR off Timer ( 10 Min )
Page 19
V30DMBT-U21/M21 2004/12/22 上午 09:50
19
B. PC Mode Adjustment
Adjusting the Contrast & Brightness Settings
Each viewing mode supports separated adjustments fro brightness and contrast levels. PC mode is
best viewed with lower brightness and contrast levels as compared to other modes.
1. Press the
MENU button to display the main menu.
2. Press the
VOL (+) or VOL (-) button to move the
cursor to the Picture Adjust menu.
3. Press the
UP or DOWN button to access the
sub-menu. Use the up or down arrows to select an
item.
4. Press the
VOL (+) or VOL (-) button to set the level of
the desired item.
Brightness
－
llllllllllllllllllll
………………
＋
VOL(-)
UP
VOL(+)
MENU/ENTER
TITLE/EXIT
DOWN
Management
Main Display ( PC )
PIP Display ( Off )
Language
Reset ( No )
PWR off Timer ( 10 Min )
Picture Adjust
Brightness －
llllllllllllllllllll
………………
＋
Contrast －
llllllllllllllllllll
………………
＋
Back Light －
llllllllllllllllllll
………………
＋
Color ( Neut. )
Page 20
V30DMBT-U21/M21 2004/12/22 上午 09:50
20
5. Press the
EXIT button to return to the previous
screen or exit.

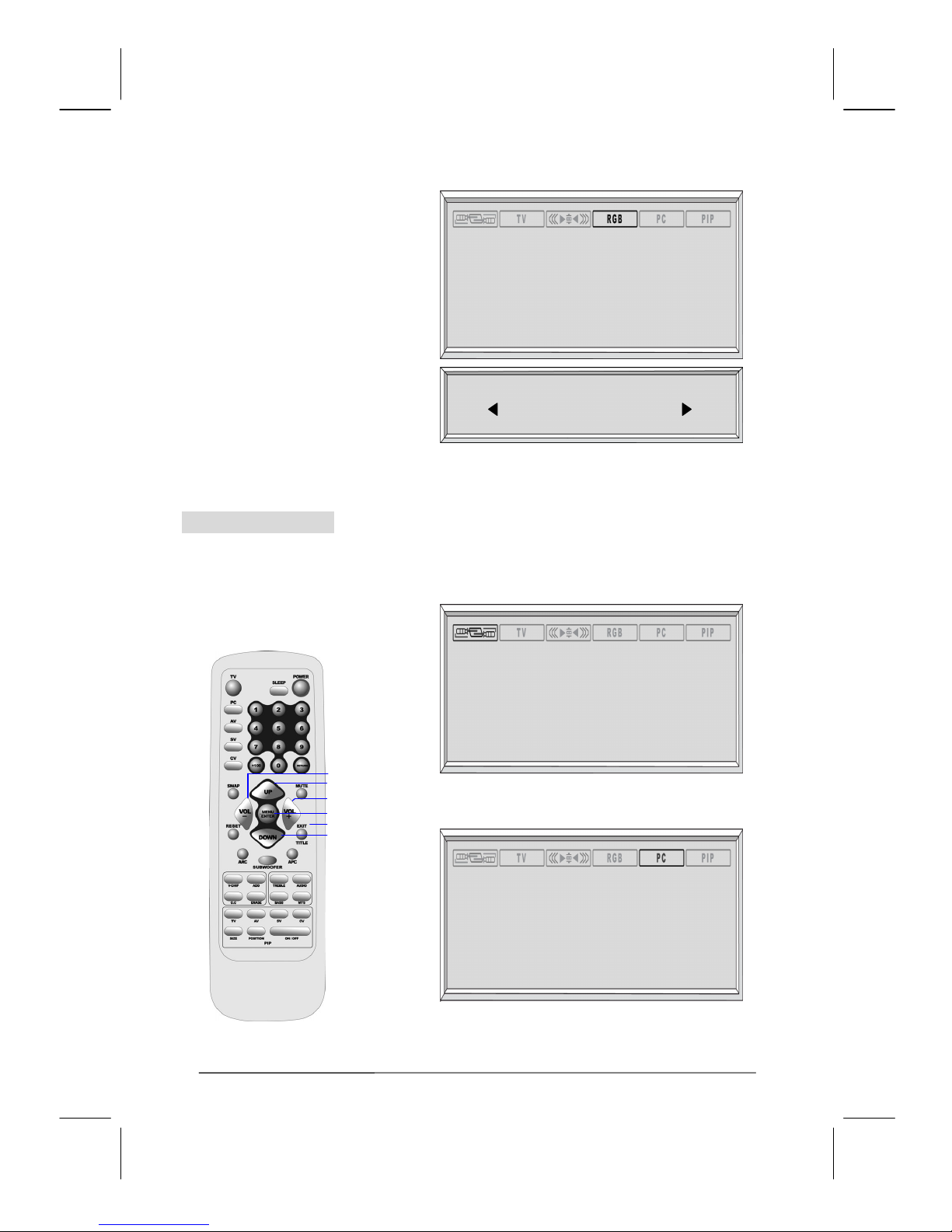

Adjusting PC Settings
1. Press the
MENU button to display the main menu.
2. Press the
VOL (+) / VOL (-) button to move the
cursor to PC Adjust menu.
3. Press the Enter button to access the sub-menu
VOL(-)
UP
VOL(+)
MENU/ENTER
TITLE/EXIT
DOWN
Management
Main Display ( PC )
PIP Display ( Off )
Language
Reset ( No )
PWR off Timer ( 10 Min )
PC Adjust
H Position － llllllllllllllll……………＋
V Position － llllllllllllllll……………＋
Phase － llllllllllllllll……………＋
Clock － llllllllllllllll……………＋
Auto Image ( No )
Picture Adjust
Brightness －
llllllllllllllllllll
………………
＋
Contrast －
llllllllllllllllllll
………………
＋
Back Light －
llllllllllllllllllll
………………
＋
z Color Temp. ( Neut. )
Cool Neut. Warm User
－ ＋
Page 21
V30DMBT-U21/M21 2004/12/22 上午 09:50
21
4. Press the UP or DOWN button to access the desired
item.
5. Press the VOL (+) or VOL (-) button to set the desired
item
6. To let the display automatically set these values,
select
Auto Image, from the sub-menu.
7. Press the
EXIT button to return to the previous screen
or exit.
Note: When a DVI-D signal is detected, PC-Adjust
menu options are not accessible.
PC Adjust
H Position － llllllllllllllll……………＋
V Position － llllllllllllllll……………＋
Phase － llllllllllllllll……………＋
Clock － llllllllllllllll……………＋
z Auto Image ( No )
No Yes
－
＋
Page 22
V30DMBT-U21/M21 2004/12/22 上午 09:50
22
Adjusting the Audio Settings
1. Press the
MENU button to display the main menu.
2. Press the
VOL(+) or VOL (-) button to move the cursor
to
Audio Adjust menu.

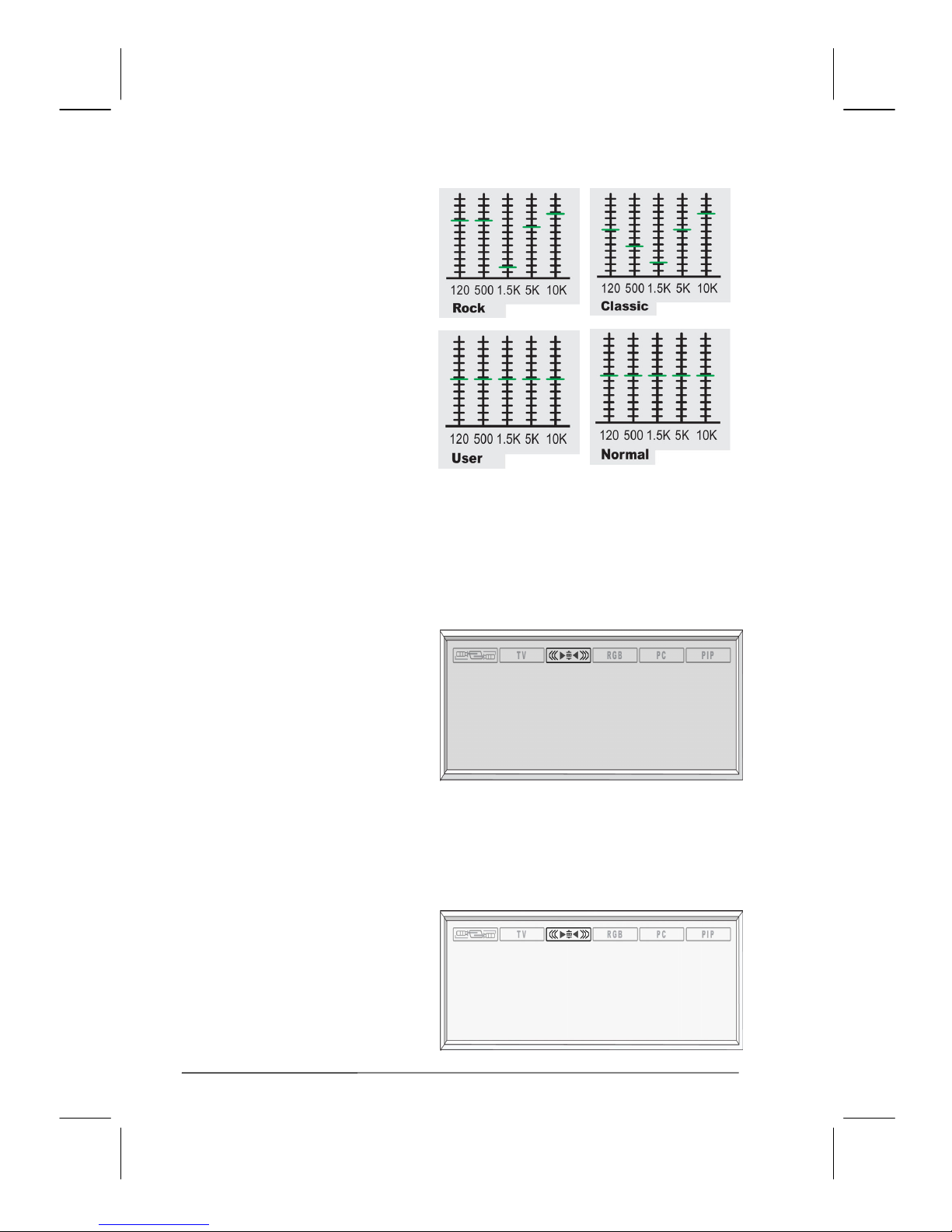

There are 6 equalizer modes as shown below::
VOL(-)
UP
VOL(+)
MENU/ENTER
TITLE/EXIT
DOWN
Management
Main Display ( PC )
PIP Display ( Off )
Language
Reset ( No )
PWR off Timer ( 10 Min )
Audio Adjust
Equalizer ( POP )
Balance － ………l………＋
Sound ( Main )
Mute ( No )
POP JAZZ ROCK
Classic User Normal
Page 23
V30DMBT-U21/M21 2004/12/22 上午 09:50
23
3. Personal equalizer preferences can be adjusted vua
the
User and Normal modes
(a) Press the
ENTER button to enter Audio Adjust
menu. Press the UP or DOWN button to access
the
Equalizer sub-menu. Press the VOL (+) or VOL (-)
button
to select an equalizer mode.
(b) Press the
ENTER button to enter User or Normal
mode, then press the
VOL (+) or VOL (-) button to set
the desired equalizer frequencies as well as treble
and bass levels.
Equalizer
120Hz － llllllllllllllll……………＋
500Hz － llllllllllllllll……………＋
1.5kHZ － llllllllllllllll……………＋
5kHz － llllllllllllllll……………＋
10kHz － llllllllllllllll……………＋
Equalizer
Treble － llllllllllllllll……………＋
Bass － llllllllllllllll……………＋

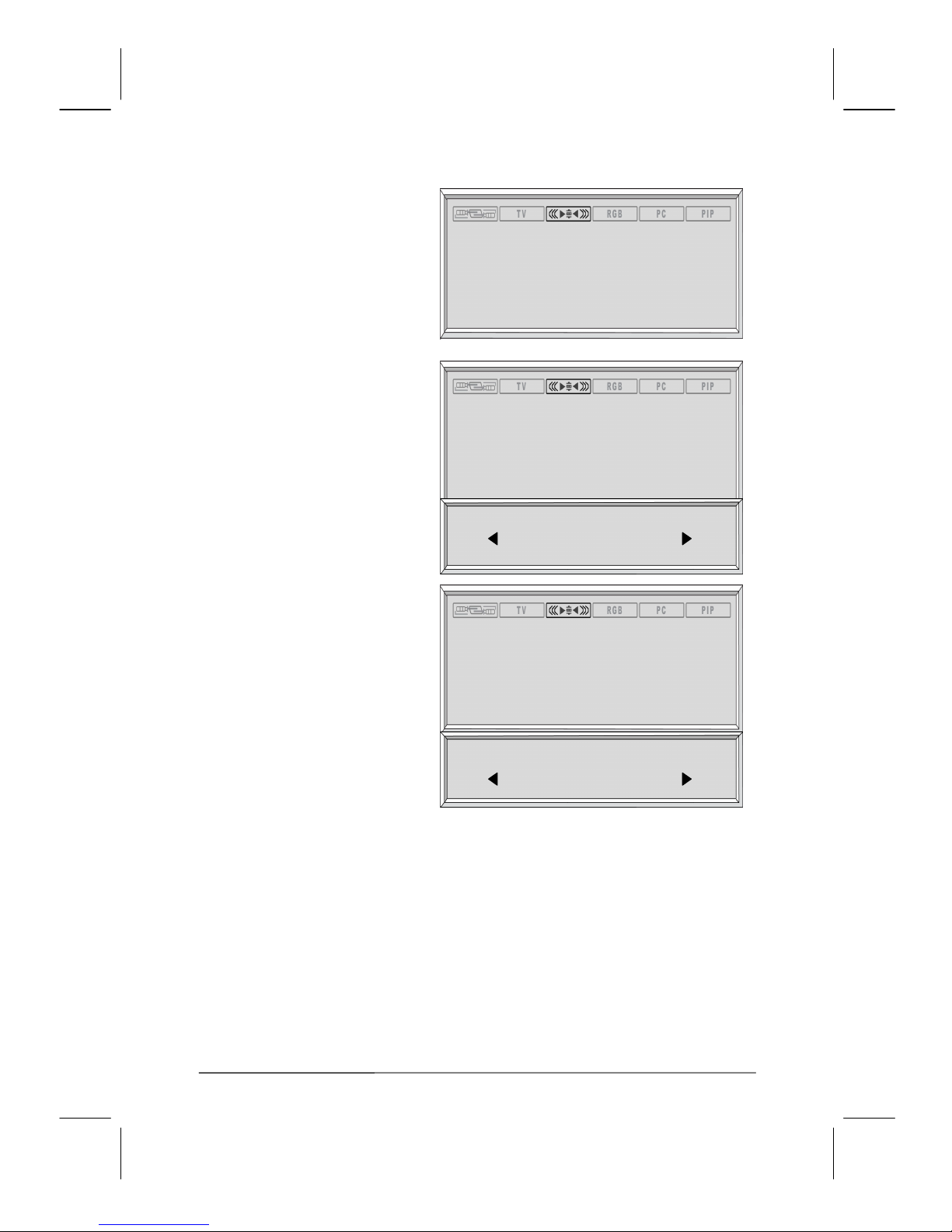

Page 24
V30DMBT-U21/M21 2004/12/22 上午 09:50
24
4. Press the
EXIT button to return to the previous
screen or exit.
Audio Adjust
Equalizer ( POP )
Balance － ………l………＋
z Sound ( Main )
Mute ( No )
Main PIP
－
＋
Audio Adjust
Equalizer ( POP )
Balance － ………l………＋
Sound ( Main )
z Mute ( No )
No Yes
－
＋
Audio Adjust
Equalizer ( POP )
z Balance － ………l………＋
Sound ( Main )
Mute ( No )
Page 25
V30DMBT-U21/M21 2004/12/22 上午 09:50
25

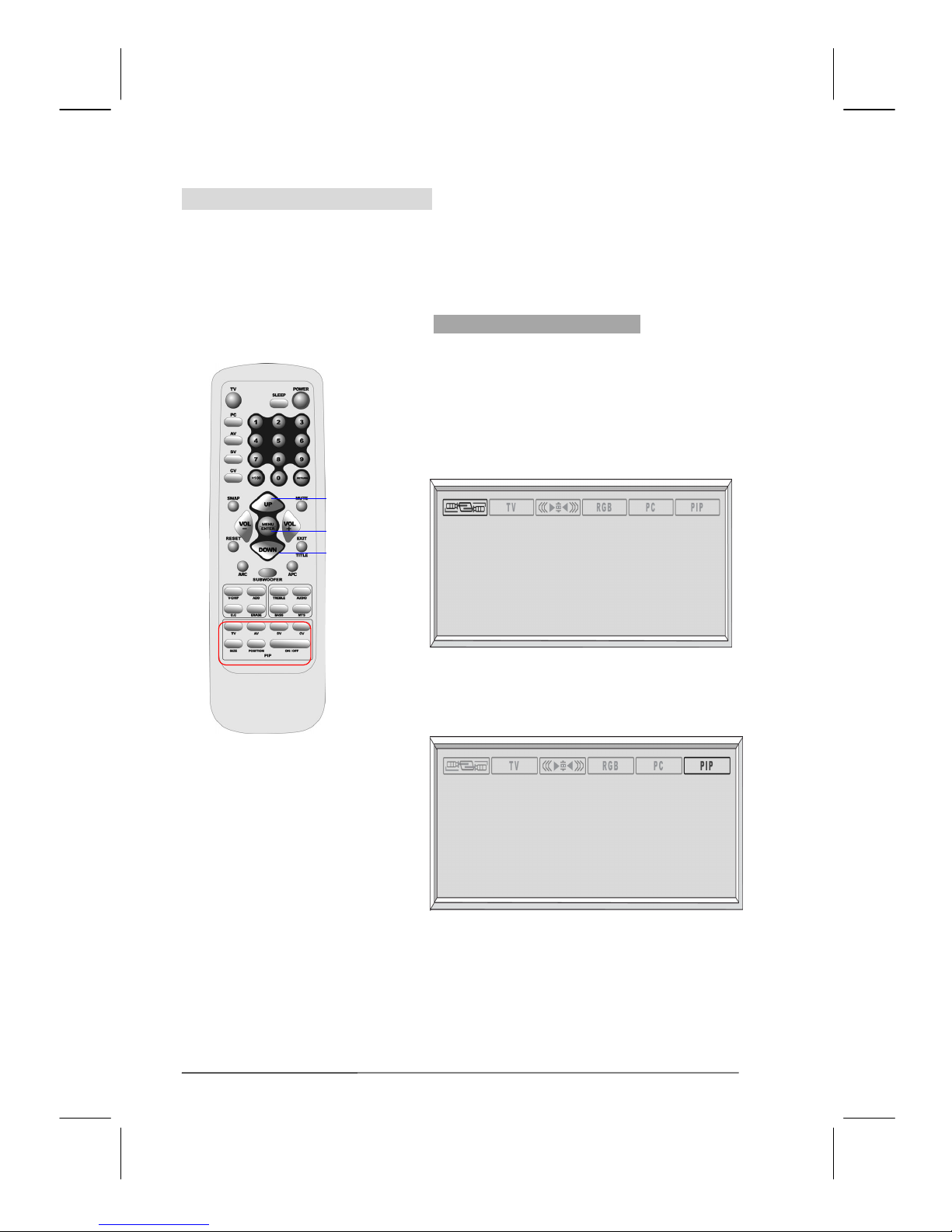

Viewing Picture-in-Picture ( PIP)
PIP: While viewing content on the main display, you have the option to select an secondary signal
as a sub-display in a picture in picture window. This feature allows you to watch two video
sources simultaneously.
Activating Picture-in-Picture
1. Press the MENU button to display the main menu
Press the
Enter button to enter the management
menu..
2. Press the
UP or DOWN button to select the PIP
Display
sub-menu item, then press the VOL (+) or
VOL (-) button to select the PDP source signal.
3. Press the
VOL (+) or VOL (-) button to move the
cursor to the
PIP menu.
UP
MENU/ENTER
DOWN
PIP FUNCTION
Management
Main Display ( AV )
PIP Display ( Off )
Language
Reset ( No )
PWR off Timer ( 10 Min )
PIP
H Position － llllllllllllll………＋
V Position － llllllllllllll………＋
PIP Size － llllllllllllll………＋
Border － llllllllllllll………＋
Saturation － llllllllllllll………＋
Sharpness － ………l…………＋
Page 26
V30DMBT-U21/M21 2004/12/22 上午 09:50
26
4. Press the
ENTER button to access the PIP
sub-menu.
5. Press the UP or DOWN button to select the desired
PIP function.
6. Press the
VOL (+) or VOL (-) button to set the desired
PIP function
7. Press the
EXIT button to return to the previous
screen or exit from the Menu.
Quick way to access the PIP menu: Simply press the
PIP “ON/OFF” button on the remote control.

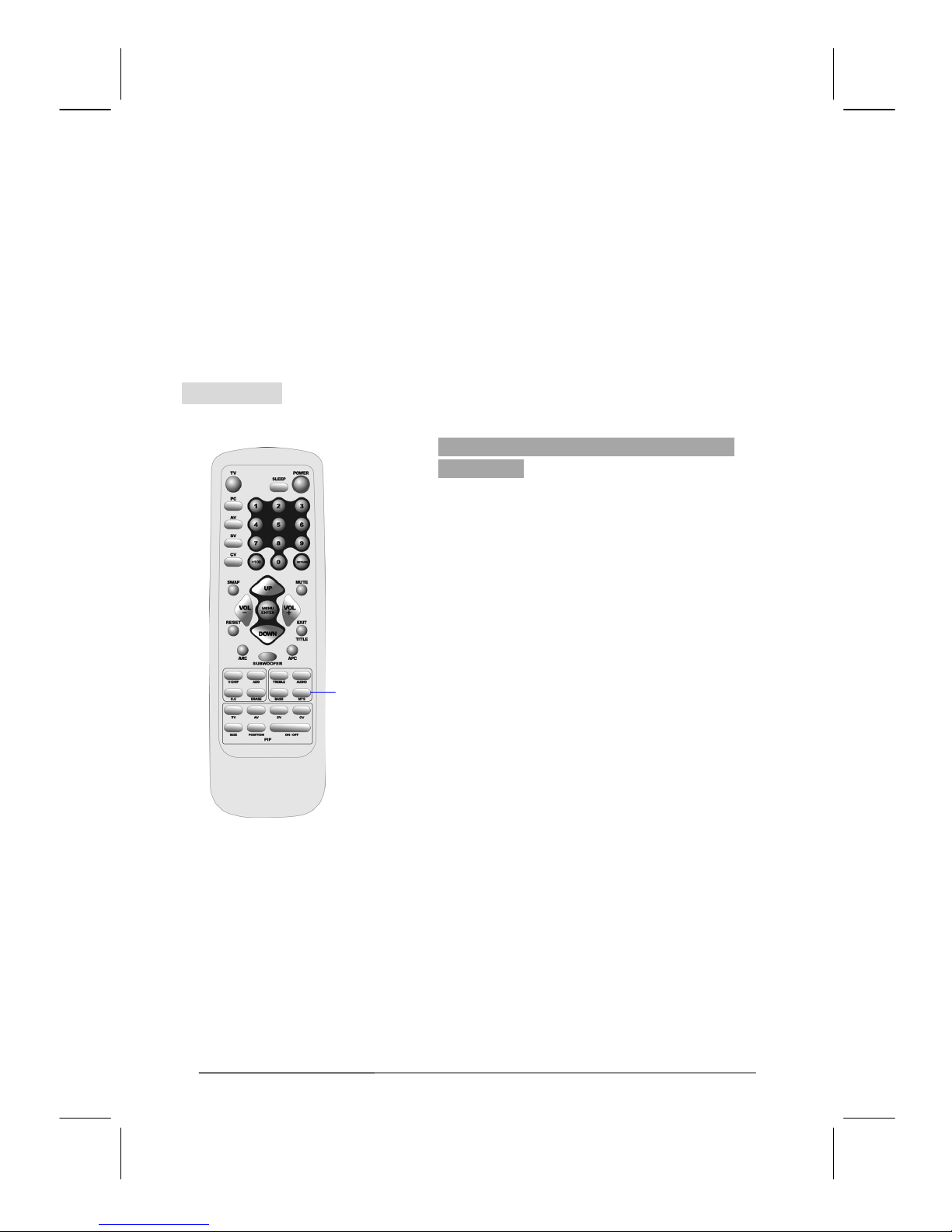

Selecting a Source for PIP display
Press the PIP ON/OFF button on the remote control to
to display the PIP window, Then press either the TV,
AV, SV or CV PDP button to select the source.
Changing the Position of the PIP Window
Press the PIP POSITION button repeatedly to move the
PIP window from corner to corner of the screen.
Changing the Size of the PIP Window
Press the PIP SIZE button repeatedly to alternate the
size of PIP window.
Page 27
V30DMBT-U21/M21 2004/12/22 上午 09:50
27

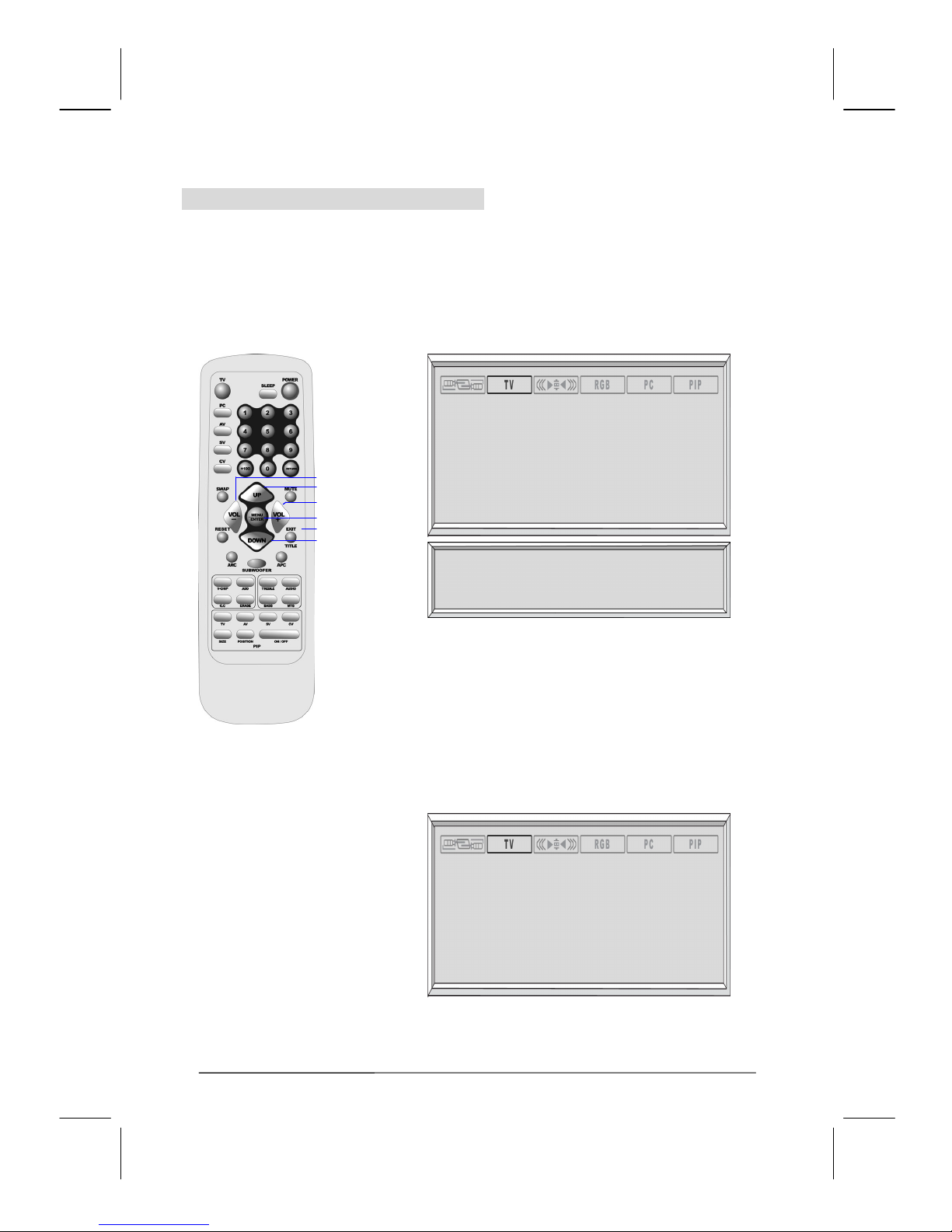

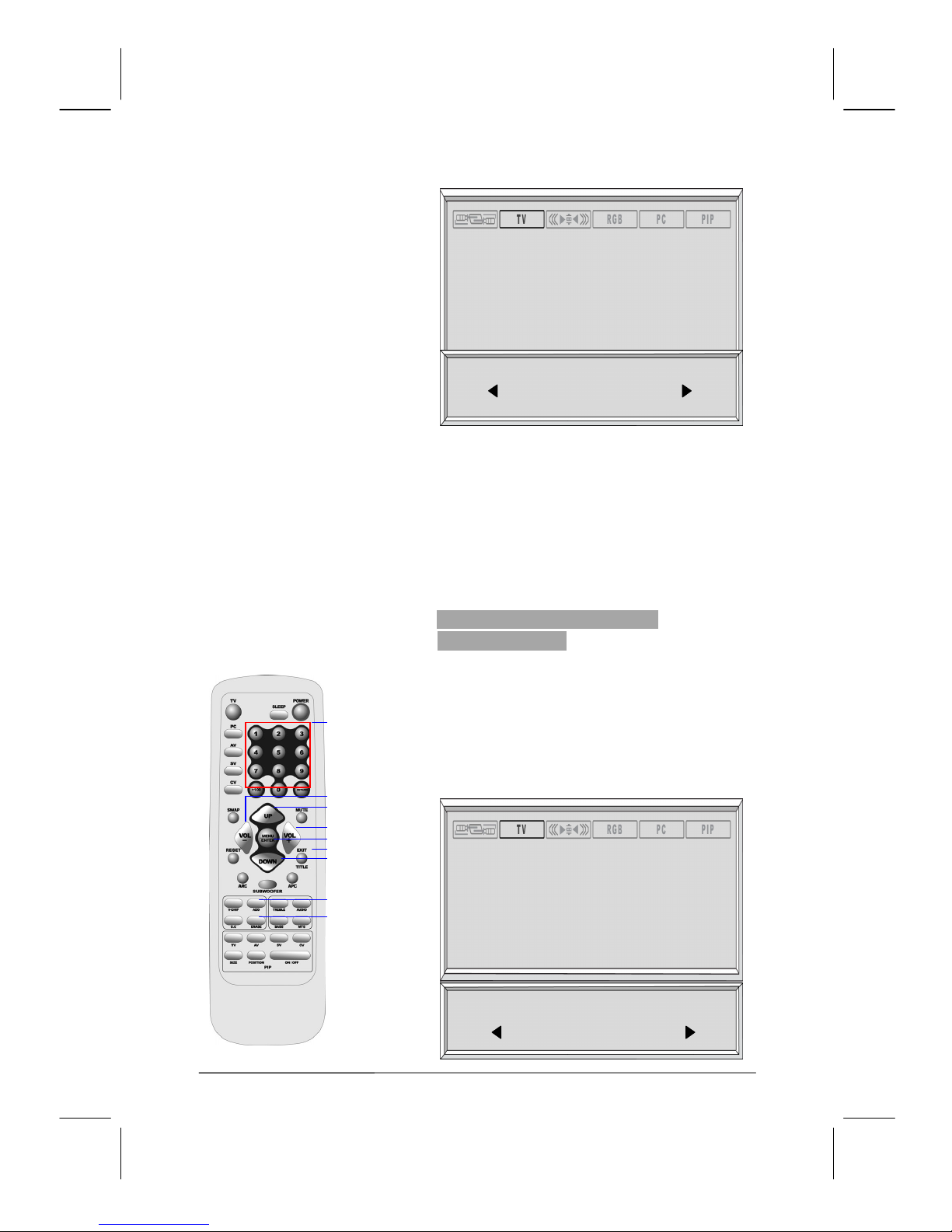

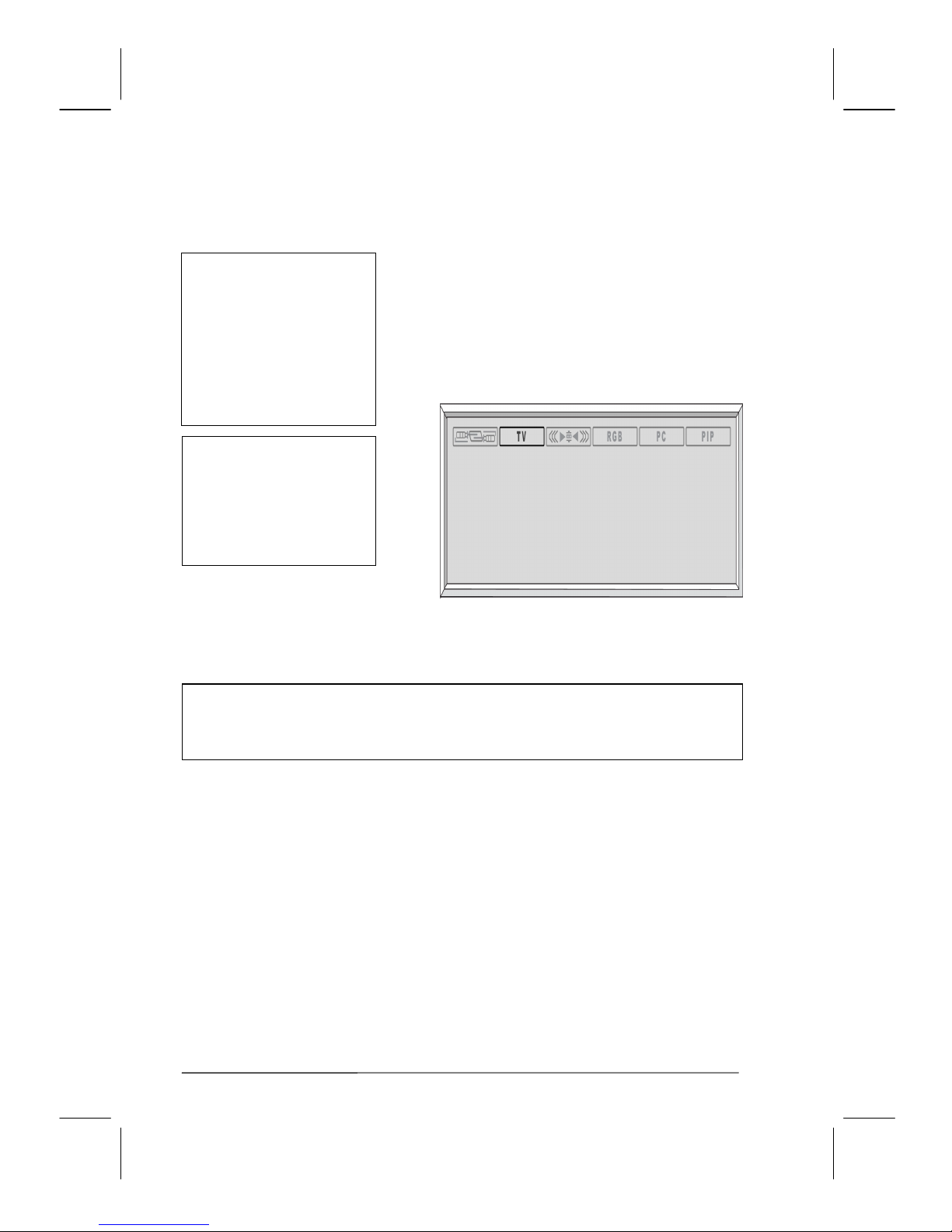

C. TV Mode Adjustment
Adjusting the TV settings

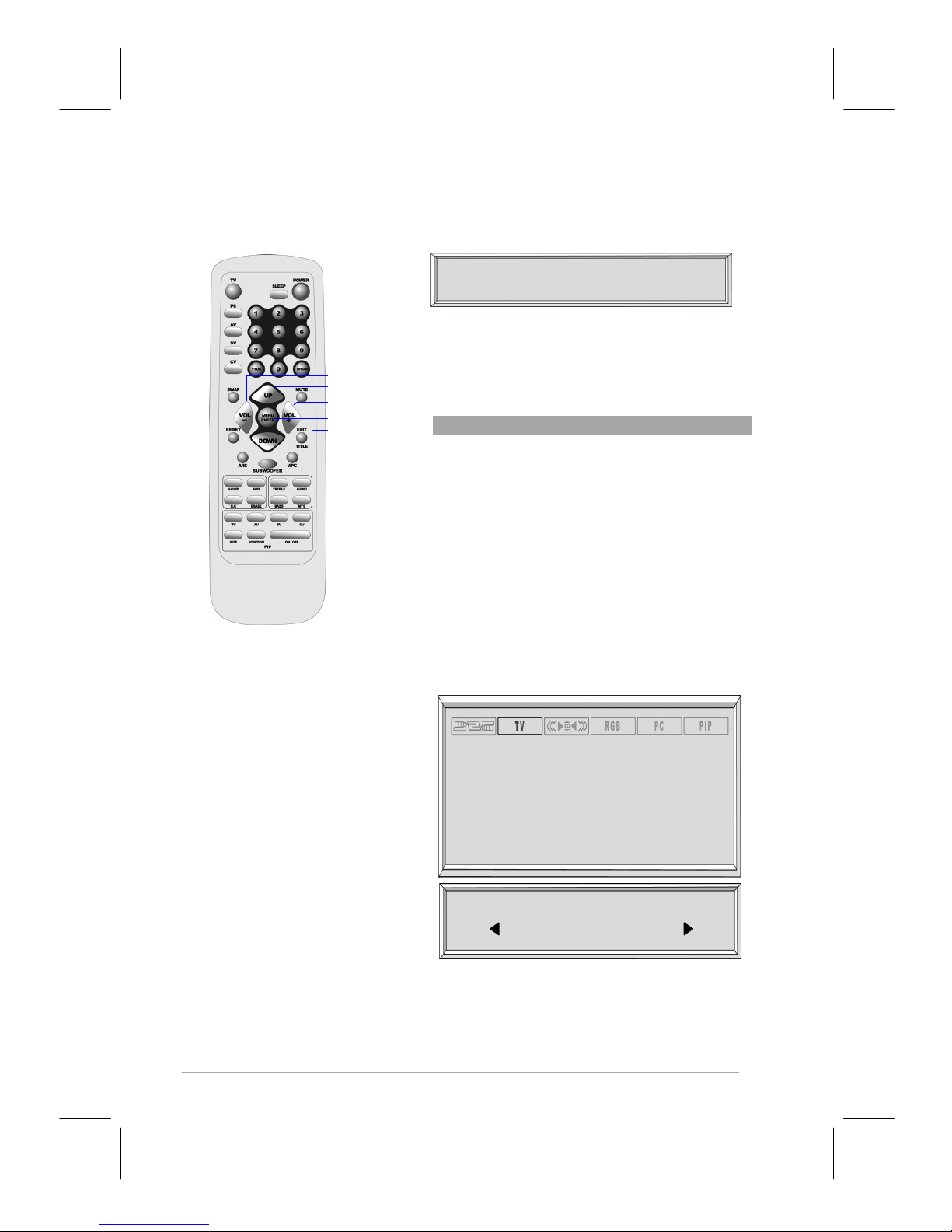

1. Press the MENU button to display the main menu.
2. Press the ENTER button to enter Management menu ,
then press the
UP or DOWN button to select the
Main Display (TV) sub-menu.
3. Press the
VOL (+) or VOL (-) button to select the
desired TV source.
4. Press the
EXIT button to return to the previous
screen, then press the
VOL (+) or VOL (-) button to
select the
TV Setting menu.
5. Press the
ENTER button to access the TV Setting
menu.
VOL(-)
UP
VOL(+)
MENU/ENTER
TITLE/EXIT
DOWN
DVI-I AV SV CV TV
－
＋
Management
z Main Display ( TV )
PIP Display ( Off )
Language
Reset ( No )
PWR off Timer ( 10 Min )
TV Setting
ANT/CATV ( ANT )
Auto scan ( No )
Erase/Add ( Add )
Parent Control
Caption ( Off )
Fine Tune －
llllllllllllllllllll
………………
＋
Page 28
V30DMBT-U21/M21 2004/12/22 上午 09:50
28
6. Press the
UP or DOWN button to select the desired
item.
7. Press the
VOL (+) or VOL (-) button to set the
desired item.
8. Press the
EXIT button to return to the previous
screen or exit from the Menu.
Sound Option
Choosing a Multi-Channel Sound (MTS)
Soundtrack
Depending on the particular program being broadcast,
you may be able to listen to a stereo, mono, or
Separate Audio Program (SAP) source. (SAP audio is
usually a foreign-language translation)
MTS
Page 29
V30DMBT-U21/M21 2004/12/22 上午 09:50
29

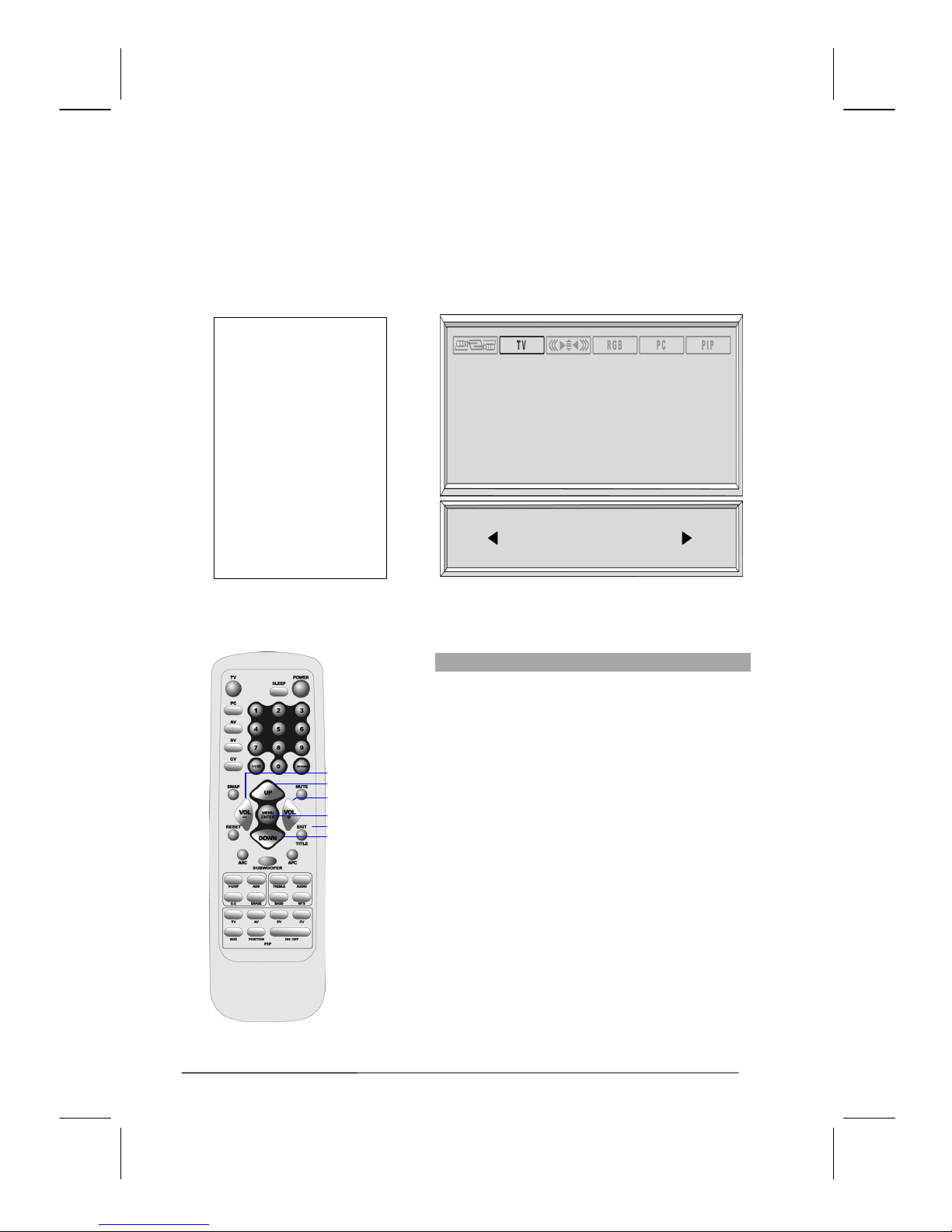

Adjusting Picture Settings
1. Press the MENU button to display the main
menu.
2.
Press the ENTER button to enter the
Management menu. Press the UP or DOWN
button to select the
Main Display (TV)
sub-menu.
3.
Press the VOL (+) or VOL (-) button to select the
desired Main Display source.
4.
Press the EXIT button to return to the previous
screen. Press the
VOL (+) or VOL (-) button to
access the
Picture Adjust menu, then Press the
ENTER button.
5. Press the
UP or DOWN button to select the desired
item.
VOL(-)
UP
VOL(+)
MENU/ENTER
TITLE/EXIT
DOWN
DVI-I AV SV CV TV
－
＋
Management
z Main Display ( TV )
PIP Display ( Off )
Language
Reset ( No )
PWR off Timer ( 10 Min )
Picture Adjust
Brightness －
llllllllllllllllllll
………………
＋
Contrast －
llllllllllllllllllll
………………
＋
Back Light －
llllllllllllllllllll
………………
＋
Hue －
llllllllllllllllllll
………………
＋
Saturation －
llllllllllllllllllll
………………
＋
－

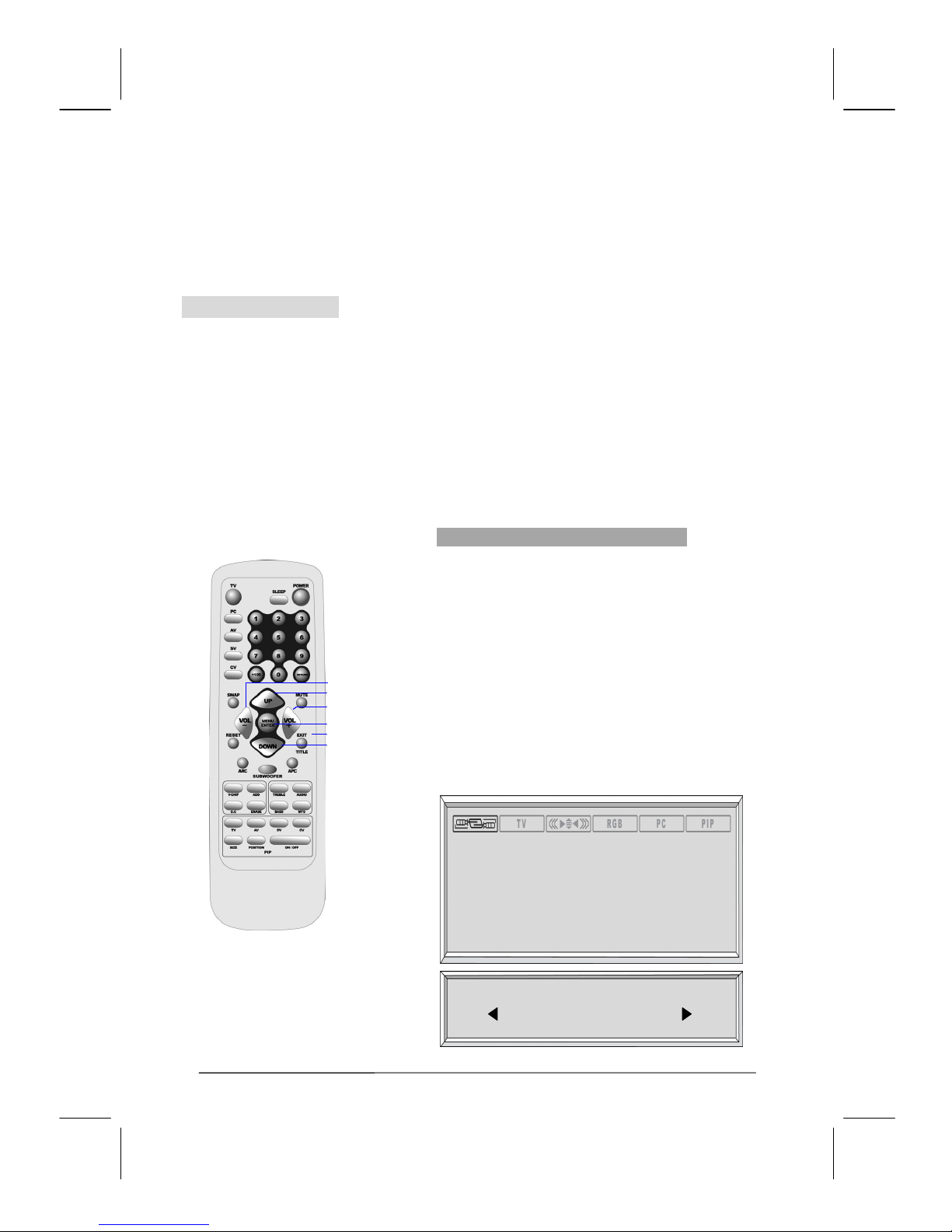

Page 30
V30DMBT-U21/M21 2004/12/22 上午 09:50
30
6. Press the
VOL (+) or VOL (-) button to set the desired
item.
7. Press the
EXIT button to return to the previous
screen or exit from the Menu.
Memorizing Channels
Your TV can memorize and store all of the available channels for both standard broadcast (antenna)
and cable channels. After the available channels are memorized, press the UP or DOWN button to
view stored channels. You can also view any channel (even non-memorized) by directly entering
the channel digits via the remote control.
There are three steps to memorizing channels:
1. Selecting a video signal source; 2. Memorizing the available channels (automatically);
3. Adding/Deleting channels (manually)

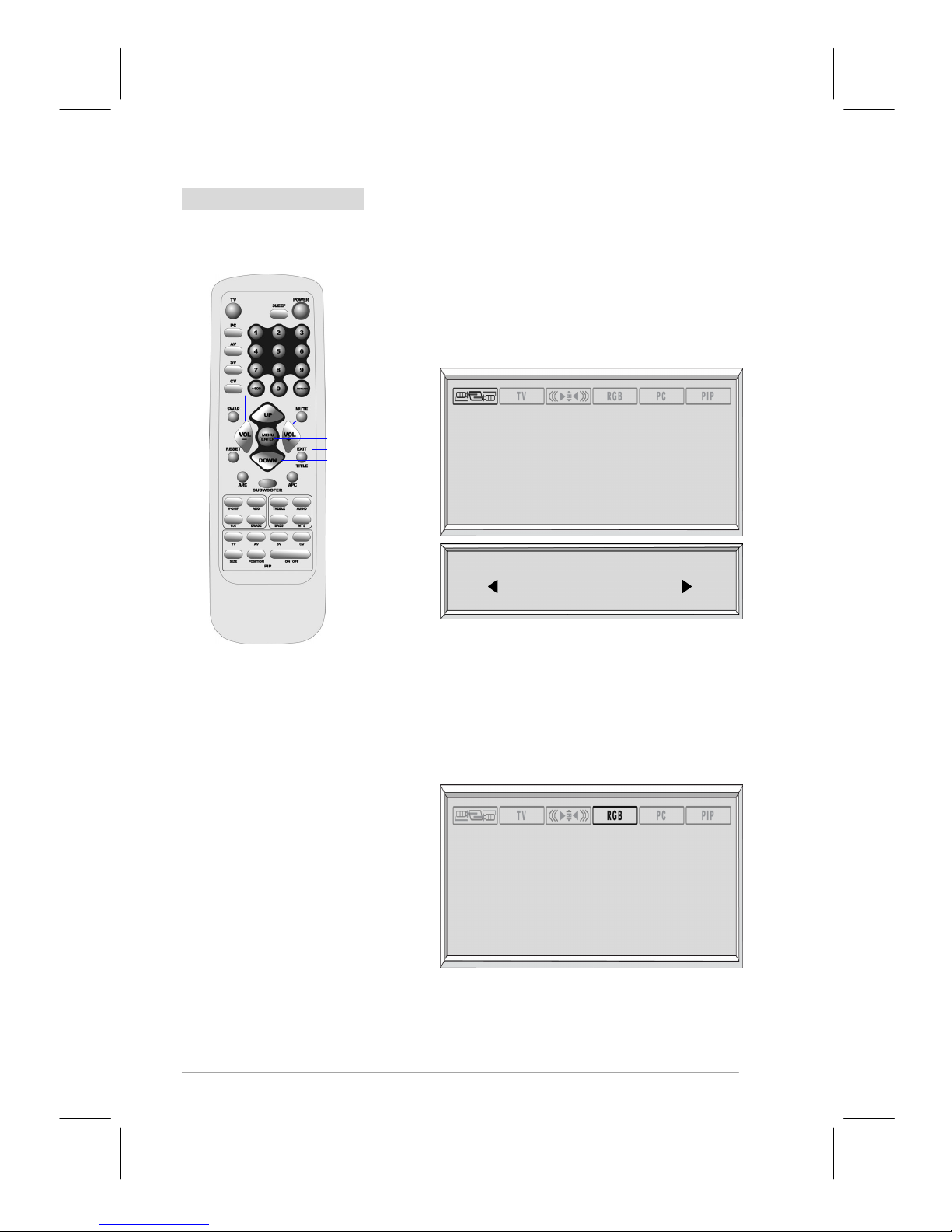

Selecting the Video Signal Source
Before your television can begin to memorize
available channels, you must specify the type of signal
source that is connected to the TV (i.e., an OTA
antenna or a cable system).
1. Press the
MENU button to display the main menu.
2. Press the
ENTER button to enter Management
menu Press the UP or DOWN button to select the
Main Display (TV) sub-menu.
VOL(-)
UP
VOL(+)
MENU/ENTER
TITLE/EXIT
DOWN
DVI-I AV SV CV TV
－
＋
Management
z Main Display ( TV )
PIP Display ( Off )
Language
Reset ( No )
PWR off Timer ( 10 Min )
Page 31
V30DMBT-U21/M21 2004/12/22 上午 09:50
31
3. Press the VOL (+) or VOL (-) button to select your TV
source. Press the
EXIT button to return to the
previous screen.
4. Press the
VOL (+) or VOL (-) button to access the TV
Setting
menu.
5. Press the
ENTER button to access TV Setting.
6. Press the VOL (+) or VOL (-) button to select the
desired format.

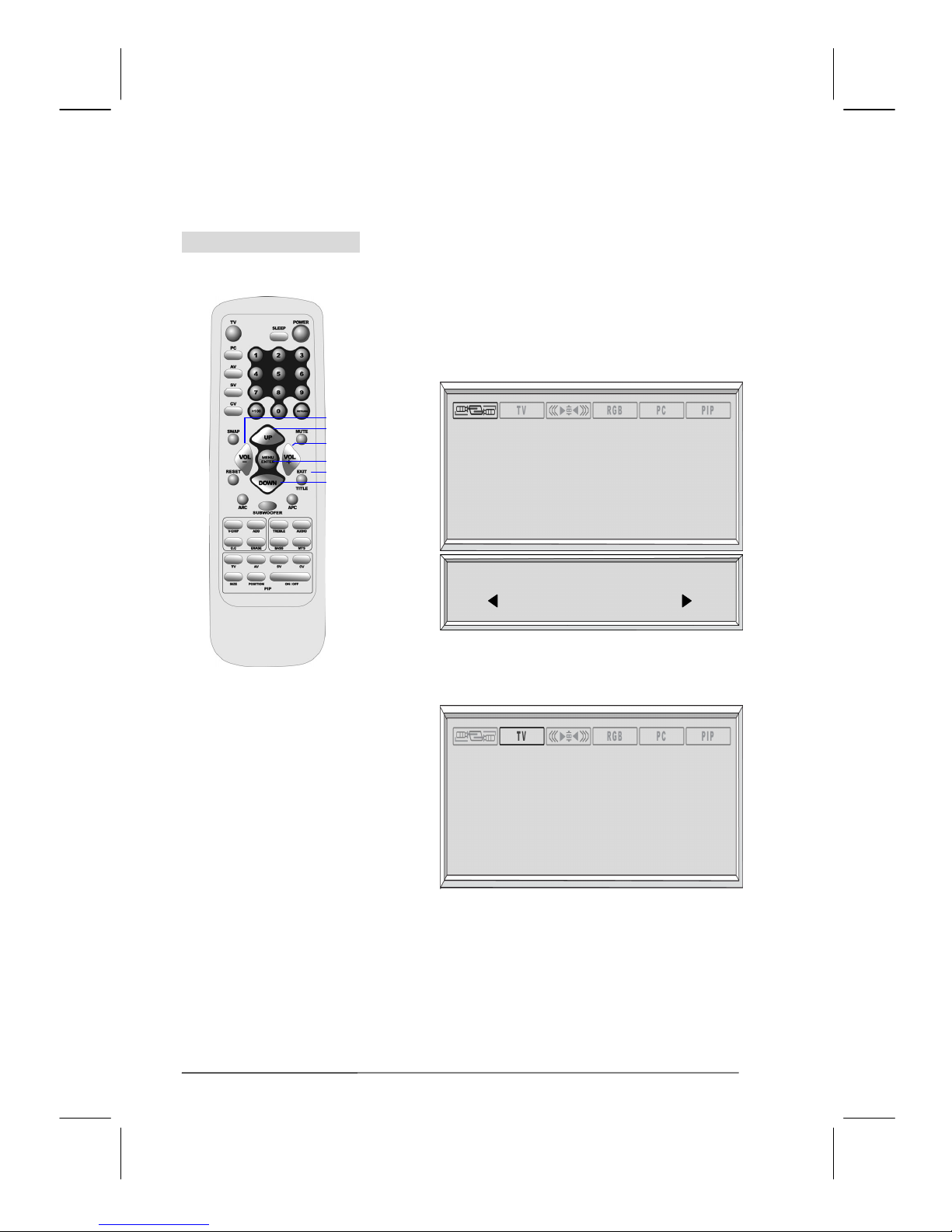

Memorizing Channels (Automatic Method)
First, select the correct signal source as described in
previous step. Then perform the following actions:
1. Press the
MENU button to display the main menu.
2. Press the
VOL (+) or VOL (-) button to select the TV
Setting
menu item.
3. Press the ENTER button to access the TV Setting.
4. Press the
UP or DOWN button to move the cursor to
the
Auto scan (No) sub-menu.
Note:
1. ANT is Over The Air
(OTA) broadcast
television that is public
domain or free for
viewing.
2. STD, IRC and HRC are
all formats of cable TV.
Contact your cable
provider to find out
which format is used in
your area.
VOL(-)
UP
VOL(+)
MENU/ENTER
TITLE/EXIT
DOWN
TV Setting
z ANT/CATV ( ANT )
Auto scan ( No )
Erase/Add ( Add )
Parent Control
Caption ( Off )
Fine Tune －
llllllllllllllllllll
………………
＋
ANT STD IRC HRC
－
＋
Page 32
V30DMBT-U21/M21 2004/12/22 上午 09:50
32
5. Press the
VOL (+) or VOL (-) button to select “Yes”.
The TV automatically cycle through all of the
available channels and store them in memory. This
may take a few minutes.
6. After all the available channels are stored, the main
menu reappears.
Adding and Erasing Channels
(Manual Method)
1. Press the MENU button to display the main menu.
2. Press the
VOL (+) or VOL (-) button to select the TV
Setting
menu.
3. Press the ENTER button to accessTV Setting.
4. Press the
UP or DOWN button to move the cursor to
the
Erase/ Add (Add) sub-menu.
NUMBER
BUTTONS
VOL(-)
UP
VOL(+)
MENU/ENTER
TITLE/EXIT
DOWN
ADD
ERASE
TV Setting
ANT/CATV ( ANT )
z Auto scan ( No )
Erase/Add ( Add )
Parent Control
Caption ( Off )
Fine Tune －
llllllllllllllllllll
………………
＋
No Yes
－
＋
TV Setting
ANT/CATV ( ANT )
Auto scan ( No )
z Erase/Add ( Add )
Parent Control
Caption ( Off )
Fine Tune －
llllllllllllllllllll
………………
＋
Erase Add
－
＋
Page 33
V30DMBT-U21/M21 2004/12/22 上午 09:50
33
5. Press the VOL (+) or VOL (-) button to toggle Add/
Erase
than press the ENTER button.
6. You can also press the ADD or ERASE buttons on the
remote control to add or erase channels directly.
Any channel, including an erased channel, can be viewed by
directly entering the channel numbers through the remote control.
Channels that have been erased are unable to be viewed using the
channel up or channel down arrows on the remote control.
Changing Channels
This LCD TV turner provides the ability to display up to 125 channels (1 to 125). To select a
channel, enter the channel number using 1 to 3 digit numbers.
Using the Channel Buttons
1. Press the UP or DOWN button to change channels.
When you press the
UP or DOWN button, the TV
changes channel in sequence. Channels not previously
memorized or manually added won’t be accessible in
this manner.
Directly Accessing Channel
Enter the channel number using the numeric buttons to
go directly to the channel desired.
For example, to go to channel 27, press “
2”then “7”.
The TV will change to channel 27.
Using the direct access method you can access any
available channel including non-memorized and erase
channels. To select a channel over 100, press the +100
button. (For example, to go channel 122, press “
+100”,
then, “
2”, and “2” again).
Using the Parental Controls
The Parent Control feature allows you to block channels from being viewed unless an unlock
PIN code is entered.
Before Parent Control restrictions can be utilized, you must first create a PIN number.
NUMBER
BUTTONS
RETURN
UP
TITLE/EXIT
DOWN
Page 34
V30DMBT-U21/M21 2004/12/22 上午 09:50
34

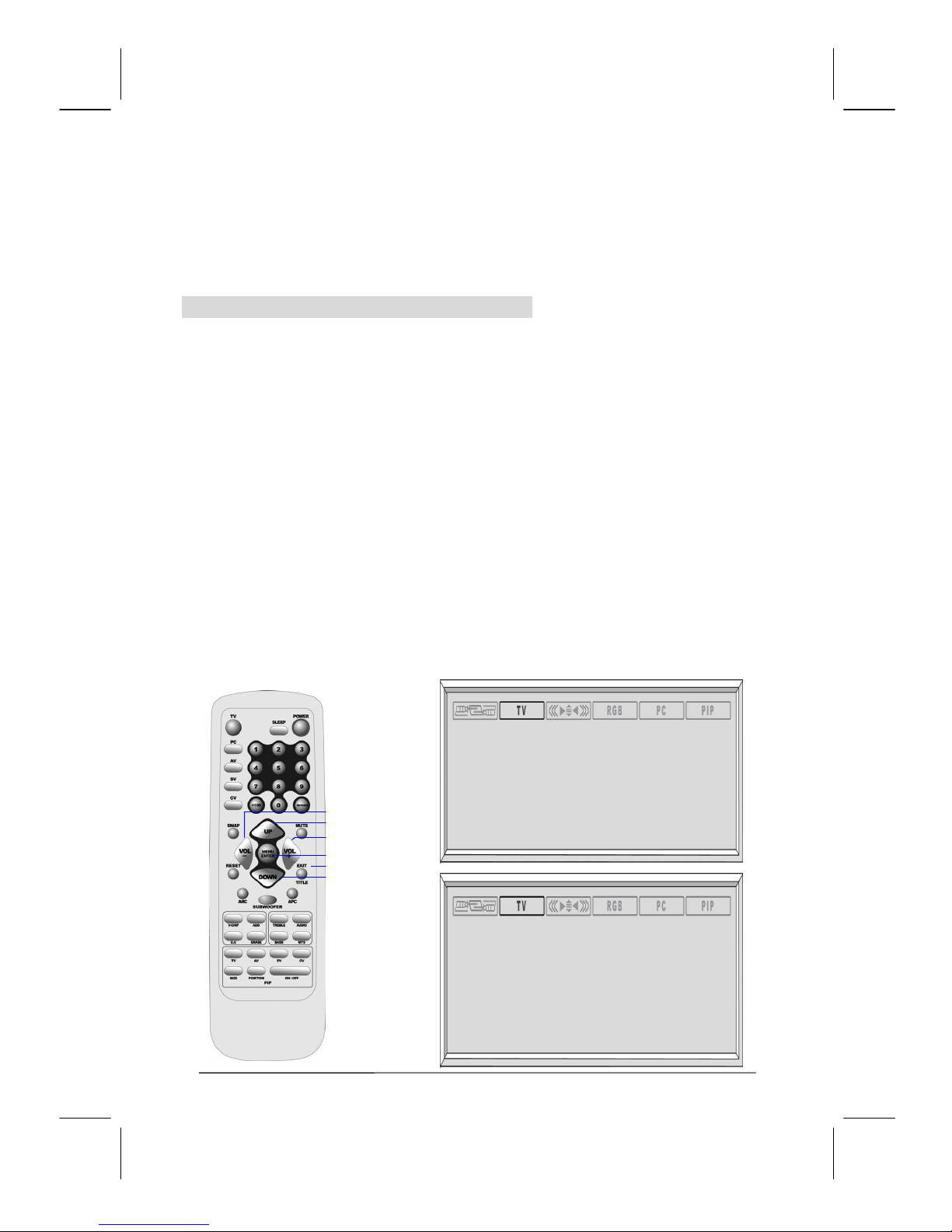

Setting Up Your Personal ID Number (PIN)
1. Press the
MENU button to display the main menu.
2. Press the
VOL (+) or VOL (-) button to select the TV Setting menu.
3. Press the ENTER button to TV Setting menu.
4. Press the
UP or DOWN button to select the Parent Control sub-menu then press the ENTER
button.
5. The “
Please Enter Pin:” screen will appear. Input
your 4 digit
PIN here. The factory default PIN code is
1234 .
6. After entering a valid PIN number, the Parent
Control
sub-menu screen will appear. Press the UP
or
DOWN button to select the “Change PIN”.
VOL(-)
UP
VOL(+)
MENU/ENTER
TITLE/EXIT
DOWN
TV Setting
ANT/CATV ( ANT )
Auto scan ( No )
Erase/Add ( Add )
z Parent Control
Caption ( Off )
Fine Tune －
llllllllllllllllllll
………………
＋
Please Enter Pin :
--- --- --- ---
Parent Control
Parent Control ( Off )
TV-Rating ( TV-G )
MPAA ( PG 13. )
z Change Pin
Page 35
V30DMBT-U21/M21 2004/12/22 上午 09:50
35
7. Press
ENTER to access the Please Enter New Pin:
screen. Enter any 4 digit sequence for your new PIN
As soon as the 4-digits are entered, the “Change Pin
OK!!” screen appears. Your PIN has been accepted.
Press the
EXIT button to exit.
How to Enable / Disable Parental Control
1. Press the MENU button to display the main menu.
2. Press the
VOL (+) or VOL (-) button to select the TV
Setting
menu.
3. Press the ENTER button to access TV Setting.
4. Press the
UP or DOWN button to move the cursor to
the
Parent Control sub-menu, then press the ENTER
button.
5. The “
Please Enter Pin” screen will appear. Input
your 4 digit
PIN number.
6. Press the
VOL (+) or VOL (-) button to select On, then
press the
ENTER button .The “TV Rating”
and ”MPAA” controls will lock out the channels
VOL(-)
UP
VOL(+)
MENU/ENTER
TITLE/EXIT
DOWN
Change Pin OK!!
Parent Control
z Parent Control ( Off )
TV-Rating ( TV-G )
MPAA ( PG 13. )
Change Pin
Off On
－
＋
Page 36
V30DMBT-U21/M21 2004/12/22 上午 09:50
36
that your specify. If you want to disable the Parent
Control Function, select
Off on “Parent Control”.
Any block programs will immediately become
viewable.

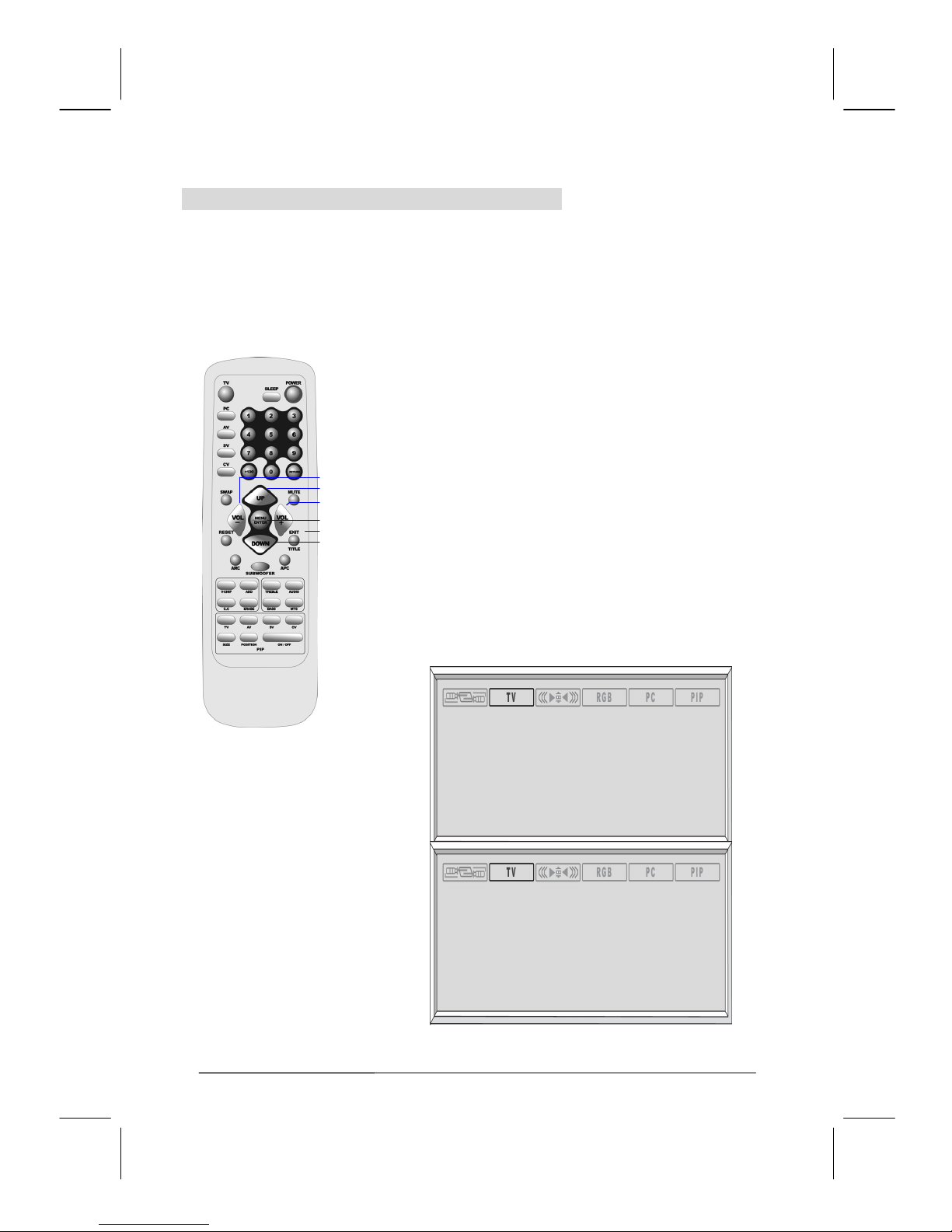

How to Set up Restrictions Using the “TV Rating”
Set up a personal identification number (PIN), then enable the Parent Control option. (See
previous section). There are two forms of parental controls supported by this LCD television.
The first method is through TV Guidelines. The second uses MPAA Ratings:
1. Press the
MENU button to display the main menu.
2. Press the
VOL (+) or VOL (-) button to select the TV
Setting
menu.
3. Press the ENTER button to access TV Setting.
4. Press the
UP or DOWN button to move cursor to the
Parent Control sub-menu, then press the ENTER
button.
5. The “
Please Enter Pin:” screen will appear. Input
your 4 digit
PIN number.
6. After entering a valid PIN number, the
Parent
Control
screen will appear, Press the UP or DOWN
button to select the “
TV Rating (TV-G)”.
Parent Control
Parent Control ( Off )
z TV-Rating ( TV-G )
MPAA ( PG 13. )
Change Pin
TV-Rating
B/U FV D L S V
TV-Y -- -- -- -- -- -TV-Y7 -- B -- -- -- --
z TV-G B -- -- -- -- --
TV-PG B B B B B -TV-14 B B B B B -TV-MA B -- -- B B B
VOL (-)
UP
VOL (+)
MENU/ENTER
TITLE/EXIT
DOWN
Page 37
V30DMBT-U21/M21 2004/12/22 上午 09:50
37
7. The “
TV Rating” screen will appear. Press the UP or
DOWN button to select a particular TV category.
Press the
Enter button to select “B” for blocking.
8. Press the
UP or DOWN button to select a particular
TV level of restriction. Press
VOL (+) or VOL (-) to
select category of restriction. Press the
Enter button
to select “B” for Block or “U” for Unblock.
If the channel is turned to a restricted channel, the parental controls will block it. The screen will
turn blue and the following message will appear:
“
Parent Control working Level: ”
TV-G
TV-Y Young children
TV-Y7 Children 7 and over
--------------------------------------
TV-G General audience
TV-PG Parental guidance
TV-14 Viewers 14 and over
TV-MA Mature audience
FV : Fantasy violence
D : Sexual suggestive dialog
L
: Adult language
S : Sexual situation
V : Violence
Note: The Parent control will automatically block categories that are of higher restriction.
For example, if you block a TV-PG category, then TV-14 and TV-MA content will
automatically be blocked.
TV-Rating
B/U FV D L S V
TV-Y -- -- -- -- -- -TV-Y7 -- B -- -- -- -TV-G B -- -- -- -- --
z TV-PG B U B B B --
TV-14 B B B B B -TV-MA B -- -- B B B
Page 38
V30DMBT-U21/M21 2004/12/22 上午 09:50
38
How to set up Restrictions using the “MPAA” Rating
The MPAA ratings system for parental controls uses the Motion Picture Association of America
(MPAA) ratings system for movies. When the parental controls are enabled, the TV will
automatically block any programs that are coded with MPAA ratings codes that you deem
objectionable.
1.
Press the MENU button to display the main menu.
2. Press the
VOL (+) or VOL (-) button to select the TV
Setting
menu.
3. Press the ENTER button to access TV Setting.
4. Press the
UP or DOWN button to move the cursor to
the
Parent Control sub-menu then press the ENTER
button.
5. The “
Please Enter Pin:” screen will appear. Input
your 4 digit
PIN number.
6. After entering a valid PIN number, the
Parent
Control
screen will appear. Press the UP or DOWN
button to select the “
MPAA (PG-13)” then press the
ENTER button.
VOL(-)
UP
VOL(+)
MENU/ENTER
TITLE/EXIT
DOWN
Parent Control
Parent Control ( Off )
TV-Rating ( TV-G )
z MPAA ( PG 13. )
Change Pin
MPAA
B/U
G B
PG B
z PG 13 B
R B
NC17 B
X B
Page 39
V30DMBT-U21/M21 2004/12/22 上午 09:50
39
7. Press the UP or DOWN button to select a particular
MPAA rating. Press the
ENTER button to select
either “B” or “U”.
(B: Block; U: Unblock)
If the TV is turned to a restricted channel, the parental controls will block it .The
Screen will turn into blue and the following message will appear:
“
Parent Control working Level: ”
MPAA PG13
G : General audience (no restrictions).
PG : Parental guidance suggested.
PG13 : Parents strongly cautioned.
R : Restricted. Children under 17 should
be accompanied by an adult.
NC17
: No Children
X : Adults only.
Note: The parental controls will automatically
block MPAA ratings that are of a higher
restriction. For example if you block "PG13"
programs, then "R", "NC17" and "X" content
will automatically be blocked.
Page 40
V30DMBT-U21/M21 2004/12/22 上午 09:50
40
Viewing Closed Captions
This LCD TV has the ability to decode and display closed caption content if supported by the
program. These captions are usually used for the hearing impaired or for foreign language
translations. Most VCR's can record the closed caption signal from television programs. Most
pre-recorded commercial videotapes also provide closed captioning as well. Refer to the closed
caption symbol within your television programming guide and on the videotape packaging in
order to properly configure the closed captioning function:
1. Press the
MENU button to display the main menu.
2. Press the
VOL (+) or VOL (-) button to select the TV
Setting
menu.
3. Press the ENTER button to access TV Setting.
4. Press the
UP or DOWN button to move cursor to the
Caption sub-menu.
5. Press the VOL (+) or VOL (-) button to select
“
Caption ”or “Text ” mode. If you don’t want to
display the closed captions, you could select
Off.
Note: Closed captioning doesn’t work with DVD’s.
VOL(-)
UP
VOL(+)
MENU/ENTER
TITLE/EXIT
DOWN
TV Setting
ANT/CATV ( ANT )
Auto scan ( No )
Erase/Add ( Add )
Parent Control
z Caption ( Off )
Fine Tune －
llllllllllllllllllll
………………
＋
CC1 CC2 CC3 CC4
TT1 TT2 TT3 TT4 OFF
－ ＋
Page 41
V30DMBT-U21/M21 2004/12/22 上午 09:50
41
D. Other Function
1. UP/DOWN:
Under TV mode, UP/DOWN keys are for changing channels.
UP/DOWN keys are for selecting items.
2.
VOL (+) or VOL (-):
Under any display mode, “VOL (+) or VOL (-) ” are for adjusting sound volume.
When entering the OSD, the “VOL (+) or VOL (-)” buttons are used for selecting
menu options. When entering sub-menu items, the
“VOL (+) or VOL (-)” buttons are
for adjusting functions.
3.
ARC (Aspect Ratio Control):
Normal: sets the aspect ratio to 4:3, as used in traditional TV programs. Black bars
will be visible on the left and right sides of the image.
Periscope: Expands 4:3 video sources to fit the 16:9 display by stretching the image
horizontally to fill the screen.
Zoom: Some DVD movies may not fill the top and bottom of the display. The zoom
function extends the height to fill the screen by stretching the image vertically.
Full: This mode expands 4:3 video sources both vertically and horizontally to fill the
entire screen while keeping the original aspect ratio.
4.
APC (Automatic Picture Control):
Automatic Picture Control allows you to easily set the screen luminosity based upon your
environment. If in a well lit viewing area it may be necessary to turn up the screen intensity via
the APC "Clear" setting to make the image viewable. Likewise if in a dark viewing area it may
be necessary to turn down the screen intensity via the APC "Dark" setting. Toggle the
APC
button to scroll through the four APC modes to select the mode that best suits your situation.
5.
MTS (Multi-Television-Sound):
There are three supported MTS modes: “Mono”, “Stereo” or “SAP” (Secondary Audio
Program)
This LCD TV has the ability to decode stereo or SAP broadcasts.
6.
RESET:
Under PC mode, the reset button restores the following settings to factory values:
(Brightness, Contrast, Color, Temp, Volume, Treble, Bass, and Balance)
Under Video mode, the reset button restores the following settings to factory values:
(Brightness, Contrast, Hue, Saturation, Sharpness, Volume, Treble, Bass, and Balance)
Page 42
V30DMBT-U21/M21 2004/12/22 上午 09:50
42

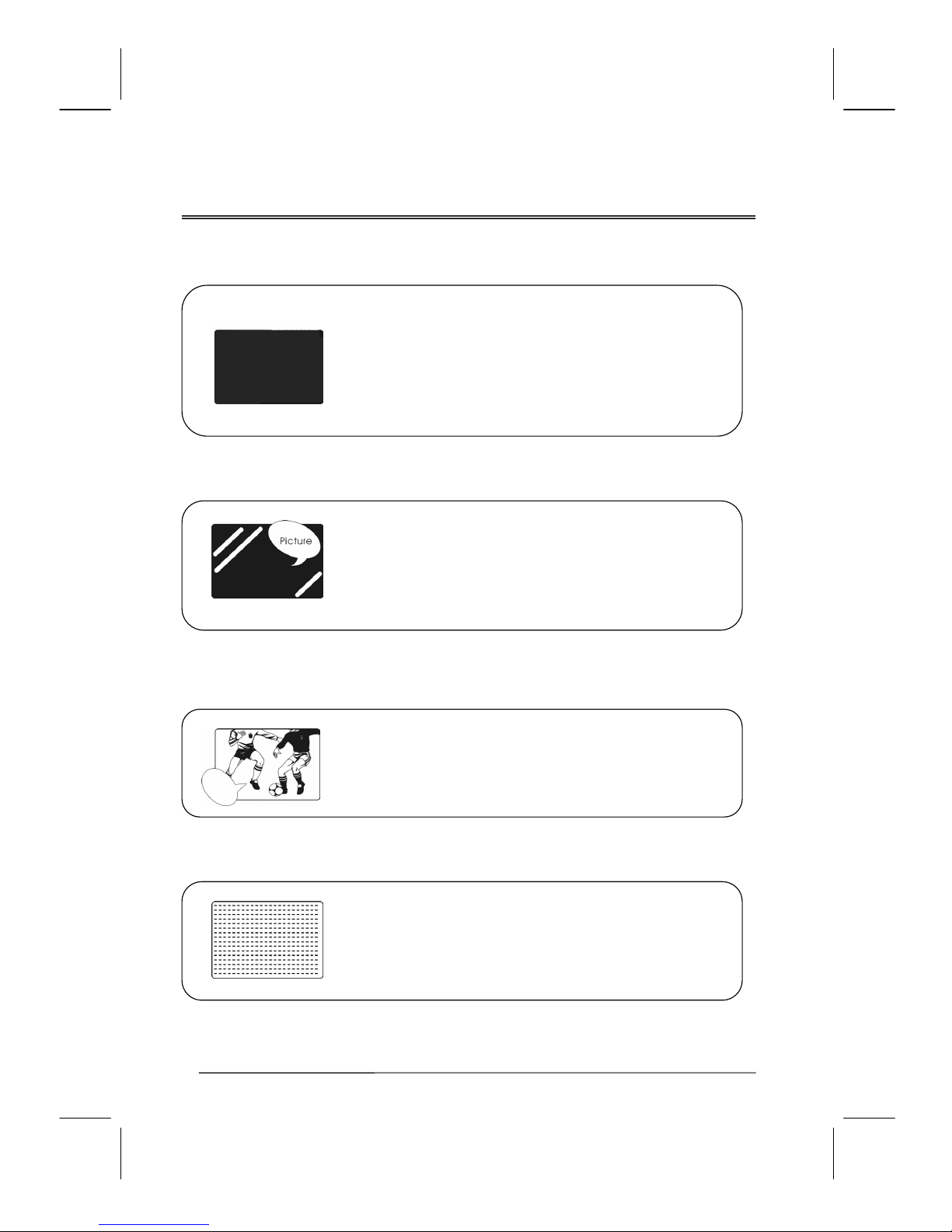

Troubleshooting
There is no picture or sound.
• Make sure the AC adapter is properly inserted in the
Power outlet.
• Verify that there is a valid source signal.
• Make sure the input mode is set to TV.
• Make sure the TV is powered on
There is no picture from AV.
• Make sure the BRIGHTNESS is properly adjusted.
• The florescent lamp may have reached the end of its life.
Contact an authorized service center.
• Make sure the video source is plugged into the composite
video-in port.
There is no sound.
•
Make sure the volume is not set to minimum.
• Make sure the sound is not muted
• Make sure that headphones are not connected.
There is no picture or sound, just noise.
• The source signal may be weak.
• Your provider may be experiencing difficulties.
• Check your input connections.
Page 43
V30DMBT-U21/M21 2004/12/22 上午 09:50
43

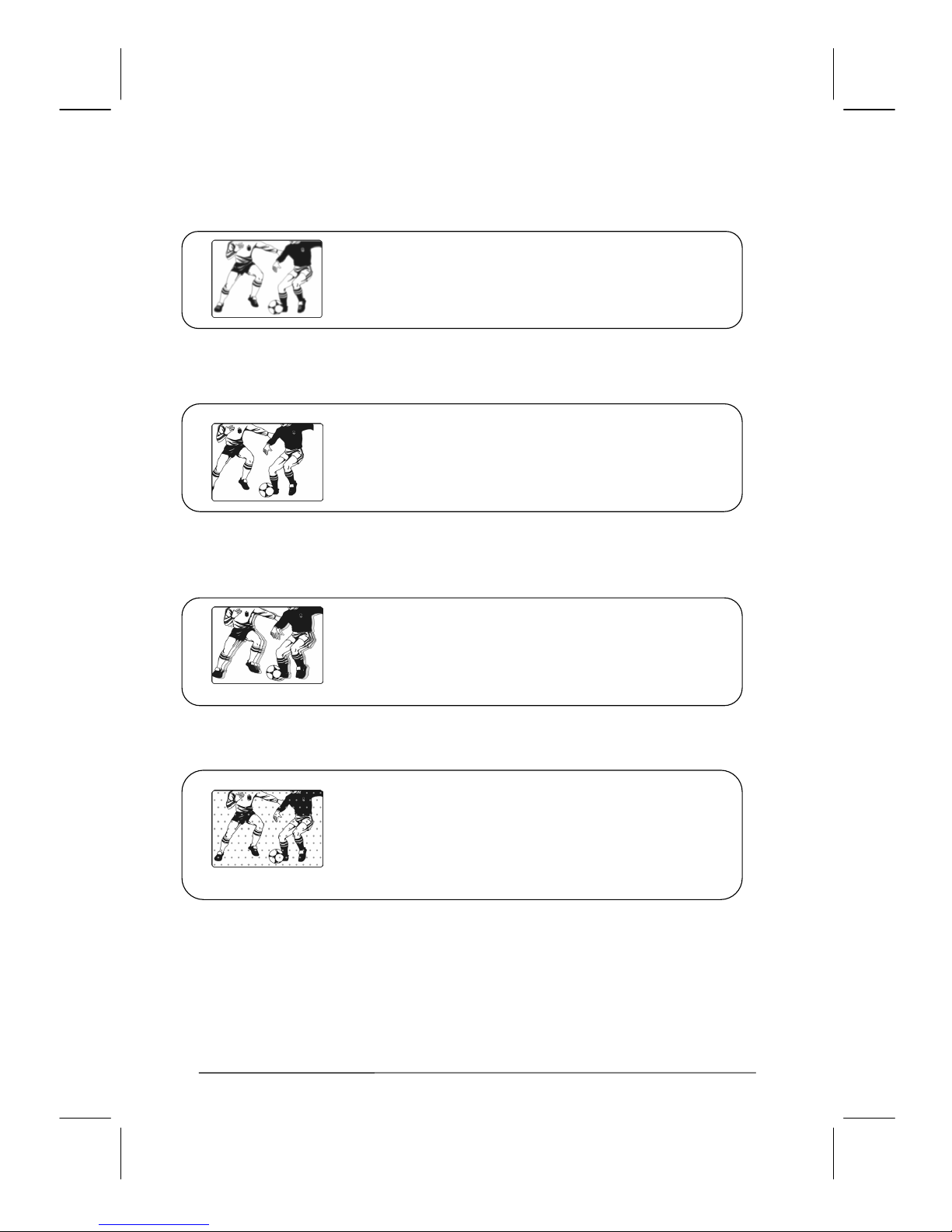

Picture is not clear.
• The source signal may be weak.
• Your provider may be experiencing difficulties.
• Check your input connections.
Picture is light or improperly tinted.
• Check the Hue, Saturation and Color adjustments.
• Reset the TV to the factory default settings.

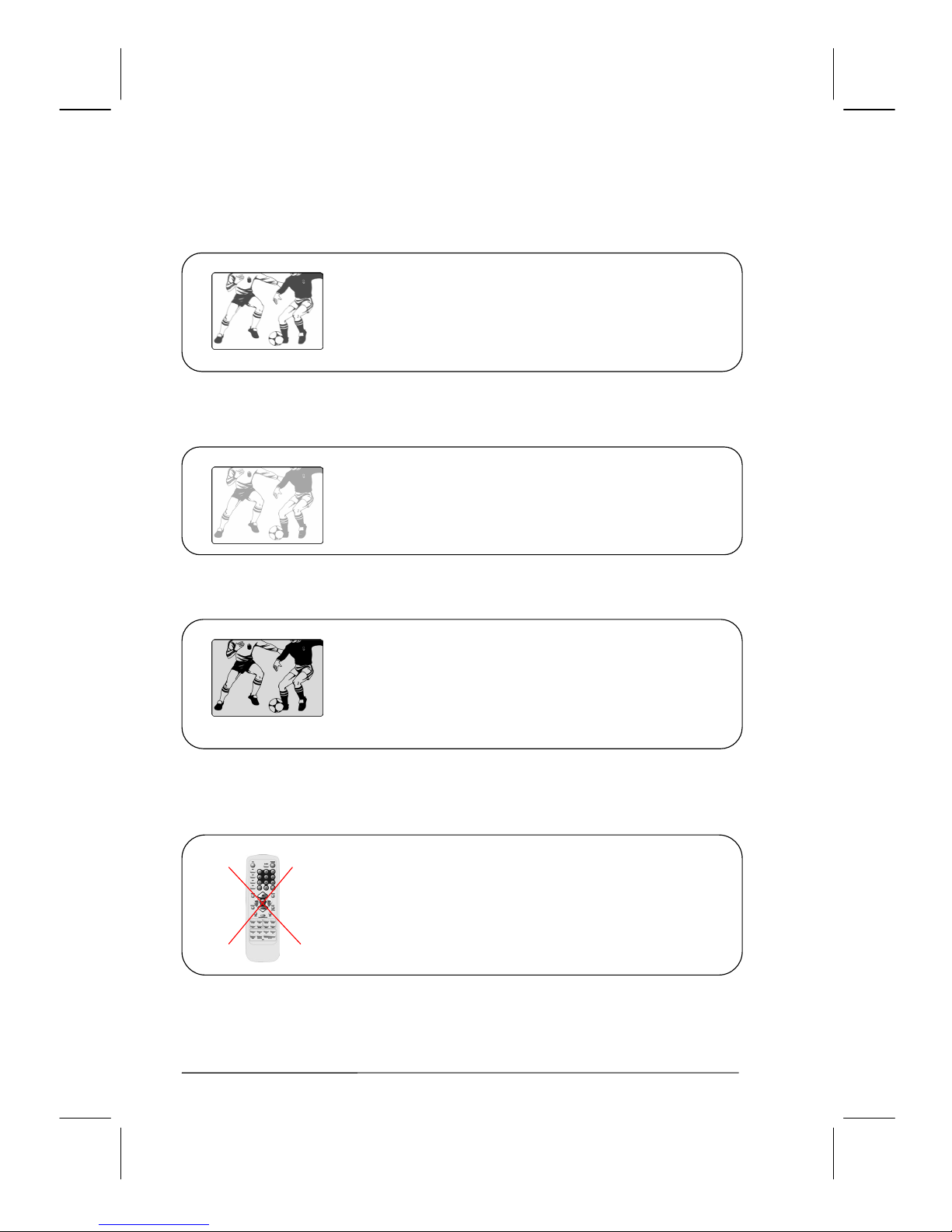

The picture is too dark.
• Select a different APC mode.
• Check the PICTURE and BRIGHTNESS adjustment.
• The fluorescent lamp may have reached the end of its life.
Contact an authorized service center
Remote control does not work.
• Install new batteries.
• Make sure the remote sensor window isn’t blocked.
• Make sure the AC adapter is properly inserted into the
power outlet.
Page 44
V30DMBT-U21/M21 2004/12/22 上午 09:50
44
The picture is not sharp.
• The signal source may be weak.
• Your provider may be experiencing difficulties.
• Check your input connections.
The picture moves.
• The source signal may be weak.
• Your provider may be experiencing difficulties.
• Check your input connections.
The picture is doubled or tripled.
• The source signal may be weak.
• Check your input connections.
The picture is spotted.
• There may be interference from other appliances nearby or
around the LCD TV.
There may be interference between the source cable and the
power cable. Make sure they don’t touch..
Page 45
V30DMBT-U21/M21 2004/12/22 上午 09:50
45

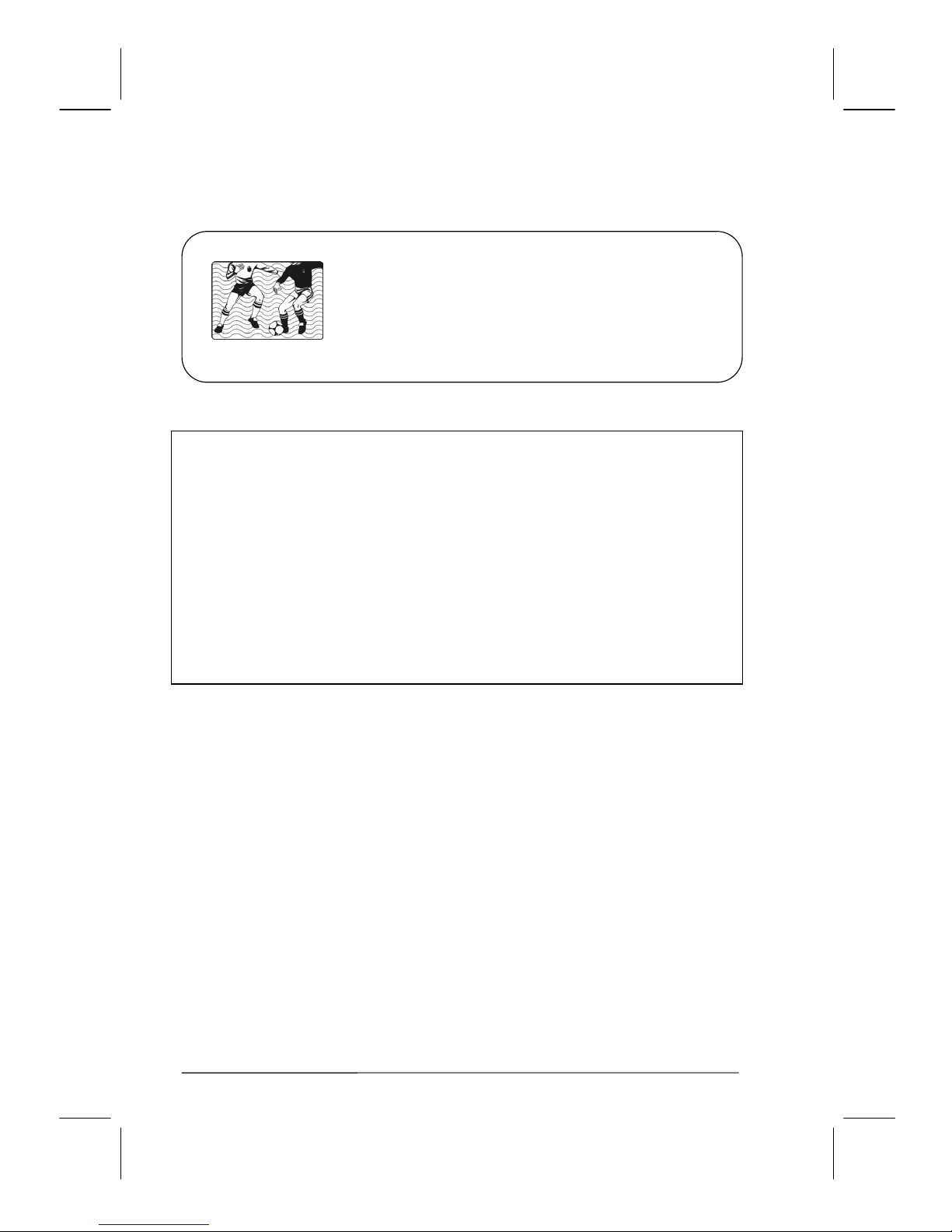

There are stripes on the screen or colors fade.
• There may be interference from other appliances.
• There may be interference between the video source cable and the
power cable. Make sure the power and video cables are not
touching.
• Check the Hue, Saturation and Color adjustments.
Note:
If an issue cannot be immediately resolved, unplug the power cord for 8~10 seconds. Then
check again to see if the TV is operating normally. It may be necessary to perform a factory
reset to solve some issues.
To initiate a factory reset, perform the following steps:
1. Press down and hold the
CH Up button located on top of the LCD TV.
2. Press the
Power button on the remote control until the LED light turns on.
3. Keep holding the
CH Up button until “RESET” appears on the screen.
4. The factory reset is now complete. Check again to see if the TV is back to normal.
Page 46
V30DMBT-U21/M21 2004/12/22 上午 09:50
46
PC Input Preset Timing Table
Analog Input
No. Mode Name
H-Resolution
V-Resolution
H.Freq.
(KHz)
V. Fr eq .
(Hz)
H.
Polarity
V.
Polarity
Pixel CLK
(MHz)
1 VGA 640 * 480 31.469 59.940 - - 25.175
2 VGA 640 * 480 37.500 75.000 - - 31.500
3 US TEXT 720 * 400 31.472 70.100 - + 28.325
4 STB 768 * 576 31.250 50.000 - - 29.750
5 SVGA 800 * 600 37.879 60.300 + + 40.000
6 SVGA 800 * 600 46.875 75.000 + + 49.500
7 XGA 1024 * 768 48.363 60.000 - - 65.000
8 XGA 1024 * 768 56.476 70.000 - - 75.000
9 WSGA 1280 * 768 47.708 60.000 + - 80.150
Digital Input
*The resolution and the frequencies are displayed on the screen may not exactly same as this list.
*Under PC mode and connecting DVI cable from video device, for example as a DVD player or a
Set Top Box, the picture cannot be a full nor a normal screen during receiving 480P or 720P input.
Due to 480P is same as 640 x 480 @60hz timing or 720P is the same as 1280 x 720 @60hz timing,
users need to press PC button on remote control to switch between the two solutions for the correct
pictures.
Mode
No.
Mode Name Resolution H.Freq.(KHZ) V. Fr eq .( H Z) H. Polarity V. Po lari ty
Pixel
CLK
(MHZ)
1
VGA 60HZ
640*480 31.469 59.941 － － 25.175
2
SVGA 60HZ
800*600 37.879 60.317 ＋ ＋ 40.0
3
XGA 60HZ
1024*768 48.363 60.004 － － 65.0
4
US TEXT
720*400 31.47 70.08 ＋ ＋ 28.320
Page 47
V30DMBT-U21/M21 2004/12/22 上午 09:50
47
Specifications
ITEMS SPECIFICATION
Screen Size 29.6” TFT-LCD Panel
Aspect Ratio
15：9
Resolution 1280 x 768 (WXGA)
Display Area (opening) H x V 643 mm x 385 mm
Pixel Pitch 0.50 mm x 0.50 mm
Display colors 16,777,216 colors
Contrast Ratio 600 : 1 (typ.)
Brightness (center)
550 cd / m2 (typ.)
Viewing Angle (CR>10) 170 o Hor. / 170 o Ver. (typ.)
Panel
Response Time (GTG) 16.6 ms (typ.)
Broa dcasting System NTSC,M/N
Receiving Channel PLL 181Ch, CATV 125CH
Sound System MTS + SAP
TV Function
DATA Broadc asting Close Caption, V-chip
Composite Signal CVBS
Y, C Signal S – Video
Video Input
Component Signal Y, Cb/Pb, Cr/Pr (HDTV Ready)
Signal Connection DVI-I 29 pin
PnP compatibility DDC / 2B
Scanning Frequency f
H =
31.5 ~ 60KHz / fV = 56 ~ 75Hz
Recommended 1024 x 768 (60Hz)
Digital compliant DVI 1.0/HDCP 1.1
PC Input
HDTV Ready (via D-Sub 15Pin) 720P, 1080i
Audio 1 CVBS & S-Video x 1
Audio 2 Y, Cb/Pb, Cr/Pr x 1
Audio Input
Audio 3 PC x 1
Video Output
Video out (TV only) RCA-Jack x1
Speaker ( build-in ) 10W +10W (rms) @ THD < 10%
Headphone Headphone Mini-jack (3.5φ)
Line Out RCA -Jack (L / R )
Audio Output
Subwoofer Out RCA -Jack
OSD Language English, French, German, Spanish, Chinese
Function Keys
Power, Source, Menu, Up/Down (Channel), +/-(Volume) ,
Aspect .
Video Performance
Picture in PC (PIP), Video on Video (VOV), 3D comb-filter, 3D
De-interlace, Aspect Ratio Control (ARC), Auto Picture Control.
Audio Performance Equalizer, Subwoofer, Auto Volume, Control (AVC)
Feature
Other Control Sleep Timer, Auto Power Off
Power Supply AC 100V ~ 240V, 50 / 60Hz
Power
Power Consumption < 150 W
Panel Til t
Forwards / Backwards
- 5
o /
+ 15o / ±180 o
Dimension
W x H x D 890mm * 528.1mm * 266.2mm
Weight (net)
Without Accessories 15.2 kg
Accessories
Remote controller, Batteries, AC power cord
Page 48
V30DMBT-U21/M21 2004/12/22 上午 09:50
48
Loading...
