Winbook 486 SLC User Manual

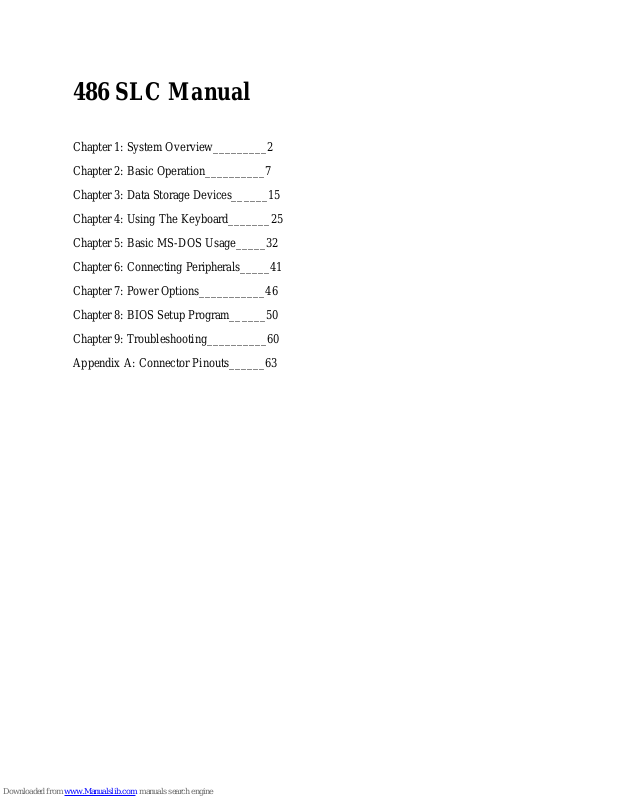

486 SLC Manual

Chapter 1: System Overview_________2
Chapter 2: Basic Operation__________7
Chapter 3: Data Storage Devices______15
Chapter 4: Using The Keyboard_______25
Chapter 5: Basic MS-DOS Usage_____32
Chapter 6: Connecting Peripherals_____41
Chapter 7: Power Options___________46
Chapter 8: BIOS Setup Program______50
Chapter 9: Troubleshooting__________60
Appendix A: Connector Pinouts______63

CHAPTER 1

SYSTEM OVERVIEW

Your WinBook notebook Personal Computer (PC) represents the leading edge of present day PC
technology. Despite its amazing compactness, the WinBook incorporates all the functions and
features of full sized desktop PCs. This amazing reduction in size and weight was accomplished
by taking full advantage of the latest advances in VLSI (Very Large Scale Integration)
technology. As a result, the WinBook is extremely light and more reliable due to the reduction in
the number of on-board components. The WinBook is IBM AT and MS-DOS compatible and
can run most software designed for use on IBM AT systems in an MS-DOS environment
including Windows and Windows applications.

The Central Processing Unit

The Central Processing Unit (CPU) is the heart of any computer system, coordinating
the flow of data and controlling the hardware in a system.
The WinBook used the CYRIX CX486SLC CPU, which includes a built-in 1 Kbyte cache to

increase the speed of data access. The CPU uses a 32-bit internal data bus (path) and 16-bit
external data bus. Thus it offers the speed of 32-bit processing while still remaining fully
compatible with the 16-bit AT standard. Versions are available with a choice of CPU speed of
25MHz and 33MHz.

The WinBook uses the latest version of the CX486SLC CPU the “E” version. The “E” Version
supports the System Management Interrupt (SMI) feature, which in turn gives the WinBook state
of the art power management features (see chapter 8, for details).

Key Components

This manual contains full instructions for using all the functions of the WinBook. Some items in
the WinBook may vary, such as the hard disk drive type, but all basic functions will be the same.
In this section, a brief introduction to the various components in the system are given to give you
an overall understanding of the key parts and the names that will be used in this manual to
describe them.

The Main System Unit

By the main system unit, we refer to the bottom half of the whole system, i.e. the complete unit
excluding the LCD display and the keyboard. Contained within the

main system unit is the power supply, the mainboard, and the storage devices including hard and
floppy disk drives and an IC card unit (see below), the battery and all connectors.

Motherboard

The mainboard is contained within the main system unit and is not visible to the user. The
mainboard contains the following key components:

• CYRIX CX486SLC 35/33 CPU

• Socket for 80387SX math coprocessor

• 2M (megabytes) of main memory (RAM) expandable to 4M or 8M

• ScatKat MCCS2038A chipset

• AMI BIOS with SETUP program and power management

Storage Devices

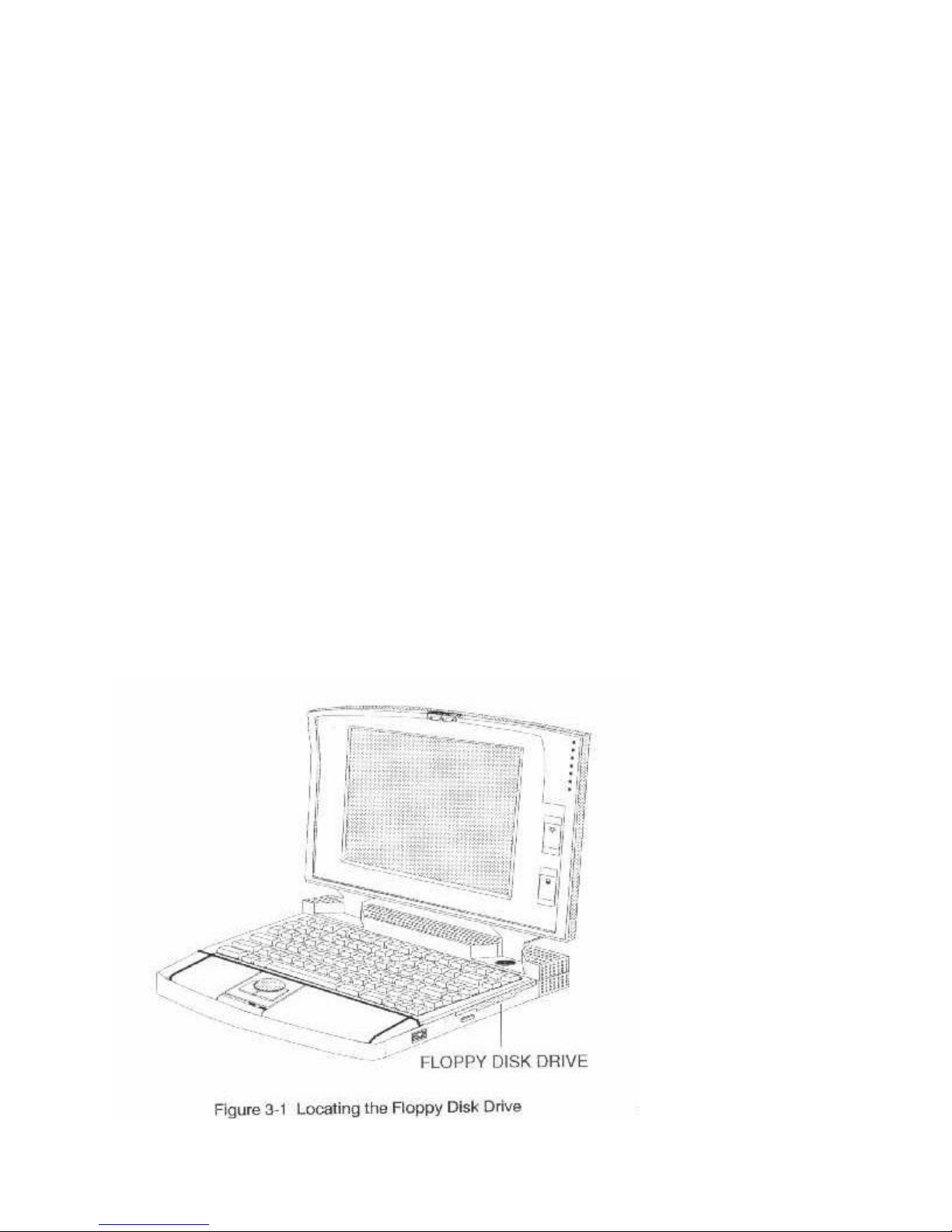

• One 3.5” 1.44 megabyte floppy disk drive.

• One 2.5” IDE (AT bus) hard disk drive (capacity varies)

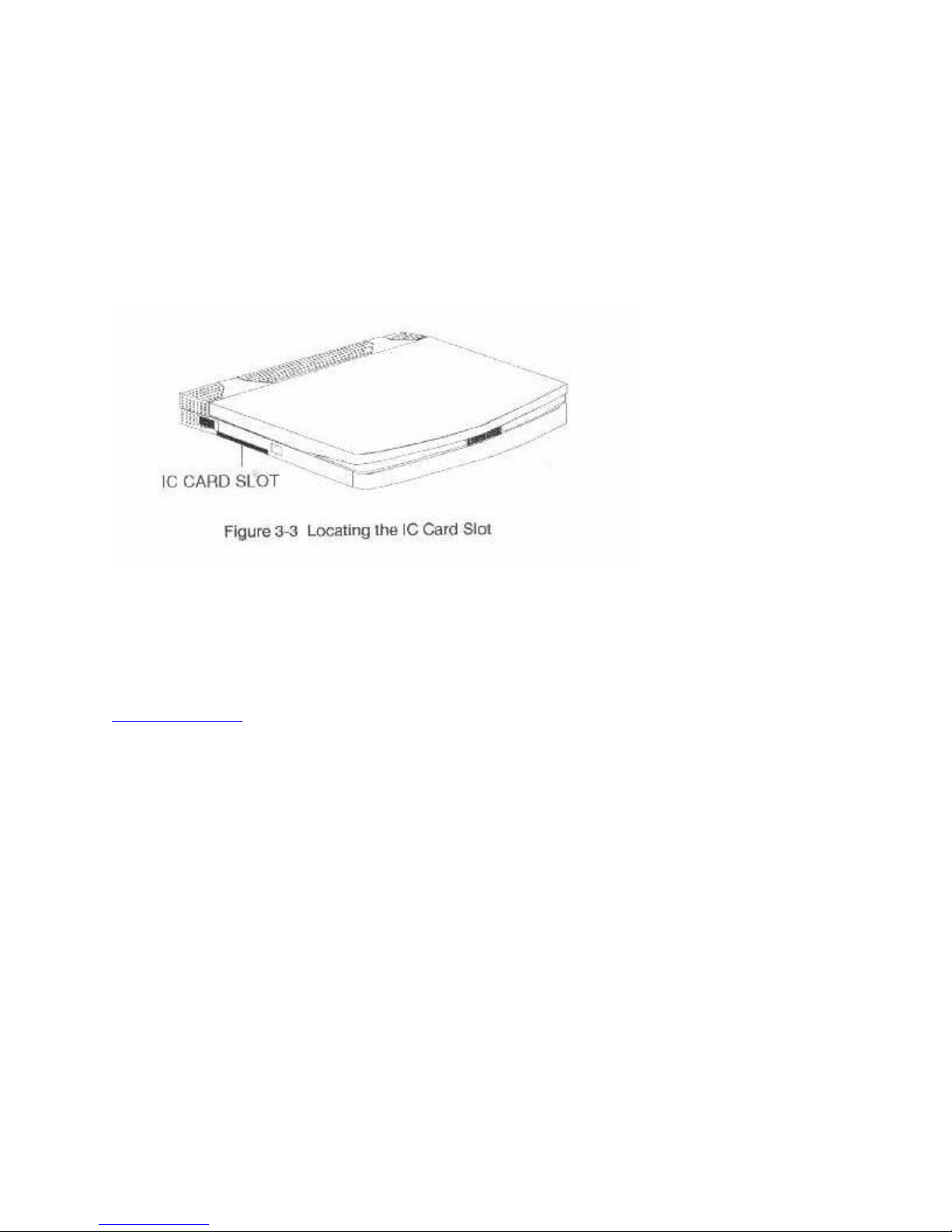

• One PCMCIA Type 1/Type 2 IC card unit

Interface Ports

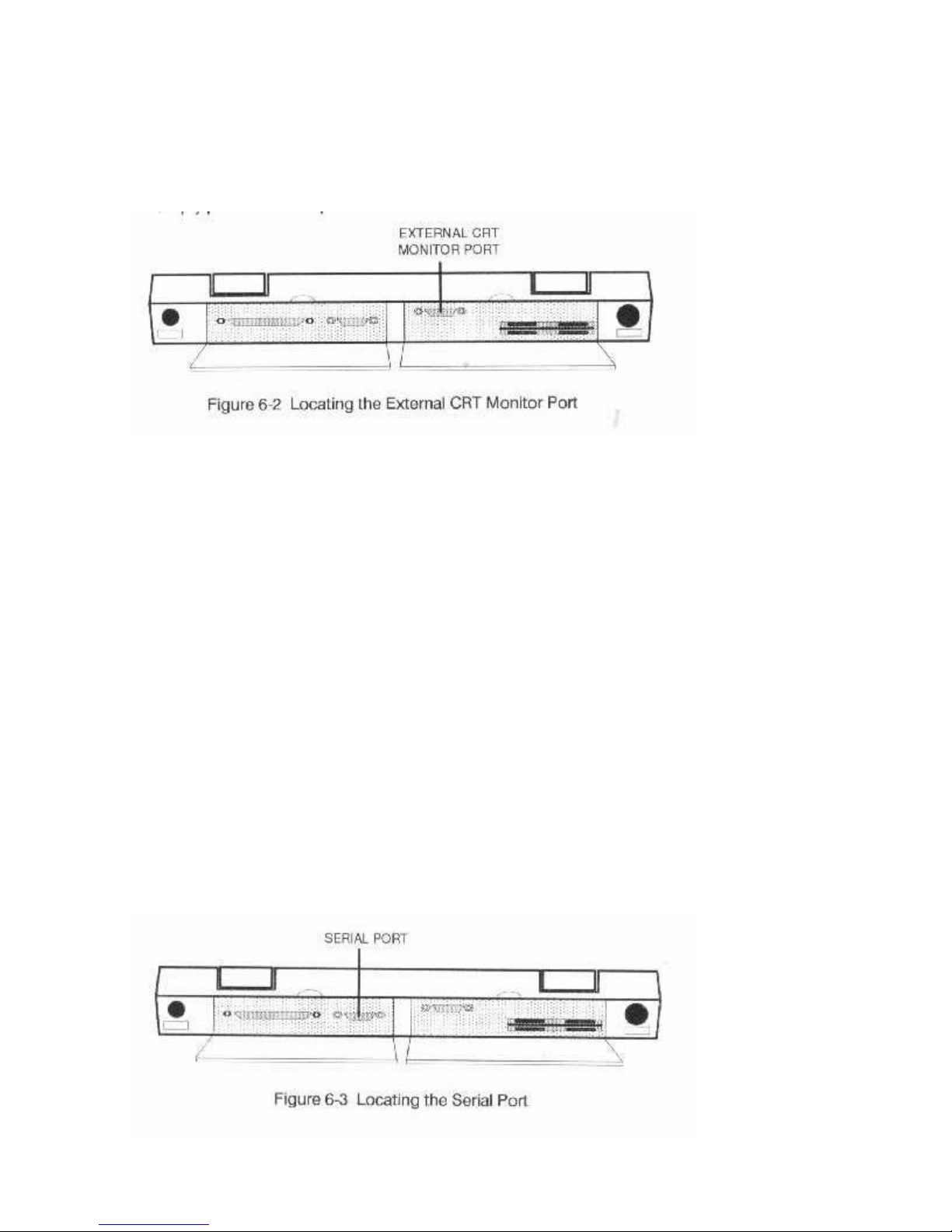

• One external serial (RS-232) port

• One external parallel (printer) port

• One external keyboard port

• One external analog VGA monitor port

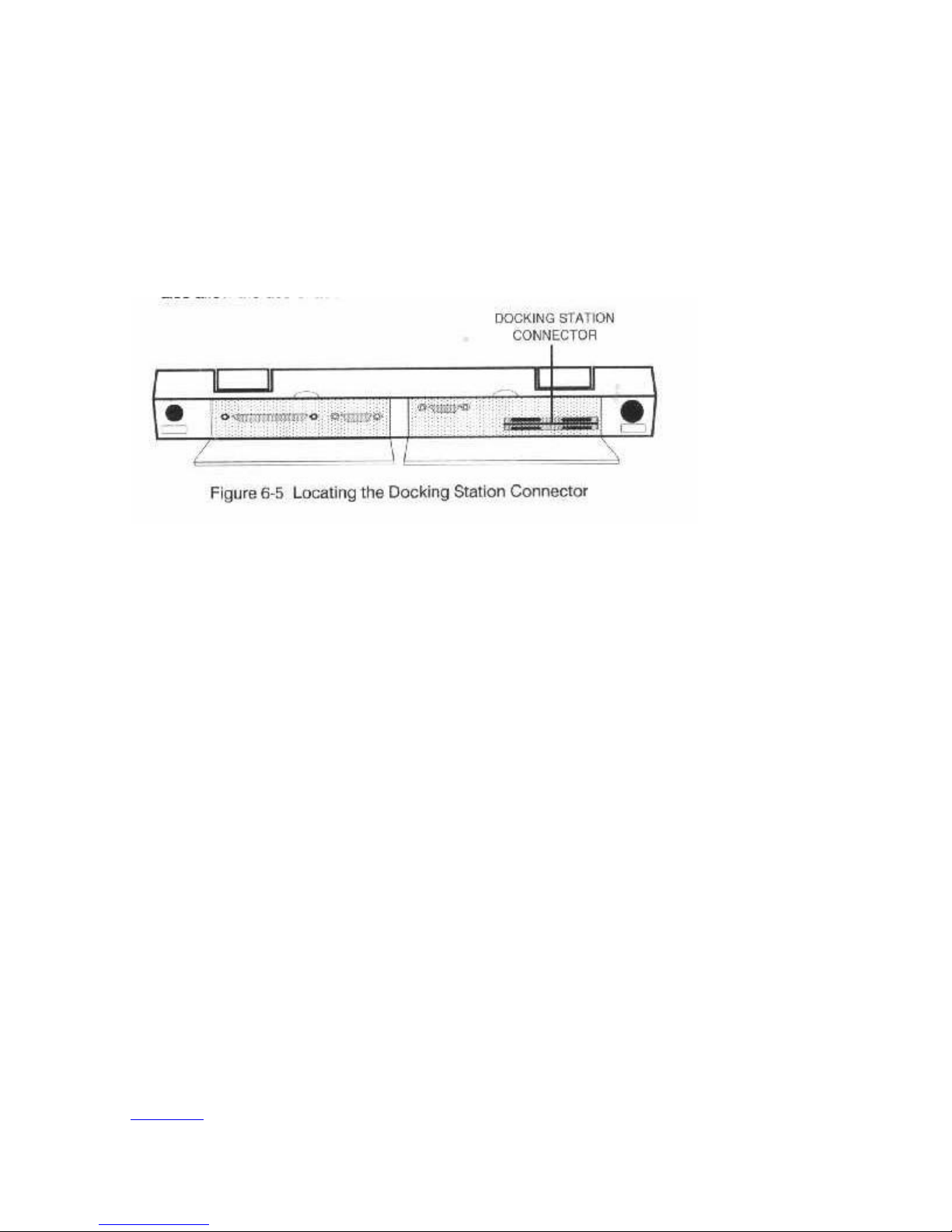

• One docking system expansion port

The Keyboard

• 84 (USA) or 85 (European) key IBM AT compatible keyboard

• Integrated two-button trackball

• Integrated cursor keys and numeric keypad

• LED indicators for Num Lock, Caps Lock and Scroll Lock

The LCD Display

The WinBook comes with a built-in LCD (Liquid Crystal Display) with a resolution of
640 pixels (dots) by 480 pixels. This display takes the place of the monitor in
conventional desktop computer systems. The LCD display is fully compatible with

the IBM VGA standard, which means that you will be able to run most software in VGA
mode, which provides the highest resolution. VGA mode also allows you to run software,
which was designed for EGA and monochrome displays.

Unpacking and Component Checklist

Your WinBook comes in a single carton. When you open this carton for the first time, check that
all the items listed below are present:

1. One WinBook Computer.

2. One AC adapter and charger.

3. One AC power cable.

4. One battery pack.

5. Three 3.5” VGA Driver and Utility program diskettes.

6. One dual keyboard cable adapter.

7. This user’s manual.

If any of the above items are not present, please contact the dealer from whom you purchased
your system immediately.

Software Requirements

Please note that the WinBook comes in several configurations, some of which may include the
MS-DOS operating system. Other configurations may also include certain software packages.
The WinBook is compatible with IBM PC/AT standard and can run most software designed for
that standard. Note that all configurations included a VGA driver and utility diskette, which is
specifically for use with the WinBook.

Operating System

A (Disk) Operating System, abbreviated as DOS or OS, is necessary to be able to use your
computer. This software controls the basic manipulation of data between the components of the
computer and no other software can be run without it. MS-DOS, OS/2 and UNIX are examples
of common operating systems and you must load one of these operating systems before you do
anything else. Microsoft Windows is a graphical user interface (GUI) which takes over many of
the functions of the operating system and is loaded on to of MS-DOS.

Applications Software

Applications software refers to software, which performs some task, such as a word processor or
a spreadsheet. What applications software you should buy depends entirely on what you wish to
do.

Most software comes in different versions according to the operating environment that it is to be
used on; for example given software might come in a DOS version, an OS/2 version and a
Windows version. You must use the correct version according to the operating system that you
have loaded. Note that although Windows is loaded on top of DOS, only Windows version
software will run in the Windows environment.

Most software is readily available in computer stores or by mail order and you should consult
with your local dealer for advice on what software to buy.

Chapter 2: Basic Operation

Setting Up your System

Because the WinBook comes as a complete integrated unit, the setup procedures are quite
simple, and even if you are new to computers, by following the instructions given here, you will
soon be up and running. We assume that you will be running the WinBook off the AC power
adapter when you use your system for the first time.

Connecting the Power Adapter

Turn the WinBook so you are looking at the rear of the system. Locate the power socket
according to the diagram below.

REAR VIEW

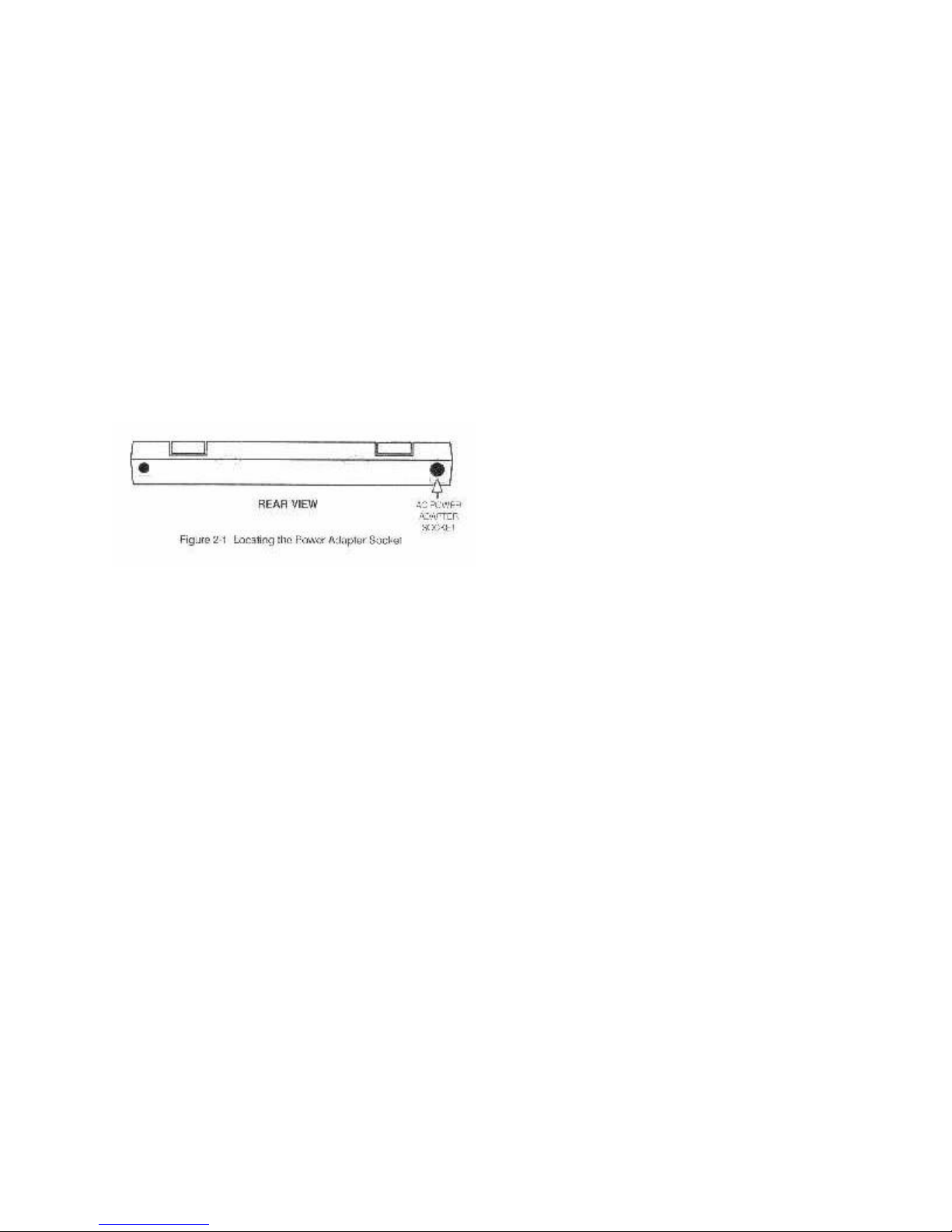

Figure 2-1 Locating the Power Adapter Socket

Plug the cable attached to the power adapter into this power socket. Plug the power cable into the
socket on the power adapter, and the plug the other end of the power cable into an AC power
outlet of any voltage from 90V to 260V. It is not necessary to select any particular voltage as the
power adapter has an auto-select feature.

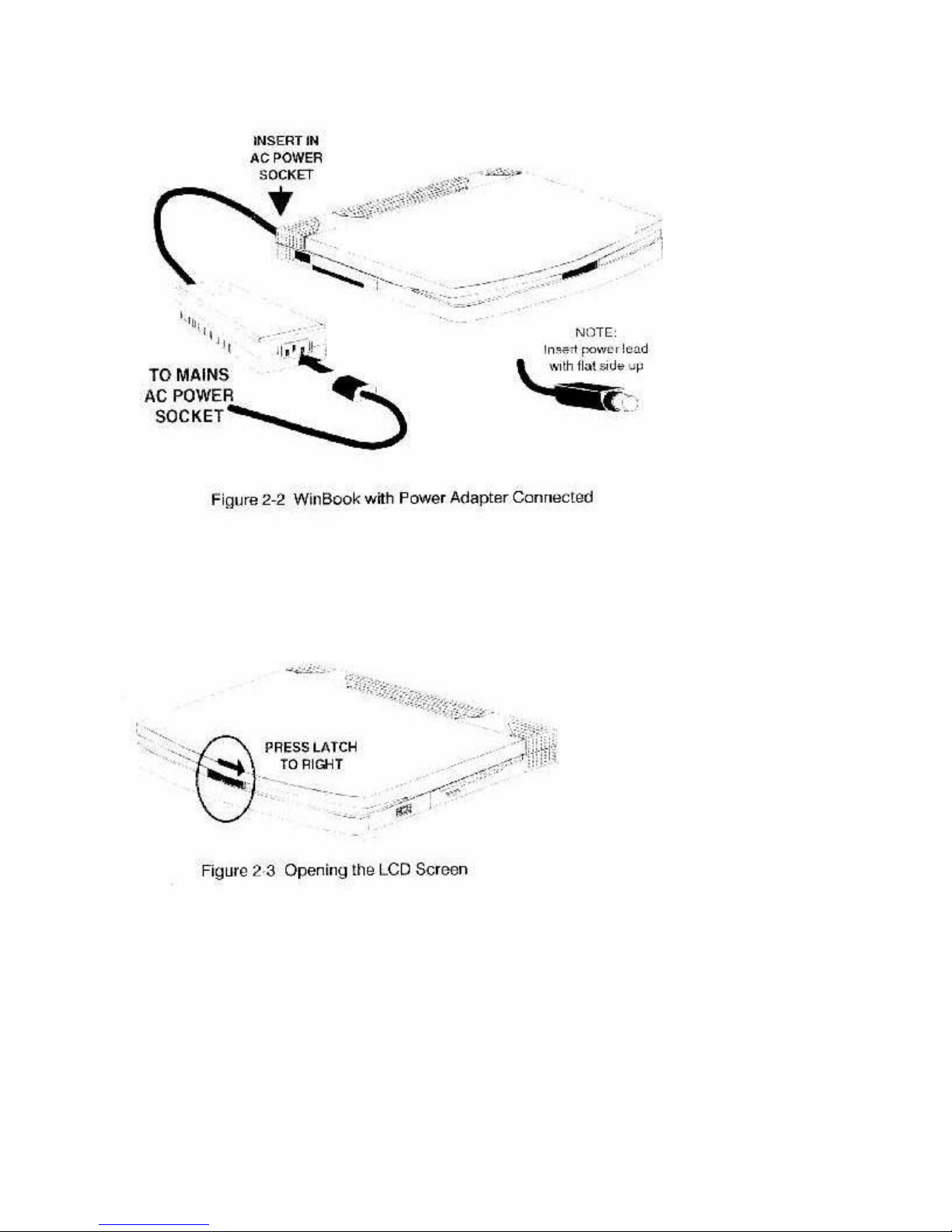

Figure 2-2 WinBook with Power Adapter Connected

Opening the LCD Screen

Having connected the power adapter, turn the system so you are looking at the front. Slide the
latch on the front of the system to the right, as illustrated below.

Figure 2-3 Opening the LCD Screen

Raise the LCD screen until it is in the vertical position. You may then push the LCD screen
slightly further back or forward according to your preference. The special hinge of the LCD
allows you to position the screen at any angel and it will stay fixed at that angel. Usually to
obtain the clearest image, the LCD screen should be positioned so you can look directly into it at
90 degrees, as shown in the illustration below.

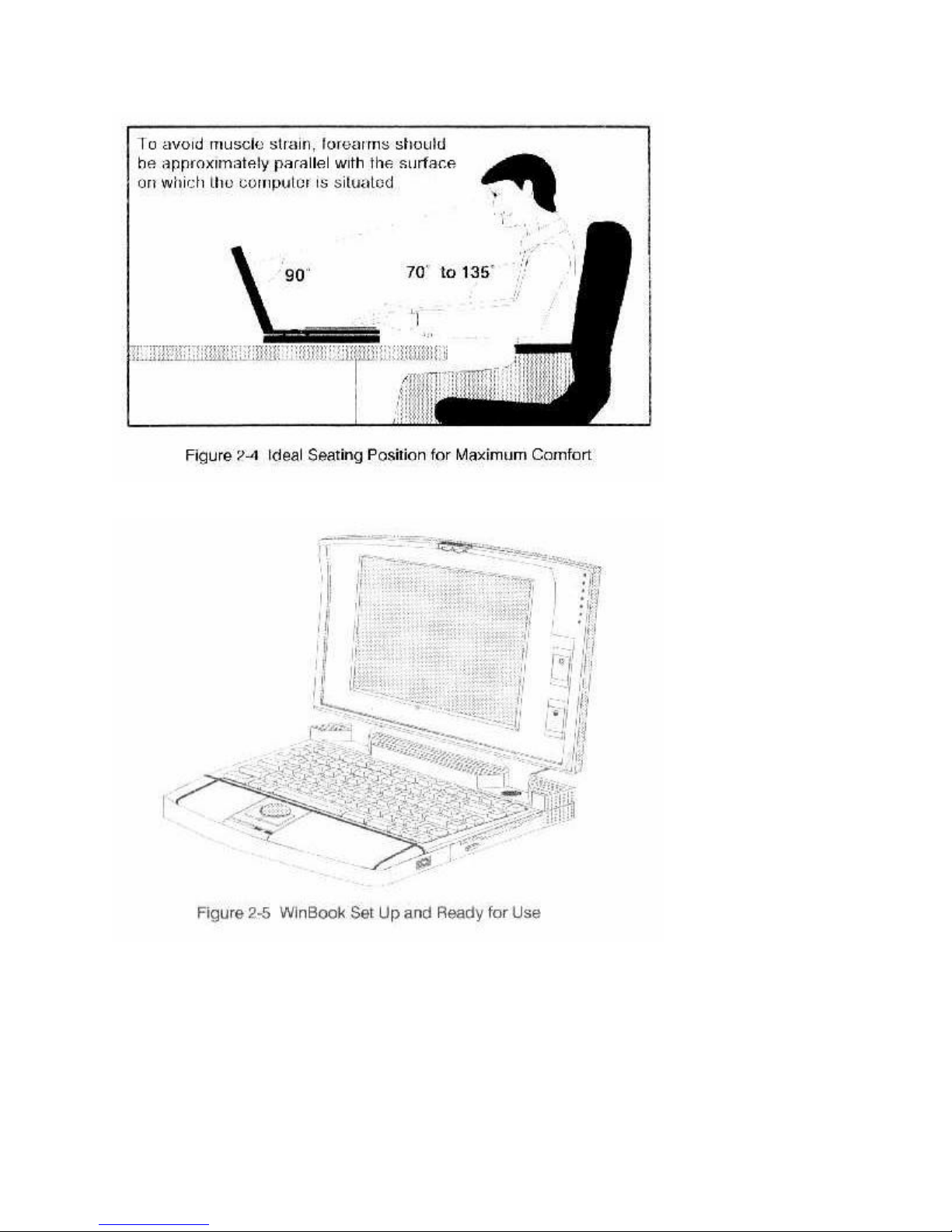

Figure 2-4 Ideal Seating Position for Maximum comfort

Figure 2-5 WinBook Set Up and Ready for Use

Turning the Power On

Locate the Power ON/OFF switch at the rear of the left side of the WinBook, as shown in the
illustration below.

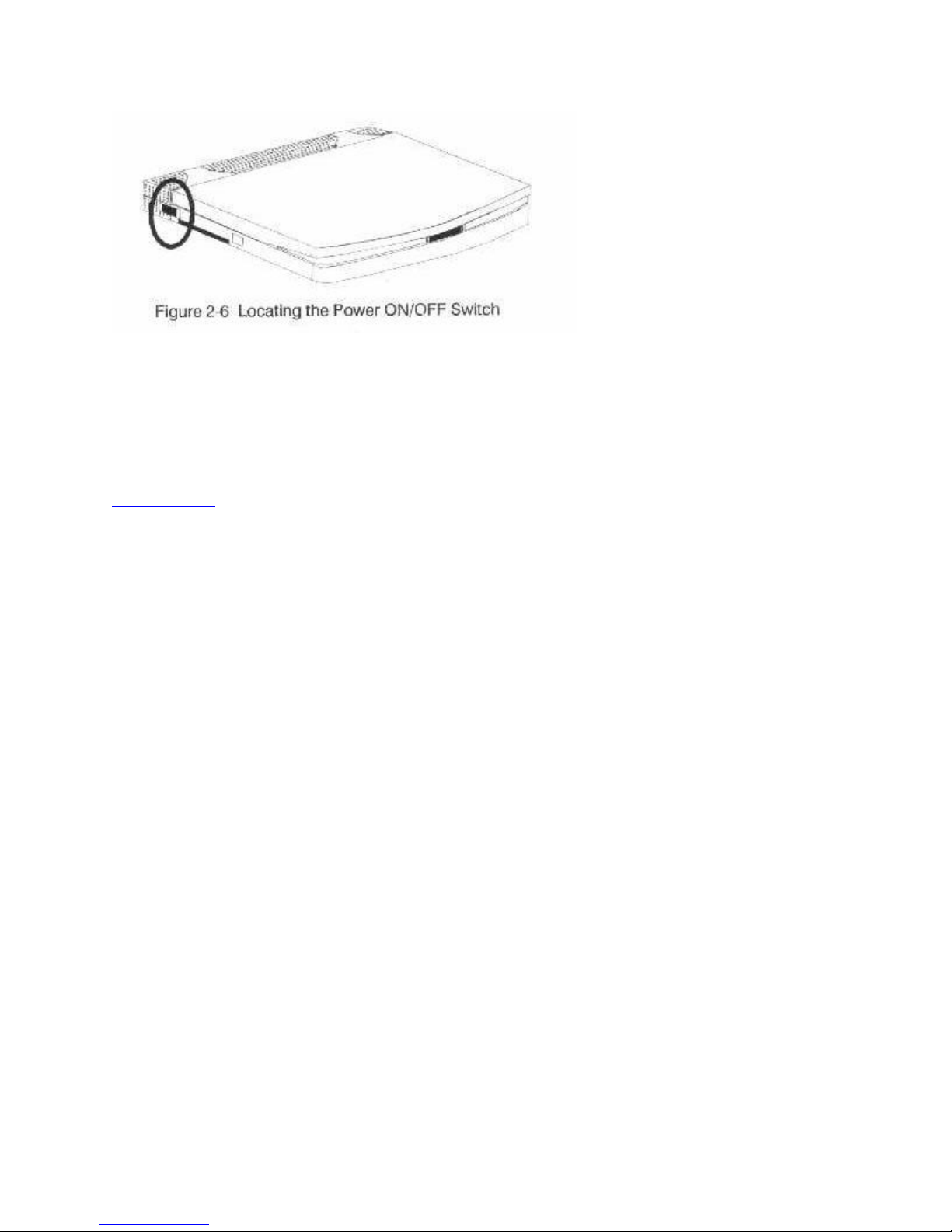

Figure 2-6 Locating the Power ON/OFF Switch

Press the switch and the Power ON LED indicator © on the top of your WinBook Will
illuminate. The backlight of the LCD screen will also come on and the system will then start to
boot up.

And that is all it takes to get started with your WinBook!

User Controls

In order to get the most out of your WinBook it is essential that you have a good understanding
of the controls and indicators on the system. In this section, a detailed explanation of all the
controls on your WinBook is given and we recommend that you read the whole section through
before you start using your system. Please refer to the illustration on the following page for a key
to the location of the user controls and LED indicators.[SX/DX 2-4]

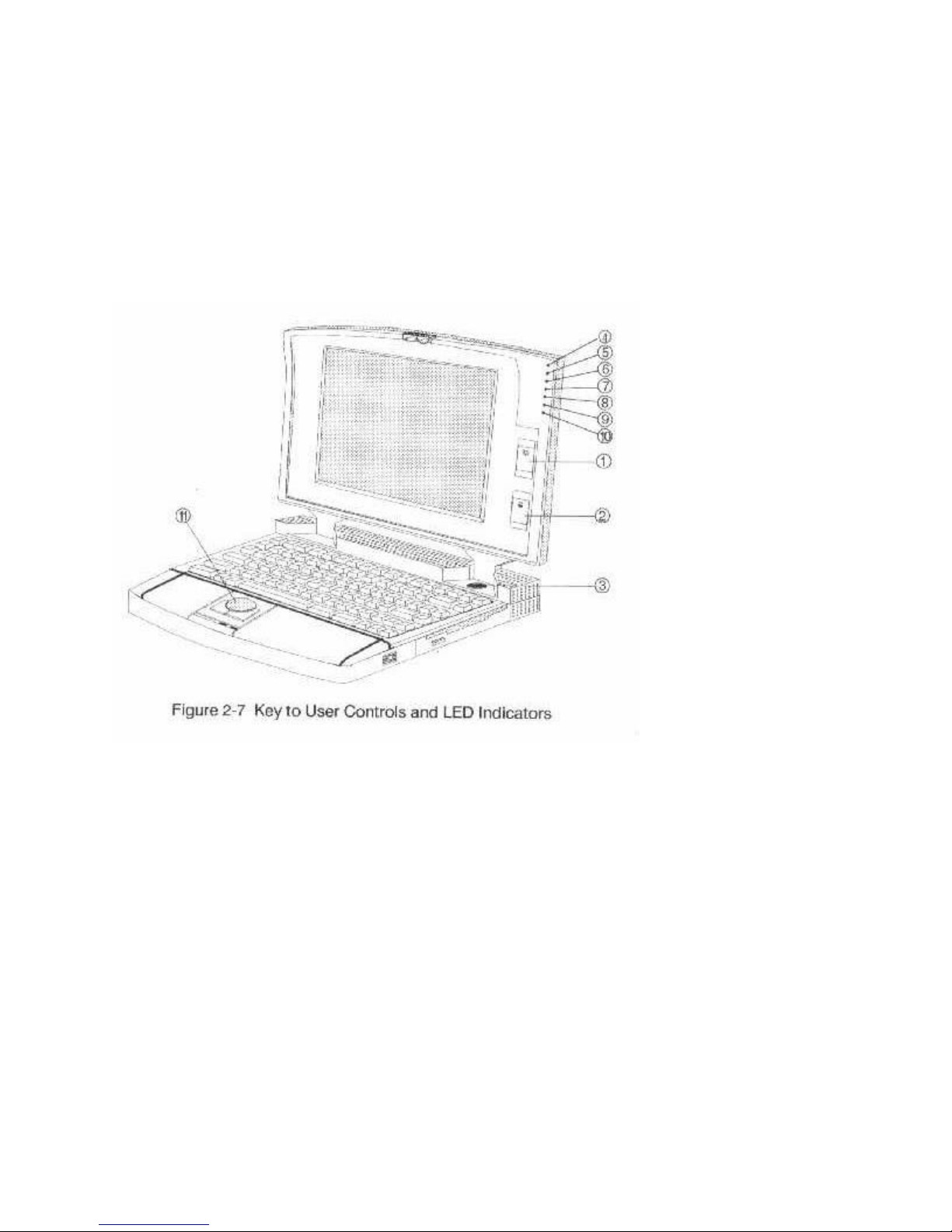

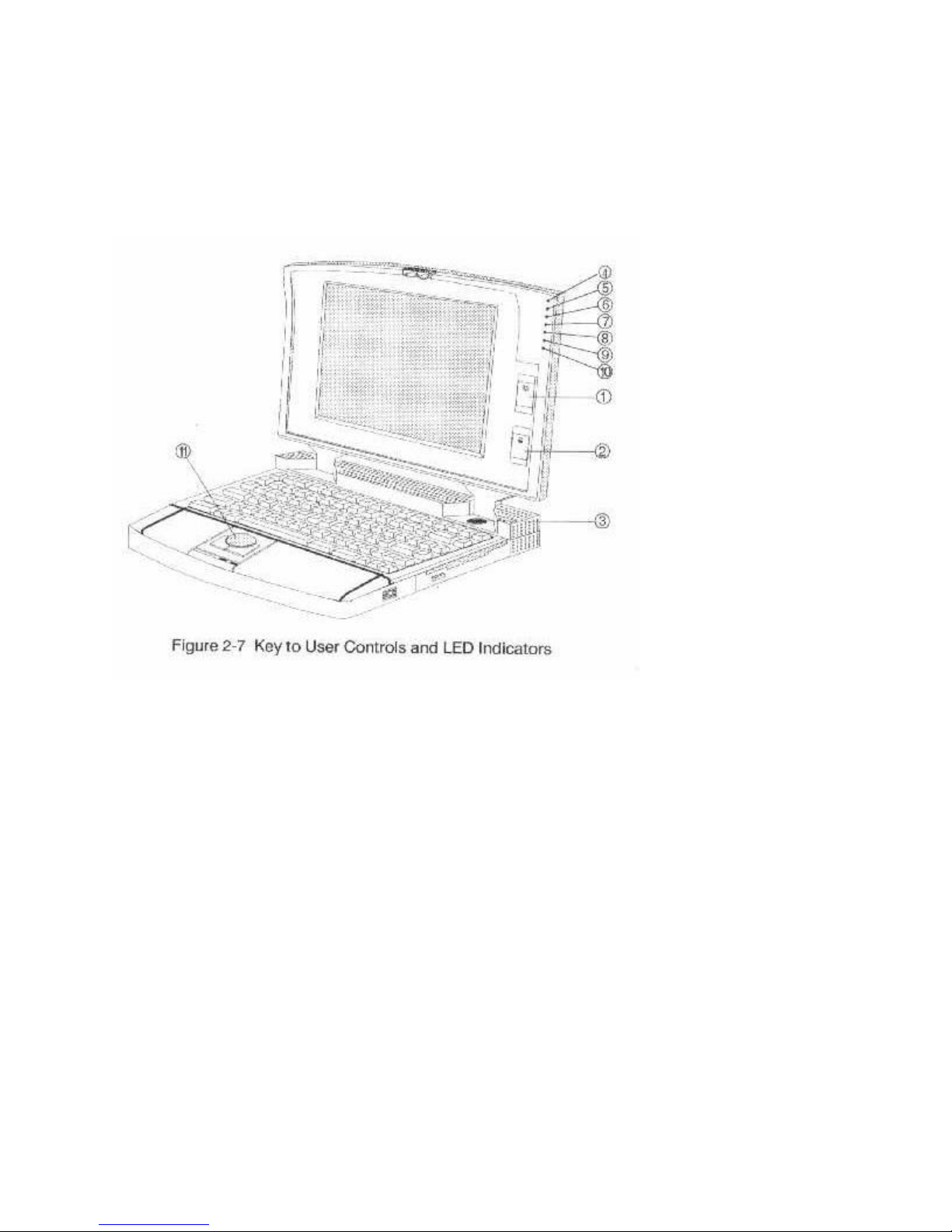

Fig. 2.7 Key to User Controls and Indicators

1 – LCD Brightness Control

The LCD brightness control can be used to increase/decrease the brightness of the display. Slide
the control up to increase brightness, down to decrease brightness. The setting of the brightness
control will depend on the current lighting conditions and is important for obtaining the clearest
possible image.

If nothing appears on the LCD screen when you turn on your computer, it may be because the
brightness control is set at minimum brightness and you should always check the setting of this
control first.

2 – The LCD Contrast Control

The Contrast control acts in exactly the same way as the contrast switch on a conventional
monitor. By adjusting the contrast control you can adjust the comparative brightness between
normal text and highlighted text. You can adjust the contrast switch during use to achieve the

optimum setting according to each individual software.[SX/DX 2-5]
3 - The Suspend Switch
The Suspend switch is situated on the top panel beneath the right hinge of the LCD display.
The Suspend switch is a power saving device that is useful when running your system off

batteries. When you press the Suspend switch, the display will become blank and to all intents
and purposes your WinBook will appear to have been turned off. In this state, your system is
using a minimum of power. When in suspend mode, the Suspend LED on the LCD screen will
illuminate.

To resume, simply press the Suspend switch again and the display will be returned exactly as it
was before. The Suspend switch allows you to save power without having to turn your WinBook
off and then on again, and is extremely useful when you wish to take a short break from what
you are doing.

The LED Indicators

On the right side o f the LCD screen is a row of seven LED indicators which indicate the status
of certain functions. These are detailed below.

Fig. 2.7 (from page 2.6)

4 – Power LED

The Power LED will be illuminated when your system is turned on, and will remain illuminated
until you turn the power off. Note that the power Led is also visible on the top of the LCD panel
so that when the LCD is in the closed position you can still see whether the power to the
computer is turned on or not.

Note that the Power LED also functions as a battery low indicator. When the battery power is
low, the Power LED will flash.

5 – FDD LED

The FDD (Floppy Disk Drive) LED will illuminate whenever data is being read from or written
to the floppy disk drive installed in your system. As long as the floppy disk drive is not being
accessed the FDD LED will remain unlit.

6 – HDD LED

The HDD (Hard Disk Drive) LED will illuminate whenever data is being read from or written to

the hard disk drive installed in the system. As long as the hard disk drive is not being accessed
the HDD LED will remain unlit.

7 – Suspend LED

The SUSPEND LED will illuminate when the system has entered into Suspend mode by pressing
the Suspend switch on the computer. Suspend mode is a power saving mode which can be
entered to save battery power during usage.

8 – Num Lock LED

The NUM LOCK LED refers to the NUM LOCK key on the WinBook’s keyboard. On a
conventional keyboard, this LED is usually situated on the keyboard itself. When illuminated,
the NUM LOCK LED indicates that the NUM LOCK key has been pressed, in which case the
numerical keypad will be in numeric mode. The NUM LOCK will go off when the NUM LOCK
key is pressed a second time. Please refer to the chapter on the keyboard for details of the NUM
LOCK key.

9 – Scroll Lock LED

The SCROLL LOCK LED refers to the Scroll Lock key on the WinBook’s keyboard. When
illuminated, this indicates that the Scroll Lock key has been pressed. The SCROLL LOCK LED
will go out when the Scroll Lock key is pressed a second time. Please refer to the chapter in this
manual on the keyboard for details of the Scroll LOCK key.

10 - Caps Lock LED

The Caps Lock LED refers to the Caps Lock key on the WinBook’s keyboard. On a conventional
keyboard, this LED is usually situated on the keyboard itself. When illuminated, the Caps Lock
LED indicates that the Caps Lock key has been pressed, in which case all letter keys will be
typed in upper case (capital). The Caps Lock LED will go off when the Caps Lock key is pressed
a second time. Please refer to the chapter in this manual on the keyboard, for details of the Caps
Lock key.

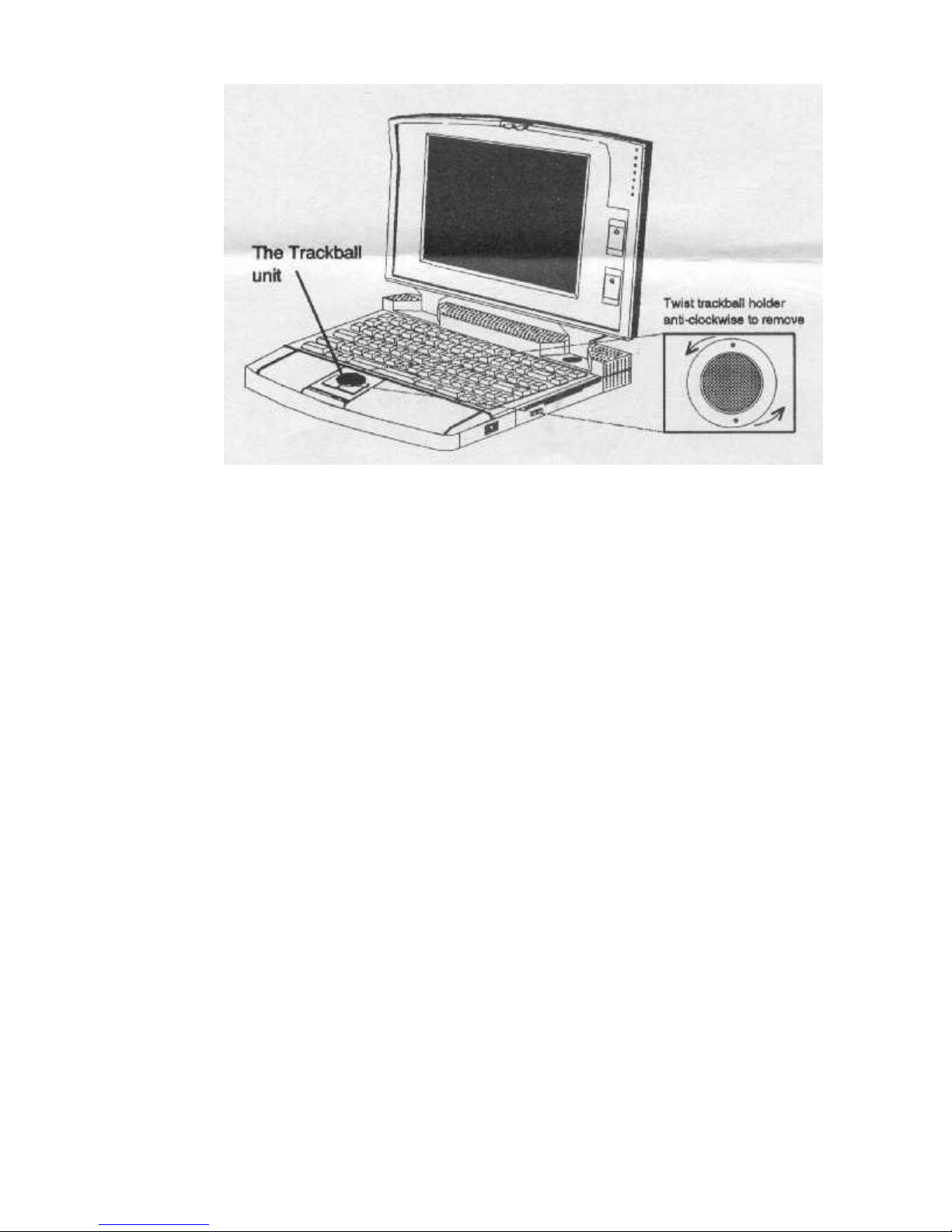

11 - Built-in Trackball

The built-in trackball can be used to control cursor movement on the screen in much the same
way as a mouse. The two buttons act as the left and right mouse buttons. The function of the two
buttons will depend on the software being used, though in general, the left button is used to
execute a command or select an item and the right button is used to cancel or quit a function.

Chapter 3: Data Storage Devices

INTRODUCTION

The data storage devices included on your WinBook consist of a 1.44 Megabyte (M) 3.5” floppy
disk drive; one hard disk drive (optional); one Type 1/Type 2 IC card slot. It is via the disk drives
and IC card slot that you can load different programs to run on your computer, and store the data
that you create.

In this chapter we give a brief introduction to the use of floppy disk drives and diskettes, hard
disks and IC cards for those of you who are new to computing. If you are an experienced
computer user you will probably already be familiar with this information, and may skip this
chapter. If you are a new user, then we recommend that you read this chapter to get an overall
understanding of the basic use of disk drives and diskettes.

Floppy Disk Drives and Diskettes

Floppy disk drives are so called because they use flexible diskettes, which can be inserted and
taken out as required. They can be broadly divided into two types – 5.25” and 3.5”. This
measurement refers to the size of the diskette that is used with each type, through your WinBook
uses only the smaller 3.5” drive. This does not impose any limitation on the software you can
use, since all popular software packages are available in both 5.25” and 3.5” packages.

The location of the floppy disk drive is shown in Figure 3-1.

Figure 3-1 Locating the Floppy Disk Drive

3.5” Disk Drives and Diskettes

3.5” floppy disk drives are smaller and have a larger capacity than 5.25” disk drives. 3.5” disk
drives come in two capacities – 720Kbytes and 1.44M. The floppy disk drive installed in your
WinBook is a 1.44M drive. In order to be able to take advantage of the full 1.44M capacity,
high-density diskettes must be used. Such diskettes are marked 2HD.

Functionally, 3.5” drives operate in exactly the same way as 5.25” disk drives, though the
diskettes used are different in many respects.

3.5” floppy diskettes come in a hard plastic case and are therefore far less susceptible to damage.
The magnetic surface of the diskette is not exposed, being covered by a sliding metal cover,
which is automatically opened when inserted into the disk drive. Rather than having a notch
which must be covered by a sticker to make them read only, they come with a tab which can be
set as read only or read/write.

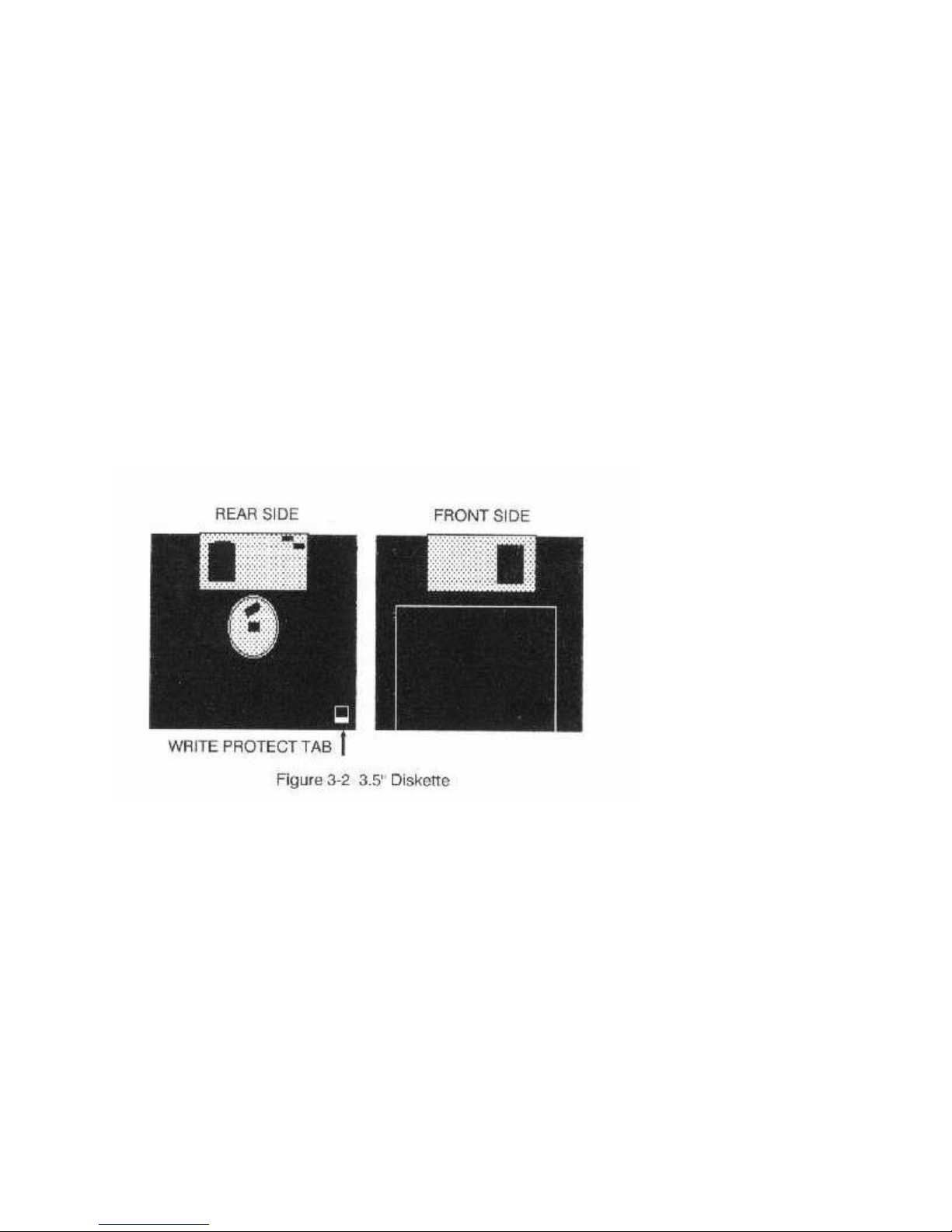

Figure 3-2 3.5” Diskettes

Formatting Diskettes

When you purchase any type of diskette it is unformatted, and it cannot be used until it has been
formatted. An unformatted diskette can be compared to a record before the groove has been
engraved on it. All diskettes must first be formatted before they can be used to store data. If you
insert an unformatted diskette into a floppy disk drive you will get an error message when you
try to write to the diskette.

Formatting diskettes is a simple process and is achieved with the MS-DOS FORMAT command.
For details of how to use this command, please refer to the chapter in this manual introducing
MS-DOS or, for more complete information, to your MS-DOS user’s manual.

IC Cards

IC cards are the latest advances in storage media, supporting storage of large amounts of data on
a credit card sized unit. IC cards are divided into Type 1 and Type 2

categories and both are supported by the IC card interface installed in your WinBook, which is a
68-pin type fully compatible with the PCMCIA standard. Some Type 2 IC cards are actually a
combination of hardware and software, a fax/modem IC card for example, which includes the fax
modem hardware and the software to drive it.

Figure 3-3 Locating the IC Card Slot

IC cards are simple to use and should be inserted directly into the IC card slot, which is situated
next to the power switch on the left side of the WinBook. As you insert the IC card, a push
button will protrude from the IC card unit. To remove the IC card press this button in and the
card will be pushed partly out. You may then extract the card from the slot.

Hard Disk Drives

Hard disk drives are also commonly known as fixed disk drives and Winchester disk drives. In
this manual we shall refer to them always as hard disk drives. The main difference between hard
disk drives and floppy disk drives is that the disks in hard disk drives are not removable. Thus,
hard disk drives have no need for diskettes since the disks are built into the unit

Hard disk drives have a much greater storage capacity than floppy disk drives, and data can be
accessed much faster. They are also much more convenient because it is not necessary to keep
changing diskettes to load different programs.

Because of their greater storage capacity, you can copy all your commonly used programs from
the various floppy diskettes onto your hard disk drive. The, whenever you want to use a program,
you simply call up that program from the hard disk. You can also make hard disk drives
“bootable”, which means that you can load MS-DOS directly from the hard disk and do not need
to insert your MS-DOS diskette into a floppy disk drive every time you turn on your computer.
The hard disk drive included in the standard configuration of the WinBook is s 2.5” AT bus
version with various options on the storage capacity.

Taking Care of Hard Disk Drives

Since the disks in a hard disk drive are unremovable there is no risk of damage as with floppy
diskettes. The drives themselves; however, are highly sensitive units. The hard disk drive
installed in your WinBook is specially designed to be shock resistant since you will inevitably be
moving your system around. The drive also features auto-park capability, which means that the
sensitive magnetic heads are automatically locked in position when power is turned off, greatly
reducing the change of damage. Despite this, every care should be taken to avoid subjecting your
WinBook to heavy shocks or blows, which may result in the hard disk drive being damaged.
Hard disk drives are sealed units and are not user serviceable. If used in the normal way the hard
disk drive in your WinBook should give several years of trouble-free life.

Preparing Hard Disk Drives

Hard disk dries have to be formatted in the same way as diskettes before you can save data on
them, though hard disk drives must undergo low level formatting followed by high level
formatting. The drive in your WinBook has already been low level formatted. You can use the
DOS FORMAT command to format your hard disk drive, and DOS also provides a special
command, FDISK, for configuring your hard disk into partitions. Partitions are areas of a hard
disk, which function as a totally separate disk drive. For instance, with an 80Mbyte hard disk
drive you might wish to divide that drive into two partitions of 40Mbytes each. In this case, the
first partition becomes the C: drive and second partition the D; drive. To all intents and purposes
the two partitions function as totally separate disk drives, although physically they are of course
the same drive.

Partitions must be created when you first format the hard disk drive. You cannot add in partitions
once you have saved any data on your hard disk drive, so you must decide what partitions you
want when you first configure your drive. If you want to change these partitions later you will

have to reformat the disk drive, destroying any data existing on it.

Formatting Hard Disk Drives

WARNING

The hard disk drives on certain WinBook configurations that include the MS-DOS
operating system will have already been formatted, and the software loaded. Please be
certain that your unit is not already formatted before continuing.

To be able to boot up your system from the hard disk drive you must prepare the hard disk drive
and install the operating system on it. To do this you will have to use the following commands in
MS-DOS:

a. The FDISK command to partition the hard disk drive.
b. The FORMAT command to high level format the hard disk drive and make it bootable.
Both these commands are external MS-DOS commands and can be run from the MS-DOS

diskette(s).

NOTE

The hard disk drive installed in your WinBook has been low level formatted by the
manufacturer so it is not necessary to low level format the hard disk drive.

How To Start FDISK

1. Place the MS-DOS system diskette in floppy disk drive A:

2. Turn on your computer and boot up the system with MS-DOS.

3. Insert the MS-DOS diskette containing the FDISK.COM command in drive A:

4. At the DOS prompt type

FDISK <Enter>
The FDISK main menu will appear on your screen as shown below.
Disk Options
Current fixed disk drive: 1
Choose one of the following:

1. Create DOS Partition or Logical DOS drive

2. Set Active Partition

3. Delete DOS Partition

4. Display Partition Data

Enter choice: [1]
Press ESC to return to DOS
Most of the FDISK menus display a default value. To choose the default value, press the

<Enter> key.

Using FDISK to Create Partitions

To create a partition select the first item in the FDISK main menu, and the following menu will
appear (if no extended partitions exist, the third option is not displayed):

Create DOS Partition
Current fixed disk drive: 1

1. Create Primary DOS Partition

2. Create Extended DOS Partition

3. Create Logical DOS Drive (s) in

the Extended Dos Partition

Enter choice : [1]
Press ESC to return to FDISK Options
You must create a primary MS-DOS partition first before you can create any extended MS-DOS

partitions on your disk. In most cases, you will need only one MS-DOS partition for your entire
disk.

To create a primary MS-DOS partition, press the <Enter> key to accept the default selection (1).
To Create Primary DOS Partition menu appears next:
Create Primary DOS Partition
Current fixed disk drive: 1
Do you wish to use the maximum size?
For a DOS partition and make the DOS
Partition active (Y/N)&ldots;&ldots;&ldots;&ldots;.? [Y]
Press ESC to return to FDISK Options
To use your entire hard disk for MS-DOS you will use the FDISK program only once to create

the primary MS-DOS partition. Press the <Enter> key to accept the default selection (Y).
FDISK then displays the following message.
System will now restart
Insert DOS diskette in drive A:
Press any key when ready. . .
Put your MS-DOS disk in drive A and press any key to restart MS-DOS. Now that you have

created your MS-DOS partition you must format your hard disk so the MS-DOS can use it.

NOTE

Note that if you created a partition by not using the default values shown above you must
make it active to enable you to boot from your hard disk drive.

Formatting Your Hard Disk Drive

After partitioning your hard disk drive with the FDISK command you must format the hard disk
using the MS-DOS FORMAT command. Insert the MS-DOS diskette containing the
FORMAT.COM command in drive A: and type the following command:

FORMAT C:/S<Enter>

Note

You must use the /S switch when formatting to transfer the MS-DOS system files onto the
hard disk and make it bootable.

When you format a hard disk, FORMAT prompts you to verify the volume label:
Enter current Volume Label for drive
x:
If your hard disk does not have a volume label, press the <Enter> key. Notice; however, that if

your hard disk has never been formatted before, or if it has a bad boot sector, FORMAT will not
prompt you for a volume label.

If the volume label that you enter does not match the label on the hard disk, FORMAT displays
the following message:

Invalid Volume ID Format failure
Otherwise it continues:
WARNING, ALL DATA ON NON-REMOVABLE
DISK
DRIVE X: WILL BE LOST!

Proceed with Format (Y/N)? _

If you want to format your hard disk drive, type Y (for Yes) and press the <Enter> key. If you do
not want to format your hard disk, type N (for No) and press the<Enter> key.

When formatting is complete, FORMAT displays a message showing the total disk space, any
space marked as defective, the total space used by the operating system (when you use the /S
switch), and the space available for your files.

Your hard disk is now formatted and the system files have been transferred to the hard disk
drive. You will now be able to boot your computer from the hard disk, and will no longer need to
insert an MS-DOS diskette in the A: drive to boot.

Note: The above procedure is valid for MS-DOS version 4.0 and above. MS-DOS 3.3 limits
the maximum size of a singe partition to 32MB, so a 60MB drive will have to be split into a
least two partitions when using MS-DOS version 3.3.

SLC CHAPTER 4: USING THE
KEYBOARD

In order to get the most out of your computer, it is essential that you have a good understanding
of your keyboard. Correct keyboard usage can save you a lot of time when typing data into your
computer, and will make all your computing tasks more enjoyable.

The Keyboard on your WinBook is compatible with a conventional PC keyboard, and contains
all the same functions. The layout, however, is slightly different. If you are familiar with a
conventional PC keyboard, you will soon get used to the WinBook keyboard. Read through this
chapter carefully to make sure you are well acquainted with the special function keys and key
combinations.

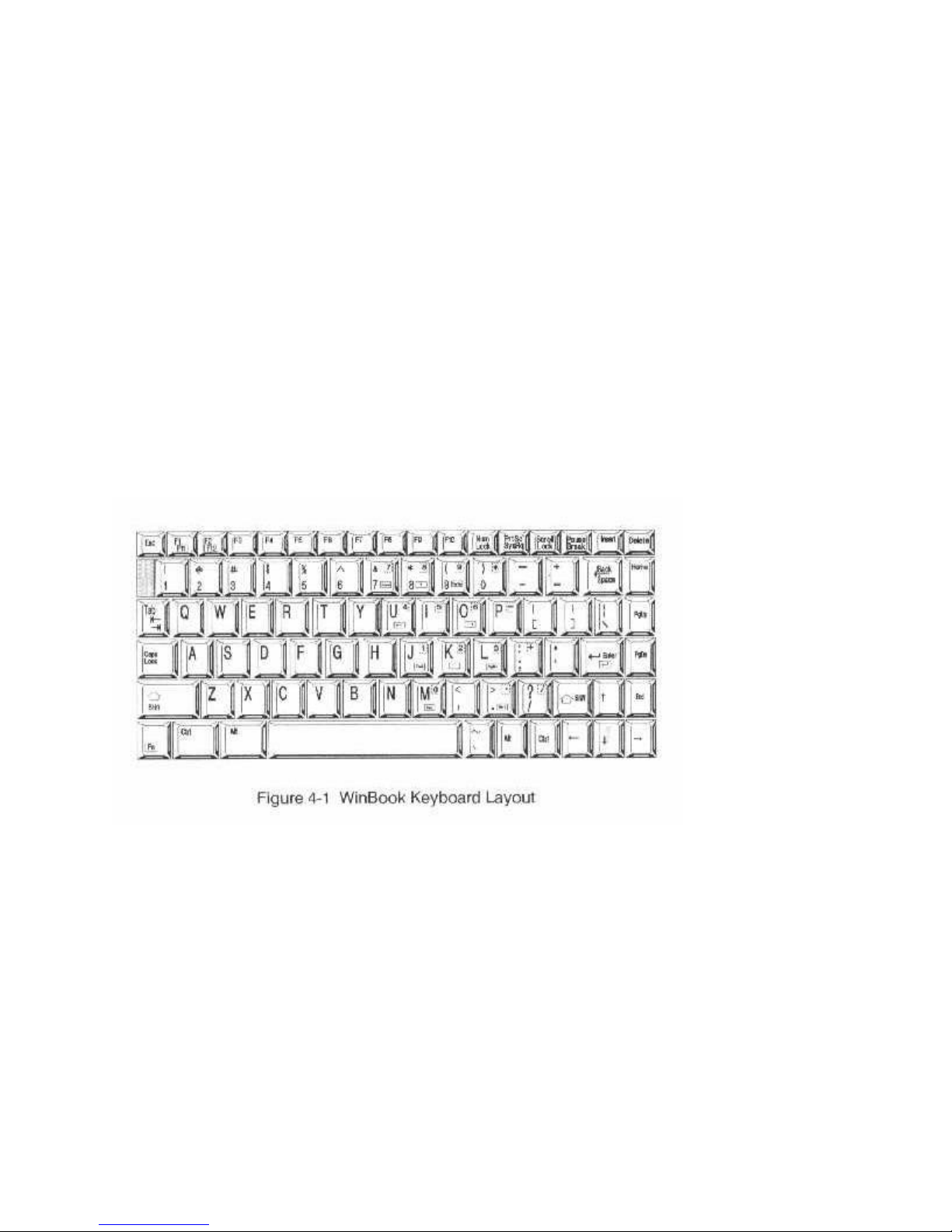

The illustration below shows the layout of the WinBook keyboard.

Fig. 4-1 Keyboard Layout

The Typewriter Keys

The typewriter keys make up the main block of keys on your keyboard, and it is these keys that
you will use the most. As is obvious from the name, these keys are basically the same as found
on a standard typewriter, with a few extras especially for computer use. The layout of the
alphanumeric part of the keyboard (i.e. the part with the letters and numbers on it) is the same as
a standard QWERTY Typewriter keyboard, and these are light colored. There are also darker
colored keys, some of which have the same functions as typewriter keys (e.g. the Tab key and
the Caps Lock key), some of which are not found on a typewriter, and some of which function
both as typewriter keys and computer function keys. These will be explained individually later in
this section.

If you are used to using a standard typewriter you will have no difficulty getting used to your
computer keyboard. However, there are some important differences between using a typewriter
and a computer keyboard.

• All the keys are “typematic” which means that they repeat as long as you hold them

down. Many modern electric typewriters are also typematic, but manual typewriters are
not.

• The space bar appears to work the same as on a typewriter, but there is an important

difference. When you press the space bar you will see a space on
your screen, just as when you press a typewriter space bar there is a space on
the page. But a computer recognizes a space as a character, and treats it
accordingly. Thus, especially in programming or when entering commands, the presence

or absence of a space can make a lot of difference.

• The lower case L (l) and the number on (1) are not interchangeable as they are on a

typewriter.

• The upper case O (O) and the zero (0) are not interchangeable as they are on a typewriter.

The darker colored keys to the right and left of the alphanumeric keys are detailed
individually below.

The Shift Keys

The two shift keys, one on the left and one on the right, function exactly as typewriter
shift keys. When you press either one of the shift keys and hold it down, any letters you
type will be in upper case. As soon as you release the shift key, the letters will again be in
lower case. Note that in MS-DOS and many other programs the Shift key can be used in
combination with other keys for some special functions. Please see the section on Special
Key Combinations in this chapter.

The Caps Lock Key

The Caps Lock key is a toggle key, which means that when pressed it stays engaged
until pressed a second time. The Caps Lock LED indicator on the front panel of the LCD
display will illuminate when the Caps Lock key is engaged. The Caps Lock key is
somewhat different from that on a typewriter. It only affects the alpha characters (the
letters from A to Z). Punctuation and symbols must be typed with the Shift key held
down even when Caps Lock is engaged.

The Tab Key

The Tab key functions in the same way as on a typewriter, advancing the cursor to the
next tab position. Pressing the Tab key in conjunction with the Shift key will tab to the
left.

The Backspace Key

In MS-DOS and in most software, the Backspace key moves the cursor one space to the
left, simultaneously deleting the character to the left of the cursor. The function of the
backspace key may be different in some software.

The Enter Key

When typing in data, the Enter key functions in the same way as the carriage return key
on a typewriter. It advances the cursor one line and returns the cursor to the left-hand side
of the screen. In MS-DOS and most other software packages the Enter key must be
pressed to execute a command.

The Control (Ctrl) Key

The Ctrl key is always used in combination with one or more other keys to perform some
special function. Its use will vary from program to program. Please also see the section
on Special Key Combinations in this chapter.

The Alternate (Alt) Key

The Alt key is always used in combination with one or more other keys to perform some
special function. Its use will vary from program to program. Please also see the section
on Special Key Combinations in this chapter.

The Escape (Esc) Key

The use of the Esc key will vary depending on the program you are using. In MS-DOS,
and in many other software packages, the Esc key is used to cancel a command or exit
from a program.

The Function Keys

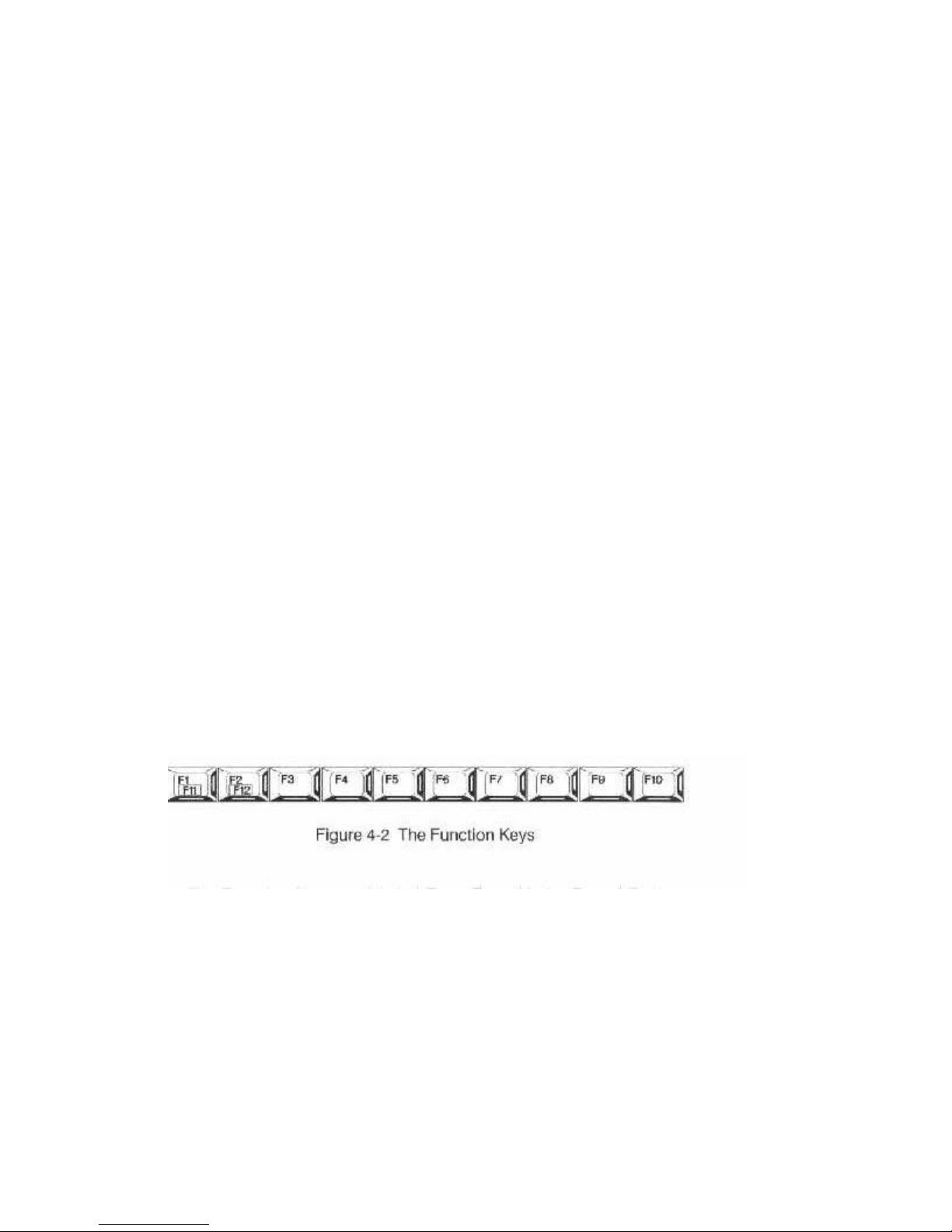

Fig. 4-2 The Function Keys

The Function keys are labeled F1 to F10 with F1 and F2 keys doubling as F11 and F12.
What the function keys do will depend entirely on what software you are using. Each
software package may or may not allocate a certain function to some or all of the function
keys. In this case you will have to consult the manual of that particular software to find out
what the function of each key is.

To use the F1 key as F11, press and hold down the Fn (Function) key and then press the F1
(F11) key. Similarly, to access F12, press and hold the Fn key and press the F2 (F12) key.

In MS-DOS the F1 function key can be used to retype the last command issued one letter at
a time. The F3 function key can be used to retype the last command issued with a single
keystroke.

The Cursor Control Keys

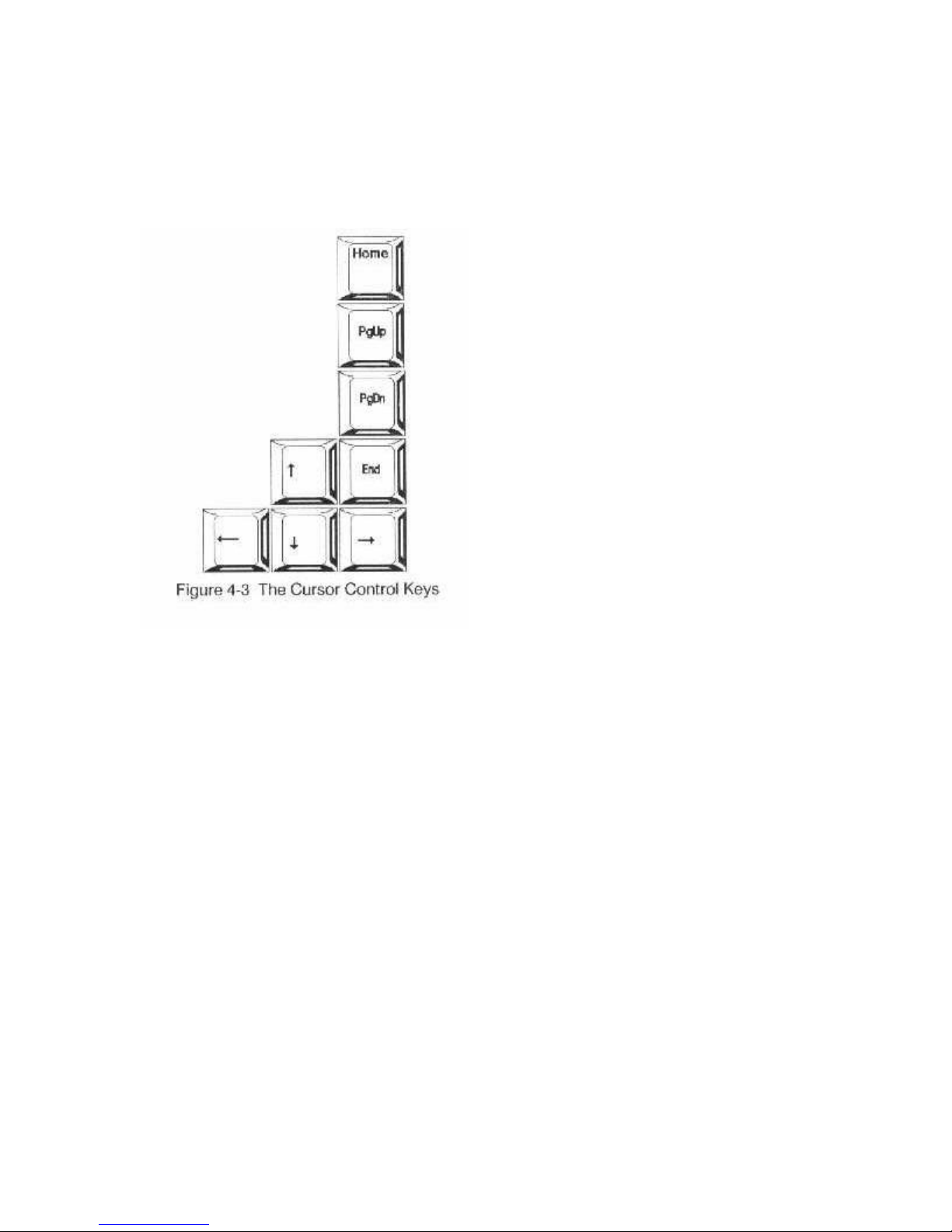

Fig. 4-3 The Cursor Control Keys

The next group of keys is mainly used to control the movement of the cursor about the
screen. The Cursor Up, Cursor Down, Cursor Left and Cursor Right are used by most
software packages to move the cursor one space in the relevant direction. The PgUp and
PgDn keys are usually used to scroll through data up or down one page (or screen) at a time,
though their use may vary with different software. The Home and End keys are usually used
to go to the beginning and end of a line, screen or document depending on the software.
Please refer to your software applications manuals for the precise functions of these keys.

In MS-DOS the Cursor Left key acts the same as the Backspace key, deleting the characters
to the left of the cursor. The Cursor Right key functions the same as the F1 key, retyping the
previous command one letter at a time.

Special Function Keys
The Insert Key

The Insert key is a toggle key and in MS-DOS and many other software packages, is used to
alternate between Insert and Overwrite modes. In Insert mode characters are placed in front
of existing text; in Overwrite mode characters type replace the original text. Many software
packages assign other special functions to the Insert key, details of which will appear in the
relevant manual.

The Delete Key

In MS-DOS and many other software packages the Delete key is used to delete the character
at the present cursor position.

The Prt Sc (Print Screen)/SysRq Key

When in DOS and most programs running in text mode, the Prt Sc key can be pressed to
obtain a hard copy printout of the present screen display. The Sys Rq key is rarely used but
may be assigned some special function in some software.

The Scroll Lock Key

The Scroll Lock key is a toggle key. When engaged, the Scroll Lock LED indicator to the
right of the LCD display will be illuminated. This key has no function in MS-DOS and its
function, if any will depend on the individual software package.

The Pause/Break Key

This key can be pressed to pause execution of some programs and may have other uses in
some software.

The Numeric Keypad

The final group of keys on your keyboard is the Numeric Keypad. On a conventional
keyboard, the numeric keypad is usually a separate block of keys. On the 486SX/DX­WinBook these keys have been integrated into the main typewriter keys.

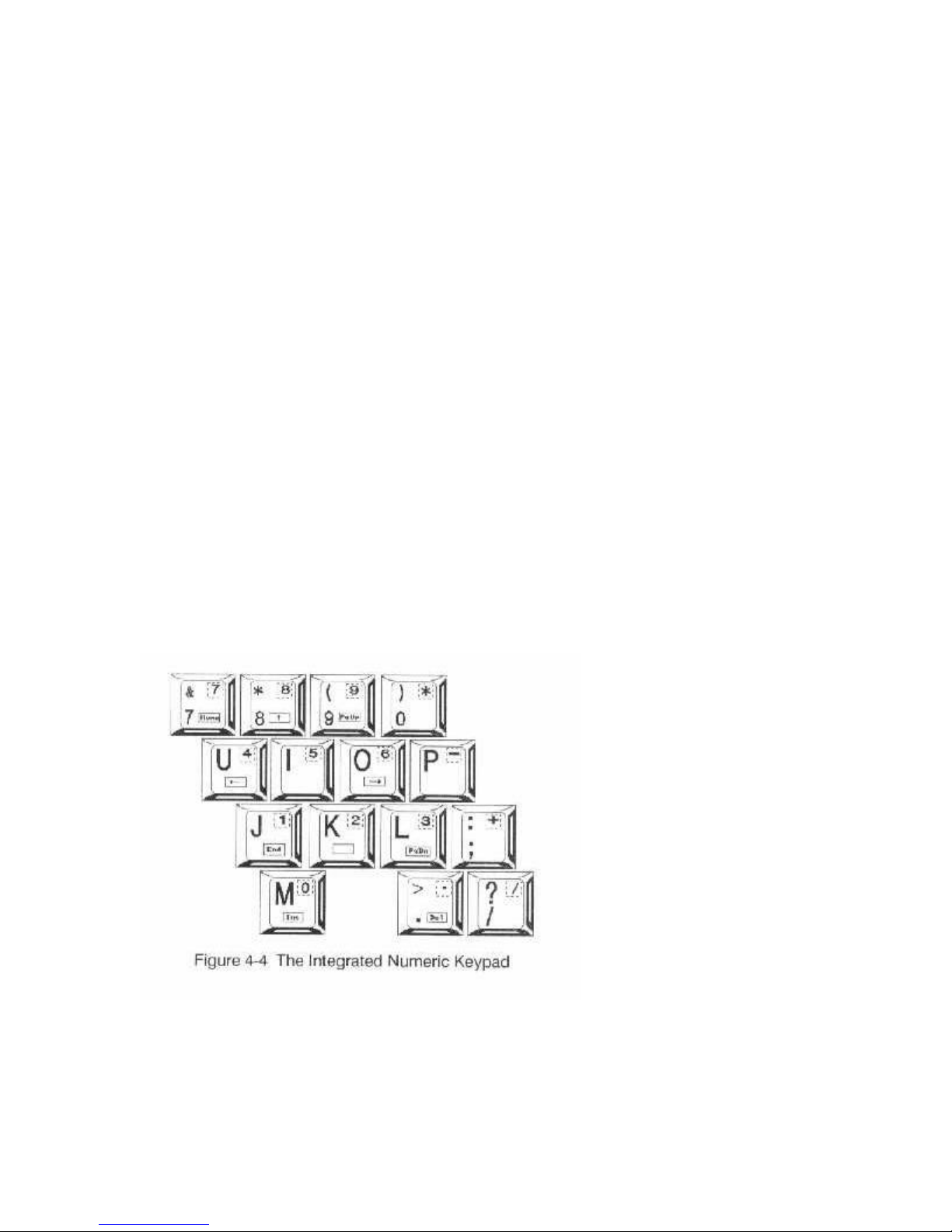

Fig. 4-4 The Integrated Numeric Keypad

NUM LOCK plus the Numeric Keypad

The keys in this group have two functions depending on whether the Num Lock Key is

toggled On or OFF, and whether the Fn key has been pressed.
When Num Lock is toggled on (the Num Lock LED in the control panel will illuminate), the

M, J, K, L, U, I, O, 7/&, 8/*, and 9/(keys will function as 0, 1, 2, 3, 4, 5, 6, 7, 8, 9
respectively. Thus, with the NUM LOCK toggled ON, if you press the “k” key a 2 will
appear on your screen just as if you pressed the five key in the typewriter keys. In addition,
the ./> key becomes “.” (decimal point); the //? key becomes “/” (division sign); the ;/: key
becomes “+”; the P key becomes “-” (minus); and the 0/) key becomes “*” (multiplication
sign). With Num Lock on the numeric keypad is especially convenient for users who
frequently need to use the keypad as a calculator function.

To return these keys to their normal letter functions, simply press Num Lock a second time.
The Num Lock LED will go out indicating that the Num Lock function has Ben terminated.

Fn plus the Numeric Keypad

If you press these keys with the Fn key depressed then a different function is accessed. If you
press and hold the Fn key the ./>, M, J, K, L, U, O, 7/&, 8/* and 9/(keys become Del, Ins,
End, Cursor Down, PgDn, Cursor Left, Cursor Right, Home, Cursor Up and PgUp keys
respectively. The functions accessible by pressing the function key are printed on the relevant
keys enclosed in a box, and duplicate the functions of the cursor keys described earlier.

Hot Keys

. <Ctrl> <Alt> F8
Toggles the display of screen images between normal contrast mode and automap contrast

mode. In automap contrast mode, your computer adjusts the contrast automatically for certain
applications software, such as Microsoft Windows.

<Ctrl> <Alt> F9

Toggles the display of screen text between normal video mode (black text on white
background) and reverse video mode (white text on black background).

<Ctrl> <Alt> F10

If you connect an external CRT VGA monitor, press and hold down the <Ctrl> and <Alt>
keys and press the F10 function key to toggle between Auto, LCD, CRT and SimulSCAN
display modes. In Auto Mode, if an external CRT is connected, the display will automatically
switch to the CRT monitor; in LCD mode, the display will appear only on the LCD; in
SimulSCAN mode, the display will appear on both displays at the same time.

Common Key Combinations

As we have already mentioned, in addition to their individual functions, some keys can be
used in combination with other keys to provide special functions. And, as in the case of the
Alt and Ctrl keys, some keys only function when pressed in combination with other keys.
Before reading about some of the more common key combinations, however, please
remember one thing. As you start to use various software packages you will quickly learn

that each software has its own rules for the keyboard. Although many of the keys, especially
the typewriter keys and cursor movement keys, have these same functions in most different
software packages, some keys, especially the function keys F1 to F12, will often have
completely different functions. For example, one software may use the F5 function key to
delete a block of text, and another software might use the F5 function key to insert a block of
text.

The special key combinations that we explain here are those that are commonly used by MS­DOS, your computer’s operating system software. Since MS-DOS loads every time you turn
on your computer before loading the particular applications software you wish to use, the
better you know MS-DOS the easier your computing operations will be. Also, some of these
key combinations will take effect even when you are using other applications software.

<Ctrl> <Alt> <Del> - The Warm Boot

To “boot up” your computer means to turn on your computer and load the operating system.
When you first turn on your computer each session by turning on your computer’s power
switch, this is known as a cold boot. Sometimes when you are using your computer, it will
“hang”, which means that the display will freeze and nothing you type on the keyboard
seems to have any effect. This is a fairly uncommon occurrence and is not a cause for panic.
It can be due to any number of reasons such as a “bug” or defect in the software package you
are using. If this happens, you can turn off your computer for a few seconds using the power
switch. Then when you turn your computer on again, everything should be back to normal.

This is rather inconvenient, however, and a far quicker way is by using the “warm boot”. All
you have to do is press and hold the <Ctrl>, <Alt> and <Del> keys and your computer will
reboot without you having to turn your computer on and off again.

Your computer will reboot whenever you press the <Ctrl> <Alt> <Del> keys no matter what
software you are using. Therefore, make sure you only use it when necessary as it erases the
current contents of RAM. If you are editing a document and have not saved it to floppy or
hard disk, pressing <Ctrl> <Alt> <Del> will erase the document from memory and you will
have to start again.

<Ctrl> S or <Ctrl> <Pause> - Pause Scrolling
Sometimes when you display data on your screen it will scroll off the screen faster than you

can read it. To pause the scrolling of data, you need to press <Ctrl> S or <Ctrl> <Pause>.
When you are ready to resume scrolling press <Ctrl> S or <Ctrl> <Pause> again.

<Ctrl> C – Interrupt a Command

This command is used to terminate a command already executed. When the command has
been terminated you will be returned to the DOS prompt.

You will frequently use the special key combinations detailed above as you get accustomed
to using MS-DOS and other programs. Please note that we have only explained a few of the
most commonly used key combinations here, and for further details you should refer to your
MS-DOS user’s manual.

SLC Chapter 5 Basic MS-DOS Usage file:///C|/test/HtmlHelp/SLC Chapter 5 Basic MS-DOS Usage.htm

SLC Chapter 5 Basic MS-DOS Usage

CHAPTER 5

BASIC MS-DOS USAGE

Introduction

If you are a newcomer to computing you may be a total loss as to how to start using your
computer. This section is especially for you. Here we explain what MS-DOS is, how it interacts
with your computer, and why you need it no matter what software you intend to use. We also
explain how to use the basic MS-DOS commands that are essential for managing the information
stored on your hard disk and diskettes.

Your MS-DOS software comes with a complete user’s manual with comprehensive instructions on
how to use the program and it is this manual you will have to read to really understand all about
MS-DOS. If you are new to computing, we strongly recommend that you take some time to read
the first few chapters of the MS-DOS manual to gain a basic knowledge of PC usage. However,
the information we provide here should be enough to get you started, and once you are started,
you will quickly find out that computing really is as easy as everyone says it is.

What is MS-DOS?

MS-DOS stands for Microsoft Disk Operating System. Microsoft is the name of the company that
produces the program and Disk Operating System (DOS) is a somewhat abbreviated description of
what the program does. For the rest of this manual we shall refer to it simply as DOS since there
are operating systems available from other companies besides Microsoft. DOS is also known as the
system software or the operating system. What you call it is not important but what is important is
this – You can do nothing with your computer before you have loaded DOS. No matter what
software you want to use, be it WordStar, Lotus 1-2-3, Dbase III, a computer game, or even
something that you have written yourself, you will not be able to load that software before you
have loaded DOS.

The essential part of the DOS program acts as a bridge between your hardware and your software.
It communicates with the hardware and controls the flow of information to and from your
keyboard, disk drive and monitor. It also provides you with the tools for manipulating the data
stored on your computer, allowing you to copy and delete files, see what files you have stored,
rename files etc. etc. In short, no matter whether you like it or not, you are going to have to get
used to using DOS. DOS includes many commands you may never use depending on what you
intend to use your computer for, but you will use some commands every time you turn on your
computer.

Loading Dos

There are basically two ways to load DOS – the first is to load it from a floppydiskette, the second
is to load it from a hard disk. To load Dos from a hard disk you must have first installed it from the
original floppy diskette onto the hard disk. To load DOS from a diskette you simply place the DOS
system diskette in your floppy disk drive and turn on your computer. Note that we say the DOS

1 of 9 3/2/99 10:02 AM

SLC Chapter 5 Basic MS-DOS Usage file:///C|/test/HtmlHelp/SLC Chapter 5 Basic MS-DOS Usage.htm

system diskette. Earlier versions of DOS came on a single diskette, but the latest versions such as

3.3, 4.00 and 4.01 consist of several diskettes. The reason for this is that more commands and
features have been added, making it impossible to store everything on a single diskette.

When you load DOS from a floppy, the system files will be read from the diskette and the
following will appear on your Screen:

Current date is Mon. 5-28-90

Enter new date (mm-dd-yy)

Details of how to set the date are given in the DOS user’s manual, and for the moment we will skip
this procedure.

To skip this step press < Enter> and the following will appear:

Current time is 18:12:51.26

Enter new time:

Press < Enter> again and the DOS prompt will appear on your screen, as below:

A>

The DOS prompt tells you that DOS has been loaded and that your computer is now ready to
accept your commands. The DOS prompt also tells you what disk drive is currently being
addressed. Above we have shown the DOS prompt as A>, but it could also be B> or C>. Each
letter refers to the disk drives installed in your system. The letter A always refers to the first floppy
disk drive. The letter B refers to the second floppy disk drive. If you only have one floppy disk
drive installed both A & B refers to this disk drive. Letters C and above refer to the hard disk
drives installed. To change from one disk drive to the other, you must type the letter of the drive
followed by a colon (:), and press <Enter>. For example, to change from A drive to the B drive
you must type the following:

A>B:<Enter>

B>

Note that the letter of the DOS prompt will change according to which disk drive you have
selected. The DOS prompt may be changed with the DOS command PROMPT. Full details of this
command are contained in the DOS user’s manual. At this stage, the important point is to
understand how the letter of the DOS prompt indicates the disk drive currently being addressed.

General DOS Usage

As we have explained, DOS controls the flow of information between the various components of
your PC. It also provides you with the tools to organize the information on your disk drives and
even check whether they are working properly. The core of DOS is a file called
COMMAND.COM. This file contains the basic DOS instructions and is loaded into your system’s

2 of 9 3/2/99 10:02 AM

SLC Chapter 5 Basic MS-DOS Usage file:///C|/test/HtmlHelp/SLC Chapter 5 Basic MS-DOS Usage.htm

memory every time you turn on your computer. When we talk about “booting” your computer, this
means to turn on your computer and load the COMMAND.COM. When the DOS prompt appears,
this tells you that the COMMAND.COM file has been loaded and that you can start your
computing operations.

Internal Commands

Internal commands are those that are automatically loaded into your PC’s memory every time you
boot your computer. Because they are loaded into memory, they are always available for use even
if you have removed the DOS diskette from your floppy disk drive. These commands are the most
frequently used, and include CLS, COPY, DELETE, DIR, TYPE and VER, all of which are
explained later in this chapter. There are many other internal commands, details of which are given
in your DOS user’s manual.

External Commands

External commands are used less frequently, and must be loaded from a disk drive. These
commands will only be loaded into memory when you type the command name, assuming your
DOS diskette is inserted in the disk drive currently displayed in the DOS prompt. For example, if
you loaded DOS from your A drive, then to load a program from the DOS diskette, you simply
type the name of the command after the A> prompt. If the prompt is shown as B> (i.e. the B drive,
the second disk drive, is currently being addressed) and you type the name of a DOS command
while the DOS diskette is in the A drive, you will see an error message since your PC will not be
able to find DOS in the B drive. In this case you would first have to type A: to change back to the
A drive. Later in this chapter the CHKDSK and FORMAT commands both external commands, are
introduced. Full details of all the external commands are to be found in the DOS user’s manual.

Basic Rules

We list here some basic rules for DOS usage, which apply in all cases:

Commands can be typed in either uppercase or lowercase letters, or even combinations of both.

To execute a command the < Enter> key must be pressed after the command has been typed at the
DOS prompt.

To change the disk drive currently being addressed type in the letter of that disk drive followed by
a colon (:).

In order to execute an external DOS command, the relevant command must be present on the disk
drive currently being addressed, as indicated by the DOS prompt.

To correct typing errors when typing in commands, use the < Backspace> or cursor left keys to
delete the incorrect characters.

Loading Other Programs from DOS

When you have booted your computer you will most likely want to load some other program, such
a word processor or database program. By way of a simple example we will assume you have a

3 of 9 3/2/99 10:02 AM

SLC Chapter 5 Basic MS-DOS Usage file:///C|/test/HtmlHelp/SLC Chapter 5 Basic MS-DOS Usage.htm

word processing program called WRITER, which is contained on a single floppy diskette. You
have booted DOS from the A drive, so the A> prompt is shown. Remove the DOS diskette from
you’re a drive, and insert the WRITER diskette in its place. Then simply type the name of the
command to run the Writer program, which for this example we assume is WRITER, as below:

A>WRITER<ENTER>

The WRITER program will then be loaded from the A drive and you may start your word
processing operations. You could have also loaded WRITER from the B: drive. To do this, you
could leave your DOS diskette in the A drive and insert the WRITER diskette into the B drive.
Then to run the program you would have to type:

A>B:WRITER<ENTER>

Note that in this example, we did not first change to the B drive but typed B: before the program
name to tell DOS from which drive you wish to load it. What command you have to issue to load a
certain program will, of course, depend on which program you are using, and the relevant manual
will tell you what it is. The important thing is that you understand the basic principle. Once DOS is
loaded you can remove the DOS diskette

from the disk drive and load any other program you wish because the internal part of DOS has
been stored in your computer’s memory.

Common DOS Commands

To give you more confidence before you start the daunting task of pursuing your DOS user’s
manual, we outline here some of the more common and most basic DOS commands. The operative
word here is “outline”. For full details of all the possible functions with these commands you will
have to refer to your DOS user’s manual. The commands are divided into internal and external
commands, starting with the former.

Dir – The Directory Command

The DIR command is probably the most common DOS command and you will use it almost every
time you turn on your computer. The DIR command gives you a directory, that is a list, of all the
files stored on a diskette or disk. For example, suppose you have a diskette and you want to know
what files are stored on that diskette, then, to find out, insert the diskette in your floppy disk drive
and type DIR, as below:

A>DIR<Enter>

A list of file names will appear on your screen. Alongside each file name is the size of the file (in
bytes) and the date and time at which that file was last modified.

Beneath the list of files you will also be told how many files are on the diskette and how many free
bytes remain on the diskette or disk. The DIR command can be used for floppy diskettes or hard
disk drives.

The DIR command can also be used to find information on one particular file. Suppose you have a

4 of 9 3/2/99 10:02 AM

SLC Chapter 5 Basic MS-DOS Usage file:///C|/test/HtmlHelp/SLC Chapter 5 Basic MS-DOS Usage.htm

file called LETTER>TXT on your B: drive and you want to see the date on which the file was last
modified, you could type:

A>DIR B:LETTER.TXT<ENTER>

Notice how the B: used to tell DOS to look on the B: drive is placed after the DIR command and
before the file name. In response to such a command you would get a display similar to that shown:

Volume in drive B has no label

Directory of B:\

LETTER TXT 2340 5-01-90

1 File(s) 320000 bytes free

This tells you that the file LETTER.TXT consists of 2,340 bytes and was last edited at 04.53pm on
the 1st of May 1990. You are also told that there are a total of 320,000 free bytes on the diskette.

If the list of files is very long, the text will continue scrolling off the top of your screen making it
impossible to see the first files in the directory. To pause the scrolling, you need to press < Ctrl> S
or < Ctrl> < Pause>. To restart the scrolling press either of these key combinations again. The DIR
command has various parameters to display the list of files in different formats and you should refer
to the DOS manual for details.

CLS – Clear Screen

To clear the screen so that it is blank except for the DOS prompt, type:

A>CLS<ENTER>

The screen will be cleared, with only the DOS prompt remaining in the top left hand corner.

DEL – Delete a File

The DEL command is used to delete a particular file, or a number of files from a diskette or hard
disk. Suppose you have a file LETTER>TXT on the diskette and you no longer wish to keep this
file. By deleting it you will create more space on the diskette for other files. To delete the file type:

A>DEL LETTER.TXT<Enter>

A>

If you now use the DIR command to view a directory of files on the A: drive you will see that the
LETTER.TXT is no longer there.

If the file had been in the B: drive, you could have executed it as follows:

A>DEL B:LETTER.TXT<Enter>

5 of 9 3/2/99 10:02 AM

SLC Chapter 5 Basic MS-DOS Usage file:///C|/test/HtmlHelp/SLC Chapter 5 Basic MS-DOS Usage.htm

A>

Obviously care should be taken when using the DEL command to ensure that you do not
accidentally delete a file you wished to keep.

COPY – Copy a File

COPY is another command you will often use. As its name suggests it is used to copy files from
one disk or diskette to another. For example, suppose you have a file called ADDRESS.TXT on a
diskette in drive A: and you now want to copy this file to another diskette on drive B:. To do this
you would type:

A>COPY A:ADDRESS.TXT B:<Enter>

1 Files(s) copied

This tells DOS to copy the file ADDRESS.TXT on the A: drive, onto the B: drive. Actually it is
not necessary to type A: before the file name ADDRESS. TXT, because since the A: drive is the
current drive, as shown by the DOS prompt, DOS will naturally look on the A: drive for this file.

It is also possible to copy a file under a different name. Supposing you wish to copy the file
ADDRESS.TXT to the B: drive and you want to change the name to OLDADDR.TXT. In this
case you would type:

A>COPY A:ADDRESS.TXT

B:OLDADDR.TXT<Enter>

1File(s) copied

The COPY command is one of DOS’s most useful tools and you should consult your DOS user’s
manual for full details.

VER – DOS Version Number

As we have mentioned, DOS has gone through various changes since its first release, each upgrade
having a different version number. In order to find out the version of DOS you are using, type the
VER command as below:

A>VER<Enter>

IBM Personal Computer DOS Version 4.01

As you can see the version number of the DOS being used will be displayed. The version number
displayed will obviously depend on which version you are using. It is

sometimes necessary to know the version number because some programs will only run with
certain versions of DOS. For instance, you may have a program which requires that you have

6 of 9 3/2/99 10:02 AM

SLC Chapter 5 Basic MS-DOS Usage file:///C|/test/HtmlHelp/SLC Chapter 5 Basic MS-DOS Usage.htm

version 3.30 or above to run. If your VER command tells you the version you are using is 3.10,
then that program may not run. The instance of this is very small and 99% of programs will run
under any version of DOS above 3.00.

The VER command has no other use than to find out the version of DOS you are using.

TYPE – Type a File to the Screen

The TYPE command is used to view the contents of a file on your screen. It can only be used to
view text files, not program files. Text files are the files that you have created with your word
processor or other program. Not all text files can be viewed with the TYPE command, however.
Some programs, such as WordStar, store their files in a special format and if you try to use the
TYPE command to view them, you will get unintelligible garbage on your screen. For such files
you will have to use the program that was used to create them to view them.

To use the TYPE command to view the contents of a file TAXFILE.TXT on your B: drive you
would type:

A>TYPE B :TAXFILE.TXT<Enter>

The contents of this file will then scroll continuously onto your screen, and you may use the <
Ctrl> S command to pause the scrolling. Note that text displayed with the TYPE command is not
displayed in any particular format, and may appear very differently from how you saved it. This is
because the TYPE command ignores all formatting commands entered in the program that was
used to create the file, and simply displays the text. You cannot edit files with TYPE command that
can only be used to view the file contents.

External Commands

FORMAT – The Disk(ette) Formatting Command

As we noted in Chapter 3. Diskettes and Disk Drives, all diskettes and hard disk drives must be
formatted before you can use them. We shall only introduce the formatting of diskettes here, and if
you require information on the formatting of hard disk drives then you should refer to your DOS
user’s manual since this is a complicated process.

When you purchase diskettes, they are normally unformatted. Before you can store data on a
diskette, DOS needs to divide the diskette up into sections and prepare it for receiving data. The
technical details are not important. What is important is that no matter what kind of disk drive or
diskette you are using, the diskette must be formatted before anything can be done with it.

Because FORMAT is an external command you must have the DOS diskette containing the
FORMAT command in your disk drive. To format a diskette, place the

DOS diskette containing the FORMAT command in drive A: and then type the following
command:

A>FORMAT A:<Enter>

7 of 9 3/2/99 10:02 AM

SLC Chapter 5 Basic MS-DOS Usage file:///C|/test/HtmlHelp/SLC Chapter 5 Basic MS-DOS Usage.htm

Insert new diskette for drive A:

And strike ENTER when ready

Make sure that the blank diskette is correctly inserted in drive A: and press < Enter>. The
FORMAT command will count through the heads and cylinders on your screen and when the
procedure is finished, the following will be displayed:

Format Complete

1457664 bytes total disk space

1457664 bytes available on disk

Format another (Y/N)?

If you wish to format another diskette remove the diskette just formatted, replace it with a new
diskette and press “Y”. If you do not wish to format another diskette, press “N”. In the example
above, a 1.44Mbyte diskette was formatted. To format a 720Kbyte diskette it will require a special
format command “FORMAT A: /F:720” and the total disk space displayed will be 655,360.

CHKDSK – The Check Disk Command

The CHKDSK command is a diagnostic command, and it can be used to check the condition of a
floppy diskette or hard disk. The command will give information on the diskette or disk being
checked and will also give you information on the memory of your computer. Again, the CHKDSK
command is an external command, so the DOS diskette must be in the current drive.

To check a diskette in drive A: with the DOS diskette in drive A:, type the following command:

C>CHKDSK A:

1457664 bytes total disk space

0 bytes in 1 hidden files

1337344 bytes in 69 user files

118272 bytes available on disk

655360 bytes total memory

566192 bytes free

The example above shows the information given by the CHKDSK command. It tells you that the
disk being checked is a 1.44Mbyte diskette; that there is 1 hidden file with 0 bytes (a hidden file is
one that will not show up using the DIR command); that there are 69 files on the diskette taking up
a total of 1337344 bytes; and that there are 118272 bytes available on the diskette. It also tells you
that your PC has a total of 655,360 bytes of memory, and that currently 566,192 of those bytes are

8 of 9 3/2/99 10:02 AM

SLC Chapter 5 Basic MS-DOS Usage file:///C|/test/HtmlHelp/SLC Chapter 5 Basic MS-DOS Usage.htm

free.

The CHKDSK command can also be used to check the contents of a hard disk drive in a similar
way. The CHKDSK command does not only look for information, however, but also detects if
there are any errors among the files on the disk or diskette being checked. If there are, it will tell
you so, and you can use the CHKDSK command to try and save any damaged files. For details of
this, please refer to your DOS user’s manual.

A Word of Advice

In this chapter we have barely skimmed the surface of DOS and the many commands available. The
commands introduced here will soon become second nature to you as you use them every day.
Many of the DOS commands not covered here offer other important functions that you will come
to need as you become more acquainted with your PC, and as your requirements increase.

DOS is not a very user-friendly operating system and the average user will never use many of the
commands provided. Indeed, many of these commands will be fairly unintelligible to people
unfamiliar with programming or computer science. The more you know about DOS, the more you
will get out of your computer. We suggest you gradually learn the various DOS commands (by
referring to your DOS manual) as you come across them, rather than attempting to learn everything
about DOS in a short period of time.

9 of 9 3/2/99 10:02 AM

SLC Chapter 6 Connecting Peripherals file:///C|/test/HtmlHelp/SLC Chapter 6 Connecting Peripherals.htm

SLC Chapter 6 Connecting Peripherals

CHAPTER 6

CONNECTING PERIPHERALS

Your WinBook computer includes a number of ports to allow the connection of external
peripherals. Although your notebook computer is a completely self contained unit which does not
require the addition of any other device to function, you may at some time or other find it
convenient to connect certain devices to your notebook. The WinBook supports the connection of
a wide range of commonly used devices just as is possible with a conventional desktop PC. Devices
include serial and parallel printers; a mouse or scanner, or any other device that requires a serial
port; an external floppy disk drive; an external keyboard; an external monitor etc. Each of the
on-board ports is detailed separately on the following pages. Please refer to Appendix B for details
of the pin connections of each port.

The External Keyboard Port-PS/2 Mouse

The external keyboard port is situated on the left side of the rear panel of the
486SX/DX-WinBook.

Fig. 6-1 Locating the External Keyboard Port

Please note that the external keyboard socket is smaller than the connector found on standard
desktop computer keyboards. In order to be able to connect an external keyboard you will need to
use the adapter provided with the unit.

To connect an external keyboard, first turn your WinBook off. Then, plug the external keyboard
into the external keyboard socket. Now turn your WinBook on again. When an external keyboard
is connected, you may use either the internal keyboard or external keyboard to input data as both
will be activated.

The external keyboard port doubles as a PS/2 mouse port and you may connect a PS/2 mouse
directly to this port. Please note that the PS/2 keyboard/mouse port can only use one device at a
time, either a mouse or a keyboard, not both.

1 of 5 3/2/99 10:04 AM

SLC Chapter 6 Connecting Peripherals file:///C|/test/HtmlHelp/SLC Chapter 6 Connecting Peripherals.htm

The External CRT Monitor Port

The external CRT (Cathode Ray Tube) monitor port is located behind the right-hand cover on the
rear of the 486SX/DX-WinBook as shown in the illustration below. To gain access to the external
monitor connector, simply pull the cover open.

Fig. 6-2 Locating the External CRT Monitor Port

The External CRT monitor port supports the connection of any analog VGA compatible monitor.
You cannot connect a digital monitor such as a conventional monochrome, CGA or EGA monitor,
to this port. The IBM VGA standard is an analog signal, and only an analog monitor will work
with the WinBook. If you have a multi-frequency monitor this probably supports both digital and
analog modes. If you wish to connect such a monitor to the 486SX/DX-WinBook you must
configure the monitor in analog mode.

To connect an external monitor, first turn your WinBook off. Connect the 15-pin D-connector
cable from the monitor to the external monitor port, and secure the connector in place by
tightening the two screws. Now turn your system on again and turn the power to the monitor on.

With an external monitor connected, you may toggle the display between the external CRT, the
LCD and both at the same time by pressing the < Ctrl> < Alt> F10 key combination.

The Serial Port

The serial port is located behind the left-hand cover on the rear. To gain access to the serial port,
open the hinged cover.

2 of 5 3/2/99 10:04 AM

SLC Chapter 6 Connecting Peripherals file:///C|/test/HtmlHelp/SLC Chapter 6 Connecting Peripherals.htm

Fig. 6-3 Locating the Serial Port

Serial ports are often called RS-232 © ports, which refers to the industry standard for this kind of
interface. Because the serial interface is an industry standard there is a wide range of devices that
can be connected to the serial port. Basically, any device that is listed as a serial device and requires
an RS-232 interface can be connected to your WinBook. Examples of such devices include a
mouse, an external modem and a serial printer.

COM 1 and COM 2

The serial port on your WinBook is configured as COM1. The COM2

serial port is used by the built-in trackball. When you connect a device to your WinBook, you will
have some software to configure and run the device.

In your software, you must configure the device as being connected to the COM1 serial port. For
example, if you connect a mouse to the serial port, you must ensure that you use your mouse
software to configure the mouse as being connected to COM1.

How to Connect a Mouse

By way of an example, we describe here the simple procedure for connecting a mouse, which is
probably the most commonly used serial device, to your WinBook. The procedure for connecting
any kind of serial device will be similar. An increasing number of software packages supports the
use of a mouse, and a mouse can make the operation of such software extremely quick and easy.
The most commonly used mice are serial devices and as such can be directly connected to your
WinBook. Another kind of mouse is the bus mouse that usually requires a special interface card.
You cannot connect this type of mouse to the serial ports, so make sure the mouse you wish to use
is a serial mouse.

NOTE
The external serial port is COM1; the optional Fax/Modem is COM3. When using a serial
mouse on COM1 there will be a conflict when using the Fax/Modem on COM3. If it is
desired to use both a mouse and modem together, the best solution is to use the internal
trackball or a PS/2 mouse instead of a serial mouse.

The serial connector on the WinBook is a 9-pin male D-connector. A male connector is a
connector containing the pins, (a female connector is a connector with pinholes into which the pins
on the male connector must be inserted). D-connector refers to the shape of the connector that has
one long side and one short side.

Now look at the connector attached to your mouse. If the connector is a 9-pin female D-connector
you may plug this directly onto one of the serial port connectors on your WinBook. Secure the
mouse connector in place by means of the screws on either side, which should be screwed into the
receptacles on the serial port connectors.

If your mouse is fitted with 25 –pin connector you must buy a 25-pin to 9-pin adapter. Such
adapters are available at any good computer store. If you need to purchase such an adapter, make

3 of 5 3/2/99 10:04 AM

SLC Chapter 6 Connecting Peripherals file:///C|/test/HtmlHelp/SLC Chapter 6 Connecting Peripherals.htm

sure that the 9-pin connector on the adapter is female.

Having obtained an adapter, plug this onto the connector on your mouse and secure with the
attached screws/fasteners, and then connect the adapter to one of the serial ports on your WinBook
and similarly secure it in place. Your mouse is now connected and ready for use. Please note,
however, that a mouse requires a software driver that must be installed before you will be able to
use it. The mouse should include a

software diskette containing such a driver, so please refer to the manual provided with your mouse
for details of how to install the software driver n the WinBook.

The installation procedure for the 486SX/DX-WinBook will be the same as for any other PC.

The Parallel Port

The parallel port is located behind the left-hand cover on the rear of your WinBook. To gain access
to the parallel port, open the hinged cover.

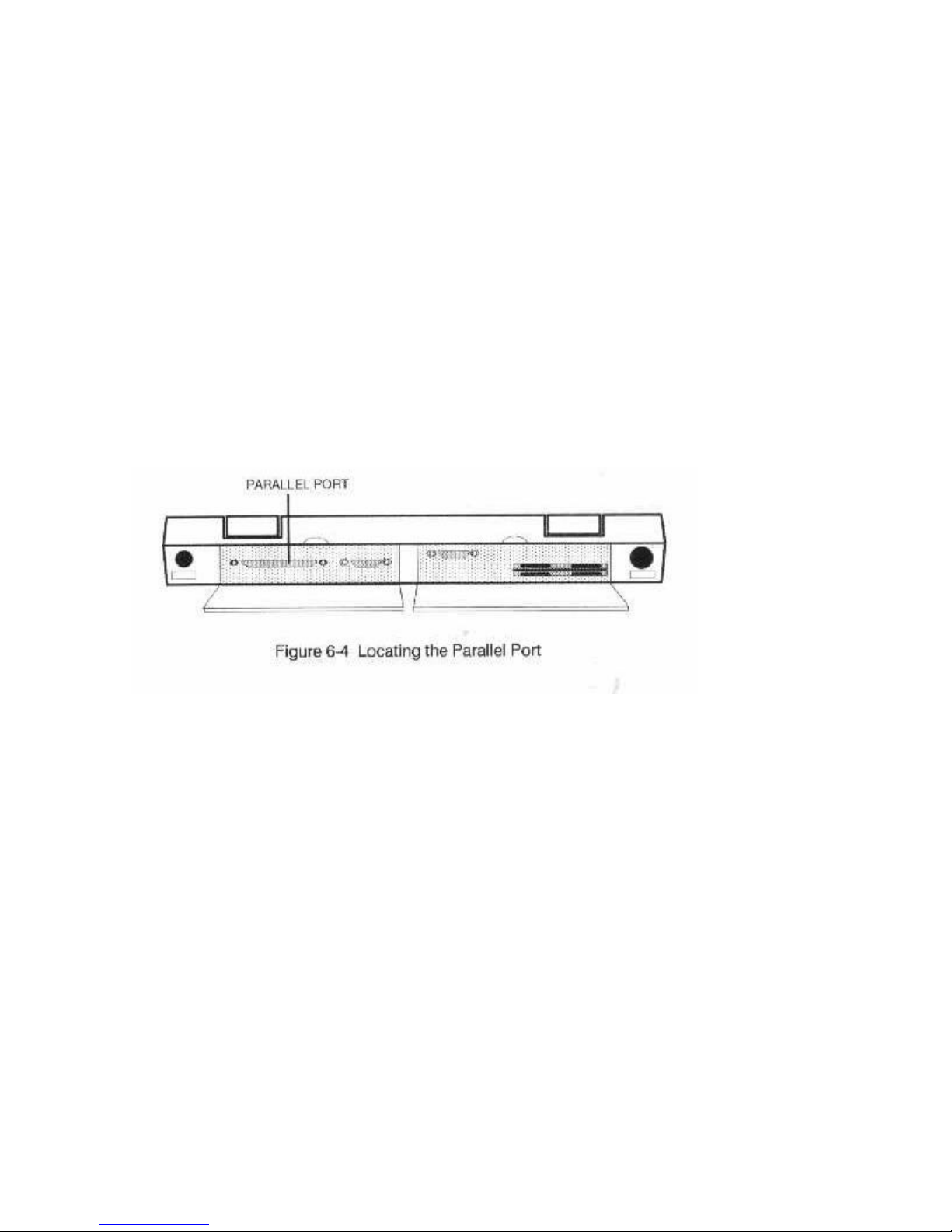

Fig. 6-4 Locating the Parallel Port

Parallel ports are often referred to as Centronics or Printer ports, since a printer is the device most
commonly connected to the parallel port. Again, this is an industry standard, so any device that
requires a parallel interface can be connected to the parallel port. In addition to printers, common
parallel devices include plotters and digitizers.

Connecting a Printer

If you wish to connect a printer to your WinBook first make sure the printer is a parallel printer
and not a serial printer. The vast majorities of PC printers are parallel devices and can therefore be
connected to the parallel port on your WinBook. Provided with the printer should be a printer
cable. Connect the matching connector on this cable to your printer and secure it in place with the
screws or fasteners on the cable connector. Plug the other end of the cable onto the parallel
connector on your WinBook and secure it in place. And that is all it takes!

Most printers do not require any software drivers and you should be able to access the printer
immediately without any further setup procedure. An easy way to test whether the printer is on line
is to turn on your WinBook and turn on the printer, and then, when your WinBook has booted up,
press the Prt Sc (Print Screen) key. This should cause the contents of the screen display to be

4 of 5 3/2/99 10:04 AM

SLC Chapter 6 Connecting Peripherals file:///C|/test/HtmlHelp/SLC Chapter 6 Connecting Peripherals.htm

printed out. For details of your particular printer’s operation, please refer to the printer manual.

Connecting the Optional Docking Station

An external docking station is available as an option for your 486SX/DX-WinBook. The docking
station includes its own power supply and has space for interface cards just as in a conventional
PC. The docking station will also allow the use of additional disk drives.

Fig. 6-5 Locating the Docking Station Connector

The connector for the external docking station is situated behind the right-hand cover on the rear
panel. The whole notebook should be “plugged in” to the docking station via this connector. For
full details, please refer to the instructions included with the docking station.

Other Available Options

Note that the following options are also available for the WinBook, but these options are NOT
ones the user can install, an authorized dealer must install them. For further information, please call
your dealer.

Memory Options

The standard WinBook comes with 2MB of memory, which can be upgraded to 4MB or 8MB.

Optional Fax/Modem

An optional Fax/Modem can be installed in the unit, providing a 2400 Hayes compatible modem
with send/receive capabilities.

Optional Math Coprocessor

The WinBook Supports an Intel 80387SX Math coprocessor, which will improve mathematical
functions in math intensive software packages (note that the software packages must support a
coprocessor).

5 of 5 3/2/99 10:04 AM

SLC Chapter 7 Power Options file:///C|/test/HtmlHelp/SLC Chapter 7 Power Options.htm

SLC Chapter 7 Power Options

CHAPTER 7

POWER OPTIONS

The WinBook features the ability to run on AC power or the rechargeable internal battery for
maximum convenience when at home or in the office or out and about with no access to a power
supply. To maximize the efficiency of battery usage the WinBook also comes with a number of
power conservation features, some of which can be tailored to your particular requirements.

Using the AC Adapter/Charger

When you have access to AC power you should normally use the AC adapter provided with your
WinBook in order to save the battery for use when power is not available. The supplied AC
adapter can be plugged into any power source from 90 volts to 240 volts since it is auto-adjustable.

When you turn on your system, as long as the AC power adapter is connected, power will be
derived from this power supply and the battery will remain unused.

If the main power is accidentally cut off, or the cable is unplugged either from the WinBook or
from the AC power outlet, the system will automatically switch to battery use with no break in
operation. Thus, the on-board battery provides an Uninterruptible Power Supply (U.P.S.) function
during AC power operations.

Using the Battery

The WinBook can also be run off the battery supplied, so you can use your system even when no
AC power is available. The battery is inserted into the battery cavity in the WinBook that is
accessed by removing the battery cover.

1 of 4 3/2/99 10:07 AM

SLC Chapter 7 Power Options file:///C|/test/HtmlHelp/SLC Chapter 7 Power Options.htm

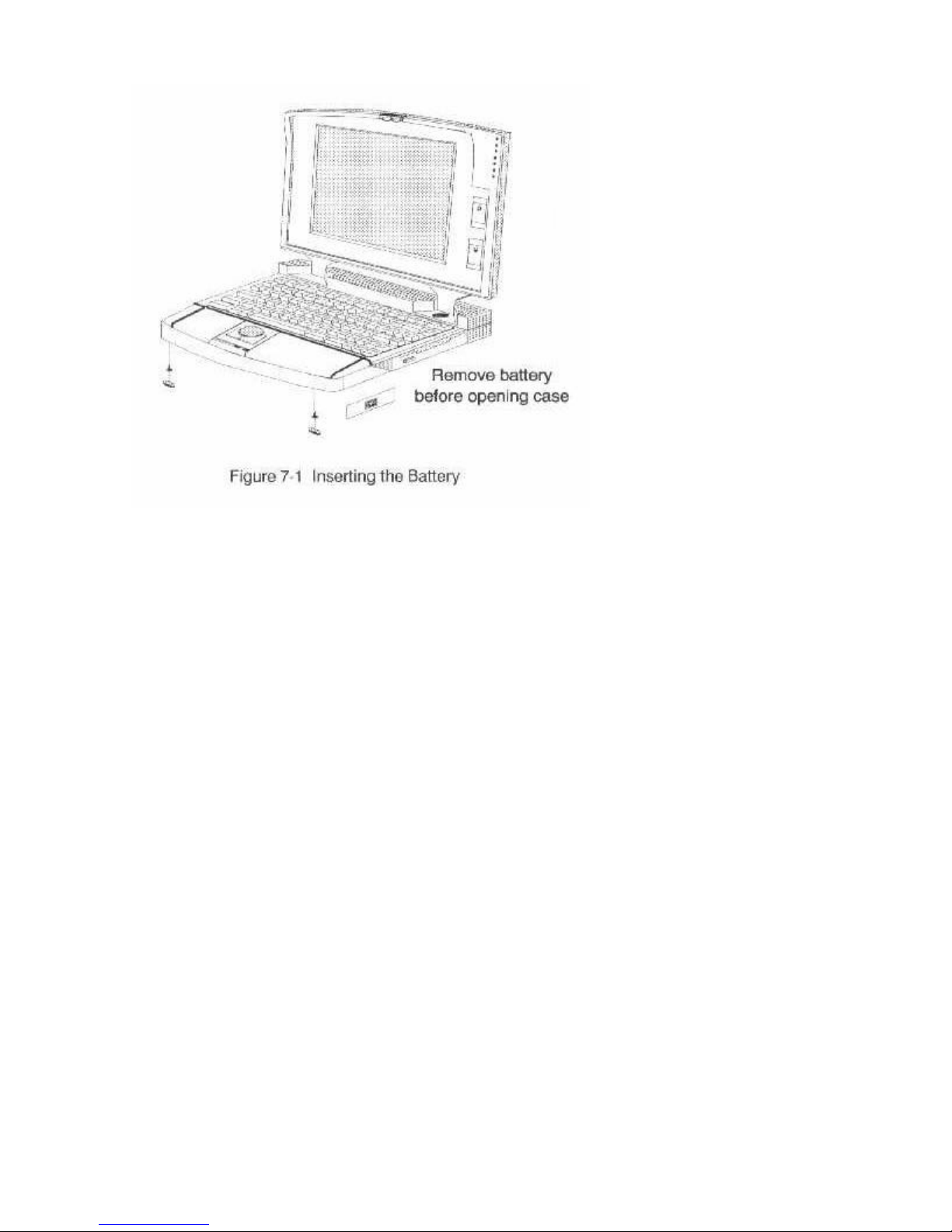

Fig. 7-1 Inserting the Battery

To remove the cover, simply press firmly on the cover with your thumb and slide it downwards.
When the battery is installed the battery cover should always be replaced.

The battery will provide at least two hours of usage before it will need to be recharged. If you run
the POWER.EXE program, more than two hours of usage will be possible. Please refer to page 7-4
for details.

If you turn on your WinBook when the power adapter is NOT connected, the system will
automatically use the battery. As soon as you connect the power adapter, the system will
automatically use the power adapter.

Charging the Battery

The AC power adapter provided with your system is actually a combined power supply/battery
charger. The battery used is a Nickel-Metal-Hydride type and you should only use the supplied
charger to recharge this battery. The procedure for charging the battery is detailed below:

1. Turn off the power to the computer and insert the battery in the battery compartment.

NOTE

Make sure you insert the battery in the direction of the arrow on the battery.

1. Plug the power adapter in the computer and turn the power on. The power LED on the
power adapter will illuminate.

2 of 4 3/2/99 10:07 AM

SLC Chapter 7 Power Options file:///C|/test/HtmlHelp/SLC Chapter 7 Power Options.htm

2. As long as the battery is inserted and the power adapter is connected, the charge LED on the
power adapter will illuminate, indicating that the battery is being charged. Due to the
advanced design of the charger circuit, the battery in the WinBook will fully charge in 1 to

1.5 hours no matter whether you are using the computer or not.

3. When the battery is fully charged, the Charge LED on the power adapt will

flash.

1. The charger will automatically enter “trickle charge” mode to ensure the battery is kept fully
charged. To obtain the best performance and prolong battery life, you should continue to
charge the battery for a further 30 minutes after the full charge indicator has flashed.

6. When the battery is fully discharged the temperature of the battery will

be higher than normal. Please wait approximately ten minutes before recharging the battery.

1. If you do not intend to use your computer for a period of time, you should fully discharge
the battery and remove the battery from the computer. DO NOT RECHARGE THE
BATTERY BEFORE REMOVING IT FROM THE COMPUTER.

2. Note that to get maximum battery usage, you should recharge the battery before you use it.

SAFETY NOTES

Recharge in a place 50ºF (10ºC) to 95ºF (35ºC).

Do not short-circuit battery.

Do not put into fire.

Saving Battery Power with POWER.EXE

Included with all MS-DOS/IBM DOS version 5.02 is a program called POWER.EXE, which can
be loaded to maximize power usage. We recommend you load this program, especially if you
frequently use your WinBook on battery power. The instructions for using this program are as
follows:

1. Copy the POWER.EXE program from the diskette to the root directory of the C: hard disk
by entering the following command under DOS:

COPY A:\POWER.EXE C:\

1. Enter the following statement in your CONFIG.SYS file:

DEVICE = C:\POWER.EXE

NOTE: For details on creating and editing the CONFIG.SYS file,

3 of 4 3/2/99 10:07 AM

SLC Chapter 7 Power Options file:///C|/test/HtmlHelp/SLC Chapter 7 Power Options.htm

Please refer to your DOS user’s manual.

1.Save the CONFIG.SYS file and reboot y our computer. The POWER.EXE will
automatically be loaded each time your computer is turned on and will ensure that power
overhead is kept to a minimum by monitoring the system during usage.

4 of 4 3/2/99 10:07 AM

SLC Chapter 8 file:///C|/test/HtmlHelp/SLC Chapter 8.htm

SLC Chapter 8

CHAPTER 8

BIOS SETUP PROGRAM

One of the components on the mainboard inside your WinBook is the BIOS (Basic Input Output
System). This consists of firmware (software burned into hardware) which handles basic routines.
The BIOS also includes a SETUP program to allow you to configure the computer and set certain
power management features. In this chapter we explain how to use the setup program and power
management features to get the best performance from your WinBook.

Accessing the Standard SETUP Program

When you turn on your computer, the system will run a memory check, and you can see it counting
through the memory on your screen. The following display will also appear on your screen:

Hit <Del>, If you want to run SETUP

As long as this message is present on the screen you may press the <Del> key to access the setup
program. If this message disappears before you have pressed the <Del> key, reboot your machine
to call the message back to the screen. When you press <Del>, the main menu of the SETUP
program will appear, as shown.

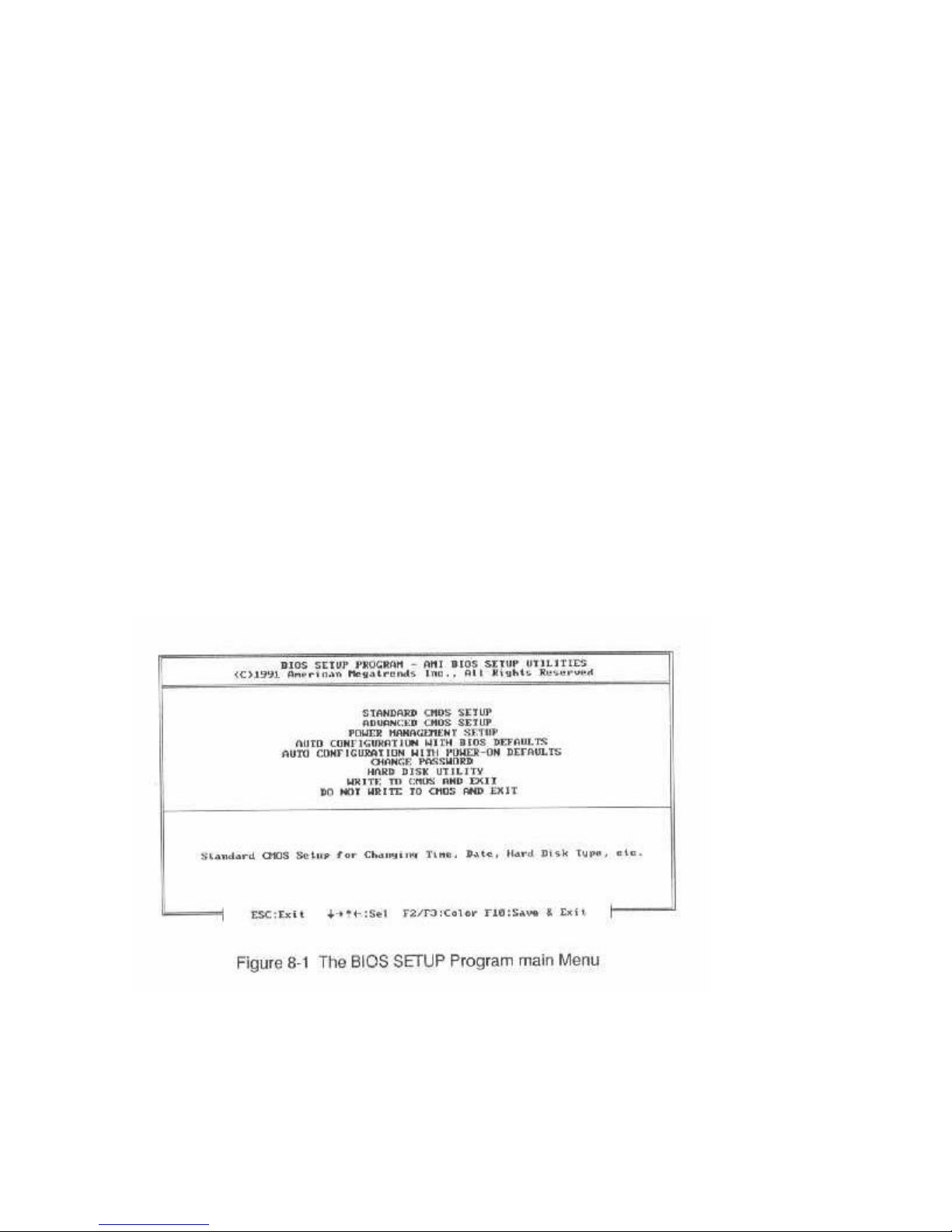

Figure 8-1 The BIOS SETUP Program main Menu

You may use the cursor up/down keys to highlight the individual men7u items. As you highlight
each item, a brief description of that item’s function appears in the lower window.

The first item in the main menu is the STANDARD CMOS SETUP. You must run this part of the

1 of 11 3/2/99 10:08 AM

SLC Chapter 8 file:///C|/test/HtmlHelp/SLC Chapter 8.htm

setup program in order to correctly setup your hardware configuration. Highlight STANDARD
CMOS SETUP and press <Enter>. A warning message will appear on your screen as shown on
the following page.

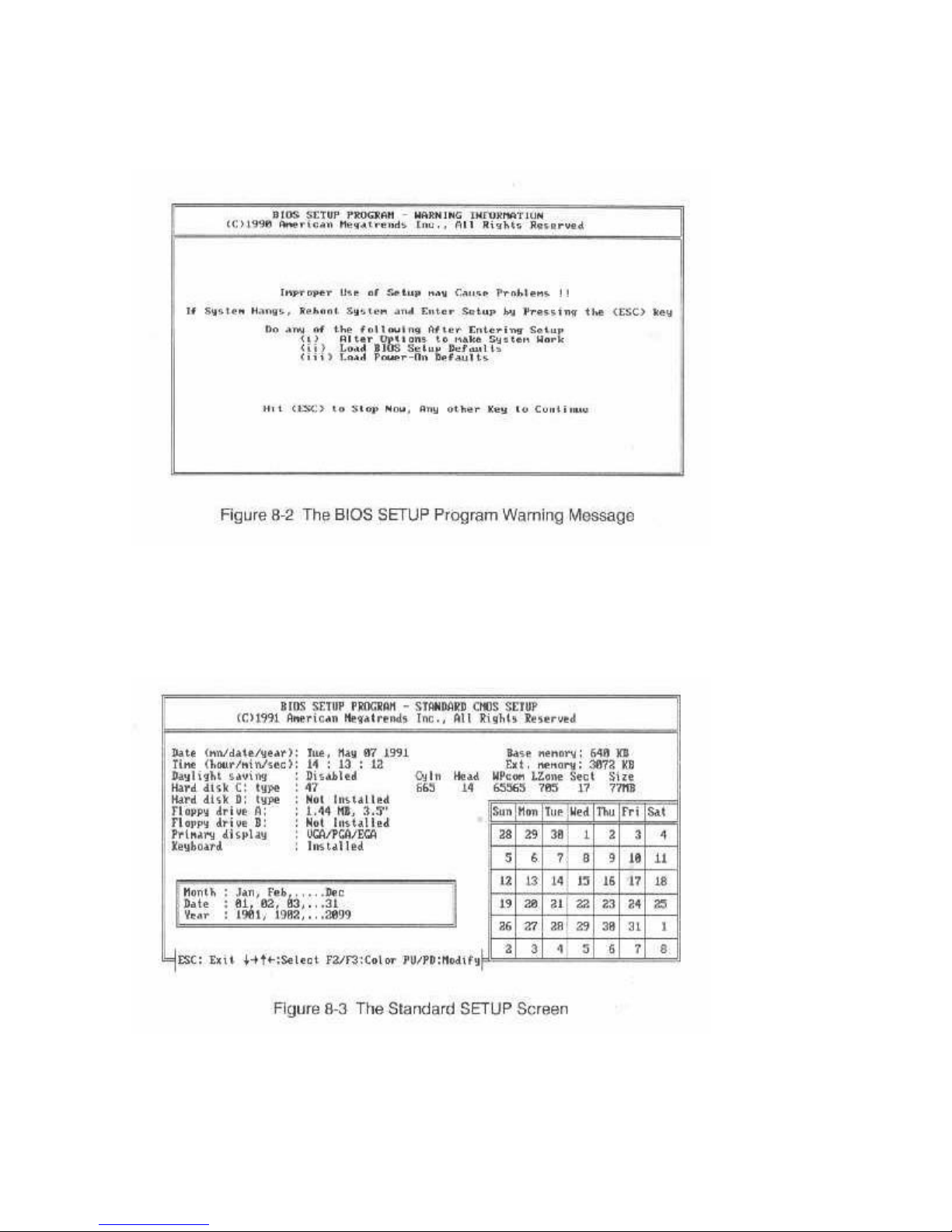

Figure 8-2 The BIOS SETUP Program Warning Message

Read this message and then press any key to call up the STANDARD CMOS SETUP display,
which will appear on your screen, as shown below.

Figure 8-3 The Standard SETUP screen

In the top right corner the base memory size and the extended memory size are displayed. This is
automatically read from your system, and you don not need to set these parameters.

2 of 11 3/2/99 10:08 AM

SLC Chapter 8 file:///C|/test/HtmlHelp/SLC Chapter 8.htm

The bottom right hand of the screen shows a calendar. The month displayed will depend on the
date set in your system clock, and one day will be flashing indicating the current date. Since you
have not yet set the time and date, the date displayed is probably incorrect.

Information on each item is given in the window in the left, with details of the available options for
each item and examples of settings.

Setting the Date and Time

The date is the first item in the list on the left of the SETUP display. To move the cursor over the
item you wish to change use the cursor up and down or left and right keys. To alter items use the
PgUp and PgDn keys. When you set the date, you should set the year first. If you set the date and
month first and then select the year, the date

and month will automatically change according to the year. To set the date, for example, position
the cursor over the year and use the PgUp/PgDn keys to call up the current year. When you have
selected the correct year, move the cursor to the month and date and again use the PgUp/PgDn
keys to make the correct setting. Note, that the day (Mon., Tue, Wed&ldots;) will change
automatically according to whatever date is set. When you have set the correct date, use the cursor
right key to move down to the time, and in a similar way set the correct time.

You may use the Daylight Saving item to enable or disable Daylight Saving Time depending on
whether daylight saving time is used in your area.

Hard Disk Type

For the hard disks, you must enter a type number, according to the type of hard disk drive you
have installed. You can scroll through the different types by using the PgUp/PgDn keys. If none of
the type numbers corresponds to the drive you are using, select type 47 and define the Cyln, Head,
Wpcon, Lzone and Sec according to the specifications of your drive. Please refer to the sheet
detailing hard disk configuration enclosed with this manual.

Floppy Drive Configuration

Use the PgUp/PgDn keys to scroll through the choices, which are 360 KB 5.25”; 1.2 MB 5.25”;
720 KB 3.5”; 1.44 MB 3.5”, and Not Installed. Set floppy drive A: as 1.44 MB 3.5”; set floppy B:
as Not Installed.

Primary Display

For the Primary display item you have a choice of monochrome, Color 40 X 25, VGA or EGA,
Color 80 X 25, or Not Installed. Select VGA or EGA.

Keyboard Test

The Keyboard item is used to enable or disable a keyboard test when you turn your system on. To
enable the keyboard test, select Installed; to disable the keyboard test, select Not Installed.

3 of 11 3/2/99 10:08 AM

SLC Chapter 8 file:///C|/test/HtmlHelp/SLC Chapter 8.htm

Having made all the above settings according to your system configuration, press <Esc> to return
to the main menu. If you do not wish to use the advanced setup options you may now save the
settings you made in the STANDARD CMOS SETUP by pressing the F10 key or highlighting the
SAVE SETTING AND EXIT item in the main menu.

When you save the settings your system will reboot and these settings will be automatically
implemented every time you turn your computer on.

The WinBook Advanced CMOS Setup

To access the advanced CMOS Setup Program, highlight ADVANCED CMOS SETUP in the
main menu and press <Enter>. A warning message will appear on your screen and you may press
any key to remove this and access the Advanced CMOS Setup program, as illustrated below.

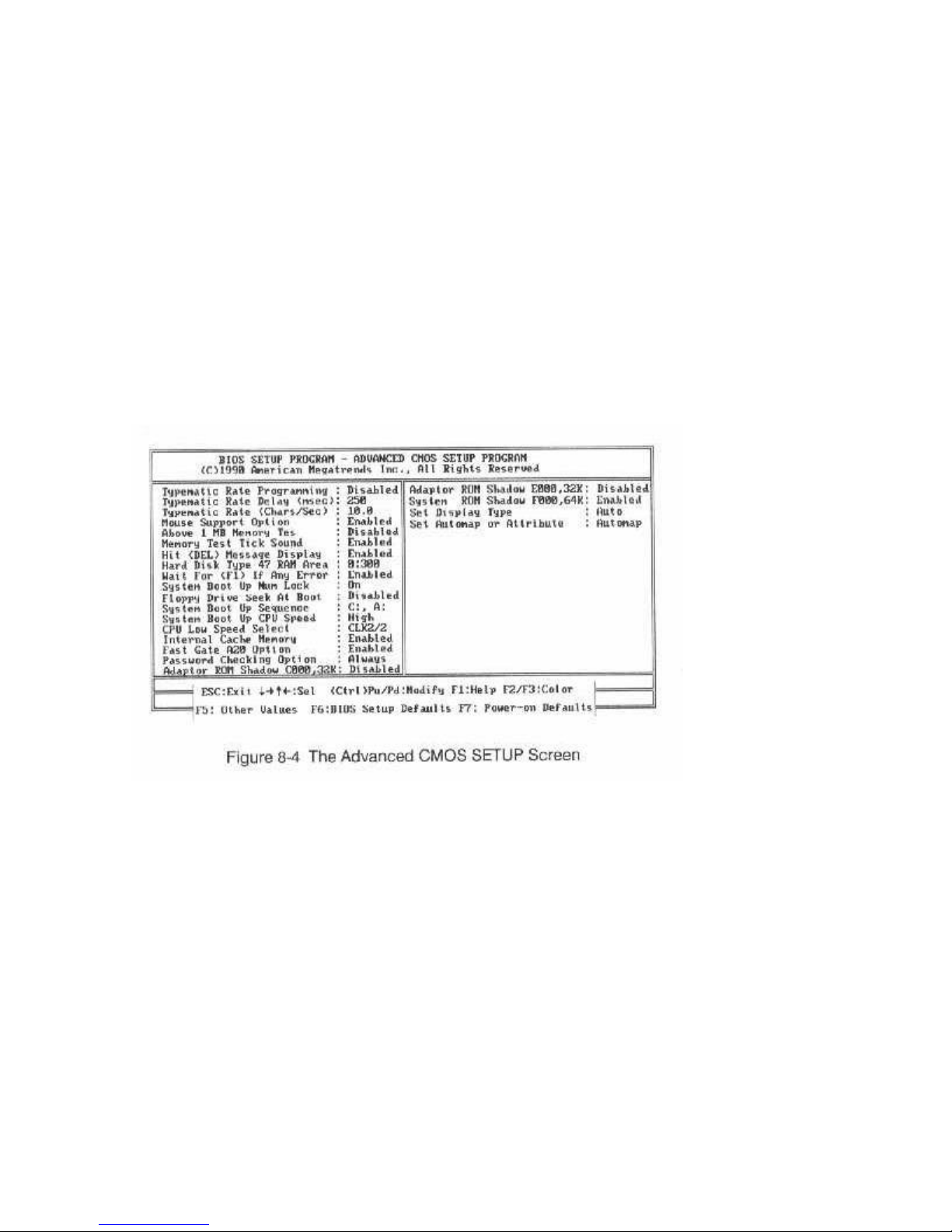

Figure 8-4 The Advanced CMOS SETUP Screen

The Advanced CMOS Setup allows you fine-tune certain features supported by the chipset and
AMI BIOS. It also includes support for shadow RAM under which the contents of the ROM BIOS
can be copied into memory at boot up, enhancing performance. When you first access the
Advanced CMOS Setup program, the default settings will be loaded. If you change any of the
settings you may recall the default settings at any time from the main menu. This is detailed later.

To get help on each item, highlight the relevant item and press the F1 key. A window will appear
on your screen detailing the various options available for each item. A brief introduction of each of
the settings in the Advanced CMOS Setup program is given below.

Typematic Rate Programming

Enable this item if you wish to be able to configure the characteristics of your keyboard. Typematic
refers to the way in which characters are entered repeatedly if a key is held down. For example, if
you press and hold down the “A” key, the letter “A” will repeatedly appear on your screen until

4 of 11 3/2/99 10:08 AM

SLC Chapter 8 file:///C|/test/HtmlHelp/SLC Chapter 8.htm

you release the key. This item is disabled by default.

Typematic Rate Delay (msec)

You can use this item to define the period after which the typematic function becomes active i.e.
how long after you press a key the characters will be repeated.

Typematic Rate (Chars/Sec)

You can use this item to define the typematic rate delay of your keyboard, i.e. the rate at which
characters will be repeated when a key is held down.

Mouse Support Option

Enable this item if you wish to use a mouse with the setup program.

Above 1 MB Memory Test

Enable or disable this function according to whether you want the system to run a test of memory
above 1 MB at boot up or not.

Memory Test Tick Sound

Enable or disable this function according to whether you want an audible signal during the memory
check or not.

Hit <Del> Message Display

Enable or disable this item according to whether you wish the message “Hit <Del>, If you want to
use SETUP” to appear on your screen or not.

Hard Disk Type 47 RAM Area

If the hard disk type you wish to install in your system is not listed in the Standard CMOS Setup
program, you can use the type 47 to configure a special setting according to the characteristics of
your hard disk drive. You may use this item to define the area of RAM in which this information is
to be stored.

Wait for <F1> If Any Error

Enable or disable this item according to whether you wish to press <F1> when an error is
encountered or not. Pressing <F1L enables you to enter the setup program and make any necessary
changes.

System Boot Up Num Lock

Use this item to enable/disable the Num Lick on your keyboard automatically at power-on.

Floppy Drive Seek at Boot

5 of 11 3/2/99 10:08 AM

SLC Chapter 8 file:///C|/test/HtmlHelp/SLC Chapter 8.htm

You may enable/disable this item to define whether the system will look for a floppy disk drive to
boot from at power-on, or go directly to the hard disk drive.

System Boot Up Sequence

You may define whether the system will look first at drive A: and then at drive C: when booting
up, or vice versa.

System Boot Up CPU Speed

Select High to configure your system in the turbo speed mode at boot up; select Low to configure
your system in normal speed mode.

CPU Low Speed Select

This item defines the CPU speed when in normal speed mode, with a choice of CLK2/2 (CUP
speed divided by 2) and CLK2/4 (CU speed divided by 4).

Internal Cache Memory

Internal cache memory refers to the built-in 1K cache in the Cyrix CX486SLC CPU. This item
should usually be enabled to obtain the best performance.

Fast Gate A20 Option

Retain the default setting for this item.

Password Checking Option

If you enable this item you can define a password which needs to be entered every time you boot
up the system in order to gain access. Select Setup if you only want password protection for
accessing the Setup program; select Always to have password protection every time you boot up
your system.

Adapter Shadow

Shadow RAM is a feature whereby the contents of the ROM BIOS are copied into the top 384K of
the first megabyte of memory each time the computer is turned on. Since this area of RAM is often
not used as it is above the 640K of base memory, shadowing the BIOS makes maximum use of al
available memory. Because data can be accessed much quicker from RAM than from ROM chips,
this results in enhanced performance.

Enabling adapter shadow allows the shadowing of the contents of ROM BIOS’s of devices other
than the main BIOS. *IF your system has devices with ROM BIOS, enable adapter ROM shadow
and this BIOS data will be shadowed at boot up. Adapter ROM shadow can be enabled in two
blocks of 32K.

System ROM Shadow

6 of 11 3/2/99 10:08 AM

SLC Chapter 8 file:///C|/test/HtmlHelp/SLC Chapter 8.htm

The Main system ROM may also be shadowed as explained above. Shadowing the main system
ROM will result in improved performance.

Set Display Type

This item has a choice of three options: LCD, Auto and SimulSCAN. Select LCD to use the
built-in LCD display; select Auto to allow use of the LCD display for normal usage and automatic
switching to an external CRT if one is connected; select SimulSCAN to allow simultaneous
viewing of the LCD and CRT display.

Set Automap or Attribute

Retain the default setting for this item.

Power Management

Select POWER MANAGEMENT SETUP in the main menu make various settings to maximize
power usage. If you wish to take advantage of these features, you must select

Enabled

for the first
item, Power Management. When this item is enabled, you may then proceed to make the settings
according to your requirements.

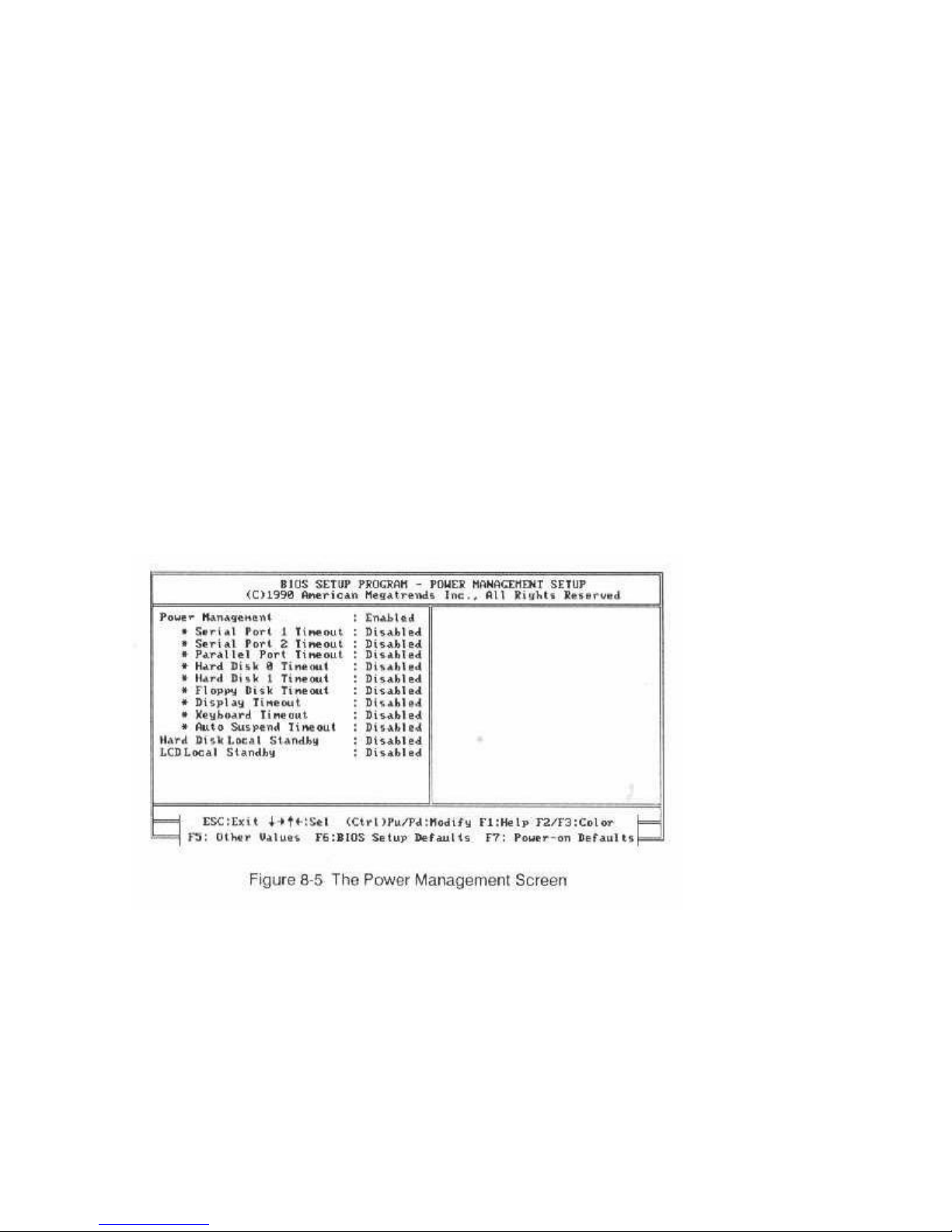

Figure 8-5 the Power Management Screen

Serial Port 1,2 Timeout

Enter the amount of time of non-usage after which you wish power to the serial port to be shut off.
For example, if you enter 10 (seconds), then if the device connected to

serial port 1 is not used to 10 seconds, power to the serial port will be shut off. As soon as the
device is used, power will automatically be restored.

Parallel Port Timeout

7 of 11 3/2/99 10:08 AM

SLC Chapter 8 file:///C|/test/HtmlHelp/SLC Chapter 8.htm

Enter the amount of time of non-usage after which you wish power to the Parallel (printer) port to
be shut off.

Hard Disk 0 Timeout

Enter the amount of time of non-usage, i.e. no data is written to or read from the hard disk, after
which you wish power to the hard disk drive to be shut off. Note that the hard disk 0 refers to the
hard disk installed in the WinBook.

Hard Disk 1 Timeout

As for hard disk 0 above, note that the WinBook only supports the use of one hard disk drive
unless you are using the optional docking station.

Floppy Disk Timeout

Enter the amount of time of non-usage, i.e. no data is written to or read from the floppy disk, after
which you wish power to the floppy disk drive to be shut off.

Display Timeout

Enter the amount of time of system non-usage, i.e. no input is make from the keyboard or other
device, after which you wish power to the LCD display to be shut off.

Keyboard Timeout

Enter the amount of time of keyboard non-usage after which you wish power to the keyboard to be
shut off.

Auto Suspend Timeout

Enter the amount of time of system non-usage after which you wish the computer to be
automatically entered into suspend mode. The result of this will be the same as if you had pressed
the suspend switch on the WinBook. Note that the Auto Suspend Timeout starts counting from
when the longest of all the other items has elapsed. For example, if the Keyboard Timeout is set for
3 minutes and this is the longest timeout of any of the settings, the Auto Suspend Timeout will only
start counting when the 3 minutes is up.

Note also that the Auto Suspend function will only work if a timeout period has been entered for at
least one option. If all timeout options are disabled, Auto Suspend will not function.

Hard Disk Local Standby

Enter the amount of time of system non-usage, i.e. no input is made from the keyboard or other
device, after which you wish power to the LCD display to be shut off.

Automatic Power Saving

8 of 11 3/2/99 10:08 AM

SLC Chapter 8 file:///C|/test/HtmlHelp/SLC Chapter 8.htm

In addition to the user configurable power saving modes detailed above, the WinBook features
some transparent features to enhance power economy. These include a “Smart CPU” mode. This
means that when the CPU is not being accessed it will automatically switch to a slow cycle mode in
which it uses less power. As soon as the CPU is accessed it will switch back to high cycle mode.

Also, note that if you have installed the optional fax modem and are expecting an incoming call,
you can set the computer in Suspend mode. As soon as the incoming call is received, the computer
will return to normal mode in order to handle the call.

Restoring Default Settings

As mentioned in the warning screen, it is possible to make an incorrect setting in the setup
program, which will cause your system to malfunction. In this case you may wish to restore the
default settings in order to be able to successfully boot up your machine. The main menu has two
items, AUTO CONFIGURATION WITH BIOS DEFAULTS and AUTO CONFIGURATION
WITH POWER-ON DEFAULTS to enable you to do this.

To restore the default settings for the Advanced CMOS setup and Advanced Chipset Setup, select
AUTO CONFIGURATION WITH BIOS DEFAULTS and a message will appear asking if you
wish to restore the settings from the ROM table. Type “Y” to proceed or “N” to cancel. If you
type “Y” the settings will be immediately restored. Please note that this will not affect the settings
you have made in the Standard CMOS Setup, which will be retained, until you change them
directly from the Standard CMOS Setup program.

If you wish cancel changes you have made and restore the settings used at power-on, select AUTO
CONFIGURATION WITH POWER-ON DEFAULTS.

Change Password

In the Advanced CMOS Setup program is an item to allow you to set password protection as
Setup or Always. When Always is selected, a password must be typed in

each time the system boots up; when Setup is selected you must enter a password each time you
wish to access the setup program.

Warning
Password protection is used as a security feature.

However, if the password is lost or forgotten, the
only way to get past the security access is to send the notebook to an authorized dealer! To
prevent any problems, make sure you write the password down, and keep it in a safe
location.

Whichever item is selected, you should select CHANGE PASSWORD in the main menu to type
in the password you wish to use. Until the password is entered, this function will not be in effect.
The first time you select Change Password the following message appears:

“Enter CURRENT Password:”

9 of 11 3/2/99 10:08 AM

SLC Chapter 8 file:///C|/test/HtmlHelp/SLC Chapter 8.htm

The first time you run this option simply press <Enter>. It is possible that the default password
“AMI” is enabled. In this case, pressing <Enter> will not allow you to enter a new password, since
you must enter the default password first. In this case, you must first type in “AMI” as the default
password before you can enter a new password.

You will then be prompted to enter your new password. You may type in up to six characters for
your password and then press <Enter>. You will be asked to verify the password and then this
password will be stored in the CMOS and must be entered every time you boot up your system or
access the setup program.

You have three changes to enter the correct password. If you fail to enter the correct password on
the third attempt the system will hang.

Hard Disk Utility

Included within a BIOS is a program to allow you to format, auto interleave and carry out media
analysis on hard disk drives installed in your system.

WARNING
The Hard Disk Utilities built into the BIOS will perform several operations on your hard

disk. Each of these options will DESTROY DATA that is on the drive. Before performing
any of these functions, make certain all of the information on the drive is backed up.

Select Hard Disk Utility from the main menu and press <Enter>. A screen will appear with the
specifications of the hard disk drives installed in your system listed at the top of the screen
according to the type number you entered for your hard disk drive(s) in the Standard CMOS Setup
program. You may then select FORMAT, AUTO INTERLEAVE or MEDIA ANALYSIS to
perform the relevant operations.

Saving Your Settings

When you have completed adjusting all the settings as required, you must save these settings into
the CMOS RAM. Select WRITE TO CMOS AND EXIT and press <Enter>. When you confirm
that you wish to save the settings your machine will be automatically rebooted and the changes you
have made will be implemented. You may call up the setup program at any time to adjust any of the
individual items by pressing the <Esc> key during boot up.

If you wish to cancel any changes you have made, select DO NOT WRITE TO CMOS AND
EXIT and the original settings stored in the CMOS will be retained.

Have you checked the configuration in your software? Is the mouse supposed to be on
COM1 or COM2? Are you using a serial mouse? Have you loaded a mouse driver?

I configured my mouse as being on COM2 and it will not work.

The built-in trackball uses COM2. The external serial port must be configured as COM1.

10 of 11 3/2/99 10:08 AM

SLC Chapter 9 file:///C|/test/HtmlHelp/SLC Chapter 9.htm

SLC Chapter 9

CHAPTER 9

TROUBLESHOOTING

Your WinBook computer was designed to be transported around and provide trouble free service
for a long time. Nevertheless, certain basic precautions should be taken to ensure that the system
remains in good working order. In this chapter, we make some recommendations as to how to
achieve the most reliable performance for the longest possible time, and how to solve some of the
problems that you may encounter.

Basic Precautions

The WinBook is built and designed to be a rugged notebook computer. However, we suggest that
when transporting the notebook, pack it into a briefcase or a notebook carrying case. In this way,
the plastic shell will be less liable to become scratched or damaged during transportation. In
addition, please note the following points:

Do not subject the WinBook to excessive shocks or severe vibration. The hard disk drive installed
in the system was designed to be shock resistant, but within reason.
Do not place heavy objects on top of the WinBook.
Do not place the WinBook near to any heat source or subject it to extreme temperature changes.
Avoid using the computer in an excessively hot or cold environment.

Cleaning the WinBook

You may use a slightly damp cloth to clean the plastic shell of the system. Take great care
that no liquid enters between any of the seams of the shell or into any of the connectors.

Glass cleaner may be used to clean the LCD screen. Do not spray cleaner onto the screen,
however, but rather dampen a soft, clean cloth and gently rub the screen. Do not let any
liquid run between the LCD and the surrounding frame.

Cleaning the Trackball

After a long period of use, dust and small particles may enter the trackball unit resulting in
uneven movement. This can be remedied by removing the trackball and cleaning it, as
instructed below:

There are two small recesses on the trackball holder. Insert the two prongs of a pair of spring clip pliers
or tweezers into the two recesses and turn anti-clockwise.

1 of 4 3/2/99 10:11 AM

Figure

SLC Chapter 9 file:///C|/test/HtmlHelp/SLC Chapter 9.htm

9-1 The Trackball Removal

Problem Solving

1. Remove the ball from the trackball recess and wash it in warm soapy water to
remove any dirt that may have adhered to the ball itself. Make sure the ball is
thoroughly dry before re-inserting.

2. Use a cotton swab soaked in industrial alcohol to clean the inside of the
trackball recess to remove any dust or fine particles that have entered the
trackball unit, and to clean the two rollers to ensure the roller surface is smooth.

3. Replace the ball in the trackball recess and twist the trackball holder back into
place.

The WinBook was designed and manufactured according to very stringent quality
standards. As such, with careful use, there is no reason why it should malfunction. The
field of personal computing; however, includes such a diversity of software and
hardware combinations that problems will inevitably arise. It is important that you
understand how to differentiate between problems caused by hardware malfunction
and those that arise out of an incorrect setting or software configuration.

The ability to accurately pinpoint the source of problems will only come with
experience, but always adopt a methodical approach to trying to solve problems. If
nothing appears on your LCD display when you use a particular software, it does not
necessarily mean that the display is faulty, it may mean that the software is not
configured correctly for the display. If your mouse is not working it does not
necessarily mean that the mouse or serial interface is faulty. Maybe your software is
expecting to find the mouse on COM2 and you have connected it to COM1.

There are a million different scenarios most of which are beyond the scope of this
manual. In this chapter we mention only some of the more basic hardware problems
that are directly linked to the WinBook, and how to solve these problems.

2 of 4 3/2/99 10:11 AM

SLC Chapter 9 file:///C|/test/HtmlHelp/SLC Chapter 9.htm

Power Problems

I can boot up the computer but cannot run my software as the screen freezes.

This may occur infrequently when running the WinBook from the battery and when
the battery is very low. Connect the AC adapter and recharge the battery. Remember
that you can still use the WinBook while the battery is charging.

Nothing happens when I turn on the power switch.

If running from the power adapter, check that the adapter is correctly plugged into
both the AC outlet and the WinBook, and that there is power in the power outlet. The
power LED on the power adapter should be on. When running on the battery, check
that the battery is correctly installed. Check also that the battery is not totally
discharged. If it is, recharge it by connecting the power adapter to the system.

Boot Up Problems

The power is reaching my WinBook but the system "hangs" before it is booted up.

Boot up problems are usually caused by an incorrect configuration or statement in the
CONFIG.SYS file (see your DOS user’s manual). To test whether this is the case, try
booting up from a floppy diskette inserted in the A: drive (this diskette must be a
bootable system diskette). If this works, edit the CONFIG.SYS file on the hard disk
drive and then try booting from the hard disk drive again.

Display Problems

I can see nothing on the LCD display even though my system appears to have booted
up correctly.

Adjust the LCD Brightness and Control. Adjust the position of the screen so you are
looking directly into it at right angles. Select a different location for the system away
from bright light shining directly into the LCD.

I connected an external monitor but the display still only appears on the LCD.

Check the Set Display Type item in the Advanced CMOS SETUP in the BIOS
SETUP program. Select auto or SimuSCAN to view the display on a CRT monitor.

I connected an external monitor but nothing appears on the external monitor even
though the BIOS SETUP setting is correct.

Have you plugged in the power lead from the monitor? Check that the monitor is
analog VGA compatible model. Digital monitors such as standard monochrome, CGA
or EGA models will not work with the external video outlet on the WinBook.

Peripheral Connection Problems

3 of 4 3/2/99 10:11 AM

SLC Appendix A: Connector Pinouts file:///C|/test/HtmlHelp/SLC Appendix A Connector Pinouts.htm

SLC Appendix A: Connector Pinouts

APPENDIX A__________

CONNECTOR PINOUTS

For your reference, we list here the pin signals of the external connectors on the WinBook
user’s manual. It is not necessary to use this information to connect peripherals, as all
connectors conform to the industry standards.

EXTERNAL VGA MONITOR CONNECTOR

Pin No. Signal

1. Red Signal

2. Green Signal

3. Blue Signal

4. Monitor ID2

5. Ground

6. Ground

7. Ground

Ground 5 1

1. NC

2. Ground

3. Monitor ID0

4. Monitor ID1

5. Horizontal Sync. 15 11

6. Vertical Sync.

7. NC

EXTERNAL SERIAL PORT CONNECTOR

Pin No. Signal

1 of 4 3/2/99 10:13 AM

SLC Appendix A: Connector Pinouts file:///C|/test/HtmlHelp/SLC Appendix A Connector Pinouts.htm

1. Carrier Detect

2. Receive Data

3. Transmit Data

4. Data Terminal Ready

5. Signal Ground

6. Data Set Ready

7. Request to Send

8. Clear to Send

9. Ring Indicator

EXTERNAL PARALLEL PORT CONNECTOR

Pin No. Signal

1. Strobe-

2. 9 Data 0-7

10 Ack-

1. Busy

2. PE

3. SLCT

4. Auto Feed

5. Error-

6. Init-

7. SLCTIN-

8. 25 Ground

EXTERNAL KEYBOARD CONNECTOR

Pin No. Signal

1. PS/2 Data

2 of 4 3/2/99 10:13 AM

SIGNAL

HSYNC

VSYNC

MS2

MS0

INDEX-

MS1

TRKO-

DR1-

WRTPRT-

MTR1

RDATA-

WDATA-

DSKCHG

RPM/LC

FDIR-

HDSEL

WGATE-

STEP-

HDENL-

HDENL-

GND

GND

GND

GND

SCAN12

ARAUWG

STVDSW1

SW2

SLC Appendix A: Connector Pinouts file:///C|/test/HtmlHelp/SLC Appendix A Connector Pinouts.htm

2. Keyboard Data

3. Ground

4. + 5V

5. PS/2 Clock

6. Keyboard Clock

EXTERNAL DOCKING STATION CONNECTOR

PIN
NO.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.

27.

28.

29.

30.

31.

32.

33.

34.

1.

2.

3.

4.

5.

6.

7.

8.

9.

SIGNAL PIN

NO.

IOCHK­GND
SD7
RESET
SD6
IRQ9
SD5
DRQ2
SD4
OWS­SD3
SMEMW­SD2
SMEMR­SD1
IOW
SD0
IOR­IOCHRDY­DACK3­AEN
DRQ3
SA19
DACK1­SA18
DRQ1
SA17
REFRESH­SA16
SYSCLK
SA15
IRQ7
SA14
IRQ6

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.

27.

28.

29.

30.

31.

32.

33.

34.

1.

2.

3.

4.

5.

6.

7.

8.

9.

SIGNAL PIN

NO.

SA10
DACK2­SA9
TC
SA8
BALE
SA7
OSC
SA6
MEMCS16­SA5
IOCS16­SA4
IRQ10
SA3
IRQ11
SA2
IRQ12
SA1
IRQ15
SA0
IRQ14
BHE­DACK0­LA23
DRQ0
LA22
DACK5­LA21
DRQ5
LA20
DACK6­LA19
DRQ6-

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.

27.

28.

29.

30.

31.

32.

33.

34.

1.

2.

3.

4.

5.

6.

7.

8.

9.

SIGNAL PIN

NO.

MEMW­SD12
SD8
SD13
SD9
SD14
SD10
SD15
SD11
GND
MDATA
MCLK
KDATA
KCLK
RX0
RX4
RX1
TX0
RX2
TX1
RX3
TX2
ACK­PD0
BUSY
PD1
PE
PD2
SLCT
PD3
AFD­PD4
ERR­PD5

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.

27.

28.

29.

30.

31.

32.

33.

34.

1.

2.

3.

4.

5.

6.

7.

8.

9.

G
B

3 of 4 3/2/99 10:13 AM

HD7

PDIAG

IDECS1-

IDECS0-

ACTIVE-

GND

SLC Appendix A: Connector Pinouts file:///C|/test/HtmlHelp/SLC Appendix A Connector Pinouts.htm

35.

36.

37.

38.

39.

SA13
IRQ5
SA12
IRQ4
SA11
IRQ3

35.

36.

37.

38.

39.

LA18
DACK7­LA17
DRQ7
MEMR­MASTER-

35.

36.

37.

38.

39.

120

INIT­PD6
SLIN­PD7
STB­R

35.

36.

37.

38.

39.

4 of 4 3/2/99 10:13 AM
