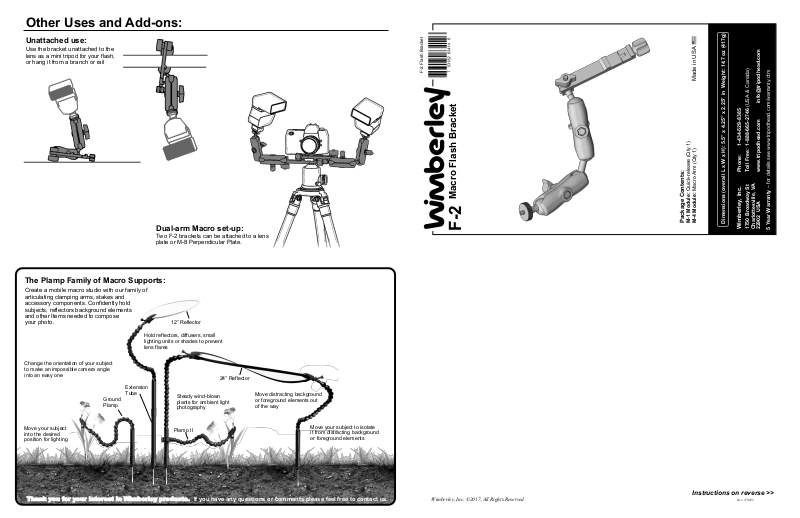

Wimberley F-2 Instructions Manual
Unattached use:
Use the bracket unattached to the
lens as a mini tripod for your flash,
or hang it from a branch or rail
Wimberley, Inc.
Phone: 1
-434-529-8385
1750 Broadway St
Toll Free: 1
-888-665-2746 (USA & Canada)
Charlottesville, VA 22902 USA
www.tripodhead.com
info@tripodhead.com
5 Year Warranty
– for details see www.tripodhead.com/warranty.cfm
Package Contents:
M-1 Module:
Quick-release (Qty 1)
M-4 Module:
Macro Arm (Qty 1)
Instructions on reverse >>
Wimberley, Inc. ©2017, All Rights Reserved Rev. 170622
12” Reflector
Plamp II
24” Reflector
Extension
Tube
Steady wind-blown
plants for ambient light
photography
Move your subject
into the desired
position for lighting
Hold reflectors, diffusers, small
lighting units or shades to prevent
lens flares
Change the orientation of your subject
to make an impossible camera angle
into an easy one
Ground
Plamp
Move distracting background
or foreground elements out
of the way
Move your subject to isolate
it from distracting background
or foreground elements
The Plamp Family of Macro Supports:
Create a mobile macro studio with our family of
articulating clamping arms, stakes and
accessory components. Confidently hold
subjects, reflectors background elements
and other Items needed to compose
your photo.
Thank you for your interest in Wimberley products. If you have any questions or comments please feel free to contact us.
Dimensions (overall L x W x H):
5.5” x 4.25” x 2.25” in Weight: 14.7 oz (417g)
Macro Flash Bracket
F-2
Dual-arm Macro set-up:
Two F-2 brackets can be attached to a lens
plate or M-8 Perpendicular Plate.
F-2 Flash Bracket
Other Uses and Add-ons:
Made in USA
Wimberley, Inc. ©2017, All Rights Reserved Rev. 170622
Positioning your Flash:
To position your flash, simply loosen the two wing knobs on the Macro Arm clamshells. This allows for quite a wide array of flash
positions.
Tighten the wing knobs to lock the flash securely into position.
(shown without off-camera flash cord)
Wing knob
Clamshell
housing
200mm Macro
Mounts on camera body
Plate for small lenses
Attaching the Bracket to a Lens:
The F-2 bracket attaches to your Arca-Swiss style lens plate using a narrow low-profile
quick-release (QR) clamp, which eliminates loose screws and the need for tools. The
clamp on the bottom (M-1) module can be attached to the bottom dovetail of an ArcaSwiss style plate or can be flipped to attach to the top dovetail of a double dovetail plate.
See Connecting Flash Bracket modules: on the opposing page for more details.
M-1 Quick-release Arm
Module shown here with
QR clamp up and QR
clamp facing down.
F-2 mounted on a lens plate F-2 mounted on the P-5 Universal Camera Body
Attach M-1 Quick Release to single dovetail plates: Use the AP-11 to
convert older, single dovetail plates made by Really Right Stuff and Kirk to
the double dovetail configuration for greater flexibility in bracket attachment.
Single dovetail
plate
AP-11
Connecting Flash Bracket Modules:
Knob
Raised nub
Enlarged Area
Forked end of module
M-1 Quick-Release
Module
M-4 Macro Extension
Arm
Unscrew the knob so that the
upright module can fit between
the raised nub and the knob base
Slip the forked end of the module
over the exposed threads. Slip one
of the enlarged areas in the forked
end over the raised nub.
M-1 Quick-release Arm
Module can be flipped
to face QR up or down.
Attaching and Removing Your Flash Unit:
Wimberley Flash brackets have a 1/4”-20 thumbscrew that attaches to an off-camera hot shoe cable or a wireless cold shoe adapter
such as the Wimberley AP-7. The flash cord connects your flash unit to the camera body electrically. We do not sell flash cords.
Please follow camera and flash unit recommendations when purchasing flash
cords to ensure proper signal transmission.
Canon Off-camera Shoe Cord
Nikon Off-Camera Shoe Cord
Loosen knob so that ball and
thumbscrew can spin freely
when attaching the stud to your
shoe cord or other device
*When storing your M-4, release the
knob tension to allow rubber balls to
recover. This extends the life of the
module.
Off-Camera
Flash Cable
AP-7 Cold Shoe
