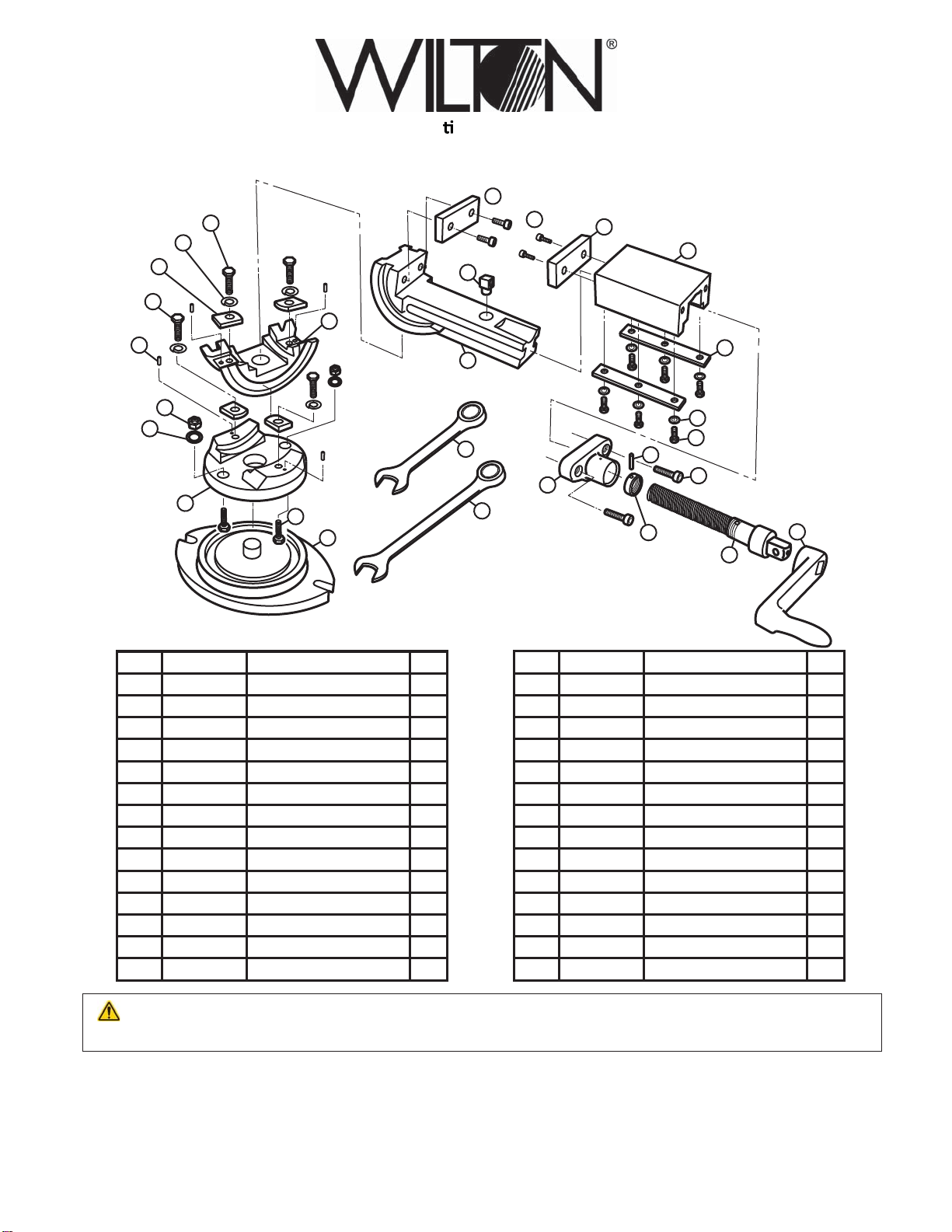

Super Precision 3-Axis Til ng Machine Vise Parts Diagram
2” Jaw Width, 2” Jaw Opening, 1-5/16” Jaw Depth
Stock #: 11700 Model #: TLT/SP-50
1
x4
26
x2
25
x4
x4
24
x2
23
22
x4
21
20
x2
x2
19
18
x2
17
16
4
5
27
28
2
13
3
6
x2
x2
7
x6
8
9
10
11
x6
12
x2
15
14
# Part Description Qty # Part Description Qty
1 11700-01 Fixed Jaw Insert 1
2 11700-02 Socket Head Cap Screw 4
3 11700-03 Movable Jaw Insert 1
4 11700-04 Fixed Nut 1
5 11700-05 Vise Body 1
6 11700-06 Movable Jaw 1
7 11700-07 Slide Plate 2
8 11700-08 Flat Washer 6
9 11700-09 Hex Cap Screw 6
10 11700-10 Roll Pin 1
11 11700-11 Collar 1
12 11700-12 Socket Head Cap Screw 2
13 11700-13 Sleeve 1
14 11700-14 Clamp Screw 1
15 11700-15 Handle 1
16 11700-16 Swivel Base 1
17 11700-17 Hex Cap Screw 2
18 11700-18 Turret 1
19 11700-19 Flat Washer 2
20 11700-20 Hex Nut 2
21 11700-21 Pin 4
22 11700-22 Trunnion 1
23 11700-23 Hex Cap Screw 2
24 11700-24 Curved Washer 4
25 11700-25 Lock Washer 4
26 11700-26 Hex Cap Screw 2
27 11700-27 Combination Wrench 1
28 11700-28 Combination Wrench 1
WARNING: This product can expose you to chemicals including lead which is known to the State of California to
cause cancer and birth defects or other reproductive harm. For more information go to http://www.p65warnings.ca.gov.
WILTON
427 New Sanford Road
LaVergne, Tennessee 37086 Part No. M-11700
Ph.: 800-274-6848 Edition 2 08/2018
www.wiltontools.com Copyright © 2018 WILTON, a Division of JPW Industries, Inc.
