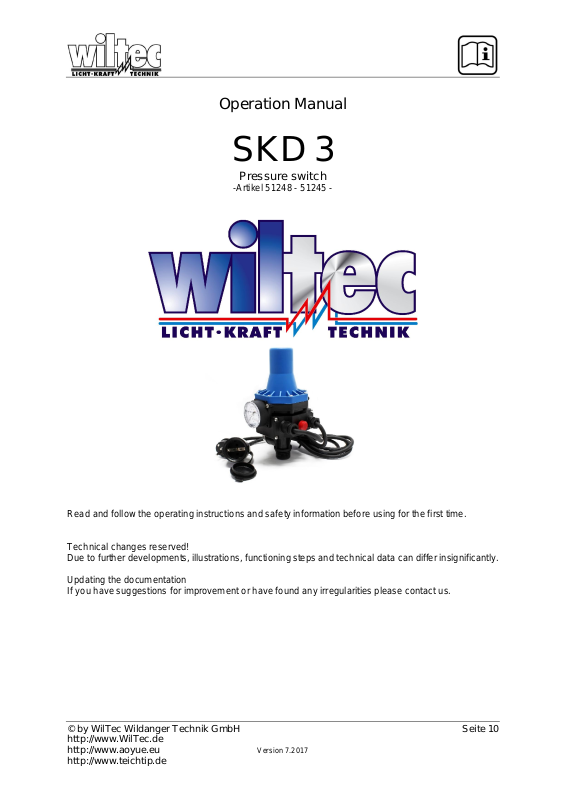

WilTec SKD 3, 51248, 51245 Operation Manual

Operation Manual

SKD 3

Pressure switch

-Artikel 51248 - 51245 -

Read and follow the operating instructions and safety information before using for the first time.

Technical changes reserved! Due to further developments, illustrations, functioning steps and technical data can differ insignificantly.

Updating the documentation If you have suggestions for improvement or have found any irregularities please contact us.

Version 7.2017

The information contained in this document is subject to change without prior notice. No part of this document can be copied or duplicated in another form without the prior written consent of Wiltec Wildanger Technik GmbH. The Wiltec Wildanger Technik GmbH assumes no liability for any errors in this user manual or the connection diagram. Although Wiltec Wildanger Technik GmbH has made every effort to make sure that this user manual is complete, accurate and updated, errors cannot always be avoided. In the event of problems with this user manual please complete and send this form back to us.

FAX-notification (+++49 2403 55592-15), from: ________________________________________ Name: ________________ Firm:_____________________ Tel/Fax:__________________ I would like to report the following mistakes:

___________________________________________________________________

Customer Service Wiltec Wildanger Technik GmbH e-mail: [email protected] Tel:++ +49 2403 55592-0

Introduction

Thank you for purchasing this quality product. To minimize the risk of injury by means of fire or electric shock we urge that our clients take some basic safety precautions when using this device. Please read the operation instructions carefully and make sure you have understood its content. Always use a grounded power connection with the appropriate mains voltage. You can find the corresponding mains voltage on the type plate. If you have any doubts about the connection being grounded, have it checked by a qualified professional. Never use a faulty electric cable. Do not inspect the electrical part of the pressure pond filter in a wet or damp environment or when you are wet yourself and protect it from direct sunlight. Install this device in a safe location so that nobody can step on the cable, fall over or damage it. Make sure additionally you provide sufficient cooling through the ambient air and avoid heat accumulation. Disconnect the power plug before cleaning it and use only a damp cloth for cleaning. The electric part of the device contains no parts that can be inspected or serviced by the user. Leave the maintenance, adjustment and repair to qualified technical personnel. In case of unauthorised intervention the 2-year warranty is no longer valid! Keep these operation instructions safe.

Version 7.2017

Safety guideline

BEWARE:

The use of this device is allowed on standing bodies of water, garden ponds’ water or swimming ponds and their surrounding areas only with fault current protection-switch with a triggering nominal current up to 30mA (according to VDE 0100 Article 702 and 738).

The device is not intended for use by persons (including children) with impaired or limited physical, sensory and mental abilities or lack of experience and/or real knowledge, unless they are supervised by a person responsible for their safety or you follow the instructions made by this person how to use the device correctly. Children should be supervised to make sure that they do not play with the device.

ATTENTION:

• Run a visual inspection of the device before every use. Do not use the device if the safety appliances are damaged or worn out. Never override safety regulations.

• Use the device exclusively according to the intended purpose stated in the instructions for use.

• You are responsible for the safety of the working environment.

• If the cable or the plug is damaged due to external influences the cable must not be repaired! It

has to be replaced with a new one. This work can be carried out only by an electrician.

• The voltage indicated on the type plate of the device of 230 Volt alternating voltage has to correspond to the existent mains voltage.

• Never lift, carry or fixate the device by using the power cable.

• Make sure that the electrical plug connection is placed in a flood-proof area and is protected

from moisture.

• The user is responsible for the compliance with location specific safety and installing regula- tions. (Ask an electrician).

• Consequential damage arising from flooded rooms caused by dysfunctions of the appliance must be avoided by means of the appropriate measures. (installing an alarm system, reserve pump).

• In case of malfunction the repair work can be carried out only by a qualified electricial or the WilTec-service.

Version 7.2017

Specifications - Specifications:

Input voltage 220-250V / 50Hz / Max. 10A Max. Pressure 10 bar Max temperature 55 ° C Connections 25.4 mm external thread Protection class IP 65

Functional description for the general operation of the pump control:

The pump control consists of a pressure switch and a water flow switch. The switching cycles are then determined from the two switching states of the pressure switch and the water flow switch.

1. Water pressure switch actuated + Water flow switch unactuated = Normal shutdown (delay of approx. 3-8 sec. To shutdown).

2. Water pressure switch unactuated + Water flow switch actuated = Pump on

3. Water pressure switch unactuated + Water flow switch not actuated = Switch-off due to drying and indication for fault. (Delay 8-15 seconds) Common causes of malfunctions:

1 Problem:

The pump control switches off and displays failure / failure even though water has previously been pumped successfully. After a reset, this error reappears immediately or after a short time. Possible causes: A: The water pressure of the pump used is not sufficient to actuate the water pressure switch. (Causes may be a clogging, a worn pump body, or a too weak pump) B: The water pressure switch in the pump control is blocked / blocked. (Cleaning with clean water can solve the problem or the housing of the pressure switch in the pump control must be cleaned, and sand and other sediments may have deposited here.)

2. Problem:

The pump control permanently activates the pump regardless of whether the tap is open or closed. Possible causes: A: The installation of the pump control has not been considered. This does not reset the water flow switch and is permanently actuated. (Check the installation and correct if necessary. B: Water flow switch in the pump control input is permanently actuated. This can be caused by contamination, calcification or a foreign body. (An optical test confirms this problem and can be cleansed by cleaning.)

Version 7.2017

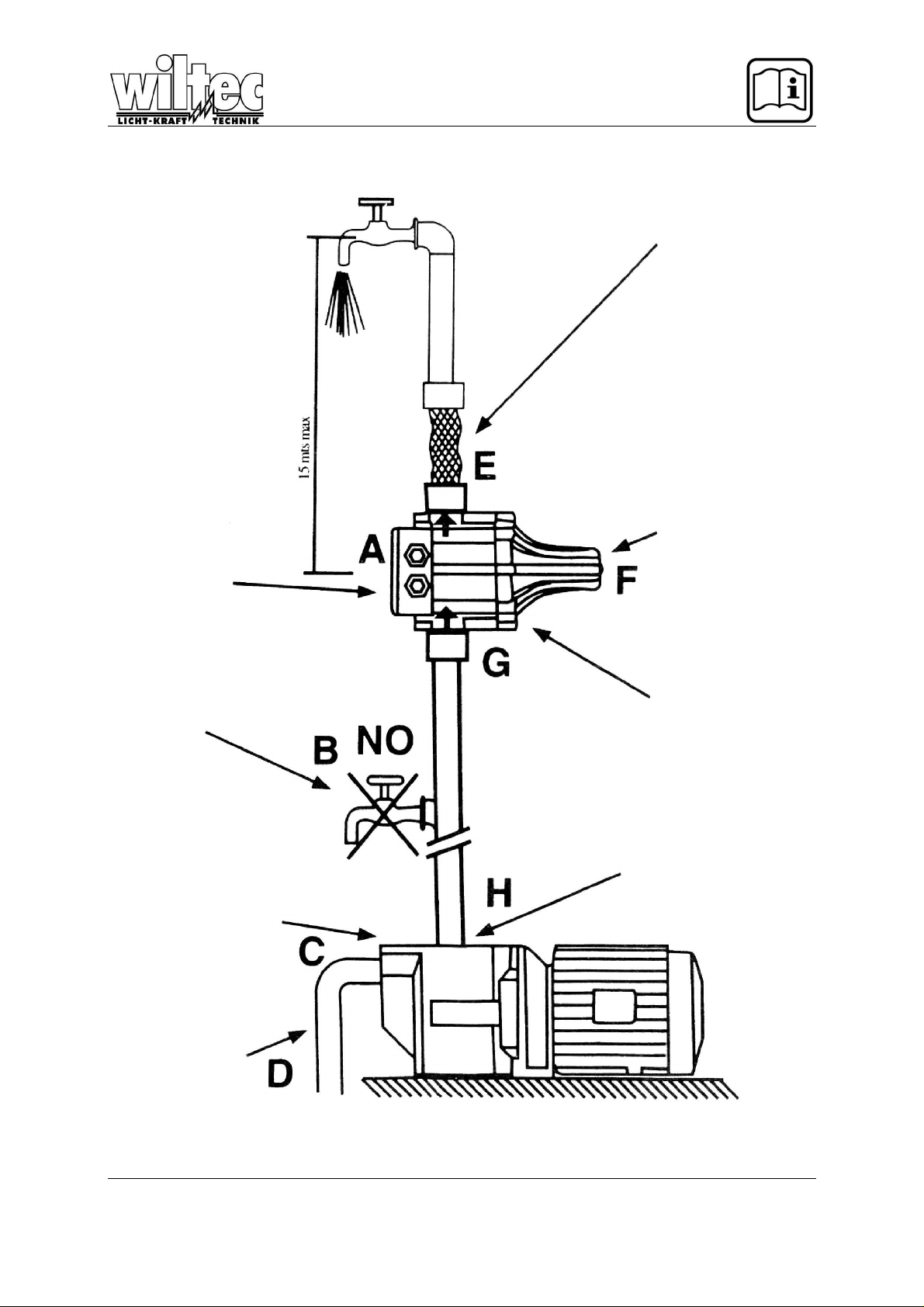

If the water head between the pump and the highest point of the water pipe exceeds 15 meter, the device cannot be installed directly to the pump. The unit must be brought (mounted) at such a height, so that the protruding water pipe is shorter than 15m. For example: if the water pipe is 20m long, the device must be mounted at least 5 m higher above the pump.

The pump control is equipped with a test valve, to protect the pipe system

against pressure loss

Between the pump and the pump control no taps are allowed.

Pump pressure

The device is set at a prepressure of 1,5 bar. The pump pre-pressure must be normally 0,5 bar higher than the cut-in pressure, so it must reach at least 2 bar.

Before starting the device check the suction hose and the pump filling! Pumpenfüllung

Version 7.2017

We recommend the user to connect the pump control with the water pipe supply, through a flexible hose.

The safety valve to prevent water leaking in case the membrane breaks or bursts (do not change or modify)

The pump control has to be oriented upwards according to the arrow.

The device can be installed directly to the pump or between the pump and the first tap.

-

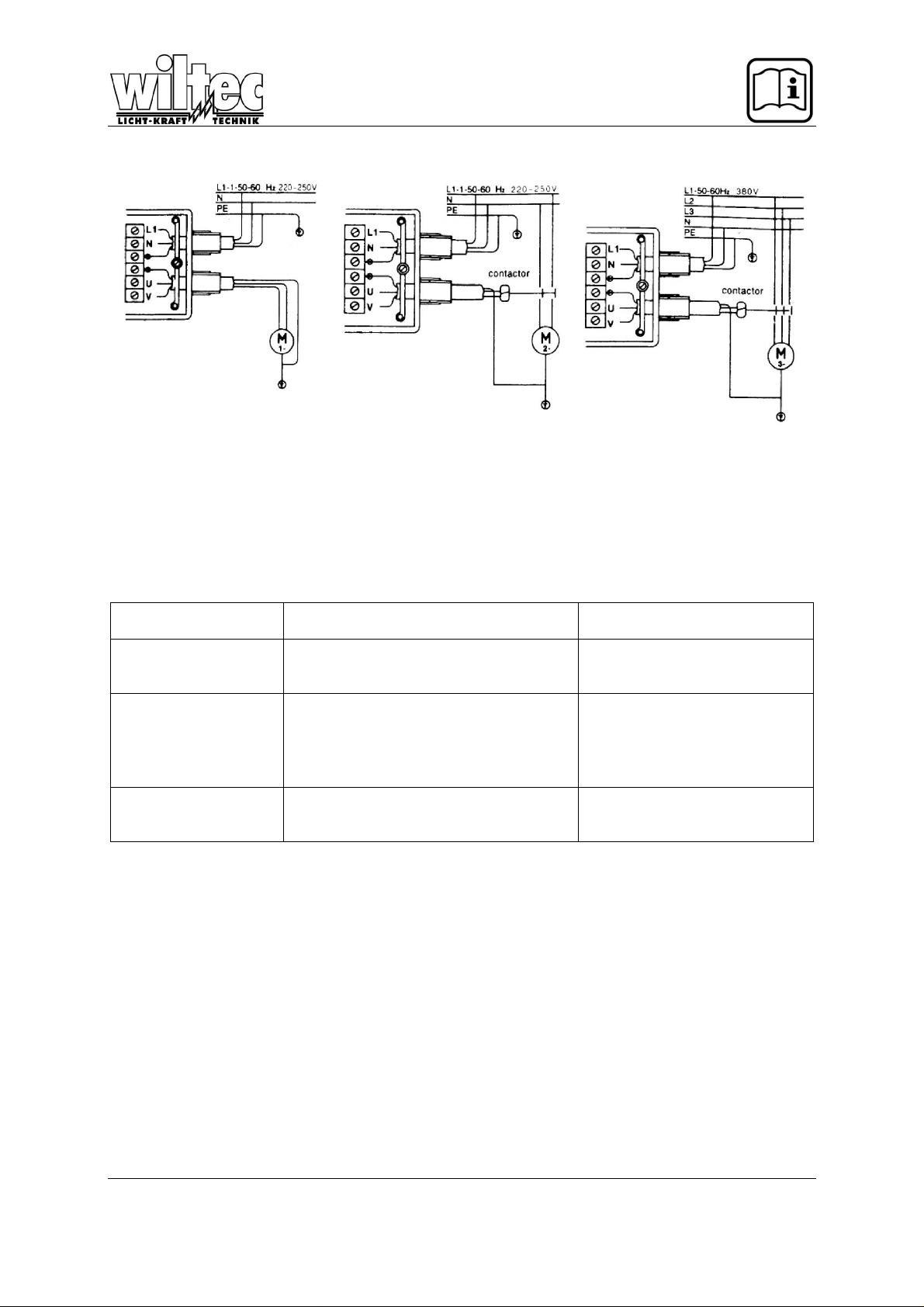

Wiring diagram for connecting different pump motors to the pump control:

Wiring diagram for single-phase 220V pumps up to 1,1 kW

Possible dysfunctions and remedy

Dysfunction Device error error external to device The pump does not

start The pump does not

stop

Intermittent pump operation( pump runs intermittently)

Circuit board is damaged

Circuit board is damaged the flow detector is blocked in its up-

The pump has not sufficient pressure Circuit board is damaged The pump has not sufficient pressure

Wiring diagram for single-phase 220V pumps above(greater than) 1,1 kW control via 2-phase relay (contactor), relay selection depending on the pump power /capacity

per position

The reset button is blocked

.

Wiring diagram for three-phase 400V pump also above (greater than) 1,1 kW control via 3-phase relay (contactor), relay selection depending on the pump power /capacity

absent voltage defective pump mixed up electric cables There is a leak with more

than 0,6 l/min loss

There is a leak with more

than 0,6 l/min loss

Version 7.2017

Disposal regulations

EU guidelines regarding the disposal of scrap electric appliances (WEEE, 2012/19/EU) were implemented in the law related to electrical and electronic equipment and appliances.

All Wiltec electric devices that fall under the WEEE regulations are labelled with the crossed-out wheeled waste bin logo. This logo indicates that this electric equipment must not be disposed with the domestic waste.

The company Wiltec Technik GmbH has been registrated in the German registry EAR under the WEEEregistration number DE45283704.

Disposal of used electrical and electronic appliances (intended for use in the countries of the European Union and other European countries with a separate collection system for these appliances). The logo on the article or on its packaging points out that this article must not be treated as normal household waste but must be disposed to a recycling collection point for electronic and electrical waste equipment. By contributing to the correct disposal of this article you protect the environment and the health of your fellow men. Environment and health are threatened by inappropriate disposal.

Materials’ recycling helps reduce the consumption of raw materials. Additional information on recycling this article can be provided by your local community, municipal waste

disposal facilities or the store where you purchased the article.

Address:

WilTec Wildanger Technik GmbH

Königsbenden 12 / 28

D-52249 Eschweiler

Important notice: The reprint or reproduction, even of excerpts, and any commercial use, even in part of this instructions

manual require the written permission of Wiltec Wildanger Technik GmbH.
