Operation Manual

Reverse Osmosis (RO) System

NW-RO50-C1/C1-1/G1/G1-1/A2UV/A1/NP35/H/E2/D1

NW-RO-BX23

NW-RO-400-E2

Read and follow the operating instructions and safety information before using for the first time.

Technical changes reserved!

Due to further developments, illustrations, functioning steps and technical data can differ insignificantly.

Updating the documentation

If you have suggestions for improvement or have found any irregularities please contact us.

http://www.WilTec.de http://www.aoyue.eu Version 3.2016 http://www.teichtip.de

Page 2

The information contained in this document is subject to change without prior notice. No part of this document can be copied or duplicated in another form without the prior written consent of WilTec Wildanger Technik GmbH. The WilTec Wildanger Technik GmbH assumes no liability for any errors in this user manual or the connection diagram. Although WilTec Wildanger Technik GmbH has made every effort to make sure that this user manual is complete, accurate and updated, errors cannot always be avoided. In the event of problems with this user manual please complete and send this form back to us.

FAX-notification (+++49 2403 55592-15),

from: ________________________________________

Name: ________________

Firm:_____________________

Tel/Fax:__________________

I would like to report the following mistakes:

_______________________________ ____________________________________

Customer Service WilTec Wildanger Technik GmbH e-mail: [email protected] Tel:++ +49 2403 55592-0

Introduction

Thank you for purchasing this quality product. To minimize the risk of injury by means of fire or electric shock we urge that our clients take some basic safety precautions when using this device. Please read the operation instructions carefully and make sure you have understood its content.

Always use a grounded power connection with the appropriate mains voltage. You can find the corresponding mains voltage on the type plate. If you have any doubts about the connection being grounded, have it checked by a qualified professional. Never use a faulty electric cable. Do not inspect the electrical part of the pressure pond filter in a wet or damp environment or when you are wet yourself and protect it from direct sunlight. Install this device in a safe location so that nobody can step on the cable, fall over or damage it. Disconnect the power plug before cleaning it and use only a damp cloth for cleaning. Avoid using cleaning agents and make sure that no liquid enters the electrical part of the pump. The electric part of the device contains no parts that can be inspected or serviced by the user. Leave the maintenance, adjustment and repair to qualified technical personnel. In case of unauthorised intervention the 2-year warranty is no longer valid! Keep these operation instructions safe.

http://www.WilTec.de http://www.aoyue.eu Version 3.2016 http://www.teichtip.de

Page 3

Collection Instructions

This Manual describes the Usage of all our RO.Systems. Please note that some parts of this manual are intended for certain systems. Usually the arrangement of the filter stages is always the same. The number of filter stages are depending on the model you bought, between 1 and 6.

For RO-Systems without pump:

If you use pressure tank, input water pressure should be higher than 85 psi.

Operation Principle

The RO system adopts U.S. high-tech reverse osmosis technology. This automatic reverse osmosis system is composed of five filtration stages．First, The raw water is filtered by three pre positive cartridges． The first stage：PPF cartridge, remove suspended substance and other substances up to 5 micron in raw water. The second stage：granular activated carbon cartridge; the third stage：high density activated carbon cartridge, to remove odor、chlorine and its outgrowth in raw water． After above three stages of filtration, the filtered water is pushed into the fourth stage: the reverse osmosis (RO) membrane with a high-pressure pump. Since the aperture of the RO membrane is only

0.0001micron, bacteria and filterable virus can pass the RO membrane only if the bacteria would be reduced in size 4000 times, and filterable virus would be reduced in size more than 200 times. Consequently, any super fine impurities, harmful soluble solid, bacteria and virus in water is blocked by the high density RO membrane． The RO membrane can also filter other impurities and contamination from the filtered water. The harmful substance is automatically removed by means of a waste water outlet. The water filtered through the RO membrane enters a pressure tank for storage．When the user turns on the goose-neck faucet, the purified water will go through the fifth stage: post positive bacteriostatic activated carbon filtration and into the Sixth stage: UV light to kill bacteria, virus and son on or mineral balls to put minerals back into the water again.

The system controls the water purification process automatically. When the pressure of raw water is to low or the water storage tank is full, the system will stop the purification machine automatically; When the water pressure returns to the normal level, the purification machine will turn on automatically.

The water purified by the RO system is pure drinking water without bacteria and impurities, rich in oxygen, tasty and excellent for your health.

The different filter stages:

Filter Materials Functions

Material life

in average

1st Stage PP 5 micron Un-dissolved contaminants removal, i.e.

sand, silt, rust, etc.

About 10 months

2nd Stage Activated carbon Activated carbon germicidal adhesion re-

moval of chlorine, organic fertilizer, agricultural chemical, insecticide

About 10 months

3rd Stage Block carbon Same as 2nd stage, but re-filtration again About 10 months 4th Stage RO membrane Heavy metal removal: particles, heavy

metal, ray, bacteria. etc.

About 2 years

5th Stage In-line carbon Adhere odor & taste and make water deli-

cious

About 1 year

6th Stage UV-Light Kills virus and bacteria About 1 year 6th Stage Mineral Ball Puts minerals into the water About 10 month

http://www.WilTec.de http://www.aoyue.eu Version 3.2016 http://www.teichtip.de

Page 4

Technical Process

Tap Water

 PPF Filter  RO-System

- Waste water outlet

 Low pressure switch  High pressure switch  Granular activated carbon  Postpositive bacteriostatic activated

carbon

 High density activated carbon  Sixth filter stage  Booster pump  Purified water  4 way valve  Flow out from goose neck faucet

- Pressure tank

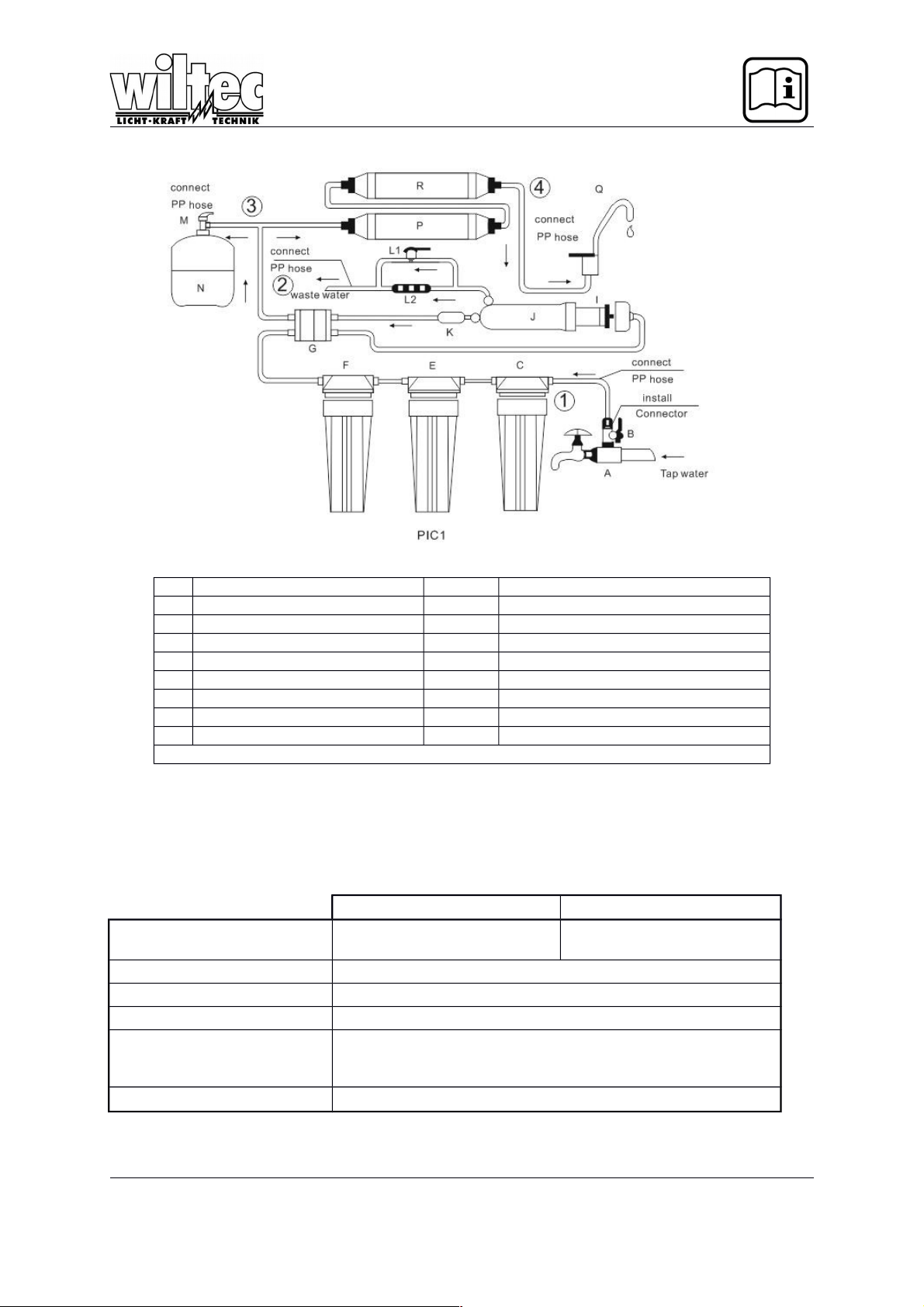

RO-System und Aufbau

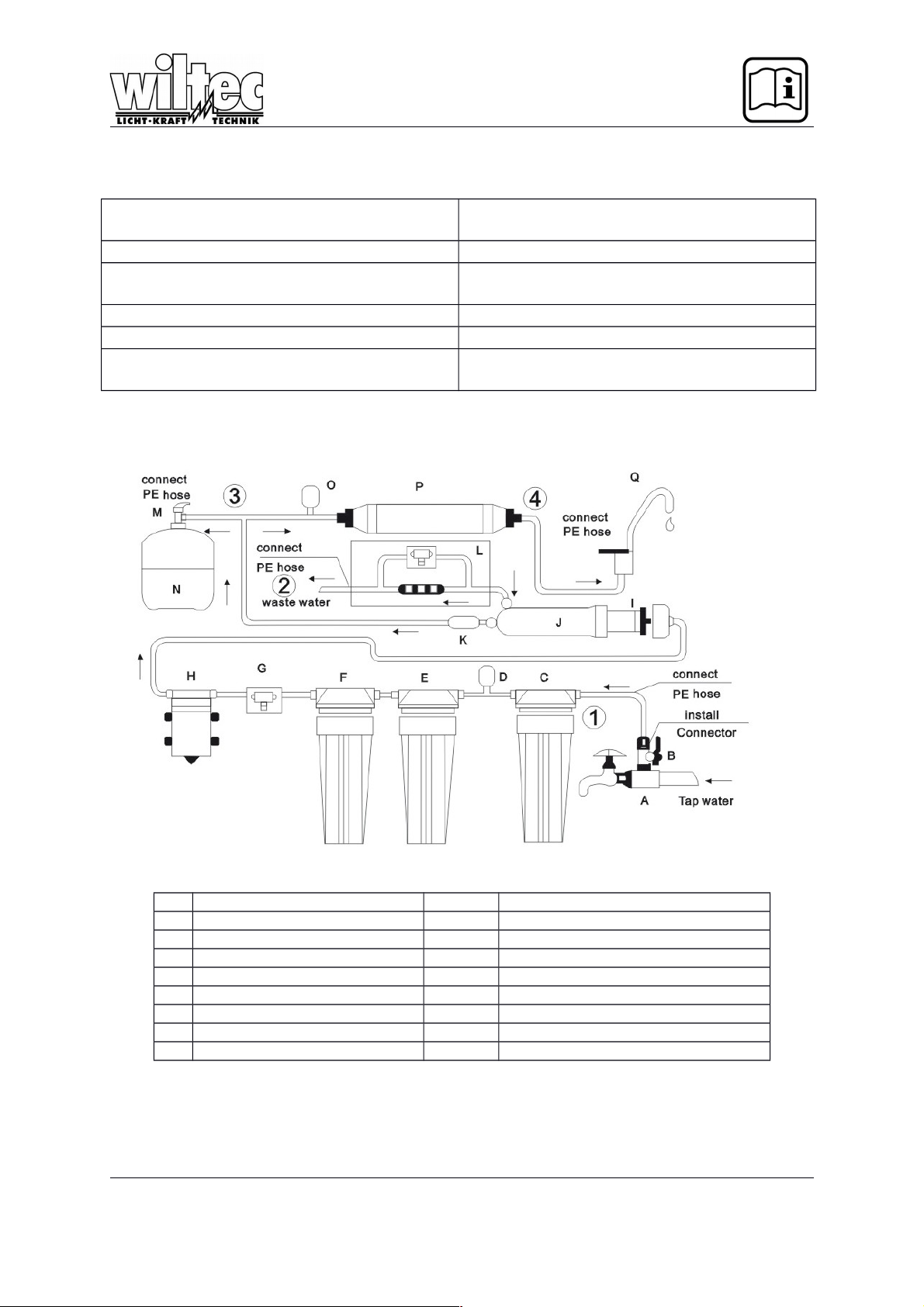

A 3-Way feed water connector B Ball valve C PP Sediment Cartridge D Low pressure switch E Activated carbon F Activated carbon block G Flow in valve H Booster pump I RO-Membrane J Membrane housing K Check valve L Drain restrictor & Flush valve M Tank valve N Pressure tank O High pressure switch P Gourmet filter Q Goose Neck faucet 1;2;3;4 Connect plastic hose

http://www.WilTec.de http://www.aoyue.eu Version 3.2016 http://www.teichtip.de

Page 5

A 3-Way feed water connector B Ball valve C PP Sediment Cartridge E Activated carbon F Activated carbon block G Flow in valve Booster Pump* I RO-Membrane J Membrane housing K Check valve L1+L2 Drain restrictor & Flush valve M Tank valve N Pressure tank O High pressure switch P Gourmet filter Q Goose Neck faucet R Mineral Ball / UV Light 1,2,3,4 connect plastic hose

In PIC1 the booster pump is missing. Usually it is between the third filter stage and the RO-Membrane, like it is in the technical drawing on the page before.

Please note that availability of a sixth filter stage is depending on the type of system.

Technical Data

RO-50-XX / RO-BX-XX RO-400-XX

Purified Water Output 50GPD / 185 l/day (25°C)

400 GPD / 1500 l/day (25°C)

Tank Capacity 3 Gallons Inlet Water temperature 4-42°C Applying Water Pressure

1 – 3,5 bar 0,1 – 0,35 MPa

Clean Water Content relative to inlet Water

15-20%

Water Supply

Tap Water or Ground water TDS 1000ppm less

http://www.WilTec.de http://www.aoyue.eu Version 3.2016 http://www.teichtip.de

Page 6

Installation

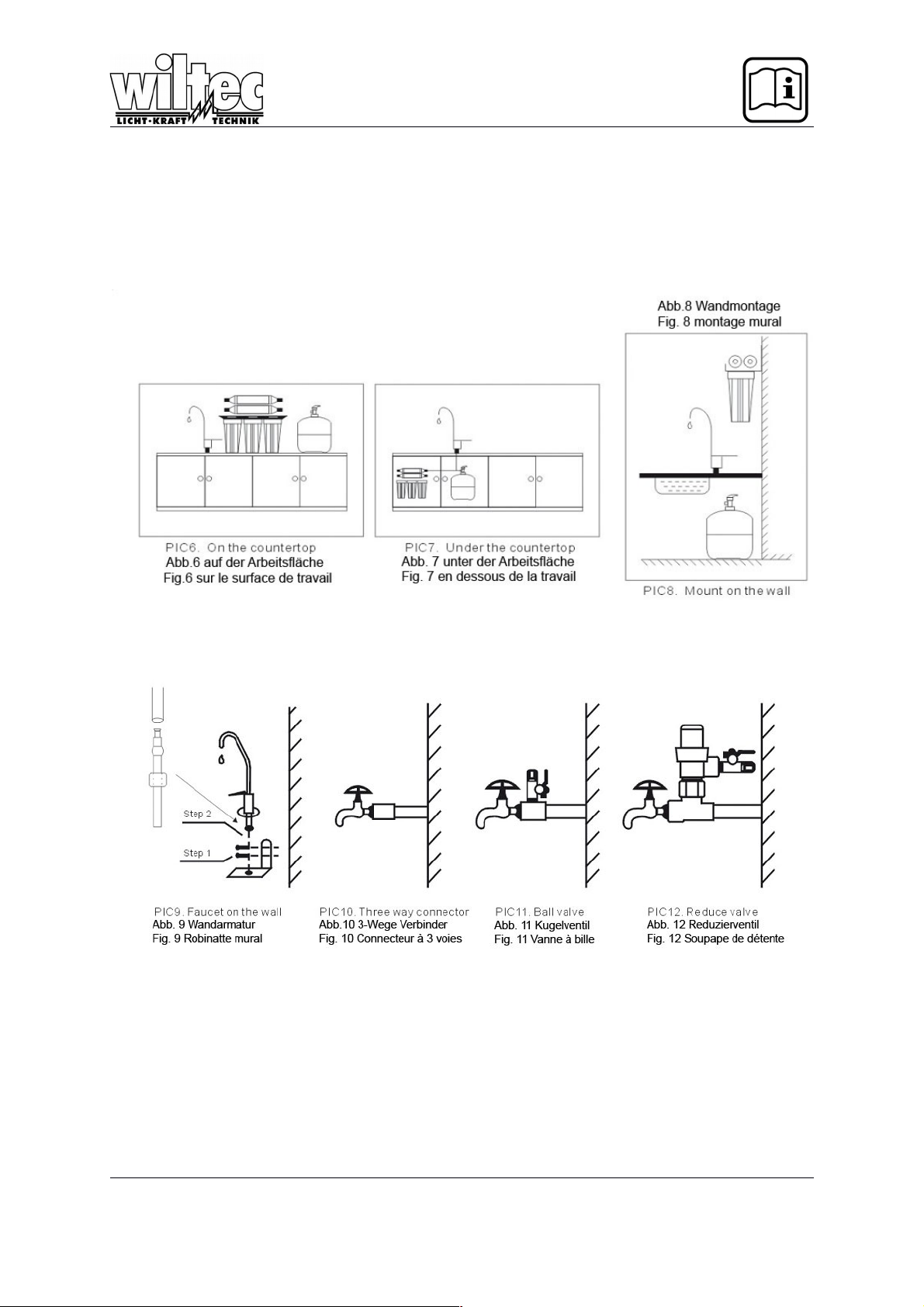

The system installation method should be determined in accordance with the layout of your kitchen. Please refer to the installation maps as follows. If the RO unit would be suspended on the wall，it should be fixed with two M6 swelling screws or two concrete steel nails according to the aperture on the RO unit hanger plate

http://www.WilTec.de http://www.aoyue.eu Version 3.2016 http://www.teichtip.de

Page 7

1. To install the ball valve, fit a three way feed water connector (A) and place the ball valve(B) on the three way feed water connector(A), then connect the tap water faucet with three way feed water connector ( Pic 1,7 and 8).

2. To install the RO membrane：screw off the cap of RO housing (J)，put the one end with two sealing rings of RO membrane (I) first into the RO housing，screw on the cap tight.

3. The goose-neck faucet (Q) should be positioned for good aesthetics, function and convenience; it connects to the outlet fitting of the mineral ball filter by means of the white plastic hose.

4. To install the plastic hose at following positions according to technological process. There are marks numbered 1, 2, 3, 4, on the Reverse osmosis system layout and components chart ( Pic1). You can also find these marks on the RO machine.

Mark 1: Between water tap and PPF filter(C) with white plastic hose. Mark 2: Installing a drain tubing white plastic hose linking to the off let of drain restrictor and

flush valve. Put the drain tubing to sewer or connect with a container for usual washing． Mark 3: Between the valve outlet(M) on water storage tank(N) and the Tee in front of post bacteriostatic activated carbon filter(P) with white plastic hose. Mark 4: Between the goose-neck faucet (Q) and the post bacteriostatic activated carbon filter or mineral ball filter if available.

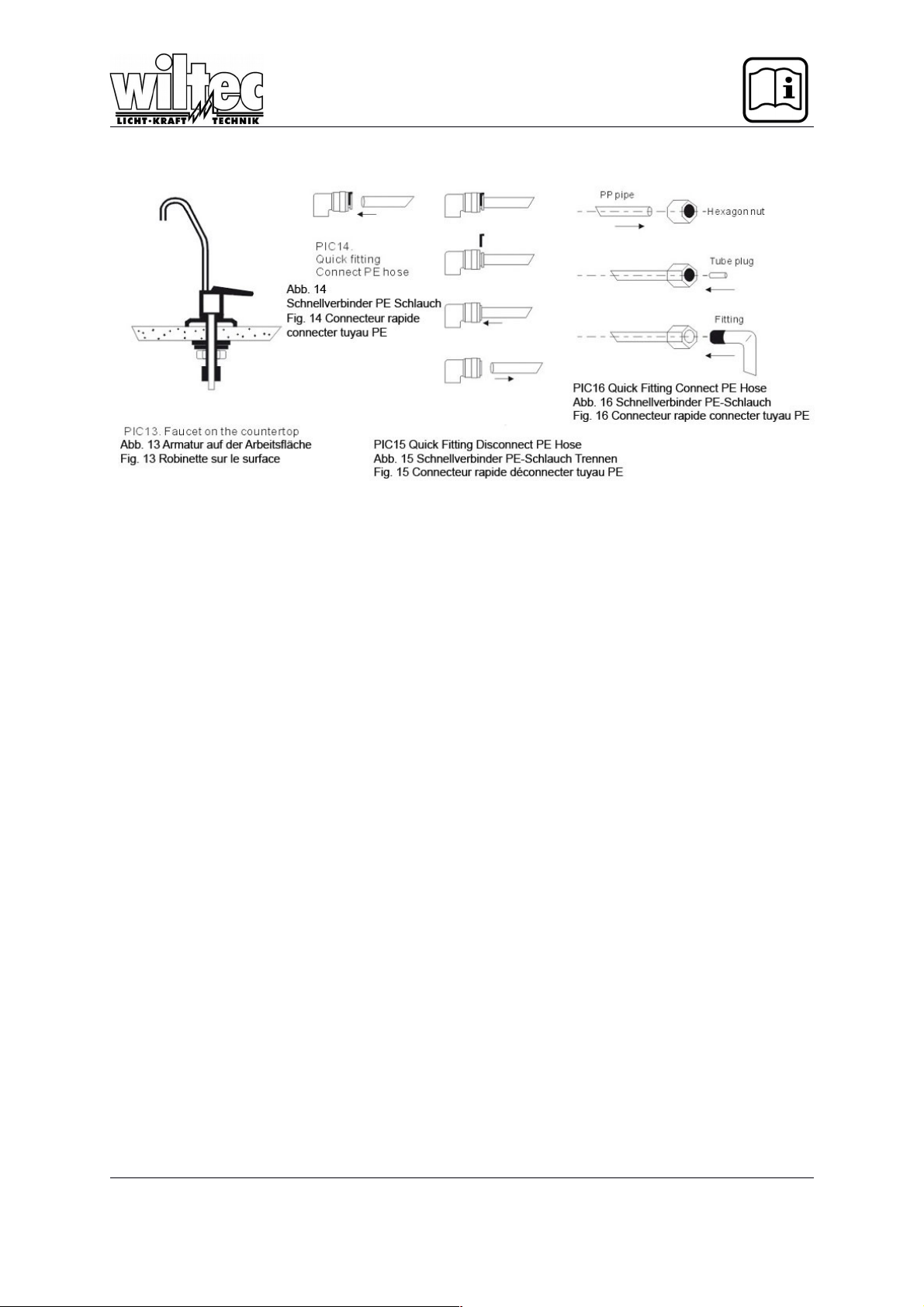

5. Method of connecting plastic hose with fittings

Cut a plastic hose after measuring. Place the plastic hose into hexagon nut. ( Pic12) Place white tube plug into the nozzle of plastic hose push the tube plug to the plastic hose end by hand or tools. ( Pic12) Place the plastic hose into the fittings. (Pic12) Screw on the hexagon nut tightly.

5.1. Method of connecting plastic hose with quick fittings (PIC10)

Cut a plastic hose after measuring. Insert plastic hose deep into the quick fitting

5.2. Method of disconnecting the plastic hose from the quick fittings (PIC11)

Remove the small part Press the round part until it touches the main body of quick fitting. Pull the plastic hose.

6. Power cord.

This system is equipped with a transformer which uses single-phase power supply of 220V (See transformer voltage). To use it, please plug the power cord of transformer into power supply socket.

http://www.WilTec.de http://www.aoyue.eu Version 3.2016 http://www.teichtip.de

Page 8

Funktionsprinzip

Once the system is turned on, it flushes 30 seconds, will.

• After two hours of cleaning the water, it flushes again for 30 seconds.

• After five seconds, the system responds to the low pressure switch

• If the high pressure switch operates, the system stops after 20 seconds.

• If the key (6) "Strong Washing" is pressed, the system purges for 20 seconds.

• Are the LEDs (1), (3), (5) is switched on, is hereby indicated that the system produces pure water.

• Are the LEDs (3, (4), (5) is switched on, is hereby indicated that the pressure tank is full.

• If the LEDs (2, (3), (5) is switched on, is hereby shown that the system is flushed.

http://www.WilTec.de http://www.aoyue.eu Version 3.2016 http://www.teichtip.de

Page 9

• If the system is turned on, it flushes for 30 seconds, the display (display) is analogous (2).

• After rinsing, pure water is produced, the display is analogous (1).

• When the pressure tank is full, the system comes to a standstill, the display is analog (3).

• A warning buzzer will be shown unless a lack of feed water is or the pressure of the incoming water is too low, the display is analogous (4).

• After two hours of production of pure water, there is again a 30 second rinse.

• In the event that the system is working for an unusually long timeframe, it is automatically switched off, which likewise warning buzzer is activated, the display is analogous (5).

• If you press the button (6) for strong flushing (Strong Washing) is rinsed for 30 seconds.

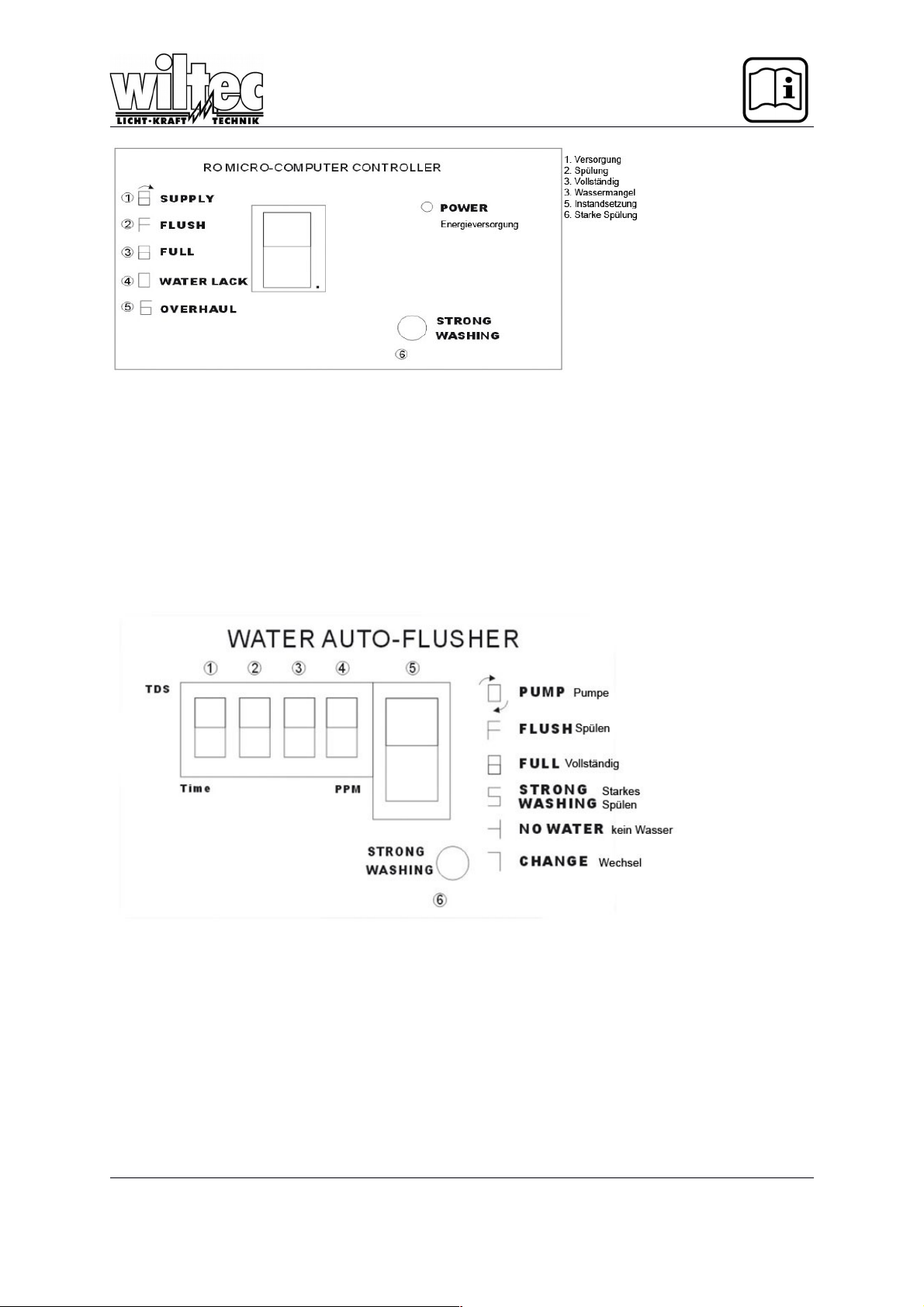

RO Kontrollbox

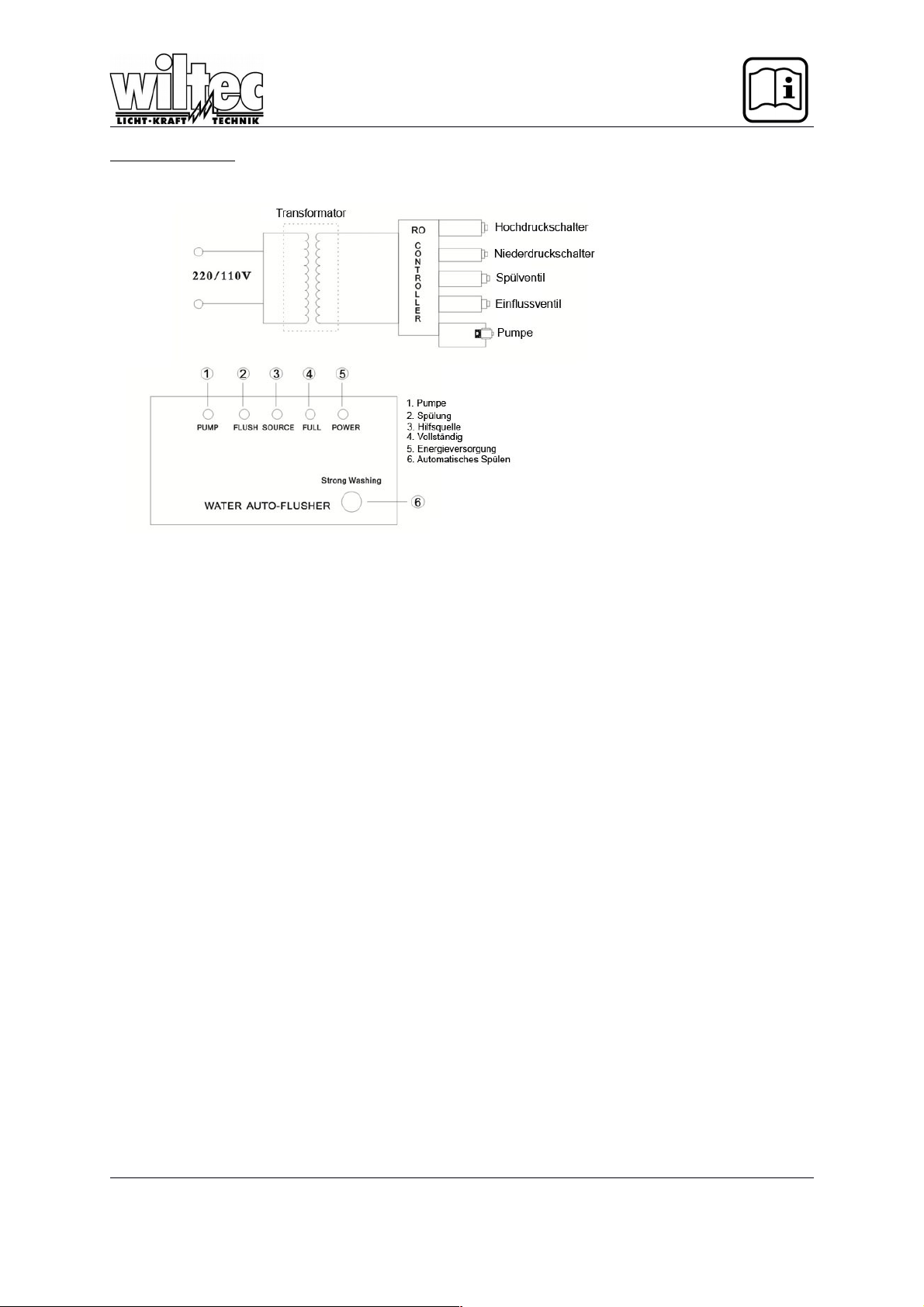

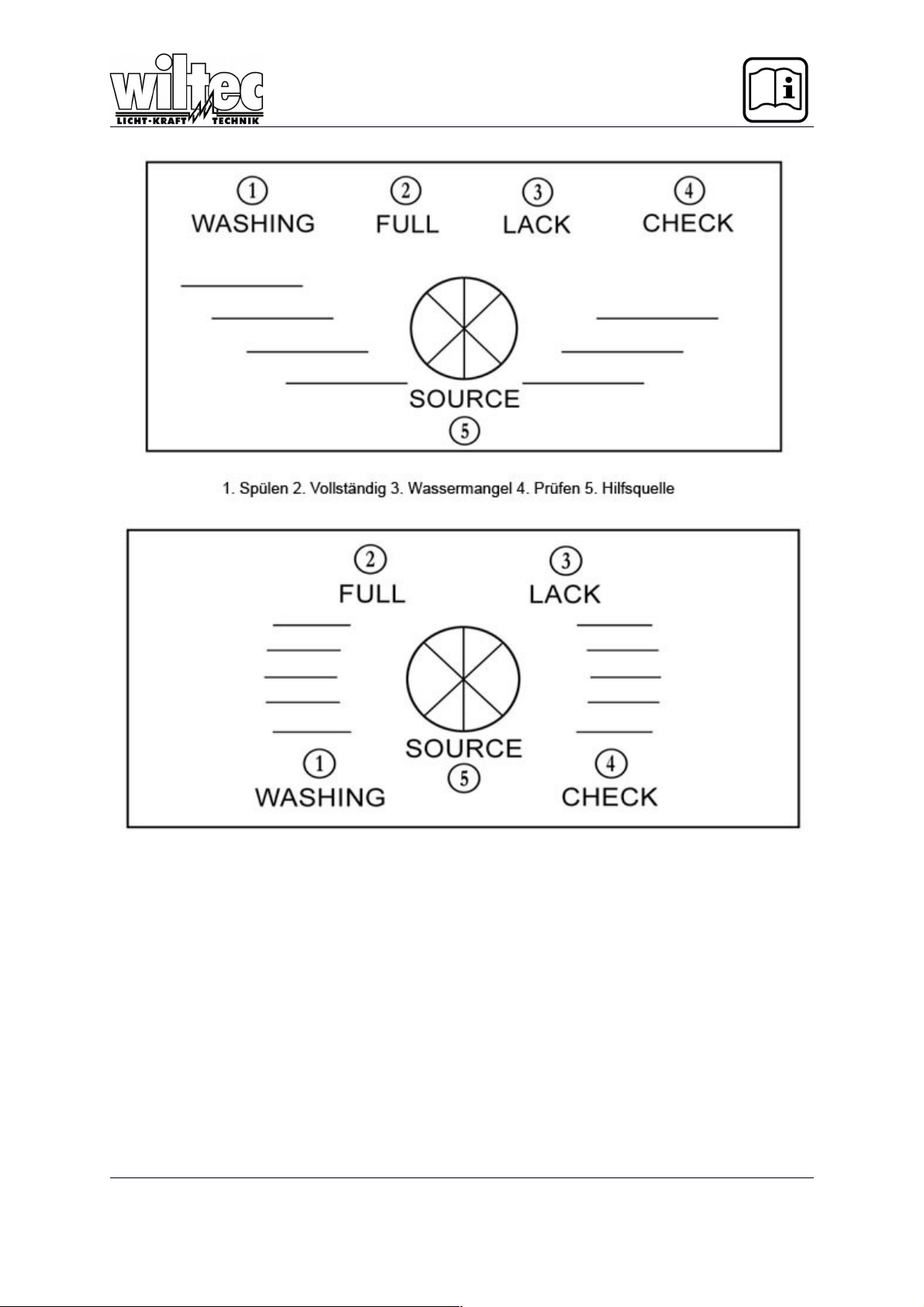

1. st digit diode (1): Two viewing options "E" control beeps "P" Control is silent

The function can be changed by pressing for 2 seconds the "STRONG WASHING" key (6).

2. Paragraph diode (2) (3) (4) show the TDS value. If the system flushes, the digit diodes (3) (4)

show the remaining seconds for rinsing

3. Paragraph diode (5) shows the operating state of the system. The explanation can be found

on the right side of the controller.

4. Press the button (6) to flush the system

http://www.WilTec.de http://www.aoyue.eu Version 3.2016 http://www.teichtip.de

Page 10

- If the system is turned on, is rinsed for 30 seconds, the display is analogous diode (1).

- After flushing the system begins with the production of pure water, the display is ana-log diode (5)

- After the pressure tank is full, the system comes to a standstill, the display is analogous diode (2)

- Using buzzer indicates whether a lack of feed water is present or whether the to-run water pressure is too low, the display is analogous diode (3).

- After two hours the preparation of pure water, is rinsed for 30 seconds, the display is analogous diode (1).

- Where has worked the system for an unusually long period, it is automatically-table to stop at the same time warning buzz, the display is analogous diode (4).

http://www.WilTec.de http://www.aoyue.eu Version 3.2016 http://www.teichtip.de

Page 11

Operational Approach

After the installation ，please wash the filters of each stage before using the system for the first time. The steps is as follows:turn on the ball valve( B) of the faucet tubing, turn off the tank valve(M) of water storage tank(N),turn on the goose-neck faucet(Q), Open the flush valve (L1)). plug the power cord into power supply socket， then the high pressure pump(H) starts up automatically，the waste water outlet begins to drain，filters of each stage are being washed automatically.

After washing the tank, turn on the tank valve (M) of water storage tank (N) and turn off the gooseneck faucet (Q), the reverse osmosis filter begins to generate purified water. When you use this system for the first time, let the purified water flow out from the full water storage tank twice, then the purified water is suitable for drinking. Notes:

A) When you use the system for the first time, turn on the goose-neck faucet to drain the

water. (There could be a little bit of black water flowing out from faucet，please continue washing to drain it)

B) When you use the system for the first time, TDS test data may be a bit high，please con-

tinue washing until the TDS test data becomes normal.

C) When you use the system for the first time, the purified water is not drinkable until steps

A and B are done. The concentrated waste water used for the making of the purified wa -

ter cannot be used for drinking. After the installation & adjustment, the system begin to produce purified water automatically ． Usually, turn off the goose-neck faucet(Q)、turn on the tank valve(M) of water storage tank，let the purified water flow into tank. When the water storage tank is full of purified water，the system stops working automatically. Turn on the goose-neck faucet (Q) to use the purified water.

Maintenance

It is highly recommended to replace filters periodically to keep the high quality of water. This helps to take full advantage of filters and guarantee the standard of water quality. If a user takes care of the filters and replaces them periodically, the water purifier system could have a longer lifetime. The period of Filter-replacement depends on the quality of the raw water, the impurity quantity of the raw water. Based on empirical statistics a family of four persons usually consumes l0L (10kgs) purified water each day.

http://www.WilTec.de http://www.aoyue.eu Version 3.2016 http://www.teichtip.de

Page 12

RO membrane pressure washing：

When RO membrane purifies the water, there is impurity and bacteria left on the surface of the water, which may affect the quality and volume of the purified water．Thus the RO membrane must be cleaned periodically．In our system, the RO system will flush the RO membrane manually by turning on the flush valve (L1) for 2-3 minutes once a week. Notice：In order to make you system work efficiently, please use the specified filters, provided by the same vendor of the purification system.

Warning

1) Don't drink the water of first two tanks; let it drain or use it for other utilities upon installation. And

test the RO unit for about 2 hours until the above operations is completed successfully. Clean the remaining contaminants and sediment in the unit. Check if the unit works normally and without water leakage.

2) Don’t take apart the parts of system. Any wrong operation may lead to water leakage and system

failure/damage.

3) Don't apply the system to purify hot water.

4) Don’t place air valve discharged on the pressure tank.

5) To ensure the quality of purified water, please replace the first and the second filters in a period of

no longer than 10 months.

6) Please check the power supply and make sure it is a suitable voltage.

7) Keep the RO unit away from sunshine.

8) When the system is not used for a long period, please turn off the power and shut off the ball

valve.

9) Follow the initial operation before reusing the system after longtime standing idle. Load move and install it carefully.

http://www.WilTec.de http://www.aoyue.eu Version 3.2016 http://www.teichtip.de

Page 13

Trouble Shooting

If the following problems occur, please check as follows:

1) Pump can not work to generate purified water：

 Check if the pressure of water supply is high enough to work. The RO controller box

does not start the pump under low pressure.

 Check if either high pressure switch or flush valve works, (stuck)  Check if the fuse on transformer is burned ， if so, then check if post in-line carbon

filter(T33) or PP cartridges is blocked, it may cause the pump to be overloaded

2) RO system does not operate.

 Check if power supply is normal.  Check if the feed water ball valve has been turned on (check if water pressure is nor -

mal).

 Check if the water storage tank is full of water

3) RO system can not operate automatically

 Check if there is any wrong operation.  Check if the high and low pressure valve is normal.

4) Pump head leakage:

 Check if post in-line carbon filter (T33) or PP cartridges are blocked this may cause the

leaking. Sometime the leakage may be caused by the increased pressure of the water

in the pump head that cannot be released outward. If so, replace all the carbon car-

tridges and send the pump for repair.

 Also either a weakened diaphragm or the blocked scale could cause the leaking.  The water can not flow out due to the blocked RO membrane, which is caused by a

blocked flow restrictor. This cause the pump head to be filled with high pressure water

that can cause a leak. It could be rectified by improving the relevant components.

 Pump is operating normally ， but can not generate purified water:

The cause may be that the RO membrane is blocked or pump is out of pressure. If the

RO membrane is blocked， please replace the RO membrane. If the cause is that the

pump has no pressure，please check if it is due to either the pump being loaded for to

long a time or the filtering materials is often blocked and the adequate maintenance is

not done，this can caused the pump structure to be weakened. Send pump for repairing.

5) No purified water coming out while tank is full of water ：

 The cause may be the air inside the tank is out. Please recharge the air (7 psi) and

check if the tank has air leakage. If it does, please replace the tank.

 If the post in-line carbon filter is blocked. Please replace the filter.

6) The wastewater keeps on discharging when the tap of RO system is closed.

 Check if flush valve is operating normally; otherwise, replace it.  The input water valve was damaged.

7) RO system could not be completely stopped or restart operating quickly while the tank is full.

 High-pressure switch is out of work. Please repair or replace it.  Check if valve is releasing pressure and is not stuck. Please replace it.

8) The volume of purified water is too little：

 Check if the filters are not to dirty and exceeded the filter's service life．If it is caused by

the RO membrane that is to dirty or not be flushed regularly. Please replace it.

 Check if temperature of water is to cold.

The water delivering pressure is not as good as that of the new system. Please replace the pump

http://www.WilTec.de http://www.aoyue.eu Version 3.2016 http://www.teichtip.de

Page 14

Disposal regulations

EU guidelines regarding the disposal of scrap electric appliances (WEEE, 2002/96/EC) were implemented in the law related to electrical and electronic equipment and appliances.

All WilTec electric devices that fall under the WEEE regulations are labelled with the crossed-out wheeled waste bin logo. This logo indicates that this electric equipment must not be disposed with the domestic waste.

The company WilTec Technik GmbH has been registrated in the German registry EAR under the WEEE-registration number DE45283704.

Disposal of used electrical and electronic appliances (intended for use in the countries of the European Union and other European countries with a separate collection system for these appliances). The logo on the article or on its packaging points out that this article must not be treated as normal household waste but must be disposed to a recycling collection point for electronic and electrical waste equipment. By contributing to the correct disposal of this article you protect the environment and the health of your fellow men. Environment and health are threatened by inappropriate disposal.

Materials’ recycling helps reduce the consumption of raw materials.

Additional information on recycling this article can be provided by your local community, municipal waste disposal facilities or the store where you purchased the article.

Address:

WilTec Wildanger Technik GmbH

Königsbenden 12 / 28

D-52249 Eschweiler

Important notice:

The reprint or reproduction, even of excerpts, and any commercial use, even in part of this instructions manual require the written permission of WilTec Wildanger Technik GmbH.

http://www.WilTec.de http://www.aoyue.eu Version 3.2016 http://www.teichtip.de
