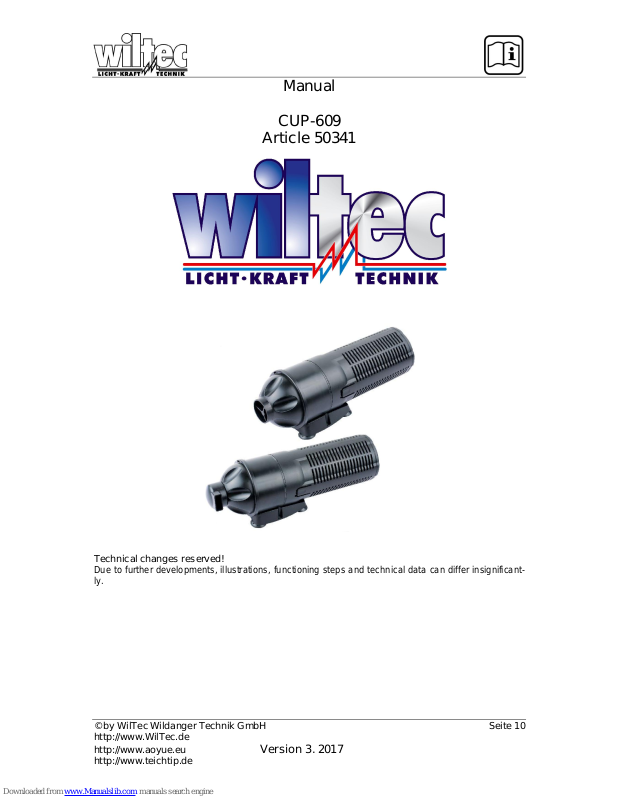

Manual
CUP-609
Article 50341
Technical changes reserved!
Due to further developments, illustrations, functioning steps and technical data can differ insignificantly.
Page 2
© by WilTec Wildanger Technik GmbH Seite 11
http://www.WilTec.de
http://www.aoyue.eu
Version 3. 2017
http://www.teichtip.de
Updating the documentation
If you have suggestions for improvement or have found any irregularities please contact us.
The information contained in this document is subject to change without prior notice. No part of this
document can be copied or duplicated in another form without the prior written consent of WilTec Wildanger Technik GmbH. The WilTec Wildanger Technik GmbH assumes no liability for any errors in
this user manual or the connection diagram.
Although WilTec Wildanger Technik GmbH has made every effort to make sure that this user manual
is complete, accurate and updated, errors cannot always be avoided. In the event of problems with
this user manual please complete and send this form back to us.
FAX-notification (+++49 2403 55592-15),
from: ________________________________________
Name: ________________
Firm:_____________________
Tel/Fax:__________________
I would like to report the following mistakes:
___________________________________________________________________
Customer Service WilTec Wildanger Technik GmbH
e-mail: [email protected]
Tel:++ +49 2403 55592-0
Introduction
Thank you for purchasing this quality product. To minimize the risk of injury by means of fire or
electric shock we urge that our clients take some basic safety precautions when using this
device. Please read the operation instructions carefully and make sure you have understood its
content.
Always use a grounded power connection with the appropriate mains voltage. You can find the corresponding mains voltage on the type plate. If you have any doubts about the connection being grounded, have it checked by a qualified professional. Never use a faulty electric cable.
Do not inspect the electrical part of the pressure pond filter in a wet or damp environment or when you
are wet yourself and protect it from direct sunlight. Install this device in a safe location so that nobody
can step on the cable, fall over or damage it. Disconnect the power plug before cleaning it and use
only a damp cloth for cleaning. Avoid using cleaning agents and make sure that no liquid enters the
electrical part of the pump.
The electric part of the device contains no parts that can be inspected or serviced by the user. Leave
the maintenance, adjustment and repair to qualified technical personnel. In case of unauthorised intervention the 2-year warranty is no longer valid! Keep these operation instructions safe.
Page 3
© by WilTec Wildanger Technik GmbH Seite 12
http://www.WilTec.de
http://www.aoyue.eu
Version 3. 2017
http://www.teichtip.de
Before the first time use, please read this instruction and acquaint this equipment. In order to use the
equipment safely, the following secure suggestions should be abided. For the consideration of security, people younger than 16 years old and those who can not identify danger or grasp the instruction
can not use this equipment.
1. If the UV light tube or the body shell looks like broken, the equipment can not be used.
2. When any person in the water, the product can not be used.
3. This type of product must have been set up according to the respective national directives.
4. Please make sure that the electrical voltage, frequency used are consistent with the indication on
the scutcheon of the UVC filter.
5. Pull the connecting cable is forbidden. And please protect the connecting cable from heat, greasiness or sharpness.
6. When know the frost is coming, please move away the product..
7. The dirt on the quartz tube will influence the effect of the equipment, please clean the quartz tube in
time.
8. In order to ensure the effect of the equipment, the UV light tube should be replaced after 8000
hours' usage.
9. UVC is harmful to the eyes and skin. Please do not watch UVC directly or let the skin approach to
the UVC.
10. When install or repair this equipment, the electrical source of the product must be switched off.
11. Never operate the pump without water (dry run).the pump rotor will be destroyed.
12. Install the pump horizontally on a fixed support and worker under the water .comply with the
maximum permitted immersion depth (see the information on the model plate).
13. Do not place the pump directly in the pond floor mud: place the pump on a raised surface.
Instruction
1. This equipment can kill the harmful germ and algaae in the aquarium and the pond, and offer the
healthy environment to the fishes.
2. When the water under the irradiation of wave length in 253.7nm 's ultraviolet radiation ina short
period , the germ and pathogen in the water will be killed then.
Maintenance/cleaning
When the pump capacity or the flowrate is reduced, please press the button zygomorphic the filter
basket and pull out the filter basket. Then clean the sponge and filter basket every month. Dismantling
change uv lamp and chean quartz tube.
1¡Press the button zygomorphic the filter basket and pull out the filter basket & sponge.
2¡Remove screw(4).
3¡Circumgyrate the protective tube anticlockwise(3) until lock, then pull out the protective tube.
4¡Then you can change the uv lamp.
5¡Remove the screw(9) at protective tube, pull out the connecter two£8£ with quartz tube.Thenyou can
clean the quartz tube.
Page 4
© by WilTec Wildanger Technik GmbH Seite 13
http://www.WilTec.de
http://www.aoyue.eu
Version 3. 2017
http://www.teichtip.de
Disposal regulations
EU guidelines regarding the disposal of scrap electric appliances (WEEE, 2012/19/EU) were implemented in the law related to electrical and electronic equipment and appliances.
All WilTec electric devices that fall under the WEEE regulations are labelled with the crossed-out
wheeled waste bin logo. This logo indicates that this electric equipment must not be disposed with the
domestic waste.
The company WilTec Technik GmbH has been registrated in the German registry EAR under the
WEEE-registration number DE45283704.
Disposal of used electrical and electronic appliances
(intended for use in the countries of the European
Union and other European countries with a separate
collection system for these appliances).
The logo on the article or on its packaging points out
that this article must not be treated as normal household waste but must be disposed to a recycling collection point for electronic and electrical waste equipment. By contributing to the correct disposal of this
article you protect the environment and the health of
your fellow men. Environment and health are threatened by inappropriate disposal.
Materials’ recycling helps reduce the consumption of raw materials.
Additional information on recycling this article can be provided by your local community, municipal
waste disposal facilities or the store where you purchased the article.
Address:
WilTec Wildanger Technik GmbH
Königsbenden 12 / 28
D-52249 Eschweiler
Important notice:
The reprint or reproduction, even of excerpts, and any commercial use, even in part of this instructions
manual require the written permission of WilTec Wildanger Technik GmbH.
