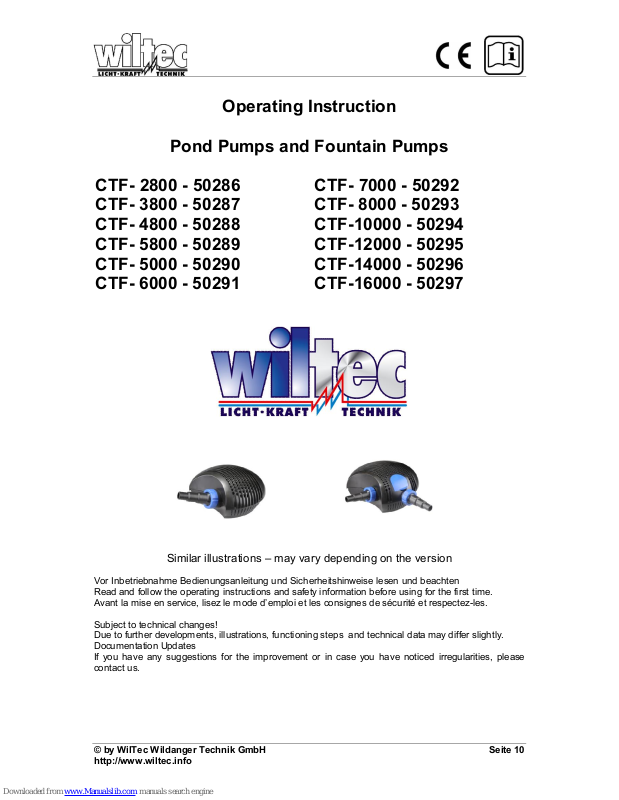

Page 1

Operating Instruction

Pond Pumps and Fountain Pumps

CTF

- 2800

- 50286

CTF- 3800 - 50287 CTF- 4800 - 50288 CTF- 5800 - 50289 CTF- 5000 - 50290 CTF- 6000 - 50291

CTF

- 7000

- 50292

CTF- 8000 - 50293 CTF-10000 - 50294 CTF-12000 - 50295 CTF-14000 - 50296 CTF-16000 - 50297

Similar illustrations – may vary depending on the version

Vor Inbetriebnahme Bedienungsanleitung und Sicherheitshinweise lesen und beachten Read and follow the operating instructions and safety information before using for the first time. Avant la mise en service, lisez le mode d’emploi et les consignes de sécurité et respectez-les.

Subject to technical changes! Due to further developments, illustrations, functioning steps and technical data may differ slightly. Documentation Updates If you have any suggestions for the improvement or in case you have noticed irregularities, please contact us.

Page 2

The information contained in this document may change without prior notice at any time. No part of this document may be copied without the prior written consent of WilTec Wildanger Technik GmbH or reproduced in any other form. WilTec Technic GmbH assumes no liability for any errors in this manual or the connection diagrams. Although WilTec Technik GmbH has made their best efforts to ensure that this manual is complete, accurate and up to date, errors can not be ruled out. As for problems with this manual, please fill out this form and send it back to us.

FAX-Note (+++49 2403 55592-15),

From: ________________________________________

Name: ________________

Company:_____________________

Phone/Fax:__________________

II would like to report the following error:

Customer Service Wiltec Wildanger Technik GmbH e-mail: [email protected] Phone:++ +49 2403 55592-0

Introduction

Thank you for purchasing this quality product. To minimize the risk of injury by fire or electric shock, we kindly ask you to take same basic safety precautions into account when using this device. Please read these operating instructions thoroughly and make sure that you have understood them. Always use a grounded power supply with the correct voltage. The corresponding mains voltage is indicated on the nameplate. In case you are unsure whether the connection is grounded, have it checked by a qualified technician. Never make use of a damaged power cord. Do not open this device in damp or wet surroundings or if you are wet yourself and protect it from direct sunlight. Install the device in a safe place so that no one can step or fall on the cord. Provide for an adequate air cooling and avoid heat accumulation. Before cleaning the device pull the power plug and simply use a damp cloth. Avoid the use of cleaning agents and ensure that no liquid enters the device. The interior of this device does not contain any parts that have to be maintained by you. Leave the maintenance, adjustment and repair to qualified personnel. In the case of foreign intervention, the 2-years´ warranty period expires! Keep this manual in a safe place.

Page 3

Security notes:

ATTENTION:

In stagnant waters, garden ponds and swimming ponds and the surrounding areas the device can only be used with a residual current circuit breaker and a triggering nominal current up to 30 mA (according VDE 0100 part 702 and 738).

The device is not for use in swimming pools, any kind of paddle ponds and the like that are used by humans during the operation of the device. Operating the device during the stay of humans in the danger zone is not permitted. Ask your electrician!

The device must not be used by persons (including children) with reduced physical, sensory or mental capabilities and/or lack of experience or knowledge, unless they are instructed by a person responsible for their safety or given instruction how to use the device.

ATTENTION:

 Perform a visual inspection before each use of the device. Do not use the device if the safety

equipment is damaged or worn. Never override the safety equipment.

 Only use the device for the purpose as specified in this manual.  You are held responsible for the safety in the work area.  If the power cord or the plug is damaged by external influences, the cord must not be re-

paired.! The cord must be replaced with a new one. This operation must be carried out only by a qualified electrician.

 The Voltage of 230 AC volts as indicated on the device´s nameplate has to be according to

the mains voltage.

 Never lift, transport or fix the device by using the power cord as a means for this purpose.  Make sure that the electrical connectors are located in a flood-safe area and that they are pro-

tected from moisture.

 Pull the power plug before working on the device.  The device must not be exposed to a direct stream of water or rain.  As for the compliance with local safety and installation regulations the user is held responsible

(as the case may be, ask an electrician).

 Consequential damage due to flooding caused by faults of the device is to be prevented by

the user who takes the appropriate measures therefor.

 In case of a failure, the device may only be repaired by a qualified electrician or by the WilTec

customer service.

 The device must never run dry or be operated with the suction tube fully closed.  The device must not be used for the operation of swimming pools.  The device must not be installed in the portable water cycle.

Page 4

WARNING:

Read all safety warnings and instructions. Any failure due to disrespect of the safety instructions may result in electric shock, fire and / or serious injury. Keep all warnings and instructions for the future.

Resistance During continuous operation, the maximum temperature of the liquid to deliver should not exceed +35°C. The delivery of aggressive liquids (such as acids, alkalis, silo seepage, etc.) as well as liquids containing abrasive materials (sand etc.) is to be avoided.

Electrical connection

 The electrical connection is made to a grounded socket 230 V ~ 50 Hz. Hedging at least 6 amps.  By an integrated thermal motor protection, the engine is protected from overload and blockage.

Mains connection The acquired pond pump is already equipped with a grounded socket. The pump is intended for a connection to a grounded socket with 230 V ~ 50 Hz. Make sure that the socket is adequately secured and in a good condition. Run the pump plug into the socket. The pump is ready for operation.

Note:

Installation

8. Check out whether the mains voltage corresponds with the specifications on the nameplate.

9. Do not place the pump directly in the pond mud but on a stone in order to make sure that no mud is drawn in.

10. Check the delivery head (maximum depth). This information can be likewise found the nameplate.

11. The pump is installed as follows: either in a fixed position with a fixed tubing or in a fixed position with flexible tubing.

12. Route the cord in a protected way in order to avoid the possibility of damage.

13. Connect the pump to the power supply.

14. As long as being connected to the power supply the pump keeps its operation.

Commissioning

Having read the afore-mentioned instructions carefully, you may operate the pump under the following conditions:

 Check out whether the pressure line is attached properly.  Make sure that the electrical connection is 230V~50Hz.  Make sure that the socket is in a proper condition.  Make sure that there is never any contact between humidity or water with the mains connection.  Install the pump below the water surface.  Make sure that the pump never runs dry.  Never operate the pump without a filter basket. The filter basket protects the pump from coarse

dirt that may lead the pump to get clogged.

 Never install the pump in the pond mud.

Page 5

Overload protection

The pump disposes of an integrated overload protection. After being switched of by the overheating protection, the pump has to cool down for a while before re-operation. If it does not start re-operating by itself the following checks are to be performed: Could the pump cool down sufficiently after the switch-off by the overheating protection Is there a sufficient water supply? > Improve water supply! Is there any dirt in the pump housing? > Cleaning as below mentioned! Hose or tube clogged? > Clean! Hose bend or to long? > Check, replace, cut it!

Model Voltage

Perfo

mance

Maximum

Flow Rate

Maximum

Delivery head

Connection

(inch)

Cord length

CTF-2800

AC 220-240V/50Hz

10W 3000 l/h

2 m

1“ – 1 ¼“ –1½“

10 m

CTF-3800

20W 3600 l/h

2.8 m

1“ – 1 ¼“ –1½“

10 m

CTF-4800

30W 4500 l/h

4 m

1“ – 1 ¼“ –1½“

10 m

CTF-5800

40W 5200 l/h

4.8 m

1“ – 1 ¼“ –1½“

10 m

CTF-5000

30W 5000 l/h

3.3 m

1“ – 1 ¼“ –1½“

10 m

CTF-6000

40W 6000 l/h

4.2 m

1“ – 1 ¼“ –1½“

10 m

CTF-7000

50W 7000 l/h

4.6 m

1“ – 1 ¼“ –1½“-2“

10 m

CTF-8000

70W 8000 l/h

5.6 m

1“ – 1 ¼“ –1½“-2“

10 m

CTF-10000

80W 10000 l/h

6 m

1“ – 1 ¼“ –1½“-2“

10 m

CTF-12000

100W

12000 l/h

6.5 m

1“ – 1 ¼“ –1½“-2“

10 m

CTF-14000

120W

14000 l/h

7 m

1“ – 1 ¼“ –1½“-2“

10 m

CTF-16000

140W

16000 l/h

7.5 m

1“ – 1 ¼“ –1½“-2“

10 m

Maintenance

The pond motor pump is a proven quality product subjected to strict final instructions. However, in order to ensure a long durability and a continuous operation, we recommend a regular control and and care. To ensure the proper operation of the pump it is indispensable to clean it regularly. We advise a weekly cleaning. Kindly remove the pump housing and clean the pump with a smooth brush in running water. Remove any residue found on the pump shaft.

Winter storage

5. Remove the pump from the water and disconnect it from the power supply.

6. Clean the pump as afore mentioned.

7. Check the pump with regard to damage, such as cracks or cuts in the housing.

8. Kindly store the pump under frost-free conditions, if possible in a container filled with water.

Page 6

1 Blue cover on top

2 Upper pump housing 3 Holder 4 Holder 5 Engine 6 Pump holder 7 Lower pump housing 8 O-ring 1

9 Bearing cover 10 Bearing 11 Rotor 12 Rotor cover 13 O-ring 2 14 Flange 15 Screw 16 O-ring 3 17 Outlet 18 O-ring 4 19 Flange 2 20 Blue cover side

Page 7

1 Upper pump housing

2 Holder

3 Holder

4 Engine

5 O-ring 1

6 Pump holder

7 Lower pump housing

8 Bearing cover

9 Bearing 10 Rotor 11 Rotor cover 12 O-ring 2 13 Flange 14 Outlet 15 O-ring 3 16 Screw

Page 8

Regulations for disposal

The EU directive on waste disposal of electrical equipment (WEEE,2002/96/EC) was transposed with the electronic law.

All electrical devices that are affected by the WEEE are marked with the symbol of a crossed-out waste bin, indicating that this product must not be disposed of with the domestic waste.

The company WilTec Wildanger Technik GmbH has been registered in the German registry EAR under the WEEE registration number DE45283704.

Disposal of used electrical and electronical equipment (applicable in the countries of the European Union and other European countries with a separate collection system for these devices). The symbol on the product or on its packaging indicates that this product must not be treated as normal domestic waste but must be handed over to a collection point for the recycling of electric and electronic devices. By contributing to a correct disposal of this product you protect your environment and the health of others. Environment and health are affected by inappropriate disposal.

Recycling helps to reduce the consumption of raw material.

For more information about recycling of this product, please contact your local community, the household waste disposal or the shop you purchased the product from.

Address:

WilTec Wildanger Technik GmbH

Königsbenden 12 / 28

D-52249 Eschweiler

Important note:

Any reprinting, even excerpts and any kind of commercial use, even parts of this manual is not allowed without the prior permission or consent of WilTec Wildanger Technik GmbH.
