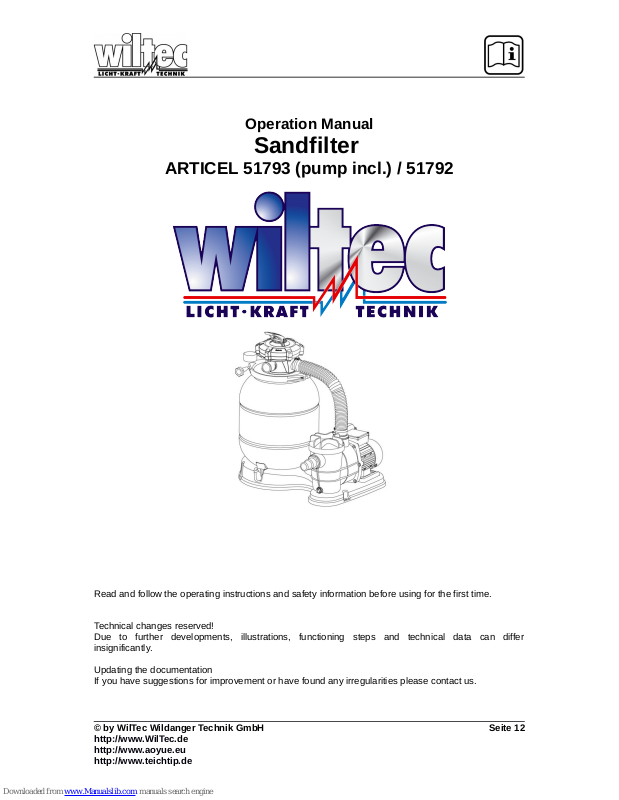

Operation Manual

Sandfilter

ARTICEL 51793 (pump incl.) / 51792

Read and follow the operating instructions and safety information before using for the first time.

Technical changes reserved! Due to further developments, illustrations, functioning steps and technical data can differ insignificantly.

Updating the documentation If you have suggestions for improvement or have found any irregularities please contact us.

http://www.WilTec.de http://www.aoyue.eu http://www.teichtip.de

Page 2

The information contained in this document is subject to change without prior notice. No part of this document can be copied or duplicated in another form withoutthe prior written consent of WilTec Wildanger Technik GmbH. The WilTec Wildanger Technik GmbH assumes no liability for any errors in this user manual or the connection diagram. Although WilTec Wildanger Technik GmbH has made every effort to make sure that this user manual is complete, accurate and updated, errors cannot always be avoided. In the event of problems with this user manual please complete and send this form back to us.

FAX-notification (+++49 2403 55592-15),

from: ________________________________________

Name: ________________

Firm:_____________________

Tel/Fax:__________________

I would like to report the following mistakes:

_______________________________ ____________________________________

Customer Service WilTec Wildanger Technik GmbH e-mail: [email protected] Tel:++ +49 2403 55592-0

Introduction

Thank you for purchasing this quality product. To minimize the risk of injury by means of fire or electric shock we urge that our clients take some basic safety precautions when using this device. Please read the operation instructions carefully and make sure you have understood its content.

Always use a grounded power connection with the appropriate mains voltage. You can find the corresponding mains voltage on the type plate. If you have any doubts about the connection being grounded, have it checked by a qualified professional. Never use a faulty electric cable. Do not inspect the electrical part of the pressure pond filter in a wet or damp environment or when you are wet yourself and protect it from direct sunlight. Install this device in a safe location so that nobody can step on the cable, fall over or damage it. Disconnect the power plug before cleaning it and use only a damp cloth for cleaning. Avoid using cleaning agents and make sure that no liquid enters the electrical part of the pump. The electric part of the device contains no parts that can be inspected or serviced by the user. Leave the maintenance, adjustment and repair to qualified technical personnel. In case of unauthorised intervention the 2-year warranty is no longer valid! Keep these operation instructions safe.

http://www.WilTec.de http://www.aoyue.eu http://www.teichtip.de

Page 3

Safety guideline

BEWARE:

The use of this device is allowed on standing bodies of water, garden ponds’ water or swimming ponds and their surrounding areas only with fault current protection-switch with a triggering nominal current up to 30mA (according to VDE 0100 article 702 and 738).

The device is not intended for use by persons (including children) with impaired or limited physical, sensory and mental abilities or lack of experience and/or real knowledge, unless they are supervised by a person responsible for their safety or you follow the instructions made by this person how to use the device correctly. Children should be supervised to make sure that they do not play with the device.

ATTENTION:

 Run a visual inspection of the device before every use. Do not use the device if the safety ap-

pliances are damaged or worn out. Never override safety regulations.

 Use the device exclusively according to the intended purpose stated in the instructions for

use.

 You are responsible for the safety of the working environment.  If the cable or the plug is damaged due to external influences the cable must not be repaired!

It has to be replaced with a new one. This work can be carried out only by an electrician.

 The voltage indicated on the type plate of the device of 230 Volt alternating voltage has to cor-

respond to the existent mains voltage.

 Never lift, carry or fixate the device by using the power cable.  Make sure that the electrical plug connection is placed in a flood-proof area and is protected

from moisture.

 Before working on the pond filter disconnect the appliance by taking the plug out of the socket.  Avoid exposing the appliance to a direct water jet or rain.  The user is responsible for the compliance with location specific safety and installing regula-

tions. (Ask an electrician).

 Consequential damage arising from flooded rooms caused by disfunctions of the appliance

must be avoided by means of the appropriate measures.(installing an alarm system, reserve pump).

 In case of malfunction the repair work can be carried out only by a qualified electricial or the

WilTec-service.

 The appliance must not run dry or with a completely closed intake port. The manufacturer’s

warrantyis no longer valid if the damage is caused by dry running.

 The appliance must not be used for swimming pools.  The appliance must not be used for drinking water circuits.  The device has to be installed out of water.  You have to make sure that the filter cannot fall into the water.  You have to make sure that the filter is not exposed directly to sunlight.  The pond pressure filter has to be horizontally fixed with screws on a suitable mounting place.  The universal-hose stepped tails can be shortened according to the hose diameter if neces-

sary.

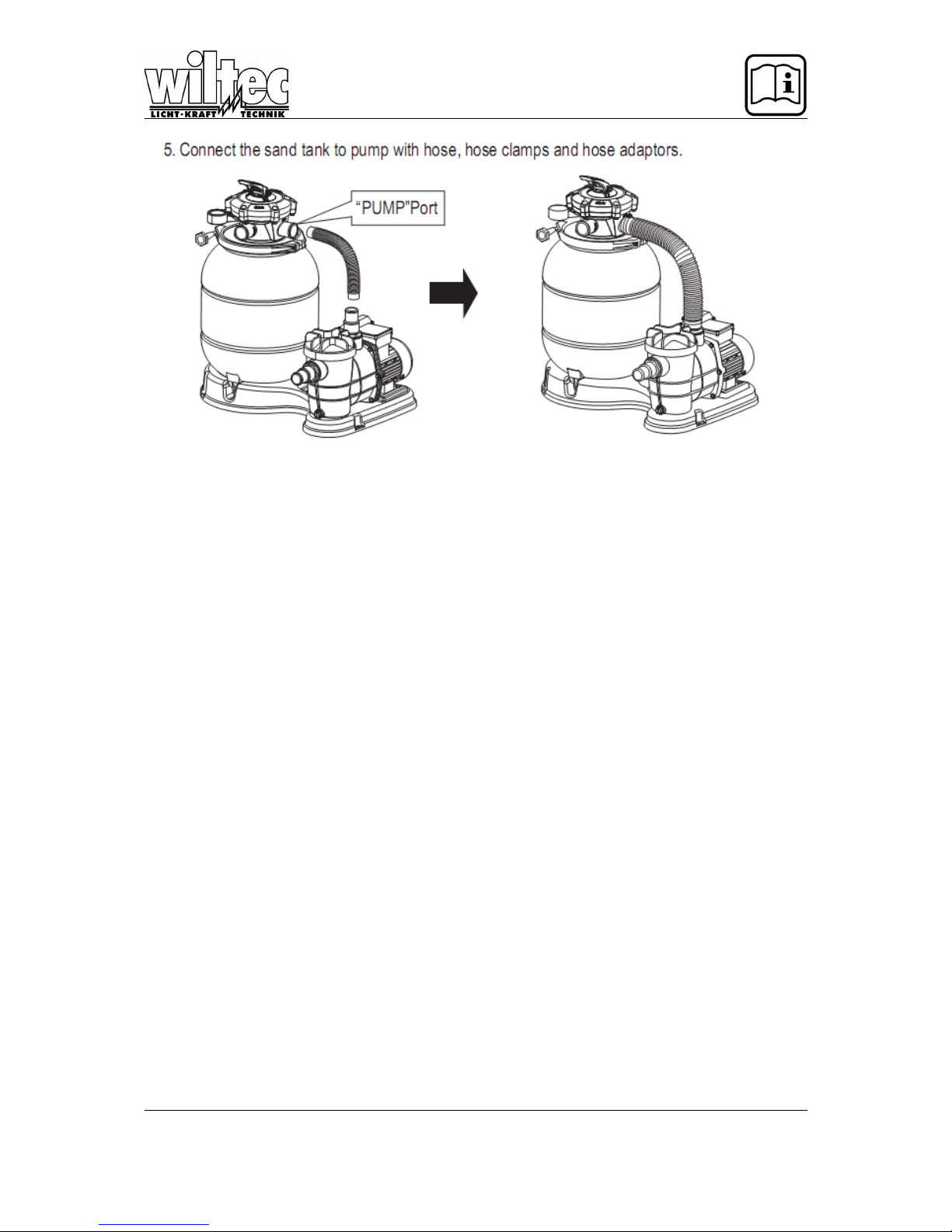

 Attach hoses and hose clamps.

http://www.WilTec.de http://www.aoyue.eu http://www.teichtip.de

Page 4

 Operate the tubes only if the housing is closed and not cracked.

WARNING:

Read carefully all the safety guidelines and the instructions.

Non-compliance with the safety rules and regulations can lead to an electric shock, fire and/or serious injury. Keep the instructions and the safety guidelines in a safe place in case you need them in the future.

http://www.WilTec.de http://www.aoyue.eu http://www.teichtip.de

Page 5

Sand Filtration system working principle

Incoming water from the piping system is automatically directed by the Multiport Valve to the top of the filter bed. As the water is pumped through the filter sand, dirt and debris are trapped by the filter bed, and filtered out. The filtered water is returned from the bottom of the filter tank, through the Multiport Valve and back through the piping system.

Preparation before installation

1. Position the filter as close to the Swimming Pool/ Spa as possible.

2. The filter should be placed on a level concrete slab, very firm ground, or equivalent. Ensure that the ground will not subside, preventing any strain from the attached plumbing.

3. Position the filter under consideration of the piping connections, so that it is convenient for op erating and servicing.

4. Ensure that the compliance label is facing the front to allow easy identification in the case of service difficulties.

How to install the filter tank

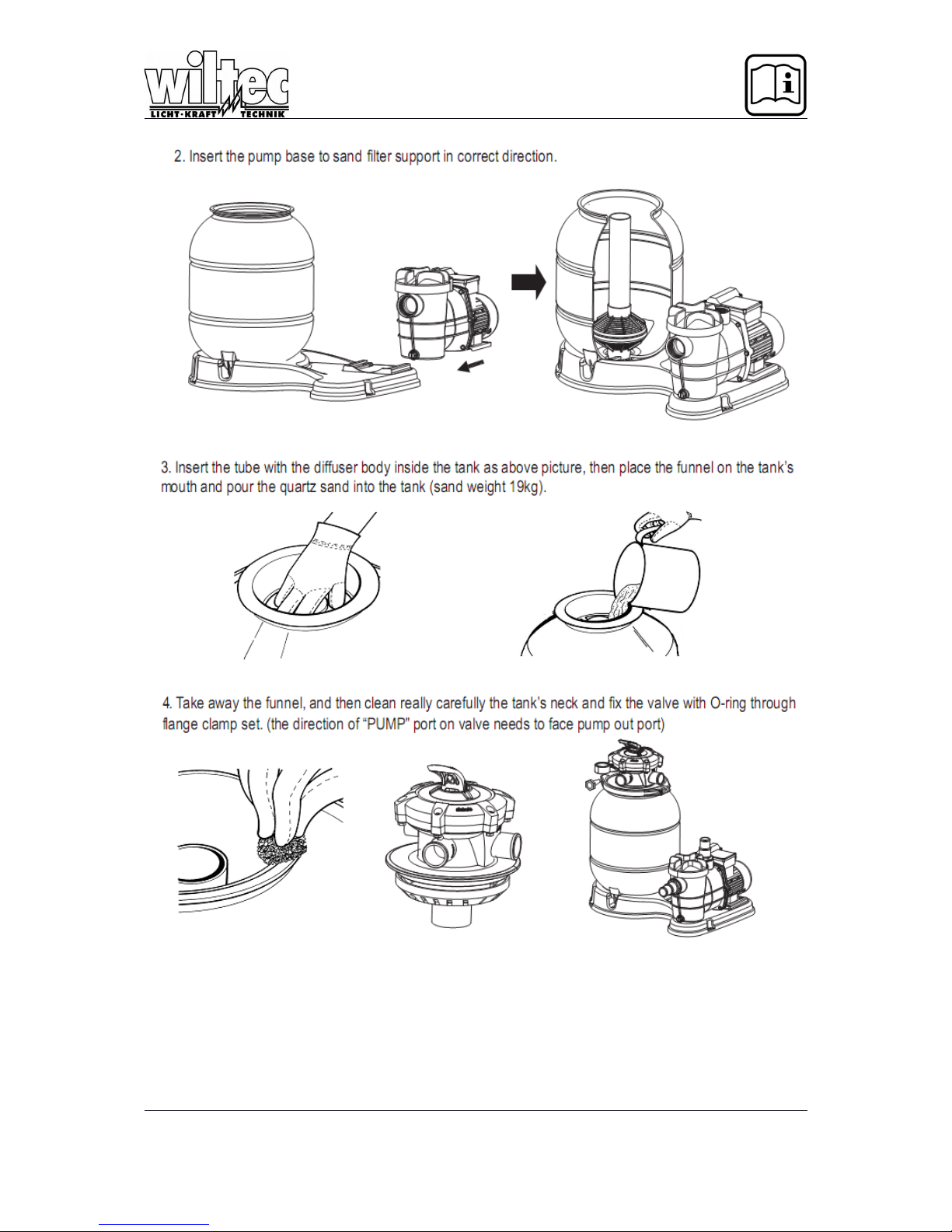

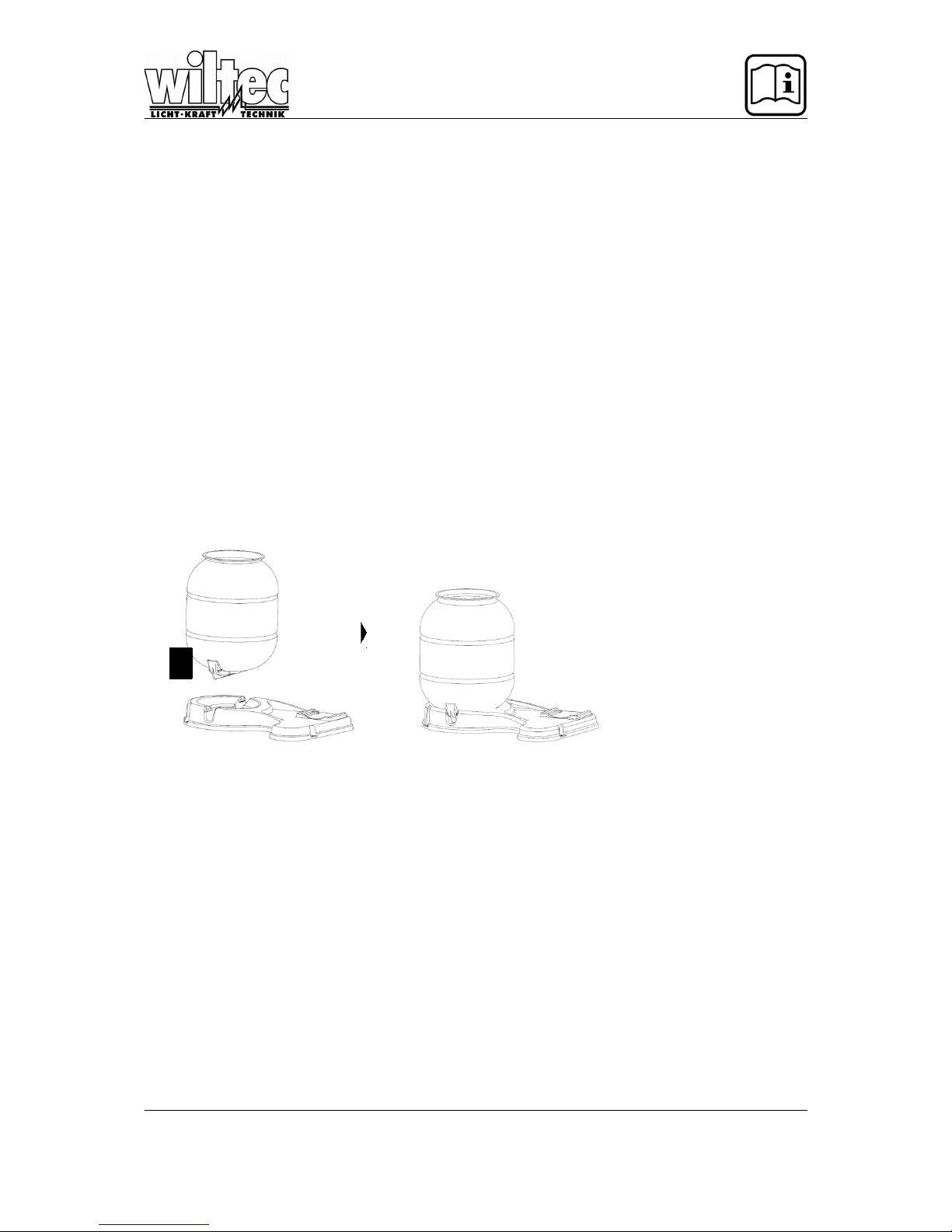

1. Mount the sand tank to sand filter support according to the below instruction.

http://www.WilTec.de http://www.aoyue.eu http://www.teichtip.de

Page 6

http://www.WilTec.de http://www.aoyue.eu http://www.teichtip.de

Page 7

INSTALLATION NOTES:

1. Make sure the filter is worked under the work pressure, and using a pressure control valve when the system using a booster pump.

2. If the pump position is higher than the water level, it requires to install the back water control valve.

3. If the pump position is lower than the water level, it requires installing an isolation valve. It could stop the water return back when people do the general inspection.

4. Reducing the connect adaptors and hose connecting bending as less as possible. Decreasing the water flow scrub, it could reach the maximum effective.

5. Ensure solvents are not excessively applied to fittings as this could run into O-ring and createsealing problems.

6. Do not over tighten fittings or adapters

HOW TO USE

1. Inspect all the connections have been made correct and are secure.

2. Depress top mount valve handle and rotate to BACKWASH position.

3. Prime and start pump according to pump instructions.

NOTE: ALL SUCTION AND DISCHARGE VALVES MUST BE OPENING WHEN STARTING THE SYSTEM. FAILURE TO DO SO COULD CAUSE SEVERE PERSONAL INJURY. MAKE SURE THE FILTER VESSEL ARE FULL FILL THE WATER BEFORE START UP THE PUMP. OR IT WILL CAUSE THE PUMP DAMAGED.

4. Once water flow is steady out the waste line, run the pump for at least 2 minutes. The intial back-washing of the filer is recommended to remove any impurities of fine sand particles in the sand media.

5. Turn pump off and set valve to RINSE position. Start pump and operate until water in sight glass is clearabout 1/2 to 1 minute. Turn pump off, set valve to FILTER position and restart pump. Your filter is now operating in the normal filter mode, filtering particles from the pool water.

http://www.WilTec.de http://www.aoyue.eu http://www.teichtip.de

Page 8

NOTES:

1. Note the initial pressure gauge reading when the filter is clean. (it will vary from pool depending upon the pump and general piping system). As the filter removes dirt and impurities from the pool water, the accumulation in the filter will cause the pressure to rise and flow to diminish. When the pressure gauge reading is 8-10 PSI(0.55-0.69 BAR) higher than the initial “clean” pressure you noted, it is the time to backwash (clean) the filter

2. IMPORTANT: To prevent unnecessary strain on piping system and valving, always shut off pump before switching filter control valve position.

3. To prevent damage to the pump and filter and for proper operation of the system, clean pump strainer and skimmer baskets regularly.

FILTER CONTROL VALVE FUNCTIONS

FILTER Set valve to FILTER for normal filtering. Also use for regular vacuuming. BACKWASH For cleaning filter. When filter pressure gauge rises 8-10 PSI (0.55-0.69 BAR) aboves-

tart-up (clean pressure) Stop the pump, set valve to BACKWASH. Start pump and backwash until water in sight glass is clear Approximately 2 minutes or less depending on dirt accumulation. Proceed to RINSE.

RINSE After backwashing, with pump off, set valve to RINSE. Start pump and operate for

about 1/2 to 1minute. This ensures that all dirty water from backwashing is rinsed out of the filter to waste, preventing possible return to the pool. Stop pump, set valve to FILTER and start pump for normal filtering.

WASTE To bypass filter for draining or lowering water level and for vacuuming heavy debris di-

rectly to waste.

http://www.WilTec.de http://www.aoyue.eu http://www.teichtip.de

Page 9

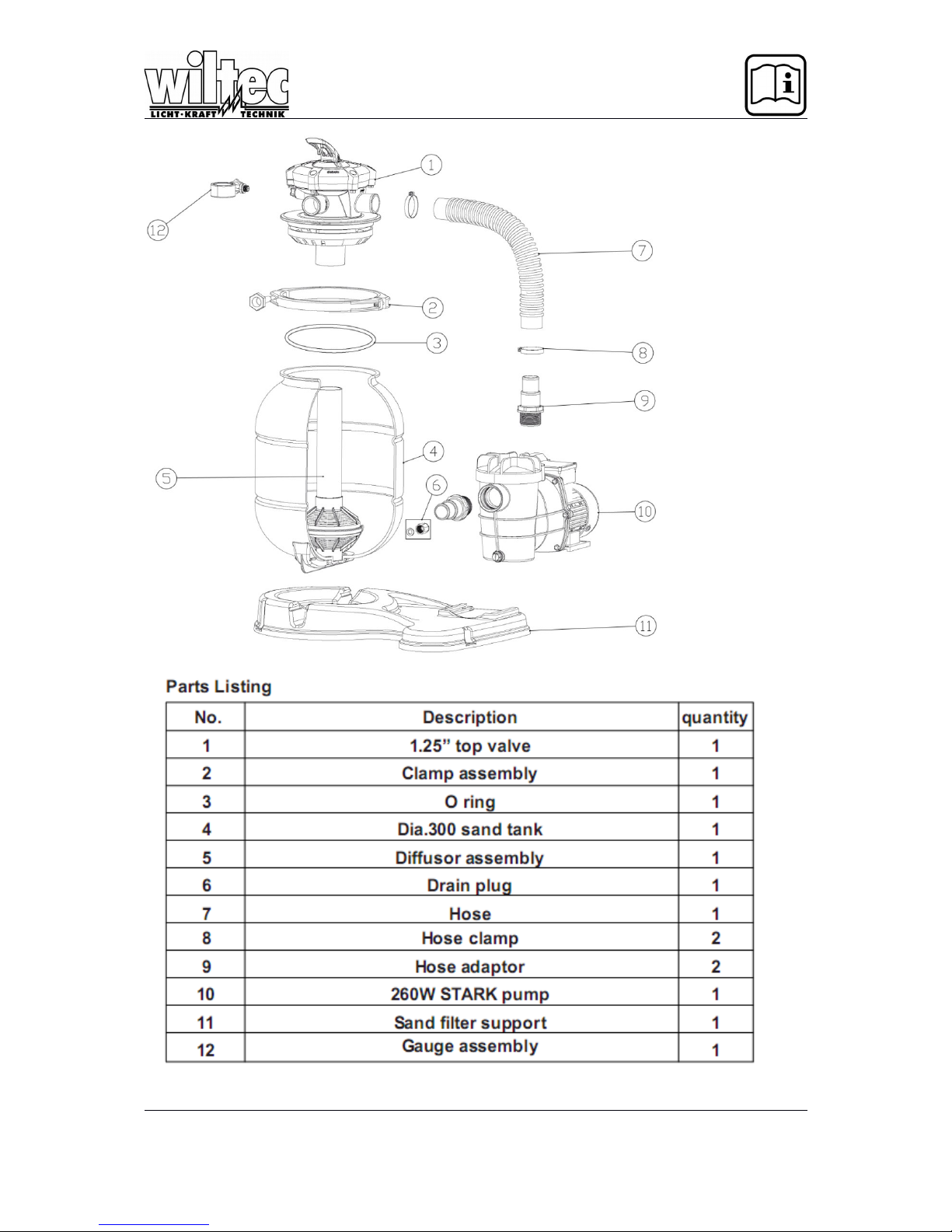

http://www.WilTec.de http://www.aoyue.eu http://www.teichtip.de

Page 10

TROUBLESHOOTING AND TECHNICAL SERVICE

This filter and its instructions are designed for domestic use, with no need for professional supervision, except for exceptional cases. Here we shall describe the problems and causes which may arise after years of service of the filter that you can repair yourself. If you cannot solve the problem, contact the pool manufacturer at the telephone indicated in the instructions.

http://www.WilTec.de http://www.aoyue.eu http://www.teichtip.de

Page 11

Disposal regulations

EU guidelines regarding the disposal of scrap electric appliances (WEEE, 2002/96/EC) were implemented in the law related to electrical and electronic equipment and appliances.

All WilTec electric devices that fall under the WEEE regulations are labelled with the crossed-out wheeled waste bin logo. This logo indicates that this electric equipment must not be disposed with the domestic waste.

The company WilTec Technik GmbH has been registrated in the German registry EAR under the WEEE-registration number DE45283704.

Disposal of used electrical and electronic appliances (intended for use in the countries of the European Union and other European countries with a separate collection system for these appliances). The logo on the article or on its packaging points out that this article must not be treated as normal household waste but must be disposed to a recycling collection point for electronic and electrical waste equipment. By contributing to the correct disposal of this article you protect the environment and the health of your fellow men. Environment and health are threatened by inappropriate disposal.

Materials’ recycling helps reduce the consumption of raw materials.

Additional information on recycling this article can be provided by your local community, municipalwaste disposal facilities or the store where you purchased the article.

Address:

WilTec Wildanger Technik GmbH

Königsbenden 12 / 28

D-52249 Eschweiler

Important notice:

The reprint or reproduction, even of excerpts, and any commercial use, even in part of this instructions manual require the written permission of WilTec Wildanger Technik GmbH.
