WilTec 30154 Operation Manual

Operation Manual

Engine Bridge

ARTICLE 30154

Read and follow the operating instructions and safety information before using for the first time.

Technical changes reserved! Due to further developments, illustrations, functioning steps and technical data can differ insignificantly.

Updating the documentation If you have suggestions for improvement or have found any irregularities please contact us.

The information contained in this document is subject to change without prior notice. No part of this document can be copied or duplicated in another form without the prior written consent of WilTec Wildanger Technik GmbH. The WilTec Wildanger Technik GmbH assumes no liability for any errors in this user manual or the connection diagram. Although WilTec Wildanger Technik GmbH has made every effort to make sure that this user manual is complete, accurate and updated, errors cannot always be avoided. In the event of problems with this user manual please complete and send this form back to us.

FAX-notification (+++49 2403 55592-15),

from: ________________________________________

Name: ________________

Firm:_____________________

Tel/Fax:__________________

I would like to report the following mistakes:

_______________________________ ____________________________________

Customer Service WilTec Wildanger Technik GmbH e-mail: [email protected] Tel:++ +49 2403 55592-0

Introduction

Thank you for purchasing this quality product. To minimize the risk of injury by means of fire or electric shock we urge that our clients take some basic safety precautions when using this device. Please read the operation instructions carefully and make sure you have understood its content.

Always use a grounded power connection with the appropriate mains voltage. You can find the corresponding mains voltage on the type plate. If you have any doubts about the connection being grounded, have it checked by a qualified professional. Never use a faulty electric cable. Do not inspect the electrical part of the pressure pond filter in a wet or damp environment or when you are wet yourself and protect it from direct sunlight. Install this device in a safe location so that nobody can step on the cable, fall over or damage it. Disconnect the power plug before cleaning it and use only a damp cloth for cleaning. Avoid using cleaning agents and make sure that no liquid enters the electrical part of the pump. The electric part of the device contains no parts that can be inspected or serviced by the user. Leave the maintenance, adjustment and repair to qualified technical personnel. In case of unauthorised intervention the 2-year warranty is no longer valid! Keep these operation instructions safe.

No.Description No.Description

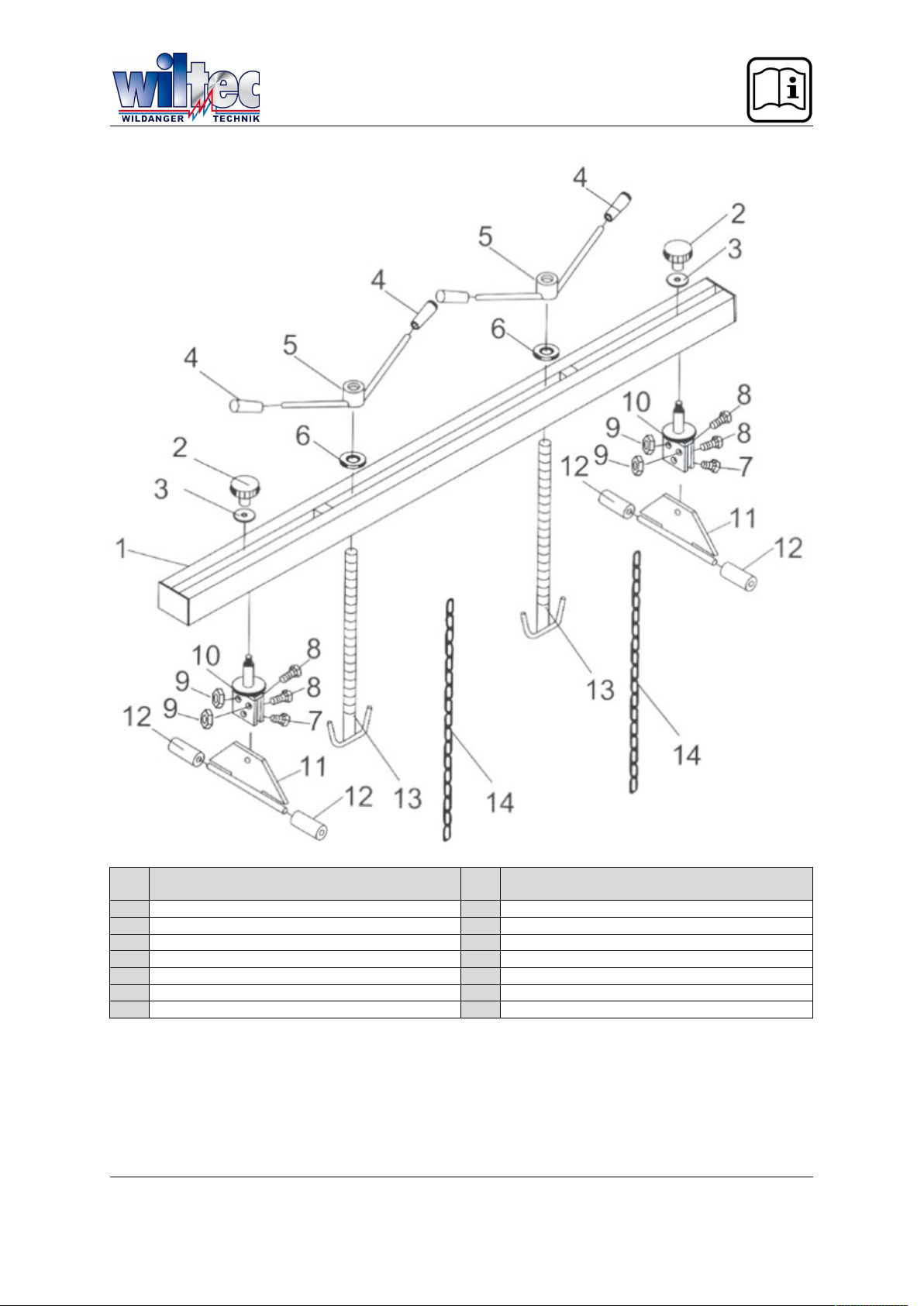

1 Support Bar 8 Bolt M10x35 2 Milled Screw 9 Hex Nut M10 / M12 3 Washer 10 Trench Support 4 Handle Sleeve 11 Variable Standing Bracket 5 Grip Handle 12 Rubber Sleeve 6 Washer 13 Load Hook M20 x 2,5 (330 mm) 7 Bolt M12x25 14 Load Chain

To avoid malfunctions, damage and health impairments, please observe the

following instructions:

 Unqualified persons must not use the motor bridge.

 Use the engine bridge for its intended purpose, only for lifting vehicle engines. Never use the engi-

ne bridge to transport loads!

 Make sure that the vehicle structure is suitable for the use of the engine bridge. The surface of the

vehicle structure must be flat to prevent the engine bridge from slipping.

 Determine the most stable area of the vehicle structure to set up the engine bridge. Place the sup-

ports (11) with the rubber protective caps (12) not on the mudguards (paint damage possible), but

on the inside of the spray wall (upper mudguard attachment) or on the shock absorber receptacle.

 Make sure that the vehicle cannot roll away when using the engine bridge.

 Do not use the engine bridge if there is a risk of petrol or other dangerous substances leaking.

 After the motor bridge has been properly assembled, first tighten the bolts (7) and the locking

knurled screws (2) to stabilise the bridge.

 Never work under a raised engine!

 Do not exceed the permissible load capacity of the motor bridge.

 Fasten the engine to be lifted by wrapping the load chains (14) around the motor and hang the

chains on the load hook. To lift the motor, turn the hand lever nuts (5).

 Clean and lubricate the threads on all parts from time to time.

 Store the motor bridge in a dry place protected from moisture.

 Modifications and alterations to the engine bridge are not permitted. We accept no liability for

damage caused by improper use of the motor bridge.

 Do not use the motor bridge if parts are bent or damaged.

Load Capacity 500 kg

Bar Length 150.6 cm

Chain Length 94 cm

Weight (without chains) 17 kg
