Amplifier
Installation
u
ide
Warning: This manual contains
important safety and operating information.
Please read and follow the instructions
in this manual. Failure to do so could be
hazardous and result in damage to your
amplifi er.
!
SIGNALBOOST™
Dual-Band
Cellular / PCS
Amplifi er
Contents:
Guarantee and Warranty · · · · · · · · · · · · · · · · · · · · · · · · 1
How it Works · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 2
Before Getting Started · · · · · · · · · · · · · · · · · · · · · · · · · · 3
Installation Overview · · · · · · · · · · · · · · · · · · · · · · · · · · · 3
Installing the Antenna (Vehicle) · · · · · · · · · · · · · · · · · · · 4
Installing the SIGNALBOOST™ Amplifi er (Vehicle) · · · 5
Installing the Antenna (Home/Offi ce) · · · · · · · · · · · · · · · 6
Installing the SIGNALBOOST™ Amplifi er (Home/Offi ce) 6
Installing the Universal Connector · · · · · · · · · · · · · · · · · 7
Powering Up the Amplifi er · · · · · · · · · · · · · · · · · · · · · · · 8
Warnings and Recommendations · · · · · · · · · · · · · · · · · 9
About Wilson Electronics · · · · · · · · · · · · · · · · · · · · · · · · 10
Amplifi er Specifi cations · · · · · · · · · · · · · · · · · · Back Cover
Wilson
®
Electronics, Inc.
Page 2
1
30-Day Money-Back Guarantee
All Wilson Electronics products are protected by Wilson’s 30-day money-back
guarantee. If for any reason the performance of any product is not acceptable,
simply return the product directly to the reseller with a dated proof of purchase.
1-Year Warranty
Wilson Electronics amplifi ers are warranted for one (1) year against defects in
workmanship and / or materials. Warranty cases may be resolved by returning the
product directly to the reseller with a dated proof of purchase.
Amplifi ers may also be returned directly to the manufacturer at the consumer’s
expense, with a dated proof of purchase and a Returned Material Authorization
(RMA) number supplied by Wilson Electronics. Wilson shall, at its option, either
repair or replace the product. Wilson Electronics will pay for delivery of the repaired
or replaced product back to the original consumer.
This warranty does not apply to any amplifi ers determined by Wilson Electronics
to have been subjected to misuse, abuse, neglect, or mishandling that alters or
damages physical or electronic properties.
RMA numbers may be obtained by phoning Technical Support at 866-294-1660.
Operation is subject to the following two conditions: (1) This device may not cause
interference, and (2) this device must accept any interference, including interference that
may cause undesired operation of this device.
Disclaimer: The information provided by Wilson Electronics, Inc. is believed to
be complete and accurate. However, no responsibility is assumed by Wilson
Electronics, Inc. for any business or personal losses arising from its use, or for
any infringements of patents or other rights of third parties that may result from
its use.
Copyright © 2007 Wilson Electronics, Inc. All rights reserved.
Page 3
2
Installation Instructions for the Following Wilson Amplifi er:
SIGNALBOOST™ Dual-Band Cellular/PCS Amplifi er
Model/Part #811210 / Part #811211
FCC ID: PWO819DA IC: 4726A-819DA
Patent Pending
The term “IC” before the radio certifi cation number only signifi es that
Industry Canada technical specifi cations were met.
Inside this Package
How it Works
Your new Wilson SIGNALBOOST™ Amplifi er has been carefully engineered to signifi cantly
improve the performance of your cell phone or cellular data card in both vehicle and home/
offi ce applications. Together with an antenna, the amplifi er’s state-of-the-art technology is
designed to increase your signal up to 10-15 times, reduce disconnects and dropouts, and
increase data communication rates needed for 3G technologies. The universal connector
fi ts all cellular and PCS phones and data cards. (Not designed for iDEN/NEXTEL)
The antenna will collect the cell tower signal and send it through the cable to the amplifi er .
The signal is then boosted and sent through the extension cable to the universal connector
on your cell phone or data card, which then communicates with the improved signal. When
the cell phone or data card transmits, the signal goes through the universal connector
and the extension cable, is boosted by the amplifi er and broadcast back to the cell tower
through the antenna.
NOTE: Use of this amplifi er with an antenna gain higher than 6.12 dBi is in violation of FCC
regulations for which the offender is fully liable. All Wilson mobile antennas are 6.12 dBi or
less.
SIGNALBOOST™
amplifi er
12 V DC power
supply (vehicle)
Universal
connector
12-inch Magnet-Mount
Antenna
(Part #301103)
Soft Carrying
Case
(Part #859924)
Window Bracket and
AC/DC Power Supply
(home/offi ce)
(Part #859940)
Optional Items
Mini Magnet-
Mount Antenna
(811211 only)
VELCRO
®
Cable Wrench
Mini Magnet-Mount
Antenna
(Part #301113)
Page 4
3
Before Getting Started
This guide will help you properly install Wilson’s dual-band, SIGNALBOOST™ amplifi er.
It is important to read through all of the installation steps for your particular
application prior to installing any equipment. Read through the instructions, visualize
where all the equipment will need to be installed and do a soft installation before mounting
any equipment. If you do not understand the instructions in full, please contact Wilson
Technical Support at 866-294-1660.
Installation Overview
The following steps provide a summary of the amplifi er/antenna installation process using
the mini magnet-mount antenna (included with Part #811211). However, they are not a
substitute for the complete installation instructions on the following pages, which you should
read thoroughly. If you are using a different antenna, follow the specifi c instructions that
come with it.
STEP 1 Install the Antenna
For a vehicle installation, attach the antenna in the center of the vehicle’s roof and run the
cable through the door to the amplifi er. For a home or offi ce installation, attach the antenna
to the optional window bracket, affi x the bracket to a window with the suction cups and run
the cable to the amplifi er. (See pages 4 and 6 for details and warnings.)
STEP 2 Install the Amplifi er
Position the amplifi er in a well-ventilated location away from direct sunlight. Run the cable
from the antenna and attach it to the FME-Male connector labeled “outside antenna” on the
amplifi er. (See pages 5 and 6 for details.)
STEP 3 Attach the Universal Connector
Attach the universal connector cable to the FME-Male connector labeled “Universal
Connector” on the amplifi er. Attach the other end of the cable to your cell phone or cellular
data card with the supplied VELCRO
®
. (See page 7 for details.)
STEP 4 Power up the Amplifi er

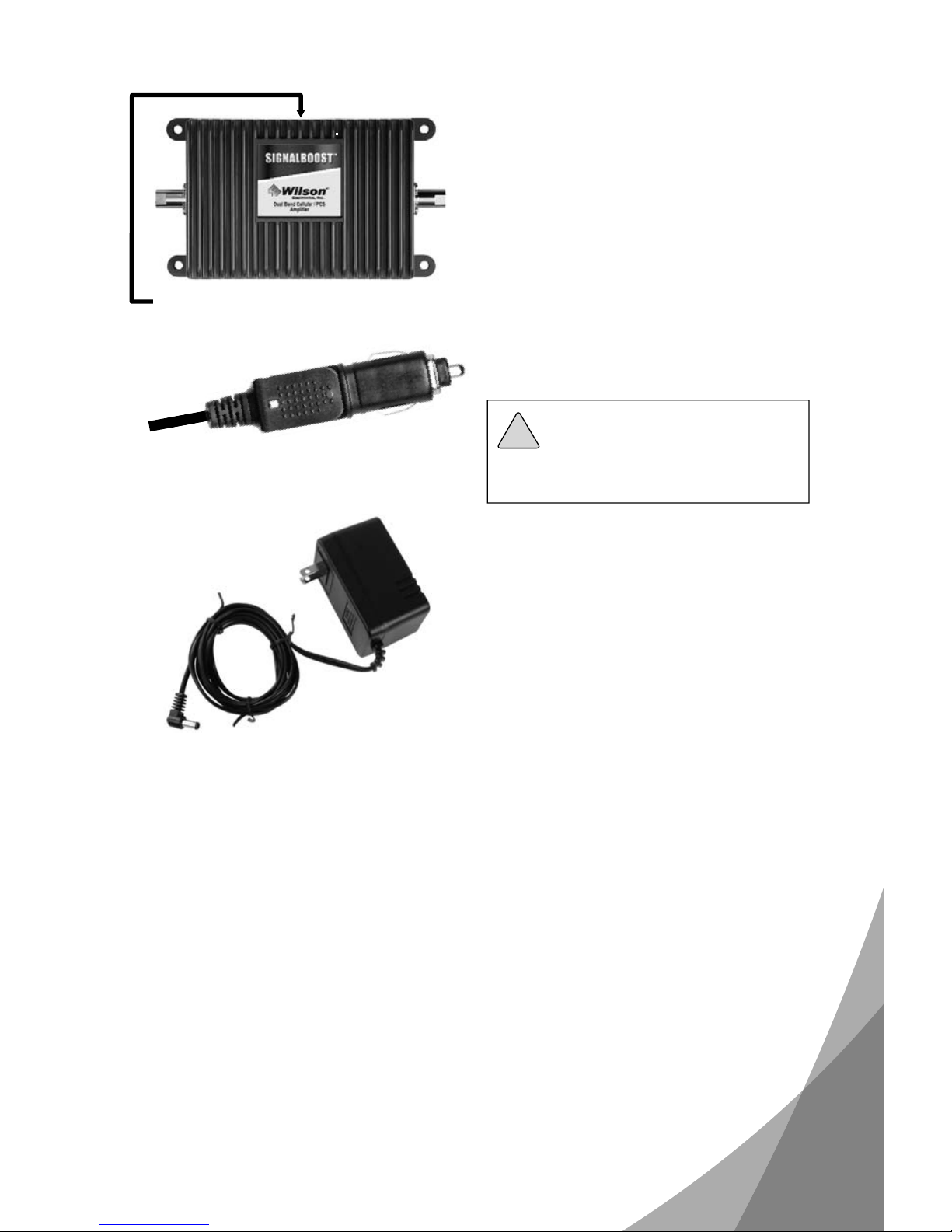

IMPORTANT! Before connecting the power supply, ensure that both the antenna cable and
the universal connector cable are connected. (See page 8 for details.)
Mobile Installation Diagram
Home/Offi ce Installation Diagram
SIGNALBOOST
™
Amplifier
Cell Phone
Connection
AC Power Supply and
Window Bracket
sold separately
(Part #859940)
SIGNALBOOST
™
Amplifier
Laptop
Connection
Antenna
(sold separately)
Cigarette
Power Supply
SIGNALBOOST
™
Amplifier
Page 5
4
Installing the Antenna

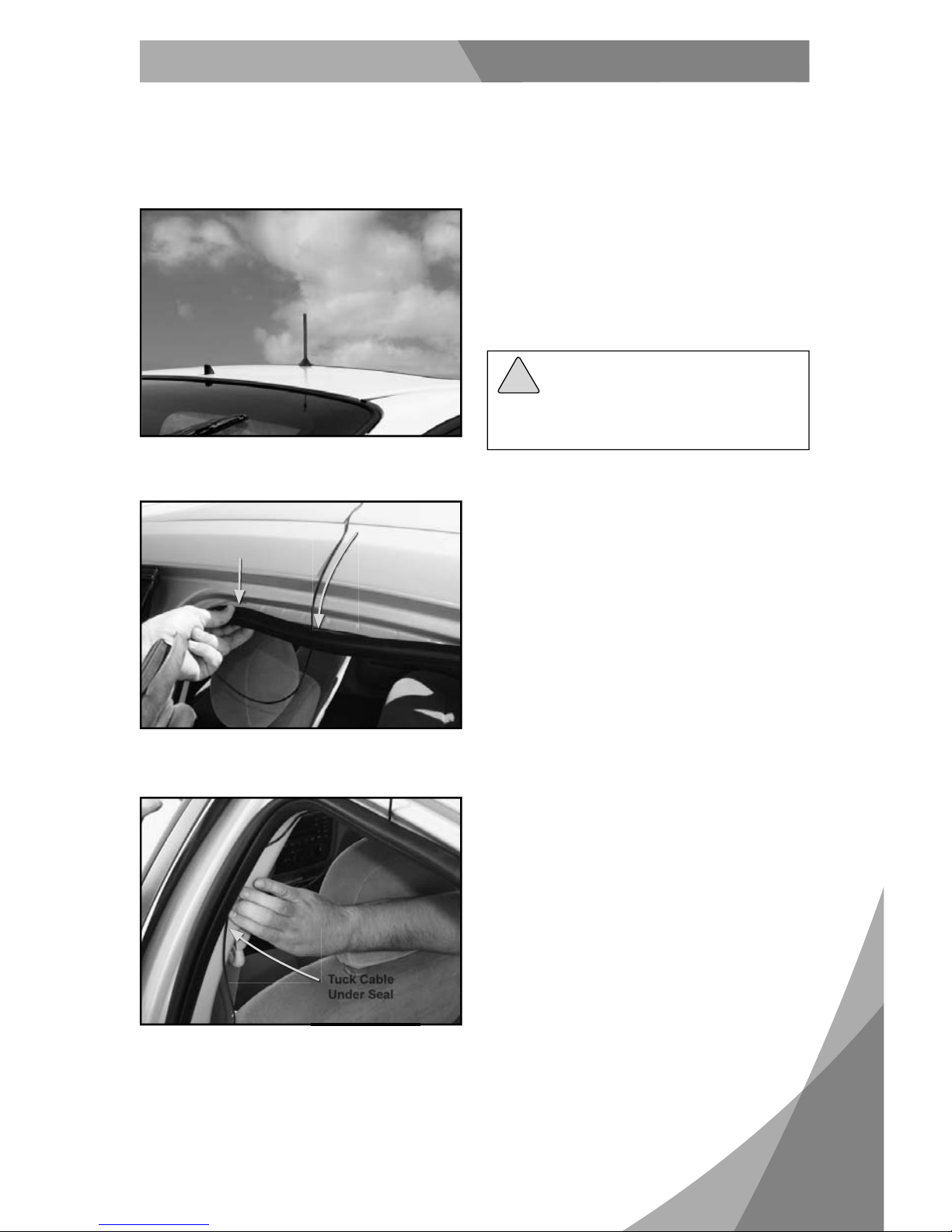

To receive the best cell signal, select a location in the center of the vehicle’s roof at least 12
inches away from any other antennas and free of obstructions.
The antenna must be installed vertically.
Signal performance will be degraded if the
antenna is not vertical.
The antenna cable may be run through the
door to the amplifi er.
The antenna cable is small enough to easily
tuck under the door seal or plastic molding.
For a more professional-looking installation,
the antenna cable may be run under the
door seal. Carefully pull down the door
seal. Run the cable through the seal
and push the seal back into place. This
prevents constant wear and tear on the
cable as the door opens and closes.
Carefully
Pull Down
Door Seal
Run Cable
Under
Seal
Tuck Cable
Under Seal
Vehicle Installation
Warning: The antenna used with this
amplifi er must have a separation distance of at
least 11 inches from all persons.
!
Page 6
5
Installing the Wilson SIGNALBOOST™ Amplifi er
Warning: Do not plug in the DC
power supply until the antenna and universal
connector cables are attached to the amplifi er.
!

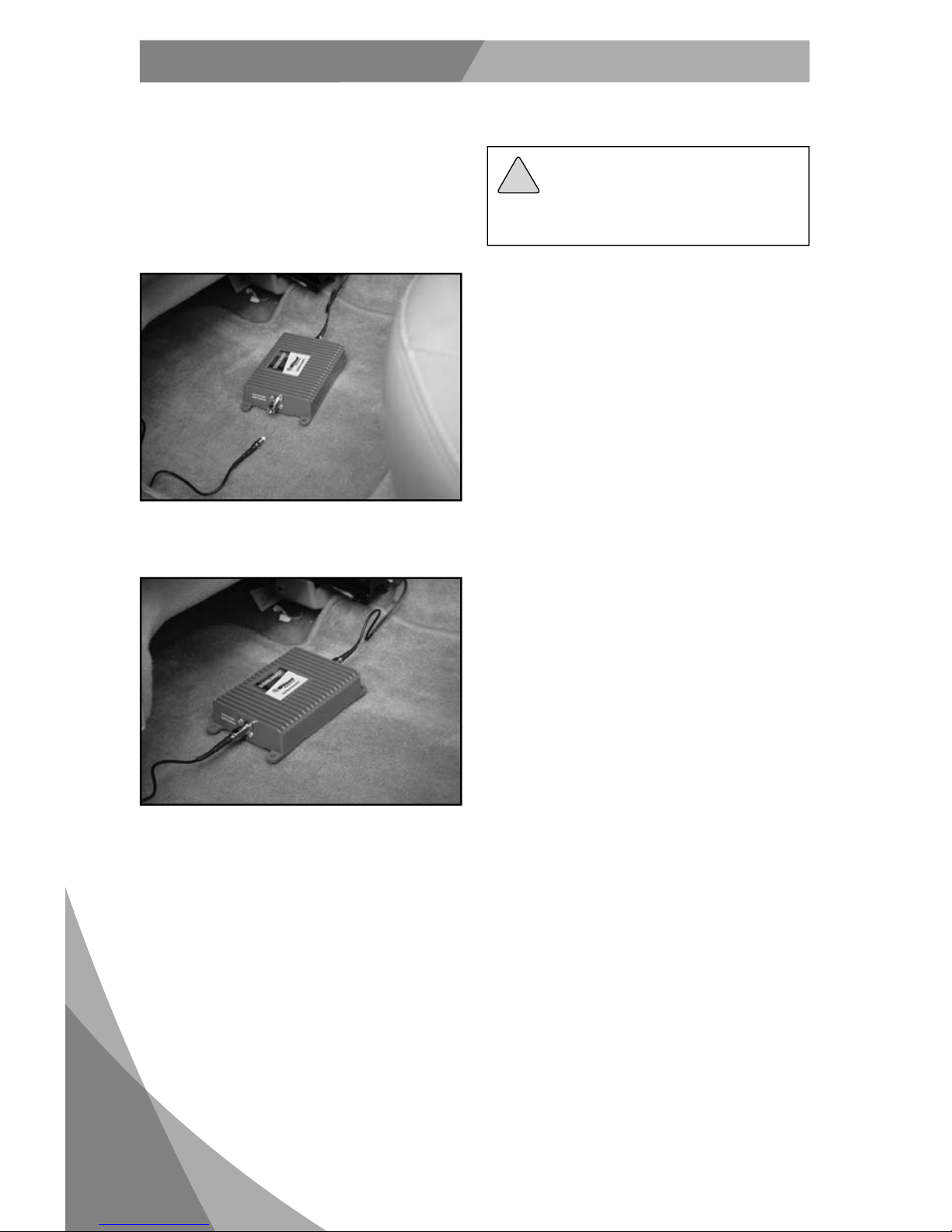

Select a location to install the amplifi er that
is away from excessive heat, direct sunlight
or moisture and that has proper ventilation.
Recommended installation locations are:
• Under the seat
• Under the dash
Run the cable from the antenna and attach
it to the FME-Male connector labeled
“outside antenna” on the amplifi er.
Attach the universal connector cable to the
extension cable and attach the extension
cable to the FME-Male connector labeled
“Universal Connector” on the amplifi er .
Then attach the universal connector to your
cell phone or data card. (See page 7)
Vehicle Installation
Page 7
6

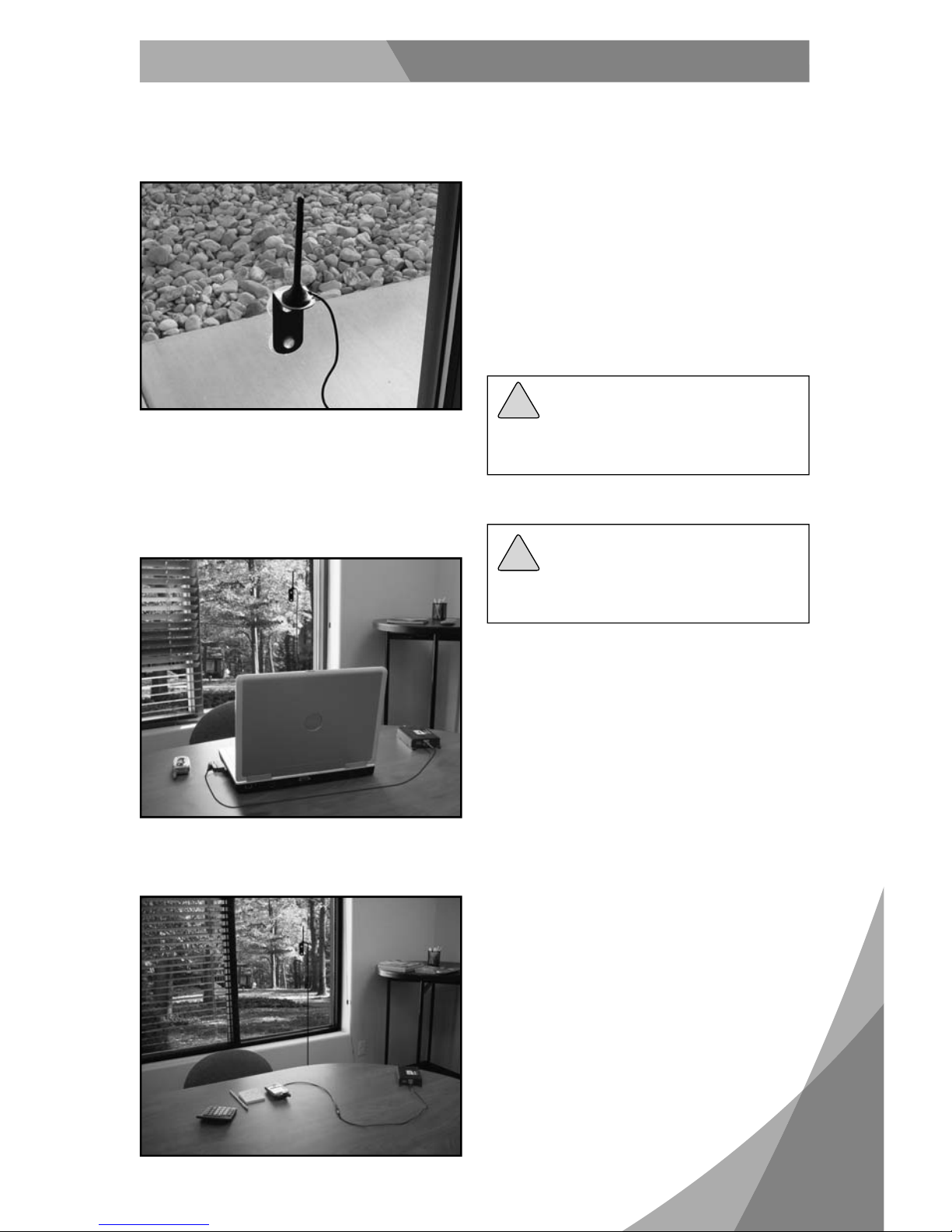

Installing the Antenna
To receive the best cell signal, select a window location at least 12 inches away from any
radio or television antennas and free of obstructions.
Using the suction cups, position the
optional mounting bracket on the window at
a height convenient to where the amplifi er
will be located, then attach the antenna to
the bracket.
The antenna must be installed vertically.
Signal performance will be degraded if the
antenna is not vertical.
Select a location to install the amplifi er that
is away from excessive heat, direct sunlight
or moisture and that has proper ventilation.
Recommended installation locations are:
• On a desk or table top
• In a bookshelf
• On the fl oor
Run the cable from the mini magnet-mount
antenna and attach it to the FME-Male
connector labeled “outside antenna” on the
amplifi er .
Attach the universal connector cable to the
extension cable and attach the extension
cable to the FME-Male connector labeled
“Universal Connector” on the amplifi er .
Then attach the universal connector to your
cell phone or data card. (See page 7)
Home/Offi ce Installation
Installing the Wilson SIGNALBOOST™ Amplifi er
Warning: Do not plug in the AC power
supply until the outside antenna and universal
connector cables are attached to the amplifi er.
!
Warning: The antenna used with this
amplifi er must have a separation distance of at
least 11 inches from all persons.
!
Page 8
7
Installing the Wilson Universal Connector

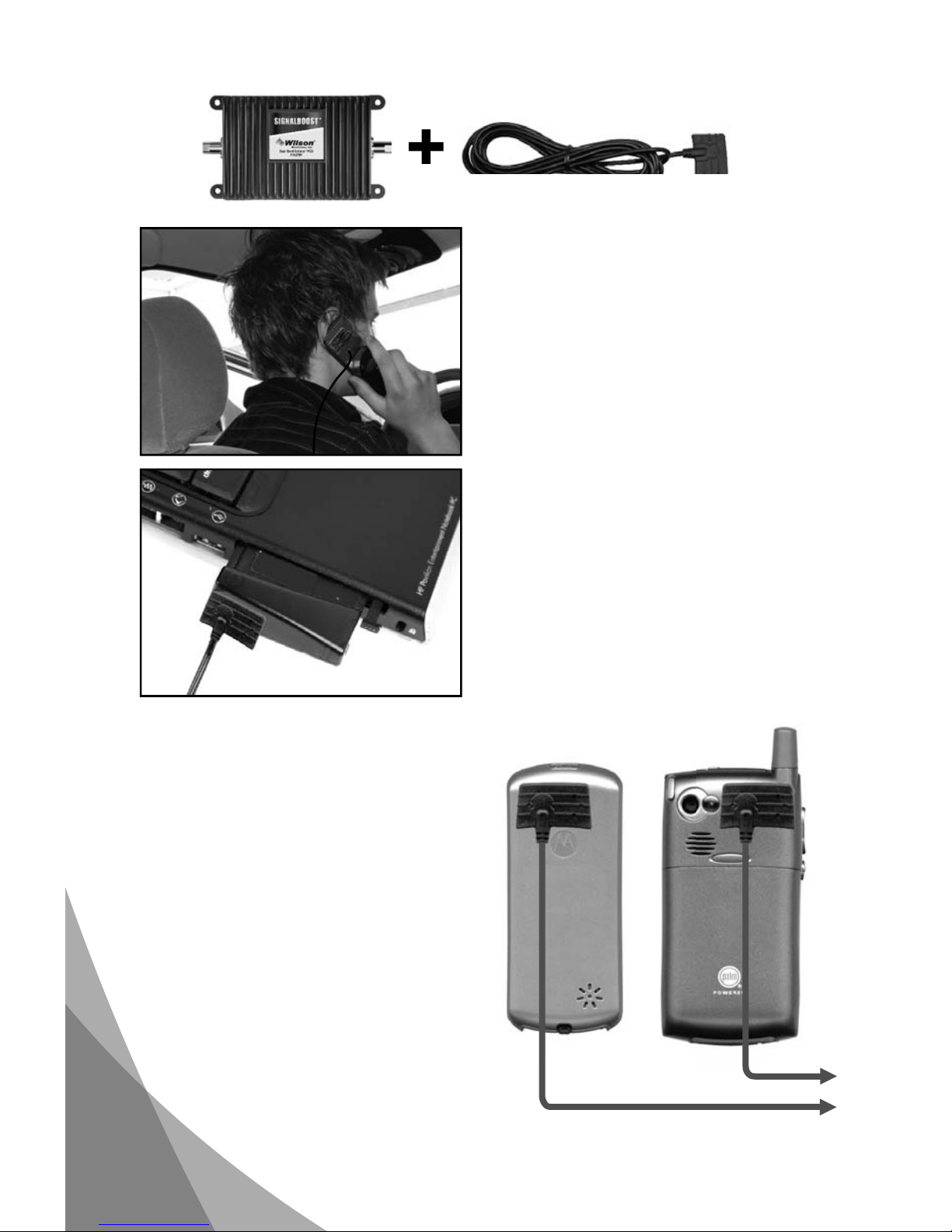

The universal connector must be placed
directly on the cell phone or cellular data
card to work properly. Attach the universal
connector to the cell phone or cellular data
card with the VELCRO
®
included in the
package.
The universal connector and extension
cable included in the package are long
enough to reach the amplifi er location. This
allows for ease and convenience of use.
To adjust the universal connector for the
best signal, go to a weak signal location
where your cell phone registers only 1-2 bars
without the universal connector connected.
(Be sure the amplifi er is turned off when
checking for low signal.) Then, attach the
universal connector to the phone, power up
the amplifi er and you should see a signal
improvement of 2 or more bars.
NOTE: Many phones take up to 20 seconds
to reset the bar indicator.
To maximize performance, attach the
universal connector as close as possible
to the original antenna on your cell phone or
cellular data card.
For cell phones with an internal antenna,
place the universal connector on the back,
upper left-hand corner of the phone. (Figure 1)
NOTE: Certain phones, such as the Motorola
RAZR, have internal antennas at the base,
rather than the top, in which case the universal
connector should be attached at the bottom
rear of the phone.
For cell phones with an external antenna,
place the universal connector directly below
the phone’s original antenna. (Figure 2)
If you have any questions as to the location
of the antenna on your phone, call Wilson
Technical Support at 866-294-1660 or visit
www.wilsonelectronics.com.
Amplifi er Universal
Connector
Figure 1
Figure 2
T o Amplifi er
Cellular data card
Page 9
8
Powering up the Amplifi er
Make sure both the outside antenna and
universal connector cables are connected
before powering up the amplifi er .
For vehicle use, connect the power cable
from the DC power supply to the amplifi er
input marked “Power” and insert the large
end into DC power socket (the cigarette
lighter outlet).
For home or offi ce use, connect the
cable from the AC/DC power supply (sold
separately) to the amplifi er input marked
“Power” and insert the plug end into a
standard wall outlet.
The amplifi er may remain on all the time.
However, leaving the amplifi er on in a
vehicle when it is not running can discharge
the battery in a day or two.
A good option is to power the amplifi er
through the ignition switch so the amplifi er
is turned on and off with the vehicle.
NOTE: The aluminum casing of the SIGNALBOOST™ amplifi er will adjust very quickly to
the ambient temperature of its environment. For example, in the summer, when the inside
of a car can reach 140 degrees Fahrenheit, the amplifi er temperature may be 150 degrees
or higher. The casing will be hot to the touch, similar to a metal door handle or steering
wheel. Such high temperatures will not damage the amplifi er, nor do they pose a fi re risk.
As recommended in these instructions, when installing the amplifi er in a vehicle, select a
location with adequate ventilation, such as under the seat or dashboard. Keep the area
free of items that could block air fl ow to the amplifi er.
Carefully insert the power cable.
IMPORTANT: Do not power up the
amplifi er unless the antenna and universal
connector cables are attached to the
amplifi er .
Warning: Use only Wilson power
supply units. Use of a non-Wilson
product may damage your equipment.
!
12 V DC power supply (included)
AC/DC power supply (not included)
Page 10
9
Warnings and Recommendations
Warning: Do not plug the amplifi er directly into the cell phone or cellular
data card using an antenna adapter. It will damage the cell
phone or cellular data card.
Warning: Do not plug in the power supply until the antenna and universal
connector cables are attached to the amplifi er.
Warning: The antenna must be installed with a separation of at least
11 inches from nearby persons and must not be located or
operating in conjunction with any other antenna or amplifi er.
Use of this amplifi er with an antenna gain higher than 6.12 dBi
is in violation of FCC regulations for which the offender is fully
liable. All Wilson mobile antennas are 6.12 dBi or less.
Recommended amplifi er installation locations for a vehicle are:
• Under the seat
• Under the dash
Power the amplifi er through the ignition switch so the amplifi er is turned on and
off with the vehicle.
Recommended amplifi er installation locations for a home or offi ce are:
• On a desk or table top
• In a bookshelf
• On the fl oor
9
Page 11
10
About Wilson Electronics
Wilson Electronics, Inc. has been a leader in the wireless communications
industry for nearly 40 years. The company designs and manufactures amplifi ers,
antennas and related components that signifi cantly improve cellular telephone
signal reception and transmission in a wide variety of applications, both mobile
and in-building.
With extensive experience in antenna and amplifi er research and design, the
company’s engineering team uses a state-of-the-art testing laboratory, including
an anechoic chamber and network analyzers, to fi ne-tune antenna designs and
performance. For its amplifi ers, Wilson uses a double electrically insulated RF
enclosure and cell site simulators for compliance testing.
All products are engineered and assembled in the company’s 50,000-square-foot
headquarters in St. George, Utah. Wilson has product dealers in all 50 states as
well as Canada and Mexico, Central and South America.
INCREASE
YOUR
BARS
Page 12
Amplifi er Specifi cations
Dual Band
800/1900 MHz Specifi cations
Model Number 811210
Connectors FME-Male
Impedance (input/output) 50 Ohms
Dimensions 5 x 3.5 x 1.2 inch or 12.7 x 8.9 x 3 cm
Weight 1.03 lbs or 0.468 kg
Frequency 824-894 MHz / 1850-1990 MHz
1
Passband Gain (nominal)
800 MHz (uplink/downlink) 26 dB / 26 dB
1900 MHz (uplink/downlink) 26 dB / 26 dB
2
20 dB Bandwidth (nominal)
800 MHz (uplink/downlink) 53 MHz / 62 MHz
1900 MHz (uplink/downlink) 112 MHz / 110 MHz
³Power output for single cell phone (uplink) 800 MHz 1900 MHz
CDMA +33.0 dBm +29.3 dBm
GSM +34.3 dBm +30.3 dBm
EDGE +34.1 dBm +30.2 dBm
AMPS +30.1 dBm
Power output for single received channel
(downlink)
800 MHz 1900 MHz
CDMA +5.1 dBm +6.8 dBm
GSM +3.2 dBm +4.4 dBm
EDGE +3.2 dBm +4.6 dBm
AMPS +3.2 dBm
4
Power output for multiple
received channels (downlink).
The maximum power is reduced by
the number of channels:
Number of
channels
Maximum Power
800 MHz 1900 MHz
2 +1.0 dBm +1.7 dBm
3 -2.5 dBm -1.8 dBm
4 -5.0 dBm -4.3 dBm
5 -7.0 dBm -6.3 dBm
6 -8.5 dBm -7.8 dBm
Noise Figure (typical) 3.5 dB nominal
Isolation uplink/downlink more than 50 dB
Power Requirements 12 V, 2 A (subject to uplink power)
Notes:
1. Nominal gain is the maximum gain at any frequency in the passband.
2. Nominal bandwidth is the difference between two frequencies that are adjacent to the passband where the amplifi cation is 20 dB
lower than the passband amplifi cation. One of the frequencies is lower than the passband and the other is higher.
3. The Manufacturer’s rated output power of this equipment is for single carrier operation. For situations when multiple carrier
signals are present, the rating would have to be reduced by 3.5 dB, especially where the output signal is re-radiated and can
cause interference to adjacent band users. This power reduction is to be by means of input power or gain reduction and not by
an attenuator at the output of the device.
4. The maximum power for 2 or more simultaneous signals will be reduced by 6 dB every time the number of signals is doubled.
Wilson
®
Electronics, Inc.
3301 East Deseret Drive, St. George UT 84790
For additional Technical Support visit
www.wilsonelectronics.com
Phone: 866-294-1660 Fax: 435-656-2432
Part #000000 AIG SB 012 / 02.07.07
Loading...
