IT IS VERY IMPORTANT
TO POWER YOUR SIGNAL
BOOSTER USING A SURGE
PROTECTED AC POWER
STRIP WITH AT LEAST A 1000
JOULE RATING.
FAILURE T O DO THIS WILL VOID YOUR WARRANTY
IN THE EVENT OF A POWER SURGE OR LIGHTNING
STRIKE.
! !
THE SIGNAL BOOSTER UNIT IS DESIGNED
FOR USE IN AN INDOOR, TEMPERATURECONTROLLED ENVIRONMENT (LESS
THAN 150 DEGREES FAHRENHEIT). IT IS
NOT INTENDED FOR USE IN ATTICS OR SIMILAR
LOCATIONS SUBJECT T O TEMPERATURES IN
EXCESS OF 150°F.
Contents
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Optional Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Before Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Quick Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Installation Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Additional FAQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Warnings and Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Signal Booster Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Installation Instructions for the Following Wilson Signal Booster:
Signal 4G™ SmarTech ® Signal Booster
Model #460019 FCC ID: PWO460019 IC ID: 4726A-460019
The term “IC” before the radio certifi cation number only signifi es that Industry Canada technical specifi cations were met.
3
ENGLISH
Need help? www.wilsonpro.com
Customer Support 866-294-1660
Mon.- Fri. 6 am to 7 pm MST Sat.- Sun. 8 am to 5 pm MST
Before Getting Started
Before you install your Signal 4G booster
and start enjoying improved cellular
reception, please do the following:
1. Read through all the installation steps.
This will help you know what to expect
from start to fi nish.
2. Familiarize yourself with all materials
in your product package. This will
allow you to know which pieces are
referenced in the instructions.
Quick Installation
You can install your Signal 4G booster using
the following steps.
NOTE: Before completing your installation,
create a “soft” installation by putting the
components of your Signal 4G booster
in place and testing the operation before
mounting equipment.

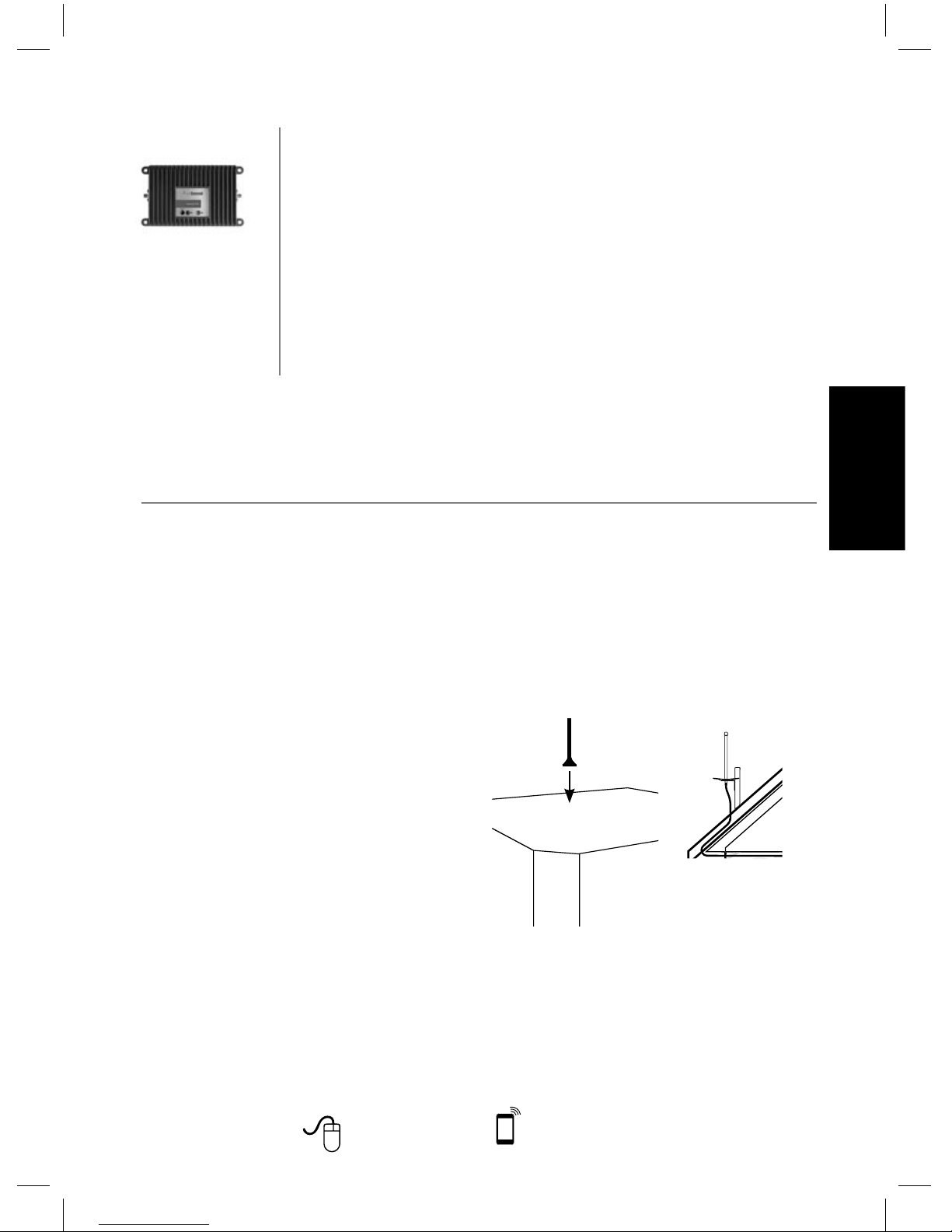

1. Install the Outside Antenna. Select a
location that is:
• At least 12 inches from any other
antennas.
• Free of obstructions.
• At least 8 inches from any people.
The Mini Mag Outside Antenna must
be installed vertically on a metallic
surface.
Sold with
Security 4G Kit
Mini Mag
Outside Antenna
Install
Optional Outside
Omni Antenna
Install
2. Select a location to install the Signal
Booster that is away from excessive
heat, direct sunlight, moisture and that
Optional Kits
Optional Accessories
460119
Mini Mag
Outside Antenna
(301126)
5V / 2.5A
Power Supply
(859948)
3” RG174 w/SMA
(951151)
460219
Mini Mag
Outside Antenna
(301126)
6V / 2A
Power Supply
(859923)
3” RG174 w/SMA
(951151)
461119
Omni Antenna
(311203)
5V 2.5A
Power Supply
(859948)
30’ RG58 w/SMA
(955833)
10’ RG58 w/SMA
(955834)
12” Adapter w/MMcx
(951153)
12” RG316 w/MMcx
(951154)
Lightning Surge Protector
(859902)
DC Plug-In 5.5V/2A Power Supply &
USB Cable (2D9910 / 359940)
DC 6V/2A Hardwire Power Supply
(859923)
Signal 4G
™
460019
4
ENGLISH
Need help? www.wilsonpro.com
Customer Support 866-294-1660
Mon.- Fri. 6 am to 7 pm MST Sat.- Sun. 8 am to 5 pm MST
T roubleshooting &
Understanding the Lights
The Signal Booster includes indicator lights on
the top of the Signal 4G. The indicator lights will
either be green or red.
Green indicates that the booster is
powered and operating at maximum gain.
Solid Red indicates that the booster has
shut off on the associated frequencies to
prevent oscillation (feedback).
Green/red Blinking indicates that the
booster is operating at a reduced gain to
prevent oscillation (feedback).
Fixing Red Light Issues
If one or more lights on the Signal Boost are red:
1. Make sure all connections are tight.
2. Increase the distance between the outside
antenna and the Signal 4G, by moving
them horizontally and/or vertically farther
apart until the light changes to green.
Remember to keep the antenna at least 6
inches from any window or sunroof.
3. Follow the same steps for a green/red
blinking light until the light goes solid
green.
4. If more separation is not possible and the
coverage of the booster is too small with a
green/red blinking light indicating reduced
gain, contact the weBoost Customer
Support Team for assistance:
866-294-1660.
Lights Off
1. Check connections on the power supply
to see that it is fi rmly plugged into both the
Signal 4G and the power source.
2. If using a DC power supply in your vehicle,
ensure the power supply is properly
inserted. Then check the 12 volt power
from the car socket and the fuse. Replace
the fuse if necessary .
3. If using a power strip in a building, ensure
the power strip is plugged in and turned on
and that power is coming from the outlet.
has proper ventilation. Do not place the
Signal Booster in an
air-tight enclosure.

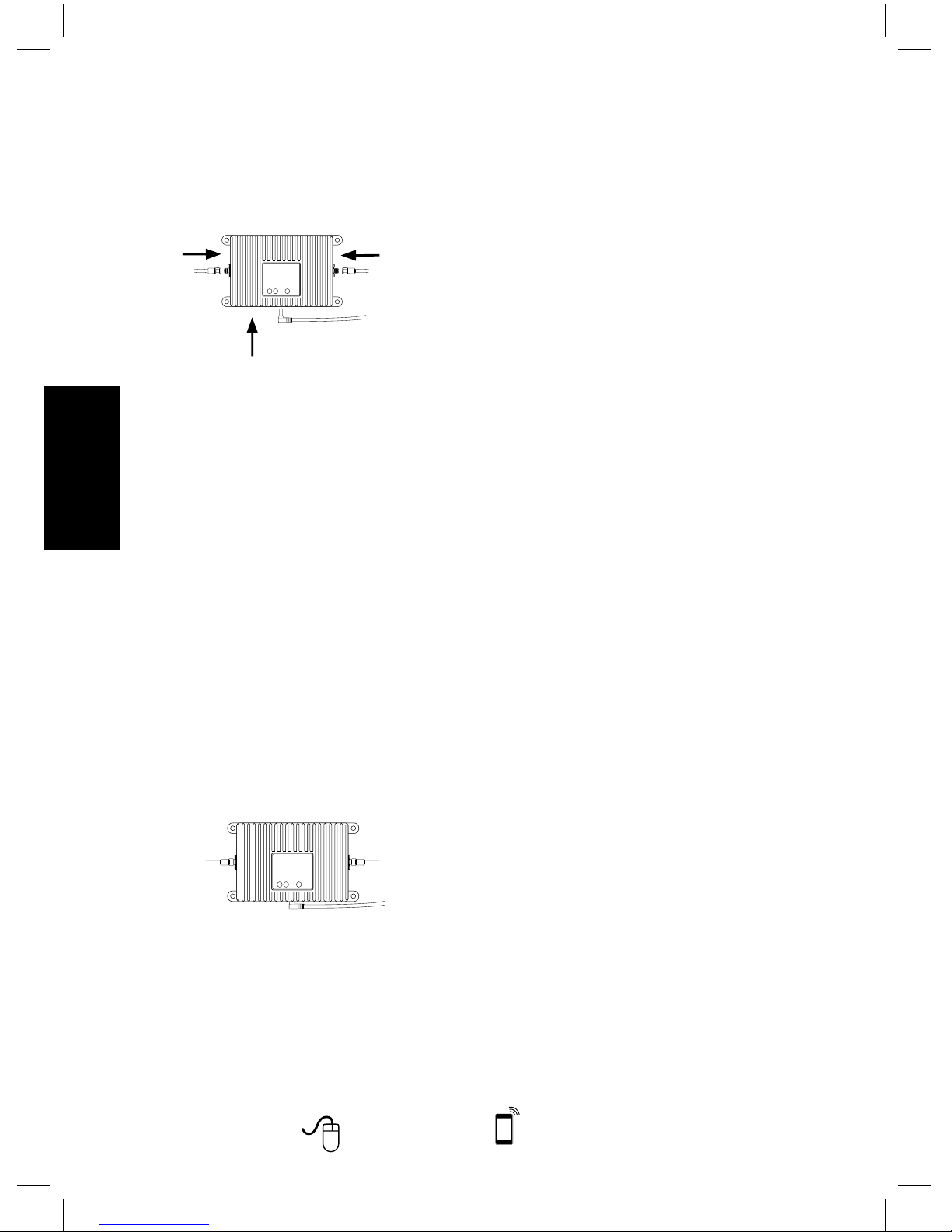

3. Run the Outside Antenna cable to the
Signal Booster and attach it to the
connector labeled “Outside Antenna.”
From Outside
Antenna
From Cellular
Device/
Security
Panel
Power Adapter From
Surge Protector
4. An external adapter may be needed
to connect the cellular device or
security panel to the Signal Booster.
The external adapter plugs into the
included antenna extension cable and
directly into a socket on the cellular
device. Run the extension cable from
the external adapter and attach it to the
connector labeled “cell phone or data
card” on the Signal Booster.
Note: Be careful when plugging the
connector in so as not to bend the
center pins on the connectors. Ensure
all cables have a tight connection.
5. Before powering up the Signal Booster
verify that connections are tight. An AC
surge protector is recommended for all
installations (not included).
tight
connection
tight
connection
Power Adapter to
Surge Protector
5
ENGLISH
Need help? www.wilsonpro.com
Customer Support 866-294-1660
Mon.- Fri. 6 am to 7 pm MST Sat.- Sun. 8 am to 5 pm MST

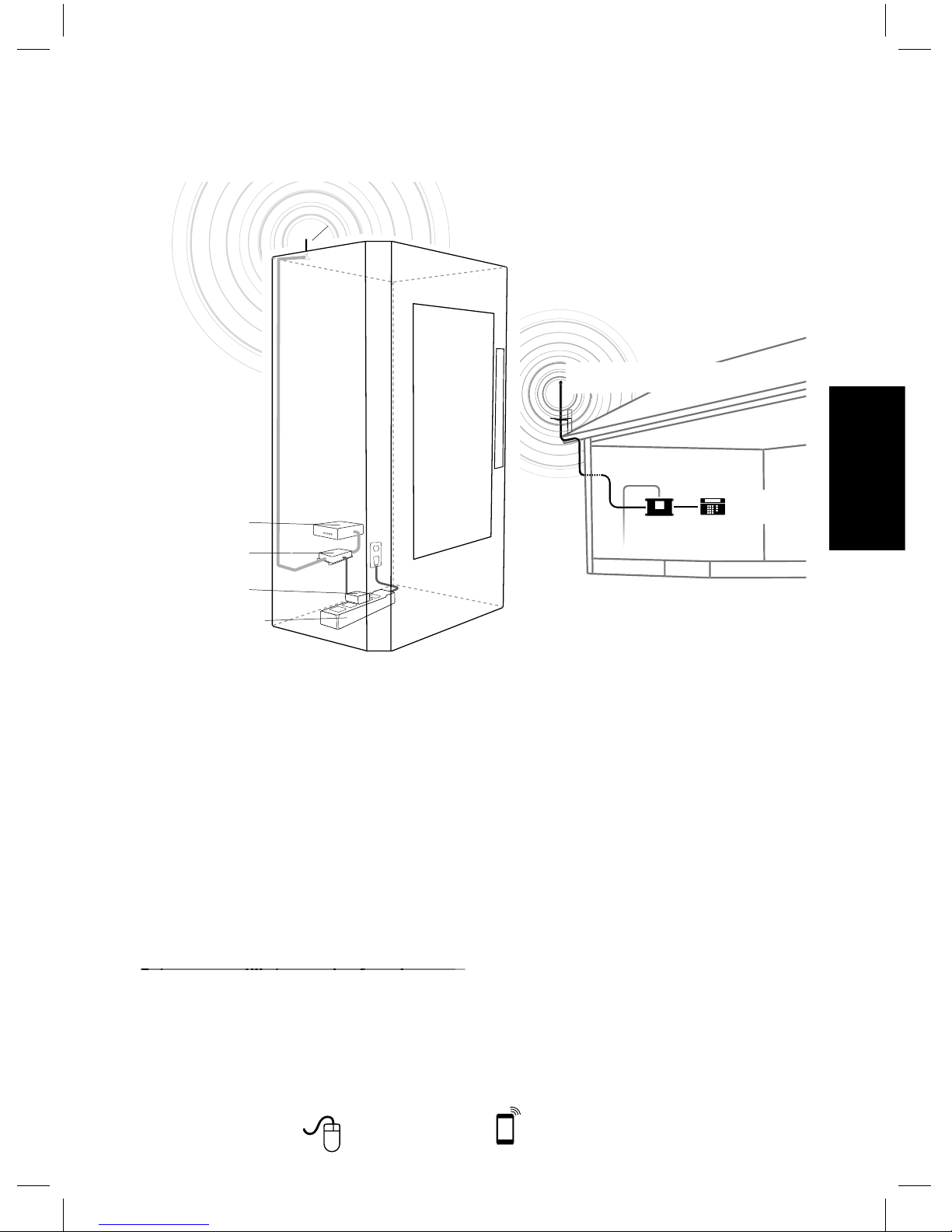

Installation Diagram
(Figure 1)
Additional F AQ:
What hours can I contact customer support?
Customer Support can be reached fromMon.- Fri. 6 am to 7 pm MST and Sat.- Sun. 8 am to 5
pm MST, by calling (866-294-1660), or by email, at support@weboost.com.
How does weather affect the performance of my Outside Antenna?
Water vapor (e.g. rain, fog, snow or other precipitation) creates an effective fi lter to cellular signal. In
times of heavy precipitation, you may see less performance.
Carrier Frequency Use
We recommend visiting www .wirelessadvisor.com (United States) or http://bit.ly/1mQf2Gl (Canada)
for information regarding the frequency band used by your cell service provider in a specifi c
geographical location.
Power Strip
Surge Protector
Power Supply
Signal 4G
Signal Booster
Cellular Modem
Mini-Mag Antenna
Installation
S
ignal 4
G
P
ower Suppl
y
Sec
urity
Con
trol Pane
l
O
utside Omni Antenna
Installatio
n
