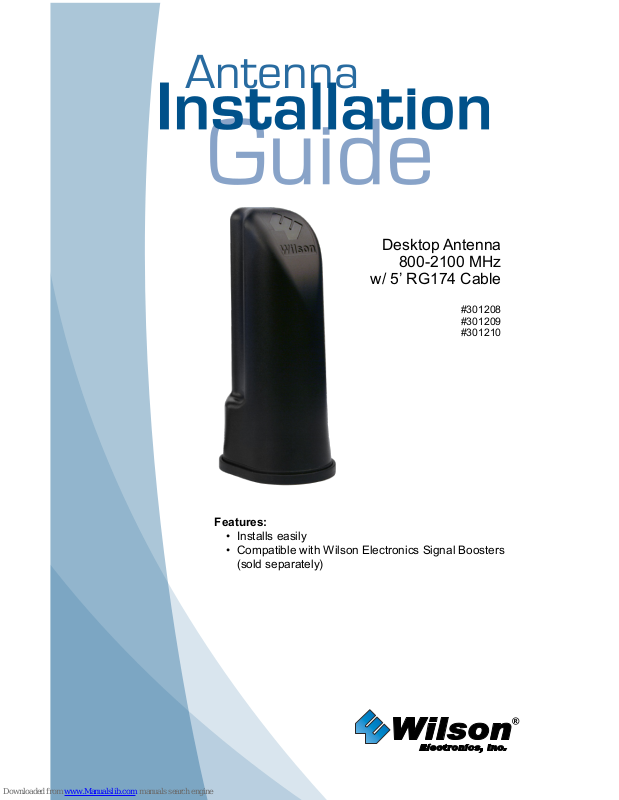

Page 1
Desktop Antenna
800-2100 MHz
w/ 5’ RG174 Cable
#301208
#301209
#301210
Features:
• Installs easily
• Compatible with Wilson Electronics Signal Boosters
(sold separately)
Antenna
Page 2
1
Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: [email protected]. Hours: 7 am to 6 pm MST.
2
Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: [email protected]. Hours: 7 am to 6 pm MST.
How it Works
The Desktop Antenna transfers the improved signal from the Signal Booster (sold
separately) to one or more cell phones or cellular data cards.
The Desktop Antenna may work with any In-Building Wireless Signal Booster (an
adapter may be required for some Signal Boosters).
Consult the user guide for your particular Signal Booster for more specic
instructions on the use of the Desktop Antenna, or contact Wilson Electronics
Technical Support Team at 866-294-1660.
Installing the Antenna
The location of the Desktop Antenna in relation to the Outside Antenna is very
important. Poor antenna placement increases the possibility of oscillation
(feedback), which causes system shutdown (indicated by a red light). Observe
the following rules for correct antenna placement and optimum performance.
Once you nd a good signal location for the Outside Antenna, the front of the
Outside Antenna (the Wilson Electronics insignia) must face toward the cell
tower, and face AWAY FROM the Desktop Antenna. The Desktop Antenna must
be positioned at least 20 horizontal/vertical feet from the Outside Antenna. See
Figures below.
Desktop Antenna
Signal Booster
(Face front of antenna in the direction of usage area)
18” minimum separation
Top View of Desk
Wilson Electronics Signal Boosters Amplify Coverage
When used in conjunction with your antenna, a Wilson Electronics Signal Booster
can improve your cell phone and laptop data card coverage area more than 20
times. Wilson Electronics manufactures a wide range of Wireless and Direct
Connect Signal Boosters for M2M, mobile or in-building use. See your dealer for
details or visit www.WilsonElectronics.com.
Signal Booster
with Desktop
Antenna
Cell
Tower
Minimum
Horizontal 20 feet
Cradle
Antenna
Cell
Tower
Cradle
Antenna
Signal Booster
with Desktop
Antenna
If antennas are too close,
a red light will come on.
Minimum
vertical
20 feet
Horizontal Separation Vertical Separation
The Desktop Antenna should be placed 18 inches or more away from the Signal
Booster, with the logo pointed away from the Signal Booster. See Figure below.
Warning: There must be a separation
of at least 20 vertical/horizontal feet
between the Desktop Antenna and
Outside Antennas.
Warning: The Desktop Antenna must
have a separation of at least 18 inches
from all persons during normal operation.
!
!
Figure 1
Antenna Logo /
Front of Antenna
Page 3
Part# 103046_Desktop Antenna_REV19_102411
Antenna Specications
Part Number 301208 301209 301210
Frequency Range 824-894 MHz / 880-960 MHz / 1710-1880 MHz / 1850-1990 MHz / 2110-2170 MHz
Impedance 50 ohms
Antenna Gain
1.5 dBi 824-894 MHz / 1.2 dBi 880-960 MHz / 2.4 dBi 1710-1880 MHz /
3.4 dBi 1850-1990 MHz / 1.2 dBi 2110-2170 MHz
Radiation Directional - 100° Horizontal Beam Width
Polarization Vertical
Ground Plane None Required
Connector FME - Female TNC - Male SMA - Male
30-Day Money-Back Guarantee
All Wilson Electronics products are protected by Wilson Electronics 30-day money-back
guarantee. If, for any reason, the performance of any product is not acceptable, simply return
the product directly to the reseller with a dated proof of purchase.
90-Day Warranty
Wilson Electronics antennas are warranted for ninety (90) days against defects in workmanship
and/or materials. Warranty cases may be resolved by returning the product directly to the
reseller with a dated proof of purchase.
Antennas may also be returned directly to the manufacturer at the consumer’s expense, with
a dated proof of purchase and a Returned Material Authorization (RMA) number supplied by
Wilson Electronics. Wilson Electronics shall, at its option, either repair or replace the product.
Wilson Electronics will pay for delivery of the repaired or replaced product back to the original
consumer if located within the continental USA.
This warranty does not apply to any antennas determined by Wilson Electronics to have been
subjected to misuse, abuse, neglect, or mishandling that alters or damages physical or electronic
properties.
RMA numbers may be obtained by phoning Technical Support at 866-294-1660.
3301 East Deseret Drive, St. George, UT 84790
For additional Technical Support visit www.WilsonElectronics.com
or email at: [email protected]
Phone: 866-294-1660 Local: 435-673-5021 Fax: 435-656-2432
www.twitter.com/WilsonCellular www.facebook.com/WilsonCellular
Disclaimer: The information provided by Wilson Electronics, Inc. is believed to be complete
and accurate. However, no responsibility is assumed by Wilson Electronics, Inc. for any
business or personal losses arising from its use, or for any infringements of patents or other
rights of third parties that may result from its use.
Copyright © 2011 Wilson Electronics, Inc. All rights reserved.
