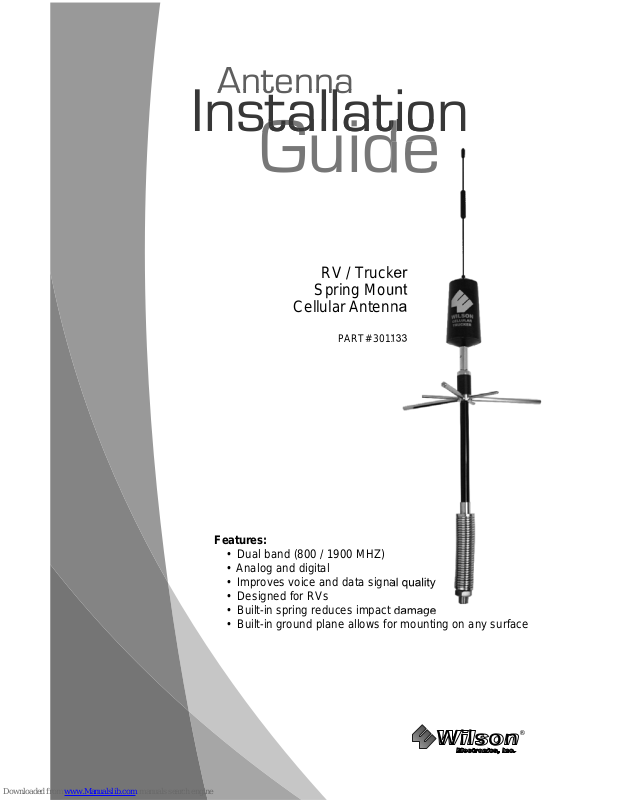

Page 1
Antenna
Installation
Features:
• Dual band (800 / 1900 MHZ)
• Analog and digital
• Improves voice and data signal quality
• Designed for RVs
• Built-in spring reduces impact damage
• Built-in ground plane allows for mounting on any surface
Wilson
®
Electronics, Inc.
RV / Trucker
Spring Mount
Cellular Antenna
PART# 301133
Page 2
1
30-Day Money-Back Guarantee
All Wilson Electronics products are protected by Wilson’s 30-day money-back
guarantee. If f or any reason the pe rform ance of any produc t is not accept able,
simply return the product directly to the reseller with a dated proof of purchase.
1-Year Warranty
Wilson Electronics Trucker Spring Mount Dual-Band Cellular Antenna is warranted
for one (1 ) year against defects in workmanship and / or materials. Warranty cases
may be resolved by returning the product directly to the reseller with a dated proof
of purchase.
Antennas may also be returned directly to the manufacturer at the consumer’s
expense, wit h a dated proof of purch ase and a Returned Mate rial Author ization
(RMA) number supplied by Wilson Electronics. Wilson shall, at its option, either
repair or replace the product. Wilson Electronics will pay for delivery of the repaired
or replaced product back to the original consumer.
This warranty does not apply to any antennas determined by Wilson Electronics
to have been subje cted to misuse, abus e, neglect, or mis handling that alter s or
damages physical or electronic properties.
RMA numbers may be obtained by phoning Technical Support at 866-294-1660 or
e-mail [email protected] or visit www.wilsonelectronics.com.
How It Works
Wilson’s RV / Trucker Spring-Mount Cellular Antenna will collect the cell tower signal and
send it through the cable to an amplifi er or directly to the cell phone or laptop data card.
When the cell phone or data card transmits, the signal is transferred to an amplifi er or
directly to the antenna and broadcast back to the cell tower.
Antenna Adapter Required – Sold Separately
A phone/data card-specifi c, six-inch Antenna Adapter is required when connecting the
antenna directly to a cell phone. To identify the correct adapter, see Wilson’s Adapter
Guide at www.wilsonelectronics.com or call Technical Support at 866-294-1660.
Adapter type may vary depending on
your cell phone or laptop data card.
Disclaimer: The information provided by Wilson Electronics, Inc. is believed to
be complete and accurate. However, no responsibility is assumed by Wilson
Electronics, Inc. for any business or personal losses arising from its use, or for
any infring ements of p atents or othe r right s of third pa rt ies that m ay result fr om
its use.
Copyright © 2007 Wilson Electronics, Inc. All rights reserved.
Page 3
2
Package Contents
1- RV / Trucker Antenna
6 - radials (3 short, 3 long)
1 - thread-locker liquid
1 - plastic cable wrench
1 - 7/16” fl at washer
1 - 7/16” internal star washer
1 - 7/16”-20 jam nut
Installing the Antenna

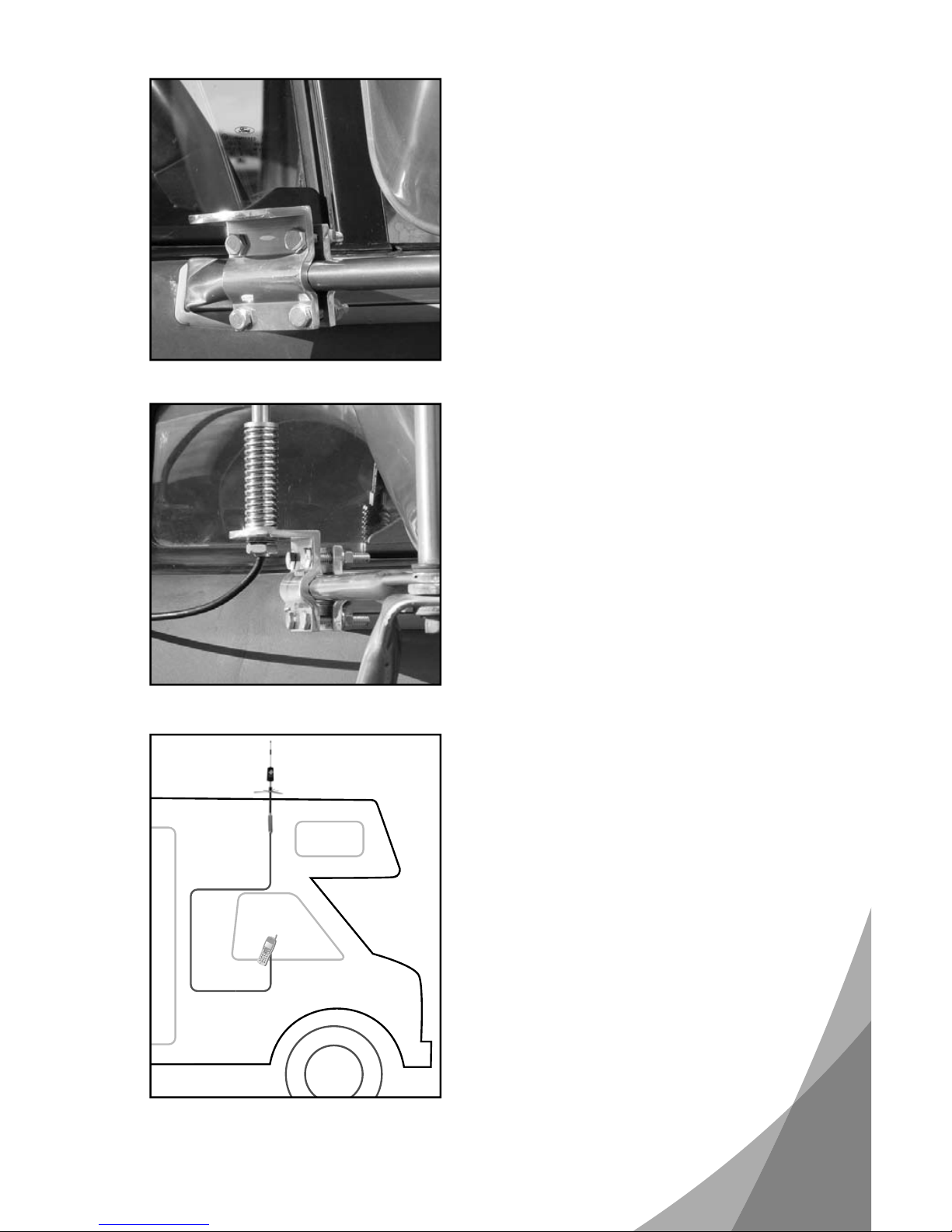

1. Select a suitable location to install the
antenna on your RV, as high on the vehicle
as possible and at least 12 inches away
from any other antenna. For best results,
use Wilson’s 3-Way Mount (Part #901104),
sold separately. This bracket will enable you
to mount the antenna on a mirror or attach it
to the side of your RV.
2. To use the 3-Way Mount, be sure to
remove the large nut and bolt assembly
from the mount. (This is intended for use
with Wilson’s Trucker Antenna). If you are
installing on a mirror, clamp the mount to
the mirror support and tighten the four nuts
and bolts. If you are mounting directly to
the side of your RV, remove the nuts, bolts
and the smaller half of the mount and use
the four holes in the larger half to attach it
fl ush to the side of the RV, using screws or
bolts, nuts and washers appropriate for your
particular installation. In both cases, be
sure the fl at mounting base of the mount is
positioned up.
3. Screw the six antenna radials into the
holes under the plastic coil housing on the
antenna. The included thread-locker liquid
must be used to ensure the radials do not
vibrate loose. Tighten the radials snugly
with a wrench.
4. Loosen the jam nut at the base of your
antenna. Remove it, along with the star
washer and the fl at washer.
5. Thread the coax cable down through the
hole in the fl at mounting base until the
antenna is positioned vertically on the base.
Then thread the fl at washer, star washer
and jam nut (in that order) back onto the
coax cable and up to the threaded base
of the antenna. Tighten the jam nut to the
underside of the mounting base with a
wrench. CAUTION: Do not over-tighten.
Page 4
3301 East Deseret Drive, St. George UT 84790
For additional Technical Support visit
www.wilsonelectronics.com
Phone: 866-294-1660 Fax: 435-656-2432
Part #103007 AIG RVT 004 / 02.06.07
Wilson
®
Electronics, Inc.
Antenna Specifi cations
Part Number 301133
Frequency Range 806-894 MHz / 1850-1990 MHz
Impedance 50 ohms
Antenna Gain 5.12 dBi 806-894 MHz / 6.12 dBi 1850-1990 MHz
Radiation Omni
Polarization Vertical
Wavelength 0.9 Wavelength 806-894 MHz / 1.95 Wavelength 1850-1990 MHz
Ground Plane Built-in Ground Plane
Connector FME Female
Material Whip - Stainless Steel
Coax Cable RG58 - 13.5 feet / 4.11 meters
Height 21.5 inches including spring mount / 54.61 cm
Mount Standard CB 3/8 inch x 24 thread
6. Route the cable from the antenna to the location where you will be using your phone or
data card. Extension cables up to 10 feet in length are available through your dealer.
7a. To connect directly to a cell phone or data card:
• Connect the antenna cable to the connector on the adapter (sold separately).
• Connect the adapter to your cell phone or data card.
7b. To connect to a Wilson direct connection amplifi er (sold separately):
• Using the included cable wrench, connect the antenna cable to the side of the
amplifi er labeled “Outside Antenna.”
• Connect the adapter extension cable to the side of the amplifi er labeled “Cellular
Phone.”
• Connect the adapter extension cable to the adapter.
• Connect the adapter to your cell phone or data card.
7c. To connect to a Wilson mobile wireless amplifi er (sold separately):
• Using the included cable wrench, connect the antenna cable to the side of the
amplifi er labeled “Outside Antenna.”
• Connect the inside antenna (sold separately) to the side of the amplifi er labeled
“Inside Antenna.”
• Place the inside antenna in an appropriate location as specifi ed in the amplifi er
installation instructions.
Warning: If using an amplifi er,
ensure that all antenna and adapter
cables are connected before powering
up the amplifi er.
!
