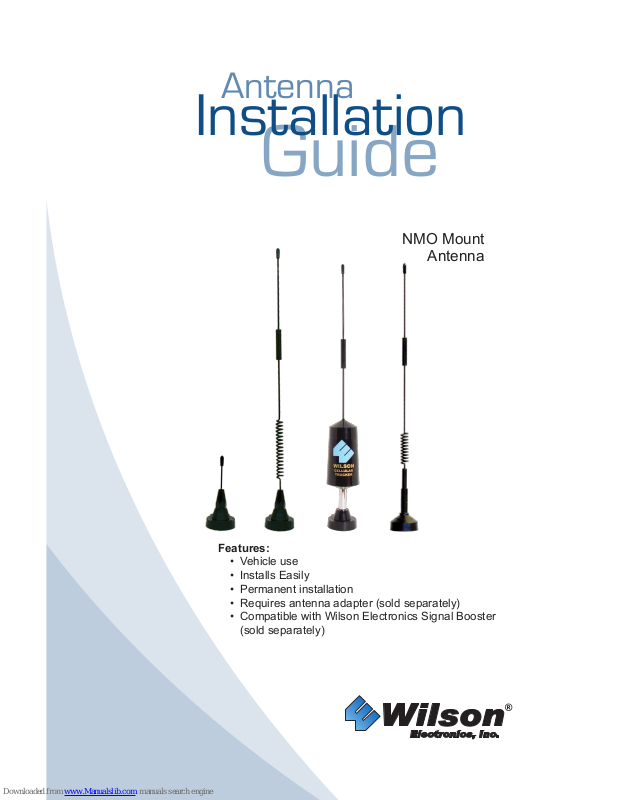

Page 1
Antenna
Installation
Guide
NMO Mount
Antenna
Features:
• Vehicle use
• Installs Easily
• Permanent installation
• Requires antenna adapter (sold separately)
• Compatible with Wilson Electronics Signal Booster
(sold separately)
Page 2
1
2
How it Works
Wilson Electronics NMO Mount antenna will collect the cell tower signal and send it through
the cable to a signal booster or directly to the cell phone or cellular data card. When the
cellular device transmits, the signal is transferred to a signal booster or directly to the
antenna and broadcasted back to the cell tower. See the back cover for information on
Wilson Electronics Signal Boosters. An external adapter is required to connect the cell
phone or cellular data card to the antenna.
The external adapter is cell phone/data card-specific and may be purchased through a
local retailer. Refer to Wilson Electronics Adapter Guide to identify the right adapter for your
cell phone or cellular data card. The Adapter Guide is available through a local retailer. It
is also available on our web site, www.WilsonElectronics.com, or you may call Technical
Support at 866-294-1660.
Feed the cable end
(FME) into hole
from outside.
Step 1:
Step 2:
Gently feed NMO
connector through
hole until flush.
For installing ¾ in NMO:
Installing optional NMO Mounts
For installing the NMO Trunk Mount
Antenna (sold separately):
(Part# 901102)
(Part# 901101)
Wilson Electronics Signal Boosters Amplify Coverage
When used in conjunction with your antenna, a Wilson Signal Booster can improve
your cell phone and laptop data card coverage area up to 20 times. Wilson Electronics
manufactures a wide range of wireless and direct connect Signal Boosters for mobile or inbuilding use. See your dealer for details or visit www.WilsonElectronics.com.
Contact Wilson Electronics Technical Support with any questions at 866-294-1660
Or email: [email protected] Hours: 7am to 6pm MST.
Select a location on the trunk or the 1.
hood for mounting the antenna.
Slide the trunk mount bracket on 2.
the trunk or hood lip in the selected
location, and tighten the two set
screws on the bottom lip underneath
the trunk or hood lip with the Allen
wrench provided.
Route the cable between the mount 3.
and phone location.
Screw the antenna coil into place.4.
Inside of
Trunk
Trunk lid
NMO Trunk
Mount Antenna
Car Diagram
Page 3
2
Select a location for mounting the antenna. The best
location would be centered on the vehicle roof, although
other locations are acceptable.
Roof mount only: For mounting the antenna to the roof of
your vehicle, use Wilson Electronics part #901102 (3/4”)
or #901103 (3/8”), which must be purchased separately
(A). Drill a hole in the desired location for mounting. The
size of the hole should be 3/8” or 3/4”, depending on the
type of mount purchased.
The plastic washer (B) should be placed over the
threads of the NMO mount (A). From the inside of the
vehicle, insert the threaded portion of the mount up
through the hole in the vehicle.
From the top of the vehicle, screw the threaded nut
(C) onto the mount threads coming up through the
roof and tighten until secure.
The black rubber washer (D) should now be
positioned around the threaded nut.
Working from the inside of the vehicle, securely
route and position the cable provided with your
mount to your signal booster or cell phone.
Screw the NMO antenna assembly (E) into place on
top of the vehicle. Part# 301105
1
2
3
4
5

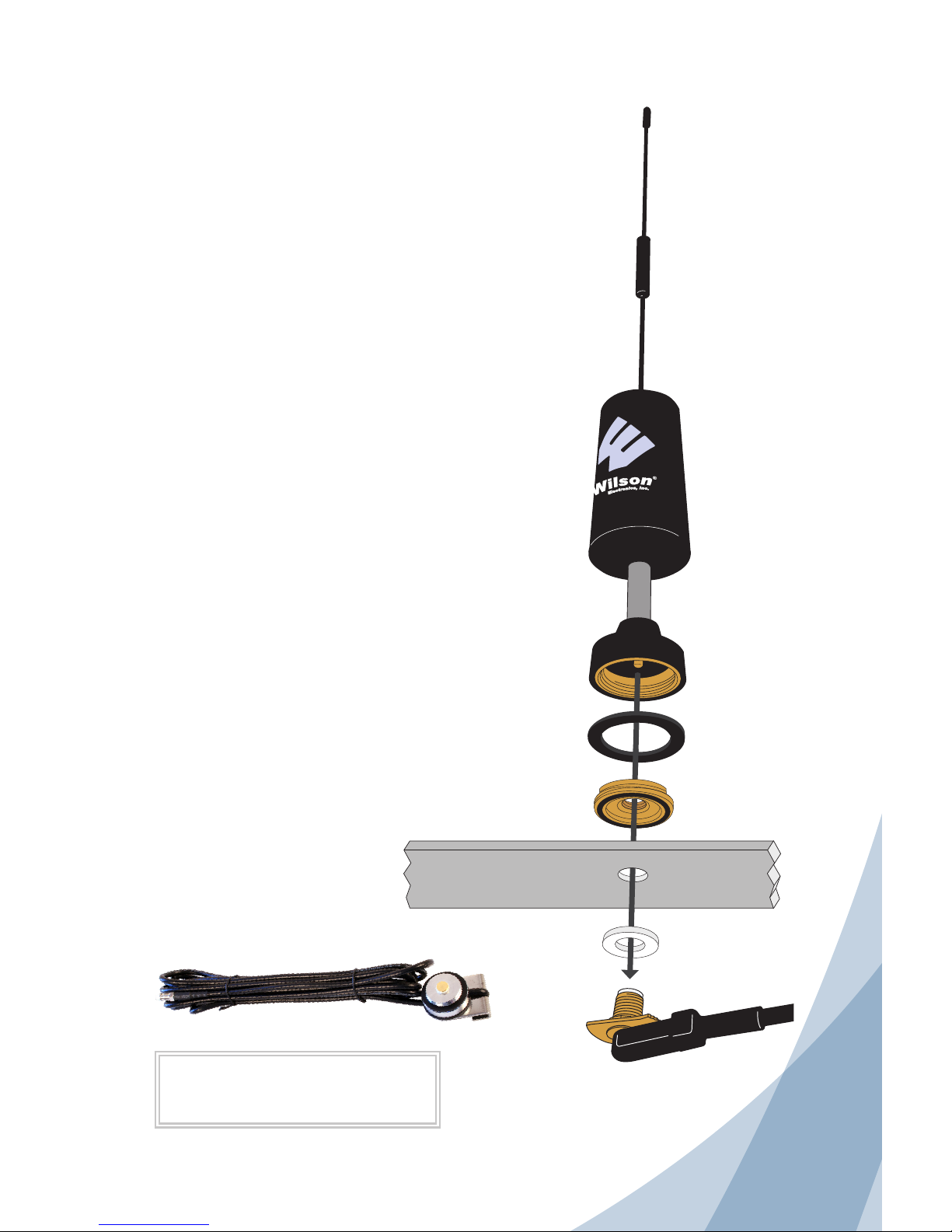

Installing the NMO Mount Antenna
E
D
C
B
A
Vehicle Mounting Sur face
A. Roof Mount
B. Plastic Washer
C. Threaded Nut
D. Rubber Washer
E. NMO Antenna
F. Trunk Mount
Trunk Mount Part # 9 01101
F
6
7
⅜ NMO Part #901103
Shown above.
Contact Wilson Electronics Technical Support with any questions at 866-294-1660
Or email: [email protected] Hours: 7am to 6pm MST.
Page 4
3301 East Deseret Drive, St. George, UT 84790
For additional Technical Support visit www.WilsonElectronics.com
www.twitter.com/WilsonCellular www.facebook.com/WilsonCellular
Phone: 866-294-1660 Fax: 435-656-2432
Part# 103040 AIG NMO 018 / 06.03.11
Antenna Specifications
Part Number 301104 301112 304203 301105
Frequency Range
824-894 MHz
1850-1990 MHz
700-800 MHz / 824-894 MHz
1850-1990 MHz
700-800 MHz / 824-894 MHz
880-960 MHz / 1850-1990 MHz
700-800 MHz
880-960 MHz
Impedance 50 ohms 50 ohms 50 ohms 50 ohms
Antenna Gain
4.9 dBi 824-894 MHz
5.9 dBi 1850-1990 MHz
2.4 dBi 700-800 MHz
5.5 dBi 824-894 MHz
5.5 dBi 1850-1990 MHz
3.7 dBi 700-800 MHz
4.4 dBi 824-894 MHz
4.3 dBi 880-960 MHz
3.7 dBi 1850-1990 MHz
4.1 dBi 700-800 MHz
2.4 dBi 880-960 MHz
Radiation Omni
Polarization Vertical
Ground Plane Metal ground plane required
Connector FME-Female
Material Whip - Stainless Steel
Height 13.88 inches / 35.3 cm 13.25 inches / 33.7 cm 13.88 inches / 35.3 cm 3.875 Inches / 9.8 cm
Mount
NMO Mount Types (sold separately)
Trunk Mount (14’ RG-58 Coax) Part# 901101
3/8” Hole - Roof Mount (14’ RG-58 Coax) Part# 901103
3/4” Hole - Roof Mount (14’ RG-58 Coax) Part# 901102
30-Day Money-Back Guarantee
All Wilson Electronics products are protected by Wilson Electronics 30-day money-back guarantee. If, for any reason,
the performance of any product is not acceptable, simply return the product directly to the reseller with a dated proof of
purchase.
90-Day Warranty
Wilson Electronics antennas are warranted for ninety (90) days against defects in workmanship and/or materials.
Warranty cases may be resolved by returning the product directly to the reseller with a dated proof of purchase.
Antennas may also be returned directly to the manufacturer at the consumer’s expense, with a dated proof of purchase
and a Returned Material Authorization (RMA) number supplied by Wilson Electronics. Wilson Electronics shall, at its
option, either repair or replace the product. Wilson Electronics will pay for delivery of the repaired or replaced product
back to the original consumer.
This warranty does not apply to any signal boosters determined by Wilson Electronics to have been subjected to misuse,
abuse, neglect, or mishandling that alters or damages physical or electronic properties.
RMA numbers may be obtained by phoning Technical Support at 866-294-1660.
Disclaimer: The information provided by Wilson Electronics, Inc. is believed to be complete and accurate. However,
no responsibility is assumed by Wilson Electronics, Inc. for any business or personal losses arising from its use, or for
any infringements of patents or other rights of third parties that may result from its use.
Copyright © 2011 Wilson Electronics, Inc. All rights reserved.
