Wilson Electronics 2B5225, 2B5325, 2B5125 Installation Manual

Contents:

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

How it Works . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Vehicle Installation Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Install the Outside Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Power up the Wilson Electronics Sleek . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Adjusting the Sleek Arms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Understanding the Sleek

Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

In-Building Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

About Wilson Electronics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

SignalBoosterSpecifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

To boost your phone’s signal power, the phone must be placed in the Sleek cradle. For best results, use a
Bluetooth

®

headset or hands free device, while the phone remains in the Sleek.

Cell Phone Signal Booster with Built-in Antenna

U.S. Patent Nos. – D626,953; 7,221,967; 7,729,669;
7,486,929; 7,729,656; 7,409,186; 7,783,318; 7,684,838

Appearance of device and accessories may vary.

Note: This manual contains important safety and operating information. Please read and follow the
instructions in this manual. Failure to do so could be hazardous and result in damage to your Sleek.

®

®

®

V

V

V

V

1

Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660

or email: [e-mail]. Mon.- Fri. Hours: 7 am to 6 pm MST.

2

Antenna Options

Although the convenient Mini-Magnet Mount Antenna may have been included with your kit, Wilson
Electronics offers a wide variety of Outside Antennas to help you customize your Signal Booster for a

specificapplication.AllmodelsshownbelowdoublethepowertothecelltowercomparedtotheMini

Magnet antenna. See your dealer or visit www.WilsonElectronics.com for more information.

AC Power Supply

*(859969)

Gooseneck

Suction Cup

Cradle Mount

(901120)

Cup Holder

Cradle Mount

(901130)

Adjustable

Desk Mount

*(901137)

Accessories for your Sleek

®

NMO Mount

Antenna

(301104)

For permanent

vehicle roof mount

on cars and

pickup trucks.

Ideal for mounting

on non-metal

surfaces.

Mounts on

Wilson NMO style

mounts: 901101,

901102, and

901103

* Must utilize

971119 Adapter

(SMA-FME)

Trucker

Antenna

(301101)

Designed for
mirror mounting
on large trucks.

Mounts on Wilson

3/8” mounts:

901104 and

901106

* Must utilize
971119 Adapter

(SMA-FME)

12” Magnet

Mount Antenna

(301125)

RV Antenna

(301133)

* Must utilize

971119 Adapter

(SMA-FME)

Antenna Window Mount
(Used with Mini-Magnet

Mount Antenna)

*(901128)

Mini-Magnet Mount

Antenna

(included in some kits)

Vehicle Dash

Adhesive

Mounting Bracket

DC Plug-In

Power Supply

& USB cable

Sleek

®

Cellular

Signal Booster

FCC requires to never use the cell phone in the cradle next to your ear.

Vehicle Dash
Mounting Kit

-Rugged/Screw Mount-

-Adhesive Mount-

-Vent Clip Mount-

(901134

)

(included in some kits)

* All 3 available together in the Home Accessory Kit -

859970

Adjustable Arms

RV Antenna

(301133)

* Must utilize

971119 Adapter

(SMA-FME)

Carrying case included

®

Appearance of device and accessories may vary.

(This product is not marketed by Verizon Wireless or AT&T)

Mobile Power

Supply

(859984)

Inside this Package

Sleek

®

Model #2B5225 FCC: PWO2B5225 IC: 4726A-2B5225

Sleek® 4G-A operates on 700 MHz Band 12/17 (Band 12/17 is AT&T® LTE) Model #2B5325
COMING SOON

Sleek

®

4G-V operates on 700 MHz Band 13 (Band 13 is Verizon Wireless™ LTE)

Model #2B5125 FCC: PWO2B5125

2

Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660

or email: [e-mail]. Mon.- Fri. Hours: 7 am to 6 pm MST.

NOTE: The cell phone must be placed in the cradle to work properly.

Warning: DO NOT use phone covers that have chrome or any other metallic surface. It may block
cellular signals

The Outside Antenna must be installed vertically.
Antenna performance will be degraded if the
antenna is not vertical.

The antenna cable is small yet strong enough that it
may be shut in most vehicle doors without damaging
the cable.

For a more professional looking installation, run the
antenna cable under the door seal. Carefully pull
down the door seal. Run the cable under the seal
and push the seal back into place. This prevents
constant wear and tear on the cable as the door
opens and closes. The antenna cable is small
enough to easily tuck under the door seal or
plastic molding.

Mini-Magnet

Mount Antenna

Shown

Carefully
Pull Down
Door Seal

Run Cable

Under Seal

Vehicle Installation

1. Install the Outside Antenna

To receive the best cell signal, select a location for the Outside Antenna that is preferably in the center
of the vehicle’s roof, 12 inches away from any other antennas, free of obstructions, and at least 6 inches
from the rear or side windows or sunroof.

General

YourWilsonElectronicsSleekhasbeencarefullyengineeredtosignificantlyimprovetheperformance

of your phone. Together with an Outside Antenna, the Sleek’s state-of-the-art circuitry is designed to
increase your phone’s signal to and from the cell tower. The Sleek reduces disconnects and dropouts
and increases data communication rates on 2G, 3G networks and 4G networks (in some models).

How it Works

With the phone in the cradle and while using a wireless Bluetooth headset (or hands free device) the
Outside Antenna collects the cell tower signal and sends it through the cable to the Sleek. The signal
is then boosted by the Sleek and sent to the phone. When the phone transmits, the signal is picked up
wirelessly and boosted by the Sleek and transmitted back to the cell tower through the Outside Antenna.

Vehicle Installation Diagram

Vehicle Installation Diagram

Sleek boosts
signal to and
from cell tower

Outside Antenna

communicates with cell

tower

Sleek w/phone

Sleek w/phone

Sleek w/phone

3

Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660

or email: [e-mail]. Mon.- Fri. Hours: 7 am to 6 pm MST.

4

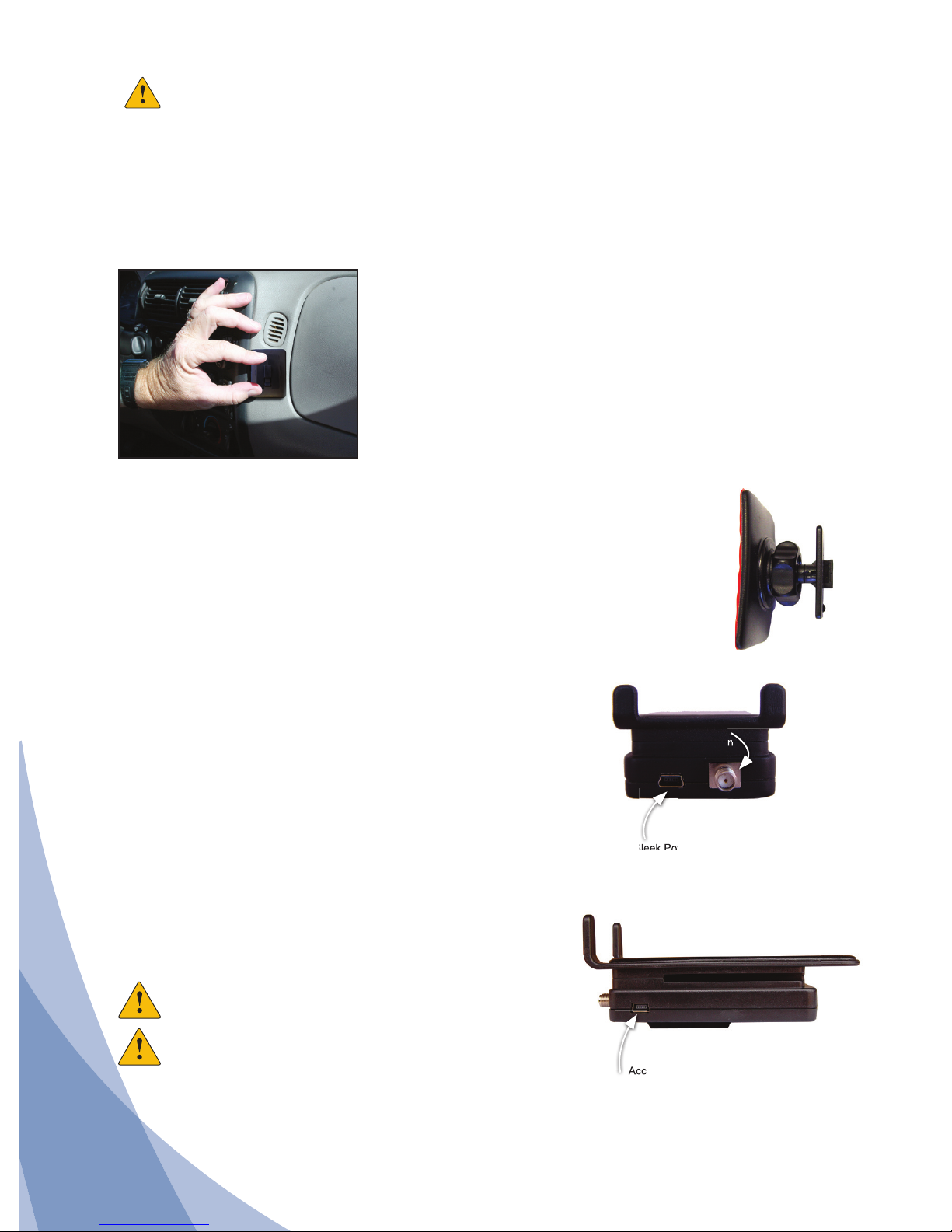

2. Attach the Mounting Bracket

A mounting bracket is provided for attaching the Sleek to your vehicle’s dash. Other options are also
available from Wilson Electronics.

3. Attach the Sleek

®

to the Bracket

Once you have installed the bracket in the desired location, and waited 24 hours for adhe­sive to cure, attach the Sleek by aligning the rectangular hole on its back with the tab on
the mount bracket, grasping the sides of the Sleek, and sliding it downward approximately
¼ inch into place.

Once the cradle is attached, you can adjust the angle of the adhesive bracket by applying
gentle pressure to the top or bottom of the Sleek. The bracket is designed to swivel when
the knurled nut is loosened for greater adjustability of the Sleek viewing angle. To lock
bracket into position, tighten large nut.

RF Safety Warning: The Outside Antenna must be either a Wilson Electronics Magnet-Mount or
Mini-Magnet Mount antenna and requires at least an 8 inch separation distance from all persons.

OtherOutsideAntennasmaybeusedwithfixedbuildinginstallationsprovidedthat(a)theyare

located with at least a 30 inch separation distance from all persons, (b) their gain less cable loss
does not exceed 15 dBi, and (c) they are not operating in conjunction with any other antenna or
Signal Booster.

ADHESIVE BRACKET- Included in this package

1. Clean the area where the bracket is to be mounted with the
supplied alcohol wipe. Allow to dry.

2. Peel the backing to expose the adhesive and press the
bracket onto the desired location in the vehicle. Note: Be sure

the tab is positioned vertically, not horizontally.

3. Allow the adhesive to cure for 24 hours before you attach
the Sleek.

Power up the Wilson Electronics Sleek®

Accessory port to power your phone, some adapters available
through Wilson Electronics at 866-294-1660. (See Figure 2)

Connect the mini-USB plug on the power cable to the Sleek’s mini
USB port located on the bottom of the Sleek and insert the adapter
into the vehicle power adapter of your vehicle. The Sleek may remain
on all the time. However, leaving the Sleek on in a vehicle when it is
not running can discharge the battery in a day or two.

Note: The 12V DC power source on many vehicles is shut off
with the ignition key.

Warning: Use only the supplied Wilson Electronics power
supply.

Warning: Make sure the Outside Antenna cable is
connected before powering up the Sleek.

4. Attach the Outside Antenna cable to the Sleek

®

Attach the cable from the Outside Antenna to the antenna connector
on the Sleek. (See Figure 1)

Accessory USB Power port

Accessory USB Power port

Figure 2

Sleek Power port. Connect the

Wilson Electronics’s power supply

Antenna

connection

Figure 1

4

Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660

or email: [e-mail]. Mon.- Fri. Hours: 7 am to 6 pm MST.

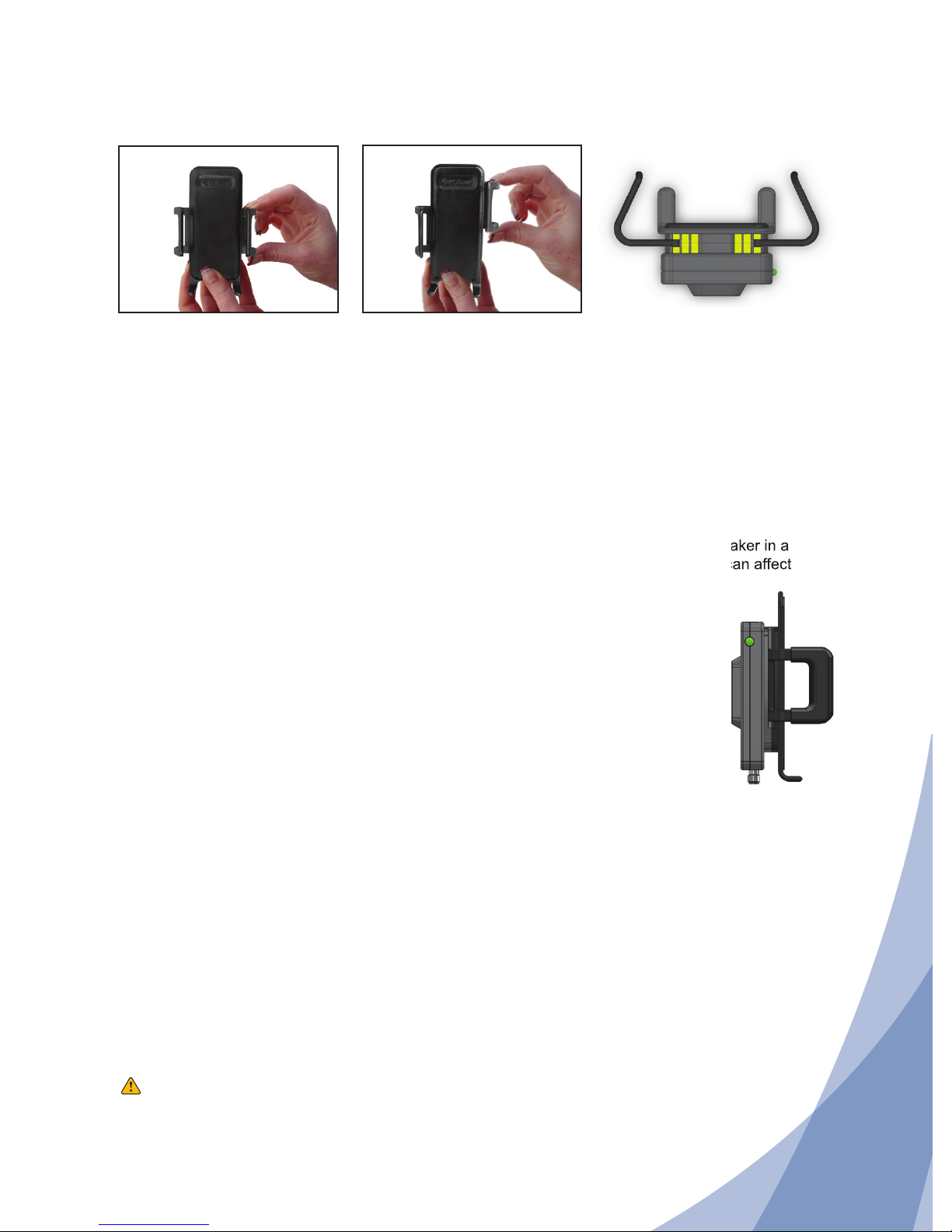

Adjusting the Sleek

®

Arms

Included with your Sleek

are various sized arms, which will provide you with multiple

optionstocustomizetheSleektofityourphone.

1. Change arms

Gently grab the arm and lift
upward until the arm slides
free from the Sleek.

2. Reposition arms

Position the arm above a different slot on the Sleek (indicated by
the yellow in the drawing). Gently slide the arm down until the arm

isfirmlyinplace.

NOTE: The cell phone must be placed in the Sleek to work properly. Use a Bluetooth or wired hands free device.

Green light is on : Sleek is operating properly

SYMPTOM: No light, or light always off

Make sure that the 1. power supply for the Sleek is functioning properly, by making
sure the light located on the power supply is lit.

If the DC plug-in power supply is properly inserted, but the plug’s light doesn’t 2.
come on, then check the 12 volt power from the car socket, and check the fuse
in the DC plug-in power supply.

Troubleshooting

SYMPTOM: No increase in bars

Make sure that the antenna connector is tight.1.

The cell phone must be placed in the Sleek cradle to amplify properly.2.

Call Wilson Electronics Technical Support at 866-294-1660.3.

Understanding the Sleek

®

Lights

Separation of the Sleek and the Outside Antenna is very important. In a vehicle, the metal roof acts
as a barrier and helps shield the two antennas from each other, preventing oscillation (feedback).

Oscillation can occur when the roof mounted antenna is too close to the Sleek inside the vehicle. An
oscillation (or feedback) in the Sleek is similar to when a microphone is too close to a speaker in a
sound system, resulting in a loud whistle. An oscillation in the Sleek, if allowed to occur, can affect
nearby cell towers’ ability to handle calls.

Warning:

DO NOT use phone covers that have chrome or any other metallic surface. It may block cellular signals

SYMPTOM: Red light is on

If the light is red, the Sleek has powered down to protect the cell tower. See section above “Separation 1.
of Sleek and the outside antenna is very important.” If the light turns red, the Sleek has powered
down to protect the cell tower from oscillation. The red light indicates the outside roof mounted
antenna needs to be moved farther from the Sleek. In a vehicle installation, move the Outside
Antenna on the roof of the car farther to the rear of the car, but at least 6 inches from the rear
or side windows or sunroof. To reset the Sleek, disconnect and reconnect the power supply. If
the light is now green, the Sleek is working properly. If the red light is still on, move the Outside
Antenna farther away and repeat the process.

5

Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660

or email: [e-mail]. Mon.- Fri. Hours: 7 am to 6 pm MST.

6

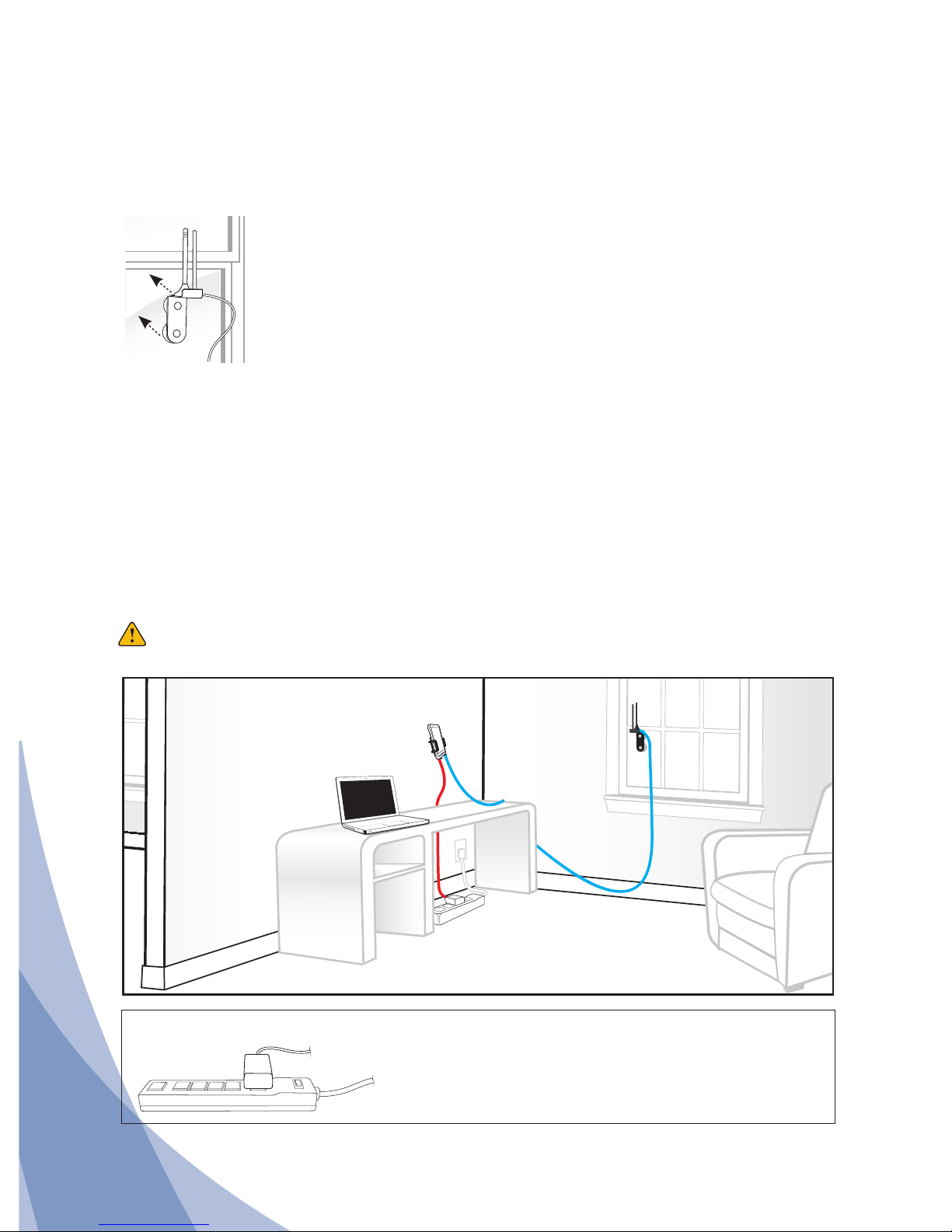

In-Building Installation

Installing a Wilson Electronics Outside Antenna in a Building

FollowthespecificantennainstructionsincludedwiththeOutsideAntenna(soldseparatelyexceptfor

certain kits). These instructions assume that you are using a Wilson Electronics Mini-Magnet Mount
Antenna and the optional suction cup window bracket.

To receive the best signal, select a window on the side of your building where your outside signal is the
strongest.

Attach the suction cup bracket to the inside of a window so that the cable will reach
the location of the Sleek. Place the bracket as high on the window as possible for
best performance.

Oncethebracketisinplace,attachthemagnetbaseoftheantennatotheflat

surface of the bracket. Note: The antenna must be installed vertically. Signal
performance will be degraded if the antenna is not vertical.

Installing the Wilson Electronics Sleek

®

Signal Booster in a Building

The Wilson Electronics Sleek may be placed in any convenient indoor location, such as a desk or
tabletop. The cell phone or data card must be in the cradle and a Bluetooth headset used for voice
communications.

Attaching the Antenna

Once you have selected the location for the Sleek, run the cable from the outside antenna and attach it
to the SMA connector on the bottom of the Sleek.

Note: The cell phone must be placed in the Sleek cradle to amplify properly.

Warning: The Sleek and the Outside Antenna must have a minimum separation of 3 feet to

prevent oscillation.

Outside Antenna

communicates

with cell tower

Sleekamplifiessignal

to & from cell tower

Sleek powered through surge
protected AC Power Strip

IMPORTANT NOTICE

It is very important to power your Signal Booster using a •
surge protected AC Power Strip with at least a 1000 Joule

rating.

Failure to do this will void your warranty in the • event of a
power surge or lightning strike.

Adapter Note: For optimal performance and to maintain a secure connection, we recommend
attaching the included velcro tab. If adapter becomes lose in the port, gently
squeezing the adapter end will restore a snug fit.

6

Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660

or email: [e-mail]. Mon.- Fri. Hours: 7 am to 6 pm MST.

About Wilson Electronics

Wilson Electronics, Inc. has been a leader in the wireless communications industry for over 40 years. The company
designs and manufactures Signal Boosters, antennas and related components that significantly improve cellular phone
signal reception and transmission in a wide variety of applications, both mobile (marine, RV, vehicles) and in-building
(home, office, M2M).

With extensive experience in antenna and Signal Booster research and design, the company’s engineering team uses a
state-of-the-art testing laboratory, including an anechoic chamber and network analyzers, to fine-tune antenna designs
and performance. For its Signal Boosters, Wilson Electronics uses a double electrically shielded RF enclosure and cell
tower simulators for compliance testing.
Wilson Electronics Signal Boosters feature patented Smart Technology ™ that enables them to automatically adjust
their power based on cell tower requirements. By detecting and preventing oscillation (feedback), signal overload and
interference with other users, these Smart Technology ™ Signal Boosters improve network cell phone areas without
compromising carrier systems.

All products are engineered and assembled in the company’s 55,000-square-foot headquarters in St. George, Utah.
Wilson Electronics has product dealers in all 50 states as well as in countries around the world.

Warning: Do not plug in the power supply until the Outside Antenna cable is attached to the Sleek.

Warning: RF Safety: The Sleek cradle/Signal Booster must be installed with a separation of at

least 8 inches from all persons and must not be located in conjunction with any other
antenna or Signal Booster.

Warning RF Safety: The FCC requires that a cell phone with cradle attached may only be used

with the cradle mounted as illustrated in this installation guide. A cell phone held near
the ear must be without the cradle attached.

Warning: RF Safety: The Outside Antennas authorized for use with this Signal Booster are

shown on page 1 of this guide. FCCregulationsrequirethatanyfixedOutsideAntenna
used with this Signal Booster may not have gain (less cable loss) that exceeds 15
dBi and must be located at least 30 inches from all people. Inside Antennas must not
exceed 3.7 dBi gain (less cable loss) and must be located 8 inches from all people.

Warning: DO NOT use phone covers that have chrome or any other metallic surface. It may block

cellular signals.

Warnings

30-Day Money-Back Guarantee

All Wilson Electronics products are protected by Wilson Electronics 30-day money-back guarantee. If, for any reason, the performance of any product is not acceptable, simply
return the product directly to the reseller with a dated proof of purchase.

1-Year Warranty

Wilson Electronics Signal Boosters are warranted for one (1) year against defects in workmanship and/or materials. Warranty issues may be resolved by returning the
product directly to the reseller with a dated proof of purchase.

Signal Boosters may also be returned directly to the manufacturer at the consumer’s expense, with a dated proof of purchase and a Returned Material Authorization (RMA)
number supplied by Wilson Electronics. Wilson Electronics shall, at its option, either repair or replace the product. Wilson Electronics will pay for delivery of the repaired or
replaced product back to the original consumer within the continental United States.

This warranty does not apply to any Signal Boosters determined by Wilson Electronics to have been subjected to misuse, abuse, neglect, or mishandling that alters
or damages physical or electronic properties.

Failure to use a surge protected AC Power Strip with at least a 1000 Joule rating will void your warranty.

RMA numbers may be obtained by contacting Technical Support at 866-294-1660.

Disclaimer: The information provided by Wilson Electronics, Inc. is believed to be complete and accurate. However, no responsibility is assumed by Wilson
Electronics, Inc. for any business or personal losses arising from its use, or for any infringements of patents or other rights of third parties that may result from its use.
Copyright © 2012 Wilson Electronics, Inc. All rights reserved.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or

modificationsmadethatarenotexpresslyapprovedbyWilsonElectronicscouldvoidauthoritytooperatethisequipment.

110807_Sleek English_REV.10_06.18.12

SignalBoosterSpecifications

Sleek Sleek 4G-V Sleek 4G-A

Model Number 2B5225 2B5125 2B5325

Connectors SMA Female SMA Female SMA Female

Impedance (input/output) 50 ohms 50 ohms 50 ohms

Frequency 824-894 MHz / 1850-1990 MHz 746-787 MHz / 824-984 MHz / 1850-1990 MHz

1

Passband Gain (nominal)

20 dB (typical) / 30 dB (maximum) 19 dB (typical) / 23 dB (maximum)

2

20 dB Bandwidth (nominal) Uplink / Downlink Uplink / Downlink Max

700 MHz N/A N/A

800 MHz 43 MHz / 45 MHz 25.18 MHz / 28.18 MHZ 28 MHz / 31 MHz

1900 MHz 112 MHz / 84MHz 60.44 MHz / 60.28 MHZ 67 MHz / 67 MHz

Power output for single cell phone

(uplink) dBm

800 MHz 1900 MHz 700 MHz 800 MHz 1900 MHz

CDMA 28.9 dBm 31.8 dBm N/A 27.8 dBm 29.3 dBm

GSM 30.9 dBm 32.6 dBm N/A 28.3 dBm 28.1 dBm

EDGE 30.9 dBm 31.9 dBm N/A 27.0 dBm 27.5 dBm

WCDMA 30.13 dBm 31.4 dBm N/A 27.5 dBm 26.9 dBm

LTE N/A N/A 26.5 dBm 27.5 dBm 28.4 dBm

Power output for single cell phone

(dowlink) dBm

800 MHz 1900 MHz 700 MHz 800 MHz 1900 MHz

CDMA -9 dBm 1.0 dBm N/A -1.1 dBm -2.1 dBm

GSM -1.3 dBm 1.8 dBm N/A -1.7 dBm -2.7 dBm

EDGE -1.3 dBm 2.1 dBm N/A -2.3 dBm -2.1 dBm

WCDMA .32 dBm 2.3 dBm N/A -2.9 dBm -4.7 dBm

LTE N/A N/A -2.1 dBm -3.0 dBm -4.4 dBm

3,4

Power output for multiple

received channels (uplink). The

maximum power is reduced by the

number of channels:

Number of

channels

Maximum Power

3

800 MHz 1900 MHz 800 MHz 1900 MHz

2 -1.1 dBm 2.2 dBm 22.5 17.9

3 -4.7 dBm -1.4 dBm 19.0 14.3

4 -7.2 dBm -3.9 dBm 16.5 11.8

5 -9.1 dBm -5.8 dBm 14.6 9.9

6 -10.7 dBm -7.4 dBm 13.0 8.3

3,4

Power output for multiple

received channels (downlink).

The maximum power is reduced by

the number of channels:

Number of

channels

Maximum Power

3

800 MHz 1900 MHz

2 -2.4 -4.7

3 -5.09 -8.2

4 -8.4 -10.7

5 -10.4 -12.7

6 -11.9 -14.3

Noise Figure (typical) 3 dB nominal

Isolation > 40 dB

Power Requirements 5V DC, 1A

Notes:

1. Nominal gain is the maximum gain at any frequency in the passband.

2.Nominalbandwidthisthedifferencebetweentwofrequenciesthatareadjacenttothepassbandwheretheamplificationis20dBlowerthanthepassband

amplification.Oneofthefrequenciesislowerthanthepassbandandtheotherishigher.

3. The Manufacturer’s rated output power of this equipment is for single carrier operation. For situations when multiple carrier signals are present, the rating

would have to be reduced by 3.5 dB, especially where the output signal is re-radiated and can cause interference to adjacent band users. This power

reduction is to be by means of input power or gain reduction and not by an attenuator at the output of the device.

4. The maximum power for 2 or more simultaneous signals will be reduced by 6 dB every time the number of signals is doubled.

3301 East Deseret Drive, St. George, UT 84790

For additional Technical Support visit www.WilsonElectronics.com

or email at: [e-mail]

Phone: [phone] Local: 435-673-5021 Fax: [phone]

www.twitter.com/WilsonCellular www.facebook.com/WilsonCellular

COMING SOON
