Williams Sound RPK 005 Installation Guide

1/2 RACK PRODUCT

SHORT RACK EAR

(PLASTIC)

A128-1

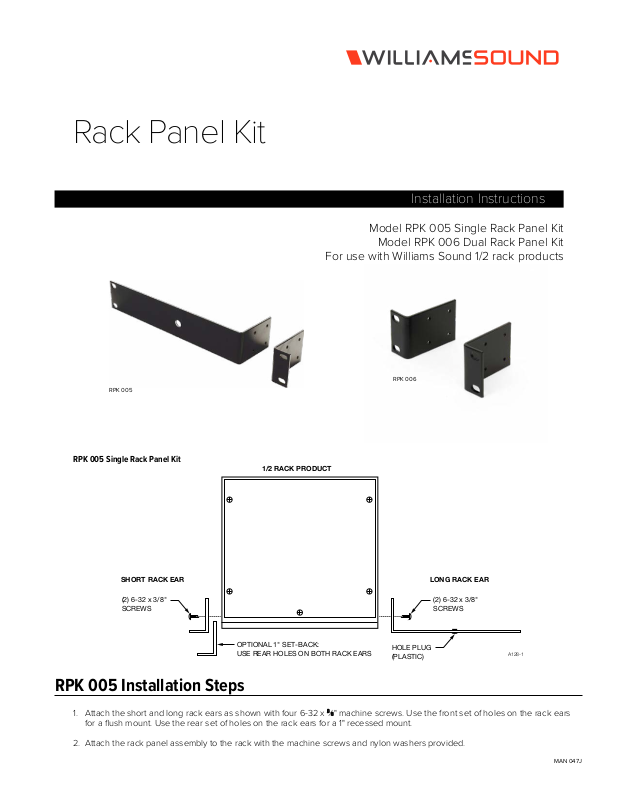

Rack Panel Kit

RPK 005

Installation Instructions

Model RPK 005 Single Rack Panel Kit

Model RPK 006 Dual Rack Panel Kit

For use with Williams Sound 1/2 rack products

RPK 006

RPK 005 Installation Steps

RPK 005 Single Rack Panel Kit

LONG RACK EAR

(2) 6-32 x 3/8"
SCREWS

OPTIONAL 1" SET-BACK:
USE REAR HOLES ON BOTH RACK EARS

1. Attach the short and long rack ears as shown with four 6-32 x 3⁄8" machine screws. Use the front set of holes on the rack ears
for a flush mount. Use the rear set of holes on the rack ears for a 1" recessed mount.

2. Attach the rack panel assembly to the rack with the machine screws and nylon washers provided.

HOLE PLUG

(2) 6-32 x 3/8"
SCREWS

MAN 047J

(2) 6-32 x 3/8"
SCREWS

COMPLETE ASSEMBLY

1/2 RACK PRODUCT 1/2 RACK PRODUCT

A129-1

RPK 006 Dual Rack Panel Kit

Model RPK 005 Single Rack Panel Kit, Model RPK 006 Dual Rack Panel Kit

LINKING BARS

CLEARANCE HOLE

THREADED HOLE

OPTIONAL 1" SET-BACK:
USE REAR HOLES ON BOTH RACK EARS

4-40 x 3/4" SCREW

RPK 006 Installation Steps

THREADED HOLE

CLEARANCE HOLE

(4) 6-32 x 3/8"
SCREWS

4-40 x 3/4" SCREW

RACK EAR

(2) 6-32 x 3/8"
SCREWS

1. Attach the short rack ears as shown with four 6-32 x 3⁄8" machine screws. Use the front set of holes on the rack ears for a flush
mount. Use the rear set of holes on the rack ears for a 1" recessed mount.

2. Attach the linking bars to each 1⁄2 rack unit as shown with four 6-32 x 3⁄8" machine screws. Be sure to install the linking bars so
the clearance hole in one bar is next to the threaded hole in the other.

3. Place the two 1⁄2 rack units together, so the linking bars overlap. Use two 4-40 x 3⁄4" machine screws to tie the linking bars
together, as shown in the lower drawing.

4. Attach the rack panel assembly to the rack with the machine screws and nylon washers provided.

Recycling Instructions

Help Williams AV protect the environment! Please take the time to dispose of your equipment properly.

Product Recycling for Customers in the European Union:

Please do NOT dispose of your equipment in the household trash. Please take the equipment to a electronics recycling
center.
