Williams Sound CHG 1012 Datasheet

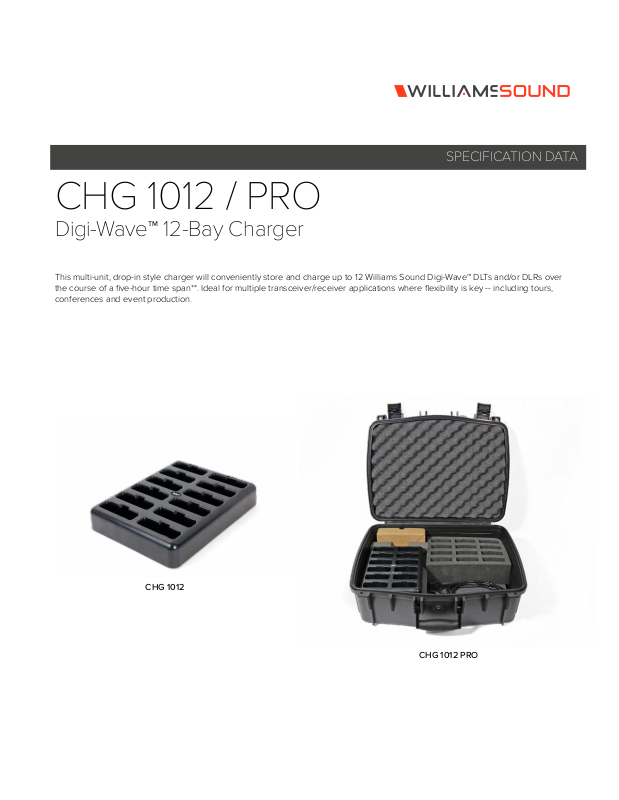

SPECIFICATION DATA

CHG 1012 / PRO

Digi-Wave™ 12-Bay Charger

This multi-unit, drop-in style charger will conveniently store and charge up to 12 Williams Sound Digi-Wave™ DLTs and/or DLRs over
the course of a five-hour time span**. Ideal for multiple transceiver/receiver applications where flexibility is key -- including tours,
conferences and event production.

CHG 1012

CHG 1012 PRO

Digi-Wave™ 12-Bay Charger

CHG 1012, CHG 1012 PRO Multiple Battery Charger:

Dimensions: CHG 1012 (charger only): 9"L x 7"W x 1.6"H (23 cm L x 17.8 cm W x 4 cm H)

Weight: CHG1012: 3.3 lbs (1.5 kg), including power supply

Enclosure: Black, ABS plastic with metal base

Power Supply Input: TFP 047, 90-240 VAC input, 1.5 A max *

Power Supply: Universal DC adapter, 5 VDC - 6A output, center positive

Charging Time: 5 hours nominal **

Unit Capacity: 12 Units

Compatible Units: Transceivers: DLT 300, DLT 100 2.0, DLT 100

Indicators: Charge status indicators on DLT or DLR

Warranty: 2 year (cables and power supply warranty for 90 days)

Approvals: CE, FCC, WEEE, RoHS, CB

Warranty: 2 year (case, cables and power supply warranty for 90 days)

* NOTE: Eight separate CHG 1012s, each powered by its own TFP 047 power supply, can be connected to a 15-amp circuit.

** NOTE: Charging specifications are based on Williams Sound internal rechargeable Li-Po battery BAT 100.

CHG 1012 PRO (exterior case dimensions): 15.7”L x 19.7”W x 7.2”H (40 cm L x 50 cm W x 18 cm H)

CHG1012 PRO: 9.9 lbs (4.5 kg), including power supply

Receivers: DLR 360, DLR 60 2.0, DLR 60

Architectural/Engineering Specifications

CHG 1012 / CHG 1012 PRO

The charger shall be a 12-bay, drop-in charger for use with the Digi-Wave™ DLT 300, DLT 100 2.0, DLT 100, DLR 60 2.0 and DLR 60.

The charger be enclosed in black ABS plastic, 9" x 7" x 1.6" and weigh 2.0 lbs excluding power supply.

The charger shall have a five-hour nominal charge cycle. Battery status and charge indication are provided on the DLT or DLR unit.

The charger shall be powered by an external universal power supply (90-240 VAC input; 5 VDC, 6A output) via a DC barrel connector.

Eight separate chargers, each powered by its own TFP 047 power supply, can be connected to one 15 amp circuit.

The charger shall have CE approval and be RoHS, WEEE, Industry Canada, FCC and CB scheme compliant.

This charger shall be the Williams Sound model CHG 1012.

The charger housed in a carry case shall be Williams Sound model CHG 1012 PRO.
