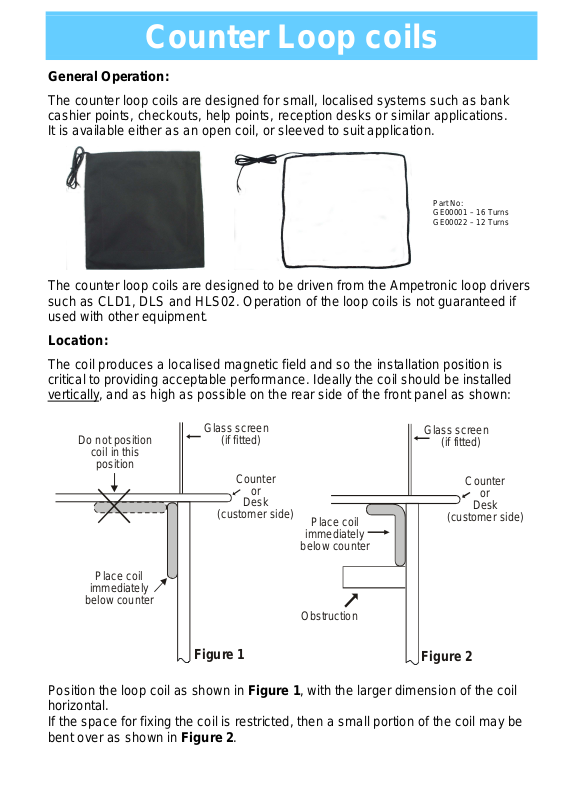

Page 1
Counter Loop coils
Glass screen
(if fitted)
(customer side)
General Operation:
The counter loop coils are designed for small, localised systems such as bank
cashier points, checkouts, help points, reception desks or similar applications.
It is available either as an open coil, or sleeved to suit application.
Part No:
ACLP02
Part No:
GE00001 – 16 Turns
GE00022 – 12 Turns
The counter loop coils are designed to be driven from the Ampetronic loop drivers
such as CLD1, DLS and HLS02. Operation of the loop coils is not guaranteed if
used with other equipment.
Location:

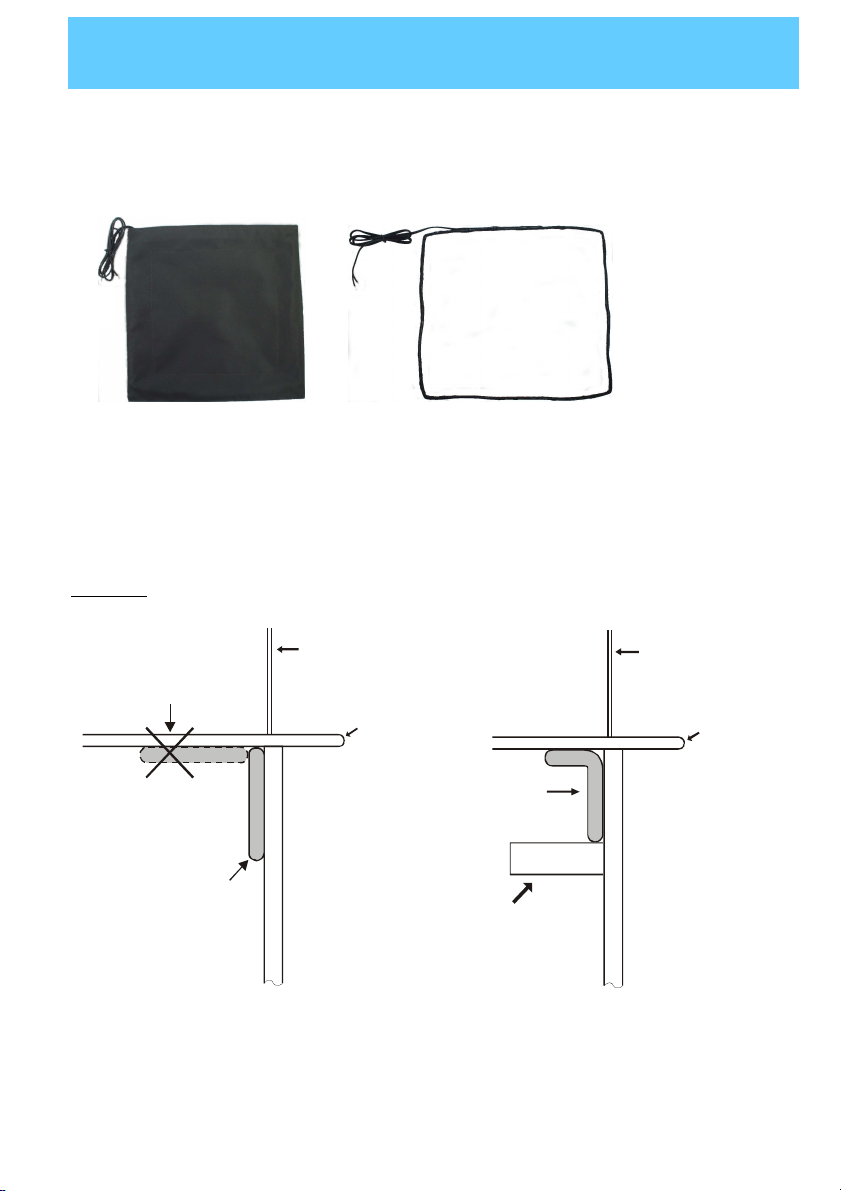

The coil produces a localised magnetic field and so the installation position is
critical to providing acceptable performance. Ideally the coil should be installed
vertically, and as high as possible on the rear side of the front panel as shown:
Glass screen
Do not position
coil in this
position
Place coil
immediately
below counter
(if fitted)
Counter
or
Desk
(customer side)
Counter
or
Desk
Place coil
immediately
below counter
Obstruction
Position the loop coil as shown in Figure 1, with the larger dimension of the coil
horizontal.
If the space for fixing the coil is restricted, then a small portion of the coil may be
bent over as shown in Figure 2.
Figure 1
Figure 2
Page 2
Important - Placing the Counter loop coil behind surfaces constructed or
UP1002
6-2
covered with metal will greatly affect the performance of the system, and
may not work at all. Contact Ampetronic for further assistance.
Fixing the open coil:
The coil can be fixed to a wall or partition using the adhesive cable clips supplied.
Position the clips so that the tabs point towards the centre of the coil and locate
the tabs or clips so that the coil is held firmly when the tabs are bent over.
Other clips may be used if preferred provided that the coil is not damaged.
Fixing the sleeved coil:
Mounting of the sleeved coil is the same as the open loop coil for positional
orientation, but fixing must be with either staples or screws.
The internal coil is sewn around the outer edge of the sleeve and can easily be felt
through the cover. Do not pierce through either the coil or flexible cable with any
object. Mount the covered coil assembly so that it is held securely.
Important notes:
i) The counter or desk must not be made of metal for the system to
function correctly.
ii) Do not install the Counter Loop coil in a horizontal plane unless
agreed with Ampetronic Ltd in advance.
iii) Do not pierce the Counter Loop coil structure with any object.
Operation:
Once the coil is in fixed securely into position, refer to the instructions supplied
with the loop driver for how to connect it to the loop terminals and get the system
working.
Specification:
Open coil: Sleeved coil:
Lead out: 1m black PVC 0.5mm², fig.8 Lead out: 1m black PVC 0.5mm², fig.8
Coil Winding: 0.8mm² enamelled copper Coil Winding: 0.8mm² enamelled copper
wire wire
Coil Wrap: PVC tape Coil Wrap: PVC tape
GE00001 – Black,
GE00022 – Grey
Dimensions: 345mm x 305mm.
Weight: 195g
Dimensions: 380mm x 380mm.
Weight: 325g
Colour: Anthracite.
Material: 300D Polyester, fire retardant
specification.
Warranty information
This product carries a 1 year parts and labour warranty which could be invalidated
if these instructions are not followed correctly, or the unit is tampered with in any
way. The 1 year warranty is dated from the time the equipment leaves Ampetronic
and NOT when it is installed.
Page 3
Counter Loop coils
Glass screen
(if fitted)
(customer side)
General Operation:
The counter loop coils are designed for small, localised systems such as bank
cashier points, checkouts, help points, reception desks or similar applications.
It is available either as an open coil, or sleeved to suit application.
Part No:
ACLP02
Part No:
GE00001 – 16 Turns
GE00022 – 12 Turns
The counter loop coils are designed to be driven from the Ampetronic loop drivers
such as CLD1, DLS and HLS02. Operation of the loop coils is not guaranteed if
used with other equipment.
Location:
The coil produces a localised magnetic field and so the installation position is
critical to providing acceptable performance. Ideally the coil should be installed
vertically, and as high as possible on the rear side of the front panel as shown:
Glass screen
Do not position
coil in this
position
Place coil
immediately
below counter
(if fitted)
Counter
or
Desk
(customer side)
Counter
or
Desk
Place coil
immediately
below counter
Obstruction
Position the loop coil as shown in Figure 1, with the larger dimension of the coil
horizontal.
If the space for fixing the coil is restricted, then a small portion of the coil may be
bent over as shown in Figure 2.
Figure 1
Figure 2
Page 4
Important - Placing the Counter loop coil behind surfaces constructed or
UP1002
6-2
covered with metal will greatly affect the performance of the system, and
may not work at all. Contact Ampetronic for further assistance.
Fixing the open coil:
The coil can be fixed to a wall or partition using the adhesive cable clips supplied.
Position the clips so that the tabs point towards the centre of the coil and locate
the tabs or clips so that the coil is held firmly when the tabs are bent over.
Other clips may be used if preferred provided that the coil is not damaged.
Fixing the sleeved coil:
Mounting of the sleeved coil is the same as the open loop coil for positional
orientation, but fixing must be with either staples or screws.
The internal coil is sewn around the outer edge of the sleeve and can easily be felt
through the cover. Do not pierce through either the coil or flexible cable with any
object. Mount the covered coil assembly so that it is held securely.
Important notes:
i) The counter or desk must not be made of metal for the system to
function correctly.
ii) Do not install the Counter Loop coil in a horizontal plane unless
agreed with Ampetronic Ltd in advance.
iii) Do not pierce the Counter Loop coil structure with any object.
Operation:
Once the coil is in fixed securely into position, refer to the instructions supplied
with the loop driver for how to connect it to the loop terminals and get the system
working.
Specification:
Open coil: Sleeved coil:
Lead out: 1m black PVC 0.5mm², fig.8 Lead out: 1m black PVC 0.5mm², fig.8
Coil Winding: 0.8mm² enamelled copper Coil Winding: 0.8mm² enamelled copper
wire wire
Coil Wrap: PVC tape Coil Wrap: PVC tape
GE00001 – Black,
GE00022 – Grey
Dimensions: 345mm x 305mm.
Weight: 195g
Dimensions: 380mm x 380mm.
Weight: 325g
Colour: Anthracite.
Material: 300D Polyester, fire retardant
specification.
Warranty information
This product carries a 1 year parts and labour warranty which could be invalidated
if these instructions are not followed correctly, or the unit is tampered with in any
way. The 1 year warranty is dated from the time the equipment leaves Ampetronic
and NOT when it is installed.
