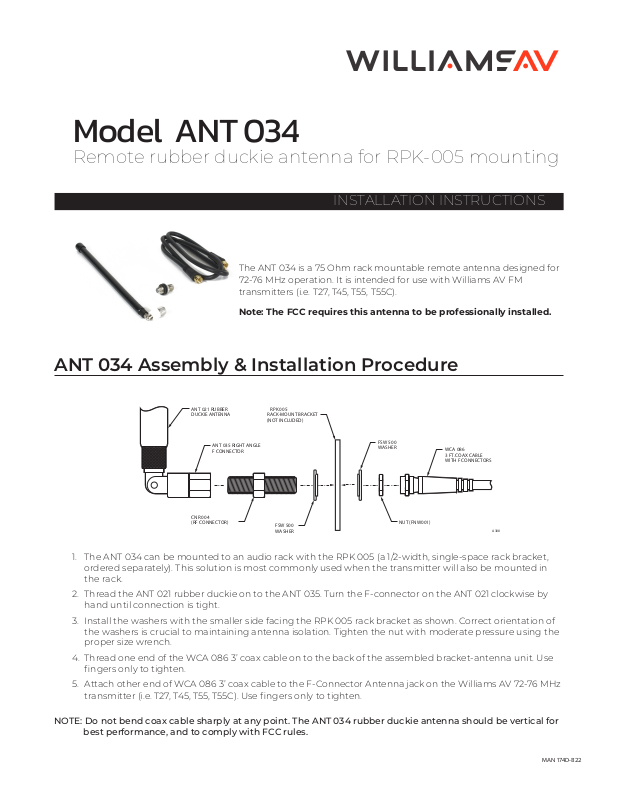

Page 1
Model ANT 034
Remote rubber duckie antenna for RPK-005 mounting
INSTALLATION INSTRUCTIONS
The ANT 034 is a 75 Ohm rack mountable remote antenna designed for
72-76 MHz operation. It is intended for use with Williams AV FM
transmitters (i.e. T27, T45, T55, T55C).
Note: The FCC requires this antenna to be professionally installed.

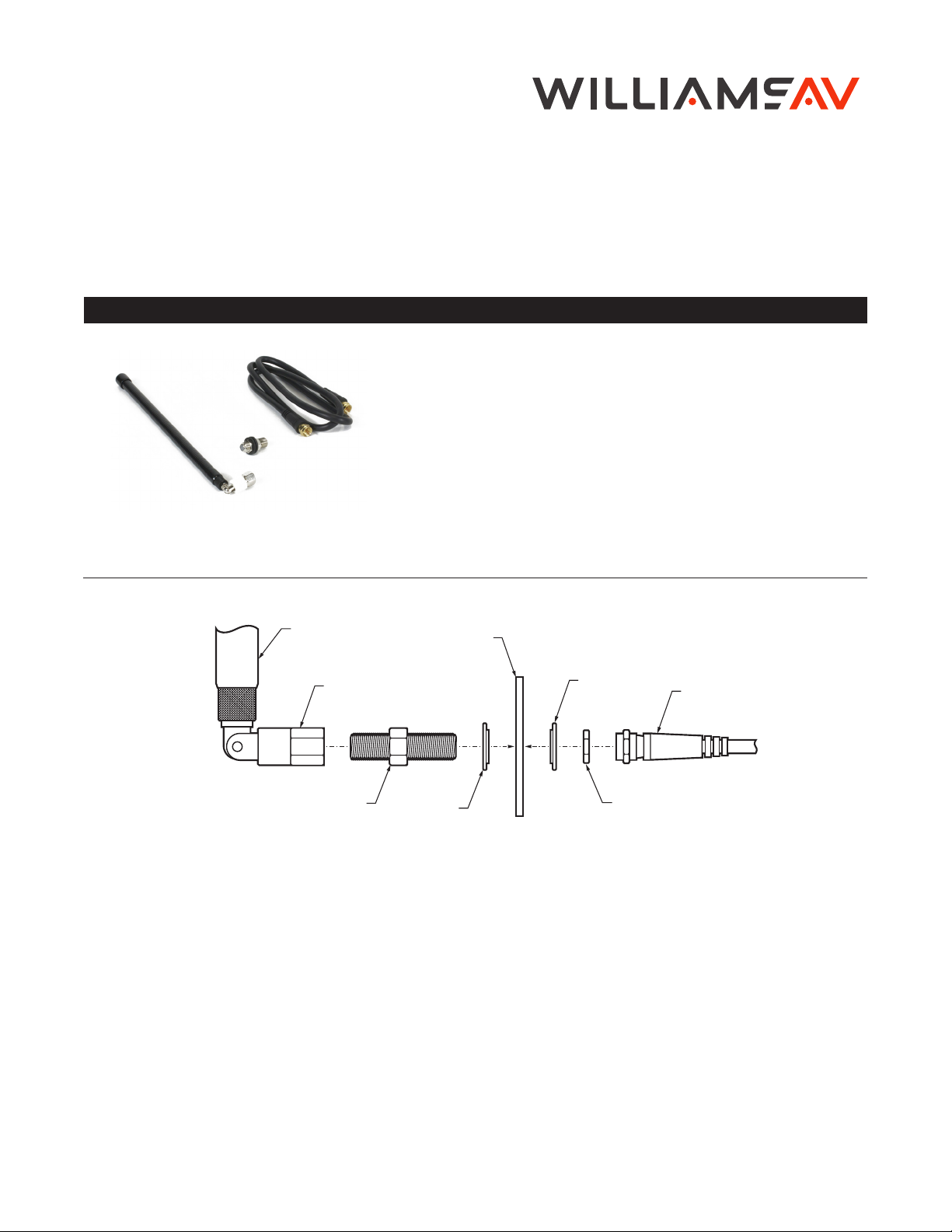

ANT 034 Assembly & Installation Procedure
ANT 021 RUBBER
DUCKIE ANTENNA
ANT 035 RIGHT ANGLE
F CONNECTOR
CNR 004
(RF CONNECTOR)
RPK 005
RACK-MOUNT BRACKET
(NOT INCLUDED)
FSW 500
WASHER
FSW 500
WASHER
NUT (FNW001)
WCA 086
3 FT.COAX CABLE
WITH F CONNECTORS
A308
1. The ANT 034 can be mounted to an audio rack with the RPK 005 (a 1/2-width, single-space rack bracket,
ordered separately). This solution is most commonly used when the transmitter will also be mounted in
the rack.
2. Thread the ANT 021 rubber duckie on to the ANT 035. Turn the F-connector on the ANT 021 clockwise by
hand until connection is tight.
3. Install the washers with the smaller side facing the RPK 005 rack bracket as shown. Correct orientation of
the washers is crucial to maintaining antenna isolation. Tighten the nut with moderate pressure using the
proper size wrench.
4. Thread one end of the WCA 086 3’ coax cable on to the back of the assembled bracket-antenna unit. Use
fingers only to tighten.
5. Attach other end of WCA 086 3’ coax cable to the F-Connector Antenna jack on the Williams AV 72-76 MHz
transmitter (i.e. T27, T45, T55, T55C). Use fingers only to tighten.
NOTE: Do not bend coax cable sharply at any point. The ANT 034 rubber duckie antenna should be vertical for
best performance, and to comply with FCC rules.
MAN 174D-822
Page 2
90 Day Warranty
The ANT 034 rack mountable remote antenna is covered by a 90 day warranty. If you experience difficulty with
your antenna, call toll-free for customer assistance:
1-800-843-3544 (U.S.A.) or 1-952-943-2252 (Outside the U.S.A.)
*For a Complete Warranty Statement go to: https://williamsav.com/support/warranty-product-registration/
If it is necessary to return the system for service, your Customer Service Representative will give you a Return
Authorization Number (RA) and shipping instructions.
Pack the system carefully and send it to:
Williams AV
Attn: Repair Dept.
10300 Valley View Road
Eden Prairie, MN 55344
Recycling Instructions
Help Williams AV protect the environment! Please take the time to dispose of your equipment properly.
Product Recycling for Customers in the European Union:
Please do NOT dispose of your equipment in the household trash. Please take the equipment to a
electronics recycling center.
ANT 034
WilliamsAV.com
MAN 174D-822
U.S. | 800.843.3544 [email protected] INTL | +1.952.943.2252 [email protected]
© 2022, Williams AV, LLC
