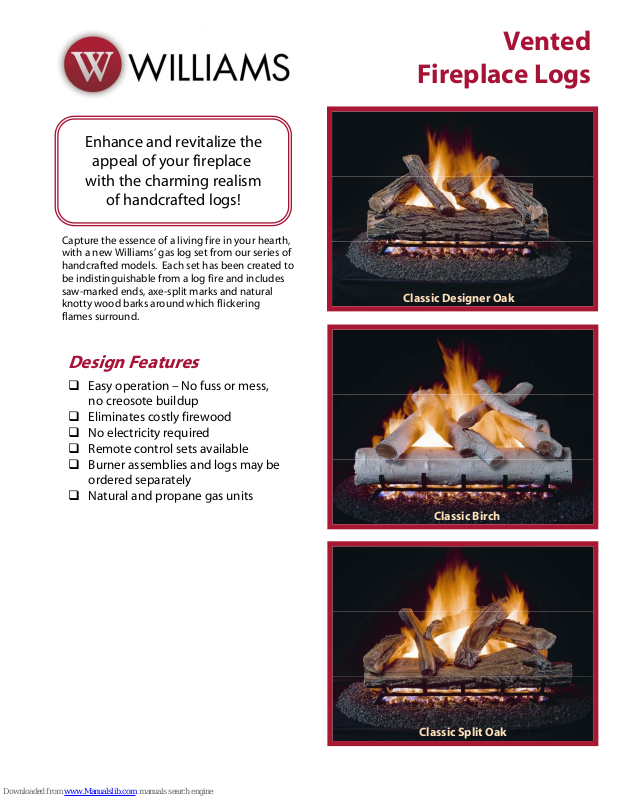

Williams WH-18R, WH-30R, WH-24R Specifications

Design Features

 Easy operation – No fuss or mess,

no creosote buildup

 Eliminates costly firewood
 No electricity required
 Remote control sets available
 Burner assemblies and logs may be

ordered separately

 Natural and propane gas units

Capture the essence of a living fire in your hearth,
with a new Williams’ gas log set from our series of
handcrafted models. Each set has been created to
be indistinguishable from a log fire and includes
saw-marked ends, axe-split marks and natural
knotty wood barks around which flickering
flames surround.

Classic Split Oak

Classic Birch

Classic Designer Oak

Enhance and revitalize the

appeal of your fireplace

with the charming realism

of handcrafted logs!

Vented

Fireplace Logs

Vented Fireplace Logs

BURNER ASSEMBLIES

Model Number Log

Natural Propane

CSA (AGA/CGA) - Equipped with Pilot Safety Kit

--

--

--

WH-18R* -- 40,000 18” 27” x 16” 30 lbs.
WH-24R* -- 45,000 24” 33” x 16” 37 lbs.
WH-30R* -- 45,000 30” 39” x 16” 42 lbs.

CSA (AGA/CGA) - Millivolt Valve

- - WH-30AMVP - - 60,000 30” 39” x 16” 42 lbs.

RADCO - Pilot Safety Kit

Optional

Model Number

WH-18R* 75,000 18” **21” x 16” 30 lbs.
WH-24R* 90,000 24” **27” x 16” 35 lbs.
WH-30R* 90,000 30” 33” x 16” 40 lbs.

A = CSA (AGA/CGA) / R = RADCO / N = Natural / P = Propane / MV = Millivolt

* Safety Pilot Kit may be added. Model 4235 for natural gas. Model 4236 for propane gas.
** Add 6” to minimum width (front and rear) if the Gas Valve Safety Pilot Kit is used.

LOG SETS

Model Number

DO-30
SO-18
CB-18
CB-30

Btu/hr Input

Natural Propane

(Remote Control Kit Optional)

Btu/hr Input

Description

Classic Designer Oak

Classic Split Oak

Classic Birch
Classic Birch

Length

Log

Length

Log

Length

30”
18”
18”
30”

Dimensions

Front Width/Depth

Dimensions

Front Width/Depth

Number of Logs

8
6
6
8

Shipping

Wei ght

Shipping

Wei ght

Shipping

Wei ght

52 lbs.
31 lbs.
49 lbs.
75 lbs.

Features

Burner assemblies are interchangeable with all log sets. Both CSA
(AGA/CGA) and RADCO burner assemblies include: Heavy-gauge steel
burner pan, steel bar grate, lava rock, burning embers, complete
hardware for gas connection and damper clamp, sand (natural gas
models) or vermiculite (propane gas models).

CSA (AGA/CGA) listed models are equipped with a safety pilot or
millivolt control system. CSA (AGA/CGA) approved propane models
include vermiculite instead of sand.

250 West Laurel Street • Colton, Calfiornia U.S.A.
[phone] • Fax: [phone] or [phone]
Consumer Line: [phone]
Homeowner Assistance: [phone]
www.e-wfc.com

Accessories

Gas Valve Safety Pilot Kit

Model 4236 Field converts to propane gas.

Shipping weight 2 lbs.
Model 4235 Field converts to natural gas.
Shipping weight 3 lbs.

IMPORTANT

• Read owner’s manual before using.

• Photographs are representative only.

• Check local codes and ordinances for permitted uses.

• Consult installation manual for clearances prior to
installation.

• We reserve the right to amend product
specifications without notice.

• Installation and servicing recommended by a
qualified service person.

• Please read the warranty for any limitations
or disclaimers. All parts carry a one-year limited
warranty.

• Specify propane or natural gas when ordering. Units
are not intended for conversion between fuel types.

©

2008 Williams Furnace Co. Printed in U.S.A. All Rights Reserved Subject to Change without Notice L1140 8/08
