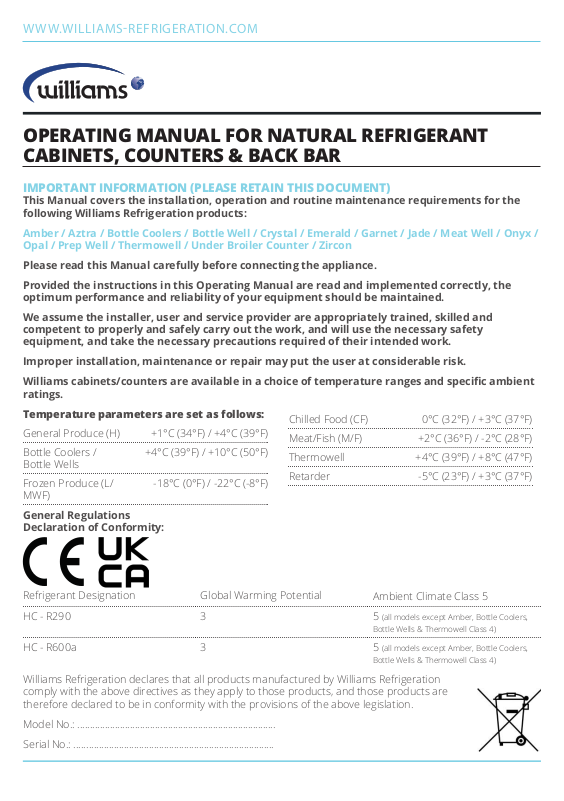

Page 1
WWW.WILLIAMSREFRIGERATION.COM
OPERATING MANUAL FOR NATURAL REFRIGERANT
CABINETS, COUNTERS & BACK BAR
IMPORTANT INFORMATION (PLEASE RETAIN THIS DOCUMENT)
This Manual covers the installation, operation and routine maintenance requirements for the
following Williams Refrigeration products:
Amber / Aztra / Bottle Coolers / Bottle Well / Crystal / Emerald / Garnet / Jade / Meat Well / Onyx /
Opal / Prep Well / Thermowell / Under Broiler Counter / Zircon
Please read this Manual carefully before connecting the appliance.
Provided the instructions in this Operating Manual are read and implemented correctly, the
optimum performance and reliability of your equipment should be maintained.
We assume the installer, user and service provider are appropriately trained, skilled and
competent to properly and safely carry out the work, and will use the necessary safety
equipment, and take the necessary precautions required of their intended work.
Improper installation, maintenance or repair may put the user at considerable risk.
Williams cabinets/counters are available in a choice of temperature ranges and specic ambient
ratings.
Temperature parameters are set as follows:
General Produce (H) +1°C (34°F) / +4°C (39°F)
Bottle Coolers /
Bottle Wells
Frozen Produce (L/
MWF)
General Regulations
Declaration of Conformity:
+4°C (39°F) / +10°C (50°F)
-18°C (0°F) / -22°C (-8°F)
Chilled Food (CF) 0°C (32°F) / +3°C (37°F)
Meat/Fish (M/F) +2°C (36°F) / -2°C (28°F)
Thermowell +4°C (39°F) / +8°C (47°F)
Retarder -5°C (23°F) / +3°C (37°F)
Refrigerant Designation Global Warming Potential
HC - R290 3 5 (all models except Amber, Bottle Coolers,
HC - R600a 3 5 (all models except Amber, Bottle Coolers,
Williams Refrigeration declares that all products manufactured by Williams Refrigeration
comply with the above directives as they apply to those products, and those products are
therefore declared to be in conformity with the provisions of the above legislation.
Model No.: ...............................................................................
Serial No.: ................................................................................
Ambient Climate Class 5
Bottle Wells & Thermowell Class 4)
Bottle Wells & Thermowell Class 4)
Page 2

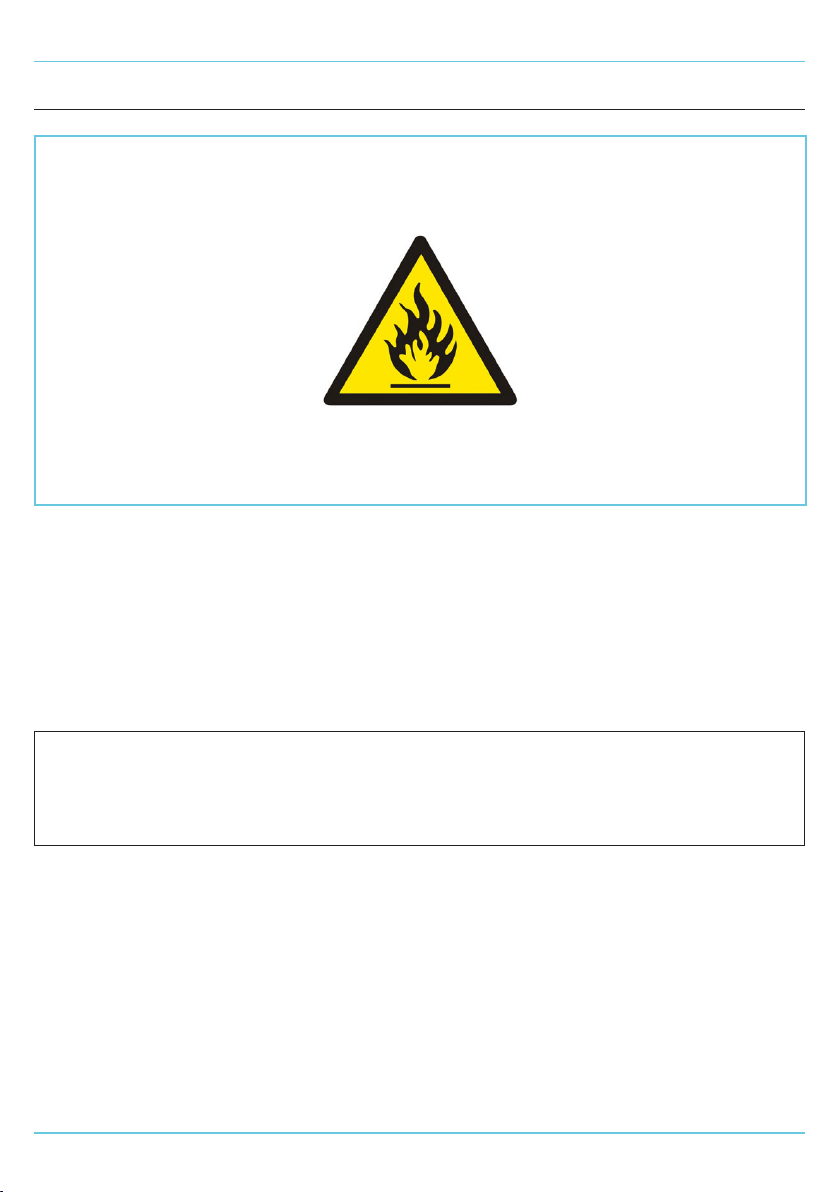

IMPORTANT REFRIGERATION AWARENESS
IMPORTANT REFRIGERATION AWARENESS
WARNING
SYSTEM CHARGED WITH FLAMMABLE REFRIGERANT
REFRIGERANT:R290 / R600A (REFRIGERANT GRADE PROPANE AND ISOBUTANE
RESPECTIVELY ONLY)
Ensure all operatives are aware the appliance contains an environmentally friendly but ammable
refrigerant.
Technical Safety and Advice
All appliances are only to be installed by persons who are appropriately trained, skilled and competent to
properly and safely carry out the work, and serviced by qualied engineers for the handling of hydrocarbon
refrigerants
Ensure procedures are adhered to in the following Operating Manual.
Should a suspected leak become apparent, immediately evacuate the area and remotely
switch o the cabinet.
DO NOT remove the plug from the socket as this could act as a source of ignition. Leaking
refrigerant may ignite and cause injuries.
Contact Williams Refrigeration on +44 (0) 1553 817 000, stating the suspected fault.
2
Page 3
Warning:
Do not store explosive substances such as aerosol cans with a
ammable propellant in this appliance.
Warning:
Do not use electrical appliances inside the food storage compartments
of this appliance.
Warning:
Keep ventilation openings of the appliance enclosure or the structure of
built in equipment, clear of obstruction.
Warning:
Do not use mechanical devices or other means to accelerate the
defrosting process.
Warning:
Do not damage the refrigerant circuit, i.e. pipe work or components.
ELECTRICAL
The appliance must be disconnected from its power source during
cleaning; when maintenance and the replacement of parts is required,
the equipment must be safely disconnected and isolated from the
power supply using a lock-o system at the isolation device.
IMPORTANT SAFETY INFORMATION
IMPORTANT SAFETY INFORMATION
It is advised that the electrical supply to the equipment is protected by
an appropriately selected Residual Current Device (RCD) with a rating no
greater than 30mA. RCD’s should be tested at least every three months
to ensure they are functioning correctly.
If the supply cord is damaged, it must be replaced by a service engineer
or other qualied person. Only the supply cord supplied by Williams
Refrigeration must be used.
Fixed wiring appliances (those not supplied with a plug) shall incorporate
a switch disconnector to meet the specication of IEC 60947; this is to
be installed within the xed wiring installation in accordance to the local
wiring rules / regulation to provide all pole disconnection of the power
supply.
3
Page 4
INSTALLATION
INSTALLATION
REMOVAL OF REDUNDANT APPLIANCES
Refrigeration appliances contain refrigerant and
gases in their insulation and must be disposed of
professionally by a licensed waste management
contractor.
Please ensure that old or redundant refrigeration
appliances are disposed of safely and legally. It is
recommended that doors are removed prior to
disposal in order to ensure safety.
UNPACKING
Remove all external and interior packing and
accessories. Ensure all such material is disposed
of safely.
Check that no damage has occurred to the
appliance, the tubing of the refrigeration system
power cable and plug top during transit. If damage
has occurred do not use the appliance.
The appliance should be installed in a well ventilated
room on a at and level oor.
PROTECTIVE COATING
The polished stainless steel surfaces are protected
during manufacturing and transport by an adhesive
plastic coating.
This should be removed prior to placing your
appliance into use. Carefully peel away to reveal
the polished stainless steel surface. Care should be
taken to ensure that no adhesive residue remains
on the surface. Any stubborn or tough adhesive
marks can be removed by following the advice on
Page 9.
LEVELLING (CASTORS/FEET)
The appliance should stand level to ensure the
correct operation of self-closing doors and proper
drainage of condensate from the evaporator.
Models tted with castors are non-adjustable.
Therefore a level platform / oor should be
provided where the appliance is to be located.
Where swivel and brake castors are tted and it
has been positioned, please ensure its brakes have
been activated by pressing the metal bar down.
Remember to release the brakes before trying to
move it.
On models tted with legs, levelling may be achieved
by adjusting the bottom section. For marine
specication models with anged feet for deck and
bulkhead xing, installation should be carried out by
a specialist marine company.

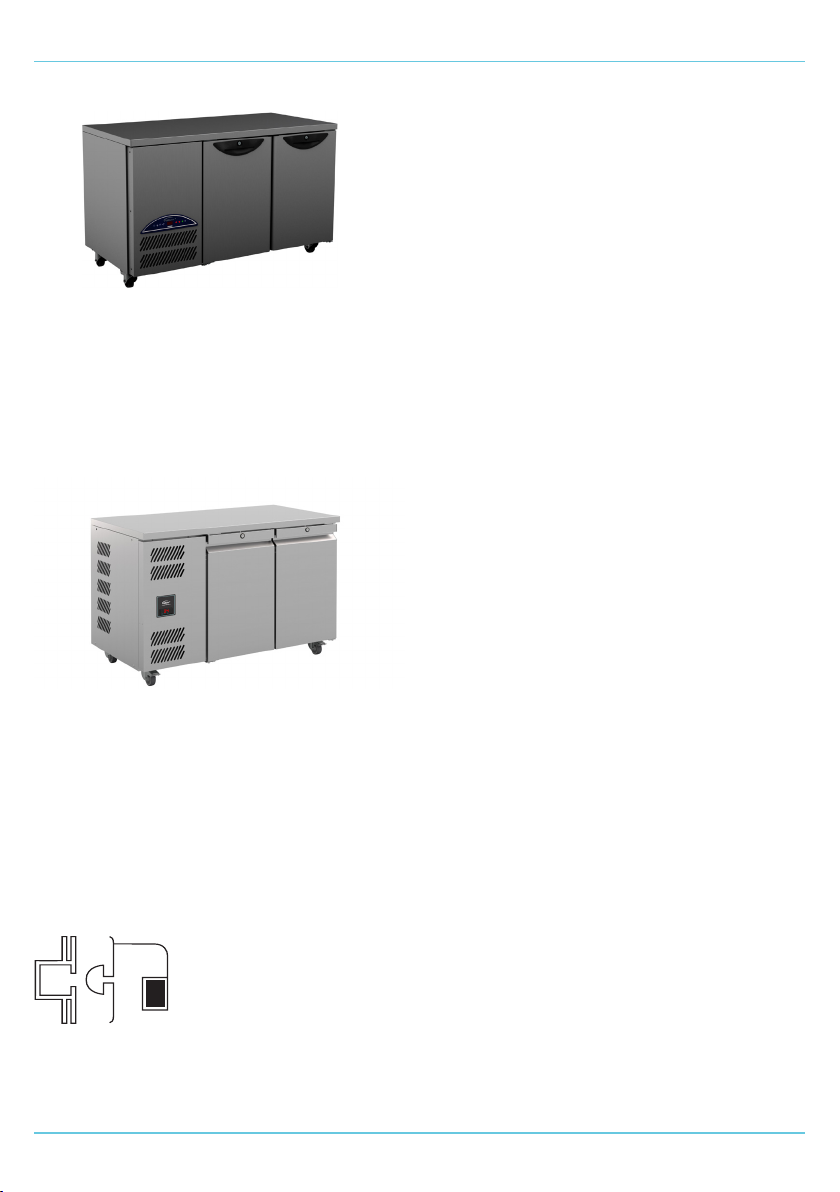

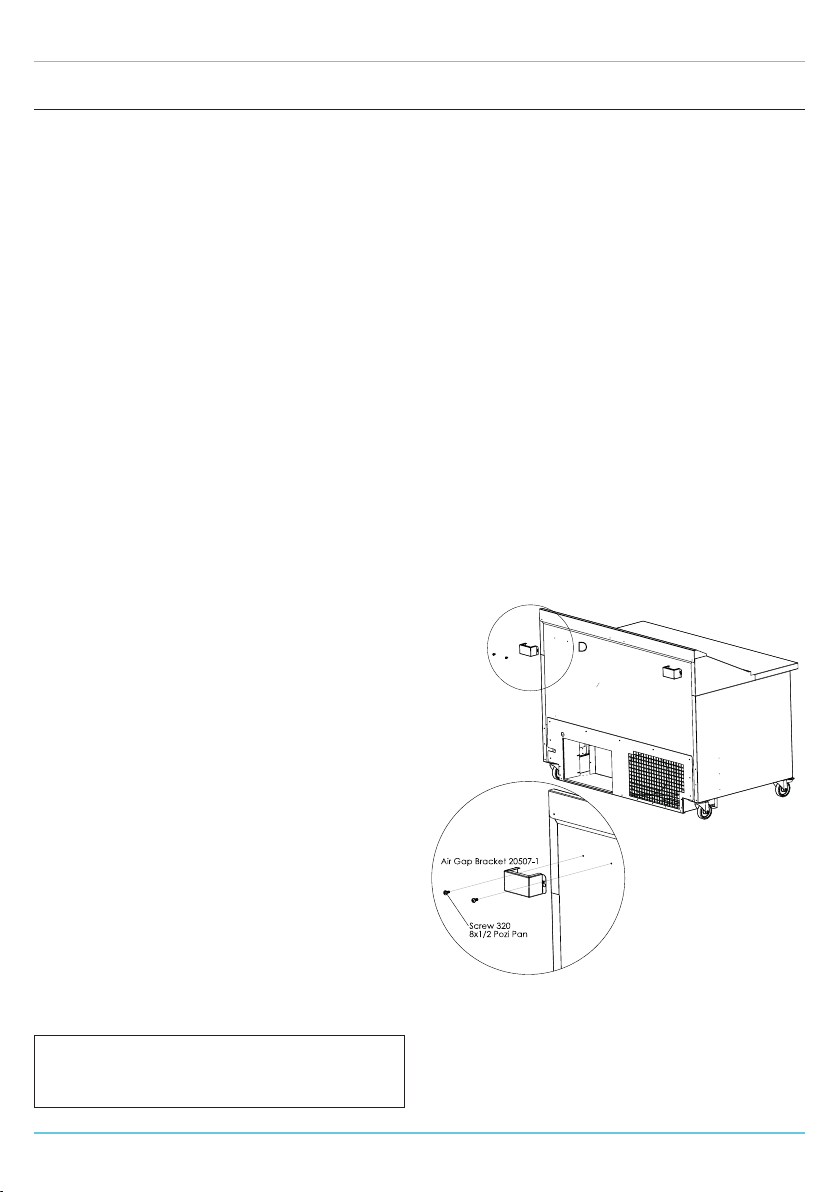

AIR GAP BRACKETS FOR AN ONYX
The Onyx range, is supplied with 2 x stand-o
brackets (see Figure 1). These are supplied loose
/ packed inside the cabinet for ease of installation
/ access, but must be tted before cabinet is
pushed into place to provide the necessary air gap /
condensing unit air circulation.
FIG 1.
VENTILATION
Refrigerators generate a considerable amount of
heat and, if operated in a small unventilated room
will quickly cause the room temperature to become
excessive. This could cause the motor to overheat
and possibly damage the compressor. At the very
least, such an installation will cause the unit to use
an excessive amount of electricity.
In addition to ventilation in a room, please ensure
that cabinets with top-mounted systems have
500mm clearance between the cabinet top and the
ceiling for engineer access and ventilation. For all
other cabinets, please ensure a minimum clearance
of 50mm is provided around the unit to ensure
ecient and eective performance.
Do not block vents by stacking boxes on top
or in front of the unit as this could aect
performance and give rise to safety risk.
4
These can be simply attached to the rear of the
cabinet using the two screws already tted. Hook
the bracket key hole slot over the screw heads and
push down. Once in place, tighten the screws.
Please note that failure to t these will aect
the performance of the cabinet and will
invalidate the warranty.
Page 5
INSTALLATION

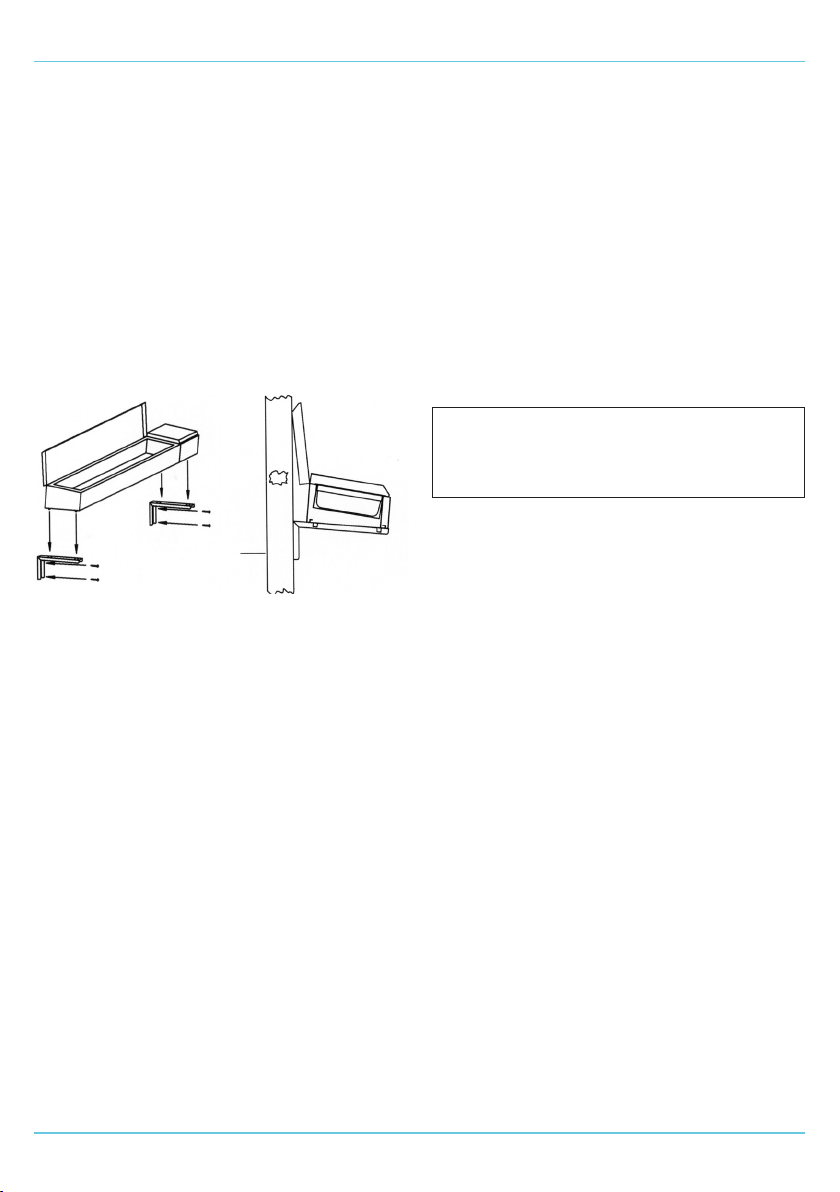

WALL BRACKETS FOR A THERMOWELL
(OPTIONAL EXTRA)
If the Thermowell is supplied with wall brackets,
please proceed as follows;
Secure the brackets to the wall using M6 xings and
position the Thermowell upon the brackets. Ensure
the feet are securely projecting through the large
holes in the brackets. (See diagrams below). The
Thermowell and brackets should be positioned as
indicated in Figure 2.
Fixing Points:
TW9 918mm apart - 2 points
TW15 724mm apart - 3 points
TW18 900mm apart - 3 points
FIG 2.
NB: Each wall bracket will support 55kg.
DO NOT PLACE HEAVY OBJECTS UPON THE
THERMOWELL.
MAINS CONNECTION
Commercial kitchens and foodservice areas
are environments where electrical appliances
may be located close to liquids, or operate
in and around damp conditions or where
restricted movement for installation and
service is evident.
Great care must be exercised at all times when
installing, operating, or servicing this appliance.
For appliances tted with a moulded plug for safety,
ensure that the mains power cable is extended
free from the refrigeration system to avoid
entanglement. If a plug or mains cable requires
replacement, contact the Williams Spares Oce on
+44(0)1553 817017.
The installation of a xed appliance and periodic
inspection should only be undertaken by a qualied,
skilled, and competent electrician; and connected
to the correct power supply suitable for the load as
stipulated by the appliance data label.
The electrical installation and connections should
meet the necessary requirements to the local
electrical wiring regulations and any electrical safety
guidelines.
All appliances rely upon a suitable connection to
earth to ensure safe operation. If in doubt, contact
a qualied, skilled, and competent electrician before
using the appliance.
We recommend:-
• Supplementary electrical protection with the
use of a residual current device (RCD)
• Fixed wiring appliances incorporate a locally
situated switch disconnector to connect to,
which is easily accessible for switching
o and safe isolation purposes. The switch
disconnector must meet the specication
requirements of IEC 60947
If the appliance has been laid on its back
or tipped, DO NOT switch on immediately.
Leave in an upright position for at least 3
hours before switching on.
Your attention is drawn to:-BS 7671 - Guidance
note 8 - 8.13 : Other locations of increased risk
It is recognised that there may be locations of
increased risk of electric shock other than those
specically addressed in Part 7 of BS 7671.
Examples of such locations could include laundries
where there are washing and drying machines
in close proximity and water is present, and
commercial kitchens with stainless steel units, where
once again, water is present.
Where because of the perception of additional risks
being likely, the installation designer decides that an
installation or location warrants further protective
measures, the options available include:
• Automatic Disconnection of Supply (ADS) by
means of a residual current device having
a residual operating current not exceeding
30mA;
• Supplementary protective equipotential
bonding; and
• Reduction of maximum fault clearance time.
The provision of RCDs and supplementary bonding
must be specied by the host organisation’s
appointed installation designer or electrical
contractor and installed by a suitably qualied
and competent electrician so as to comply with
Regulations 419.2 and 544.2. RCD’s should be
tested at least every three months to ensure they
are functioning correctly.
5
Page 6
INSTALLATION / CONTROLLER
CONNECTION TO A MAIN DRAIN
NB: if installing a sh cabinet, please ensure that it is
connected to a main drain.

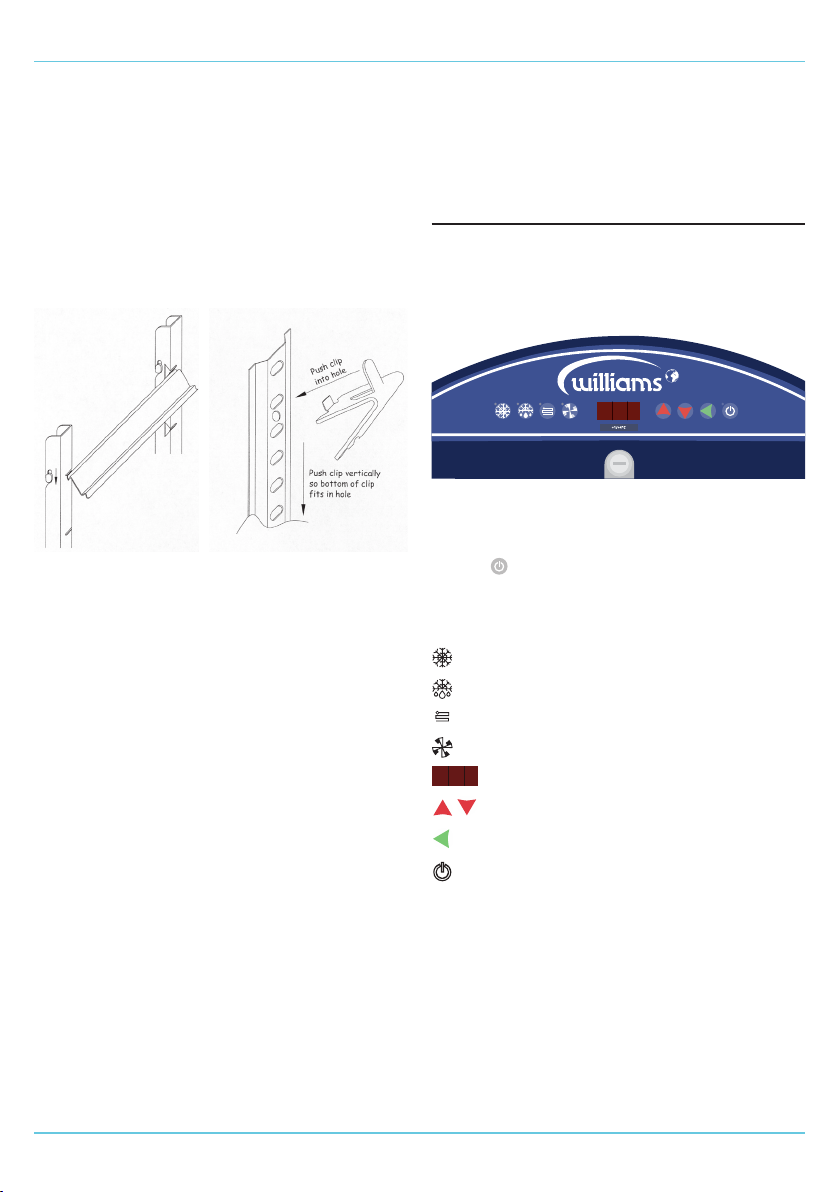

SHELF/SLIDE FITTING
When positioning slides on standard cabinets and
counters, present slide to racking by holding it in
the opposite hand to the side of the cabinet to that
which they are to be applied. Present slide at 45°
angle (gure 3). When in place, let slide drop into
position to create a horizontal ledge on which the
shelves will sit.
FIG 3. FIG 4.
Amber / Bottle Coolers are tted with pilaster and
clips (gure 4) for tting. Amber freezer models are
tted with xed shelves.
LOADING / SHELF DISTRIBUTION
Before loading, allow the appliance to reach its
normal operating temperature.
When loading the appliance, please ensure that its
load is equally distributed throughout and ensure air
can circulate around and through stored products.
Ensure all items are covered and that raw and
cooked foods are stored separately.
Care should be taken when loading the appliance.
Do not obstruct the air ducts. Take care of any parts
with possible sharp edges.
LOCKING FACILITY
On models with a locking facility, it is recommended
that the key be removed from its lock during normal
working use. This will prevent bending or breaking
of the key which could result in the lock having to be
replaced.
Removing the key will also prevent accidental
locking when the door is open. This will prevent the
door from closing properly and cause the interior
temperature to rise. If not checked in time, a loss of
food may result.
OVERNIGHT OPERATION
Onyx / Raised Pan-holder Options / Salad Units
/ Thermowells/ Well Options
We recommend that users remove all food products
and place in suitable refrigerated storage overnight.
CONTROLLER
CONTROLLER / DISPLAY
The display should be checked daily to ensure that
the correct temperature is being maintained.
CONTROLLER - TYPE A
Switching on your Appliance
Switch the appliance on or o by pressing and
holding for 3 seconds when it is in standby
mode (display shows “- - -“).
Key to Controls
Compressor running indicator
Defrost indicator
Condenser cleaning light and switch
Evaporator fan running indicator
LED display (temperature/alarm)
Up and down adjustment/defrost instigation
Enter button
Standby switch
Door Alarm (Meat / Freezer upright Models
only)
If the door has been left open for 5 minutes or
longer then the cabinet will emit an audible alarm
and ‘AL’ will ash in the display window. Press any
button to acknowledge the alarm. The alarm will
mute and ‘do’ will appear in the window. Shut the
door and the alarm will cease. However the visual
alarm continues if the door switch has a malfunction
or if there is another fault. The window will show a
dierent display - call a Service Engineer.
6
Page 7
CONTROLLER
Hi-Lo Alarm
The controller features a built in audio / visual HiLo alarm. If the temperature within the appliance
exceeds the factory set alarm temperatures for 60
minutes or more, the controller will emit an audible
alarm signal and ‘AL’ will ash until the temperature
returns to normal operation.
The audible alarm may be cancelled by pressing any
button. The alarm will go o again after 60 minutes
if the fault has not been addressed. However, ‘hi’
or ‘Lo’ will continue to show in the LED Display until
the cabinet returns to temperature or a fault is
corrected.
Condenser Cleaning Light (Integral cabinets /
counters only)
The LED next to the condenser cleaning button will
ash to indicate the condenser requires cleaning.
NB: there is no audible alarm. This has been
factory pre-set for maximum eciency.
Cancel/Reset Condenser Clean:
Press and hold for 5 seconds to cancel ashing
LED.

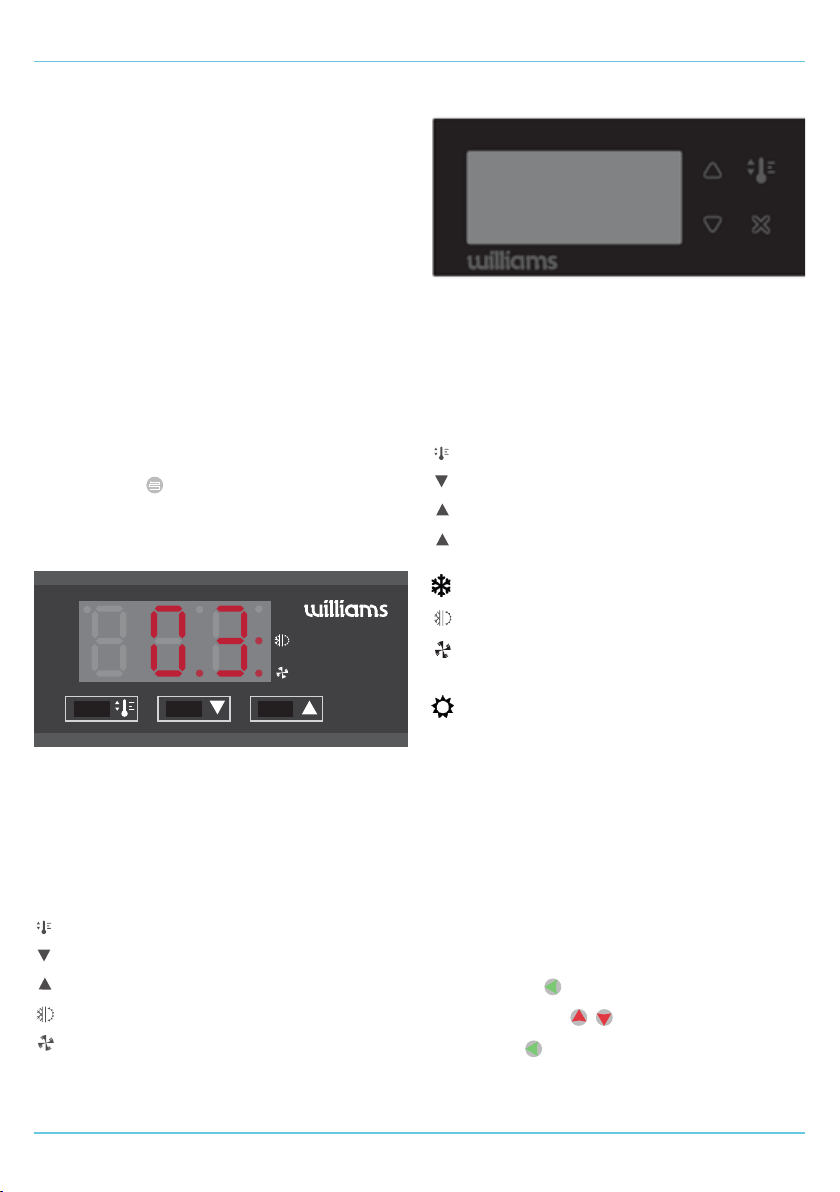

CONTROLLER - TYPE B
CONTROLLER - TYPE C
Switching on your Appliance
Your equipment is delivered ready to run. Plug into
the mains and the appliance is ready to use. ‘- -’ will
appear and the temperature displayed. Wait until the
cabinet has reached normal operating temperature
(indicated on the controller) before loading.
Key to Controls
Temperature set / T1, T2 temperatures
Decrease / Scroll Down
Increase / Scroll Up
Press & hold to turn on/o lights where
applicable
Compressor running indicator
Defrost indicator
Evaporator fan running indicator
X Standby button where applicable
Heating indicator
Switching on your Appliance
Your equipment is delivered ready to run. Plug into
the mains and the appliance is ready to use. ‘- -’ will
appear and the temperature displayed. Wait until the
cabinet has reached normal operating temperature
(indicated on the controller) before loading.
Key to Controls
Temperature set / Information menu
Decrease / Scroll Down
Increase / Scroll Up
Unit running indicator
Evaporator fan running indicator
ADJUSTING THE OPERATING
TEMPERATURE
The thermostat is built in to the controller and is
adjustable between factory set parameters.
All units are factory pre-set, however conditions
on site will vary compared with test conditions
and it maybe necessary to perform the following
adjustments in order to obtain a perfect
temperature cycle.
ADJUSTMENT OF CONTROLLER - TYPE A
To adjust operating temperature;
Press and hold
Use keys to adjust.
Then release .
If no further adjustments are made within 10
seconds, the desired operating temperature will
be stored, and the display will revert to the actual
7
Page 8
CONTROLLER
cabinet operating temperature.
Defrost Operation
When defrosting is in progress, a defrost indicator
on the controller will become illuminated and dF will
appear in the LED display.
Defrost is automatic and the appliance will go
through a cycle at pre-set intervals. The defrost
operation does raise the cabinet temperature
slightly for a short period but does not aect
product stored inside.
O-Cycle defrost is carried out on the following
products: General produce (H) and chilled food (CF).
Electric defrost is carried out on these products:
Fresh Meat (M) and Freezer (L).
Hot Gas defrost is carried out on the Aztra Freezer,
Jade, Opal, Biscuit Top Counters and PW4 Prep Well
only.
To instigate manual defrost on Type A controllers
only - press and hold button or buttons
simultaneously.
To instigate a manual defrost on Type B controllers
press and hold buttons simultaneously.
To instigate a manual defrost on Type C controllers
press and hold button.
ADJUSTMENT OF CONTROLLER - TYPE B &
C
To adjust operating temperature, press and hold
key for 3 seconds. Use keys to adjust.
Defrost Operation
The LA135 and LA400 do not have automatic
defrost. To action a manual defrost the unit should
be turned o periodically (usually overnight) to
enable the build-up of frost on the evaporator to
melt.
RELEVANT TO BOTH CONTROLLER TYPES
Probe Fail Safe Feature
The controller features a fail-safe condition. In
the event of a temperature probe failure, the
compressor will alternate at 5 minute intervals
indenitely between ‘running’ and ‘not running’ and
E1 or E2 will be displayed. Normal compressor
function will only be restored when the probe fault
has been repaired.
Should a probe failure occur please contact Williams
Refrigeration Spares Oce on +44 (0) 1553 817000
for a replacement part stating the unit’s serial
number.
INFORMATION VIEW MODE - TYPE A
A single press of will activate information view
mode. It is possible to scroll forward through the
references with and backwards with .
To view a result, scroll to desired reference, press
and hold , release to stop viewing and
automatically move to next parameter.
To exit information view mode, press and
simultaneously or wait 10 seconds and controller
will exit automatically.
It is possible to clear recorded values of HI, LO and
CR by pressing or when viewing the value of
relevant reference by holding button marked .
INFORMATION VIEW MODE - TYPE B & C
A single press of will activate information view
mode. It is possible to scroll forward through the
references with and backwards with .
To view a result, scroll to desired reference, press
and hold , release to stop viewing and
automatically move to next parameter.
To exit information view mode, and
simultaneously or wait 10 seconds and controller
will exit automatically.
It is possible to clear recorded values of HI, LO and
CR by pressing or when viewing the value
of relevant reference by holding button marked
. HI, LO and CR are not displayed on Type C
controller.
INFORMATION VIEW MODE - RELEVANT
TO ALL CONTROLLER TYPES
The following parameters are available for viewing
on both controller types:
T1 Current air probe temperature
* T2 Current evaporator probe temperature
* T3 Current auxiliary probe temperature
** Hi Highest recorded cabinet temperature
(not relevant to Type C Controller)
** Lo Lowest recorded cabinet temperature
(not relevant to Type C Controller)
cr Number of weeks since last condenser clean
(not relevant to Type C Controller)
* = Optional (will only appear in information
view mode if parameter T2 is set to YS and/
or T3 is set to NO/AU/FP).
8
Page 9
** = If parameter T3 is set to FP, HI and LO
temperatures will be logged from auxiliary
probe.
If T3 is not set to FP, HI and LO temperatures
will be logged from air probe (T1).

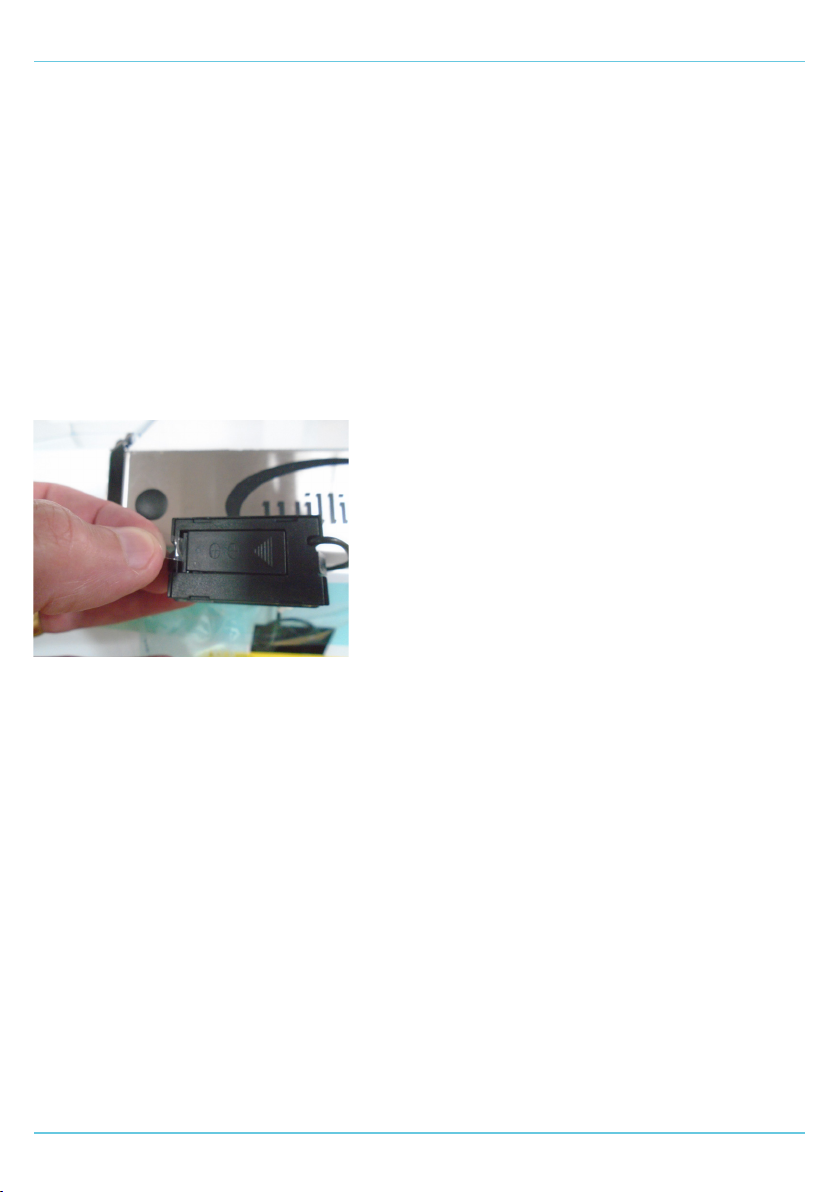

THERMOWELL TEMPERATURE DISPLAY
ACTIVATION & INSTALLATION
The digital display on this appliance has not been
activated to preserve battery life.
To activate the battery, pull the tab from the battery
compartment of the display, see gure 5. Once tab
has been removed, check that the display has been
activated and insert into the cut-out, using gentle
nger pressure to the outer edges.
FIG 5.
CONTROLLER
The digital display will now read ambient
temperature until the appliance is switched on and
it reaches its desired temperature.
THERMOSTAT ON THERMOWELLS
Temperature can be adjusted by turning the
thermostat clockwise to reduce temperature and
anti-clockwise to increase.
Thermowells - have been set to operate between
+4°C and +8°C with thermostat located on the
condenser fan plate.
9
Page 10
APPLIANCE ROUTINE MAINTENANCE / CLEANING
APPLIANCE ROUTINE MAINTENANCE / CLEANING
ROUTINE MAINTENANCE
Regular servicing of the appliance should be
undertaken to ensure correct operation, it is
functioning as intended and safe to use.
Safely disconnect the appliance from the power
supply before cleaning, servicing or undertaking
general maintenance.
This appliance must be maintained at regular
intervals. The frequency of maintenance will depend
upon your specic use and location. The maximum
service interval should be 12 months.
Service and maintenance should only be undertaken
by suitably qualied, trained and competent
engineers.
We recommend servicing in accordance with SFG20
Maintenance Schedules and as a minimum, after
4,500 hours of use, or annually, whichever comes
rst and that a maintenance contract be arranged
with an appointed service contractor. Visits may
then be made at agreed intervals to carry out
required safety tests, functional checks, adjustments
and repairs.
CLEANING
Always wear appropriate personal protective
equipment (PPE) when cleaning the appliance. Care
should be taken for parts with possible sharp edges.
Stainless steel is naturally corrosion-proof and
needs no additional protective coating to maintain
its gloss and usability for a long time.
Abrasive or corrosive cleaning agents should never
be used. These can damage surfaces and cause
corrosion. They include:
• Cleaners containing chloride;
• Bleaches containing hypochlorite (if accidentally
spilled on stainless steel, rinse o with water
immediately and thoroughly);
• Silver polish
If the cabinet exterior is looked after correctly it will
retain an “as new” nish for many years. A damp
cloth is usually sucient for wiping away light dirt,
food debris and nger marks and normal day to day
cleaning should be carried out with a soft cloth and
soapy water.
Dry thoroughly afterwards and where possible
remove all racking, shelving and drawer ttings to
aid the process.
Kitchen fats, oils and greases can also cause brown
spots or staining to appear on the stainless steel
surface.
For stainless steel with visible polishing grains, clean
the steel with the grain - not against the grain. When
water has been used for cleaning or rinsing, wipe
the surface dry to prevent water from drying and
forming watermarks, especially in areas with hard
water. Avoid this type of watermark by using distilled
water.
For tougher spots, creamy polishes like CIF original
cream can be eective. Light pressure should be
used when cleaning with the grain. The cleaning
process should be repeated in order to prevent any
dirt becoming lodged in the surface grain again.
CIF original cream cleaner can also be used
for wiping o water spots and can alleviate
discoloration. Remove this type of residue by rinsing
with clean, preferably distilled water and wipe away
any remaining streaks of polish or watermarks.
Tough grease or oil marks can also be removed
using denatured alcohol or acetone. There is no risk
of corroding stainless steel by using such solvents.
For ease of use limit the amount of solvent used.
Wash more than once using a pure solvent on a
clean soft rag until all traces of the greasy residue
are removed.
Specialist Stainless Steel Cleaners - Non food
contact surfaces only
Innosoft B570 is a special deep cleaner that is
suitable for the intensive cleaning of contaminated
stainless steel surfaces, and removes stains and
oxides in a single operation.
Innoclean B580 completely removes any residues
left after the use of Innosoft B570 and passivates
the surface which helps to prevent further
corrosion.

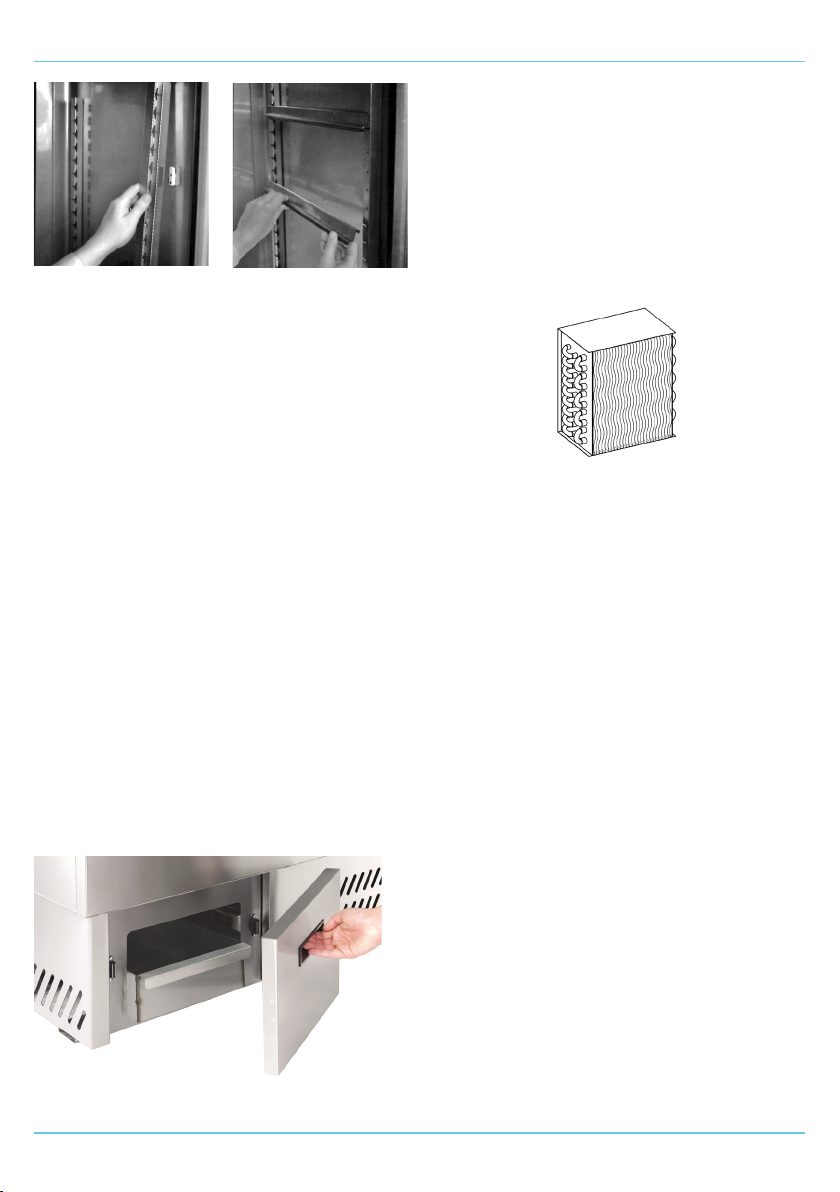

SHELF / SUPPORT/ RACKING REMOVAL
First remove the shelves, then remove the shelf
supports by grasping rmly in the centre and lifting
slightly. Turn the shelf support towards the interior
of the cabinet by pushing it in the centre as you
twist the support through 90°. The shelf support
will be released. (NB: the supports are designed
to be anti-tilt and you may therefore experience
some resistance at rst which will be overcome with
practice). When all shelves have been removed,
remove the racking by lifting up and over the nylon
retaining blocks.
10
Page 11
Onyx:
Models are tted with removable crumb trays to
catch debris when transferring ingredients from
gastronorm containers. To clean - reach behind
the worktop in front of the gastronorm containers
and pull the crumb tray up at an angle to project
through the gap. These can be washed using warm
soapy water or in a warewasher. To clean inside the
raised panholder, remove gastronorm containers
and stainless steel pan grid to access interior. Wash
interior with warm soapy water. The pan grid can
be washed in the same way and must be dried
thoroughly with a soft cloth, before replacing grid.
Bottle Well / Meat Well:
The Bottle Well / Meat Well is tted with plastic
coated divider(s). These can be removed easily by
pulling and are dishwasher safe. the dividers should
be wiped down on a regular basis with warm water
and a soft cloth. It is important for them to be dried
o thoroughly afterward. A removable front lid
provides access to interior. To remove front lid, pull
slightly forward, lift and pull. The interior can now
be cleaned and any ice residue can be removed.
Excess water will lter through the drainhole into a
removable pan that can be accessed by removing
the panel situated in the bottom left hand corner
(gure 6). The drain pan must be emptied outside
or into a suitable sink. If water appears from below
the unit, please check drain pan prior to calling and
enginner.
APPLIANCE ROUTINE MAINTENANCE / CLEANING
CONDENSER CLEANING
Regular maintenance should be carried out on a
regular basis by competent / trained personnel. The
condenser is part of the refrigeration unit and is
located in the unit compartment. Ensure the unit
is unplugged when accessing the system. Before
plugging the unit back in after cleaning, ensure all
electrical cables are safe and un-damaged.
Brush vertically with a sti brush, taking care not
to damage or push dirt / dust further in, and then
vacuum away.
FIG 7.
TOP MOUNTED CABINETS
(Garnet/Jade/Crystal)
The condensing unit and refrigeration equipment
can be accessed from above or in some cases
behind. Remove xings in the top and bottom edges
of the unit cover and pull the unit cover away from
the cabinet and retaining clips.
BOTTOM MOUNTED UNITS
(Zircon/Jade/Amber)
Pull the unit cover away from the cabinet and
retaining clips.
COUNTERS WITH CASSETTE SYSTEM
(Opal/Emerald)
Locate and remove the six screws from the unit
compartment. Three can be found to the outer edge
while the other three will be visible on the right when
opening the door next to it.
Carefully pull the cover forward and away from the
unit. Unclip the ribbon cable from the rear of the
controller fascia. NB: There are two recessed screws
that must be removed before the cassette can be
taken out of the counter.
Pull the cassette forward and it will slide out to provide
access to components. To replace the cassette,
reverse the procedure.
Take care not to damage any electrical connections
and cables during the removal and cleaning
process. Please ensure the drain pipe is relocated in
the vaporiser tray at the rear of the counter.
FIG 6.
11
Page 12
APPLIANCE ROUTINE MAINTENANCE / CLEANING
FIG 8.
COUNTERS WITH BUILT IN SYSTEM
(Jade)
Remove the front cover by removing the four screws.
These can be found on the outer edge of the cover at
the top and bottom. Carefully pull the cover forward
and away from the unit. Unclip the interconnecting
cable from the rear of the controller fascia. The
condenser can now be accessed.
FIG 9.
EVAPORATOR/DRAINLINE
Inspect periodically to ensure the drain hole is not
blocked.
BREAKDOWN
You must immediately report any damage or defect
arising with the appliance. Unsafe equipment is
dangerous. Do not use the appliance. Isolate the
power supply and contact Williams Refrigeration or
your appointed Service Provider.
In the event of a breakdown, please contact Williams
Refrigeration or your Service Provider
When calling, please advise model and serial
number. This information can be found on the data
plate inside the appliance. Please ensure that all
redundant parts are disposed of safely and legally.
CLEANING / REPLACING THE GASKET
Door gaskets should be checked and cleaned
regularly and replaced if damaged. To clean the
gasket, wipe with warm soapy water and a soft cloth,
ensuring it is completely dry before closing the door.
DO NOT use a sharp knife to clean or scrape the
gasket. Damaged gaskets do not seal correctly and
can increase the amount of electricity consumed,
seriously aecting the eciency and performance of
the appliance.
Damaged gaskets are easily
replaced. Simply pull out the
existing part and push the new
gasket into the channel (gasket
retainer) at the centre and work
along, pushing gasket into
channel.
12
Page 13
TROUBLE SHOOTING / ALARM CODES
TROUBLE SHOOTING INFORMATION AND ALARM CODES
Fault Display Possible Cause Action
Cabinet not operating No power supply Check fuse or power source
Cabinet not maintaining
temperature
Faults displayed by control E1 or E2 - Control probe failure Call engineer
Flashing condenser Clean LED Condenser requires cleaning Air-
* Type A Controller Only
CHOOSING GENUINE SPARE PARTS
Choosing the correct spare parts is vital to the ongoing running of your appliance - that’s why Williams
Refrigeration oer a comprehensive network of servicing, support and spare parts all available directly from
Williams.
Our spare parts are exactly the same quality and standard as we use to build your appliance and have been
rigorously checked, tested and inspected to ensure the very best quality and exact t.
You can contact us directly for everything from fault diagnosis to parts selection and ordering. Simply provide
the serial number of your appliance and we will do the rest to ensure you receive the right part rst time.
1. Dirty condenser Clean
2. Air circulation restricted Remove restriction
3. Defective fan motor Call engineer
4. Defector compressor relay Call engineer
5. Loose electrical connection Call engineer
hi or Lo - High/low temperature
alarm*
do - door open alarm * Shut door
cooled version *
Call engineer
Remove cover and clean condenser
ns with clean brush
For further information please call our Spares Department on 01553 817017
or email [email protected]
13
Page 14
WARRANTY
PARTS & LABOUR WARRANTY POLICY - UK ONLY
Our warranty applies to equipment manufactured
by Williams Refrigeration and equipment bearing the
Williams name plate and serial number identication
tag.
We undertake, in conjunction with the supplying
agent, distributor or representative, to repair free
of charge during our standard business hours
any such piece of equipment or part thereof used
which is found to be faulty in either materials or
workmanship subject to the further conditions
below:-
WARRANTY TERMS AND PRODUCTS
COVERED
We oer a 24 months Warranty from our original
date of sale with the following Williams equipment:
1. Garnet / Zircon / Jade / Amber (stainless) / Mobile
Heated/ Mobile Refrigerated.
2. Reach-in Blast Chillers / Reach-in Blast Chiller
Freezers / Blast Chiller WTBC70.
3. Opal / Emerald / Onyx / Aztra / Salad Counters /
UBC / Chef’s Drawers / Fry Station Drawer.
4. Crystal Bakery Cabinets.
5. Meat Ageing Refrigerator.
6. Medi+ Cabinets.
We oer a 12 months Warranty from our original
date of sale for all other Williams equipment
including:
1. All Modular Products (including coldrooms).
2. Remote Systems.
3. Bottle Coolers / Glass Froster.
4. GEM Multidecks (including heated) and
merchandiser cases.
5. GEM product range.
6. Bottle Well / Meat Freezer Well.
7. Thermowell.
8. Non standard and other products.
9. Front of House display cases.
10. White Goods.
WARRANTY TERMS
Our warranty is oered where the equipment has
been installed correctly and has not been subject to
misuse or abuse and is functioning correctly.
The equipment was purchased by the authorised
supplying distributor direct from Williams
Refrigeration and not through a wholesaler or other
supplier whose warranty terms may be dierent.
The Warranty Policy shall be non-transferable.
Replacement of defective equipment can only be
made with the approval of Williams Refrigeration.
Any repair under warranty will only be carried out
with the product in its position of operation or in a
suitable location on the customer’s premises. If the
product has to be removed for security or any other
reason, this will be subject to additional charge (may
include hydrocarbon charged equipment).
Warranty work will be covered by Williams
Refrigeration or by one of its appointed service
agents between the hours of 8.00am and 5.00pm
Monday to Friday. Any works undertaken outside of
these hours are chargeable.
RESPONSE TIME
We aim to respond to all warranty calls within 3
working days and will endeavour to respond next
working day where practical.
CLAIMS PROCEDURE
If a customer wishes to make a claim under the
terms of this warranty, the following procedure
should be observed:
1. Contact the supplying agent, representative or
distributor.
2. Quote the equipment model, serial number and
date of installation. The serial number is located
on the product identication plate inside the
cabinet, modular product door frame or similar
location. It is recommended that operators
should also record the serial number on the
operating instruction booklet supplied with the
product.
3. Contents risk and insurance responsibility
remains at all times with the customer.
EXCEPTIONS TO STANDARD WARRANTIES
1. The Standard warranty applies to equipment
located in Mainland GB only and excludes
locations subject to restricted or secure
access,oshore and marine applications.
14
Page 15
WARRANTY
Additional time and travel charges may be
applied to the following locations – Isle of Wight,
Channel Islands, Isle of Man, Northern Ireland
and Scottish Isles.
2. Any fault that is not reported within 10 working
days of being discovered.
3. Service calls to equipment under warranty,
or service calls made under chargeable
arrangements will be carried out in accordance
with standard conditions of sale. Unless
otherwise specied, a maximum of 15 minutes
of administrative time, not spent directly carrying
out servicing work, is provided for within the
supply. Any requirement for sta attending
the call to spend greater time than 15 minutes
due to administrative requirements, such as on
waiting time or security clearance, or health and
safety risk assessments, will be chargeable at our
prevailing rate.
We reserve the right to apply Time Travel & Call
out charges if no fault is found with the product
or access is either restricted or denied to our
attending engineer.
4. No claim shall exceed the original selling price.
5. Claims for Food and / or contents stored in the
equipment supplied (including pharmaceutical
or other items) and any consequential loss how
so ever arising are excluded under our warranty
terms.
6. Components including gaskets, doors, drawers,
handles, shelves, tray slides, all internal xings,
plug and lead, connectors, the outer shell,
castors / legs, food probes, refrigerant and
blockages as well as consumable items such as
(but not limited to) batteries, fuses, light bulbs,
printer cartridges, keys, glass and paper roll.
7. Equipment manufactured to the customers’ own
design, Williams Refrigeration will not be liable
for any defect, non performance or improper
operation of the equipment arising from any
drawing design or specication supplied by the
customer, their representative or agent.
8. Second hand equipment.
9. The customer uses or installs the equipment in
such a way that it exceeds its design envelope or
operates the equipment at control parameters
other than those provided as standard factory
settings.
10. The customer fails to observe commonly
accepted operating practices.
11. The customer has not properly cleaned or
maintained the equipment or carried out
necessary servicing, including cleaning of the
condenser, in accordance with instructions,
literature or directions issued by Williams
Refrigeration. (Operating Instructions are
supplied with all equipment but also available at
www.williams-refrigeration.co.uk).
12. Equipment fails through improper installation by
others, misuse, abuse, accidental damage, power
loss or uctuations, re, ooding or acts of god.
13. Any third party item(s) connected to the
equipment that may aect performance.
14. The customer permits persons other than
those authorised by Williams Refrigeration to
perform or aect repairs or adjustments to the
equipment.
15. If authorised representatives of Williams
Refrigeration are denied full and free rights of
access to the equipment for inspection during
normal business hours as previously stated.
16. If repairs are made using spare parts
or replacement items not supplied or
preauthorised by Williams Refrigeration.
17. The initial equipment supply date shall apply for
warranty validity for the subsequent supply of
replacement of parts or products.
EXTENDED WARRANTY
Extended Warranty oers the opportunity to protect
your equipment (subject to conditions outlined) for
an additional period of up to 5 years inclusive of
original warranty periods.
Should you require Extended Warranty, state on
your order or notify the Dealer or Williams Sales
Manager at the time of purchase and they will be
able to arrange it for you.
To ensure your Extended Warranty Policy remains
valid, at least one maintenance / service visit per
year must take place in years 2, 3, 4 and 5.
For further information or clarication please
call 01553 817000 or email to
[email protected] or write to
Williams Refrigeration, Bryggen Road, King’s
Lynn, Norfolk, PE30 2HZ
15
Page 16
Design Excellence : Cool Technology
Williams Refrigeration
Bryggen Road
North Lynn Industrial Estate
King’s Lynn
Norfolk PE30 2HZ
Sales Tel: +44 1553 817000
Sales Fax: +44 1553 817111
Spares Tel: +44 1553 817017
Spares Fax: +44 1553 817020
[email protected]
www.williams-refrigeration.co.uk
Williams Refrigeration Australia
38-42 Gaine Road
Dandenong South, Victoria 3175
Australia
Tel: +61 3 8787 4747
Fax: +61 3 8787 4787
[email protected]
www.williams-refrigeration.com.au
Williams Silver Frost
2 rue Conventionnel Huguet
23000 GUERET
France
Tel: +33 5 55 52 27 88
Fax: +33 5 55 62 10 61
[email protected]
www.williams-refrigeration.fr
Williams Refrigeration Hong Kong
Unit C, 12/F., Roxy Industrial
Centre,
58 - 66 Tai Lin Pai Road, Kwai
Chung,
New Territories, Hong Kong
Tel: +852 2407 5422
Fax: +852 2407 3767
[email protected]
www.williams-refrigeration.com.hk
Williams Dubai
P.O. Box 333215
607 Building 1B
Dubai Design District
Dubai
United Arab Emirates
Tel: +971 4 510 8203
www.williams-refrigeration.com
Williams Refrigeration is a trading name of AFE Group Limited.
Registered in England & Wales under Registered Number
3872673. Registered Office Address - Bryggen Road,
North Lynn Industrial Estate, King’s Lynn, Norfolk, PE30 2HZ
0252_OP_HDC Hydrocarbon O&M (E) | Rev 27 | January 2025
16
Loading...
