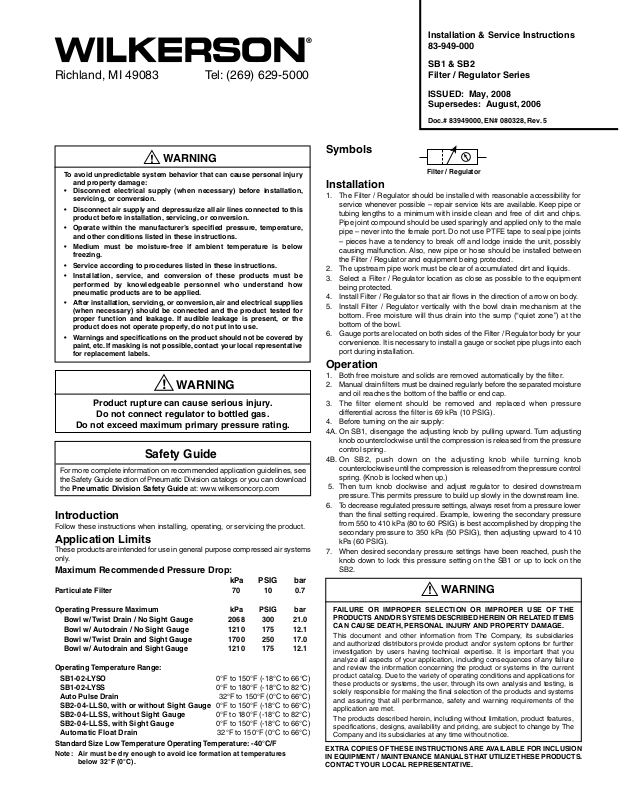

Wilkerson SB2 User Manual
Richland, MI 49083 Tel: (269) 629-5000
!
!
!
Installation & Service Instructions
83-949-000
SB1 & SB2
Filter / Regulator Series
ISSUED: May, 2008
Supersedes:
Doc.# 83949000, EN# 080328, Rev. 5
August, 2006
WARNING
To avoid unpredictable system behavior that can cause personal injury
and property damage:
• Disconnect electrical supply (when necessary) before installation,
servicing, or conversion.
• Disconnectairsupplyanddepressurizeallairlinesconnectedtothis
product before installation, servicing, or conversion.
• Operatewithin the manufacturer’sspecied pressure, temperature,
and other conditions listed in these instructions.
• Medium must be moisture-free if ambient temperature is below
freezing.
• Serviceaccordingtoprocedureslistedintheseinstructions.
• Installation, service, and conversion of these products must be
performe d by knowledgeable personnel who un derstand how
pneumatic products are to be applied.
• Afterinstallation,servicing,orconversion,airandelectricalsupplies
(when necessary) should be connected and the product tested for
proper function and leakage. If audible leakage is present, or the
product does not operate properly, do not put into use.
• Warningsandspecicationsontheproductshouldnotbecoveredby
paint, etc. If masking is not possible, contact your local representative
for replacement labels.
WARNING
Product rupture can cause serious injury.
Do not connect regulator to bottled gas.
Do not exceed maximum primary pressure rating.
Safety Guide
For more complete information on recommended application guidelines, see
the Safety Guide section of Pneumatic Division catalogs or you can download
the Pneumatic Division Safety Guide at: www.wilkersoncorp.com
Introduction
Follow these instructions when installing, operating, or servicing the product.
Application Limits
These products are intended for use in general purpose compressed air systems
only.
Maximum Recommended Pressure Drop:
kPa PSIG bar
Particulate Filter 70 10 0.7
Operating Pressure Maximum kPa PSIG bar
Bowl w/ Twist Drain / No Sight Gauge 2068 300 21.0
Bowl w/ Autodrain / No Sight Gauge 1210 175 12.1
Bowl w/ Twist Drain and Sight Gauge 1700 250 17.0
Bowl w/ Autodrain and Sight Gauge 1210 175 12.1
Operating Temperature Range:
SB1-02-LYSO 0°F to 150°F (-18°C to 66°C)
SB1-02-LYSS 0°F to 180°F (-18°C to 82°C)
Auto Pulse Drain 32°F to 150°F (0°C to 66°C)
SB2-04- LLS0, with or without Sight Gauge 0°F to 150°F (-18°C to 66°C)
SB2-04- LLSS, without Sight Gauge 0°F to 180°F (-18°C to 82°C)
SB2-04- LLSS, with Sight Gauge 0°F to 150°F (-18°C to 66°C)
Automatic Float Drain 32°F to 150°F (0°C to 66°C)
Standard Size Low Temperature Operating Temperature: -40°C/F
Note: Air must be dry enough to avoid ice formation at temperatures
below 32°F (0°C).
Symbols
Filter / Regulator
Installation
1. The Filter / Regulator should be installed with reasonable accessibility for
service whenever possible – repair service kits are available. Keep pipe or
tubing lengths to a minimum with inside clean and free of dirt and chips.
Pipe joint compound should be used sparingly and applied only to the male
pipe – never into the female port. Do not use PTFE tape to seal pipe joints
– pieces have a tendency to break off and lodge inside the unit, possibly
causing malfunction. Also, new pipe or hose should be installed between
the Filter / Regulator and equipment being protected.
2. The upstream pipe work must be clear of accumulated dirt and liquids.
3. Select a Filter / Regulator location as close as possible to the equipment
being protected.
4. Install Filter / Regulator so that air flows in the direction of arrow on body.
5. Install Filter / Regulator vertically with the bowl drain mechanism at the
bottom. Free moisture will thus drain into the sump (“quiet zone”) at the
bottom of the bowl.
6. Gauge ports are located on both sides of the Filter / Regulator body for your
convenience. It is necessary to install a gauge or socket pipe plugs into each
port during installation.
Operation
1. Both free moisture and solids are removed automatically by the filter.
2. Manual drain filters must be drained regularly before the separated moisture
and oil reaches the bottom of the baffle or end cap.
3. The filter element should be removed and replaced when pressure
differential across the filter is 69 kPa (10 PSIG).
4. Before turning on the air supply:
4A. On SB1, disengage the adjusting knob by pulling upward. Turn adjusting
knob counterclockwise until the compression is released from the pressure
control spring.
4B. On SB2, push down on the adjusting knob while turning knob
counterclockwise until the compression is released from the pressure control
spring. (Knob is locked when up.)
5. Then turn knob clockwise and adjust regulator to desired downstream
pressure. This permits pressure to build up slowly in the downstream line.
6. To decrease regulated pressure settings, always reset from a pressure lower
than the final setting required. Example, lowering the secondary pressure
from 550 to 410 kPa (80 to 60 PSIG) is best accomplished by dropping the
secondary pressure to 350 kPa (50 PSIG), then adjusting upward to 410
kPa (60 PSIG).
7. When desired secondary pressure settings have been reached, push the
knob down to lock this pressure setting on the SB1 or up to lock on the
SB2.
WARNING
FAILURE OR IMPROPER SELECTION OR IMPROPER USE OF THE
PRODUCTS AND/OR SYSTEMS DESCRIBED HEREIN OR RELATED ITEMS
CAN CAUSE DEATH, PERSONAL INJURY AND PROPERTY DAMAGE.
This document and other information from The Company, its subsidiaries
and authorized distributors provide product and/or system options for fur ther
investigation by users having technical expertise. It is important that you
analyze all aspects of your application, including consequences of any failure
and review the information concerning the product or systems in the current
product catalog. Due to the variety of operating conditions and applications for
these products or systems, the user, through its own analysis and testing, is
solely responsible for making the final selection of the products and systems
and assuring that all performance, safety and warning requirements of the
application are met.
The products described herein, including without limitation, product features,
specifications, designs, availability and pricing, are subject to change by The
Company and its subsidiaries at any time without notice.
EXTRA COPIES OF THESE INSTRUCTIONS ARE AVAILABLE FOR INCLUSION
IN EQUIPMENT / MAINTENANCE MANUALS THAT UTILIZE THESE PRODUCTS.
CONTACT YOUR LOCAL REPRESENTATIVE.
SB1 & SB2 Filter / Regulator Series 83-949-000
!
!
Spring Cage (Bonnet)
Torque: 5.0 to 6.2 Nm
(45 to 55 in. lb.)
Adjusting Screw Assembly
Spring Cage (Bonnet) Torque:
13.6 to 15.8 Nm (120 to 140 in. lb.)
T-Handle Assembly
Adjusting Screw Assembly
Control Spring
Auto Drain
(Finger Tight)
Auto Pulse Drain
(Finger Tight)
O-Rings
O-Rings
Seal Cap
Finger Tight
Cap Seal
Screw
To rque .56 to 1.13 Nm
(5 to 10 in. lb.)
Screw
To rque .56 to 1.13 N
m
(5 to 10 in. lb.)
Sight Glass
Knob
Knob
Control Spring
Inner Valve (Poppet) Assembly
Diaphragm Assembly (Includes
Diaphragm Plate & Diaphragm Button
Diaphragm Assembly (Includes
Diaphragm Plate & Diaphragm Button
Inner Valve (Poppet) Assembly
Bowl Seal
Spring, Return
Body
Baffle / Filter Holder
(Hand Tighten)
Element
Deflector
O-Ring
Manual Drain
(Finger Tighten)
Bowl
Spring, Return
Body
Baffle / Filter Holder
(Hand Tighten)
Element
Deflector
O-Ring
Manual Drain
(Finger Tighten)
Bowl
Bowl Seal
O-Ring, Vent Seal
Service
Caution: Disconnect or shut off air supply and exhaust the primary
and secondary pressures before servicing unit. Turning the adjusting
knob counterclockwise does not vent downstream pressure on nonrelieving regulators. Downstream pressure must be vented before
servicing regulator.
Caution: Grease packets are supplied with kits for lubrication of
seals. Use only mineral based grease or oils. Do not use synthetic
oils such as esters. Do not use silicones.
Note: After servicing unit, turn on air supply and adjust regulator to the
desired downstream pressure. Check unit for leaks. If leakage occurs,
do not operate - conduct repairs and retest.
7. Install poppet return spring, poppet assembly, and filter holder. IMPORTANT:
The Filter / Regulator will not operate properly if the defector is not installed
properly. The deflector must be installed between the filter stem and filter
body.
8. Install filter element and firmly tighten baffle onto the filter stem.
9. Install diaphragm assembly into body assembly. Assemble bonnet assembly
onto body and tighten per Figure 1.
10. Install bowl into body and tighten, hand tight, plus 1/4 turn.
Service Kits Available
Servicing Filter Element - (Refer to Figure 1)
1. Unscrew and remove bowl.
2. Unscrew the filter holder from body and then remove element.
3. Clean all internal parts and bowl before reassembling.
4. Install new element. IMPORTANT: The Filter / Regulator will not operate
properly if the deflector is not installed properly. The deflector must be
installed between the filter stem and the filter body.
5. Attach filter holder and finger tighten firmly.
6. Replace bowl seal. Lightly lubricate new seal to assist with retaining it in
position.
7. Install bowl into body and tighten; hand tight, plus 1/4 turn.
Servicing Regulator - (Refer to Figure 1)
1A. On SB1, disengage the adjusting knob by pulling upward. Turn adjusting
knob counterclockwise until the compression is released from the pressure
control spring.
1B. On SB2, push down on the adjusting knob while turning knob
counterclockwise until the compression is released from the pressure control
spring. (Knob is locked when up.)
2. Remove the bonnet and bowl assemblies by unscrewing the bonnet and
bowl from the body.
3. Remove diaphragm assembly from bonnet assembly.
4. Remove filter stem, filter element, poppet assembly, poppet return spring.
5. Clean and carefully inspect parts for wear or damage If replacement is
necessary, use parts from service kits. Clean bowl.
6. Lubricate o-rings with grease found in service kits.
Description SB1 SB2
Automatic Drain — SRP-96-027
Auto Pulse Drain RKP05482-SS —
Bonnet Assembly - Knob SRP-96-017 SRP-96-018
Bonnet Assembly Stainless Steel
CKR354YSS CKR11YSS
Element (5 Micron) SRP-96-001 SRP-96-003
Element (20 Micron) SRP-96-002 —
Element (40 Micron) — SRP-96-004
Gauge SRP-96-021 SRP-96-022
Manual Drain SAP05481 SAP05481
Panel Mount Nut SRP-96-019 SRP-96-020
Spring, 0-25 PSIG SPR-375-2-SS —
Spring, 0-60 PSIG SPR-376-1-SS SPR-388-1-SS
Spring, 0-125 PSIG SPR-377-1-SS SPR-389-1-SS
Spring, 0-250 PSIG — SPR-390-1-SS
Regulator Repair Kit
(Relieving)
Regulator Repair Kit
(Non-Relieving)
SRP-96-015 SRP-96-011
SRP-96-016 SRP-96-012
Sight Gauge Kit — SRP-96-026
Lightly grease with provided lubricant.
Inspect for nicks, scratches, and surface imperfections.
If present, reduced service life is probable and future replacement
should be planned.
Clean with lint-free cloth.
SB1 Filter / Regulator
with Plastic Knob
SB1 Filter / Regulator with
Stainless Bonnet
Figure 1
SB2 Filter / Regulator
with Plastic Knob
SB2 Filter / Regulator with
T-Handle
