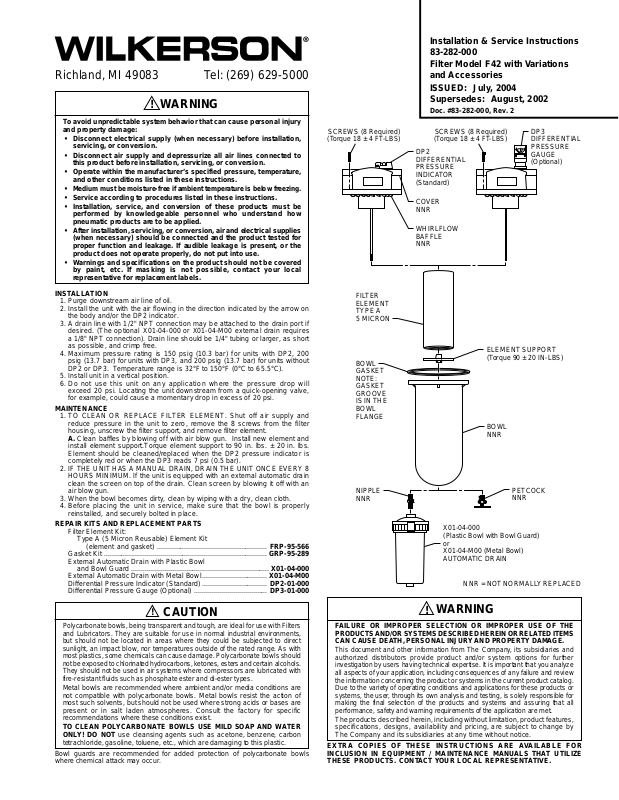

Wilkerson F42 User Manual

L

D

Richland, MI 49083 Tel: [phone]

WARNING

!

To avoid unpredictable system behavior that can cause personal injury
and property damage:

• Disconnect electrical supply (when necessary) before installation,
servicing, or conversion.

• Disconnect air supply and depressurize all air lines connected to
this product before installation, servicing, or conversion.

• Operate within the manufacturer’s specified pressure, temperature,
and other conditions listed in these instructions.

Medium must be moisture-free if ambient temperature is below freezing.

•

• Service according to procedures listed in these instructions.

• Installation, service, and conversion of these products must be
performed by knowledgeable personnel who understand how
pneumatic products are to be applied.

• After installation, servicing, or conversion, air and electrical supplies
(when necessary) should be connected and the product tested for
proper function and leakage. If audible leakage is present, or the
product does not operate properly, do not put into use.

• Warnings and specifications on the product should not be covered
by paint, etc. If masking is not possible, contact your local
representative for replacement labels.

INSTALLATION

1. Purge downstream air line of oil.

2. Install the unit with the air flowing in the direction indicated by the arrow on
the body and/or the DP2 indicator.

3. A drain line with 1/2" NPT connection may be attached to the drain port if
desired. (The optional X01-04-000 or X01-04-M00 external drain requires
a 1/8" NPT connection). Drain line should be 1/4" tubing or larger, as short
as possible, and crimp free.

4. Maximum pressure rating is 150 psig (10.3 bar) for units with DP2, 200
psig (13.7 bar) for units with DP3, and 200 psig (13.7 bar) for units without
DP2 or DP3. Temperature range is 32°F to 150°F (0°C to 65.5°C).

5. Install unit in a vertical position.

6. Do not use this unit on any application where the pressure drop will
exceed 20 psi. Locating the unit downstream from a quick-opening valve,
for example, could cause a momentary drop in excess of 20 psi.

MAINTENANCE

1. TO CLEAN OR REPLACE FILTER ELEMENT. Shut off air supply and
reduce pressure in the unit to zero, remove the 8 screws from the filter
housing, unscrew the filter support, and remove filter element.
A. Clean baffles by blowing off with air blow gun. Install new element and
install element support.Torque element support to 90 in. lbs. ± 20 in. lbs.
Element should be cleaned/replaced when the DP2 pressure indicator is
completely red or when the DP3 reads 7 psi (0.5 bar).

2. IF THE UNIT HAS A MANUAL DRAIN, DRAIN THE UNIT ONCE EVERY 8
HOURS MINIMUM. If the unit is equipped with an external automatic drain
clean the screen on top of the drain. Clean screen by blowing it off with an
air blow gun.

3. When the bowl becomes dirty, clean by wiping with a dry, clean cloth.

4. Before placing the unit in service, make sure that the bowl is properly
reinstalled, and securely bolted in place.

REPAIR KITS AND REPLACEMENT PARTS

Filter Element Kit:

Type A (5 Micron Reusable) Element Kit

(element and gasket) ........................................................ FRP-95-566

Gasket Kit ...................................................................................GRP-95-289

External Automatic Drain with Plastic Bowl

and Bowl Guard ...................................................................... X01-04-000

External Automatic Drain with Metal Bowl................................. X01-04-M00

Differential Pressure Indicator (Standard) ................................. DP2-01-000

Differential Pressure Gauge (Optional) ..................................... DP3-01-000

SCREWS (8 Required)
(Torque 18 ± 4 FT-LBS)

FILTER
ELEMENT
TYPE A
5 MICRON

BOWL
GASKET
NOTE:
GASKET
GROOVE
IS IN THE
BOWL
FLANGE

NIPPLE
NNR

Installation & Service Instructions
83-282-000

Filter Model F42 with Variations
and Accessories

ISSUED: July, 2004
Supersedes: August, 2002

Doc. #83-282-000, Rev. 2

SCREWS (8 Required)
(Torque 18 ± 4 FT-LBS)

DP2
DIFFERENTIAL
PRESSURE
INDICATOR
(Standard)

COVER
NNR

WHIRLFLOW
BAFFLE
NNR

X01-04-000
(Plastic Bowl with Bowl Guard)
or
X01-04-M00 (Metal Bowl)
AUTOMATIC DRAIN

NNR = NOT NORMALLY REPLACE

ELEMENT SUPPORT
(Torque 90 ± 20 IN-LBS)

BOWL
NNR

DP3
DIFFERENTIA

kPa x 100

0.35

bar

0.7

(5,0)

(psi)

(10)

PRESSURE

.P

GAUGE
(Optional)

PETCOCK
NNR

!

CAUTION

Polycarbonate bowls, being transparent and tough, are ideal for use with Filters
and Lubricators. They are suitable for use in normal industrial environments,
but should not be located in areas where they could be subjected to direct
sunlight, an impact blow, nor temperatures outside of the rated range. As with
most plastics, some chemicals can cause damage. Polycarbonate bowls should
not be exposed to chlorinated hydrocarbons, ketones, esters and certain alcohols.
They should not be used in air systems where compressors are lubricated with
fire-resistant fluids such as phosphate ester and di-ester types.

Metal bowls are recommended where ambient and/or media conditions are
not compatible with polycarbonate bowls. Metal bowls resist the action of
most such solvents, but should not be used where strong acids or bases are
present or in salt laden atmospheres. Consult the factory for specific
recommendations where these conditions exist.

TO CLEAN POLYCARBONATE BOWLS USE MILD SOAP AND WATER
ONLY! DO NOT use cleansing agents such as acetone, benzene, carbon

tetrachloride, gasoline, toluene, etc., which are damaging to this plastic.

Bowl guards are recommended for added protection of polycarbonate bowls
where chemical attack may occur.

WARNING

!

FAILURE OR IMPROPER SELECTION OR IMPROPER USE OF THE
PRODUCTS AND/OR SYSTEMS DESCRIBED HEREIN OR RELATED ITEMS
CAN CAUSE DEATH, PERSONAL INJURY AND PROPERTY DAMAGE.

This document and other information from The Company, its subsidiaries and
authorized distributors provide product and/or system options for further
investigation by users having technical expertise. It is important that you analyze
all aspects of your application, including consequences of any failure and review
the information concerning the product or systems in the current product catalog.
Due to the variety of operating conditions and applications for these products or
systems, the user, through its own analysis and testing, is solely responsible for
making the final selection of the products and systems and assuring that all
performance, safety and warning requirements of the application are met.

The products described herein, including without limitation, product features,
specifications, designs, availability and pricing, are subject to change by
The Company and its subsidiaries at any time without notice.

EXTRA COPIES OF THESE INSTRUCTIONS ARE AVAILABLE FOR
INCLUSION IN EQUIPMENT / MAINTENANCE MANUALS THAT UTILIZE
THESE PRODUCTS. CONTACT YOUR LOCAL REPRESENTATIVE.
