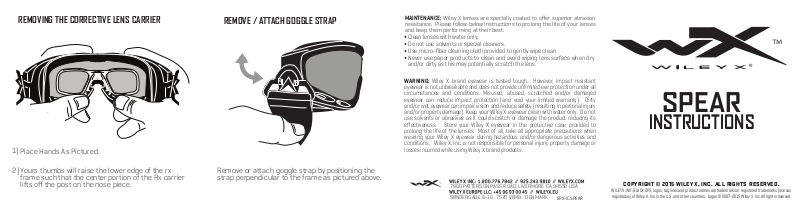

WileyX SPEAR SP293B User manual

REMOVING THE CORRECTIVE LENS CARRIER

1)

Place Hands As Pictured.

REMOVE / ATTACH GOGGLE STRAP

MAINTENANCE:

resistance. Please follow below instructions to prolong the life of your lenses
and keep them performing at their best:

Clean lenses with water only.
Do not use solvents or special cleaners.
Use micro-fiber cleaning cloth provided to gently wipe clean.
Never use paper products to clean and avoid wiping lens surface when dry

and/or dirty as this may potentially scratch the lens.

WARNING:

eyewear is not unbreakable and does not provide unlimited eye protection under all
circumstances and conditions. Misused, abused, scratched and/or damaged
eyewear can reduce impact protection (and void your limited warranty). Dirty
and/or wet eyewear can impair vision and reduce safety (resulting in personal injury
and/or property damage). Keep your Wiley X eyewear clean with water only. Do not
use solvents or abrasives as it could scratch or damage the product reducing its
effectiveness. Store your Wiley X eyewear in the protective case provided to
prolong the life of the lenses. Most of all, take all appropriate precautions when
wearing your Wiley X eyewear during hazardous and/or dangerous activities and
conditions. Wiley X, Inc. is not responsible for personal injury, property damage or
losses incurred while using Wiley X brand products.

Wiley X lenses are specially coated to offer superior abrasion

Wiley X brand eyewear is tested tough. However, impact resistant

SPEAR

INSTRUCTIONS

2)

Yours thumbs will raise the lower edge of the rx
frame such that the center portion of the Rx carrier
lifts off the post on the nose piece.

Remove or attach goggle strap by positioning the
strap perpendicular to the frame as pictured above.

7800 PATTERSON PASS ROAD, LIVERMORE CA 94550 USA

SØNDERGADE 8-10 7570 VEMB DENMARK

ERX-ICSPEAR

COPYRIGHT © 2015 WILEY X, INC. ALL RIGHTS RESERVED.

WILEY X, WX, BLACK OPS, logos, tag lines and product names are trademarks or registered trademarks (marcas
registradas) of Wiley X, Inc. in the U.S. and other countries. Logos © 2007-2015 Wiley X, Inc. All rights reserved.

INSERTING GOGGLE LENS

To position the lens into the frame, first seat the
lens into the frame at the nose piece, then seat the
outer edges. Finish by seating the top of the lens
fully into the goggle frame.

REMOVING GOGGLE LENS

Separate the frame from the top of the lens. Grab
exposed lens and pull the lens from the goggle frame.

GOGGLE GASKET

The included removable / replaceable comfort gasket
is secured by four hooks, 3 of which are indicated in
the graphic above. Utilization of the gasket is
especially recommended for individuals requiring
corrective (Rx) lenses.

ATTACHING THE RX ADAPTOR

The Rx Adaptor post is
pressed into the goggle
frame as shown.

INSTALLING THE RX CARRIER TO THE RX ADAPTOR

Press the Rx carrier
center slot onto the
Rx Adaptor post.
