Wileyfox Swift 2+ User Manual

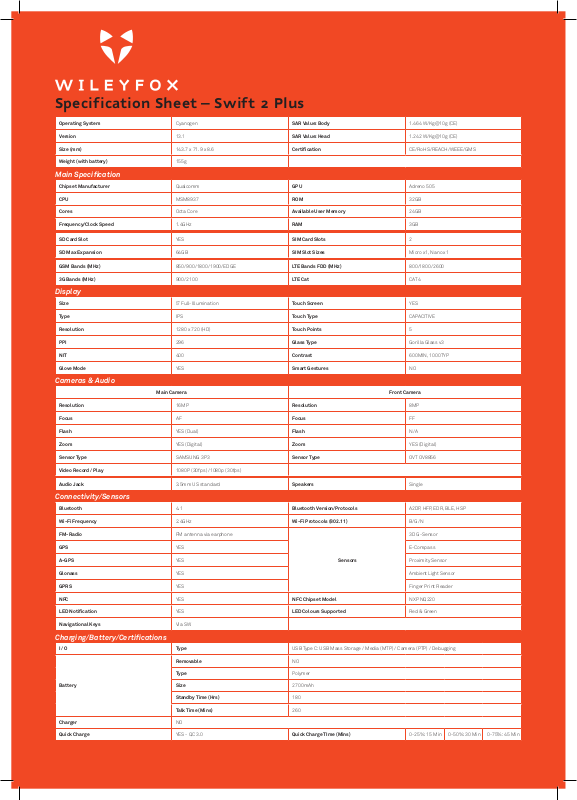

Specification Sheet – Swift 2 Plus

Operating System Cyanogen SAR Value: Body 1.464 W/Kg@10g (CE)

Version

Size (mm) 143.7 x 71.9 x 8.6 Certication CE/RoHS/REACH/WEEE/GMS

Weight (with battery) 155g

13.1

Main Specication

Chipset Manufacturer Qualcomm GPU Adreno 505

CPU MSM8937 ROM 32GB

Cores Octa Core Available User Memory 24GB

Frequency/Clock Speed 1.4GHz RAM 3GB

SD Card Slot YES SIM Card Slots 2

SD Max Expansion 64GB SIM Slot Sizes Micro x1, Nano x1

GSM Bands (MHz) 850/900 /1800/1900/EDGE LTE Bands FDD (MHz) 800/1800/2600

3G Bands (MHz) 900/2100 LTE Cat CAT 4

Display

Size 5” Full-Illumination Touch Screen YES

Type IPS Touch Type CAPACITIVE

Resolution 1280 x 720 (HD) Touch Points 5

PPI 296 Glass Type Gorilla Glass v3

NIT 400 Contrast 600MIN, 1000TYP

Glove Mode YES Smart Gestures NO

Cameras & Audio

Main Camera Front Camera

Resolution 16MP Resolution 8MP

Focus AF Focus FF

Flash YES (Dual) Flash N/A

Zoom YES (Digital) Zoom YES (Digital)

Sensor Type SAMSUNG 3P3 Sensor Type OVT OV8856

Video Record / Play 1080P (30fps) /1080p (30fps)

Audio Jack 3.5mm US standard Speakers Single

Connectivity/Sensors

Bluetooth 4.1 Bluetooth Version/Protocols A2DP, HFP, EDR, BLE, HSP

Wi-Fi Frequency 2.4GHz Wi-Fi Protocols (802.11) B/G/N

FM-Radio FM antenna via earphone

GPS YES E-Compass

A-GPS YES Proximity Sensor

Glonass YES

GPRS YES Finger Print Reader

NFC YES NFC Chipset Model NXP NQ220

LED Notication YES LED Colours Supported Red & Green

Navigational Keys Via SW

Charging/Battery/Certications

I / O Type USB Type C: USB Mass Storage / Media (MTP) / Camera (PTP) / Debugging

Removable NO

Type Polymer

Battery

Charger NO

Quick Charge YES - QC 3.0 Quick Charge TIme (Mins) 0-25%: 15 Min 0-50%: 30 Min 0-75%: 45 Min

Size 2700mAh

Standby Time (Hrs) 180

Talk Time (Mins) 260

SAR Value: Head 1.242 W/Kg@10g (CE)

3D G-Sensor

Sensors

Ambient Light Sensor
