7
-

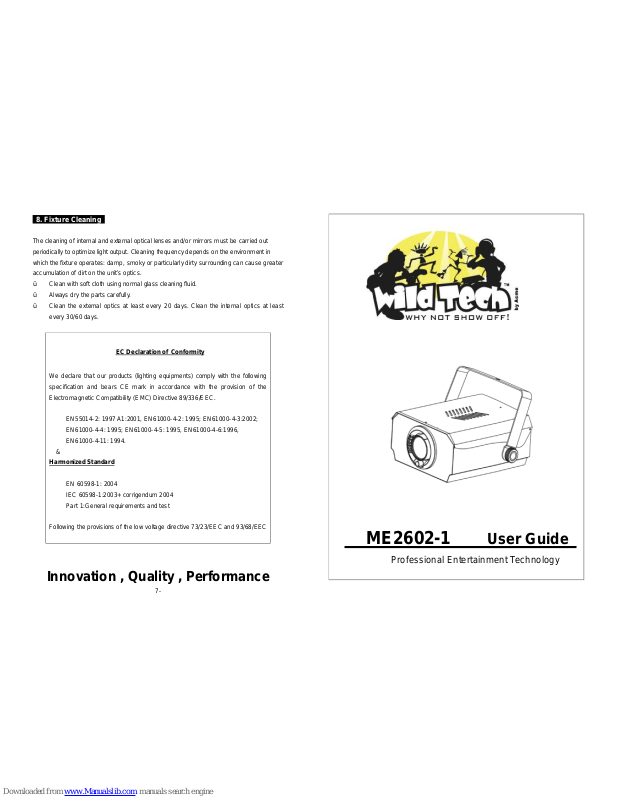

8. Fixture Cleaning
The cleaning of internal and external optical lenses and/or mirrors must be carried out
periodically to optimize light output. Cleaning frequency depends on the environment in
which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater
accumulation of dirt on the unit’s optics.
Ÿ Clean with soft cloth using normal glass cleaning fluid.
Ÿ Always dry the parts carefully.
Ÿ Clean the external optics at least every 20 days. Clean the internal optics at least
every 30/60 days.
EC Declaration of Conformity
We declare that our products (lighting equipments) comply with the following
specification and bears CE mark in accordance with the provision of the
Electromagnetic Compatibility (EMC) Directive 89/336/EEC.
EN55014-2: 1997 A1:2001, EN61000-4-2: 1995; EN61000-4-3:2002;
EN61000-4-4: 1995; EN61000-4-5: 1995, EN61000-4-6:1996,
EN61000-4-11: 1994.
&
Harmonized Standard
EN 60598-1: 2004
IEC 60598-1:2003+ corrigendum 2004
Part 1:General requirements and test
Following the provisions of the low voltage directive 73/23/EEC and 93/68/EEC
Innovation , Quality , Performance
ME2602-1 User Guide
Professional Entertainment Technology
1
-
.
TABLE OF CONTENTS
1. Introduction
2. Safety Instruction
3. Description
4. Operation and Technical Specification
5. Lamp installation or replacement
6. Beam Angle
7. Troubleshooting
8. Fixture Cleaning
6
-
7. Troubleshooting
Problem Probable cause(s) Suggested remedy
No power to the fixture Check power connections
Blown fuse If power is applied but does not
light, please check and replace
fuse if necessary.
Burned out lamp Install new lamp.
No light
Fixture too hot Allow to cool down. Improve air
flow around the unit.
Sound too low to activate
control circuit
Increase volume. No action
Electrical malfunction Refer to service technician.
5
-
Specification:
• Voltage: AC 120V~60Hz
• Fuse: 20mm glass 250V T6.3A
• Bulb: ELC 24V 250W
• Dimension: 306 x 263 x 140 mm
• Weight: 8 kgs
5. Lamp installation or replacement
• Always switch off the mains supply and never handle the lamp or luminaire when it is hot.
• Do not touch the bulb with bare hands. If this does happen, clean the lamp with denatured
alcohol and wipe with a lint free cloth before installing.
6. Beam angle
The Projector is best to be placed 5 meters from wall, and from this distance the light effect
will cover an area of 3.7 m x 3.7 m.
Pull the socket off the lamp.
Do not pull the wires.
2
-
1. Introduction
Thank you for purchasing Wild Tech’s ME2602-1. It is a unique 250W kaleidoscopic effect
that projects a swarm of swirling patterns. Comes with great built-in programs with auto
movement or sound activation. It's linkable, performing synchronized light show, perfect for
discos, clubs, bars, and parties.
2. Safety Instruction
WARNING
♦ Please keep this User Guide for future consultation. If you sell the unit to another user,
be sure that they also receive this instruction booklet.
♦ Unpack and check carefully there is no transportation damage before using the unit.
♦ Before operating, ensure that the voltage and frequency of power supply match the
power requirements of the unit.
♦
It’s important to ground the yellow/green conductor to earth in order to avoid electric
shock.
♦ The unit is for indoor use only. Use only in a dry location.
♦ The unit must be installed in a location with adequate ventilation, at least 50cm from
adjacent surfaces. Be sure that no ventilation slots are blocked.
♦ Disconnect mains power before fuse/lamp replacement or servicing.
♦ Replace fuse/lamp only with the same type.
♦ Make sure there is no flammable materials close to the unit while operating as it is fire
hazard.
♦
Use safety cable when fixes this unit.
♦
Maximum ambient temperature is TA: 40℃. Don’t operate it where the temperature is
higher than this.
♦ Unit surface temperature may reach up to 85℃. Don’t touch the housing bare-hand
during its operation. Turn off the power and allow about 15 minutes for the unit to cool
down before replacing bulb or serving.
Please read carefully the instruction, which includes important information
about the installation, usage and maintenance.
3
-
♦ In the event of serious operating problem, stop using the unit immediately. Never try to
repair the unit by yourself. Repairs carried out by unskilled people can lead to damage
or malfunction. Please contact the nearest authorized technical assistance center.
Always use the same type spare parts.
♦ Don’t connect the device to any dimmer pack or power pack.
♦ Do not touch any wire during operation as high voltage might be causing electric
shock.
.
Warning
♦ To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or
moisture.
♦ Never touch bulb with bare fingers as it is very hot after using.
♦ Hot lamp explosion hazard. Do not open the unit within five minutes after switching off.
♦ Do not start on the unit without bulb enclosure or housing are damaged.
♦ The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly
damaged.
♦
Do not look directly at the light while the bulb is on.
Caution
There are no user serviceable parts inside the unit. Do not open the housing or attempt
any repairs yourself. In the unlikely event your unit may require service, please contact
your nearest dealer.
Rigging the fixtures
The unit should be mounted via its screw holes on the bracket. Always ensure that the
unit is firmly fixed to avoid vibration and slipping while operating. Always ensure that the
structure to which you are attaching the unit is secure and is able to support a weight of
10 times of the unit’ s weight. Also always use a safety cable that can hold 12 times of the
weight of the unit when installing the fixture.
The installation must be carried out by qualified service people only. The device should
be installed out of reach of people and outside areas where persons may walk by or be
seated.
4
-
3. Description
1. Optical lens with manual focus adjustment.
2. Hanging bracket with 2 knobs on both sides to fasten the unit and a mounting hole to fix a
mounting hook.
3. Mains input with CIE socket and integrated fuse holder, connect the supplied mains cable
here.
4. Lamp compartment, to be opened with this knob
5. Internal microphone
6. ¼” jack used to connect the optional CA-8 controller.
7. Two 3.5mm stereo jacks used to synchronize several units.
8. Cooling fan.
4. Operation and Technical Specification
• Plugging into the mains power, the fixture starts running.
The ME2602-1 runs in automatic or sound activated mode.
• Precise optics with special gobo / color wheel.
• Linkable by using stereo cable with 3.5mm stereo
jack ( optional )
• Focus adjustable and fan cooled.
•
With easy controller CA-8 ( Optional ) for many lighting shows as listed below.
Stand by
Blackout the unit
Function
Speed of gobo wheel
and mirrored-tunnel:
Fast and slow
Speed of gobo wheel
and mirrored-tunnel:
Fast and slow
a.) Adjust gobo wheel rotating
direction and speed.
b.) Adjust mirrored-tunnel
rotating direction and speed.
Mode
Sound
(LED off )
Auto
(LED on)
Latch
(LED blinking)
