Page 1
Revision 4/16 C21
For Wallbed models:
KING SIZE
INSTRUCTION BOOKLET #C21
WARNING! ALL MURPHY/WALLBED SYSTEMS CONTAIN STORED ENERGY. FAILURE TO USE AND
FOLLOW THESE INSTRUCTIONS DURING THE INSTALLATION PROCESS COULD RESULT IN SEVERE
PERSONAL INJURY TO USER OR DAMAGE TO PRODUCT. PLEASE CONTACT CUSTOMER SERVICE AT
866-725-6401 FOR ANY QUESTIONS.
Watch step by step installation instructions at:
https://www.wallbedsbywilding.com/wallbed-installation-studio-series/
Page 2
Page 3
Tools Needed
Ratchet
13mm Socket
Phillips screwdriver
Large regular screwdriver
11mm Socket
8mm Socket
6 foot ladder
13 mm open end wrench
Studsensor
Stud finder
Cordless screw driver
With Phillips bit
STAN LEY
Tape measure
Page 4
Hardware Page
Pack 2
Item
5/16’’ Nylock
Hex Nut
5/16’’ x 1”
Hex Head Bolt
5/16’’ x 1 1/4’’
Allen Head Bolt
16
4
10
Qty
Pack 3
Item
10-24 Black
Nylock Nut
10-24 x 1 Black
Machine Screw
10-24 x 1/2’’ Black
Machine Screw
1/4’’
Qty
16
2
14
Pack 4
Item
Star Washer
1/4’’ x 1 1/2’’
Hex Head Bolt
1 1/2” Nylon washer
Qty
Other Hardware
(From Manila Envelope)
Item Qty
4
2
Cam Fitting
2
Square Tip Bit
Connecting Bolts
4
(Extra)
1
36
3
“L” Bracket
5/16’’ x 1”
Tapered Allen Head Bolt
1 5/8’’ Pan head
Wood Screw
5/16” Allen wrench
6’’
Panel Saver
(In mechanism rails box)
2
1/2” x 3/4”
Black Barrel
(Leg Stop)
2
2
2
5/8’’ Pan head Screw
1 1/2” x 5/16”
Black washer
4
2’’ Wood Screw
2
6
6
Optional hardware:
1” x 1” x 1 3/4”
Four Hole Corner
Bracket
Pack 7
1 1/2” X .765”
Black washer
Pack 5
Item
Qty
For bed designs using crown molding.
12
1/4’’
1 Wood Screw
Bed Handles
2
Item
2.5’’
5/8’’ Pan
head Screw
2
Qty
160
5/8’’ Pan head Screw
3/4’’ Washer
Velcro Retainer Straps
2
Bed Models
Remington
Newport
2
3/8’’
1
NOTE: Handle may vary depend
ing on bed style.
Dakota
4
4
1”
-
Page 5
Step 1:
chased a King or Queen size bed the Side Boards
measure 85.25” long. Then from the small square
cardboard box locate the two Lift Mechanisms,
hardware bags, and springs.
Locate the two Side Boards. If you pur
-
Cut out for room
base molding
Finished edge
Lift Mechanism
Left Side Board Right Side Board
Step 2: Install Springs in the Lift Mechanisms
The required number of springs in the Lift Mechanisms varies with the different weights of
mattresses. If you purchased your mattress with your bed from Wilding Wallbeds refer to the
chart to the right. This will also be a good reference point for mattresses not purchased with
your Wall bed.
NOTE: After you have completed installing and checking operation of your Wallbed, you
may find it necessary to add or remove springs to achieve the correct lift effort of between
5 and 10 pounds.
Install the first spring in hole #1 for king, #2 for queen on both the Mounting Plate and the Tension Arm. Hook one end of
the spring under the upturned edge of the Mounting Plate. Lay the spring down and slide it under the matching hole in the
Tension Arm. See illustration 1.
HELPFUL HINT: You may find it easier to fit the hook
under the Tension Arm if you pry up the Arm Bracket with
a wooden wedge or similar device.
(Some springs may be pre-installed)
Bed Size
King
Queen
Number of Springs
Illustration 1
Continue by working down from,
hole 1 (king size beds) or hole 2, (for
queen size), until you have installed
the required number of springs.
Hole #1
(Right lift mechanism)
Hole #2
9
7
IMPORTANT! Be sure that holes
of the Mounting Plate correspond
to the holes in the Tension Arm
and use the same number of
springs and the same configuration on both Lift Mechanisms
Repeat Step 2 for Left Lift Mechanism.
Hole #9
Upturned edge
of mounting
plate
Arm Bracket
Tension Arm
Page 1
Page 6
Hardware needed for next step from Pack #2
5/16’’ Nylock Nut
Step 3:

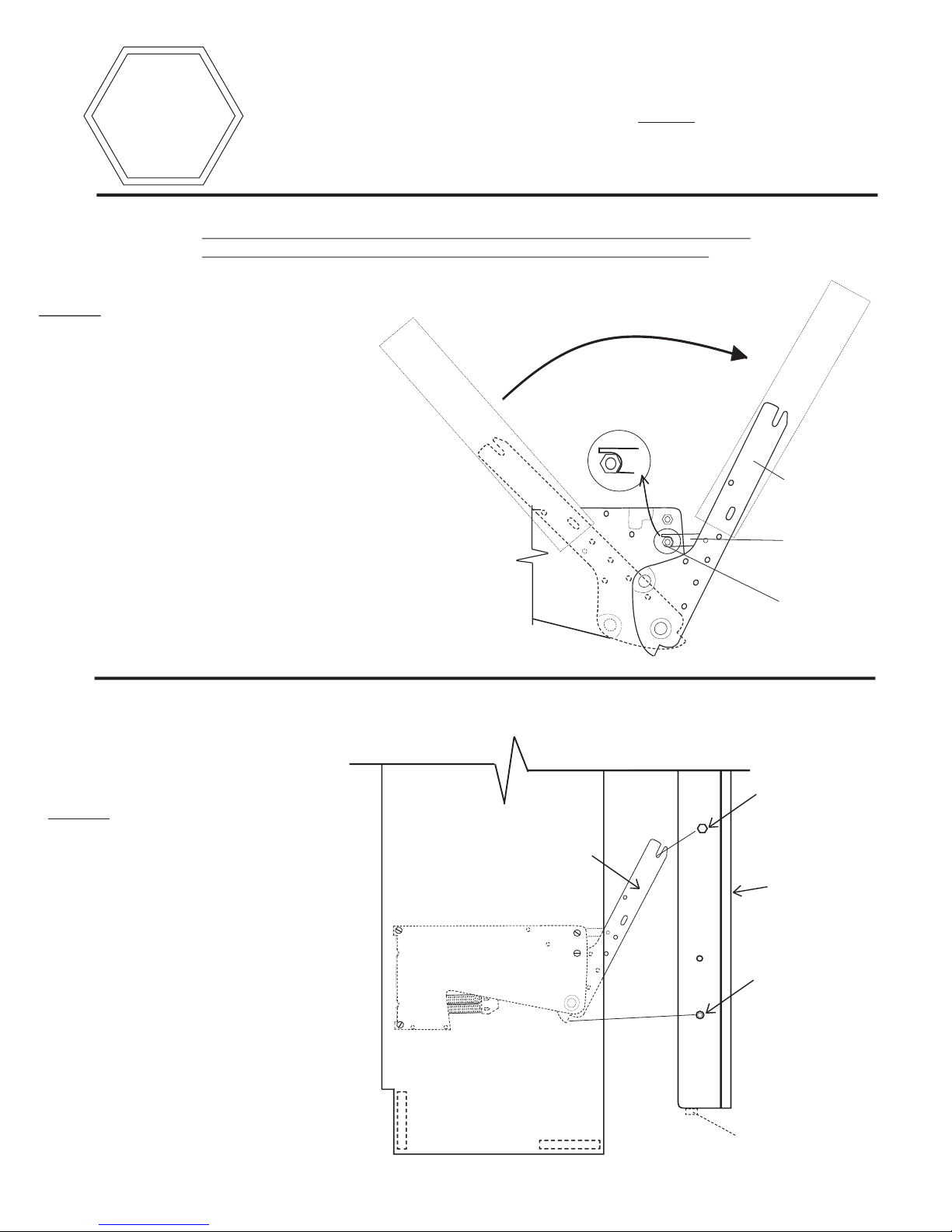

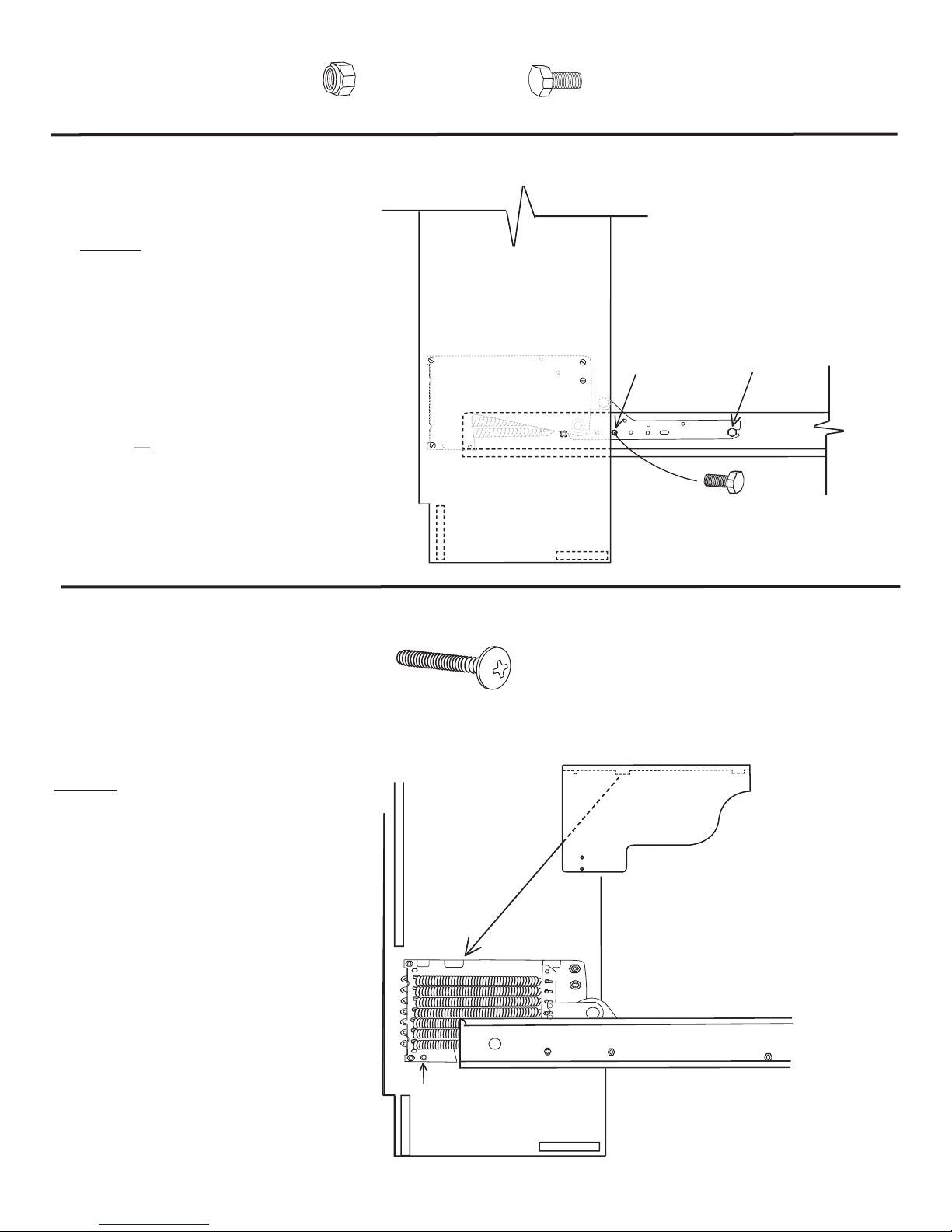

Install the Lift Mechanism to
the Side Board by inserting a 5/16 x 1
1/4” Tapered Allen head Bolt through
holes A, B, C and D from the outside
(countersunk holes) of the Side Board.
The bolt then goes through the corresponding holes of the Right Lift
Mechanism as illustrated. Thread on
four 5/16” Nylock nuts and tighten
(hole A may have threaded collar
instead of bolt)
IMPORTANT! Over tightening the nuts will
pull the head of the bolt too deeply into the
Side Board. Tighten only until the head of the
bolt is flush with the surface of the Side Board .
Repeat step 3 with the Left Side
Board and Lift Mechanism.
x 8
Note:
May be threaded
collar instead of
bolt in hole A.
5/16’’ x 1 1/4’’
Tapered Allen Head Bolt
Hole A
Hole B
Hole C
Hole D
Finished Edge
x 8
Right
Side Board
All holes are
countersunk in
this side of side
board
Base Board
Notch
-
Hardware needed for next step:

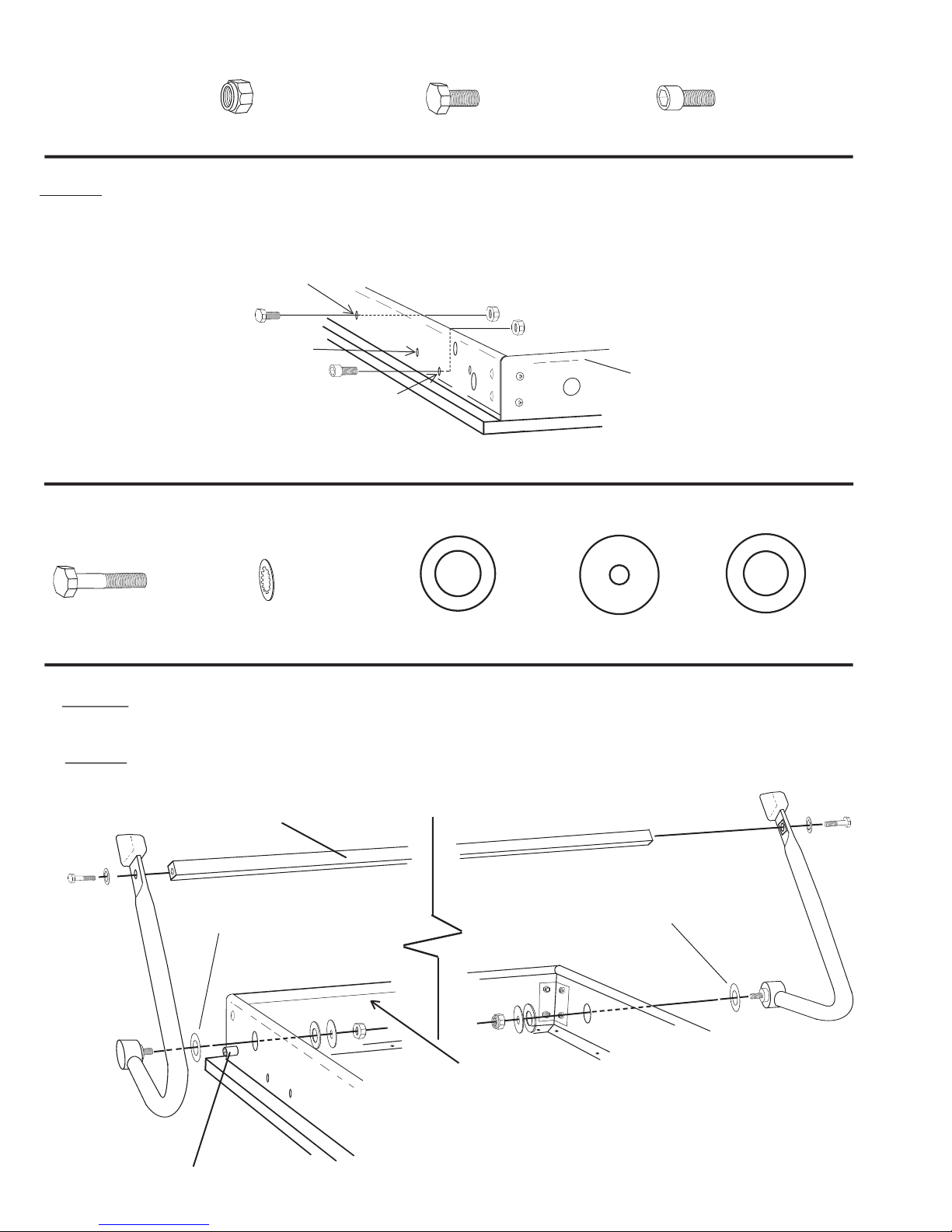

Step 4:
Side Boards down as illustrated
and screw the Connecting Bolts
into the holes provided as il
lustrated.
Lay the right and left
-
Note: Screw the connecting
bolts down until the collar of the
connecting bolt is seated firmly
against the surface of the wood.
*Information on Optional Depth:
“Standard depth” side boards measure 15 7/8” deep whereas “Extra
Deep” side boards measure 19 7/8”.
The dashed lines on the illustrations
show the optional extra depth side
boards and will have two additional
connecting bolts to hold a headboard
shelf once assembly is complete.
LEFT
Connecting Bolt
Deep sideboards
(19 7/8” deep)
Optional hardware
x 22-26
Optional
(Depending on option)*
RIGHT
Page 2
Page 7

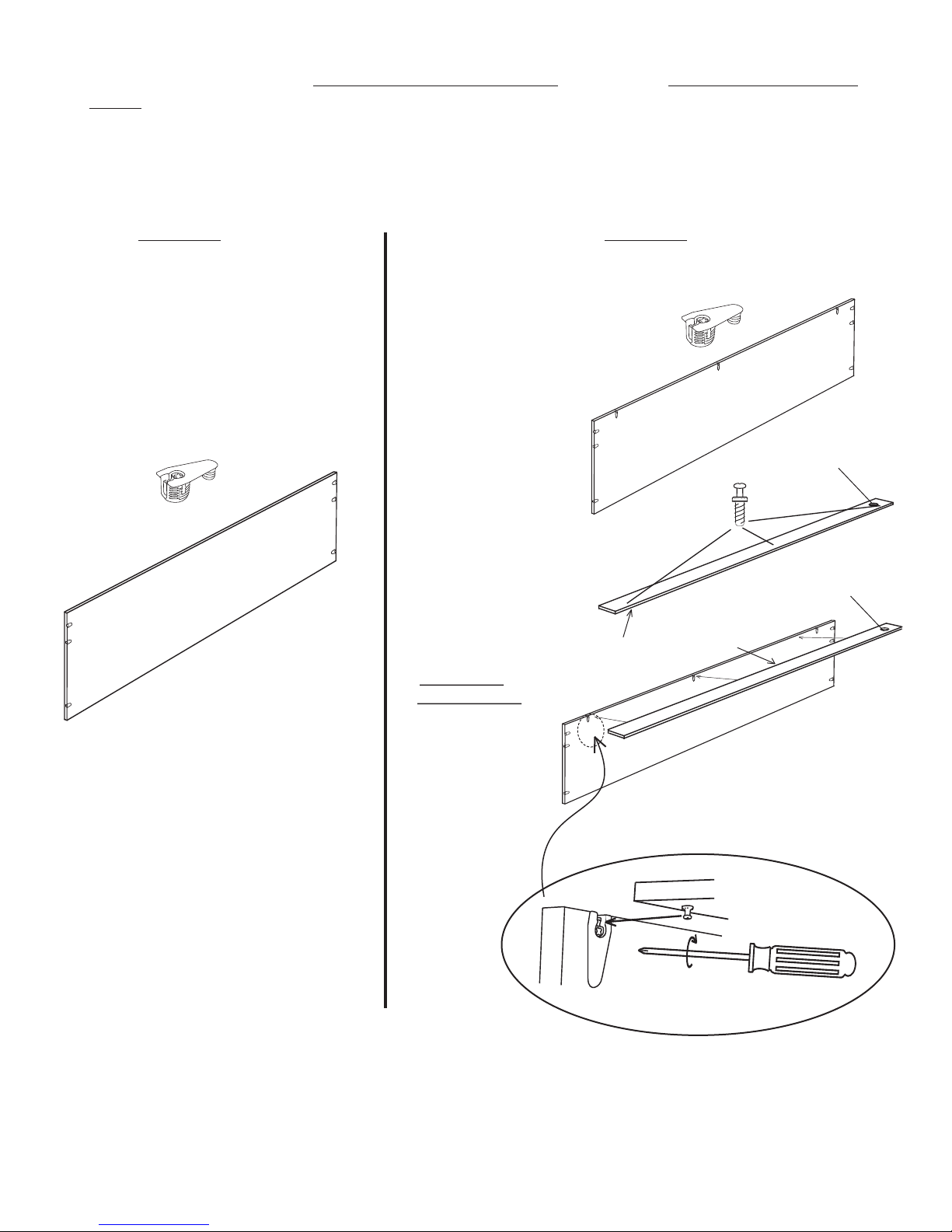

Head Boards have 2 options. Option 1 is for a “standard depth” Wallbed and Option 2 is for an “Extra
Deep” Wallbed. Determine which Wallbed kit you have and then proceed with the correct option below.
OPTION 1
STANDARD DEPTH HEAD BOARD
Head Board has 6 Cam Fittings pre-insert
ed into the back of the Head Board
-
Head Board has 9
Cam Fittings preinserted into the
back of the extra
deep Head Board
Insert 3 Connecting
Bolts in the bottom
of the Head Board
Shelf.
Turn the Head
Board Shelf over
and insert the Con
necting Bolts into
the Cam Fittings
and tighten them
with a Phillips
screw driver.
OPTION 2
EXTRA DEEP HEAD BOARD
Extra depth Head Board shelf
Front
-
Front
Grommet
Hole
Grommet
Hole
Important!
Don’t over
tighten Cam
Fittings a 1/2
turn is suffi
cient.
-
-
Page 3
1/2 turn to right
Page 8
Step 5:
the wall to which it will be installed. Note the “Front Stretcher” (illustrated below)
should be positioned so the Cam Fittings are at the bottom of the Bed Cabinet.
IMPORTANT! Tighten the cam fittings with a hand screw driver by turning the
Phillips head clockwise 1/2 turn to tight.
HELPFUL HINT: It is easier to tighten the Cam Fittings if the two bed parts are
snug together.

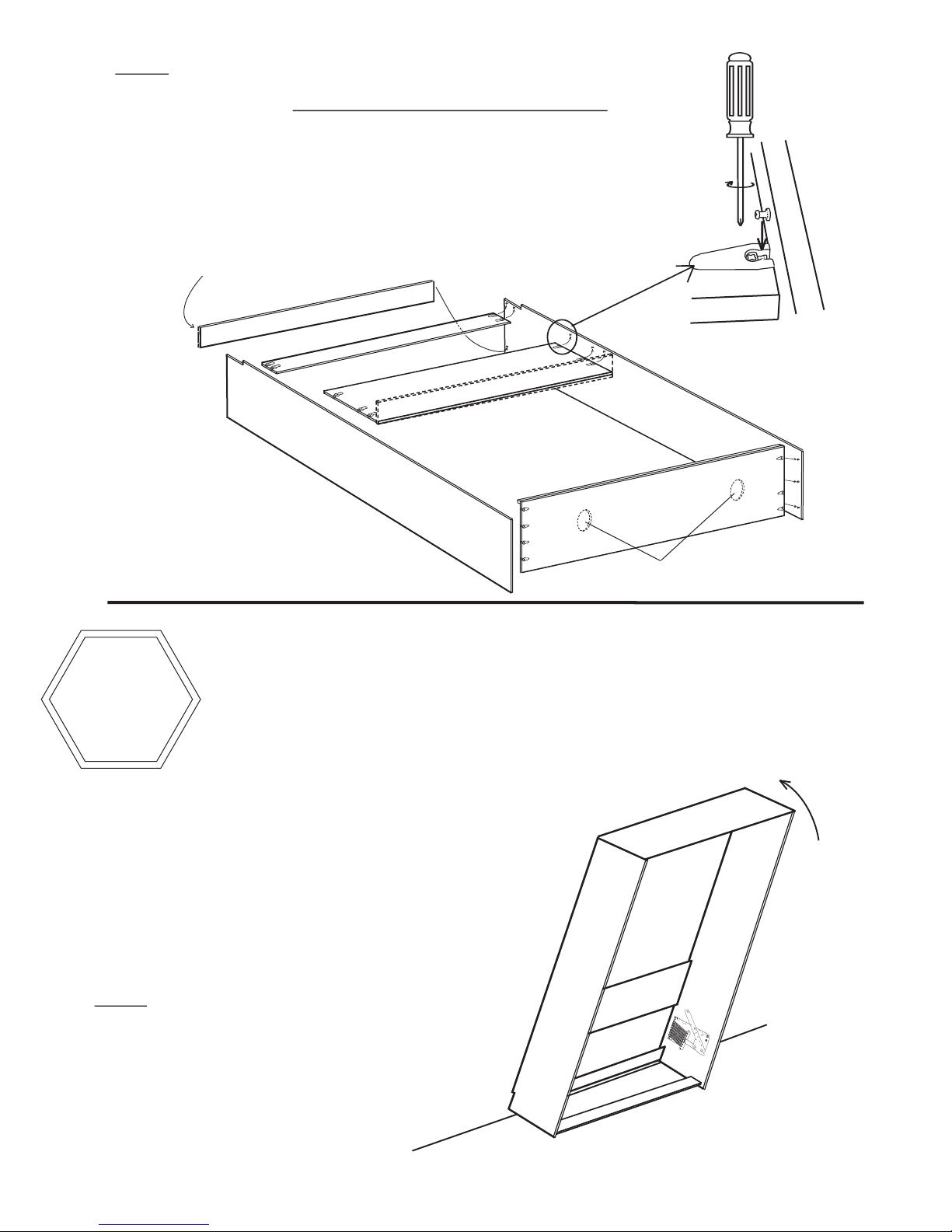

Assemble the Bed Cabinet face down with the bottom of the Bed Cabinet nearer
Illustration 5
1/2 Turn to tight
Connecting Bolt
STOP
Cam fittings on bottom
Front Stretcher
Bed Bottom
Optional Head Board Shelf for extra deep
Cam Fitting
Optional holes
for lights
IF YOU PURCHASED LIGHTS FOR YOUR WALLBED YOU MUST REFER TO THE
LIGHT KIT INSTRUCTIONS AND INSTALL THE LIGHT KIT BEFORE MOVING ON.
(Light Kit instructions are in the Light Kit box)
Step 6:
against the wall where you intend to
have it installed.
Stand the bed cabinet up
INSTALLATION WALL
Page 4
Page 9
WARNING! THE NEXT STEP MAY REQUIRE PROFESSIONAL HELP.
IF YOUR WALLS ARE NOT TRADITIONAL WOOD FRAMING, YOU MAY NEED TO HIRE A HANDY
MAN OR CONTRACTOR TO HELP IN ANCHORING THE BED TO YOUR WALL. FAILURE TO PROP
ERLY ANCHOR CABINET COULD CAUSE SEVERE PERSONAL INJURY. CALL TECHNICAL SUP
PORT AT 866-725-6401 IF YOU HAVE ANY QUESTIONS.
Hardware needed for next step
(From Manila Envelope)
-
-
2’’ Wood Screw

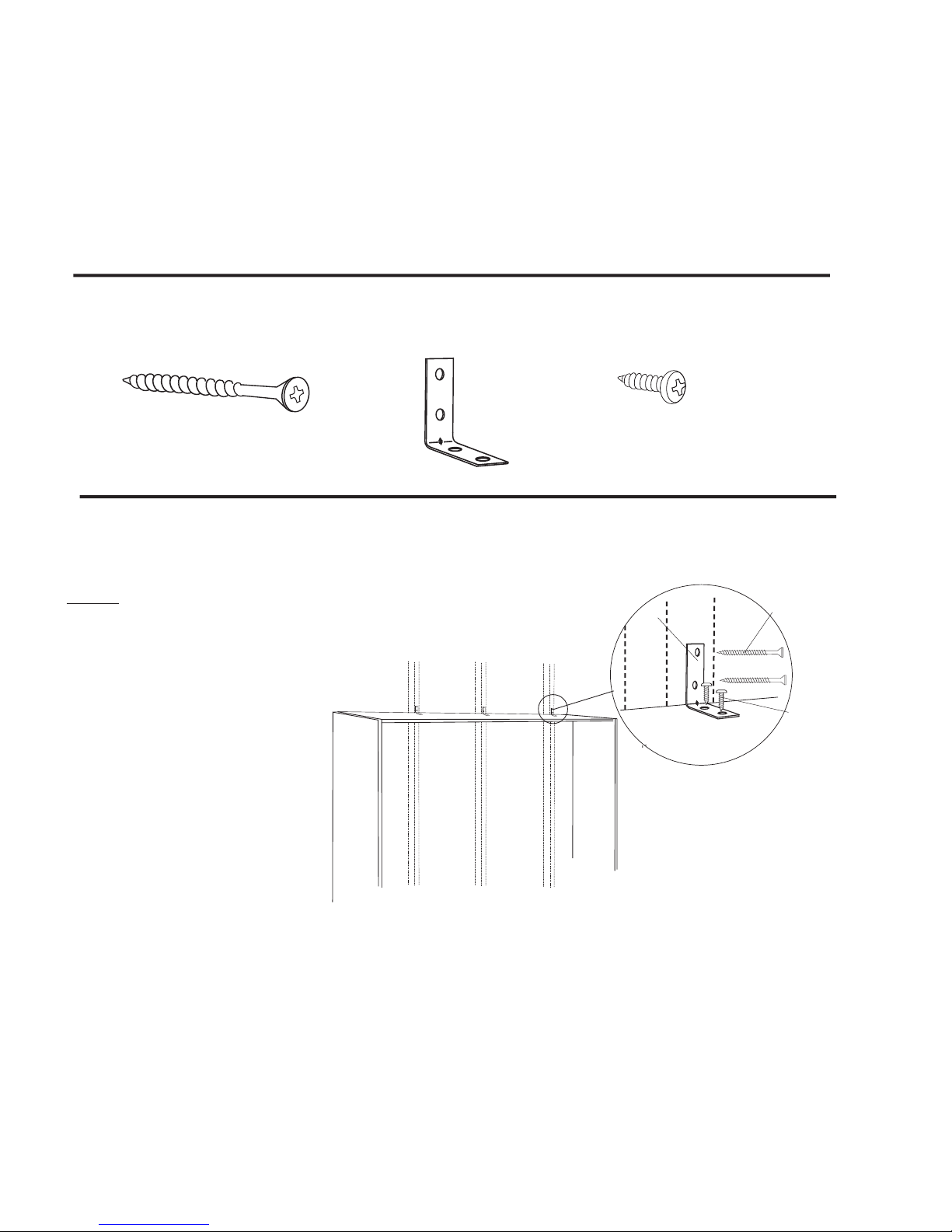

Step 7:: Using a Stud Finder
locate and mark the studs in your
wall behind the Bed Cabinet. Attach “L” brackets to the top, back
of the Bed Cabinet using 3/4” Pan
Head screws corresponding to
where the studs are located in your
wall. Now attach the “L” brackets
to the studs in the wall using six 2”
wood screws. See illustration 6
x 6
x 3
“L” Bracket
Studs in your wall
5/8’’ Pan head Screw
“L” Bracket
STUD
Illustration 6
x 6
2” Wood Screw
3/4” Pan Head
Screw
IMPORTANT! King, Queen
and Full size beds require 3
studs, Twin size beds require
2 studs. It is VERY important
that the bed cabinet be anchored securely to the wall. For
technical support call 866-7256401 toll free.
Bed Cabinet
Page 5
Page 10

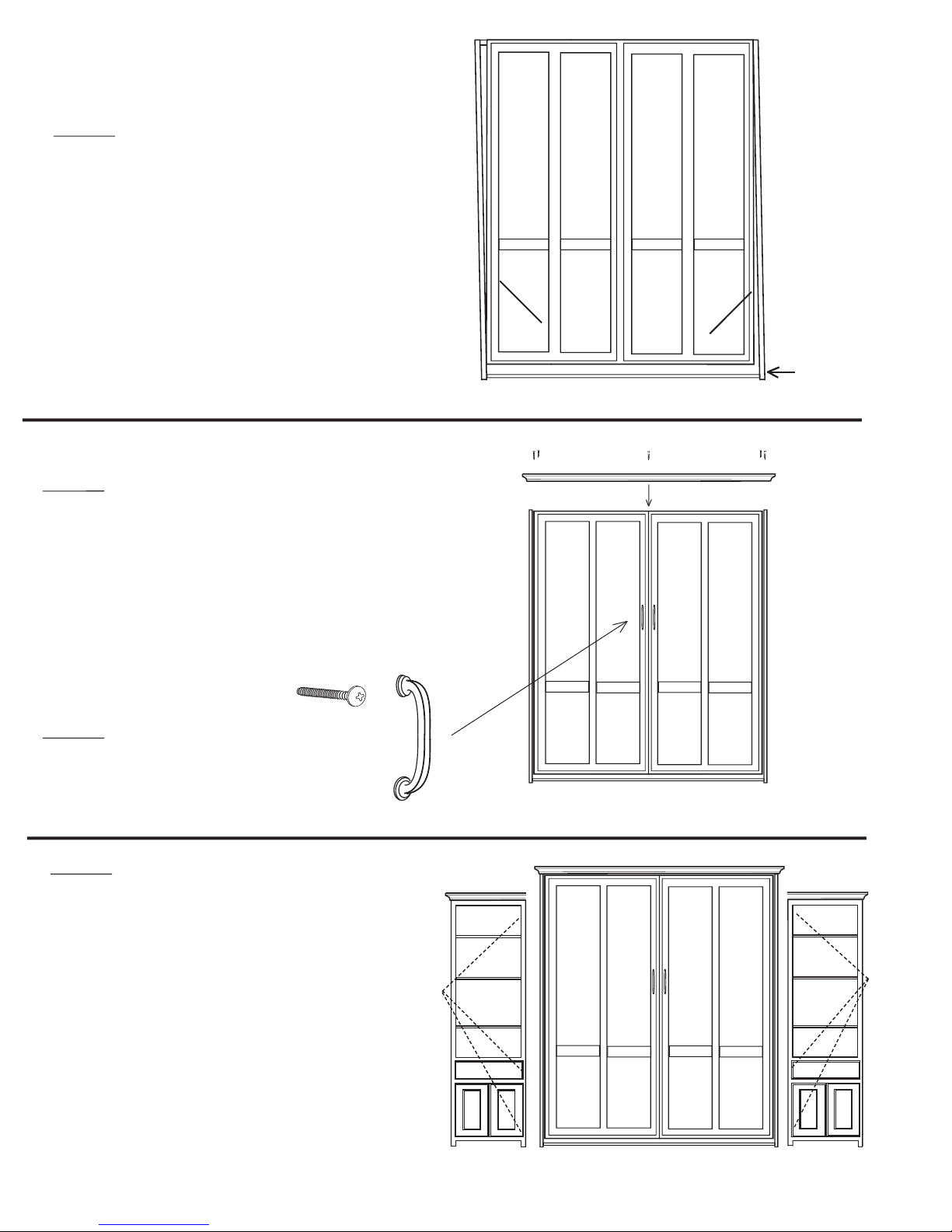

Important note: It is critical to orient the Bed Face panels and the Mattress Rails in the next 5 steps correctly. All of the render
ings (drawings) in the next 5 steps assume that you are
in the previous step. There is a note under each of the following renderings indicating “your bed cabinet installed on this side”
which indicates that is where the Bed Cabinet is in relation to the face panels and rails.
looking away from the wall you just installed the Bed Cabinet against
-
Step 8:
lay them on the floor FACE DOWN
(finished side). Position them in
front of where the Bed Cabinet was
installed in the last step and leave
enough room to work around them.
Note that the holes for bed handles
are arranged together and more away
from the wall the Bed Cabinet is
installed against.
Locate the Front Panel(s) and
Note: Number of
face panels will vary
depending on bed
model. But will typi
cally be either 2 or 4
-
Holes for
handle
Your bed cabinet is installed on this side
Holes for
handle
Step 9:
the Face Panels as shown.
HELPFUL HINT: the “Head Rail”
refers to the end that is closest to the
Bed Cabinet while assembling and
will be where your head is while
sleeping.

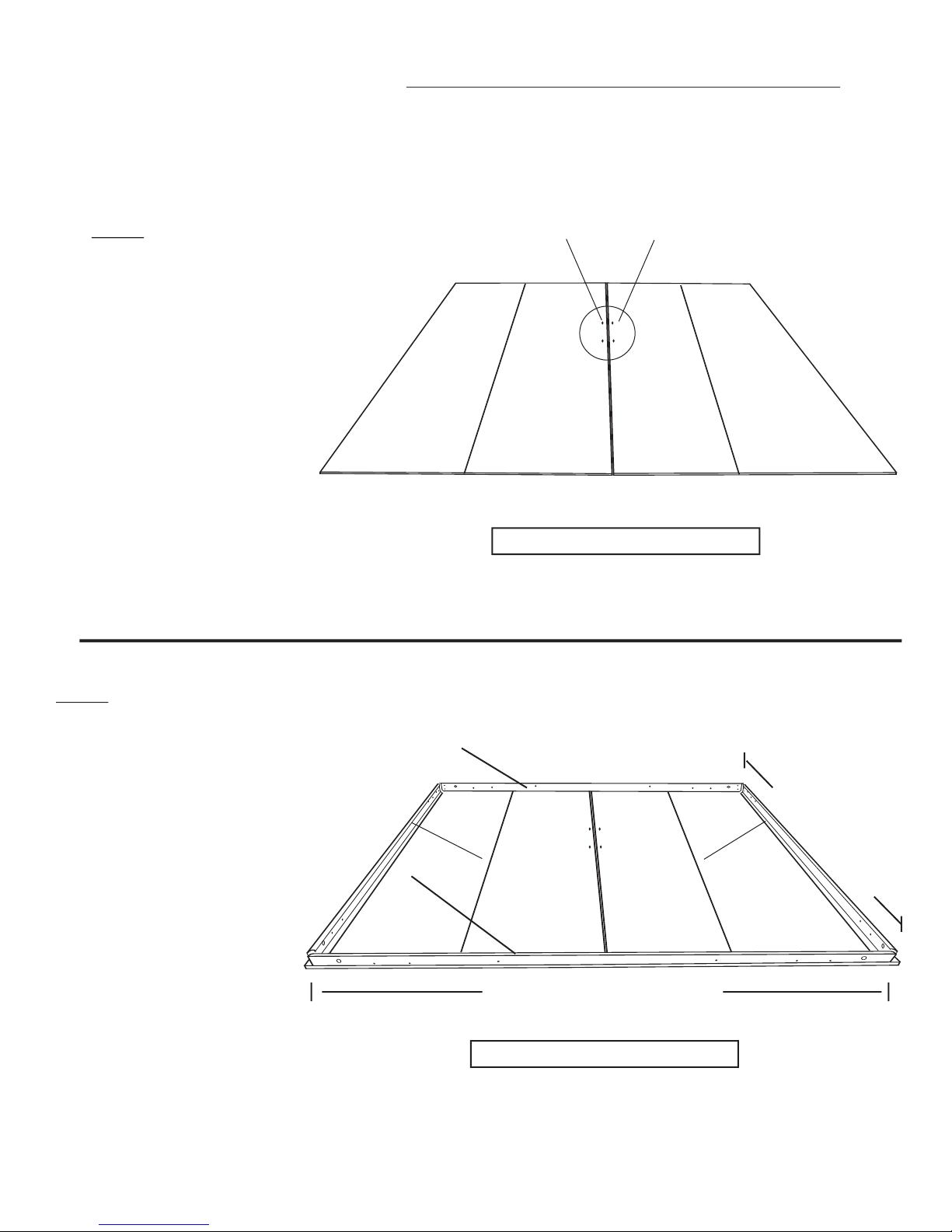

Arrange the Mattress Rails on
Note:
Side Rails measure 81” long.
Head and Foot Rails measure 77.5” long.
Foot rail
Head rail
Side rail
Head and Foot Rails measure 77.5”
Your bed cabinet is installed on this side
Side rail
Side Rails measure 81”
Page 6
Page 11
Hardware needed for next 2 steps most from Pack #3
6’’
x 4 x 2
4 hole corner bracket
1/2” x 3/4”
Black Barrel
(Leg Stop)
10-24 x 1 Black
Machine Screw
1/4’’
x 2
10-24 x 1/2’’ Black
Machine Screw

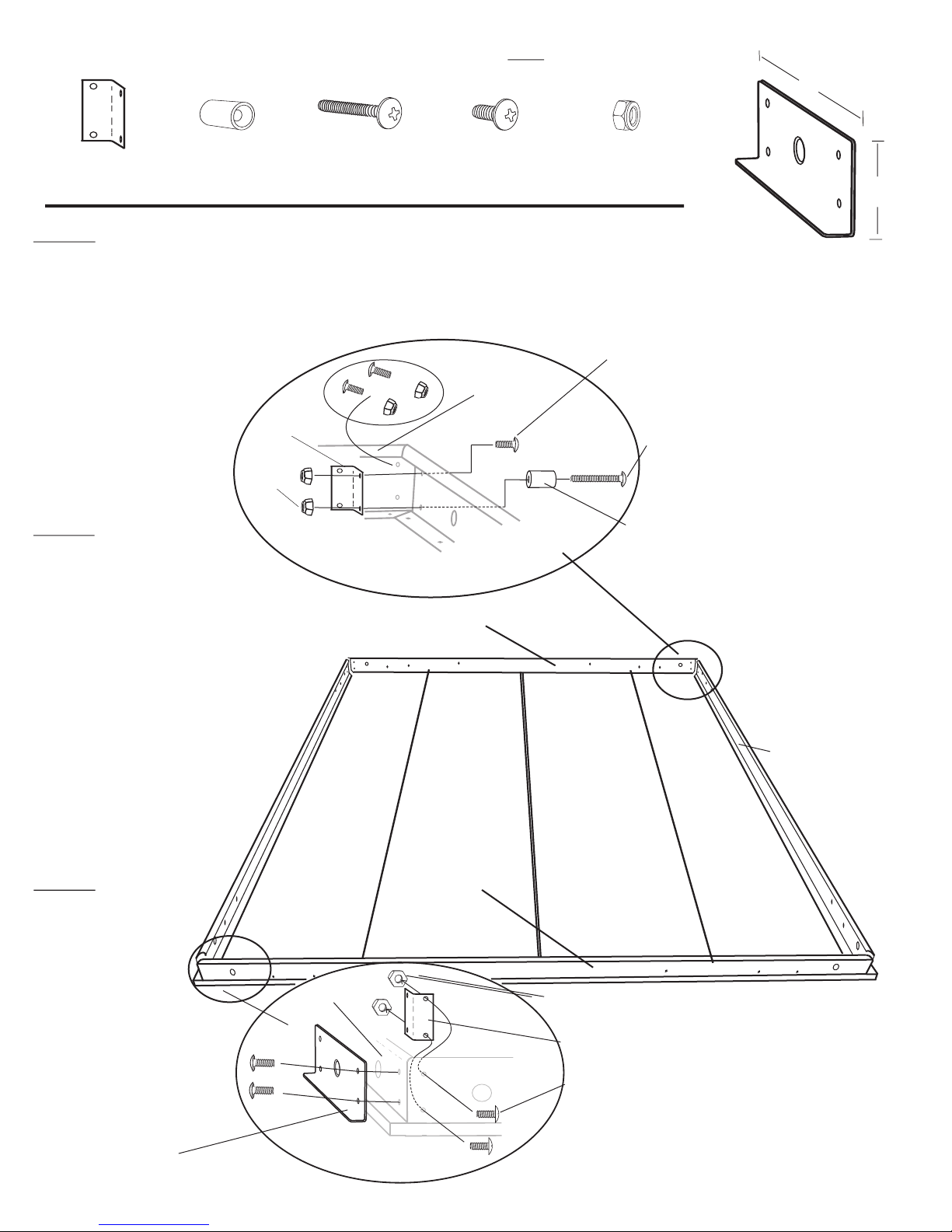

Step 10: From hardware pack 3 locate the hardware shown above. Finger
tighten the hardware as shown in illustration 7 connecting the Foot Rail to the
Side Rail using the 4 hole corner bracket. Note the lower hole on each Side
Rail uses the Leg Stop with the longer screw (1 1/4” Machine). Repeat step
on the opposite side of the Foot Rail corner.
Foot Rail
4 hole corner bracket
10-24 Nylock nut
Step 11: Finger tighten
the hardware as shown in
illustration 8 attaching a
4 hole corner bracket on
the inside of the Side Rail
and the Panel Saver on the
outside of the Side Rail.
Now connect the Head
Rail to the Side Rail via
the 4 hole corner bracket
and repeat on the opposite
Head Rail corner.
Note: The Panel Savers
have 4 holes but you will
only use two attaching
them to the Side Rails.
Illustration 7
Side Rail
Foot rail
x 14
x 16
10-24 Black
Nylock Nut
2.5’’
Panel Saver
(From rails box)
10-24 x 1/2” Machine Screw (black)
10-24 x 1 1/4” Machine Screw (black)
Leg Stop (black barrel) 1/2” x 3/4”
Side rail
Step 12: Once
all sides are finger
tight go back to
each corner and
align the corners
as they are tightened using either
a socket or wrench
and a Phillips
screw driver.
Panel Saver
Side rail
Head rail
Illustration 8
Head rail
10-24 Nylock nut
4 hole corner bracket
10-24 x 1/2” Machine Screw (black)
Page 7
Page
Page 12
Hardware and parts needed for next steps
x Approx. 118
Step 13:
5/8” Square Pan head screw
(Hardware pack #7)
(Provided in Manila Envelope)

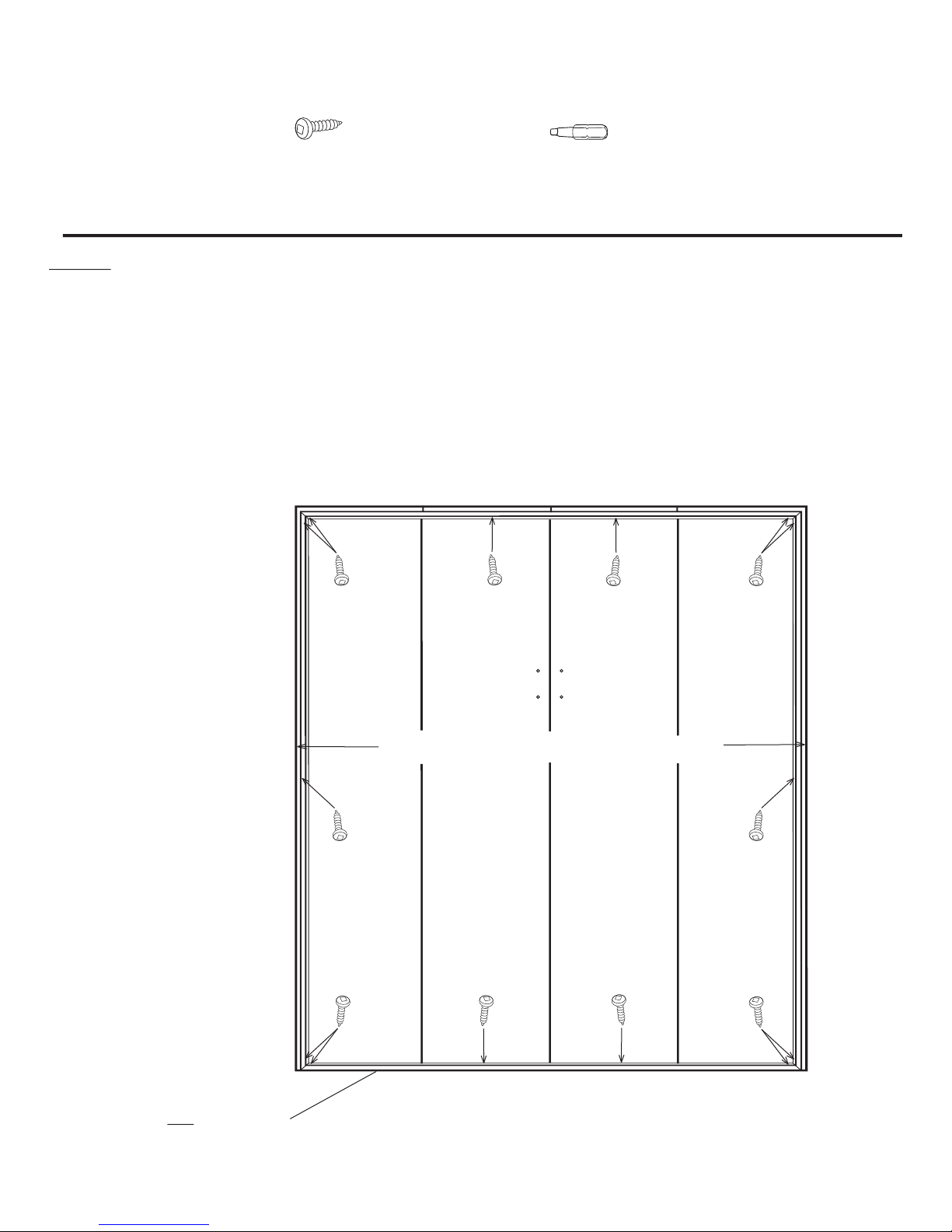

Center the assembled Mattress Frame side to side on the Face Panels (leaving approximately 1”
Square Tip Bit
space on either side) and bring the Head Rail flush to the end of the Face Panels. Once the frame is posi
x 1
tioned correctly and the panels and rails are even and square to each other use 2 screws (5/8” square drive)
in each corner, 1 in each panel’s Head and Foot rail, and 1 in the middle of each Side Rail as illustrated to
hold assembly in place. With the rails held in place, Use the 5/8” screws in each of the remaining holes
around the frame.
Caution: DO NOT STRIP SCREW!
Foot Rail
Frame Head Rail is
flush
with face panels
Side Rail
Handle Holes
Frame positioned evenly side to side with wood face
panels protruding by approximately 1” on either side.
Side Rail
Head Rail
BIRDS EYE (TOP) VIEW
Page 8
Page 13
Hardware and parts needed for next steps
x 5

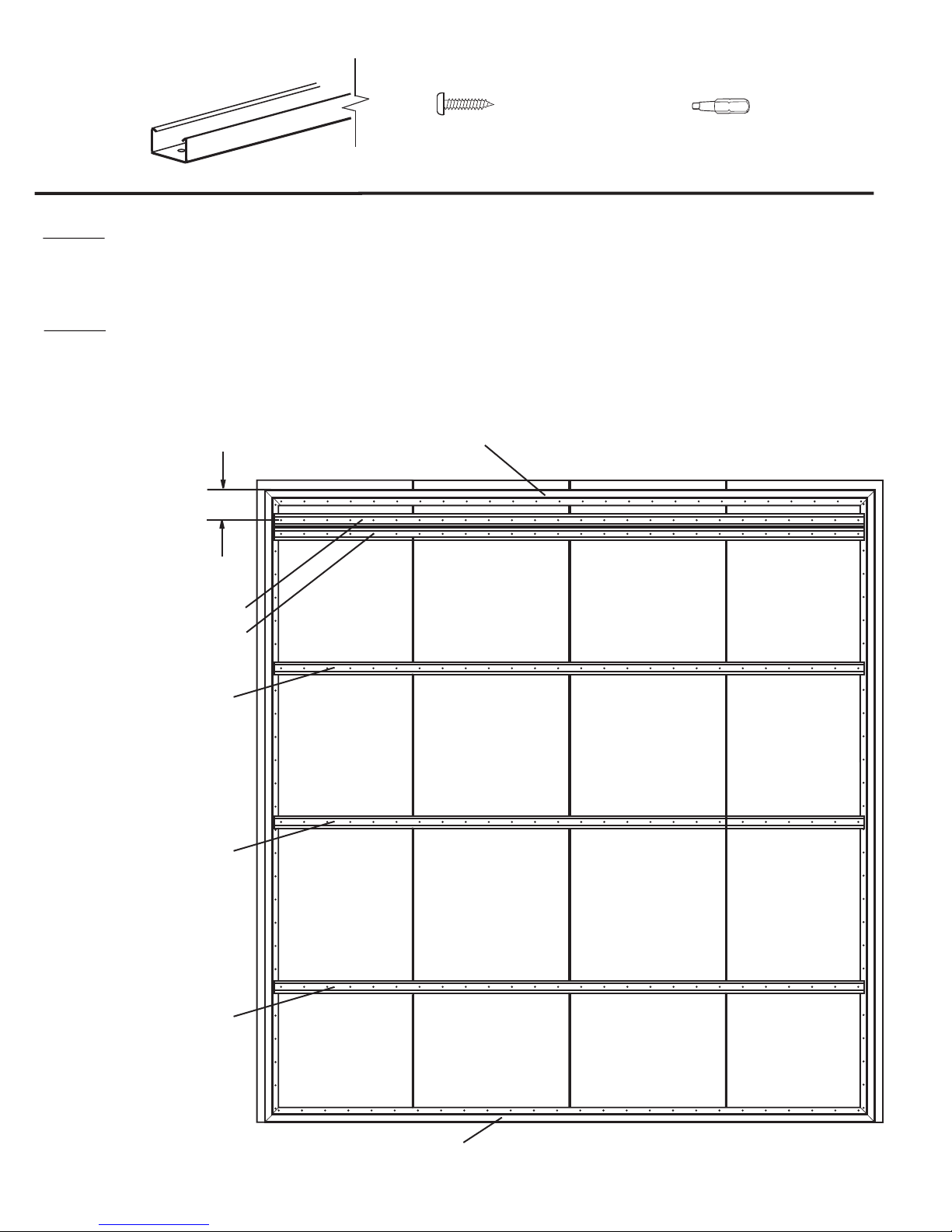

3/4” Pan head screw
Center Stiffeners
Step 14:
eners will overlap the bottom flange of the Side Rails. Note Stiffener #1 (near the foot rail) is positioned 3.5” from the end of the
METAL FRAME so that the center of the Stiffener lines up with the 5/8” hole in the Side Rails. Stiffener #2 butts up against stiffener
#1 and Stiffeners #3-5 are space evenly in the remaining space.
Step 15:
backs of the Face Panels through all of the provided holes in the stiffeners.
On a king size frame, place the five Center Stiffeners across the backs of the Face Panels as illustrated below. The Stiff
With the remaining 3/4” Pan head screws from hardware pack 7 attach the center stiffeners to the
Note: Occasionally one of the holes in the Center Stiffeners will be positioned where the seam of the face panels come to
gether. In this case you do not need to put a screw in where it will wedge between two panels.
(Hardware pack 7)
x Approx.125
Square Tip Bit
(Provided in Manila Envelope)
x 1
-
-
FOOT RAIL
3.5”
Stiffener #1
Stiffener #2
Stiffener #3
Stiffener #4
Stiffener #5
WARNING! DO NOT
STRIP SCREWS.
SCREWS SHOULD
BE TIGHT BUT NOT
STRIPPED.
HEAD RAIL
Page 9
Page 14
Hardware and parts needed for next steps
x 1
3/4” Washer (pack #5)
Step 16
;

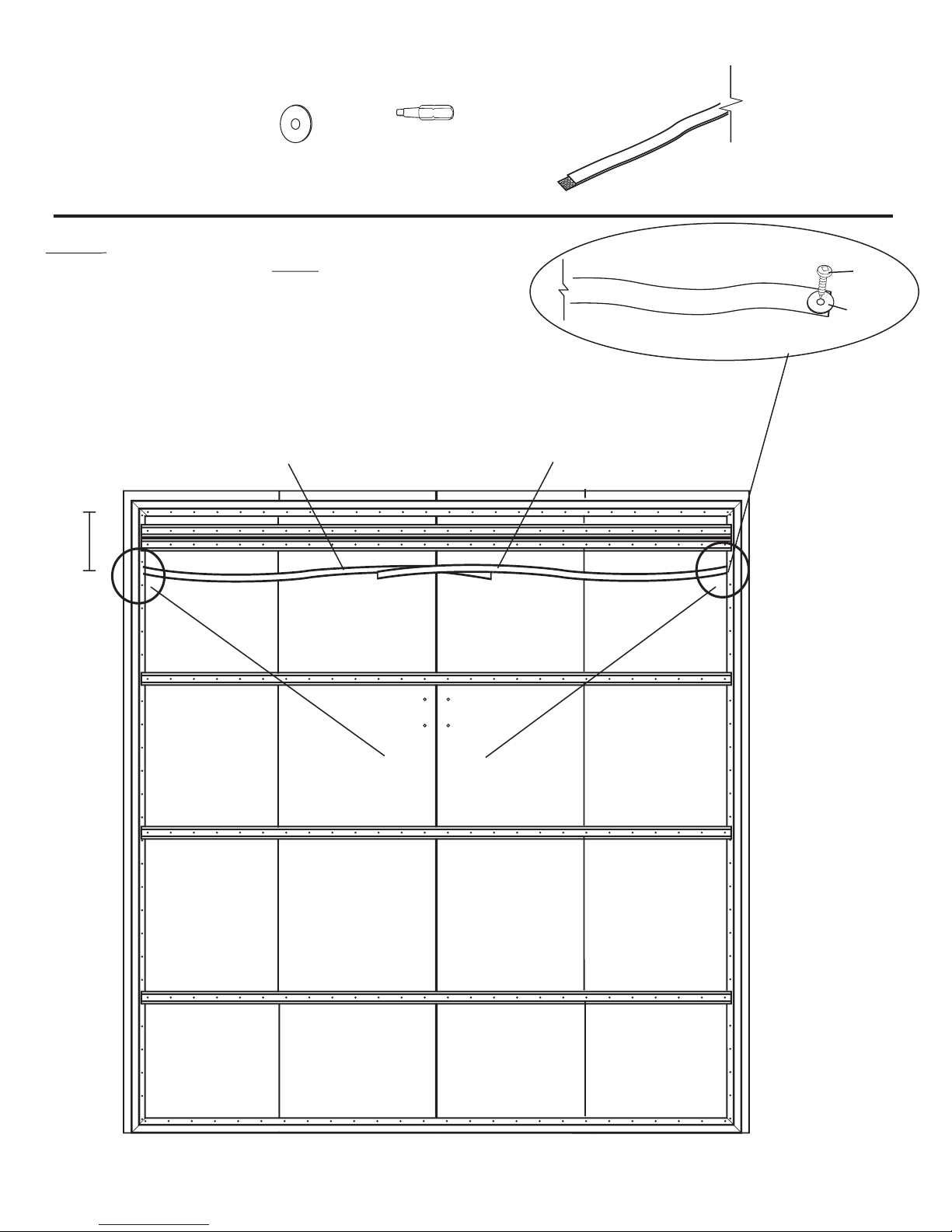

Attach the Velcro Strap that is used for holding the mattress in
place while wall bed is closed. First
x 2
remove
one of the 5/8” Pan head screws
Square Tip Bit
(Provided)
that attaches the rail to the Face Panels on each Side Rail of the frame at
about 18” from the Foot Rail of the frame. Then put the removed screw
through the 3/4” Washer. Position the end of the Velcro over the vacated
screw hole on the rail and drive the screw through the Velcro Strap and back
into the hole. Repeat the process on the opposite Side Rail making sure that
the Velcro Straps oppose each other so they hook together in the middle.
Velcro
Strap
FOOT RAIL
18” +/-
x 1
Velcro Strap (pack #5)
5/8”
Screw
Velcro Strap
3/4”
Washer
Velcro
Strap
Velcro Strap
anchor locations
HEAD RAIL
BIRDS EYE (TOP) VIEW
Page 10
Page 15
Hardware needed for next step from hardware pack #2
X 4
5/16” Nylock Nut
5/16” x 1”
Hex Head Bolt
X 2
5/16” x 1”
Allen Head Bolt
X 2
Step 17: As illustrated below, insert the Allen Head Bolt through bolt hole # 1 and tighten it down securely using a Nylock Nut.
Now insert a 5/16” x 1” Hex head bolt through hole # 3 and thread the Nylock nut ONLY UNTIL THE NUT IS FLUSH WITH
THE END OF THE BOLT. Bolt hole #2 will be used in a later step and is left open for now.
Bolt hole 3
Bolt hole 2 (left open)
Head Rail
Bolt hole 1
6.75”
Hardware needed for next step from hardware pack #4
X 2
1/4” x 1 1/2”
Step 18:
Teflon washers on the out side of the frame for proper spacing.
Step 19:
other side.
Attach the Leg Assembly to the FOOT RAIL side of the frame as illustrated below. Use 1
Position the Cross Bar between the Legs. Place the Star washer on one of the 1/4” X 1 1/2” Hex Head bolts. Repeat on
Star Washer
Cross Bar
1 Thin Teflon washer
X 2
1 1/2 Nylon washer
X 4
1 1/2” x .765
1 Thin Teflon washer
X 2
1 1/2” x 5/16” Black
washer
X 2
Leg Stop
Foot Rail
Page 11
Page 16
STOP
IF YOU PURCHASED LIGHTS FOR YOUR WALLBED YOU MUST
RETURN TO THE LIGHT KIT INSTRUCTIONS STEP 6 AND INSTALL
THE SAFETY CUT OFF DEVICE BEFORE MOVING ON.
WARNING: There is tremendous force involved in the next step, do not place hands be
tween the front of the side boards and the tension arms as you set the mechanism.
Step 20:
edge of the Side Board and using the 13”
length of PVC tubing provided, lever the Lift
Mechanism’s Tension Arm out and down
until you can secure the Arm Lock onto the
Hexagon Nut shown at right. BE SURE
THAT THE LOCK IS SECURED AGAINST
THE HEX NUT BEFORE RELEASING
THE TENSION ON THE LIFT MECHA
NISM.
Brace one foot against the front
-
Helpful hint: As you start to draw the tension arm
down with one hand, use the other hand to posi
tion the arm lock on top of the hex nut. Now as
the Tension Arm continues to be pulled down with
both hands, the Arm Lock will naturally drop into
place around the hex nut as illustrated.
-
PVC tubing
PVC tubing
Tension Arm
-
Arm Lock
Hexagon Nut
IMPORTANT! As instructed in step 17, Bolt #3 should be loose enough to slip into the notch at
the end of the Tension Arm See illustration below.
Step 21: Stand the Bed face unit up on
its Head Rail end. Now with you and
your assistant on either side of the Bed
face unit lift until the # 3 bolt on the
Bed face unit is a few inches above the
slotted end of the Tension Arm on both
sides. Gently lower the Bed face unit
between the Tension Arms and seat the #
3 bolt into the slot at the end of the Tension Arms. Now start pulling the bed
face unit down and away from the Bed
Cabinet the Allen Key bolt head will
seat into the notch at the lower end of
the Tension Arms. Lower the bed unit
down and pull the Legs down so that
they are on the floor. Someone will need
to hold the bed unit down as it will want
to rise.
Tension Arm
Page 12
#3 Bolt head
Bed Front
Allen Key bolt head
Optional Light kit safety
cut off switch. Beds with
light kit only
Page 17
Hardware needed for next step from hardware pack #2
X 2
5/16” Nylock Nut
Warning very important step!
Step 22: Insert a 5/16” x 1” Hex
Head bolt through hole #2 and tighten
a 5/16” Nylock nut onto the bolt. Now
tighten the nut and bolt in hole #3.
Repeat step 22 on the other side of the
bed unit.
Left side board
WARNING! Failure to insert
and tighten all
in severe personal injury
damage to the lift mechanism. Lift mechanism
damage caused by missing or loose hardware
is not covered by warranty.
the bolts in step 22 could result
or
X 2
5/16” x 1” Hex Head Bolt
Hole #2
Hole #3
Hardware needed for next step from hardware pack #2
Step 23: Slip the Mechanism Cover
over the Mechanism so that the tabs on
the cover fit into the notches provided.
Line up the hole with the barrel support
and anchor in place using the 3/16” x 1
1/4” wood screw provided
Repeat step on the other Mechanism.
Helpful hint: The screw for
attaching the spring cover is
a wood screw not a machine
screw and is in hardware
pack #2.
3/16’’x 1 Black
Wood Screw
Head Board
1/4’’
2
Black mechanism cover
Anchor spring cover using 3/16” x 1 1/4”
screw here.
Page 13
Page 18
Step 24:
When the bed is closed check to see if the gap
on either side is the same. If it looks right skip this step. If
the gap is not right, meaning that the Bed Box is too close
to the side board or even touching it at the top on one side
it will need to be adjusted. The procedure will require the
bottom of the bed to be moved slightly to the left or right
depending on which top corner is too close. If the bed is
too close on the top right side for instance, the right side
(bottom) will need to be slid to the left slightly (See illus
tration 12). Have one person push the bed at the bottom
with his feet while the second person pulls at the opposite
bottom side.
Gap
Illustration 12
Gap
Push bed
over at the
bottom to
align
Step 25:
and use the 1 1/4” screws to secure it in place. If you pur
chased side cabinets apply crown mold to them as well.
Place the crown mold on the bed as illustrated
-
Note: Some bed models use a 3/4” thick (C shaped) flat piece as the
crown mold.
Note: Dakota style bed does not have crown
molding.
3/8’’
1
Step 26:
drilled holes in face panels.
Step 27:
Place handles on bed using pre-
Anchor the Side Cabinet to the Bed by
first pre-drilling three 3/16” holes at the inside edge
of the side cabinet. Position the holes close to the
front edge of the Side Cabinet one hole should be
near the top, one should be inside the drawer area
(remove drawer from cabinet to get to this one), and
the third should be at the bottom (open door if your
cabinet has door, or remove drawer at bottom) for
3/16”Drill
this hole. Now move the side cabinets next to the
bed and use three 1 1/4” Gold Screws (located in
a drawer or on a shelf of the side cabinet) through
pre-drilled holes to anchor Side Cabinets to the Bed.
3/16”Drill
Page 14
Loading...
